Wide Size Lateral Packers
3D Model

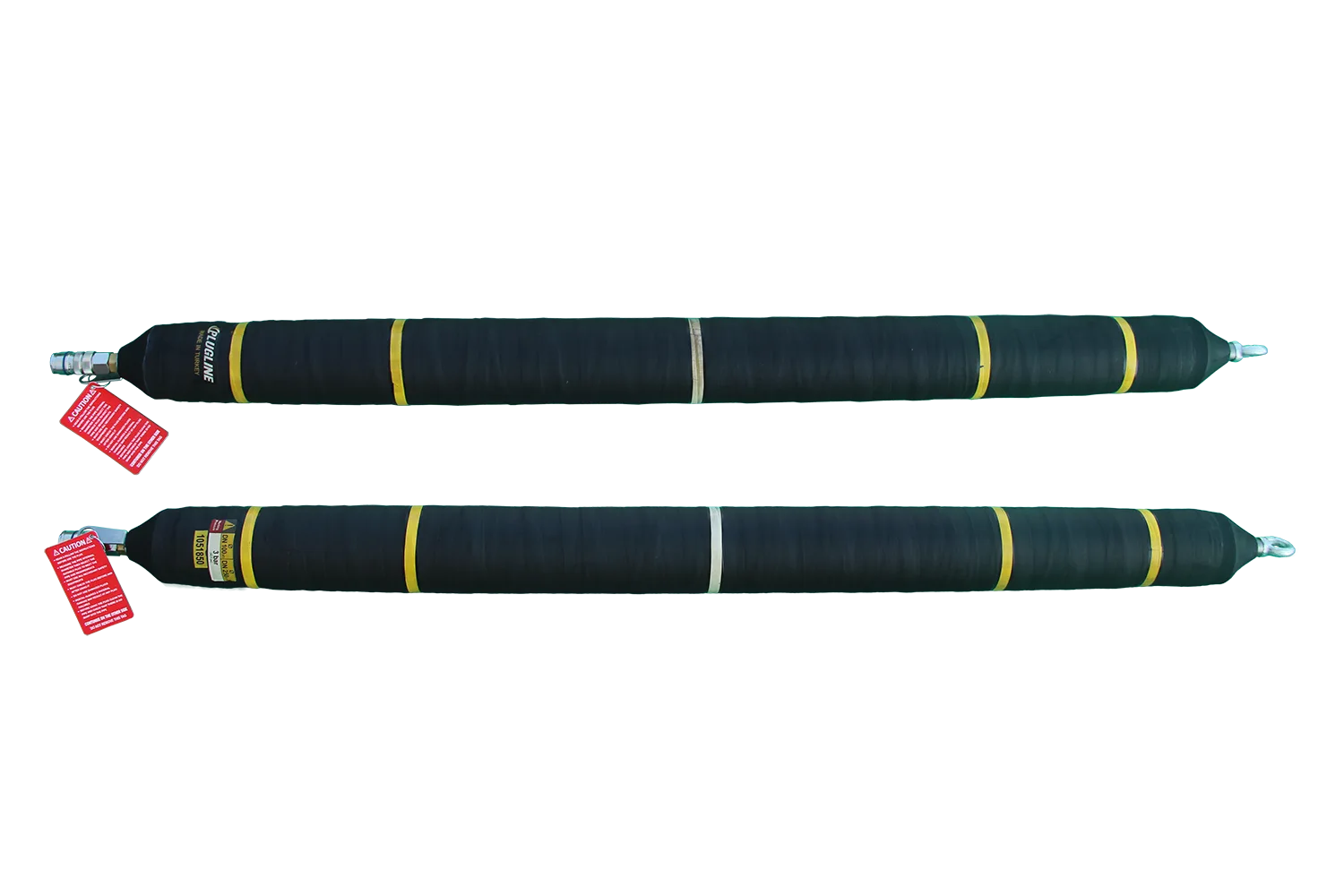

Wide Size Lateral Packers (1,5 - 4,0 bar) - view 1

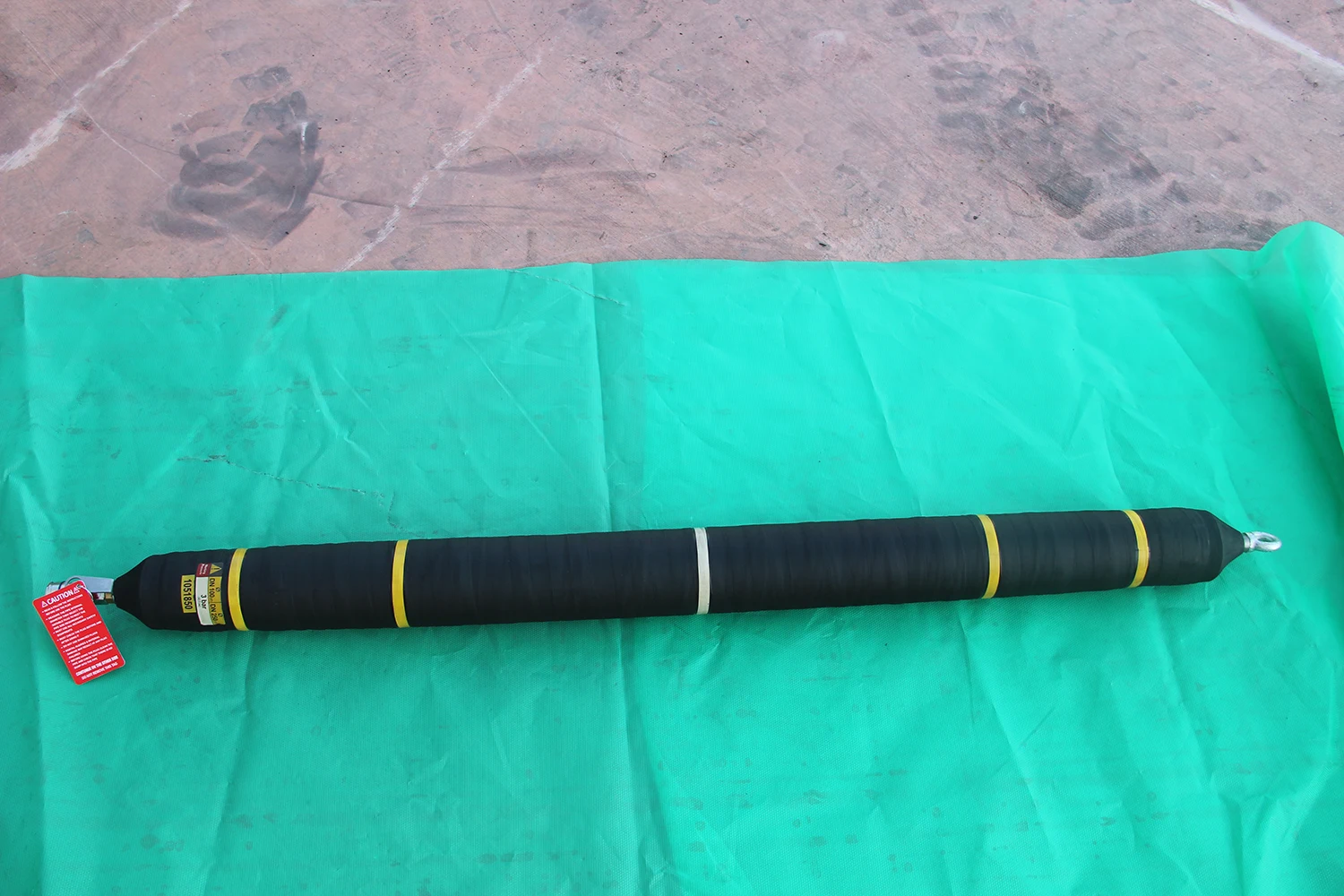

Wide Size Lateral Packers (1,5 - 4,0 bar) - view 2

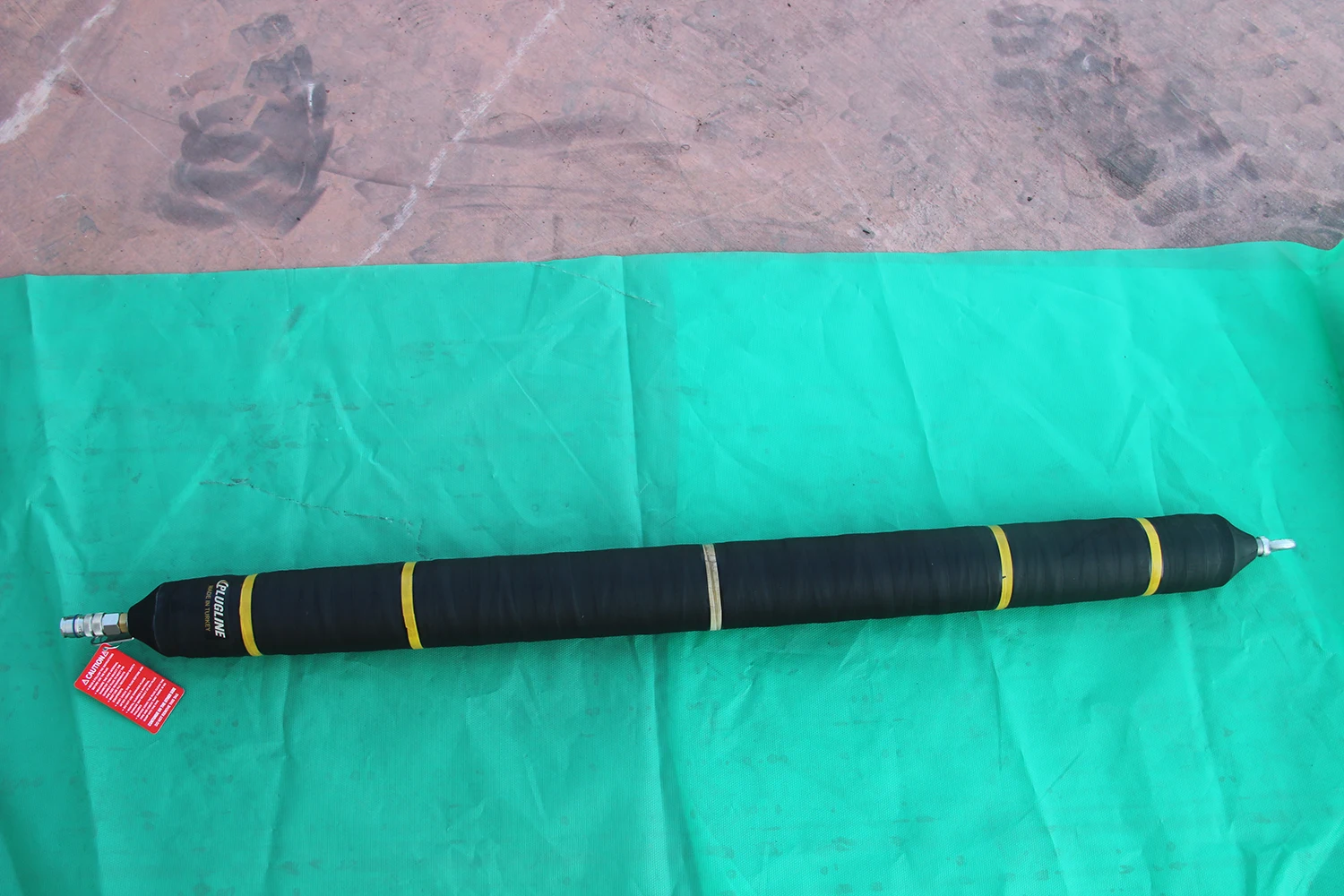

Wide Size Lateral Packers (1,5 - 4,0 bar) - view 3
Wide Size Lateral Packers (1,5 - 4,0 bar) - view 4
Pipe Stoppers

Wide Size Lateral Packers (1,5 - 4,0 bar)

General specifications

Wide lateral packers with rubber end caps for high-pressure rehabilitation work.

  • Size range35 — 1000 mm
  • Working pressure1,5 — 4 bar
  • Contact length600 — 6600 mm
  • MaterialNR
  • Air connectionQuick Coupling / Schrader
  • Working temp.−40 to 70 °C
Request a Quote

Description & features

The Plugline Wide Size Lateral Packer is an innovative tool designed for trenchless pipe rehabilitation, specializing in repairing lateral connections and long sections of sewer or drainage pipelines. With a versatile design that accommodates pipe diameters ranging from 35 mm to 1000 mm and lengths up to 5000 mm, it is the go-to solution for professionals in sewage engineering, municipal maintenance, and industrial applications.

Key Features

  • Wide Size Range: Covers pipe diameters from 35 mm to 1000 mm, offering unmatched flexibility for various pipe systems.
  • NR construction: size range DN35 — DN1500, working pressure 1,5 — 4 bar, contact length 600 — 6600 mm, operating temperature −40 to 70 °C, Quick Coupling / Schrader air connection.
  • Extended Length Options: Available in lengths up to 5000 mm, enabling effective repair of long pipeline sections.
  • Durable Construction: Made with reinforced rubber and stainless steel components to withstand high pressures and tough conditions.
  • Seamless Sealing: The rubber ends to ensure a secure, leak-proof seal during resin curing.
  • Trenchless Technology: Facilitates efficient, non-invasive repairs, eliminating the need for extensive excavation.

Advantages

  • Cost-Effective: Reduces the need for major excavation and replacement, lowering labor and material costs.
  • Efficient: Enables quick, durable repairs for both municipal and industrial pipeline systems.
  • Environmentally Friendly: Minimizes environmental impact by avoiding disruptive digging and waste generation.
  • Versatile Application: Works in lateral connections, mainline pipelines, and bends, accommodating a variety of repair needs.

Application Areas

  • Sewer and Drainage Systems: Repair of lateral connections, joints, and cracks in urban and industrial infrastructure.
  • Municipal Maintenance: Ideal for rehabilitating aging sewer lines without disrupting surface activities.
  • Industrial Pipelines: Effective for repairing pipelines in factories, processing plants, and wastewater systems.

Recommended deployment procedure

Plugline Inflatable Pipe Stoppers are used for sealing, blocking and pressure testing pipework. Follow the procedure below for safe installation and removal.

01
Inspect

Verify each stopper for surface defects. Confirm reference matches purchase order. Pre-test in a clean environment to nominal 0.5 bar.

02
Position

Insert deflated. Place at least two pipe-diameters inside the bore. Secure the connector hose to the inflation valve.

03
Inflate

Inflate to nominal pressure indicated on the datasheet. Hold for 60 seconds and verify seal under audible test.

04
Test

Perform line test per EN 1610 or local code. Record drop, hold time, ambient temperature.

05
Recover

Deflate fully before withdrawal. Inspect for damage. Stopper may be reused for up to 200 cycles under nominal conditions.

Datasheets & catalogues

Download technical datasheets and product catalogues for the Inflatable Pipe Stoppers line.

Wide-Size Lateral Packer Datasheet
PDF · 2.4 MB

Find your model

Enter your nominal pipe size or rubber length to highlight matching models.

Matching: All models shown

Available models

78 active references.

QUICK GUIDEThe table below is a live RFQ builder — add models, tailor the options and send the list. Nothing is charged.
1FindFilter by nominal size or length of rubber part
2AddUse + / − to set the quantity of each model
3ConfigureSet the options per model in its row
4SendOpen your RFQ list and send it — we reply with a formal quotation
AIR CONNECTIONQuick Coupling push-fit standard · Schrader Valve (tyre-type)
EYEBOLTSTop eyebolt single lifting point · Top + Bottom for long runs · Ball End
Set these per model with the Configure button in each row — defaults are pre-selected, and you can add several variants of the same model.
QuantityProduct CodeNominal size (mm)Contact length at min diaContact length at max diaWorking pressureProduct diameterTotal lengthWeightConfigure
0
WLP3570/60035-70675mm/26,57''600mm/23,62''4bar/58psi30mm/1,18''750mm/29,53''0,5kg/1,1lbs
0
WLP3570/100035-701075mm/42,32''1000mm/39,37''4bar/58psi30mm/1,18''1150mm/45,28''0,75kg/1,65lbs
0
WLP3570/150035-701575mm/62,01''1500mm/59,06''4bar/58psi30mm/1,18''1650mm/64,96''1kg/2,2lbs
0
WLP3570/200035-702075mm/81,69''2000mm/78,74''4bar/58psi30mm/1,18''2150mm/84,65''1,5kg/3,31lbs
0
WLP3570/250035-702575mm/101,38''2500mm/98,43''4bar/58psi30mm/1,18''2650mm/104,33''1,75kg/3,86lbs
0
WLP3570/300035-703075mm/121,06''3000mm/118,11''4bar/58psi30mm/1,18''3150mm/124,02''2,25kg/4,96lbs
0
WLP3570/400035-704075mm/160,43''4000mm/157,48''4bar/58psi30mm/1,18''4150mm/163,39''3kg/6,61lbs
0
WLP3570/500035-705075mm/199,8''5000mm/196,85''4bar/58psi30mm/1,18''5150mm/202,76''4kg/8,82lbs
0
WLP40100/60040-100720mm/28,35''600mm/23,62''4bar/58psi35mm/1,38''820mm/32,28''0,6kg/1,32lbs
0
WLP40100/100040-1001120mm/44,09''1000mm/39,37''4bar/58psi35mm/1,38''1220mm/48,03''1kg/2,2lbs
0
WLP40100/150040-1001620mm/63,78''1500mm/59,06''4bar/58psi35mm/1,38''1720mm/67,72''1,5kg/3,31lbs
0
WLP40100/200040-1002120mm/83,46''2000mm/78,74''4bar/58psi35mm/1,38''2220mm/87,4''2kg/4,41lbs
0
WLP40100/250040-1002620mm/103,15''2500mm/98,43''4bar/58psi35mm/1,38''2720mm/107,09''2,5kg/5,51lbs
0
WLP40100/300040-1003120mm/122,83''3000mm/118,11''4bar/58psi35mm/1,38''3220mm/126,77''3kg/6,61lbs
0
WLP40100/400040-1004120mm/162,2''4000mm/157,48''4bar/58psi35mm/1,38''4220mm/166,14''4kg/8,82lbs
0
WLP40100/500040-1005120mm/201,57''5000mm/196,85''4bar/58psi35mm/1,38''5220mm/205,51''5kg/11,02lbs
0
WLP50150/150050-1501700mm/66,93''1500mm/59,06''4bar/58psi45mm/1,77''1850mm/72,83''1,5kg/3,31lbs
0
WLP50150/200050-1502200mm/86,61''2000mm/78,74''4bar/58psi45mm/1,77''2350mm/92,52''1,8kg/3,97lbs
0
WLP50150/250050-1502700mm/106,3''2500mm/98,43''4bar/58psi45mm/1,77''2850mm/112,2''4,4kg/9,7lbs
0
WLP50150/300050-1503200mm/125,98''3000mm/118,11''4bar/58psi45mm/1,77''3350mm/131,89''5,25kg/11,57lbs
0
WLP50150/400050-1504200mm/165,35''4000mm/157,48''4bar/58psi45mm/1,77''4350mm/171,26''7kg/15,43lbs
0
WLP50150/500050-1505200mm/204,72''5000mm/196,85''4bar/58psi45mm/1,77''5350mm/210,63''8,75kg/19,29lbs
0
WLP70200/60070-200900mm/35,43''600mm/23,62''3,5bar/50,75psi58mm/2,28''1100mm/43,31''1,05kg/2,31lbs
0
WLP70200/100070-2001300mm/51,18''1000mm/39,37''3,5bar/50,75psi58mm/2,28''1500mm/59,06''1,75kg/3,86lbs
0
WLP70200/150070-2001800mm/70,87''1500mm/59,06''3,5bar/50,75psi58mm/2,28''2000mm/78,74''2,625kg/5,79lbs
0
WLP70200/200070-2002300mm/90,55''2000mm/78,74''3,5bar/50,75psi58mm/2,28''2500mm/98,43''3,6kg/7,93lbs
0
WLP70200/250070-2002800mm/110,24''2500mm/98,43''3,5bar/50,75psi58mm/2,28''3000mm/118,11''4,4kg/9,7lbs
0
WLP70200/300070-2003300mm/129,92''3000mm/118,11''3,5bar/50,75psi58mm/2,28''3500mm/137,8''5,25kg/11,57lbs
0
WLP70200/400070-2004300mm/169,29''4000mm/157,48''3,5bar/50,75psi58mm/2,28''4500mm/177,17''7kg/15,43lbs
0
WLP70200/500070-2005300mm/208,66''5000mm/196,85''3,5bar/50,75psi58mm/2,28''5500mm/216,54''8,75kg/19,29lbs
0
WLP100200/600100-200900mm/35,43''600mm/23,62''3bar/43,5psi61mm/2,4''1100mm/43,31''1,05kg/2,31lbs
0
WLP100200/1000100-2001300mm/51,18''1000mm/39,37''3bar/43,5psi61mm/2,4''1500mm/59,06''1,75kg/3,86lbs
0
WLP100200/1500100-2001800mm/70,87''1500mm/59,06''3bar/43,5psi61mm/2,4''2000mm/78,74''2,625kg/5,79lbs
0
WLP100200/2000100-2002300mm/90,55''2000mm/78,74''3bar/43,5psi61mm/2,4''2500mm/98,43''3,6kg/7,93lbs
0
WLP100200/2500100-2002800mm/110,24''2500mm/98,43''3bar/43,5psi61mm/2,4''3000mm/118,11''4,4kg/9,7lbs
0
WLP100200/3000100-2003300mm/129,92''3000mm/118,11''3bar/43,5psi61mm/2,4''3500mm/137,8''5,25kg/11,57lbs
0
WLP100200/4000100-2004300mm/169,29''4000mm/157,48''3bar/43,5psi61mm/2,4''4500mm/177,17''7kg/15,43lbs
0
WLP100200/5000100-2005300mm/208,66''5000mm/196,85''3bar/43,5psi61mm/2,4''5500mm/216,54''8,75kg/19,29lbs
0
WLP100250/600100-2501000mm/39,37''600mm/23,62''3bar/43,5psi75mm/2,95''1200mm/47,24''1,4kg/3,09lbs
0
WLP100250/1000100-2501400mm/55,12''1000mm/39,37''3bar/43,5psi75mm/2,95''1600mm/62,99''2,2kg/4,85lbs
0
WLP100250/1500100-2501900mm/74,8''1500mm/59,06''3bar/43,5psi75mm/2,95''2100mm/82,68''3,38kg/7,45lbs
0
WLP100250/2000100-2502400mm/94,49''2000mm/78,74''3bar/43,5psi75mm/2,95''2600mm/102,36''4,68kg/10,31lbs
0
WLP100250/2500100-2502900mm/114,17''2500mm/98,43''3bar/43,5psi75mm/2,95''3100mm/122,05''5,72kg/12,61lbs
0
WLP100250/3000100-2503400mm/133,86''3000mm/118,11''3bar/43,5psi75mm/2,95''3600mm/141,73''6,8kg/14,99lbs
0
WLP100250/4000100-2504400mm/173,23''4000mm/157,48''3bar/43,5psi75mm/2,95''4600mm/181,1''9,1kg/20,06lbs
0
WLP100250/5000100-2505400mm/212,6''5000mm/196,85''3bar/43,5psi75mm/2,95''5600mm/220,47''11,4kg/25,13lbs
0
WLP150300/600150-3001100mm/43,31''600mm/23,62''2bar/29psi120mm/4,72''1300mm/51,18''5,2kg/11,46lbs
0
WLP150300/1000150-3001500mm/59,06''1000mm/39,37''2bar/29psi120mm/4,72''1700mm/66,93''8,4kg/18,51lbs
0
WLP150300/1500150-3002000mm/78,74''1500mm/59,06''2bar/29psi120mm/4,72''2200mm/86,61''12,8kg/28,21lbs
0
WLP150300/2000150-3002500mm/98,43''2000mm/78,74''2bar/29psi120mm/4,72''2700mm/106,3''17,2kg/37,91lbs
0
WLP150300/2500150-3003000mm/118,11''2500mm/98,43''2bar/29psi120mm/4,72''3200mm/125,98''21,5kg/47,39lbs
0
WLP150300/3000150-3003500mm/137,8''3000mm/118,11''2bar/29psi120mm/4,72''3700mm/145,67''25,76kg/56,78lbs
0
WLP150300/4000150-3004500mm/177,17''4000mm/157,48''2bar/29psi120mm/4,72''4700mm/185,04''35,4kg/78,02lbs
0
WLP150300/5000150-3005500mm/216,54''5000mm/196,85''2bar/29psi120mm/4,72''5700mm/224,41''43kg/94,77lbs
0
WLP200500/600200-5001450mm/57,09''600mm/23,62''2bar/29psi185mm/7,28''1700mm/66,93''6,9kg/15,21lbs
0
WLP200500/1000200-5001850mm/72,83''1000mm/39,37''2bar/29psi185mm/7,28''2100mm/82,68''11,5kg/25,35lbs
0
WLP200500/1500200-5002350mm/92,52''1500mm/59,06''2bar/29psi185mm/7,28''2600mm/102,36''17,2kg/37,91lbs
0
WLP200500/2000200-5002850mm/112,2''2000mm/78,74''2bar/29psi185mm/7,28''3100mm/122,05''22,9kg/50,47lbs
0
WLP200500/2500200-5003350mm/131,89''2500mm/98,43''2bar/29psi185mm/7,28''3600mm/141,73''28,7kg/63,25lbs
0
WLP200500/3000200-5003850mm/151,57''3000mm/118,11''2bar/29psi185mm/7,28''4100mm/161,42''34,35kg/75,71lbs
0
WLP200500/4000200-5004850mm/190,94''4000mm/157,48''2bar/29psi185mm/7,28''5100mm/200,79''45,8kg/100,94lbs
0
WLP200500/5000200-5005850mm/230,31''5000mm/196,85''2bar/29psi185mm/7,28''6100mm/240,16''57,25kg/126,18lbs
0
WLP300800/600300-8002100mm/82,68''600mm/23,62''1,5bar/21,75psi272mm/10,71''2400mm/94,49''18,39kg/40,53lbs
0
WLP300800/1000300-8002500mm/98,43''1000mm/39,37''1,5bar/21,75psi272mm/10,71''2800mm/110,24''30,65kg/67,55lbs
0
WLP300800/1500300-8003000mm/118,11''1500mm/59,06''1,5bar/21,75psi272mm/10,71''3300mm/129,92''46kg/101,38lbs
0
WLP300800/2000300-8003500mm/137,8''2000mm/78,74''1,5bar/21,75psi272mm/10,71''3800mm/149,61''61,3kg/135,11lbs
0
WLP300800/2500300-8004000mm/157,48''2500mm/98,43''1,5bar/21,75psi272mm/10,71''4300mm/169,29''76,5kg/168,61lbs
0
WLP300800/3000300-8004500mm/177,17''3000mm/118,11''1,5bar/21,75psi272mm/10,71''4800mm/188,98''92kg/202,77lbs
0
WLP300800/4000300-8005500mm/216,54''4000mm/157,48''1,5bar/21,75psi272mm/10,71''5800mm/228,35''122kg/268,89lbs
0
WLP300800/5000300-8006500mm/255,91''5000mm/196,85''1,5bar/21,75psi272mm/10,71''6800mm/267,72''153kg/337,21lbs
0
WLP4001000/600400-10002200mm/86,61''600mm/23,62''1,5bar/21,75psi345mm/13,58''2800mm/110,24''25,2kg/55,54lbs
0
WLP4001000/1000400-10002600mm/102,36''1000mm/39,37''1,5bar/21,75psi345mm/13,58''3200mm/125,98''42kg/92,57lbs
0
WLP4001000/1500400-10003100mm/122,05''1500mm/59,06''1,5bar/21,75psi345mm/13,58''3700mm/145,67''63kg/138,85lbs
0
WLP4001000/2000400-10003600mm/141,73''2000mm/78,74''1,5bar/21,75psi345mm/13,58''4200mm/165,35''82kg/180,73lbs
0
WLP4001000/2500400-10004100mm/161,42''2500mm/98,43''1,5bar/21,75psi345mm/13,58''4700mm/185,04''103kg/227,01lbs
0
WLP4001000/3000400-10004600mm/181,1''3000mm/118,11''1,5bar/21,75psi345mm/13,58''5200mm/204,72''123kg/271,09lbs
0
WLP4001000/4000400-10005600mm/220,47''4000mm/157,48''1,5bar/21,75psi345mm/13,58''6200mm/244,09''164kg/361,46lbs
0
WLP4001000/5000400-10006600mm/259,84''5000mm/196,85''1,5bar/21,75psi345mm/13,58''7200mm/283,46''198kg/436,39lbs

Recommended accessories

Specialty supplies for pipeline rehabilitation work.

Inflation Controller

Inflation Controller

Pressure-regulated control unit with gauge and safety relief valve. View product →
Inflation Hose

Inflation Hose

Reinforced flexible hose connecting the stopper to the air supply. View product →
Air Push Rods

Air Push Rods

Telescopic air push rods for positioning packers in pipelines. View product →
Silicate Resin (Winter / Summer)

Silicate Resin (Winter / Summer)

Two-component curing resin for pipeline rehabilitation. Two seasonal grades available. View product →
Fiber Glass Mat

Fiber Glass Mat

Reinforcement mat used with curing resins for repair packer applications. View product →
Specifying for a project

Send the spec. We send the datasheet.

DN, material, air connection, quantity. We come back inside 24 hours with the right reference, the test report on file, and stock confirmation from Istanbul.

Get a quote Talk to engineer
