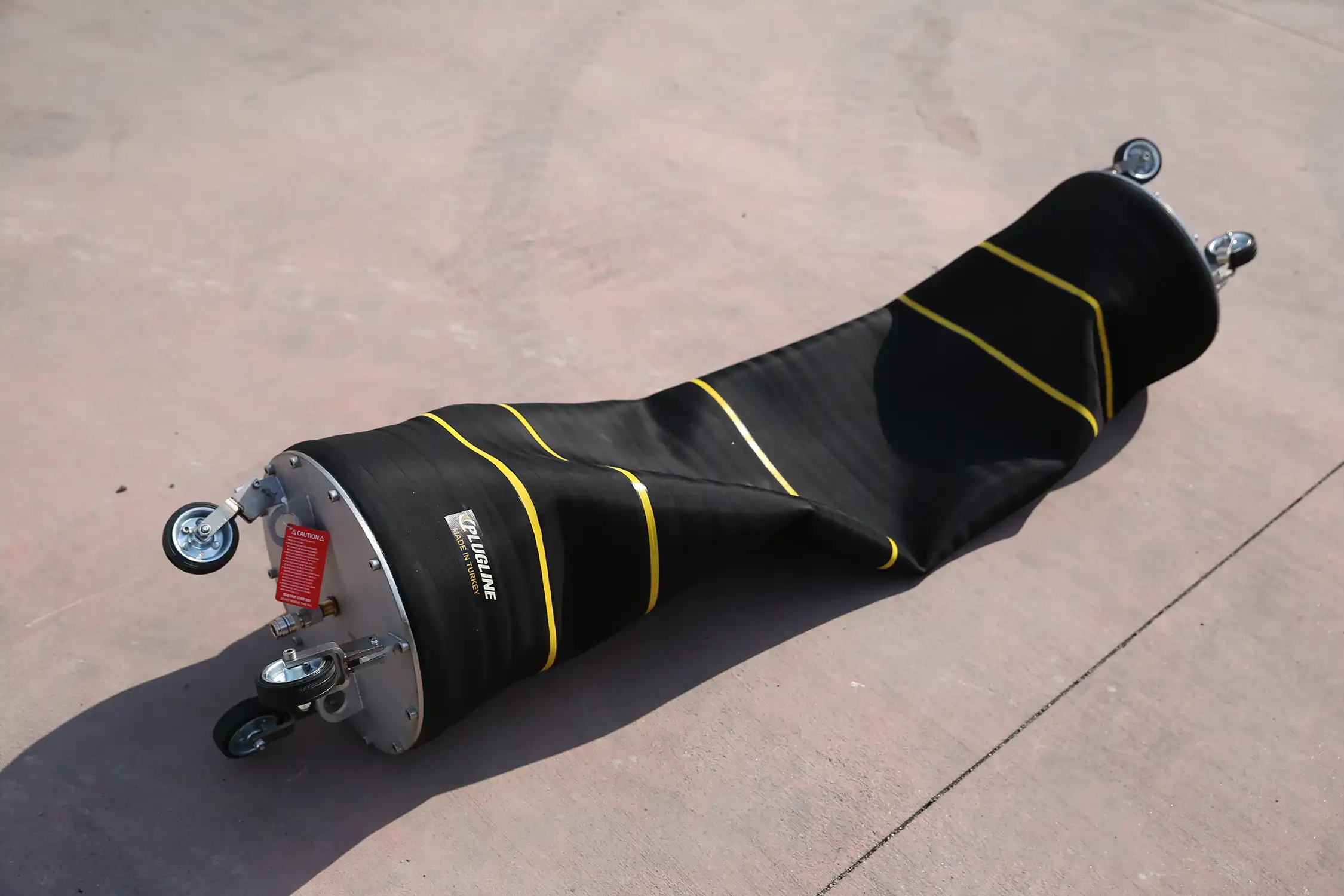

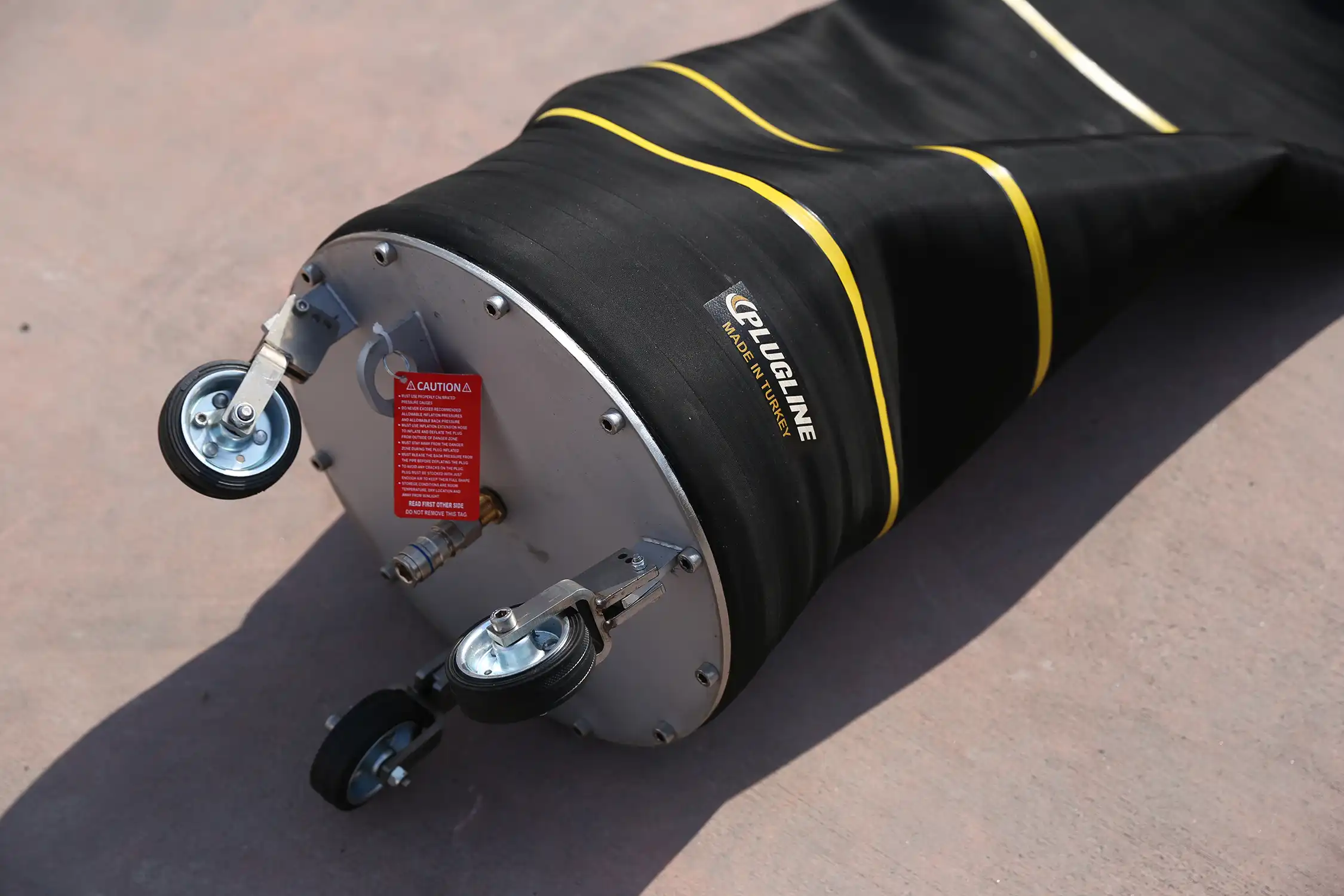

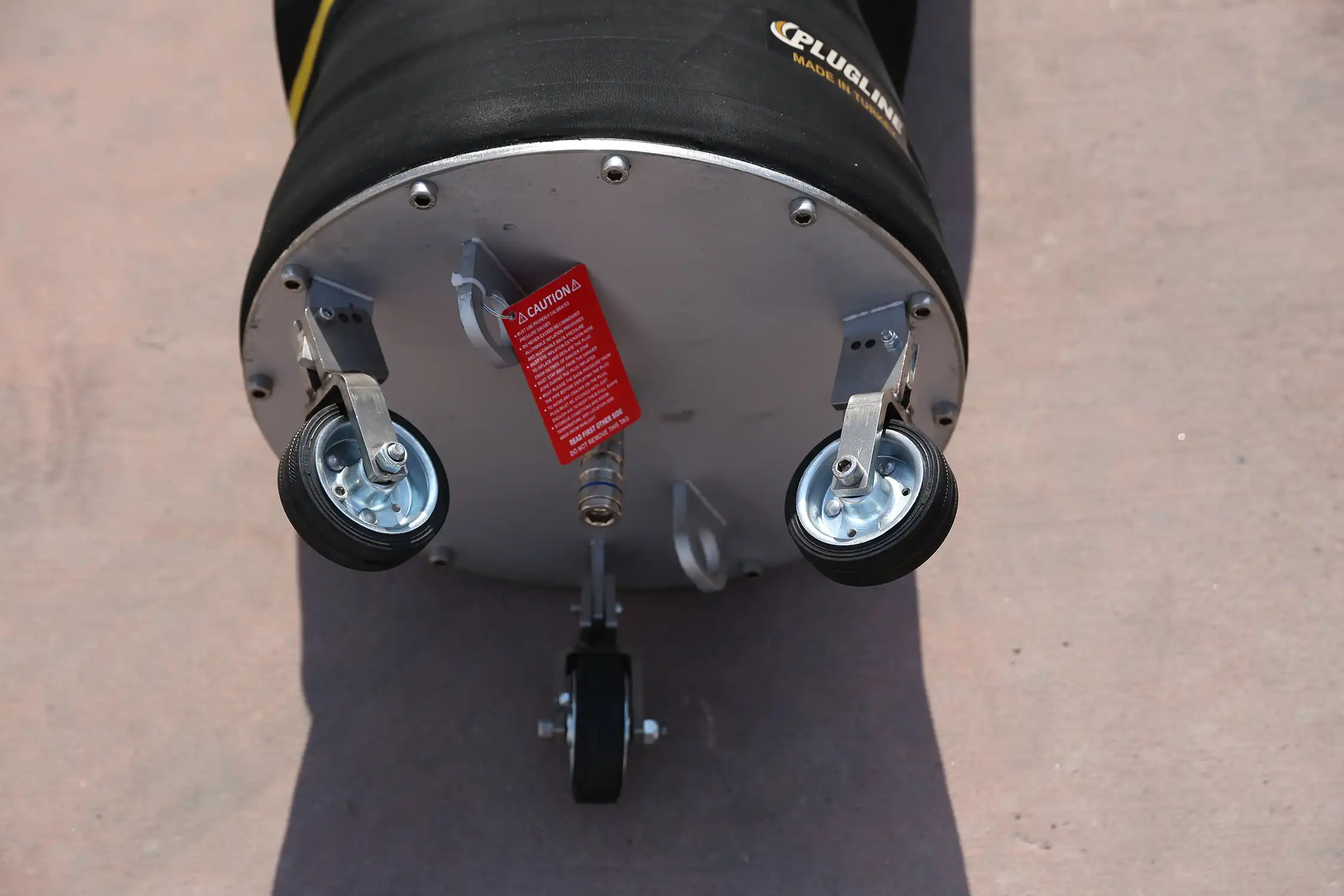

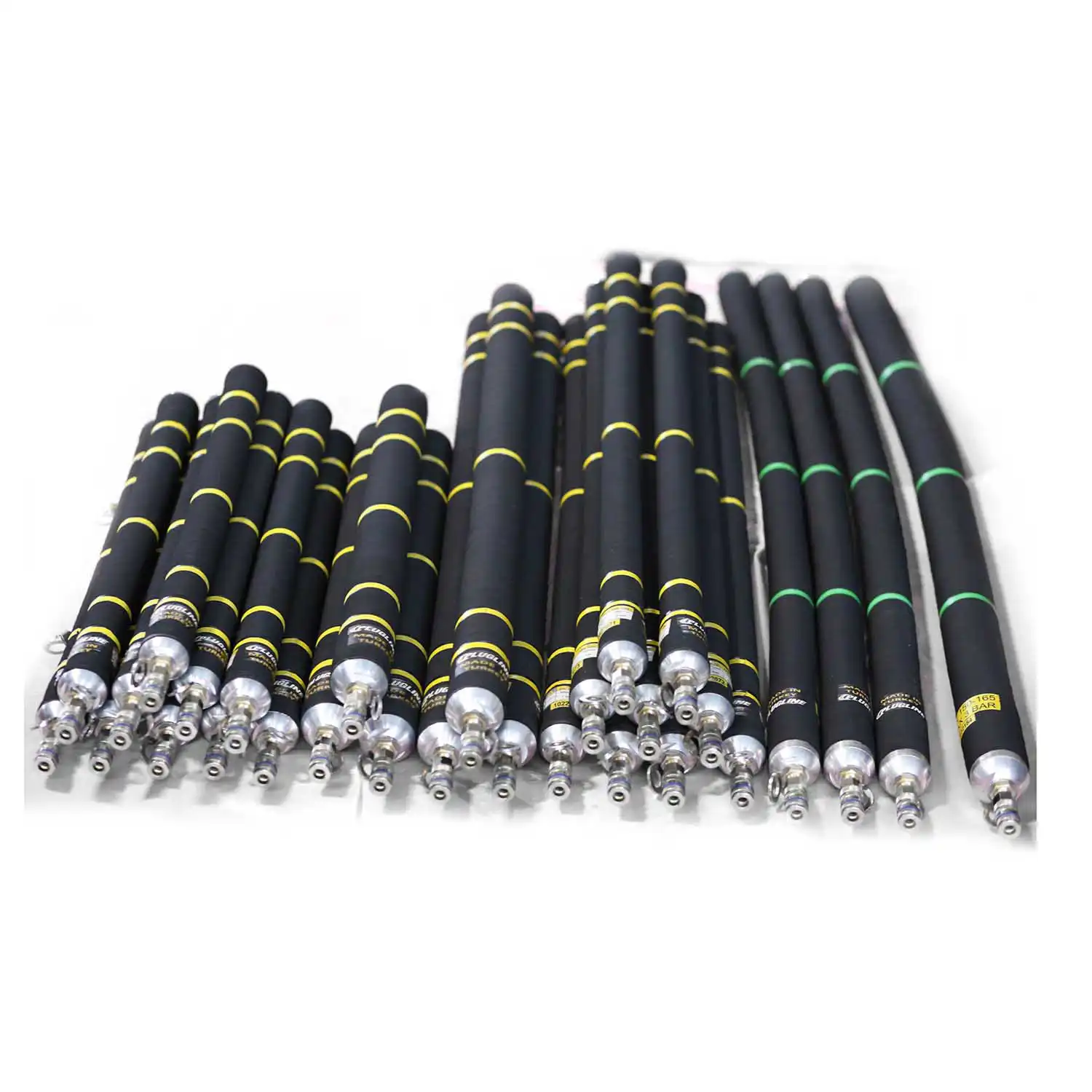

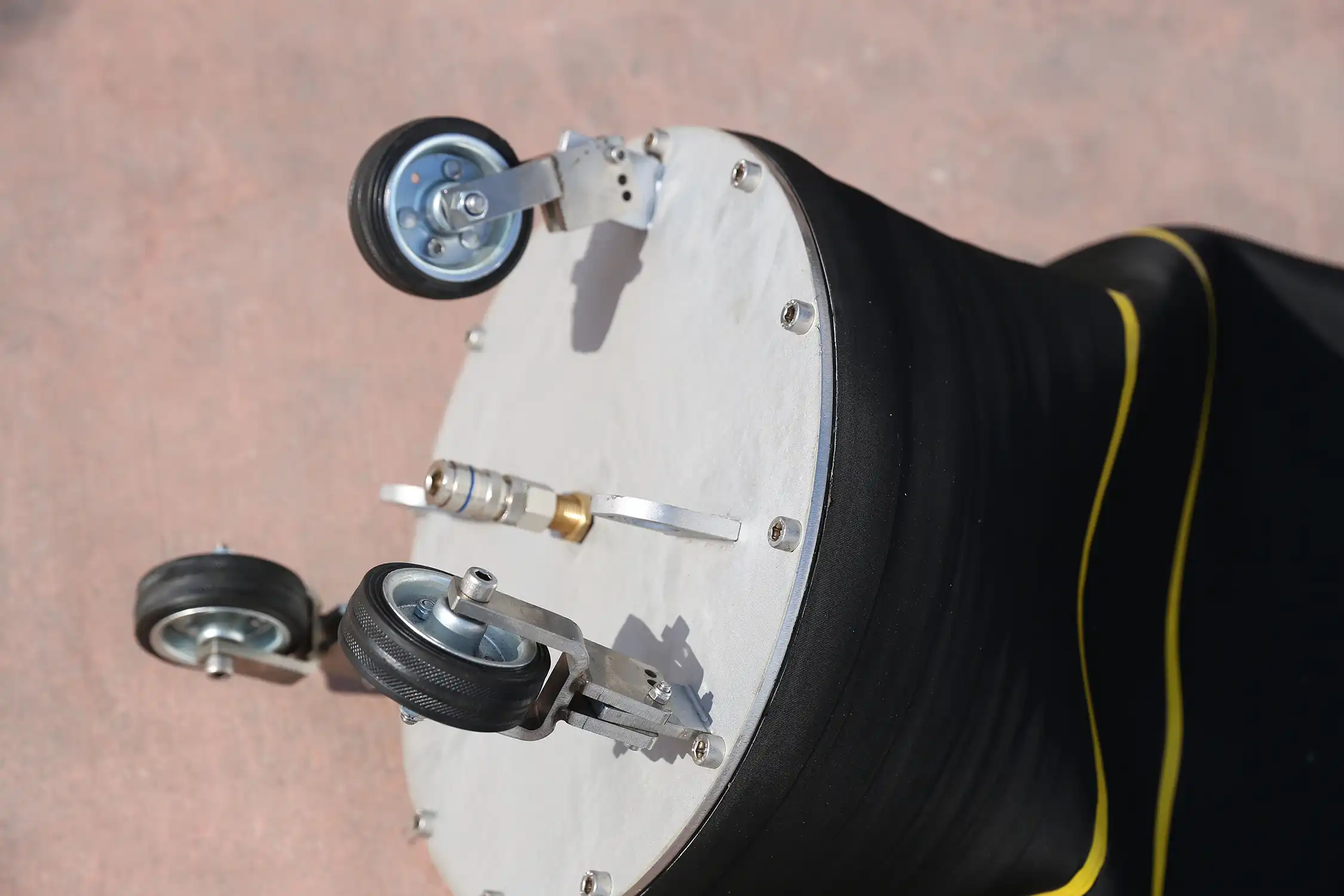

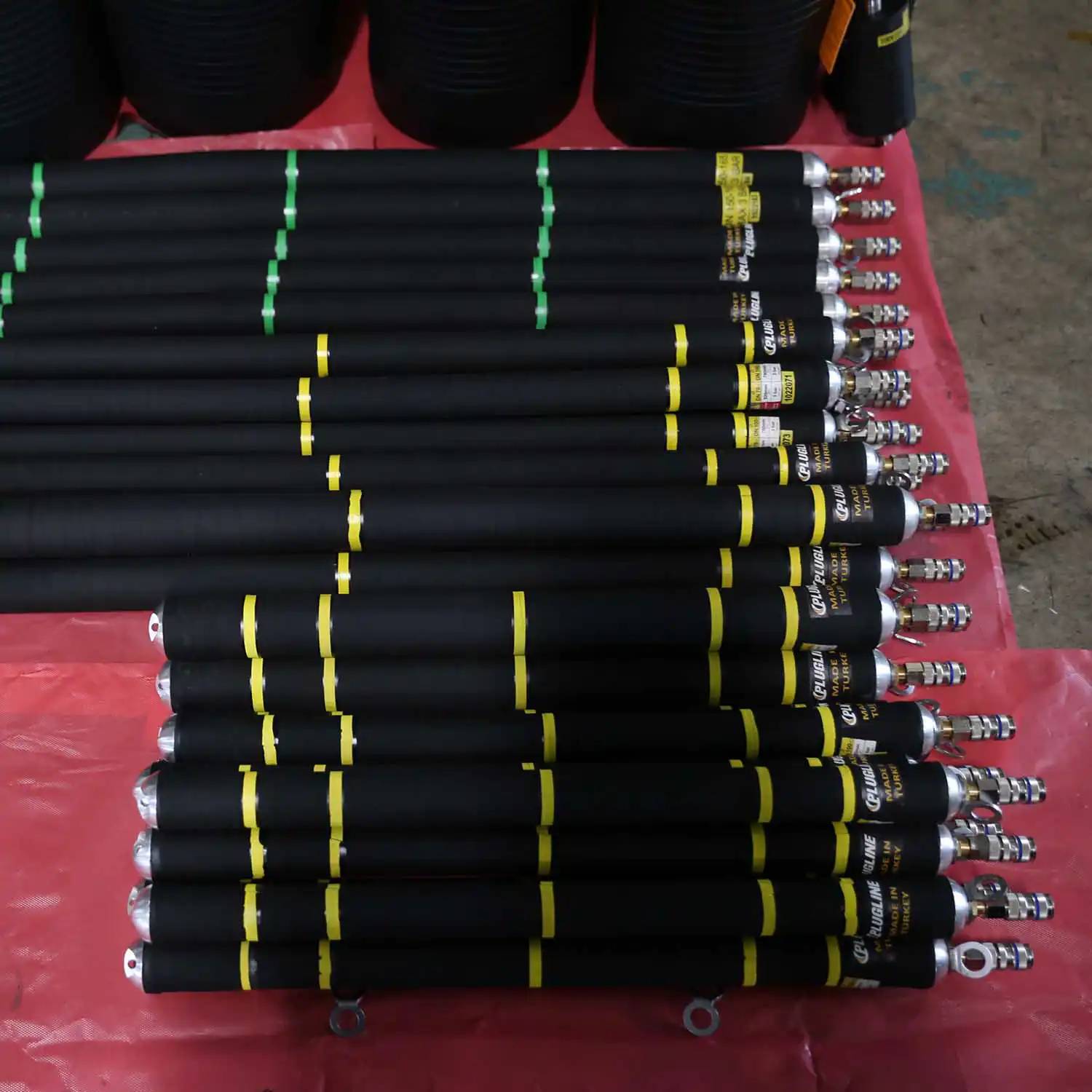

Multi Size Lateral Packers (1,0 - 3,0 bar)
- Lateral Packers are especially designed for convenient and cost effective way of completing localized sectional repairs of pipes, drains and sewers,
- They are used especially for repair of smaller diameter domestic pipelines like home connection installations and where it is not necessary to maintain flow during repair.
- Both ends of these coils are rolled, making them easy to transport and slide.
- Available for pipe diameters from 25 mm (0.98") to 600 mm (23.62"), they provide a simple and cost-effective way to complete local repairs to pipes and sewers.
- It used the packer length range from 600 mm (23.62") to 5000 mm (196.85").
- Specified as 1.0 Bar (15.50 psi), 1.5 Bar (21.75 psi), 2.0 Bar (29.00 psi), 2.5 Bar (36.25 psi), and 3.0 Bar (43.51 psi), They can easily inflated with hand pump or compressor
| Product Code | Nominal Size(mm) | Length of Rubber Part(mm/inch) | Contact Length at Min. Dia(mm/inch) | Contact Length at Max. Dia(mm/inch) | Max. Working Pressure(bar/psi) | Product Diameter(mm/inch) | Total Length of Product(mm/inch) | Product Weight(kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|---|
|
remove
add
|
MLP2535/600 | 25-35 | 600mm/23,62" | 520mm/20,47" | 440mm/17,32" | 3bar/43,5psi | 20mm/0,79" | 760mm/29,92" | 0,4kg/0,88lbs |
|
remove
add
|
MLP2535/1000 | 25-35 | 1000mm/39,37" | 920mm/36,22" | 840mm/33,07" | 3bar/43,5psi | 20mm/0,79" | 1160mm/45,67" | 0,65kg/1,43lbs |
|
remove
add
|
MLP2535/1500 | 25-35 | 1500mm/59,06" | 1420mm/55,91" | 1340mm/52,76" | 3bar/43,5psi | 20mm/0,79" | 1660mm/65,35" | 1kg/2,2lbs |
|
remove
add
|
MLP2535/2000 | 25-35 | 2000mm/78,74" | 1920mm/75,59" | 1840mm/72,44" | 3bar/43,5psi | 20mm/0,79" | 2160mm/85,04" | 1,4kg/3,09lbs |
|
remove
add
|
MLP2535/2500 | 25-35 | 2500mm/98,43" | 2420mm/95,28" | 2340mm/92,13" | 3bar/43,5psi | 20mm/0,79" | 2660mm/104,72" | 1,7kg/3,75lbs |
|
remove
add
|
MLP2535/3000 | 25-35 | 3000mm/118,11" | 2920mm/114,96" | 2840mm/111,81" | 3bar/43,5psi | 20mm/0,79" | 3160mm/124,41" | 2kg/4,41lbs |
|
remove
add
|
MLP2535/4000 | 25-35 | 4000mm/157,48" | 3920mm/154,33" | 3840mm/151,18" | 3bar/43,5psi | 20mm/0,79" | 4160mm/163,78" | 2,7kg/5,95lbs |
|
remove
add
|
MLP2535/5000 | 25-35 | 5000mm/196,85" | 4920mm/193,7" | 4840mm/190,55" | 3bar/43,5psi | 20mm/0,79" | 5160mm/203,15" | 3,4kg/7,5lbs |
|
remove
add
|
MLP3550/600 | 35-50 | 600mm/23,62" | 520mm/20,47" | 440mm/17,32" | 3bar/43,5psi | 25mm/0,98" | 760mm/29,92" | 0,5kg/1,1lbs |
|
remove
add
|
MLP3550/1000 | 35-50 | 1000mm/39,37" | 920mm/36,22" | 840mm/33,07" | 3bar/43,5psi | 25mm/0,98" | 1160mm/45,67" | 0,9kg/1,98lbs |
|
remove
add
|
MLP3550/1500 | 35-50 | 1500mm/59,06" | 1420mm/55,91" | 1340mm/52,76" | 3bar/43,5psi | 25mm/0,98" | 1660mm/65,35" | 1,25kg/2,76lbs |
|
remove
add
|
MLP3550/2000 | 35-50 | 2000mm/78,74" | 1920mm/75,59" | 1840mm/72,44" | 3bar/43,5psi | 25mm/0,98" | 2160mm/85,04" | 1,7kg/3,75lbs |
|
remove
add
|
MLP3550/2500 | 35-50 | 2500mm/98,43" | 2420mm/95,28" | 2340mm/92,13" | 3bar/43,5psi | 25mm/0,98" | 2660mm/104,72" | 2,2kg/4,85lbs |
|
remove
add
|
MLP3550/3000 | 35-50 | 3000mm/118,11" | 2920mm/114,96" | 2840mm/111,81" | 3bar/43,5psi | 25mm/0,98" | 3160mm/124,41" | 2,5kg/5,51lbs |
|
remove
add
|
MLP3550/4000 | 35-50 | 4000mm/157,48" | 3920mm/154,33" | 3840mm/151,18" | 3bar/43,5psi | 25mm/0,98" | 4160mm/163,78" | 3kg/6,61lbs |
|
remove
add
|
MLP3570/5000 | 35-50 | 5000mm/196,85" | 4920mm/193,7" | 4840mm/190,55" | 3bar/43,5psi | 25mm/0,98" | 5160mm/203,15" | 3,5kg/7,72lbs |
|
remove
add
|
MLP5070/600 | 50-70 | 600mm/23,62" | 520mm/20,47" | 440mm/17,32" | 3bar/43,5psi | 33mm/1,3" | 760mm/29,92" | 0,6kg/1,32lbs |
|
remove
add
|
MLP5070/1000 | 50-70 | 1000mm/39,37" | 920mm/36,22" | 840mm/33,07" | 3bar/43,5psi | 33mm/1,3" | 1160mm/45,67" | 1kg/2,2lbs |
|
remove
add
|
MLP5070/1500 | 50-70 | 1500mm/59,06" | 1440mm/56,69" | 1340mm/52,76" | 3bar/43,5psi | 33mm/1,3" | 1660mm/65,35" | 1,5kg/3,31lbs |
|
remove
add
|
MLP5070/2000 | 50-70 | 2000mm/78,74" | 1940mm/76,38" | 1840mm/72,44" | 3bar/43,5psi | 33mm/1,3" | 2160mm/85,04" | 2kg/4,41lbs |
|
remove
add
|
MLP5070/2500 | 50-70 | 2500mm/98,43" | 2440mm/96,06" | 2340mm/92,13" | 3bar/43,5psi | 33mm/1,3" | 2660mm/104,72" | 2,5kg/5,51lbs |
|
remove
add
|
MLP5070/3000 | 50-70 | 3000mm/118,11" | 2940mm/115,75" | 2840mm/111,81" | 3bar/43,5psi | 33mm/1,3" | 3160mm/124,41" | 3kg/6,61lbs |
|
remove
add
|
MLP5070/4000 | 50-70 | 4000mm/157,48" | 3940mm/155,12" | 3840mm/151,18" | 3bar/43,5psi | 33mm/1,3" | 4160mm/163,78" | 3,5kg/7,72lbs |
|
remove
add
|
MLP5070/5000 | 50-70 | 5000mm/196,85" | 4940mm/194,49" | 4840mm/190,55" | 3bar/43,5psi | 33mm/1,3" | 5160mm/203,15" | 4kg/8,82lbs |
|
remove
add
|
MLP70100/600 | 70-100 | 600mm/23,62" | 520mm/20,47" | 380mm/14,96" | 3bar/43,5psi | 51mm/2,01" | 760mm/29,92" | 0,7kg/1,54lbs |
|
remove
add
|
MLP70100/1000 | 70-100 | 1000mm/39,37" | 920mm/36,22" | 780mm/30,71" | 3bar/43,5psi | 51mm/2,01" | 1160mm/45,67" | 1,2kg/2,65lbs |
|
remove
add
|
MLP70100/1500 | 70-100 | 1500mm/59,06" | 1420mm/55,91" | 1280mm/50,39" | 3bar/43,5psi | 51mm/2,01" | 1660mm/65,35" | 1,7kg/3,75lbs |
|
remove
add
|
MLP70100/2000 | 70-100 | 2000mm/78,74" | 1920mm/75,59" | 1780mm/70,08" | 3bar/43,5psi | 51mm/2,01" | 2160mm/85,04" | 2,2kg/4,85lbs |
|
remove
add
|
MLP70100/2500 | 70-100 | 2500mm/98,43" | 2420mm/95,28" | 2280mm/89,76" | 3bar/43,5psi | 51mm/2,01" | 2660mm/104,72" | 2,8kg/6,17lbs |
|
remove
add
|
MLP70100/3000 | 70-100 | 3000mm/118,11" | 2920mm/114,96" | 2780mm/109,45" | 3bar/43,5psi | 51mm/2,01" | 3160mm/124,41" | 3,2kg/7,05lbs |
|
remove
add
|
MLP70100/4000 | 70-100 | 4000mm/157,48" | 3920mm/154,33" | 3780mm/148,82" | 3bar/43,5psi | 51mm/2,01" | 4160mm/163,78" | 3,7kg/8,16lbs |
|
remove
add
|
MLP70100/5000 | 70-100 | 5000mm/196,85" | 4920mm/193,7" | 4780mm/188,19" | 3bar/43,5psi | 51mm/2,01" | 5160mm/203,15" | 4,2kg/9,26lbs |
|
remove
add
|
MLP80125/600 | 80-125 | 600mm/23,62" | 520mm/20,47" | 360mm/14,17" | 3bar/43,5psi | 51mm/2,01" | 760mm/29,92" | 0,7kg/1,54lbs |
|
remove
add
|
MLP80125/1000 | 80-125 | 1000mm/39,37" | 920mm/36,22" | 860mm/33,86" | 3bar/43,5psi | 51mm/2,01" | 1160mm/45,67" | 1,2kg/2,65lbs |
|
remove
add
|
MLP80125/1500 | 80-125 | 1500mm/59,06" | 1420mm/55,91" | 1360mm/53,54" | 3bar/43,5psi | 51mm/2,01" | 1660mm/65,35" | 1,7kg/3,75lbs |
|
remove
add
|
MLP80125/2000 | 80-125 | 2000mm/78,74" | 1920mm/75,59" | 1860mm/73,23" | 3bar/43,5psi | 51mm/2,01" | 2160mm/85,04" | 2,2kg/4,85lbs |
|
remove
add
|
MLP80125/2500 | 80-125 | 2500mm/98,43" | 2420mm/95,28" | 2360mm/92,91" | 3bar/43,5psi | 51mm/2,01" | 2660mm/104,72" | 2,8kg/6,17lbs |
|
remove
add
|
MLP80125/3000 | 80-125 | 3000mm/118,11" | 2920mm/114,96" | 2860mm/112,6" | 3bar/43,5psi | 51mm/2,01" | 3160mm/124,41" | 3,2kg/7,05lbs |
|
remove
add
|
MLP80125/4000 | 80-125 | 4000mm/157,48" | 3920mm/154,33" | 3860mm/151,97" | 3bar/43,5psi | 51mm/2,01" | 4160mm/163,78" | 3,7kg/8,16lbs |
|
remove
add
|
MLP80125/5000 | 80-125 | 5000mm/196,85" | 4920mm/193,7" | 4860mm/191,34" | 3bar/43,5psi | 51mm/2,01" | 5160mm/203,15" | 4,2kg/9,26lbs |
|
remove
add
|
MLP100150/600 | 100-150 | 600mm/23,62" | 520mm/20,47" | 380mm/14,96" | 2,5bar/36,25psi | 60mm/2,36" | 760mm/29,92" | 1,5kg/3,31lbs |
|
remove
add
|
MLP100150/1000 | 100-150 | 1000mm/39,37" | 920mm/36,22" | 780mm/30,71" | 2,5bar/36,25psi | 60mm/2,36" | 1160mm/45,67" | 2,7kg/5,95lbs |
|
remove
add
|
MLP100150/1500 | 100-150 | 1500mm/59,06" | 1420mm/55,91" | 1380mm/54,33" | 2,5bar/36,25psi | 60mm/2,36" | 1660mm/65,35" | 4kg/8,82lbs |
|
remove
add
|
MLP100150/2000 | 100-150 | 2000mm/78,74" | 1920mm/75,59" | 1880mm/74,02" | 2,5bar/36,25psi | 60mm/2,36" | 2160mm/85,04" | 5,5kg/12,13lbs |
|
remove
add
|
MLP100150/2500 | 100-150 | 2500mm/98,43" | 2420mm/95,28" | 2380mm/93,7" | 2,5bar/36,25psi | 60mm/2,36" | 2660mm/104,72" | 6,7kg/14,77lbs |
|
remove
add
|
MLP100150/3000 | 100-150 | 3000mm/118,11" | 2920mm/114,96" | 2880mm/113,39" | 2,5bar/36,25psi | 60mm/2,36" | 3160mm/124,41" | 8kg/17,64lbs |
|
remove
add
|
MLP100150/4000 | 100-150 | 4000mm/157,48" | 3920mm/154,33" | 3880mm/152,76" | 2,5bar/36,25psi | 60mm/2,36" | 4160mm/163,78" | 10,7kg/23,59lbs |
|
remove
add
|
MLP100150/5000 | 100-150 | 5000mm/196,85" | 4920mm/193,7" | 4880mm/192,13" | 2,5bar/36,25psi | 60mm/2,36" | 5160mm/203,15" | 13,5kg/29,76lbs |
|
remove
add
|
MLP150200/600 | 150-200 | 600mm/23,62" | 480mm/18,9" | 320mm/12,6" | 2,5bar/36,25psi | 80mm/3,15" | 760mm/29,92" | 1,7kg/3,75lbs |
|
remove
add
|
MLP150200/1000 | 150-200 | 1000mm/39,37" | 880mm/34,65" | 720mm/28,35" | 2,5bar/36,25psi | 80mm/3,15" | 1160mm/45,67" | 3kg/6,61lbs |
|
remove
add
|
MLP150200/1500 | 150-200 | 1500mm/59,06" | 1380mm/54,33" | 1220mm/48,03" | 2,5bar/36,25psi | 80mm/3,15" | 1660mm/65,35" | 4,5kg/9,92lbs |
|
remove
add
|
MLP150200/2000 | 150-200 | 2000mm/78,74" | 1880mm/74,02" | 1720mm/67,72" | 2,5bar/36,25psi | 80mm/3,15" | 2160mm/85,04" | 6kg/13,23lbs |
|
remove
add
|
MLP150200/2500 | 150-200 | 2500mm/98,43" | 2380mm/93,7" | 2220mm/87,4" | 2,5bar/36,25psi | 80mm/3,15" | 2660mm/104,72" | 7,5kg/16,53lbs |
|
remove
add
|
MLP150200/3000 | 150-200 | 3000mm/118,11" | 2880mm/113,39" | 2720mm/107,09" | 2,5bar/36,25psi | 80mm/3,15" | 3160mm/124,41" | 9,2kg/20,28lbs |
|
remove
add
|
MLP150200/4000 | 150-200 | 4000mm/157,48" | 3880mm/152,76" | 3720mm/146,46" | 2,5bar/36,25psi | 80mm/3,15" | 4160mm/163,78" | 12,3kg/27,12lbs |
|
remove
add
|
MLP150200/5000 | 150-200 | 5000mm/196,85" | 4880mm/192,13" | 4720mm/185,83" | 2,5bar/36,25psi | 80mm/3,15" | 5160mm/203,15" | 15,4kg/33,95lbs |
|
remove
add
|
MLP150250/600 | 150-250 | 600mm/23,62" | 520mm/20,47" | 360mm/14,17" | 2bar/29psi | 116mm/4,57" | 760mm/29,92" | 2,5kg/5,51lbs |
|
remove
add
|
MLP150250/1000 | 150-250 | 1000mm/39,37" | 920mm/36,22" | 760mm/29,92" | 2bar/29psi | 116mm/4,57" | 1160mm/45,67" | 3,8kg/8,38lbs |
|
remove
add
|
MLP150250/1500 | 150-250 | 1500mm/59,06" | 1420mm/55,91" | 1260mm/49,61" | 2bar/29psi | 116mm/4,57" | 1660mm/65,35" | 5,3kg/11,68lbs |
|
remove
add
|
MLP150250/2000 | 150-250 | 2000mm/78,74" | 1920mm/75,59" | 1760mm/69,29" | 2bar/29psi | 116mm/4,57" | 2160mm/85,04" | 6,8kg/14,99lbs |
|
remove
add
|
MLP150250/2500 | 150-250 | 2500mm/98,43" | 2420mm/95,28" | 2260mm/88,98" | 2bar/29psi | 116mm/4,57" | 2660mm/104,72" | 8,3kg/18,3lbs |
|
remove
add
|
MLP150250/3000 | 150-250 | 3000mm/118,11" | 2920mm/114,96" | 2760mm/108,66" | 2bar/29psi | 116mm/4,57" | 3160mm/124,41" | 10kg/22,05lbs |
|
remove
add
|
MLP150250/4000 | 150-250 | 4000mm/157,48" | 3920mm/154,33" | 3760mm/148,03" | 2bar/29psi | 116mm/4,57" | 4160mm/163,78" | 13,1kg/28,88lbs |
|
remove
add
|
MLP150250/5000 | 150-250 | 5000mm/196,85" | 4920mm/193,7" | 4760mm/187,4" | 2bar/29psi | 116mm/4,57" | 5160mm/203,15" | 16,2kg/35,71lbs |
|
remove
add
|
MLP200300/600 | 200-300 | 600mm/23,62" | 480mm/18,9" | 280mm/11,02" | 2bar/29psi | 150mm/5,91" | 760mm/29,92" | 4kg/8,82lbs |
|
remove
add
|
MLP200300/1000 | 200-300 | 1000mm/39,37" | 880mm/34,65" | 680mm/26,77" | 2bar/29psi | 150mm/5,91" | 1160mm/45,67" | 6kg/13,23lbs |
|
remove
add
|
MLP200300/1500 | 200-300 | 1500mm/59,06" | 1380mm/54,33" | 1180mm/46,46" | 2bar/29psi | 150mm/5,91" | 1660mm/65,35" | 8kg/17,64lbs |
|
remove
add
|
MLP200300/2000 | 200-300 | 2000mm/78,74" | 1880mm/74,02" | 1680mm/66,14" | 2bar/29psi | 150mm/5,91" | 2160mm/85,04" | 10kg/22,05lbs |
|
remove
add
|
MLP200300/2500 | 200-300 | 2500mm/98,43" | 2380mm/93,7" | 2180mm/85,83" | 2bar/29psi | 150mm/5,91" | 2660mm/104,72" | 12kg/26,46lbs |
|
remove
add
|
MLP200300/3000 | 200-300 | 3000mm/118,11" | 2880mm/113,39" | 2680mm/105,51" | 2bar/29psi | 150mm/5,91" | 3160mm/124,41" | 14kg/30,86lbs |
|
remove
add
|
MLP200300/4000 | 200-300 | 4000mm/157,48" | 3880mm/152,76" | 3680mm/144,88" | 2bar/29psi | 150mm/5,91" | 4160mm/163,78" | 16kg/35,27lbs |
|
remove
add
|
MLP200300/5000 | 200-300 | 5000mm/196,85" | 4880mm/192,13" | 4680mm/184,25" | 2bar/29psi | 150mm/5,91" | 5160mm/203,15" | 18kg/39,68lbs |
|
remove
add
|
MLP300400/1000 | 300-400 | 1000mm/39,37" | 800mm/31,5" | 460mm/18,11" | 1,5bar/21,75psi | 231mm/9,09" | 1160mm/45,67" | 7kg/15,43lbs |
|
remove
add
|
MLP300400/1500 | 300-400 | 1500mm/59,06" | 1300mm/51,18" | 960mm/37,8" | 1,5bar/21,75psi | 231mm/9,09" | 1660mm/65,35" | 9kg/19,84lbs |
|
remove
add
|
MLP300400/2000 | 300-400 | 2000mm/78,74" | 1800mm/70,87" | 1460mm/57,48" | 1,5bar/21,75psi | 231mm/9,09" | 2160mm/85,04" | 11kg/24,25lbs |
|
remove
add
|
MLP300400/2500 | 300-400 | 2500mm/98,43" | 2300mm/90,55" | 1960mm/77,17" | 1,5bar/21,75psi | 232mm/9,13" | 2660mm/104,72" | 13kg/28,66lbs |
|
remove
add
|
MLP300400/3000 | 300-400 | 3000mm/118,11" | 2800mm/110,24" | 2460mm/96,85" | 1,5bar/21,75psi | 231mm/9,09" | 3160mm/124,41" | 16kg/35,27lbs |
|
remove
add
|
MLP300400/4000 | 300-400 | 4000mm/157,48" | 3800mm/149,61" | 3460mm/136,22" | 1,5bar/21,75psi | 231mm/9,09" | 4160mm/163,78" | 18kg/39,68lbs |
|
remove
add
|
MLP300400/5000 | 300-400 | 5000mm/196,85" | 4800mm/188,98" | 4460mm/175,59" | 1,5bar/21,75psi | 231mm/9,09" | 5160mm/203,15" | 20kg/44,09lbs |
|
remove
add
|
MLP400500/1000 | 400-500 | 1000mm/39,37" | 820mm/32,28" | 620mm/24,41" | 1bar/14,5psi | 345mm/13,58" | 1160mm/45,67" | 8kg/17,64lbs |
|
remove
add
|
MLP400500/1500 | 400-500 | 1500mm/59,06" | 1320mm/51,97" | 1120mm/44,09" | 1bar/14,5psi | 345mm/13,58" | 1660mm/65,35" | 10kg/22,05lbs |
|
remove
add
|
MLP400500/2000 | 400-500 | 2000mm/78,74" | 1820mm/71,65" | 1620mm/63,78" | 1bar/14,5psi | 345mm/13,58" | 2160mm/85,04" | 12kg/26,46lbs |
|
remove
add
|
MLP400500/2500 | 400-500 | 2500mm/98,43" | 2320mm/91,34" | 2120mm/83,46" | 1bar/14,5psi | 345mm/13,58" | 2660mm/104,72" | 14kg/30,86lbs |
|
remove
add
|
MLP400500/3000 | 400-500 | 3000mm/118,11" | 2820mm/111,02" | 2620mm/103,15" | 1bar/14,5psi | 345mm/13,58" | 3160mm/124,41" | 17kg/37,48lbs |
|
remove
add
|
MLP400500/4000 | 400-500 | 4000mm/157,48" | 3820mm/150,39" | 3620mm/142,52" | 1bar/14,5psi | 345mm/13,58" | 4160mm/163,78" | 19kg/41,89lbs |
|
remove
add
|
MLP400500/5000 | 400-500 | 5000mm/196,85" | 4820mm/189,76" | 4620mm/181,89" | 1bar/14,5psi | 345mm/13,58" | 5160mm/203,15" | 21kg/46,3lbs |
|
remove
add
|
MLP450600/1000 | 450-600 | 1000mm/39,37" | 760mm/29,92" | 440mm/17,32" | 1bar/14,5psi | 345mm/13,58" | 1160mm/45,67" | 8kg/17,64lbs |
|
remove
add
|
MLP450600/1500 | 450-600 | 1500mm/59,06" | 1260mm/49,61" | 940mm/37,01" | 1bar/14,5psi | 345mm/13,58" | 1660mm/65,35" | 10kg/22,05lbs |
|
remove
add
|
MLP450600/2000 | 450-600 | 2000mm/78,74" | 1760mm/69,29" | 1440mm/56,69" | 1bar/14,5psi | 345mm/13,58" | 2160mm/85,04" | 12kg/26,46lbs |
|
remove
add
|
MLP450600/2500 | 450-600 | 2500mm/98,43" | 2260mm/88,98" | 1940mm/76,38" | 1bar/14,5psi | 345mm/13,58" | 2660mm/104,72" | 14kg/30,86lbs |
|
remove
add
|
MLP450600/3000 | 450-600 | 3000mm/118,11" | 2760mm/108,66" | 2440mm/96,06" | 1bar/14,5psi | 345mm/13,58" | 3160mm/124,41" | 17kg/37,48lbs |
|
remove
add
|
MLP450600/4000 | 450-600 | 4000mm/157,48" | 3760mm/148,03" | 3440mm/135,43" | 1bar/14,5psi | 345mm/13,58" | 4160mm/163,78" | 19kg/41,89lbs |
|
remove
add
|
MLP450600/5000 | 450-600 | 5000mm/196,85" | 4760mm/187,4" | 4440mm/174,8" | 1bar/14,5psi | 345mm/13,58" | 5160mm/203,15" | 21kg/46,3lbs |
