Multi Size Metal Core Pipe Test Plugs (1,5 bar)

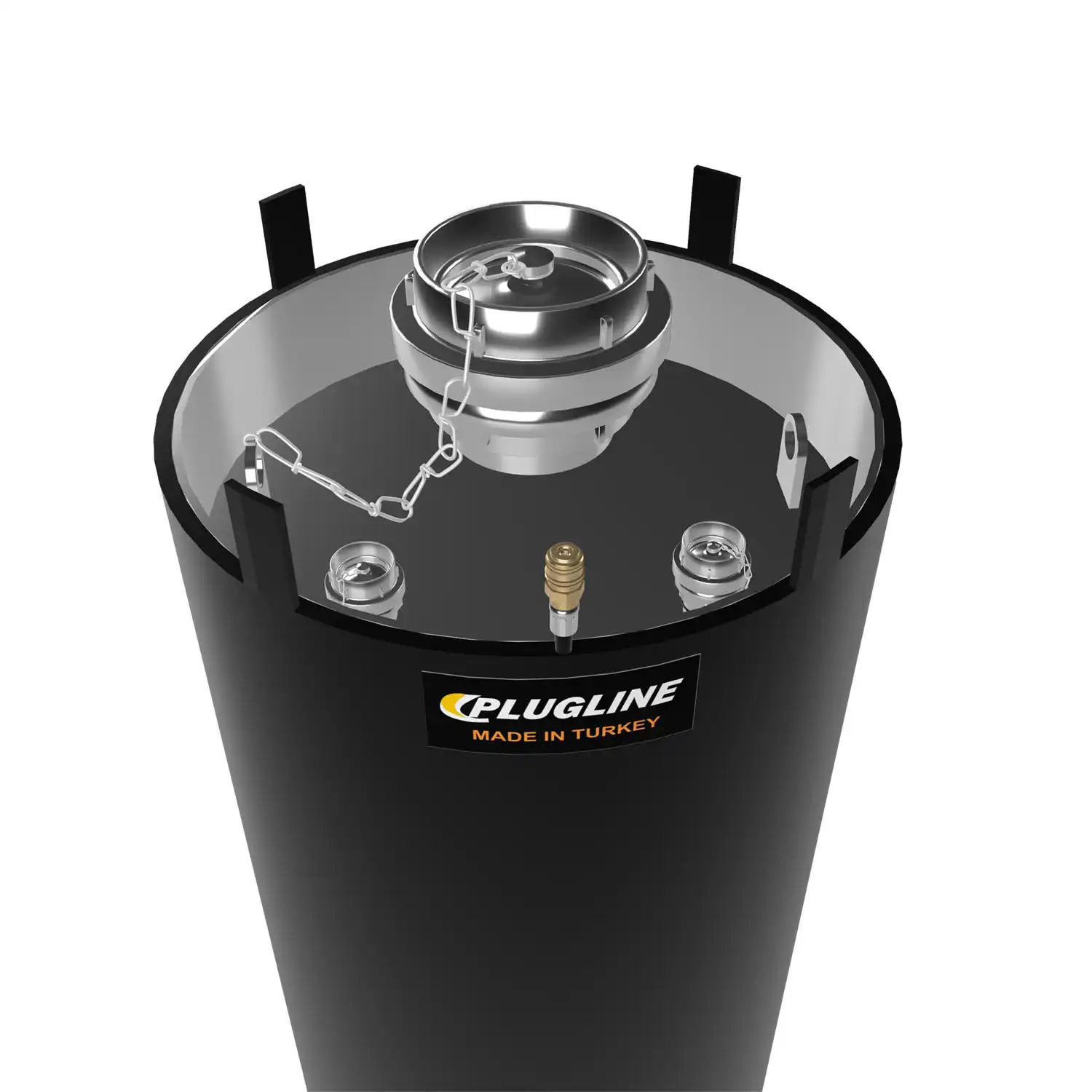

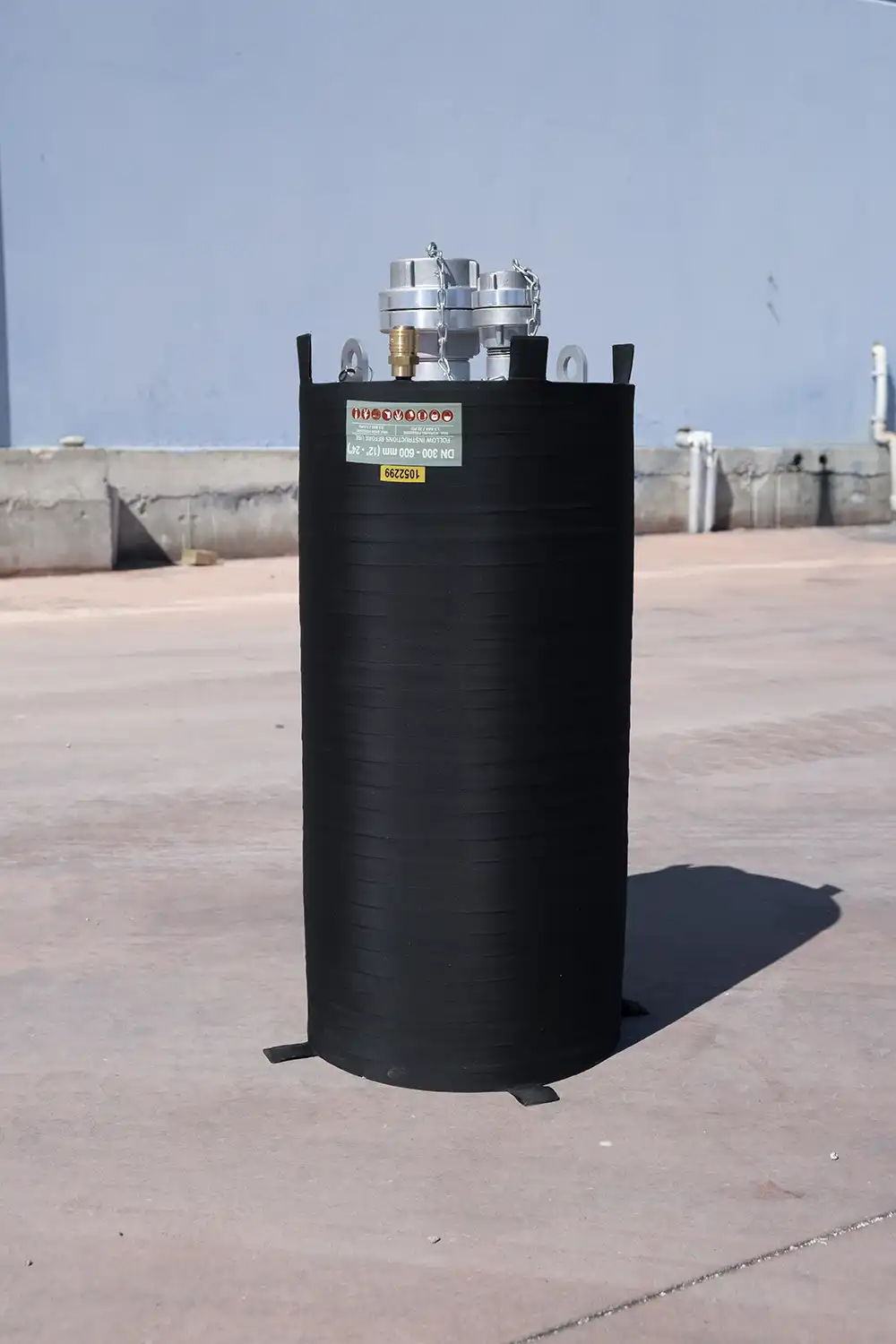

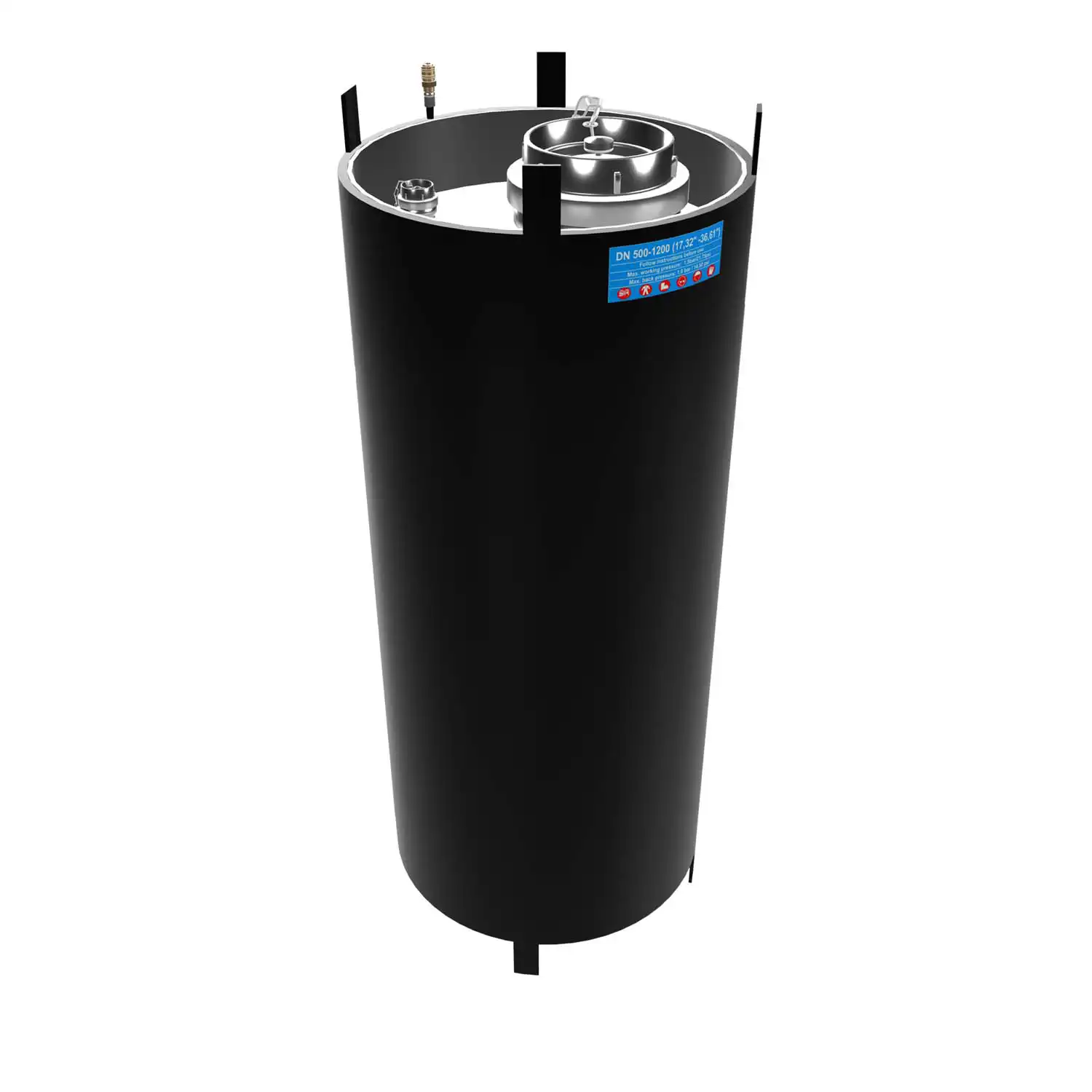

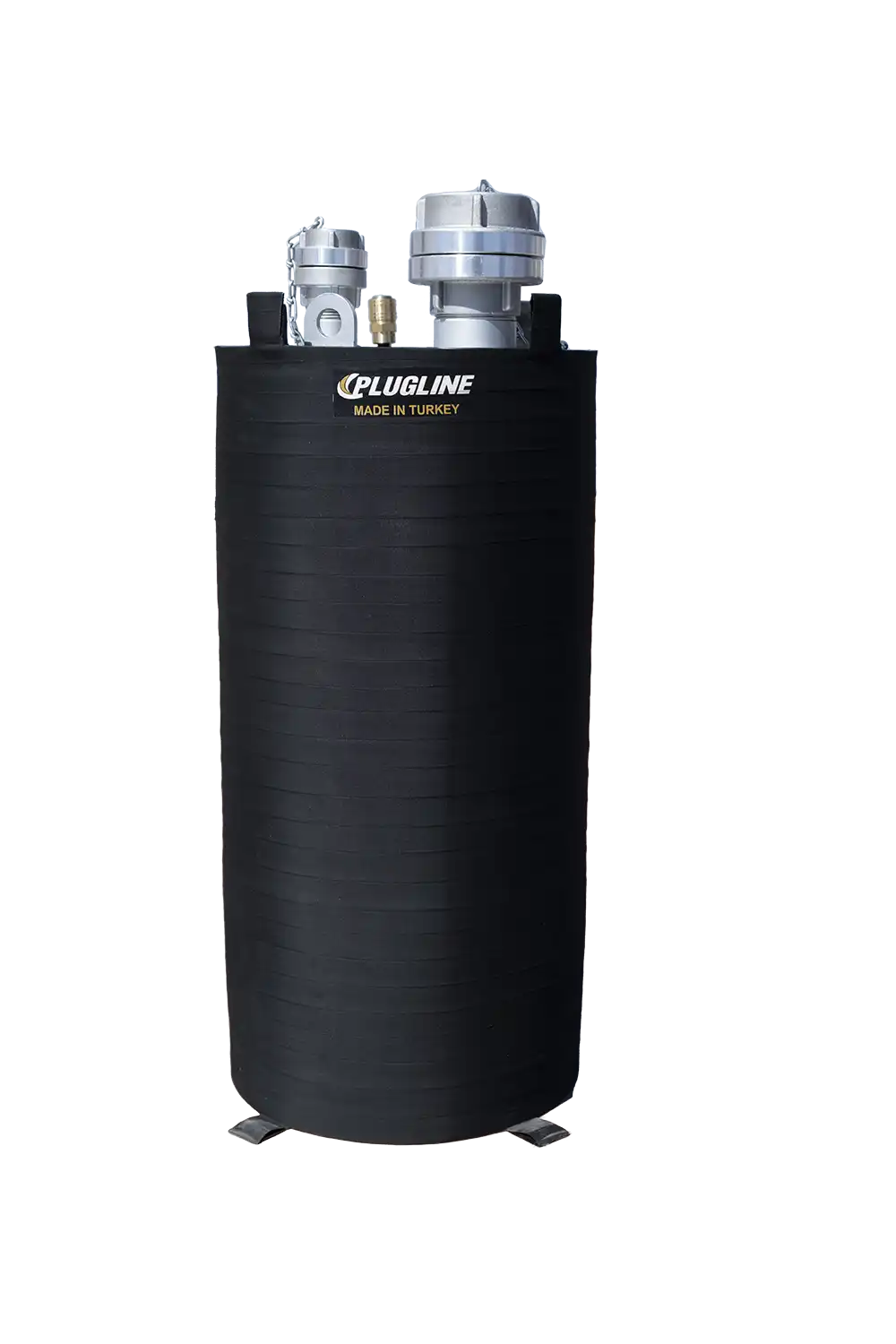

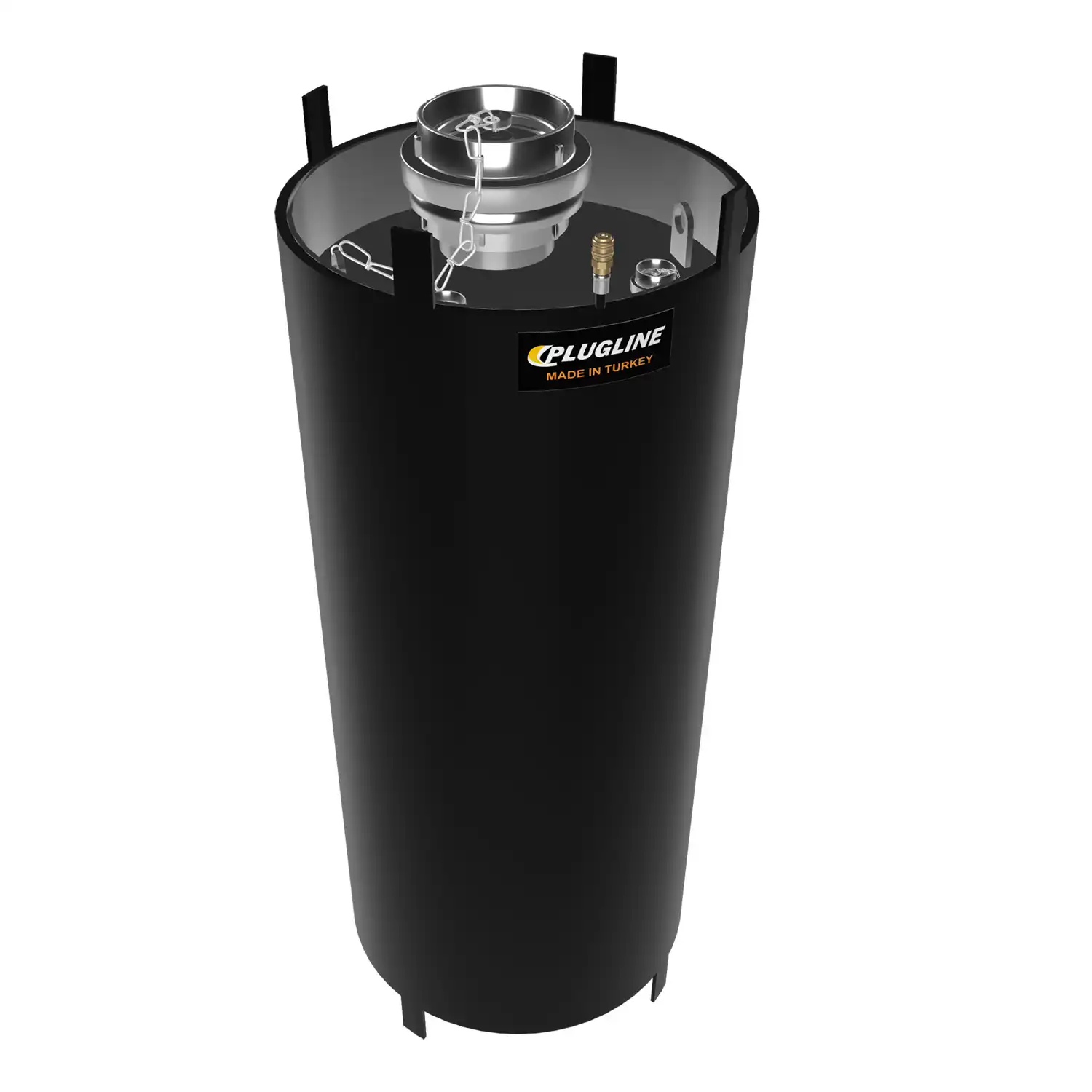

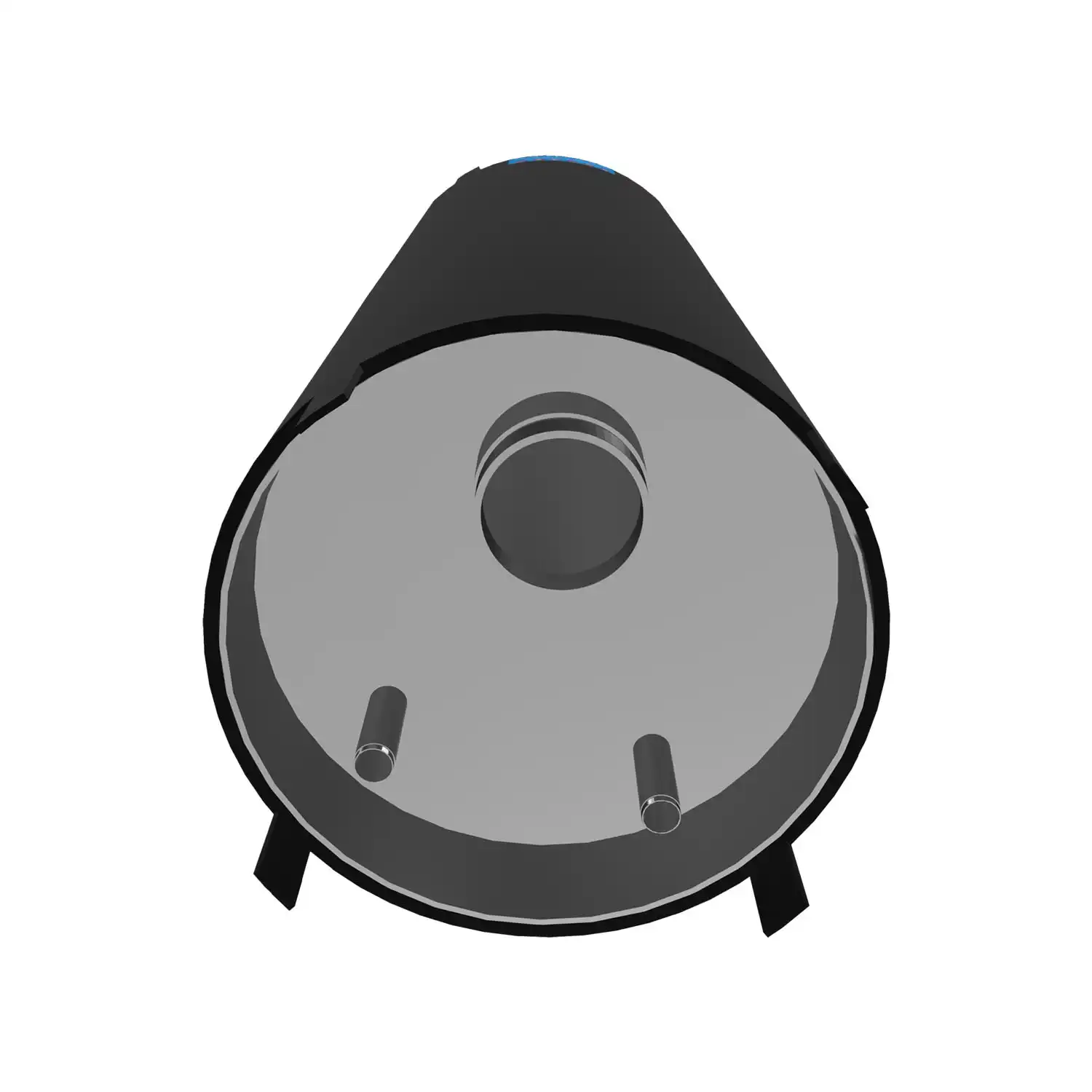

- Multi Size Metal Core Test Plugs are a kind of pneumatic test plugs, they are manufactured with a big size metal core inside as a bypass, they are used for repairing and testing sewage pipes, newly constructed or refurbished pipelines without stopping their normal flow.
- The only difference between pipe test plugs is the large-diameter bypasses inside.
- It is ideal for directing the flow where the flow is heavy, they can be produced more then one bypass and larger diameter bypass according to the special technical needs and the specific use.
- Mostly used also during the technical support to repair sewers/pipelines/drainage systems/gullies, to divert the flow via a bypass in them.
- They are made of reinforced rubber which cover the metal core inside, being produced between 70mm to 1200mm diameter.
| Product Code | Nominal Size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Max. Working Pressure (bar/psi) | Back Pressure(bar/psi) | Product Diameter (mm/inch) | Total Length of Product (mm/inch) | Bypass Diameter(mm/inch) | Product Weight (kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|---|---|
|
remove
add
|
MMTP70150A | 70-150 | 70mm/2,76" | 150mm/5,91" | 1,5bar/21,75psi | 0,5bar/7,25psi | 68mm/2,68" | 260mm/10,24" | 25,40mm/1" | 2,5kg/5,51lbs |
|
remove
add
|
MMTP100150A | 100-150 | 100mm/3,94" | 150mm/5,91" | 1,5bar/21,75psi | 0,5bar/7,25psi | 85mm/3,35" | 400mm/15,75" | 50,80mm/2" | 2,5kg/5,51lbs |
|
remove
add
|
MMTP100200A | 100-200 | 100mm/3,94" | 200mm/7,87" | 1,5bar/21,75psi | 0,5bar/7,25psi | 92mm/3,62" | 500mm/19,69" | 25,40mm/1" | 3,5kg/7,72lbs |
|
remove
add
|
MMTP100200B | 100-200 | 100mm/3,94" | 200mm/7,87" | 1,5bar/21,75psi | 0,5bar/7,25psi | 92mm/3,62" | 500mm/19,69" | 50,80mm/2" | 4,5kg/9,92lbs |
|
remove
add
|
MMTP125200A | 125-200 | 125mm/4,92" | 200mm/7,87" | 1,5bar/21,75psi | 0,5bar/7,25psi | 115mm/4,53" | 500mm/19,69" | 50,80mm/2" | 4,5kg/9,92lbs |
|
remove
add
|
MMTP200500A | 200 - 500 | 200mm/7,87" | 500mm/19,69" | 1,5bar/21,75psi | 0,5bar/7,25psi | 185mm/7,28" | 900mm/35,43" | 25,40mm/1"+50,80mm/2" | 15kg/33,06lbs |
|
remove
add
|
MMTP200500B | 200 - 500 | 200mm/7,87" | 500mm/19,69" | 1,5bar/21,75psi | 0,5bar/7,25psi | 185mm/7,28" | 900mm/35,43" | 76,20mm/3" | 20kg/44,09lbs |
|
remove
add
|
MMTP300600A | 300-600 | 300mm/11,81" | 600mm/23,62" | 1,5bar/21,75psi | 0,5bar/7,25psi | 285mm/11,22" | 1000mm/39,37" | 25,40mm/1"+50,80mm/2" | 25kg/55,10lbs |
|
remove
add
|
MMTP300600B | 300-600 | 300mm/11,81" | 600mm/23,62" | 1,5bar/21,75psi | 0,5bar/7,25psi | 285mm/11,22" | 1000mm/39,37" | 101,60mm/4" | 28kg/61,73lbs |
|
remove
add
|
MMTP300750A | 300-750 | 300mm/11,81" | 750mm/29,52" | 1,5bar/21,75psi | 0,5bar/7,25psi | 285mm/11,22" | 1000mm/39,37" | 25,40mm/1"+50,80mm/2" | 32kg/70,55lbs |
|
remove
add
|
MMTP500800A | 500 -800 | 500mm/19,69" | 800mm/31,5" | 1,5bar/21,75psi | 0,5bar/7,25psi | 440mm/17,32" | 1200mm/47,24" | 2 X 1" + 4" | 55kg/121,22lbs |
|
remove
add
|
MMTP500800B | 500 -800 | 500mm/19,69" | 800mm/31,5" | 1,5bar/21,75psi | 0,5bar/7,25psi | 440mm/17,32" | 1200mm/47,24" | 152,40mm/6" | 64kg/141,1lbs |
|
remove
add
|
MMTP5001200A | 500 -1200 | 500mm/19,69" | 1200mm/47,24" | 1,5bar/21,75psi | 0,5bar/7,25psi | 440mm/17,32" | 1500mm/59,06" | 2 X 1" + 4" | 70kg/31,76lbs |
|
remove
add
|
MMTP5001200B | 500 -1200 | 500mm/19,69" | 1200mm/47,24" | 1,5bar/21,75psi | 0,5bar/7,25psi | 440mm/17,32" | 1500mm/59,06" | 152,40mm/6" | 76kg/167,55lbs |
