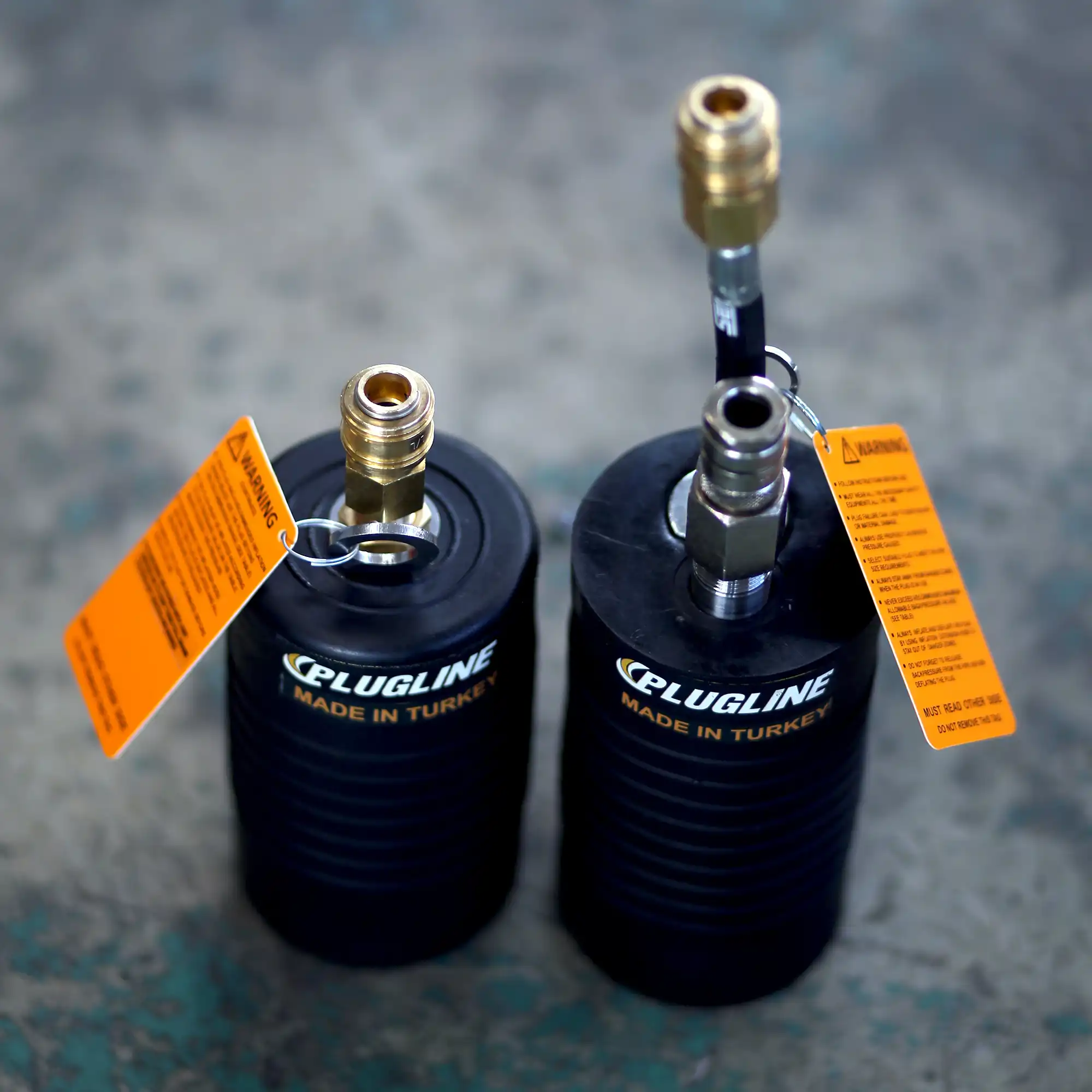

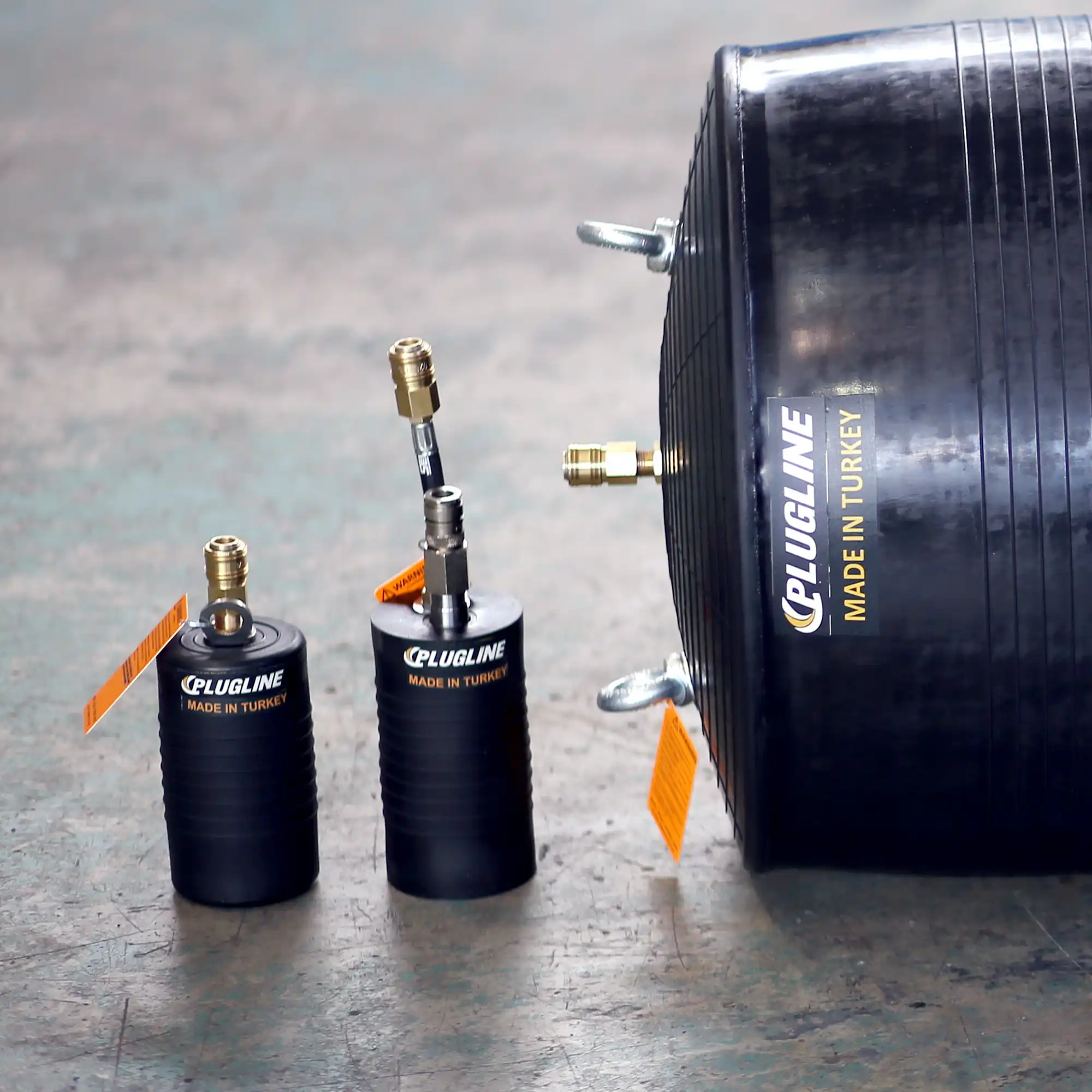

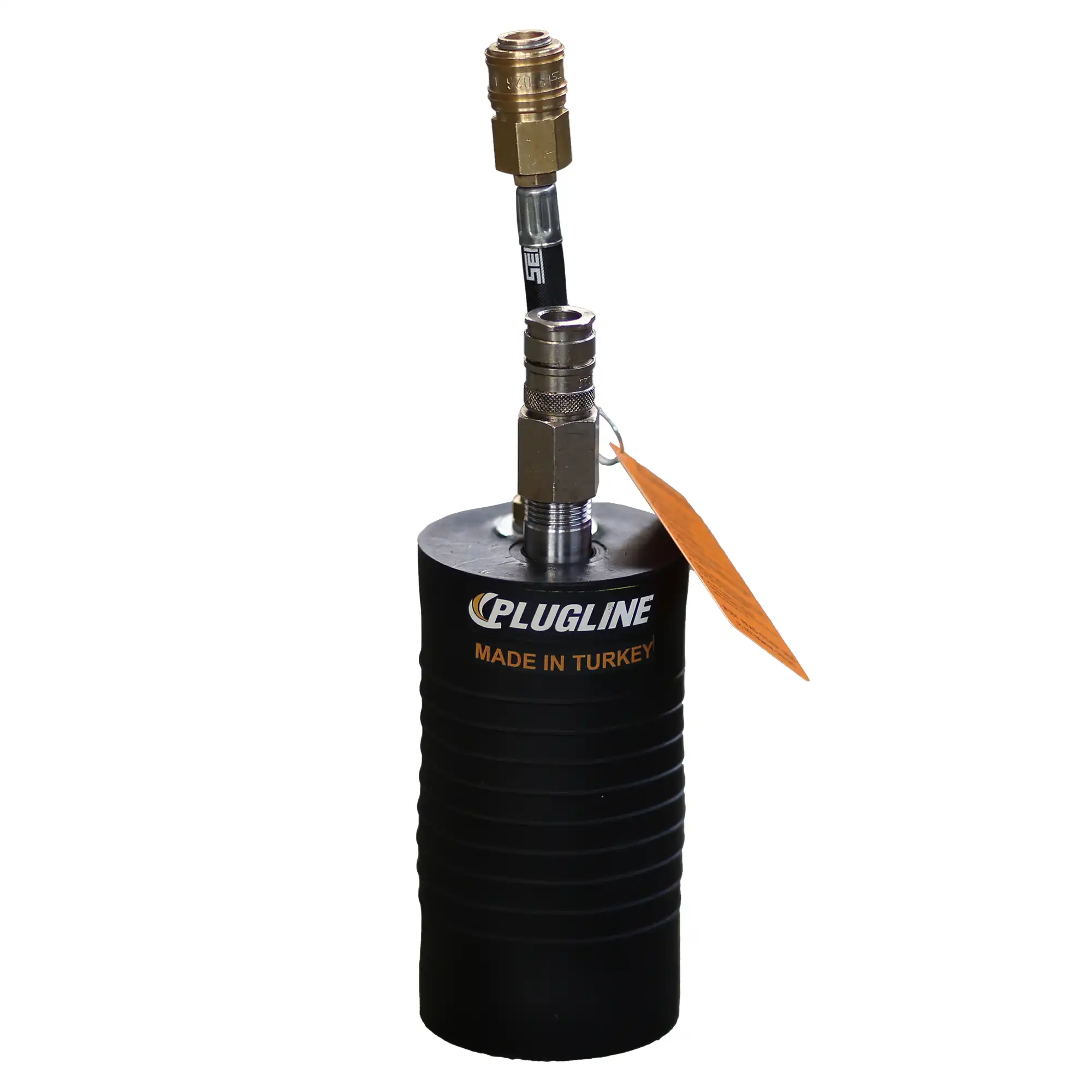

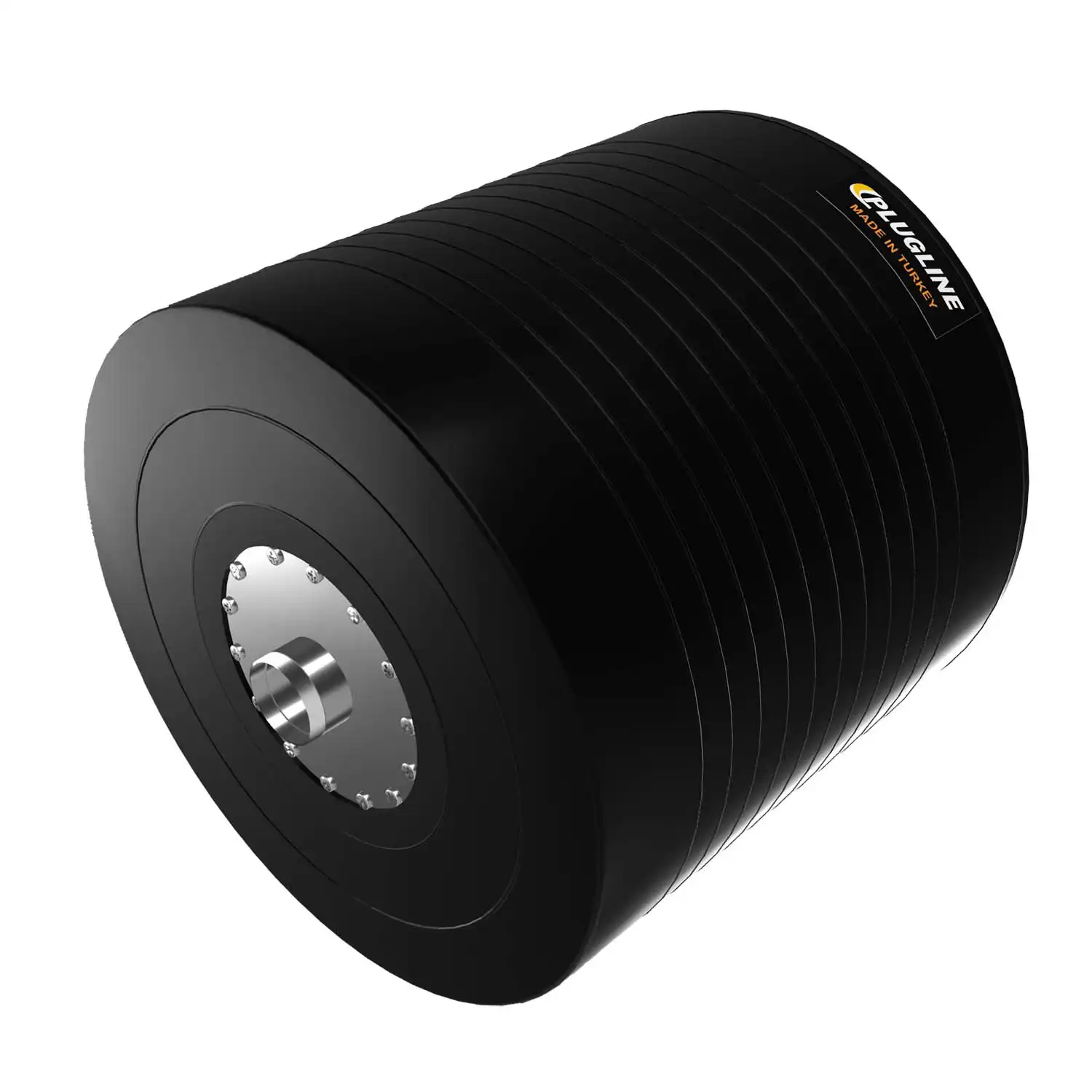

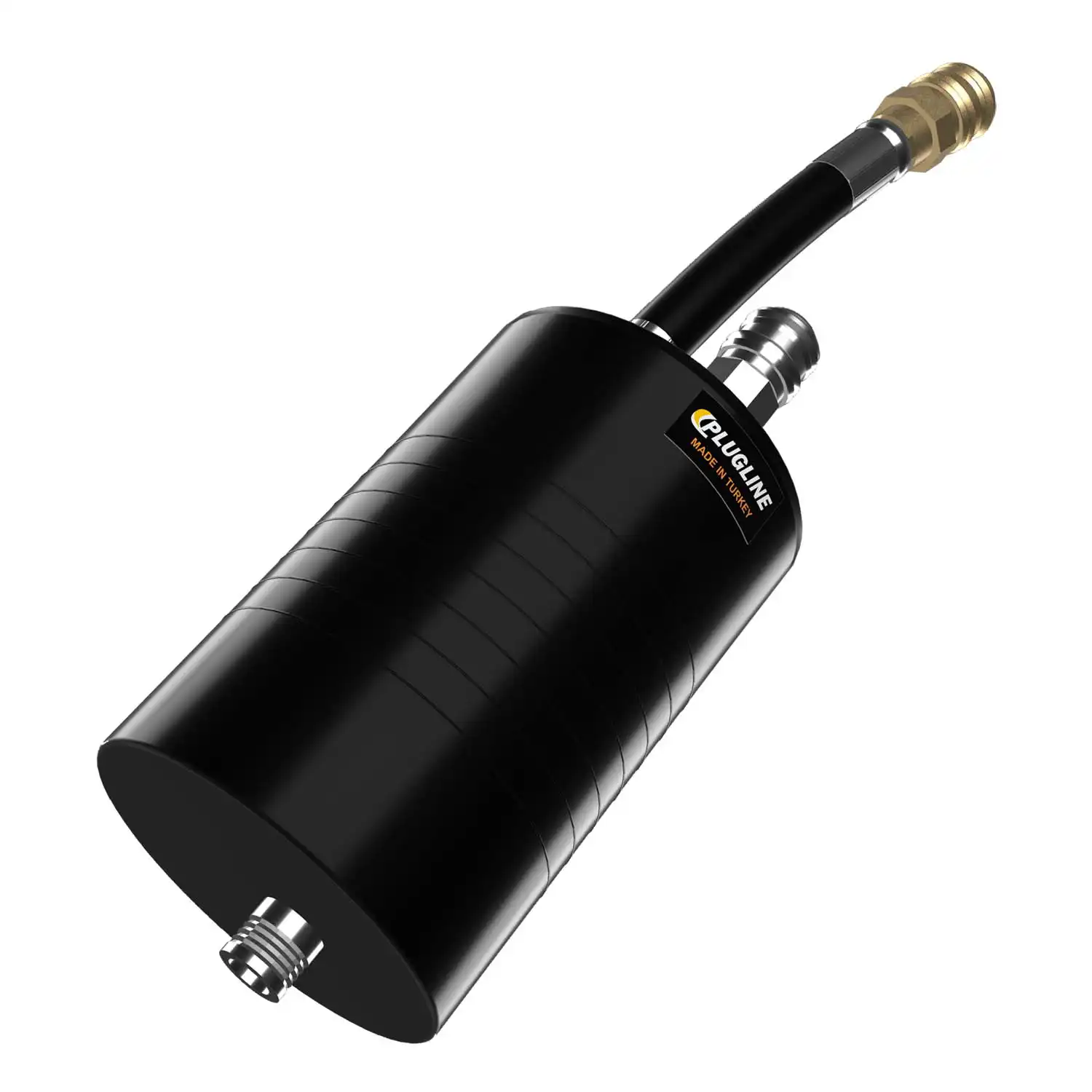

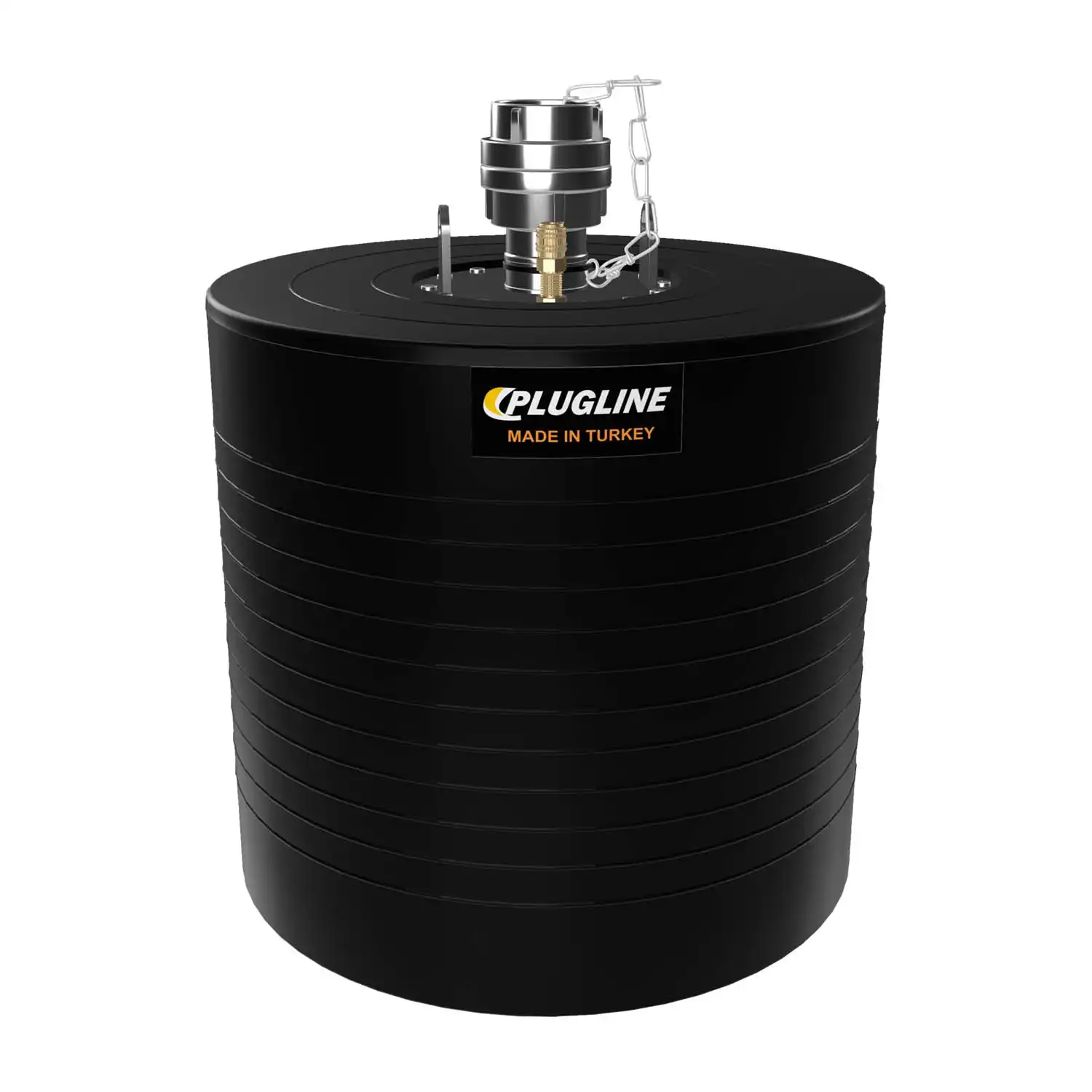

Inflatable Small Pipe Test Plugs
- Inflatable Small Test Plugs are suitable for testing special application conditions of drainage systems, pipelines, sewers and gutters needed short lenght and less heavy plugs, especially suitable for testing of house connections.
- They are also commonly used for this purpose when it is necessary to bypass the water flow in the pipes.
- The standard product line covers pipe diameters range from 30 mm to 1000 mm witn 2,5 bar/36,25 psi working pressure.
| Product Code | Nominal Size | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Max. Working Pressure (bar/psi) | Product Diameter (mm/inch) | Total Length of Product (mm/inch) | Bypass Diameter(mm/inch) | Product Weight (kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|---|
|
remove
add
|
ISTP30 | 30 | 30mm / 1.18" | 32mm / 1.26" | 2,5bar/36,25psi | 29mm / 1.14" | 30mm / 1.18" | 3,17mm/1/8" | 0,14kg / 0.31lbs |
|
remove
add
|
ISTP40 | 40 | 38mm / 1.5" | 42mm / 1.65" | 2,5bar/36,25psi | 37mm / 1.46" | 40mm / 1.57" | 3,17mm/1/8" | 0,15kg / 0.33lbs |
|
remove
add
|
ISTP50 | 50 | 48mm / 1.89" | 54mm / 2.13" | 2,5bar/36,25psi | 45mm / 1.77" | 50mm / 1.97" | 3,17mm/1/8" | 0,25kg / 0.55lbs |
|
remove
add
|
ISTP60 | 60 | 59mm / 2.32" | 65mm / 2.56" | 2,5bar/36,25psi | 58mm / 2.28" | 90mm / 3.54" | 12,70mm/1/2" | 0,35kg / 0.77lbs |
|
remove
add
|
ISTP75 | 75 | 72mm / 2.83" | 78mm / 3.07" | 2,5bar/36,25psi | 69mm / 2.72" | 110mm / 4.33" | 12,70mm/1/2" | 0,45kg / 0.99lbs |
|
remove
add
|
ISTP100 | 100 | 90mm / 3.54" | 105mm / 4.13" | 2,5bar/36,25psi | 88mm / 3.46" | 150mm / 5.91" | 12,70mm/1/2" | 0,6kg / 1.32lbs |
|
remove
add
|
ISTP150 | 150 | 150mm / 5.91" | 150mm / 5.91" | 2,5bar/36,25psi | 138mm / 5.43" | 150mm / 5.91" | 50,80mm/2" | 1,5kg / 3.31lbs |
|
remove
add
|
ISTP200 | 200 | 200mm / 7.87" | 200mm / 7.87" | 2,5bar/36,25psi | 180mm / 7.09" | 200mm / 7.87" | 50,80mm/2" | 2kg / 4.41lbs |
|
remove
add
|
ISTP250 | 250 | 250mm / 9.84" | 250mm / 9.84" | 2,5bar/36,25psi | 225mm / 8.86" | 250mm / 9.84" | 50,80mm/2" | 2,5kg / 5.51lbs |
|
remove
add
|
ISTP300 | 300 | 300mm / 11.81" | 300mm / 11.81" | 2,5bar/36,25psi | 285mm / 11.22" | 300mm / 11.81" | 50,80mm/2" | 3,2kg / 7.05lbs |
|
remove
add
|
ISTP350 | 350 | 350mm / 13.77" | 350mm / 13.77" | 2,5bar/36,25psi | 225mm / 8.86" | 300mm / 11.81" | 50,80mm/2" | 3,7kg / 8.16lbs |
|
remove
add
|
ISTP400 | 400 | 400mm / 15.75" | 400mm / 15.75" | 2,5bar/36,25psi | 380mm / 14.96" | 450mm / 17.72" | 50,80mm/2" | 4,2kg / 9.26lbs |
|
remove
add
|
ISTP500 | 500 | 500mm / 19.69" | 500mm / 19.69" | 2,5bar/36,25psi | 480mm / 18.9" | 450mm / 17.72" | 50,80mm/2" | 5,4kg / 11.9lbs |
|
remove
add
|
ISTP600 | 600 | 600mm / 23.62" | 600mm / 23.62" | 2,5bar/36,25psi | 580mm / 22.83" | 450mm / 17.72" | 50,80mm/2" | 6,5kg / 14.33lbs |
|
remove
add
|
ISTP800 | 800 | 800mm / 31.5" | 800mm / 31.5" | 2,5bar/36,25psi | 780mm / 30.71" | 800mm / 31.5" | 50,80mm/2" | 30,kg / 66.14lbs |
|
remove
add
|
ISTP3040 | 30-40 | 30mm / 1.18" | 40mm / 1.57" | 2,5bar/36,25psi | 29mm / 1.14" | 100mm / 3.94" | 3,17mm/1/8" | 0,5kg / 1.1lbs |
|
remove
add
|
ISTP5075 | 50-75 | 48mm / 1.89" | 75mm / 2.95" | 2,5bar/36,25psi | 48mm / 1.89" | 100mm / 3.94" | 12,70mm/1/2" | 0,75kg / 1.65lbs |
|
remove
add
|

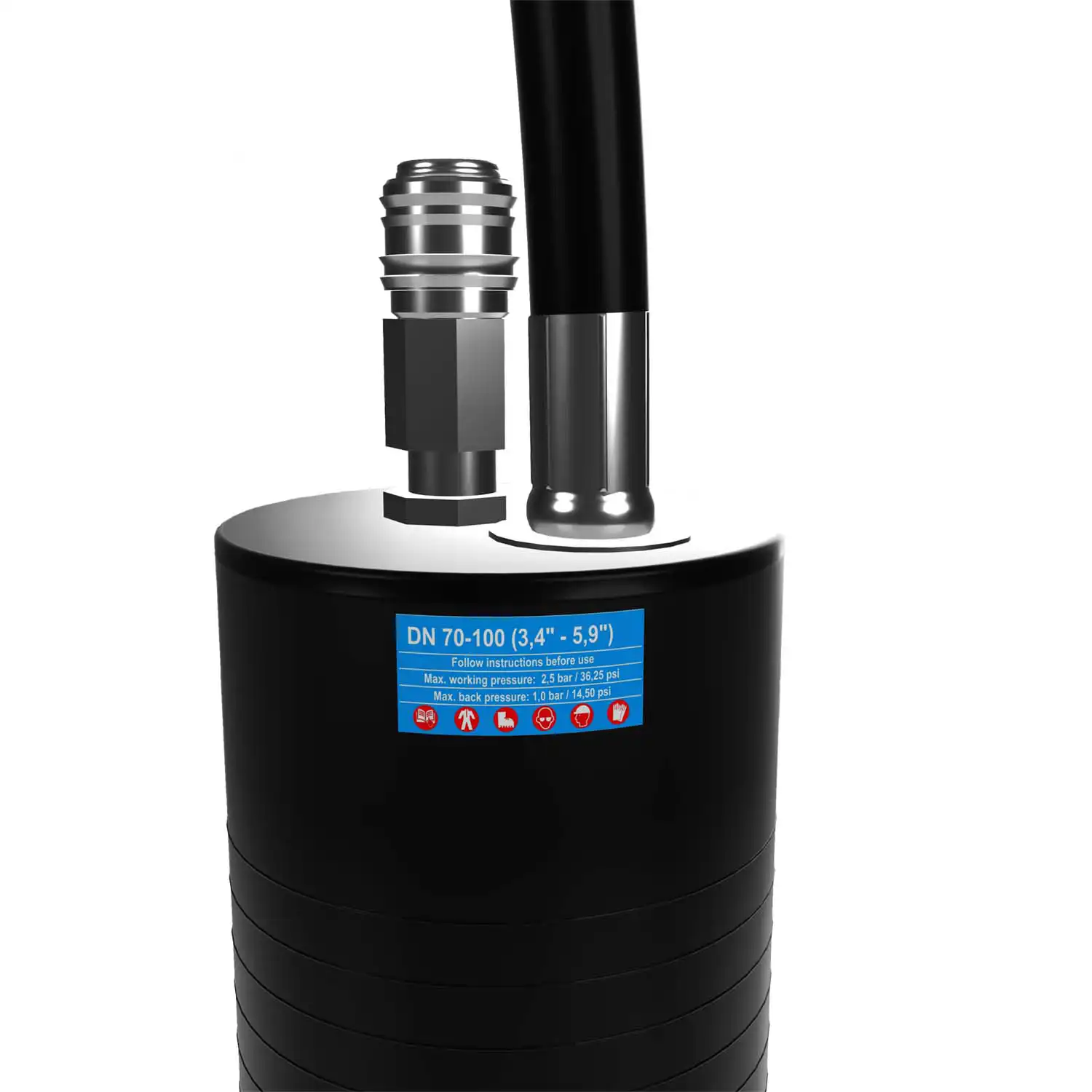

ISTP70100 | 70-100 | 88mm / 3.46" | 105mm / 4.13" | 2,5bar/36,25psi | 88mm / 3.46" | 150mm / 5.91" | 25,40mm/1" | 2,5kg / 5.51lbs |
|
remove
add
|
ISTP100150 | 100-150 | 90mm / 3.54" | 150mm / 5.91" | 2,5bar/36,25psi | 88mm / 3.46" | 150mm / 5.91" | 12,70mm/1/2" | 0,75kg / 1.65lbs |
|
remove
add
|
ISTP150200 | 150-200 | 150mm / 5.91" | 200mm / 7.87" | 2,5bar/36,25psi | 138mm / 5.43" | 200mm / 7.87" | 50,80mm/2" | 2,5kg / 5.51lbs |
|
remove
add
|
ISTP200250 | 200-250 | 200mm / 7.87" | 250mm / 9.84" | 2,5bar/36,25psi | 180mm / 7.09" | 250mm / 9.84" | 50,80mm/2" | 4kg / 8.82lbs |
|
remove
add
|
ISTP250300 | 250-300 | 250mm / 9.84" | 300mm / 11.81" | 2,5bar/36,25psi | 225mm / 8.86" | 300mm / 11.81" | 50,80mm/2" | 6kg / 13.23lbs |
|
remove
add
|
ISTP300350 | 300-350 | 300mm / 11.81" | 350mm / 13.78" | 2,5bar/36,25psi | 285mm / 11.22" | 300mm / 11.81" | 50,80mm/2" | 8,5kg / 18.74lbs |
|
remove
add
|
ISTP400450 | 400-450 | 400mm / 15.75" | 450mm / 17.72" | 2,5bar/36,25psi | 380mm / 14.96" | 450mm / 17.72" | 50,80mm/2" | 4,2kg / 9.26lbs |
|
remove
add
|
ISTP500550 | 500-550 | 500mm / 19.69" | 550mm / 21.65" | 2,5bar/36,25psi | 480mm / 18.9" | 450mm / 17.72" | 50,80mm/2" | 5,4kg / 11.9lbs |
|
remove
add
|

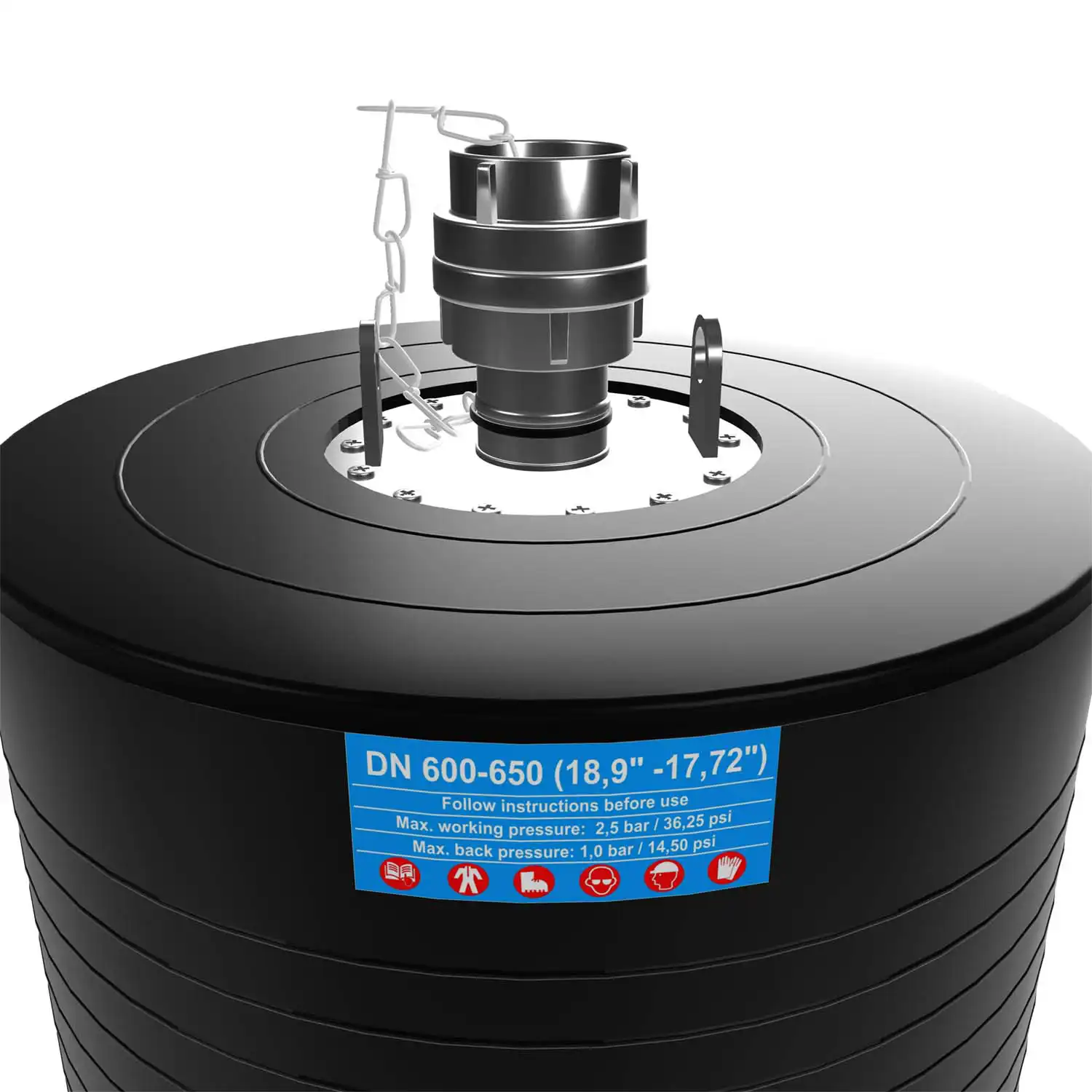

ISTP600650 | 600-650 | 600mm / 23.62" | 650mm / 25.59" | 2,5bar/36,25psi | 480mm / 18.9" | 450mm / 17.72" | 50,80mm/2" | 6,5kg / 14.33lbs |
|
remove
add
|
ISTP8001000 | 800-1000 | 800mm / 31.5" | 1000mm / 39.37" | 2,5bar/36,25psi | 780mm / 30.71" | 800mm / 31.5" | 50,80mm/2" | 35,0kg / 77.16lbs |
