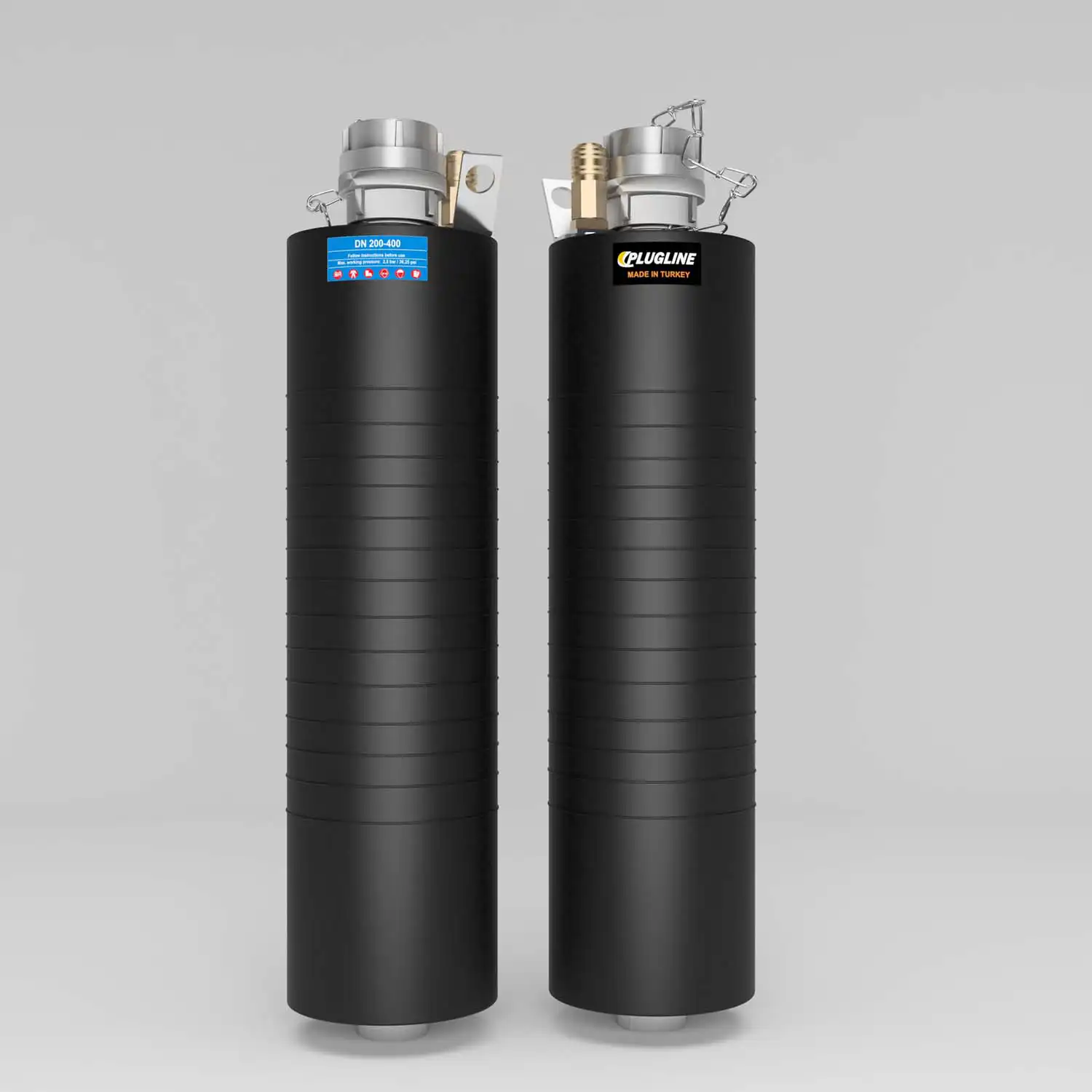

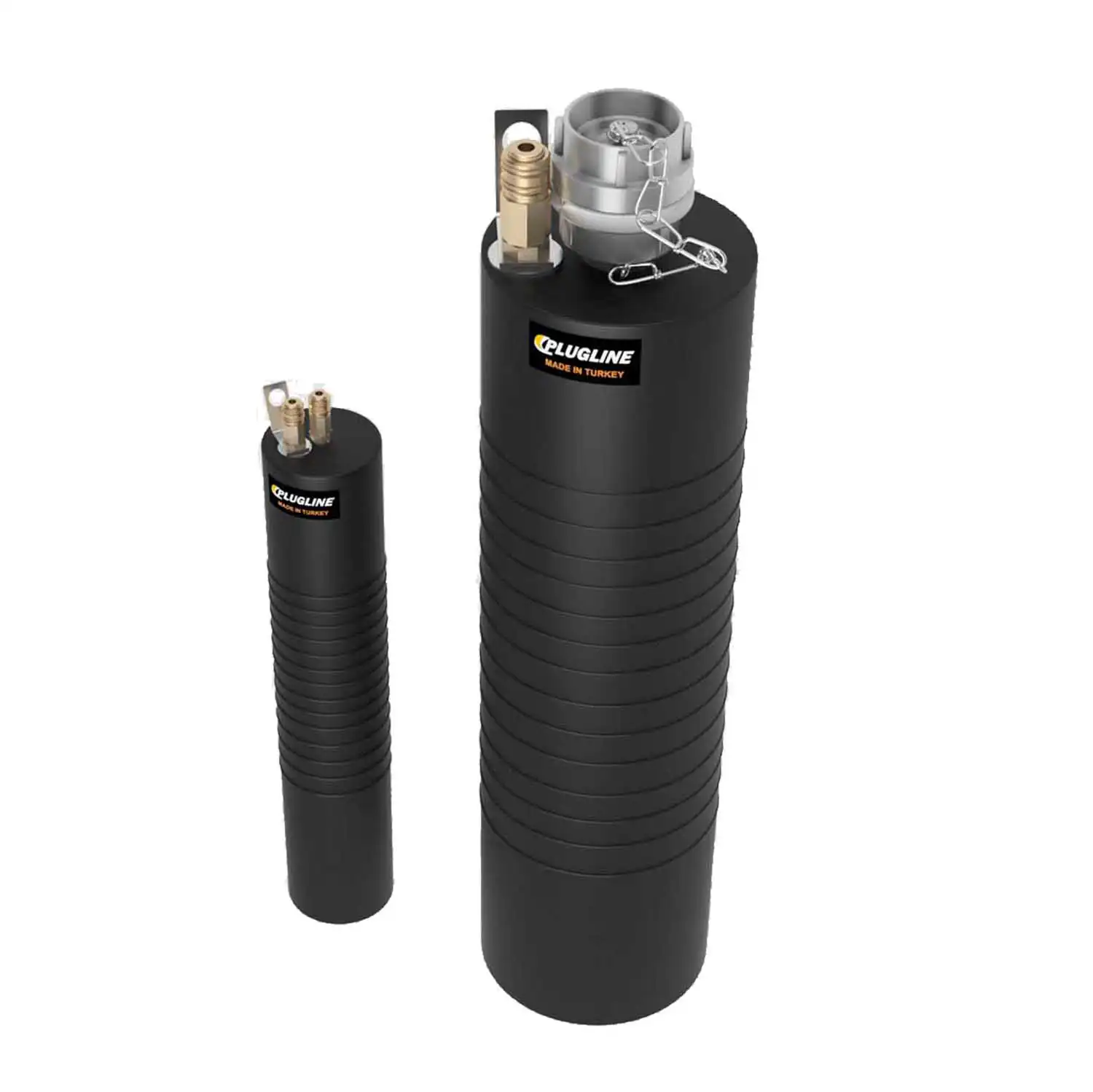

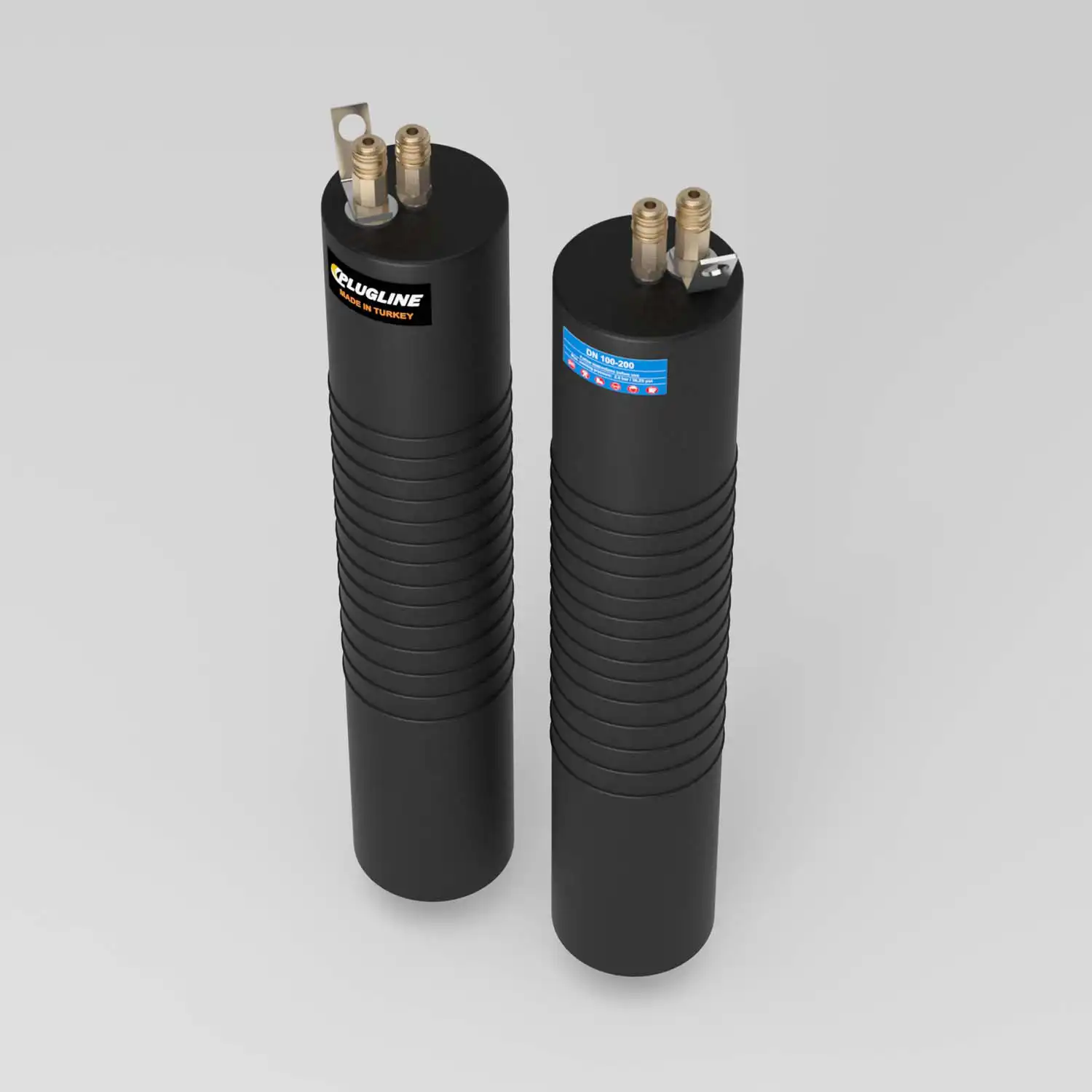

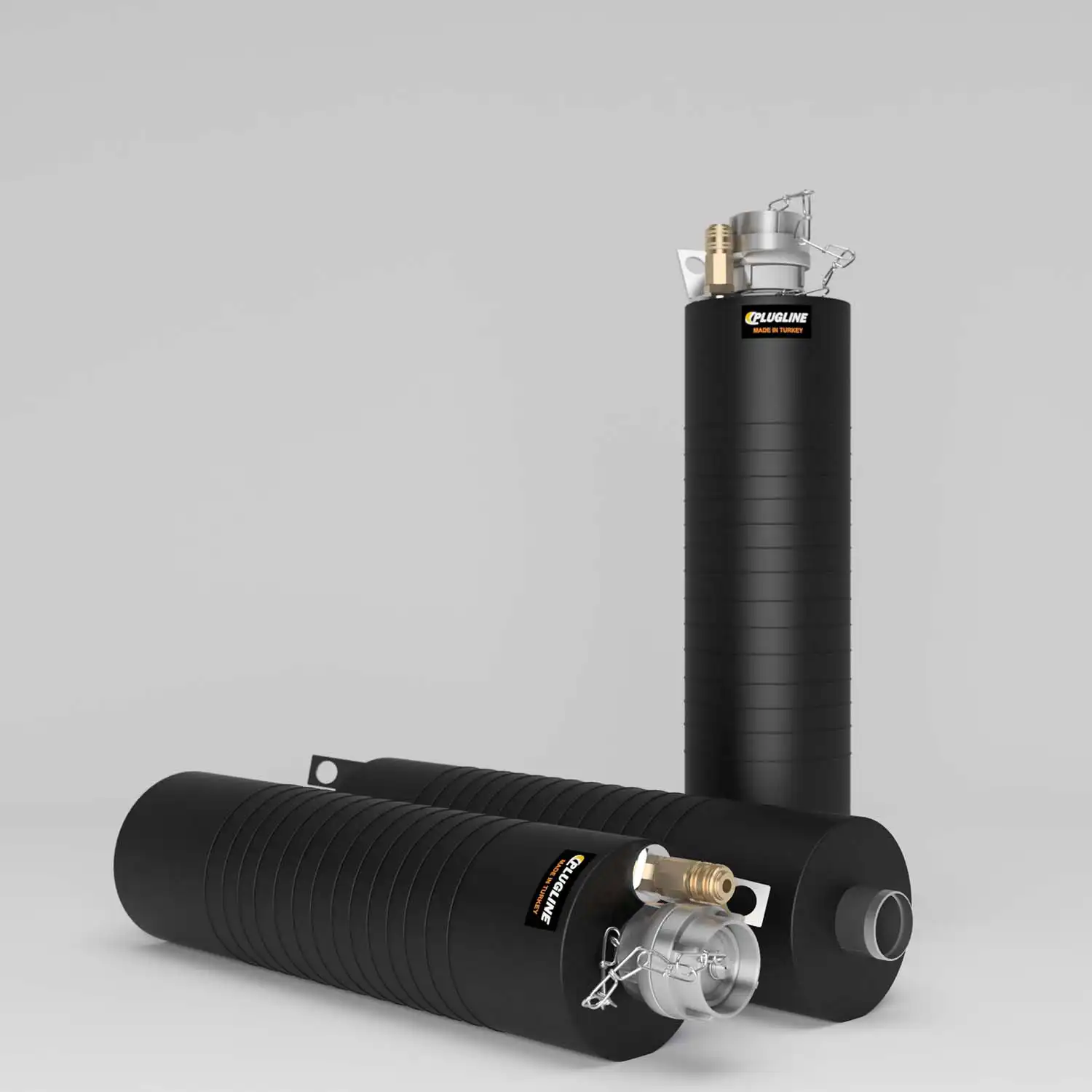

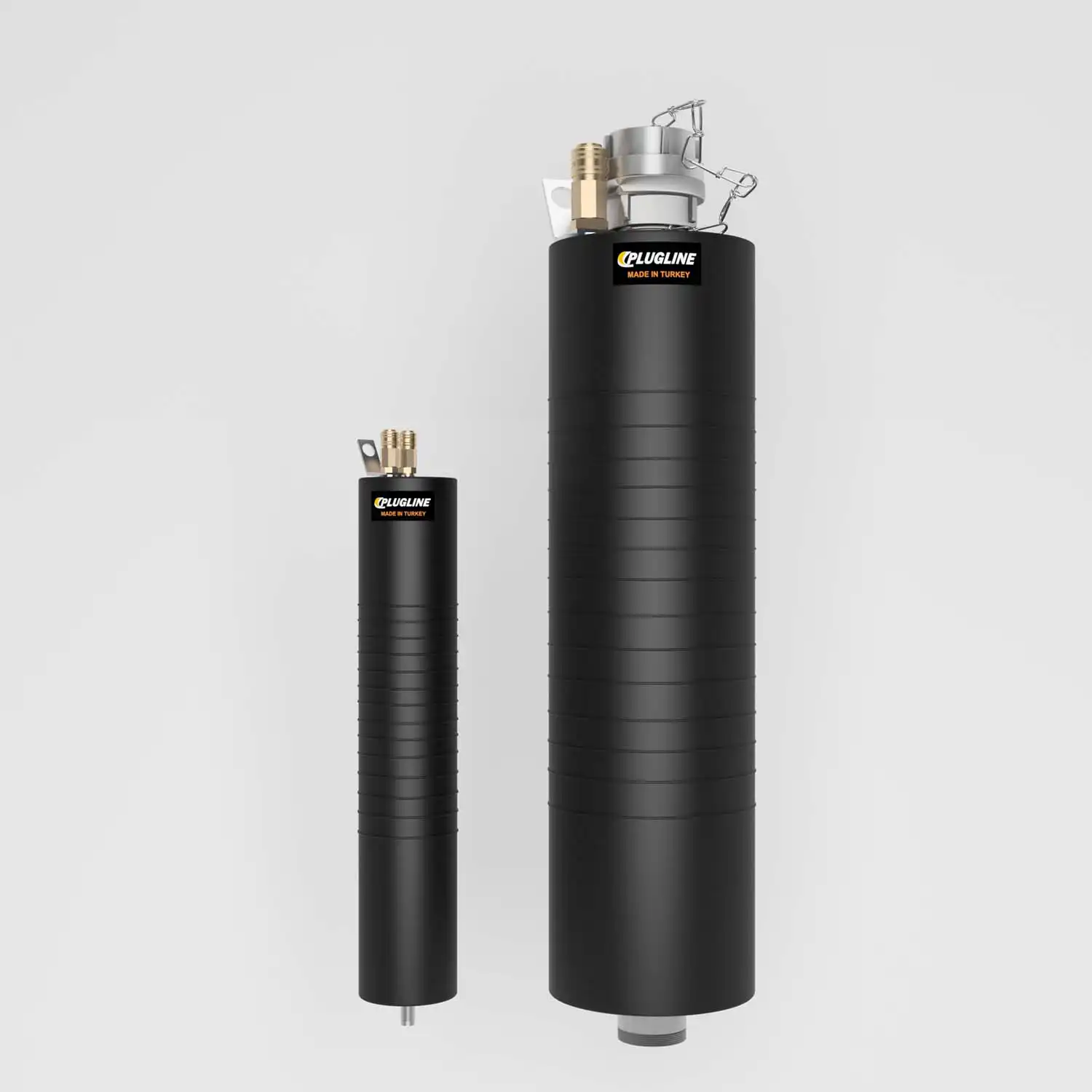

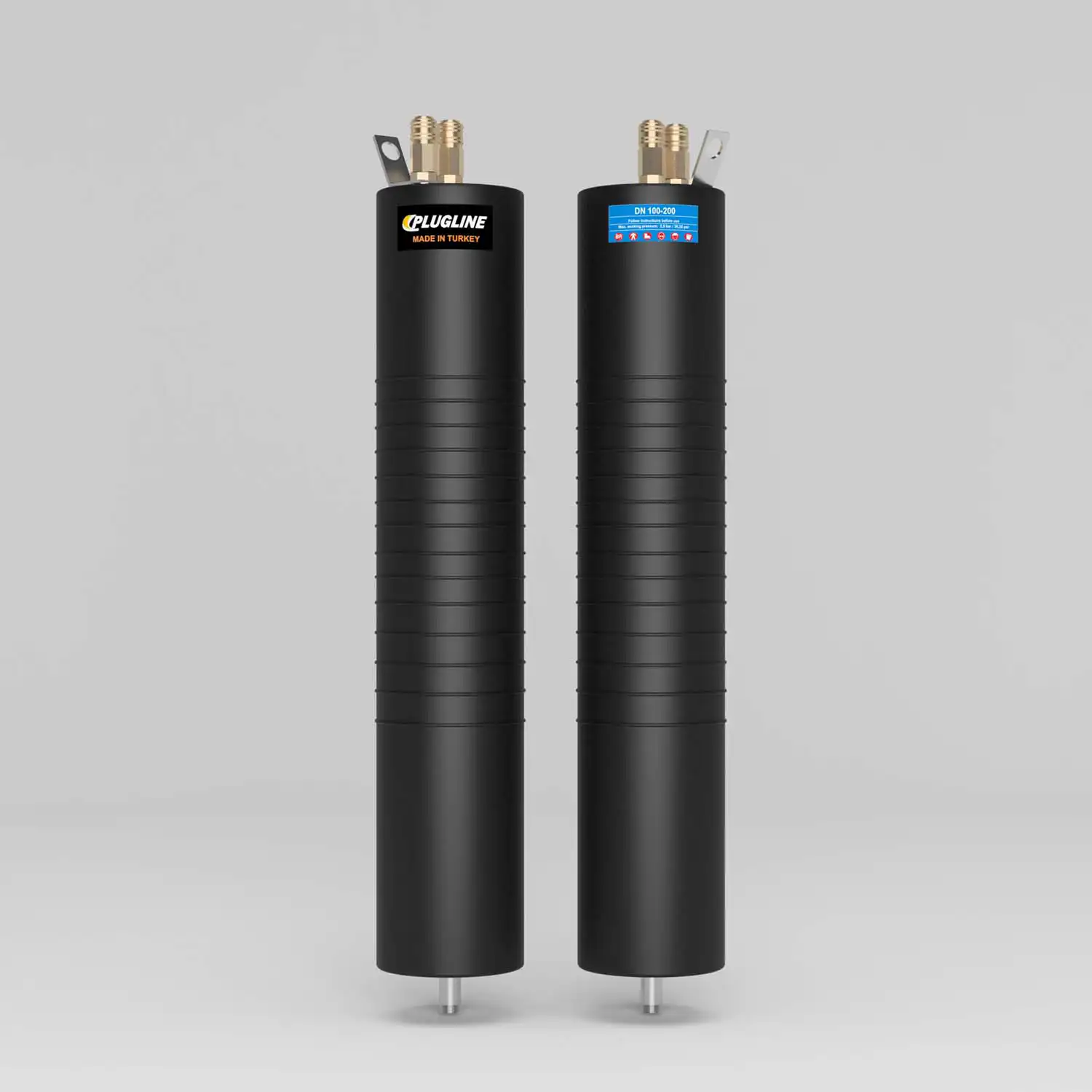

Inflatable Medium Size Pipe Test Plugs (2,5 bar)
- Inflatable medium size test plugs are named as the medium because of their length, their length is between test plugs and small test plugs. Like other test plugs, they are used for leak tests by air or water.
- They have lightweight, most sizes can be installed by one man and with an eyebolt to handle simplify manipulation of the plug.
- All other plugs are made with high-quality rubber and metal items for anticorrosion
- The standard product line covers pipe diameters ranging from 50 mm to 400 mm with 2.5 bar/36.25 psi working pressure
| Product Code | Nominal Size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Max. Working Pressure (bar/psi) | Back Pressure(bar/psi) | Product Diameter (mm/inch) | Total Length of Product (mm/inch) | Bypass Diameter(mm/inch) | Product Weight (kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|---|---|
|
remove
add
|
IMTP50100 | 50-100 | 45mm/1,77" | 100mm/3,94" | 3,0bar/43,51psi | 0,5bar/7,25psi | 45mm/1,77" | 150mm/5,91" | 6,35mm/1/4" | 0,7kg/1,54lbs |
|
remove
add
|
IMTP70150 | 70-150 | 70mm/2,76" | 150mm/5,91" | 3,0bar/43,51psi | 0,5bar/7,25psi | 65mm/2,56" | 200mm/7,87" | 6,35mm/1/4" | 1,2kg/2,65lbs |
|
remove
add
|
IMTP100200 | 100-200 | 100mm/3,94" | 200mm/7,87" | 3,0bar/43,51psi | 0,5bar/7,25psi | 85mm/3,34" | 200mm/7,87" | 12,70mm/1/2" | 1,7kg/3,75lbs |
|
remove
add
|
IMTP150300 | 150-300 | 150mm/5,91" | 300mm/11,81" | 2,5bar/36,25psi | 0,5bar/7,25psi | 135mm/5,31" | 300mm/11,81" | 25,40mm/1" | 4,5kg/9,92lbs |
|
remove
add
|
IMTP200400 | 200-400 | 200mm/7,87" | 400mm/15,75" | 2,5bar/36,25psi | 0,5bar/7,25psi | 182mm/7,16" | 400mm/15,75" | 25,40mm/1" | 6,5kg/14,33lbs |
|
remove
add
|
IMTP300600 | 300-600 | 300mm/11,81" | 600mm/23,62" | 2,5bar/36,25psi | 0,5bar/7,25psi | 280mm/11,02" | 600mm/23,62" | 50,80mm/2" | 14kg/30,85lbs |
