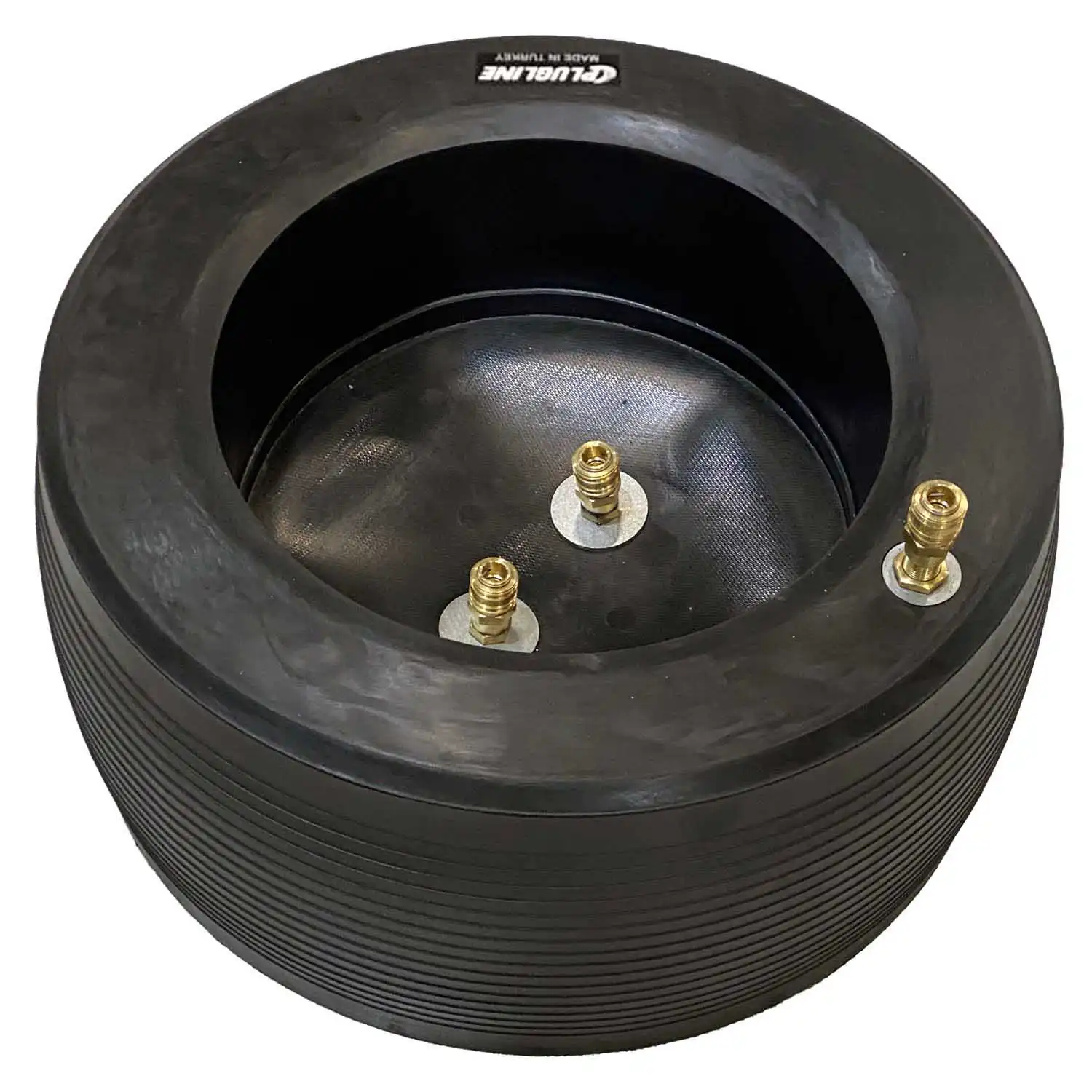

Low Back Pressure Pipe Test Plugs (1,5 bar)

  • Used for pipe joints air leak testing and blanking off, maximum air leak test pressure in pipe diameter is 0.01 bar, 0,001 MPa (100 mm of water column).
  • Used to close the pipes that will not be used for a while, to protect the pipes from dust and dirt that may come from outside during the production process.
  • Cover a big range of sizes, a 1000mm pipe can be covered by using the 900/1100mm plugs.
  • Easy to use and maintain.

PLUGLINE

Low Back Pressure Pipe Test Plugs

LOW BACK PRESSURE PIPE TEST PLUGS (1,5 BAR/21,75 PSI)
Product Code Nominal Size (mm) Min. Pipe Inner Dia. to be tested (mm/inch) Max. Pipe Inner Dia. to be tested (mm/inch) Max. Working Pressure (bar/psi) Product Diameter (mm/inch) Total Length of Product (mm/inch) Bypass Diameter (mm/inch) Product Weight (kg/Ibs)
remove add
LBTP300400 300-400 300mm/11,81" 400mm/15,75" 1,5bar/21,75psi 280mm/11,02" 250mm/9,84" 2x6,35mm/2x1/4" 2,0kg/4,41lbs
remove add
LBTP400500 400-500 400mm/15,75" 500mm/19,69" 1,5bar/21,75psi 380mm/14,96" 250mm/9,84" 2x6,35mm/2x1/4" 3,0kg/6,61lbs
remove add
LBTP500600 500-600 500mm/19,69" 600mm/23,62" 1,5bar/21,75psi 480mm/18,9" 250mm/9,84" 2x6,35mm/2x1/4" 4,0kg/8,82lbs
remove add
LBTP600700 600-700 600mm/23,62" 700mm/27,56" 1,5bar/21,75psi 580mm/22,83" 250mm/9,84" 2x6,35mm/2x1/4" 5,0kg/11,02lbs
remove add
LBTP700800 700-800 700mm/27,56" 800mm/31,5" 1,5bar/21,75psi 680mm/26,77" 250mm/9,84" 2x6,35mm/2x1/4" 6,0kg/13,23lbs
remove add
LBTP800900 800-900 800mm/31,5" 900mm/35,43" 1,5bar/21,75psi 780mm/30,71" 250mm/9,84" 2x6,35mm/2x1/4" 7,0kg/15,43lbs
remove add
LBTP9001100 900-1100 900mm/35,43" 1100mm/43,31" 1,5bar/21,75psi 880mm/34,65" 250mm/9,84" 2x6,35mm/2x1/4" 8,0kg/17,64lbs
