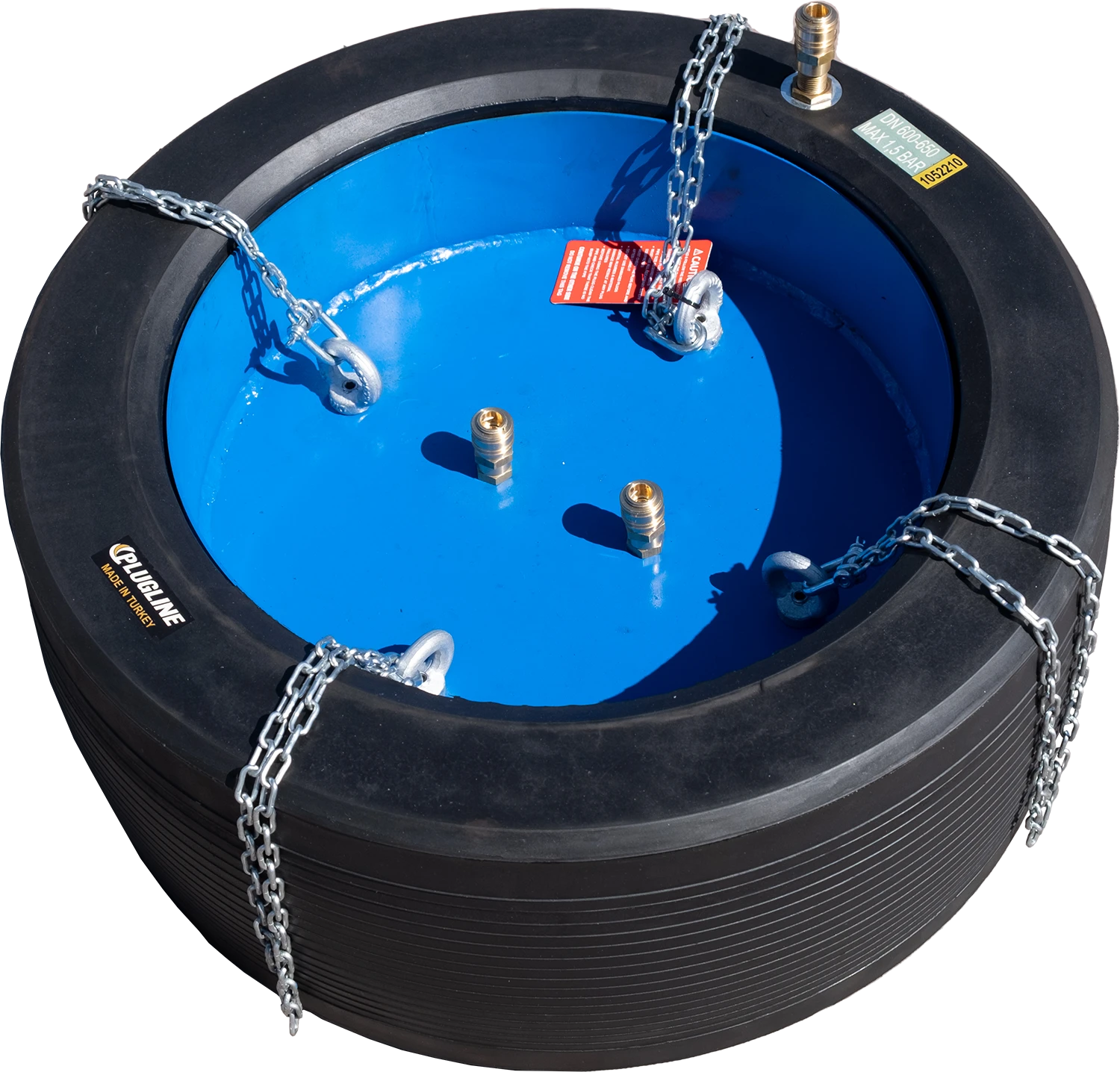

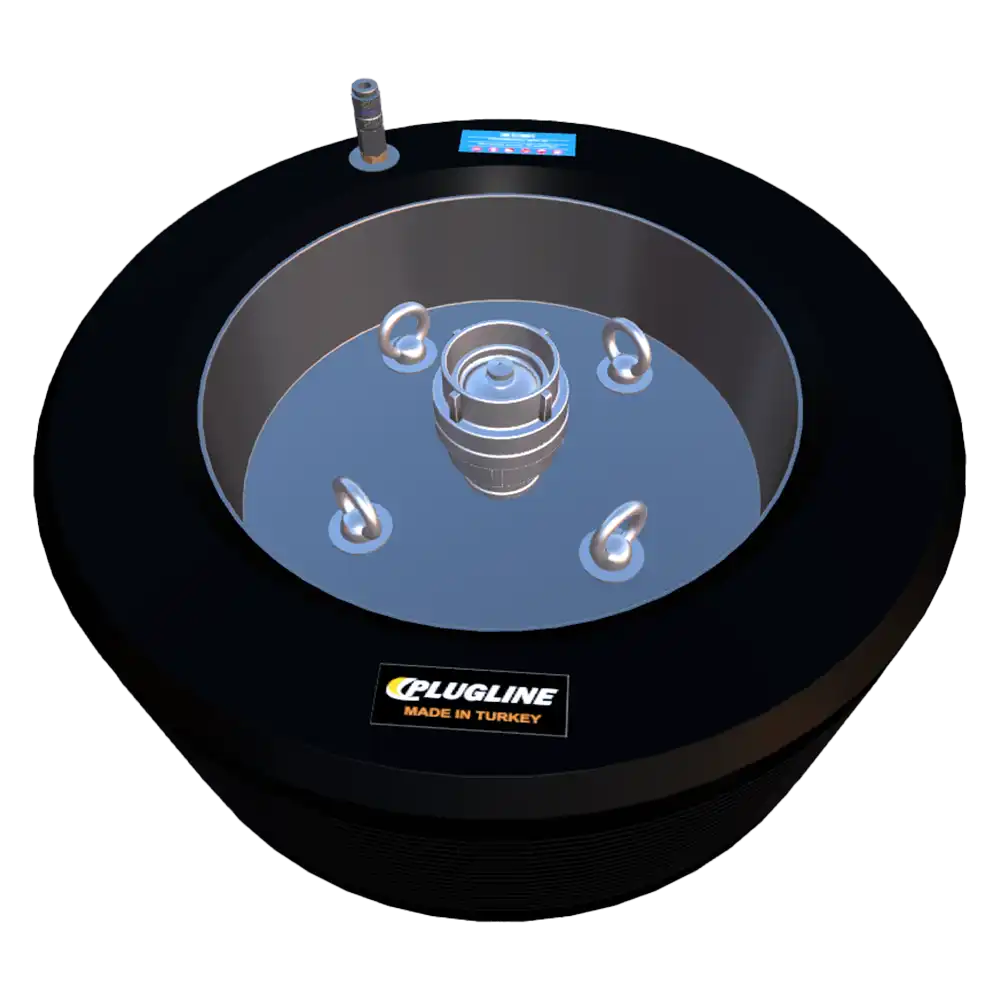

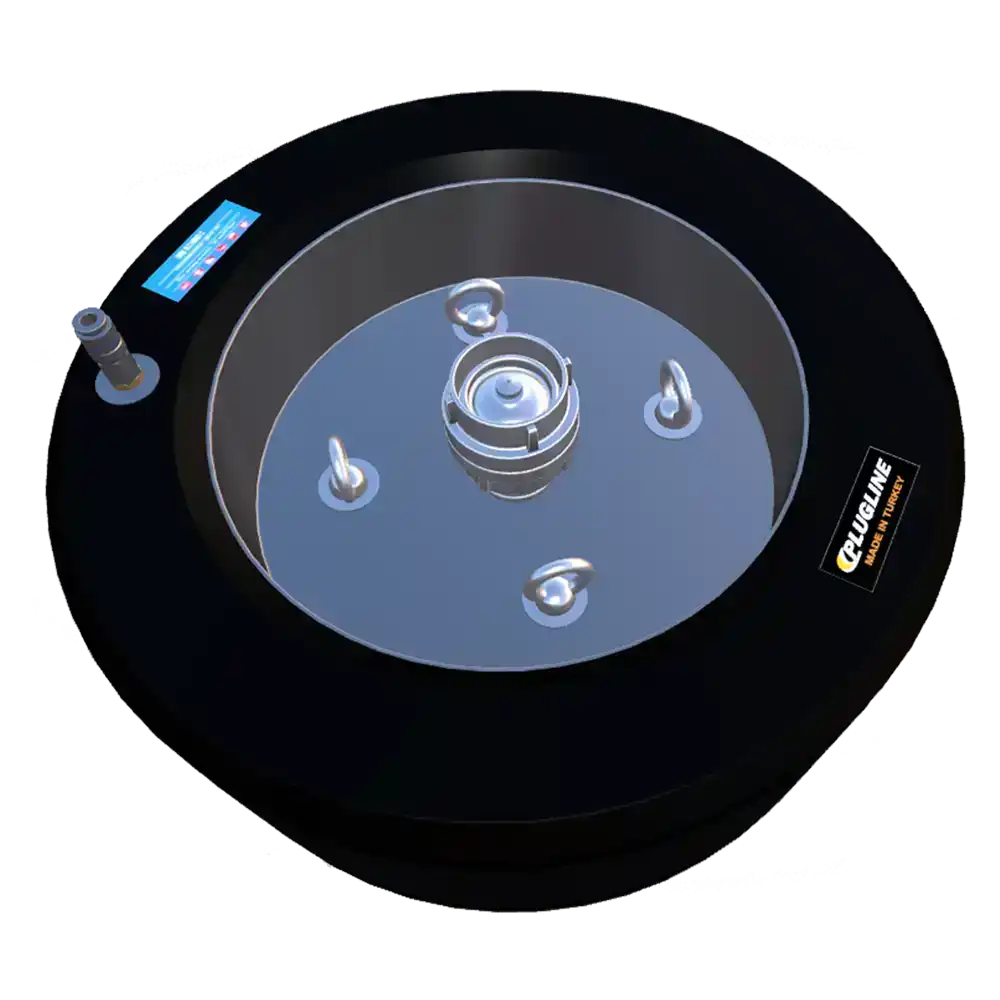

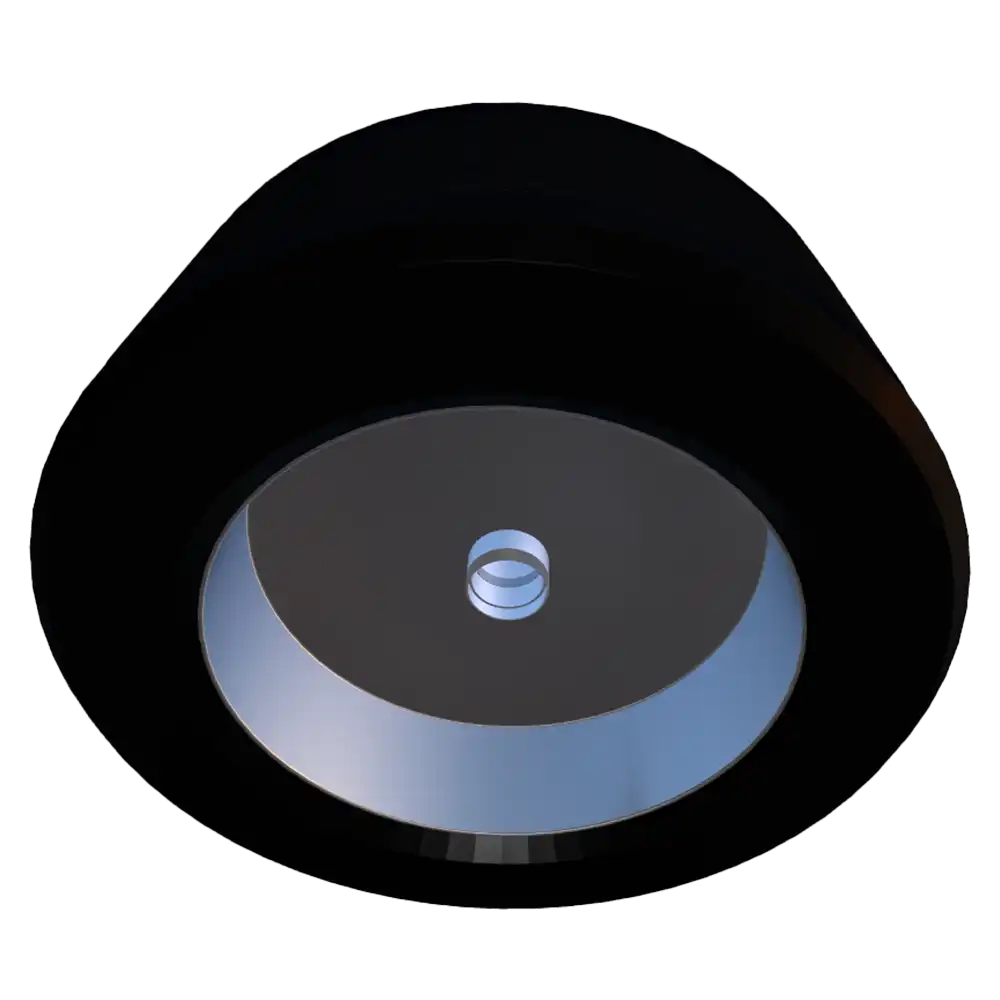

Multi Size Manhole Pipe Test Plugs (1,5 bar)
- Designed for sealing of manholes.
- Mainly used for testing sealings of manholes.
- Available for pipe diameters from 600 mm (23,62") to 1000 mm (39,37"). Besides these plugs for higher or lower diameters can be produced.
- Specified as standard working pressure 1,5 Bar (21,75 psi). in addition to this Multi Size
- Manhole Pipe Test Plugs have higher working pressures that can be produced.
| Product Code | Nominal Size(mm) | Min. Pipe Inner Dia. to be tested(mm/inch) | Max. Pipe Inner Dia. to be tested(mm/inch) | Max. Working Pressure(bar/psi) | Product Diameter(mm/inch) | Total Length of Product(mm/inch) | Bypass Diameter(mm/inch) | Product Weight(kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|---|
|
remove
add
|
MSMTP600650/A | 600-650 | 600mm/23,62" | 650mm/25,59" | 1,5bar/21,75psi | 580mm/22,83" | 250mm/9,84" | 2x6,35mm/2x1/4" | 5,0kg/11,02Ibs |
|
remove
add
|
MSMTP600650/B | 600-650 | 600mm/23,62" | 650mm/25,59" | 1,5bar/21,75psi | 580mm/22,83" | 250mm/9,84" | 50,80mm/2" | 5,5kg/12,12Ibs |
|
remove
add
|
MSMTP800850/A | 800-850 | 800mm/31,49" | 850mm/33,46" | 1,5bar/21,75psi | 780mm/30,70" | 250mm/9,84" | 2x6,35mm/2x1/4" | 7,0kg/15,43Ibs |
|
remove
add
|
MSMTP800850/B | 800-850 | 800mm/31,49" | 850mm/33,46" | 1,5bar/21,75psi | 780mm/30,70" | 250mm/9,84" | 50,80mm/2" | 7,5kg/16,53Ibs |
|
remove
add
|
MSMTP10001050/A | 1000-1050 | 1000mm/39,37" | 1050mm/41,33" | 1,5bar/21,75psi | 980mm/38,58" | 250mm/9,84" | 2x6,35mm/2x1/4" | 9,0kg/19,84Ibs |
|
remove
add
|
MSMTP10001050/B | 1000-1050 | 1000mm/39,37" | 1050mm/41,33" | 1,5bar/21,75psi | 980mm/38,58" | 250mm/9,84" | 50,80mm/2" | 9,5kg/20,94Ibs |
