Pipe Stoppers
Joint Testers (2,5 - 55 bar)
General specifications

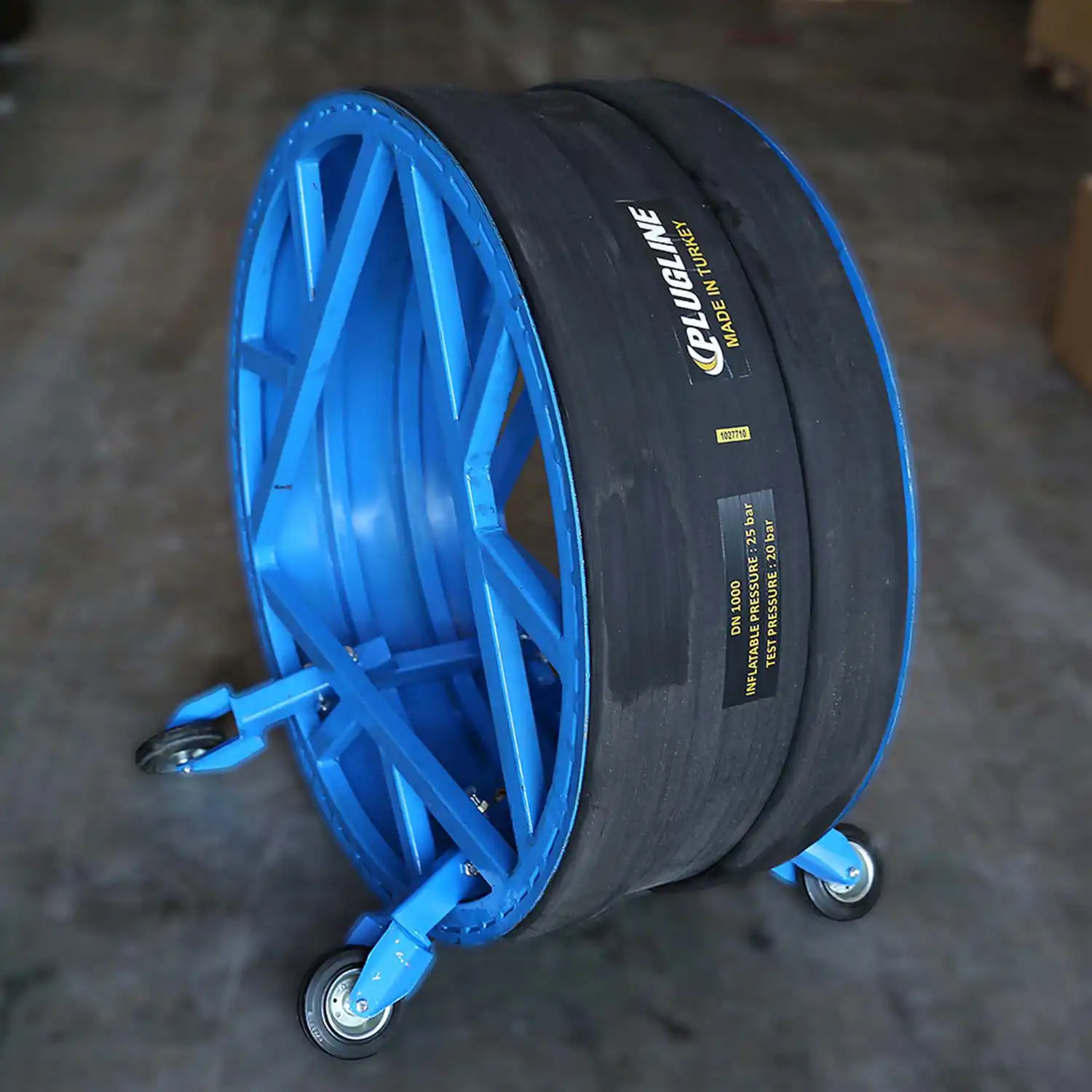

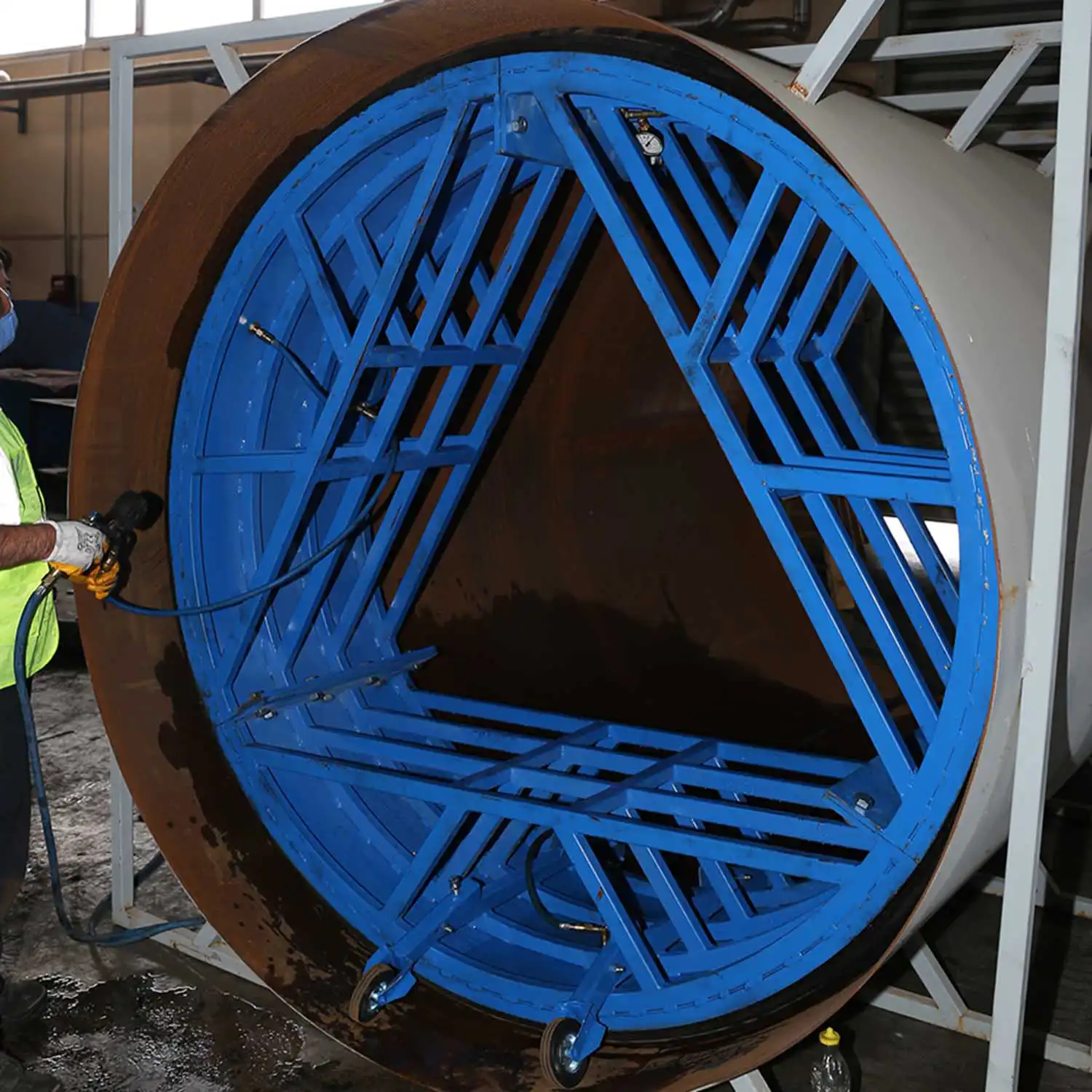

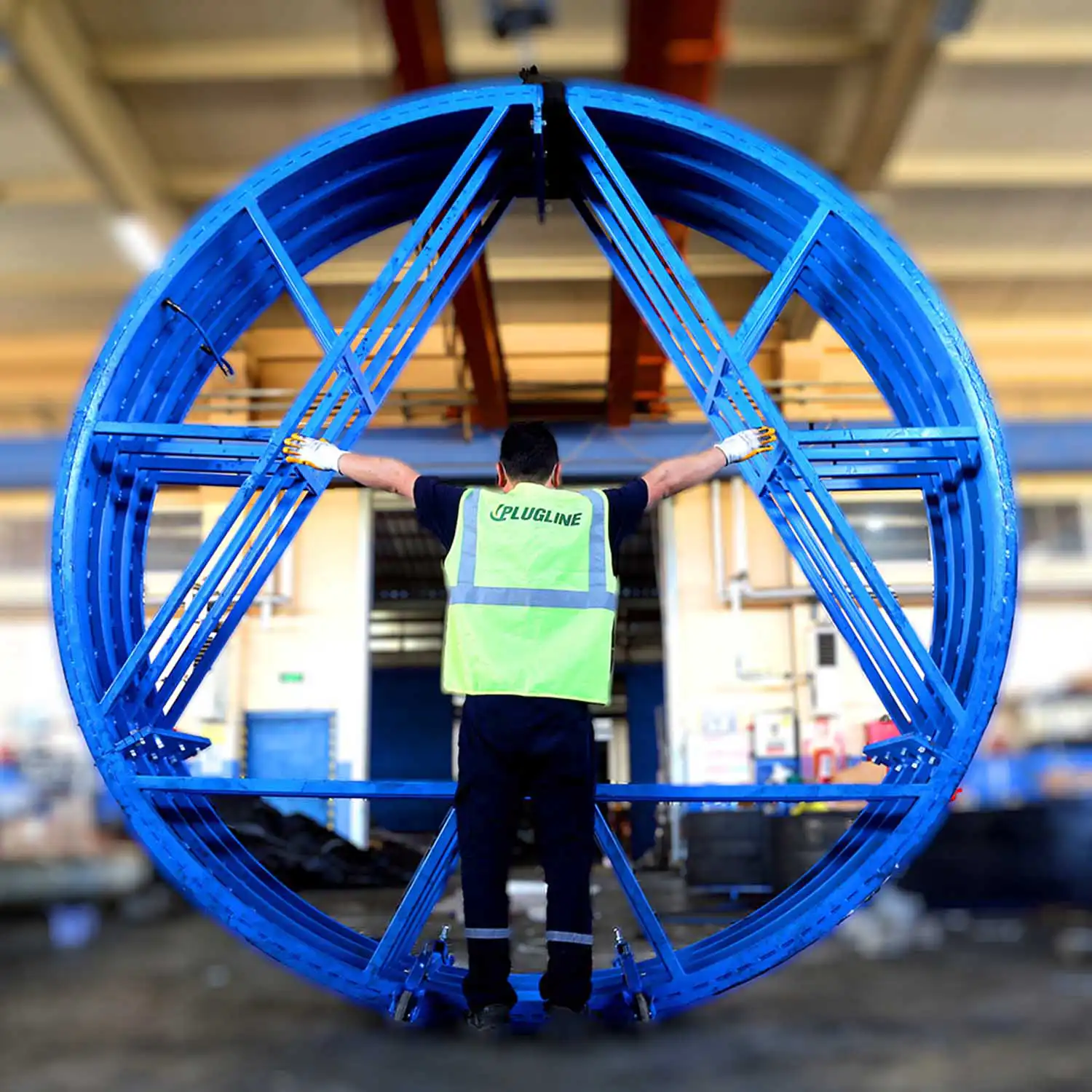

Hydrostatic pipe joint testers for testing individual pipe joints. Pressurize the joint cavity to verify seal integrity.
- Size range100 — 4000 mm
- Working pressureUp to 55 bar (inflate)
- Joint test pressureUp to 50 bar (test)
- MaterialNR + Kevlar (NBR, EPDM optional)
- Air connectionQuick Coupling / Schrader
- Working temp.−40 to 70 °C
Description & features

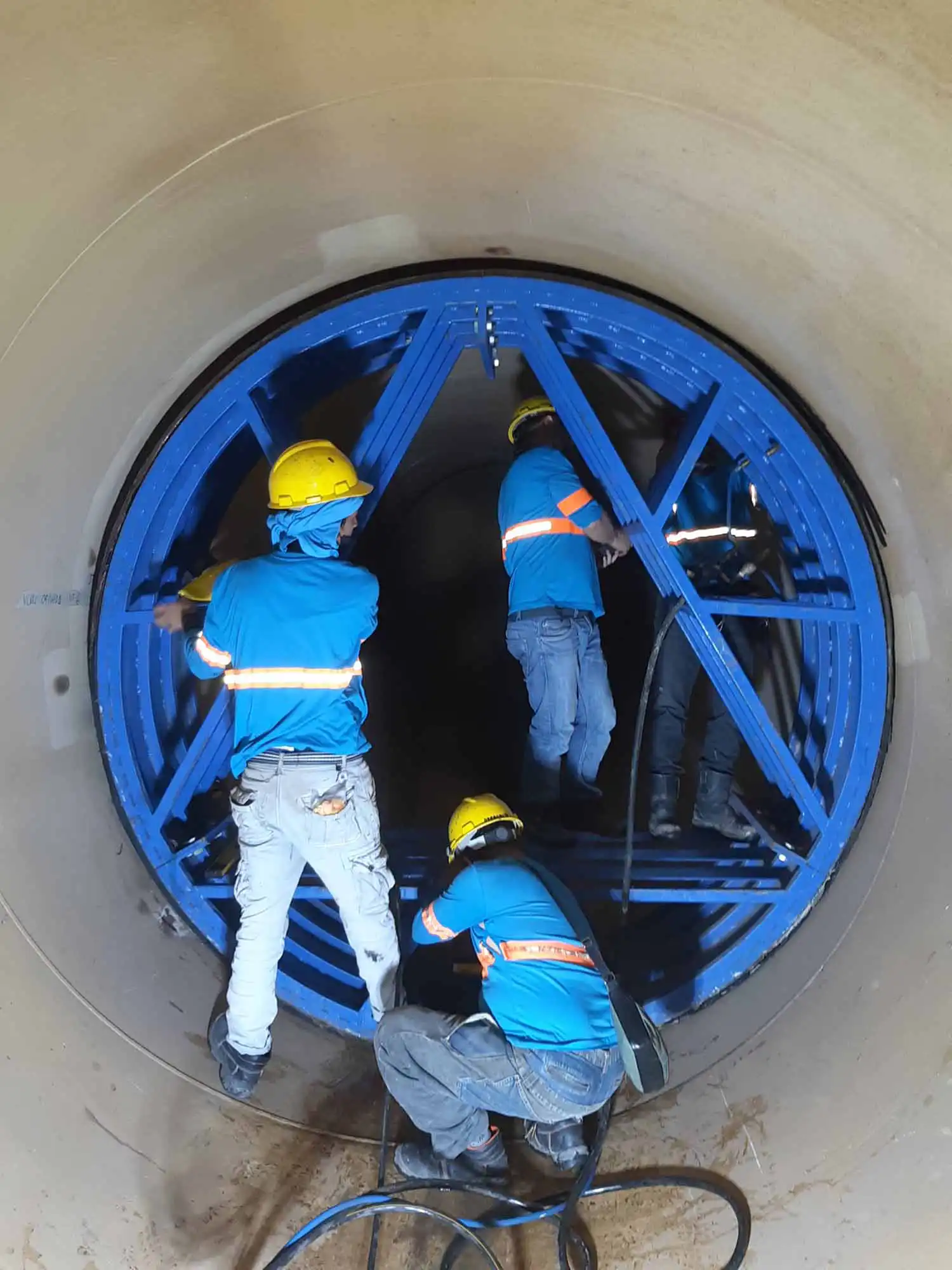

Plugline Hydrostatic Pipe Joint Testers are specialized tools for localized leak detection and joint validation in large-diameter pipelines. Compatible with concrete, GRP, and steel pipes, these testers isolate only the joint area, providing an efficient alternative to filling entire pipe sections for hydrostatic or pneumatic pressure testing.
Key Features
- High-Pressure Capacity: Engineered to withstand rigorous testing, with models supporting pressures from 1 bar up to 55 bar.

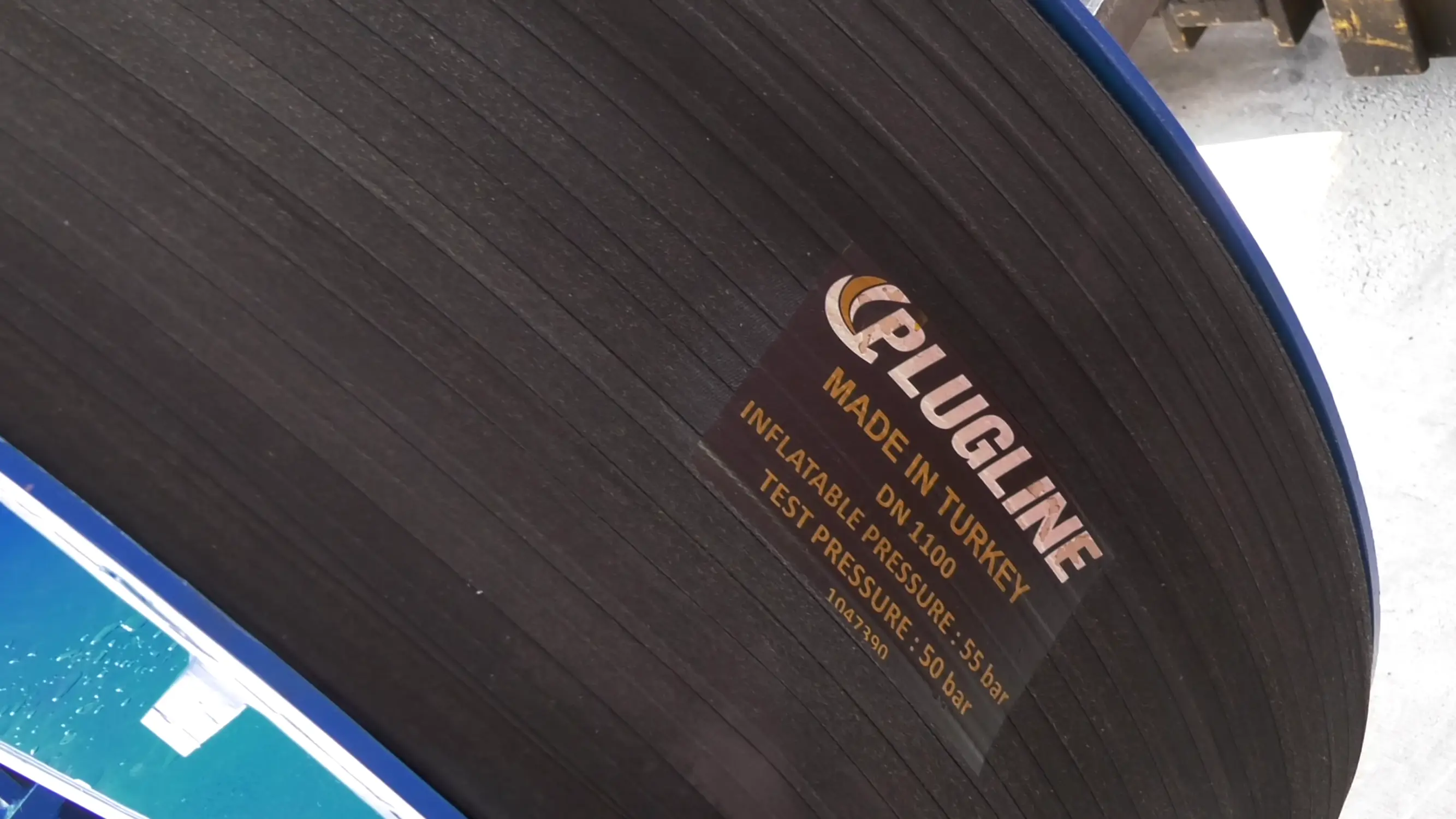

- Reinforced rubber construction: size range 100 — 4000 mm, working pressure Up to 55 bar (inflate), joint test pressure Up to 50 bar (test), operating temperature −40 to 70 °C, Quick Coupling / Schrader air connection.

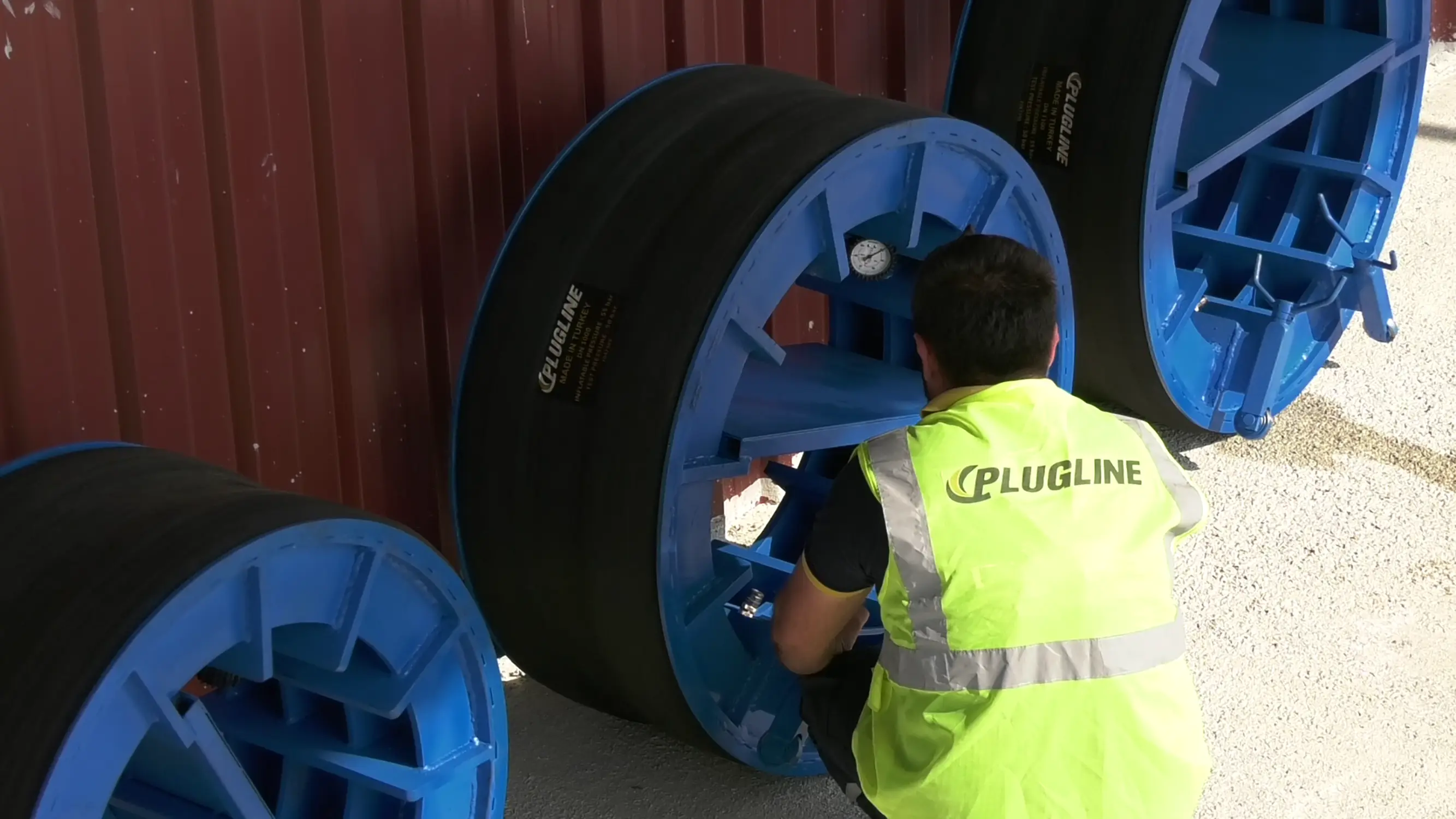

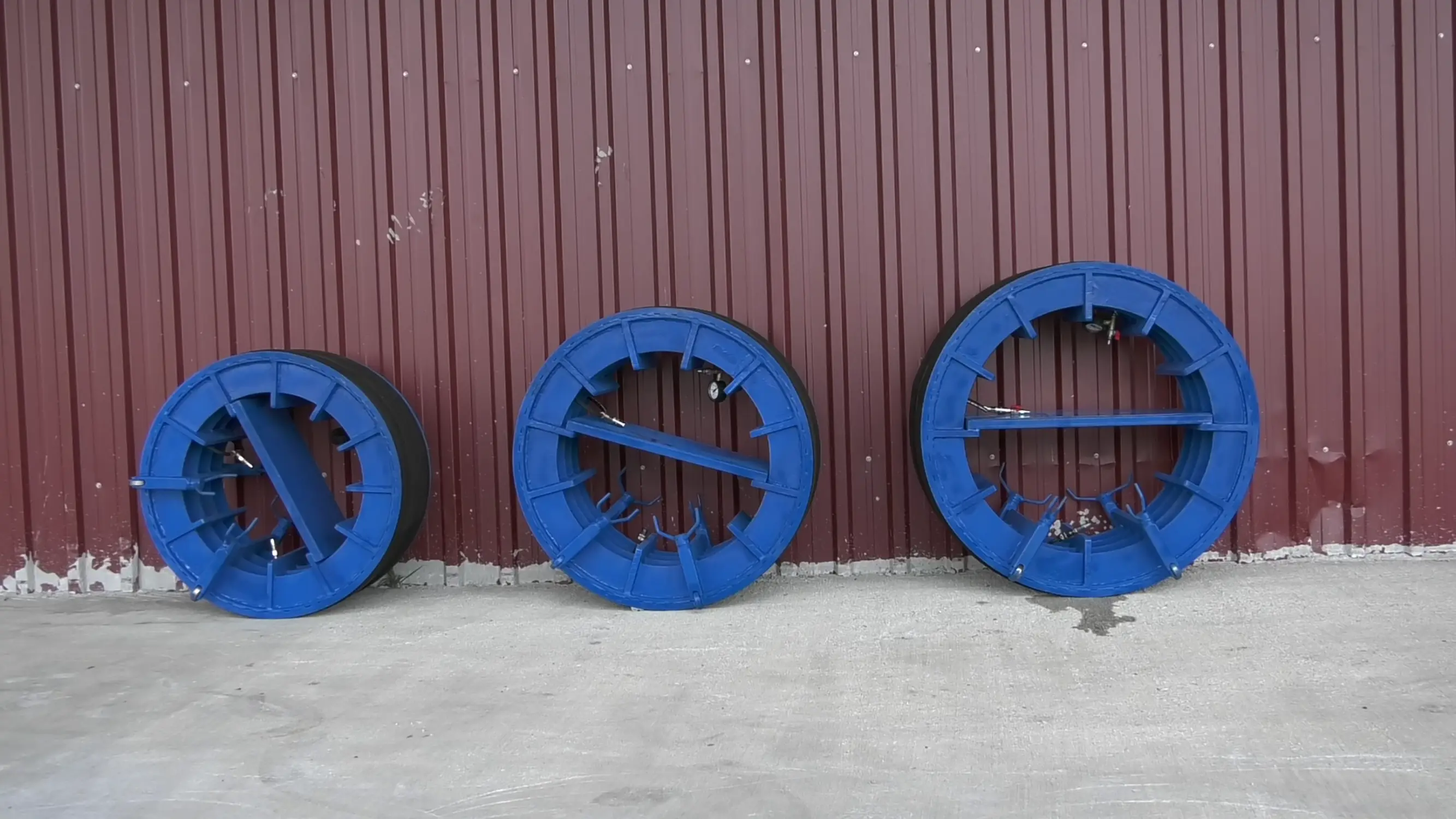

- Modular Portability: Can be disassembled into 2–3 parts and features integrated wheels for easy transport through manholes and confined spaces.
- Resource Efficient: Designed for low water consumption, significantly reducing the time and volume required for joint validation.
- Dual Testing Mediums: Supports both air and water pressure tests to meet diverse industry standards.
- Precise Seal: High-strength inflatable bladders create a secure, localized chamber around the joint for accurate monitoring.
Advantages
- Reduced Downtime: Quick setup and localized testing allow for rapid inspection without long system shutdowns.
- Versatility: Capable of navigating deflected pipes and restricted access points where standard equipment cannot reach.
- Cost-Effective: Minimizes water costs and labor time while preventing expensive long-term damage from joint leaks.
- Rugged Durability: Built from corrosion-resistant materials for reliable performance in harsh underground environments.
Application Areas
- Infrastructure Construction: Validating joint integrity in new water, gas, and wastewater pipelines.
- Maintenance & Inspection: Identifying and pinpointing vulnerabilities in existing large-scale networks.
- Industrial Networks: High-pressure joint testing in refineries, factories, and power plants.
Plugline Hydrostatic Pipe Joint Testers provide the precision and portability needed to ensure every connection in your pipeline system is secure and leak-free.
Recommended deployment procedure
Plugline Inflatable Pipe Stoppers are used for sealing, blocking and pressure testing pipework. Follow the procedure below for safe installation and removal.
01
Inspect
Verify each stopper for surface defects. Confirm reference matches purchase order. Pre-test in a clean environment to nominal 0.5 bar.
02
Position
Insert deflated. Place at least two pipe-diameters inside the bore. Secure the connector hose to the inflation valve.
03
Inflate
Inflate to nominal pressure indicated on the datasheet. Hold for 60 seconds and verify seal under audible test.
04
Test
Perform line test per EN 1610 or local code. Record drop, hold time, ambient temperature.
05
Recover
Deflate fully before withdrawal. Inspect for damage. Stopper may be reused for up to 200 cycles under nominal conditions.
Datasheets & catalogues
Download technical datasheets and product catalogues for the Inflatable Pipe Stoppers line.
Find your model
Enter your nominal pipe size or filter by test pressure to highlight matching models.
Matching: All models shown
Available models
135 active references.
QUICK GUIDEThe table below is a live RFQ builder — add models and send the list. Nothing is charged.
1FindFilter by nominal size
2AddUse + / − to set the quantity of each model
3SendOpen your RFQ list and send it — we reply with a formal quotation
| Quantity | Product Code | Nominal size | Product diameter | Pipe diameter | Length | Working pressure | Test pressure | Weight |
|---|---|---|---|---|---|---|---|---|
0 | JT100/2,5 | 100 | 80mm/3,14" | 100mm/3,94" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 12,0kg/26,46lbs |
0 | JT200/2,5 | 200 | 180mm/7,08" | 200mm/7,87" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 23,0kg/50,71lbs |
0 | JT300/2,5 | 300 | 280mm/11,02" | 300mm/11,81" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 35,0kg/77,16lbs |
0 | JT400/2,5 | 400 | 380mm/14,96" | 400mm/15,75" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 45,0kg/99,21lbs |
0 | JT500/2,5 | 500 | 480mm/18,89" | 500mm/19,69" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 58,0kg/127,87lbs |
0 | JT600/2,5 | 600 | 580mm /22,83" | 600mm/23,62" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 70,0kg/154,32lbs |
0 | JT700/2,5 | 700 | 680mm/26,77" | 700mm/27,56" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 82,0kg/180,78lbs |
0 | JT800/2,5 | 800 | 780mm/30,70" | 800mm/31,50" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 93,0kg/205,03lbs |
0 | JT900/2,5 | 900 | 880mm/34,64" | 900mm/35,43" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 104,0kg/229,28lbs |
0 | JT1000/2,5 | 1000 | 980mm/38,58" | 1000mm/39,37" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 116,0kg/255,74lbs |
0 | JT1100/2,5 | 1100 | 1080mm/42,51" | 1100mm/43,31" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 127,0kg/279,99lbs |
0 | JT1200/2,5 | 1200 | 1180mm/46,45" | 1200mm/47,24" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 137,0kg/302,03lbs |
0 | JT1300/2,5 | 1300 | 1280mm/50,39" | 1300mm/51,18" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 143,0kg/315,26lbs |
0 | JT1400/2,5 | 1400 | 1380mm/54,33" | 1400mm/55,12" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 158,0kg/348,33lbs |
0 | JT1500/2,5 | 1500 | 1480mm/58,26" | 1500mm/59,06" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 165,0kg/363,76lbs |
0 | JT1600/2,5 | 1600 | 1580mm/62,20" | 1600mm/62,99" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 185,0kg/407,86lbs |
0 | JT1700/2,5 | 1700 | 1680mm/66,14" | 1700mm/66,93" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 197,0kg/434,31lbs |
0 | JT1800/2,5 | 1800 | 1780mm/70,07" | 1800mm/70,87" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 208,0kg/458,56lbs |
0 | JT1900/2,5 | 1900 | 1880mm/74,01" | 1900mm/74,80" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 221,0kg/487,22lbs |
0 | JT2000/2,5 | 2000 | 1980mm/77,95" | 2000mm/78,74" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 233,0kg/513,68lbs |
0 | JT2100/2,5 | 2100 | 2080mm/81,88" | 2100mm/82,68" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 243,0kg/535,72lbs |
0 | JT2200/2,5 | 2200 | 2180mm/85,82" | 2200mm/86,61" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 256,0kg/564,38lbs |
0 | JT2300/2,5 | 2300 | 2280mm/89,76" | 2300mm/90,55" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 267,0kg/588,63lbs |
0 | JT2400/2,5 | 2400 | 2380mm/93,70" | 2400mm/94,49" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 280,0kg/617,29lbs |
0 | JT2500/2,5 | 2500 | 2480mm/93,70" | 2500mm/98,43" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 293,0kg/645,95lbs |
0 | JT2600/2,5 | 2600 | 2580mm/101,57" | 2600mm/102,36" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 302,0kg/665,8lbs |
0 | JT2700/2,5 | 2700 | 2680mm/105,51" | 2700mm/106,30" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 314,0kg/692,25lbs |
0 | JT2800/2,5 | 2800 | 2780mm/109,45" | 2800mm/110,24" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 325,0kg/716,5lbs |
0 | JT2900/2,5 | 2900 | 2880mm/113,39" | 2900mm/114,17" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 338,0kg/745,16lbs |
0 | JT3000/2,5 | 3000 | 2980mm/117,32" | 3000mm/118,11" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 350,0kg/771,62lbs |
0 | JT3100/2,5 | 3100 | 3080mm/121,25" | 3100mm/122,05" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 362,0kg/798,07lbs |
0 | JT3200/2,5 | 3200 | 3180mm/125,2" | 3200mm/125,98" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 373,0kg/822,32lbs |
0 | JT3300/2,5 | 3300 | 3280mm/129,13" | 3300mm/129,92" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 396,0kg/873,03lbs |
0 | JT3400/2,5 | 3400 | 3380mm/133,07" | 3400mm/133,86" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 409,0kg/901,69lbs |
0 | JT3500/2,5 | 3500 | 3480mm/137,01" | 3500mm/137,80" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 422,0kg/930,35lbs |
0 | JT3600/2,5 | 3600 | 3580mm/140,94" | 3600mm/141,73" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 435,0kg/959,01lbs |
0 | JT3700/2,5 | 3700 | 3680mm/144,88" | 3700mm/145,67" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 448,0kg/987,67lbs |
0 | JT3800/2,5 | 3800 | 3780mm/148,82" | 3800mm/149,61" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 495,0kg/1091,29lbs |
0 | JT3900/2,5 | 3900 | 3880mm/152,76" | 3900mm/153,54" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 509,0kg/1122,15lbs |
0 | JT4000/2,5 | 4000 | 3980mm/156,69" | 4000mm/157,48" | 380mm/14,96" | 2,5bar/36,25psi | 1,0bar/14,50psi | 560,0kg/1234,59lbs |
| Quantity | Product Code | Nominal size | Product diameter | Pipe diameter | Length | Working pressure | Test pressure | Weight |
|---|---|---|---|---|---|---|---|---|
0 | JT100/11 | 100 | 50mm/2,0" | 100mm/4,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 22,0kg/48lbs |
0 | JT200/11 | 200 | 150mm/6,0" | 200mm/8,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 41,0kg/91,0lbs |
0 | JT300/11 | 300 | 250mm/10,0" | 300mm/12,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 63,0kg/139,0lbs |
0 | JT400/11 | 400 | 350mm/14,0" | 400mm/16,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 81,0kg/179,0lbs |
0 | JT500/11 | 500 | 450mm/18,0" | 500mm/20,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 104,0kg/230,0lbs |
0 | JT600/11 | 600 | 550mm /22,0" | 600mm/24,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 126,0kg/278,0lbs |
0 | JT700/11 | 700 | 650mm/26,0" | 700mm/28,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 148,0kg/325,0lbs |
0 | JT800/11 | 800 | 750mm/30,0" | 800mm/32,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 167,0kg/369,0lbs |
0 | JT900/11 | 900 | 850mm/34,0" | 900mm/36,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 187,0kg/413,0lbs |
0 | JT1000/11 | 1000 | 950mm/38,0" | 1000mm/40,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 209,0kg/460,0lbs |
0 | JT1100/11 | 1100 | 1050mm/42,0" | 1100mm/44,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 229,0kg/504,0lbs |
0 | JT1200/11 | 1200 | 1150mm/46,0" | 1200mm/48,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 247,0kg/544,0lbs |
0 | JT1300/11 | 1300 | 1250mm/50,0" | 1300mm/52,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 257,0kg/567,0lbs |
0 | JT1400/11 | 1400 | 1350mm/54,0" | 1400mm/56,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 284,0kg/627,0lbs |
0 | JT1500/11 | 1500 | 1450mm/58,0" | 1500mm/60,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 297,0kg/655,0lbs |
0 | JT1600/11 | 1600 | 1550mm/62,0" | 1600mm/64,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 333,0kg /734,0lbs |
0 | JT1700/11 | 1700 | 1650mm/66,0" | 1700mm/68,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 355,0kg/782,0lbs |
0 | JT1800/11 | 1800 | 1750mm/70,0" | 1800mm/72,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 374,0kg/825,0lbs |
0 | JT1900/11 | 1900 | 1850mm/74,0" | 1900mm/76,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 398,0kg/877,0lbs |
0 | JT2000/11 | 2000 | 1950mm/78,0" | 2000mm/80,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 419,0kg/925,0lbs |
0 | JT2100/11 | 2100 | 2050mm/82,0" | 2100mm/84,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 437,0kg/964,0lbs |
0 | JT2200/11 | 2200 | 2150mm/86,0" | 2200mm /88,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 461,0kg/1016,0lbs |
0 | JT2300/11 | 2300 | 2250mm/90,0" | 2300mm/92,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 481,0kg/1060,0lbs |
0 | JT2400/11 | 2400 | 2350mm/94,0" | 2400mm/96,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 504,0kg/1111,0lbs |
0 | JT2500/11 | 2500 | 2450mm/98,0" | 2500mm/100,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 527,0kg/1163,0lbs |
0 | JT2600/11 | 2600 | 2550mm/102,0" | 2600mm/104,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 544,0kg/1198,0lbs |
0 | JT2700/11 | 2700 | 2650mm/106,0" | 2700mm/108,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 565,0kg/1246,0lbs |
0 | JT2800/11 | 2800 | 2750mm/110,0" | 2800mm/112,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 585,0kg/1290,0lbs |
0 | JT2900/11 | 2900 | 2850mm/114,0" | 2900mm/116,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 608,0kg/1341,0lbs |
0 | JT3000/11 | 3000 | 2950mm/118,0" | 3000mm/120,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 630,0kg/1389,0lbs |
0 | JT3100/11 | 3100 | 3050mm/122,0" | 3100mm/124,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 652,0kg/1437,0lbs |
0 | JT3200/11 | 3200 | 3150mm/126,0" | 3200mm/128,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 671,0kg/1480,0lbs |
0 | JT3300/11 | 3300 | 3250mm/130,0" | 3300mm/132,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 713,0kg/1571,0lbs |
0 | JT3400/11 | 3400 | 3350mm/134,0" | 3400mm/136,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 736,0kg/1623,0lbs |
0 | JT3500/11 | 3500 | 3450mm/18,0" | 3500mm/140,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 760,0kg/1675,0lbs |
0 | JT3600/11 | 3600 | 3550mm/142,0" | 3600mm/144,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 783,0kg/1726,0lbs |
0 | JT3700/11 | 3700 | 3650mm/146,0" | 3700mm/148,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 806,0kg/1778,0lbs |
0 | JT3800/11 | 3800 | 3750mm/150,0" | 3800mm/152,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 891,0kg/1964,0lbs |
0 | JT3900/11 | 3900 | 3850mm/154,0" | 3900mm/156,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 916,0kg/2020,0lbs |
0 | JT4000/11 | 4000 | 3950mm/158,0" | 4000mm/160,0" | 380mm/14,96" | 11bar/159,5psi | 7,0bar/101,5psi | 1008,0kg/2222,0lbs |
| Quantity | Product Code | Nominal size | Product diameter | Pipe diameter | Length | Working pressure | Test pressure | Weight |
|---|---|---|---|---|---|---|---|---|
0 | JT100/25 | 100 | 50mm/2,0" | 100mm/4,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 31,0kg/69,0lbs |
0 | JT200/25 | 200 | 150mm/6,0" | 200mm/8,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 60,0kg/132,0lbs |
0 | JT300/25 | 300 | 250mm/10,0" | 300mm/12,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 91,0kg/200,0lbs |
0 | JT400/25 | 400 | 350mm/14,0" | 400mm/16,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 117,0kg/258,0lbs |
0 | JT500/25 | 500 | 450mm/18,0" | 500mm/20,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 151,0kg/332,0lbs |
0 | JT600/25 | 600 | 550mm /22,0" | 600mm/24,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 182,0kg/401,0lbs |
0 | JT700/25 | 700 | 650mm/26,0" | 700mm/28,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 213,0kg/470,0lbs |
0 | JT800/25 | 800 | 750mm/30,0" | 800mm/32,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 242,0kg/533,0lbs |
0 | JT900/25 | 900 | 850mm/34,0" | 900mm/36,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 272,0kg/600,0lbs |
0 | JT1000/25 | 1000 | 950mm/38,0" | 1000mm/40,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 302,0kg/665,0lbs |
0 | JT2500/25 | 1100 | 1050mm/42,0" | 1100mm/44,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 330,0kg/728,0lbs |
0 | JT1200/25 | 1200 | 1150mm/46,0" | 1200mm/48,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 356,0kg/785,0lbs |
0 | JT1300/25 | 1300 | 1250mm/50,0" | 1300mm/52,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 372,0kg/820,0lbs |
0 | JT1400/25 | 1400 | 1350mm/54,0" | 1400mm/56,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 411,0kg/905,0lbs |
0 | JT1500/25 | 1500 | 1450mm/58,0" | 1500mm/60,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 429,0kg/946,0lbs |
0 | JT1600/25 | 1600 | 1550mm/62,0" | 1600mm/64,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 481,0kg/1060,0lbs |
0 | JT1700/25 | 1700 | 1650mm/66,0" | 1700mm/68,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 512,0kg /1129,0lbs |
0 | JT1800/25 | 1800 | 1750mm/70,0" | 1800mm/72,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 541,0kg/1192,0lbs |
0 | JT1900/25 | 1900 | 1850mm/74,0" | 1900mm/76,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 575,0kg/1267,0lbs |
0 | JT2000/25 | 2000 | 1950mm/78,0" | 2000mm/80,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 606,0kg/1335,0lbs |
0 | JT2100/25 | 2100 | 2050mm/82,0" | 2100mm/84,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 632,0kg/1393,0lbs |
0 | JT2200/25 | 2200 | 2150mm/86,0" | 2200mm /88,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 666,0kg/1467,0lbs |
0 | JT2300/25 | 2300 | 2250mm/90,0" | 2300mm/92,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 694,0kg/1530,0lbs |
0 | JT2400/25 | 2400 | 2350mm/94,0" | 2400mm/96,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 728,0kg/1605,0lbs |
0 | JT2500/25 | 2500 | 2450mm/98,0" | 2500mm/100,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 762,0kg/1679,0lbs |
0 | JT2600/25 | 2600 | 2550mm/102,0" | 2600mm/104,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 785,0kg/1731,0lbs |
0 | JT2700/25 | 2700 | 2650mm/106,0" | 2700mm/108,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 816,0kg/1800,0lbs |
0 | JT2800/25 | 2800 | 2750mm/110,0" | 2800mm/112,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 845,0kg/1863,0lbs |
0 | JT2900/25 | 2900 | 2850mm/114,0" | 2900mm/116,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 879,0kg/1937,0lbs |
0 | JT3000/25 | 3000 | 2950mm/118,0" | 3000mm/120,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 910,0kg/2006,0lbs |
0 | JT3100/25 | 3100 | 3050mm/122,0" | 3100mm/124,0" | 380mm/14,96" | 25bar/362,5psi | 20bar/290,0psi | 941,0kg/2075,0lbs |
| Quantity | Product Code | Nominal size | Product diameter | Pipe diameter | Length | Working pressure | Test pressure | Weight |
|---|---|---|---|---|---|---|---|---|
0 | JT100/55 | 100 | 50mm/2,0" | 100mm/4,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 40,0kg/88,62lbs |
0 | JT200/55 | 200 | 150mm/6,0" | 200mm/8,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 77,0kg/169,86lbs |
0 | JT300/55 | 300 | 250mm/10,0" | 300mm/12,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 117,0kg/258,49lbs |
0 | JT400/55 | 400 | 350mm/14,0" | 400mm/16,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 151,0kg/332,34lbs |
0 | JT500/55 | 500 | 450mm/18,0" | 500mm/20,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 194,0kg/428,35lbs |
0 | JT600/55 | 600 | 550mm /22,0" | 600mm/24,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 235,0kg/516,98lbs |
0 | JT700/55 | 700 | 650mm/26,0" | 700mm/28,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 275,0kg /605,6lbs |
0 | JT800/55 | 800 | 750mm/30,0" | 800mm/32,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 312,0kg/686,84lbs |
0 | JT900/55 | 900 | 850mm/34,0" | 900mm/36,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 348,0kg/768,08lbs |
0 | JT1000/55 | 1000 | 950mm/38,0" | 1000mm/40,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 390,0kg/859,79lbs |
0 | JT2500/55 | 1100 | 1050mm/42,0" | 1100mm/44,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 425,0kg/936,96lbs |
0 | JT1200/55 | 1200 | 1150mm/46,0" | 1200mm/48,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 459,0kg /1011,8lbs |
0 | JT1300/55 | 1300 | 1250mm/50,0" | 1300mm/52,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 479,0kg /1056,11lbs |
0 | JT1400/55 | 1400 | 1350mm/54,0" | 1400mm/56,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 529,0kg/1166,89lbs |
0 | JT1500/55 | 1500 | 1450mm/58,0" | 1500mm/60,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 553,0kg/1218,59lbs |
0 | JT1600/55 | 1600 | 1550mm/62,0" | 1600mm/64,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 620,0kg/1366,3lbs |
0 | JT1700/55 | 1700 | 1650mm/66,0" | 1700mm/68,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 660,0kg/1454,93lbs |
0 | JT1800/55 | 1800 | 1750mm/70,0" | 1800mm/72,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 697,0kg/1536,17lbs |
0 | JT1900/55 | 1900 | 1850mm/74,0" | 1900mm/76,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 740,0kg/1632.18lbs |
0 | JT2000/55 | 2000 | 1950mm/78,0" | 2000mm/80,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 781,0kg/1720,8lbs |
0 | JT2100/55 | 2100 | 2050mm/82,0" | 2100mm/84,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 814,0kg/1794,65lbs |
0 | JT2200/55 | 2200 | 2150mm/86,0" | 2200mm /88,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 858,0kg/1890,66lbs |
0 | JT2300/55 | 2300 | 2250mm/90,0" | 2300mm/92,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 894,0kg/1971,9lbs |
0 | JT2400/55 | 2400 | 2350mm/94,0" | 2400mm/96,0" | 380mm/14,96" | 55bar/797,5psi | 50bar/725,0psi | 938,0kg/2067,91lbs |
Recommended accessories
Compatible products commonly ordered with the IPS line.
Specifying for a project
Send the spec. We send the datasheet.
DN, material, air connection, quantity. We come back inside 24 hours with the right reference, the test report on file, and stock confirmation from Istanbul.
Other options
Looking for something else?
Other pipe stopper types in our catalogue — different size ranges, pressures, and constructions.
65 sizes · 1,0 - 2,5 bar
Inflatable Pipe Test Plugs
Standard pipe test plugs with built-in test port.
View product
6 sizes · 1,5 bar
Multi Size Manhole Pipe Test Plugs
Test plugs for manhole and chamber leak testing.
View product
7 sizes · 1,5 bar
Low Back Pressure Pipe Test Plugs
Test plugs designed for low-back-pressure applications.
View product
Manufacturer of industrial pipe testing and stopping solutions. A Totalien brand.
Products
Contact
TURKEY HQ
+90 543 696 05 94EMAIL
export@plugline.net© 2026 Plugline. All rights reserved. A Totalien brand.
