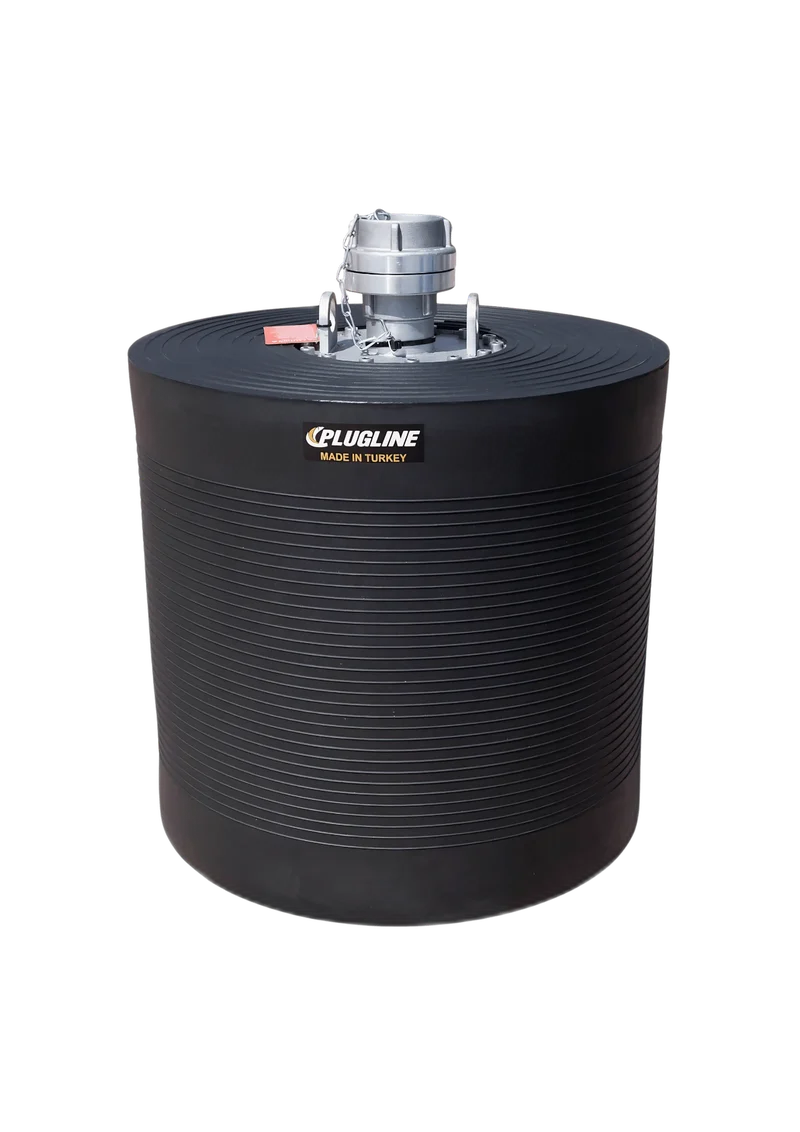

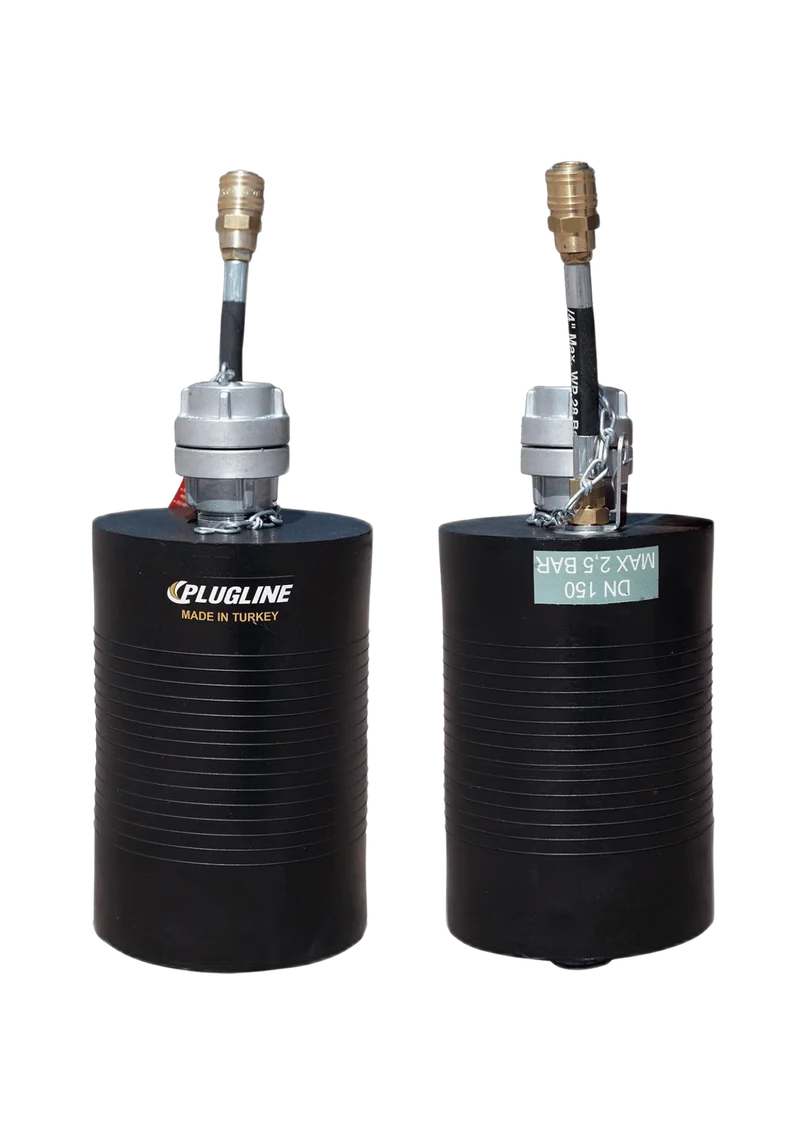

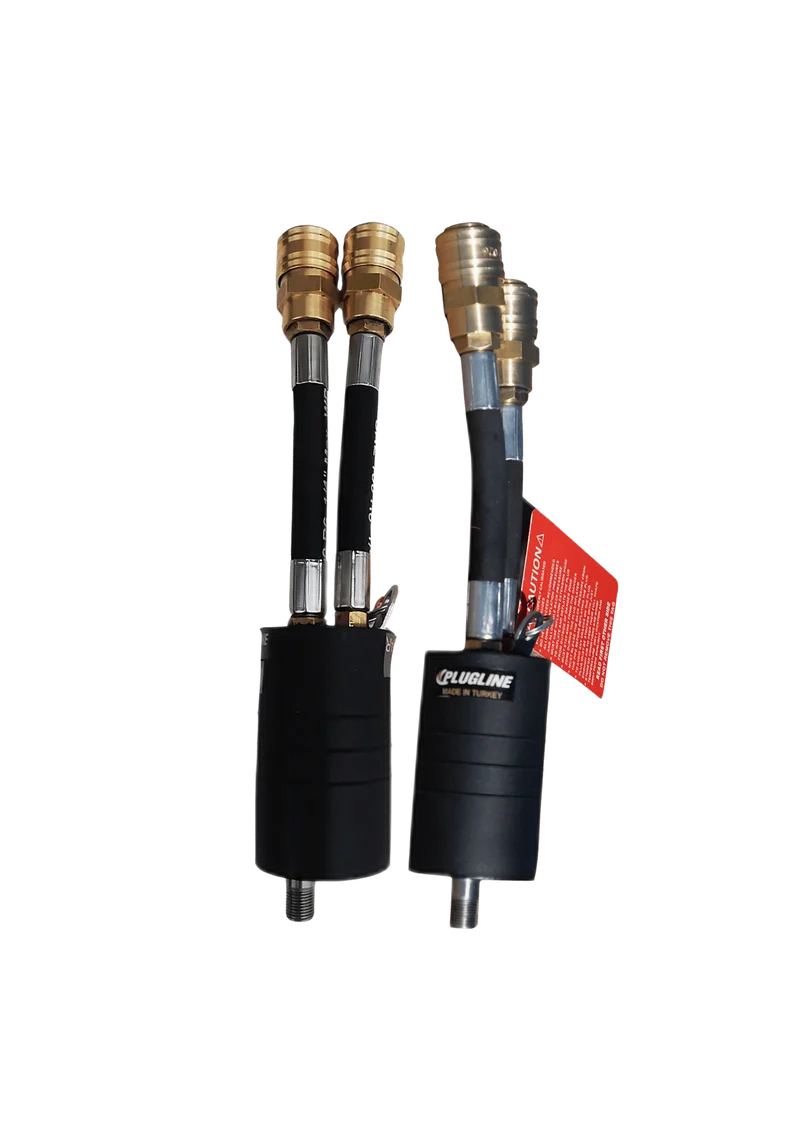

سدادات اختبار الأنابيب الصغيرة القابلة للنفخ (2,5 بار)
- سدادات الاختبار الصغيرة القابلة للنفخ مناسبة لاختبار ظروف التطبيق الخاصة لأنظمة الصرف وخطوط الأنابيب والمجاري والمزاريب التي تحتاج إلى أطوال قصيرة وسدادات أقل ثقلاً، ومناسبة بشكل خاص لاختبار وصلات المنزل.
- كما أنها تستخدم بشكل شائع لهذا الغرض عندما يكون من الضروري تجاوز تدفق المياه في الأنابيب.
- يغطي خط الإنتاج القياسي أقطار الأنابيب التي تتراوح من 30 مم إلى 1000 مم بضغط تشغيل 2،5 بار / 36،25 psi
| Product Code | Nominal Size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Max. Working Pressure (bar/psi) | Product Diameter (mm/inch) | Total Length of Product (mm/inch) | Bypass Diameter(mm/inch) | Product Weight (kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|---|
|
remove
add
|
ISTP30 | 30 | 30mm/1,18" | 32mm/1,26" | 2,5bar/36,25psi | 29mm/1,14" | 30mm/1,18" | 3,17mm/1/8" | 0,14kg/0,31lbs |
|
remove
add
|
ISTP40 | 40 | 38mm/1,50" | 42mm/1,65" | 2,5bar/36,25psi | 37mm/1,46" | 40mm/1,57" | 3,17mm/1/8" | 0,15kg/0,33lbs |
|
remove
add
|
ISTP50 | 50 | 48mm/1,89" | 54mm/2,13" | 2,5bar/36,25psi | 45mm/1,77" | 50mm/1,97" | 3,17mm/1/8" | 0,25kg/0,55lbs |
|
remove
add
|
ISTP60 | 60 | 59mm/2,32" | 65mm/2,56" | 2,5bar/36,25psi | 58mm/2,28" | 90mm/3,54" | 12,70mm/1/2" | 0,35kg/0,77lbs |
|
remove
add
|
ISTP75 | 75 | 72mm/2,83" | 78mm/3,07" | 2,5bar/36,25psi | 69mm/2,72" | 110mm/4,33" | 12,70mm/1/2" | 0,45kg/0,99lbs |
|
remove
add
|
ISTP100 | 100 | 90mm/3,54" | 105mm/4,13" | 2,5bar/36,25psi | 88mm/3,46" | 150mm/5,91" | 12,70mm/1/2" | 0,6kg/1,32lbs |
|
remove
add
|
ISTP150 | 150 | 150mm/5,91" | 150mm/5,91" | 2,5bar/36,25psi | 138mm/5,43" | 150mm/5,91" | 50,80mm/2" | 1,5kg/3,31lbs |
|
remove
add
|
ISTP200 | 200 | 200mm/7,87" | 200mm/7,87" | 2,5bar/36,25psi | 180mm/7,09" | 200mm/7,87" | 50,80mm/2" | 2,0kg/4,41lbs |
|
remove
add
|
ISTP225 | 225 | 225mm/8,85" | 225mm/8,85" | 2,5bar/36,25psi | 225mm/8,86" | 250mm/9,84" | 50,80mm/2" | 2,5kg/5,51lbs |
|
remove
add
|
ISTP250 | 250 | 250mm/9,84" | 250mm/9,84" | 2,5bar/36,25psi | 225mm/8,86" | 250mm/9,84" | 50,80mm/2" | 2,5kg/5,51lbs |
|
remove
add
|
ISTP300 | 300 | 300mm/11,81" | 300mm/11,81" | 2,5bar/36,25psi | 285mm/11,22" | 300mm/11,81" | 50,80mm/2" | 3,2kg/7,05lbs |
|
remove
add
|
ISTP350 | 350 | 350mm/13,77" | 350mm/13,77" | 2,5bar/36,25psi | 225mm/8,86" | 300mm/11,81" | 50,80mm/2" | 3,7kg/8,16lbs |
|
remove
add
|
ISTP400 | 400 | 400mm/15,75" | 400mm/15,75" | 2,5bar/36,25psi | 380mm/14,96" | 450mm/17,72" | 50,80mm/2" | 4,2kg/9,26lbs |
|
remove
add
|
ISTP500 | 500 | 500mm/19,69" | 500mm/19,69" | 2,5bar/36,25psi | 480mm/18,9" | 450mm/17,72" | 50,80mm/2" | 5,4kg/11,9lbs |
|
remove
add
|
ISTP600 | 600 | 600mm/23,62" | 600mm/23,62" | 2,5bar/36,25psi | 580mm/22,83" | 450mm/17,72" | 50,80mm/2" | 6,5kg/14,33lbs |
|
remove
add
|
ISTP800 | 800 | 800mm/31,50" | 800mm/31,5" | 2,5bar/36,25psi | 780mm/30,71" | 800mm/31,5" | 50,80mm/2" | 30,kg/66,14lbs |
|
remove
add
|
ISTP3040 | 30-40 | 30mm/1,18" | 40mm/1,57" | 2,5bar/36,25psi | 29mm/1,14" | 100mm/3,94" | 3,17mm/1/8" | 0,5kg/1,1lbs |
|
remove
add
|
ISTP5075 | 50-75 | 48mm/1,89" | 75mm/2,95" | 2,5bar/36,25psi | 48mm/1,89" | 100mm/3,94" | 3,17mm/1/8" | 0,75kg/1,65lbs |
|
remove
add
|
ISTP70100 | 70-100 | 88mm/3,46" | 105mm/4,13" | 2,5bar/36,25psi | 70mm/2,76" | 150mm/5,91" | 12,70mm/1/2" | 1,0kg/2,20lbs |
|
remove
add
|
ISTP100150 | 100-150 | 90mm/3,54" | 150mm/5,91" | 2,5bar/36,25psi | 88mm/3,46" | 150mm/5,91" | 12,70mm/1/2" | 1,5kg/3,30lbs |
|
remove
add
|
ISTP150200 | 150-200 | 150mm/5,91" | 200mm/7,87" | 2,5bar/36,25psi | 138mm/5,43" | 200mm/7,87" | 25,40mm/1" | 2,5kg/5,51lbs |
|
remove
add
|
ISTP200250 | 200-250 | 200mm/7,87" | 250mm/9,84" | 2,5bar/36,25psi | 180mm/7,09" | 250mm/9,84" | 50,80mm/2" | 4,0kg/8,82lbs |
|
remove
add
|
ISTP250300 | 250-300 | 250mm/9,84" | 300mm/11,81" | 2,5bar/36,25psi | 225mm/8,86" | 300mm/11,81" | 50,80mm/2" | 6,0kg/13,23lbs |
|
remove
add
|
ISTP300350 | 300-350 | 300mm/11,81" | 350mm/13,78" | 2,5bar/36,25psi | 285mm/11,22" | 300mm/11,81" | 50,80mm/2" | 8,0kg/17,63lbs |
|
remove
add
|
ISTP400450 | 400-450 | 400mm/15,75" | 450mm/17,72" | 2,5bar/36,25psi | 380mm/14,96" | 450mm/17,72" | 50,80mm/2" | 11,0kg/24,24lbs |
|
remove
add
|
ISTP500550 | 500-550 | 500mm/19,69" | 550mm/21,65" | 2,5bar/36,25psi | 480mm/18,90" | 450mm/17,72" | 50,80mm/2" | 14,0kg/30,86lbs |
|
remove
add
|
ISTP600650 | 600-650 | 600mm/23,62" | 650mm/25,59" | 2,5bar/36,25psi | 480mm/18,90" | 450mm/17,72" | 50,80mm/2" | 19,0kg/41,88lbs |
|
remove
add
|
ISTP8001000 | 800-1000 | 800mm/31,50" | 1000mm/39,37" | 2,5bar/36,25psi | 780mm/30,71" | 800mm/31,50" | 50,80mm/2" | 35,0kg/77,16lbs |
