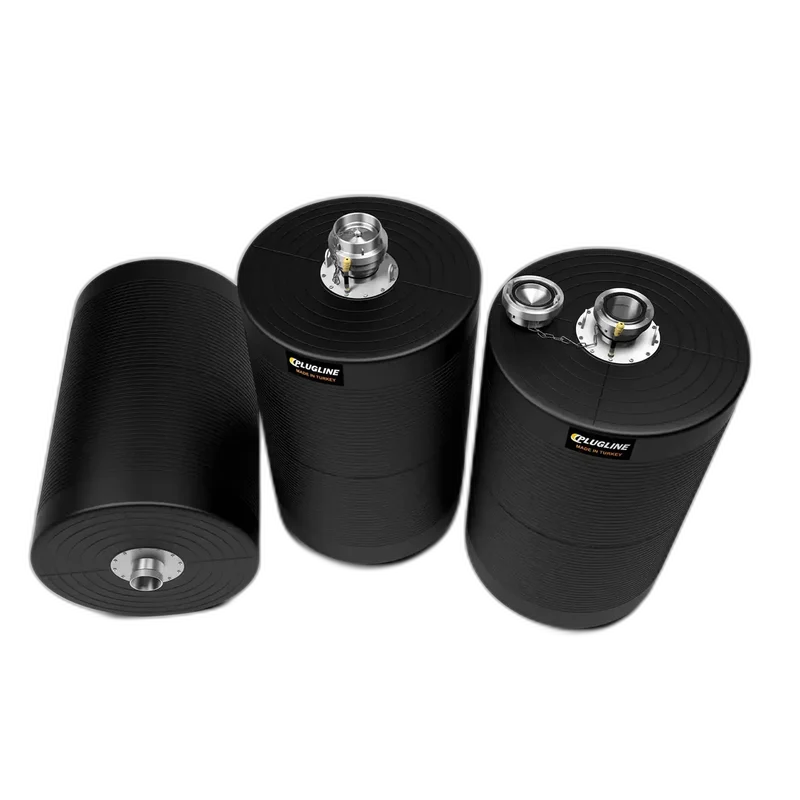

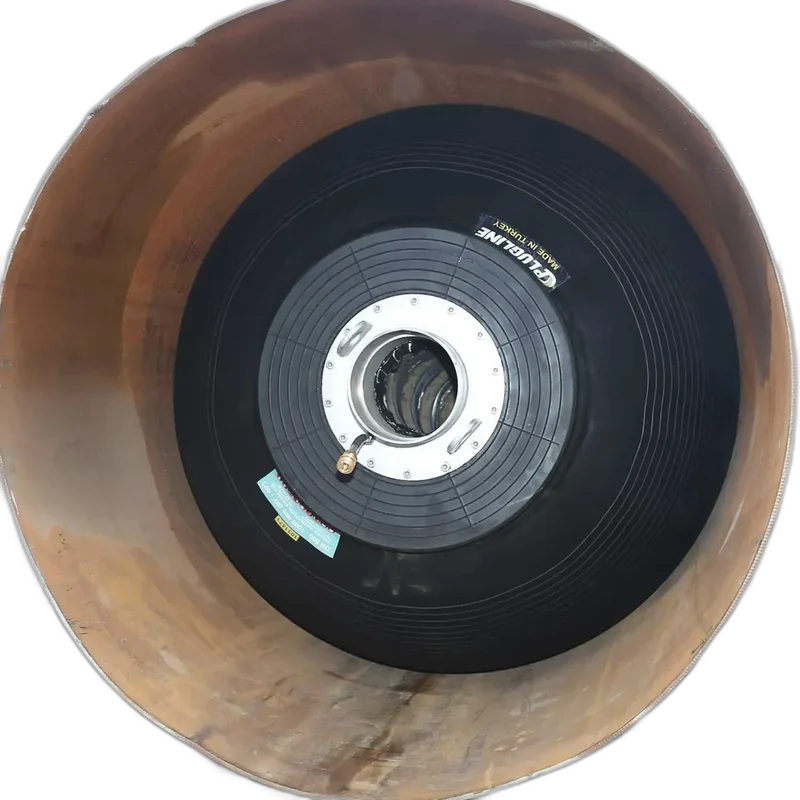

Inflatable High Pressure Pipe Test Plugs
- Inflatable High Pressure Pipe Test Plugs are required by many industries at pipelines and sewers that perform hydrostatic tests to verify the flow integrity of equipment tasked with handling fluids, often these tests are performed on a regular basis.
- Inflatable High Pressure Pipe Test Plugs provide a safe pressure barrier for workers in the areas to be tested.
- Used to divert flow direction via bypass temporary to long-term in "hot work" pipeline repair areas, maintenance situations, areas with uncontrolled flow where the flow direction needs to be diverted to the another directions.
- They are made of high-quality special rubber reinforced covering in aramid from the top to the bottom, equipped with quick-connect couplings and nipples.
- Equipped with eyelets bolts to be moved easily and placed into the pipes.
- Available for pipe diameters from 50 mm (1,96") to 2000 mm (78,74"), if requested more.
- Produced at the working pressures 6,0 Bar (87,02 psi) and 12,0 Bar (174,04 psi).
- Usable for temperatures from -40 °C (-40 °F) to 70 °C (158 °F).
- Providing have high resistance to circumference effect.
| Product Code | Nominal Size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Max. Working Pressure (bar/psi) | Back Pressure (bar/psi) | Product Diameter (mm/inch) | Total Length of Product (mm/inch) | Bypass Diameter(mm/inch) | Product Weight(kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|---|---|
|
remove
add
|
IHTP5070A | 50-70 | 50mm/1,97" | 70mm/2,76" | 6,0bar/87,02psi | 3,0bar/43,51psi | 45mm/1,77" | 330mm/12,99" | 6,35mm/1/4" | 1,0kg/2,20Ibs |
|
remove
add
|
IHTP5070B | 50-70 | 50mm/1,97" | 70mm/2,76" | 6,0bar/87,02psi | 3,0bar/43,51psi | 45mm/1,77" | 330mm/12,99" | 2x3,17mm/2x1/8" | 1,2kg/2,64Ibs |
|
remove
add
|
IHTP70100A | 70-100 | 70mm/2,76" | 100mm/3,93" | 6,0bar/87,02psi | 3,0bar/43,51psi | 64mm/2,52" | 400mm/15,75" | 12,70mm/1/2" | 1,2kg/2,64Ibs |
|
remove
add
|
IHTP70100B | 70-100 | 70mm/2,76" | 100mm/3,93" | 6,0bar/87,02psi | 3,0bar/43,51psi | 64mm/2,52" | 400mm/15,75" | 2x6,35mm/2x1/4" | 1,3kg/2,87Ibs |
|
remove
add
|
IHTP100150A | 100-150 | 100mm/3,93" | 150mm/5,90" | 6,0bar/87,02psi | 3,0bar/43,51psi | 88mm/3,46" | 580mm/22,83" | 25,40mm/1" | 1,8kg/3,97lbs |
|
remove
add
|
IHTP100150B | 100-150 | 100mm/3,93" | 150mm/5,90" | 6,0bar/87,02psi | 3,0bar/43,51psi | 88mm/3,46" | 580mm/22,83" | 2x12,7mm/2x1/2" | 1,9kg/4,19lbs |
|
remove
add
|
IHTP150200A | 150-200 | 150mm/5,90" | 200mm/7,87" | 6,0bar/87,02psi | 3,0bar/43,51psi | 138mm/5,43" | 550mm/21,65" | 50,80mm/2" | 4,0kg/8,82lbs |
|
remove
add
|
IHTP150200B | 150-200 | 150mm/5,90" | 200mm/7,87" | 6,0bar/87,02psi | 3,0bar/43,51psi | 138mm/5,43" | 550mm/21,65" | 2x25,40mm/2x1" | 4,2kg/9,26lbs |
|
remove
add
|
IHTP200300A | 200-300 | 200mm/7,87" | 300mm/11,81" | 6,0bar/87,02psi | 3,0bar/43,51psi | 185mm/7,28" | 650mm/25,59" | 50,80mm/2" | 7,2kg/15,87lbs |
|
remove
add
|
IHTP200300B | 200-300 | 200mm/7,87" | 300mm/11,81" | 6,0bar/87,02psi | 3,0bar/43,51psi | 185mm/7,28" | 650mm/25,59" | 2x25,40mm/2x1" | 7,4kg/16,31lbs |
|
remove
add
|
IHTP300400A | 300-400 | 300mm/11,81" | 400mm/15,74" | 6,0bar/87,02psi | 3,0bar/43,51psi | 285mm/11,22" | 850mm/33,46" | 50,80mm/2" | 11,0kg/24,25lbs |
|
remove
add
|
IHTP300400B | 300-400 | 300mm/11,81" | 400mm/15,74" | 6,0bar/87,02psi | 3,0bar/43,51psi | 285mm/11,22" | 850mm/33,46" | 50,8mm/2" + 25,4mm/1" | 11,7kg/25,79lbs |
|
remove
add
|
IHTP375500A | 375-500 | 375mm/14,76" | 500mm/19,68" | 6,0bar/87,02psi | 3,0bar/43,51psi | 355mm/13,98" | 1000mm/39,37" | 50,80mm/2" | 18,0kg/39,68lbs |
|
remove
add
|
IHTP375500B | 375-500 | 375mm/14,76" | 500mm/19,68" | 6,0bar/87,02psi | 3,0bar/43,51psi | 355mm/13,98" | 1000mm/39,37" | 2x50,80mm/2x2" | 20,0kg/44,09lbs |
|
remove
add
|
IHTP500600A | 500-600 | 500mm/19,68" | 600mm/23,62" | 6,0bar/87,02psi | 3,0bar/43,51psi | 485mm/19,09" | 1050mm/41,34" | 50,80mm/2" | 27,0kg/59,52lbs |
|
remove
add
|
IHTP500600B | 500-600 | 500mm/19,68" | 600mm/23,62" | 6,0bar/87,02psi | 3,0bar/43,51psi | 485mm/19,09" | 1050mm/41,34" | 2x50,80mm/2x2" | 28,8kg/63,49lbs |
|
remove
add
|
IHTP600700A | 600-700 | 600mm/23,62" | 700mm/27,55" | 6,0bar/87,02psi | 3,0bar/43,51psi | 585mm/23,03" | 1300mm/51,18" | 50,80mm/2" | 35,0kg/77,16lbs |
|
remove
add
|
IHTP600700B | 600-700 | 600mm/23,62" | 700mm/27,55" | 6,0bar/87,02psi | 3,0bar/43,51psi | 585mm/23,03" | 1300mm/51,18" | 2x50,80mm/2x2" | 36,0kg/79,37lbs |
|
remove
add
|

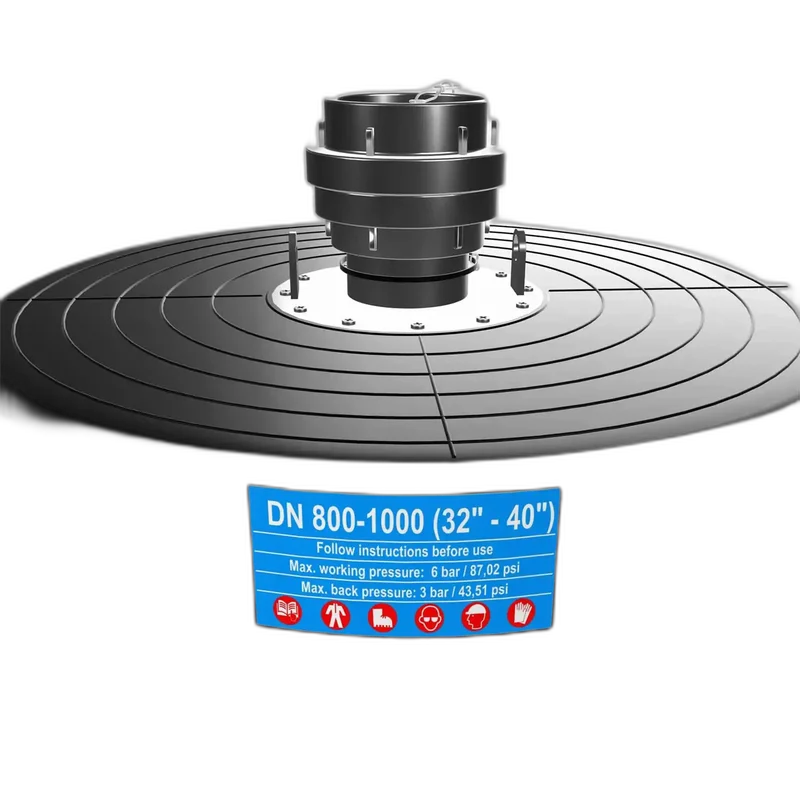

IHTP8001000A | 800-1000 | 800mm/31,49" | 1000mm/39,37" | 6,0bar/87,02psi | 3,0bar/43,51psi | 785mm/30,91" | 1200mm/47,24" | 101,60mm/4" | 45,0kg/99,21lbs |
|
remove
add
|
IHTP8001000B | 800-1000 | 800mm/31,49" | 1000mm/39,37" | 6,0bar/87,02psi | 3,0bar/43,51psi | 785mm/30,91" | 1200mm/47,24" | 2x50,80mm/2x2" | 50,0kg/110,23lbs |
|
remove
add
|
IHTP12001400A | 1200-1400 | 1200mm/47,24" | 1400mm/55,11" | 6,0bar/87,02psi | 3,0bar/43,51psi | 1180mm/46,45" | 2500mm/98,42" | 101,60mm/4" | 220,0kg/484,88lbs |
|
remove
add
|
IHTP12001400A | 1200-1400 | 1200mm/47,24" | 1400mm/55,11" | 6,0bar/87,02psi | 3,0bar/43,51psi | 1180mm/46,45" | 2500mm/98,42" | 2x50,80mm/2x2" | 220,0kg/484,88lbs |
|
remove
add
|
IHTP18002000A | 1800-2000 | 1800mm/70,86" | 2000mm/78,74" | 6,0bar/87,02psi | 3,0bar/43,51psi | 1780mm/70,07" | 4000mm/157,48" | 101,60mm/4" | 320,0kg/705,28lbs |
|
remove
add
|
IHTP18002000B | 1800-2000 | 1800mm/70,86" | 2000mm/78,74" | 6,0bar/87,02psi | 3,0bar/43,51psi | 1780mm/70,07" | 4000mm/157,48" | 2x50,80mm/2x2" | 320,0kg/705,28lbs |
| Product Code | Nominal Size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Max. Working Pressure (bar/psi) | Back Pressure(bar/psi) | Product Diameter (mm/inch) | Total Length of Product (mm/inch) | Bypass Diameter(mm/inch) | Product Weight(kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|---|---|
|
remove
add
|
IHTP50A | 50 | 50mm/1,97 | 50mm/1,97" | 12,0bar/174,04psi | 6,0bar/87,02psi | 45mm/1,77" | 330mm/12,99" | 6,35mm/1/4" | 1,0kg/2,20Ibs |
|
remove
add
|
IHTP50B | 50 | 50mm/1,97 | 50mm/1,97" | 12,0bar/174,04psi | 6,0bar/87,02psi | 45mm/1,77" | 330mm/12,99" | 2x3,17mm/2x1/8" | 1,2kg/2,64Ibs |
|
remove
add
|
IHTP70A | 70 | 70mm/2,76" | 70mm/2,76" | 12,0bar/174,04psi | 6,0bar/87,02psi | 64mm/2,52" | 400mm/15,75" | 12,70mm/1/2" | 1,2kg/2,64Ibs |
|
remove
add
|
IHTP70B | 70 | 70mm/2,76" | 70mm/2,76" | 12,0bar/174,04psi | 6,0bar/87,02psi | 64mm/2,52" | 400mm/15,75" | 2x6,35mm/2x1/4" | 1,3kg/2,87Ibs |
|
remove
add
|
IHTP100A | 100 | 100mm/3,93" | 100mm/3,93" | 12,0bar/174,04psi | 6,0bar/87,02psi | 88mm/3,46" | 580mm/22,83" | 25,40mm/1" | 1,8kg/3,97lbs |
|
remove
add
|
IHTP100B | 100 | 100mm/3,93" | 100mm/3,93" | 12,0bar/174,04psi | 6,0bar/87,02psi | 88mm/3,46" | 580mm/22,83" | 2x12,7mm/2x1/2" | 1,9kg/4,19lbs |
|
remove
add
|
IHTP150A | 150 | 150mm/5,90" | 150mm/5,90" | 12,0bar/174,04psi | 6,0bar/87,02psi | 138mm/5,43" | 550mm/21,65" | 50,80mm/2" | 4,0kg/8,82lbs |
|
remove
add
|
IHTP150B | 150 | 150mm/5,90" | 150mm/5,90" | 12,0bar/174,04psi | 6,0bar/87,02psi | 138mm/5,43" | 550mm/21,65" | 2x25,40mm/2x1" | 4,2kg/9,26lbs |
|
remove
add
|
IHTP200A | 200 | 200mm/7,87" | 200mm/7,87" | 12,0bar/174,04psi | 6,0bar/87,02psi | 185mm/7,28" | 650mm/25,59" | 50,80mm/2" | 7,2kg/15,87lbs |
|
remove
add
|
IHTP200B | 200 | 200mm/7,87" | 200mm/7,87" | 12,0bar/174,04psi | 6,0bar/87,02psi | 185mm/7,28" | 650mm/25,59" | 2x25,40mm/2x1" | 7,4kg/16,31lbs |
|
remove
add
|
IHTP300A | 300 | 300mm/11,81" | 300mm/11,81" | 12,0bar/174,04psi | 6,0bar/87,02psi | 285mm/11,22" | 850mm/33,46" | 50,80mm/2" | 11,0kg/24,25lbs |
|
remove
add
|
IHTP300B | 300 | 300mm/11,81" | 300mm/11,81" | 12,0bar/174,04psi | 6,0bar/87,02psi | 285mm/11,22" | 850mm/33,46" | 50,8mm/2" + 25,4mm/1" | 11,7kg/25,79lbs |
|
remove
add
|
IHTP400A | 400 | 400mm/15,74" | 400mm/15,74" | 12,0bar/174,04psi | 6,0bar/87,02psi | 355mm/13,98" | 1000mm/39,37" | 50,80mm/2" | 18,0kg/39,68lbs |
|
remove
add
|
IHTP400B | 400 | 400mm/15,74" | 400mm/15,74" | 12,0bar/174,04psi | 6,0bar/87,02psi | 355mm/13,98" | 1000mm/39,37" | 2x50,80mm/2x2" | 20,0kg/44,09lbs |
|
remove
add
|
IHTP500A | 500 | 500mm/19,68" | 500mm/19,68" | 12,0bar/174,04psi | 6,0bar/87,02psi | 485mm/19,09" | 1050mm/41,34" | 50,80mm/2" | 27,0kg/59,52lbs |
|
remove
add
|
IHTP500B | 500 | 500mm/19,68" | 500mm/19,68" | 12,0bar/174,04psi | 6,0bar/87,02psi | 485mm/19,09" | 1050mm/41,34" | 2x50,80mm/2x2" | 28,8kg/63,49lbs |
|
remove
add
|
IHTP600A | 600 | 600mm/23,62" | 600mm/23,62" | 12,0bar/174,04psi | 6,0bar/87,02psi | 585mm/23,03" | 1300mm/51,18" | 50,80mm/2" | 35,0kg/77,16lbs |
|
remove
add
|
IHTP600B | 600 | 600mm/23,62" | 600mm/23,62" | 12,0bar/174,04psi | 6,0bar/87,02psi | 585mm/23,03" | 1300mm/51,18" | 2x50,80mm/2x2" | 36,0kg/79,37lbs |
|
remove
add
|
IHTP800A | 800 | 800mm/31,49" | 800mm/31,49" | 12,0bar/174,04psi | 6,0bar/87,02psi | 785mm/30,91" | 1200mm/47,24" | 101,60mm/4" | 45,0kg/99,21lbs |
|
remove
add
|
IHTP800B | 800 | 800mm/31,49" | 800mm/31,49" | 12,0bar/174,04psi | 6,0bar/87,02psi | 785mm/30,91" | 1200mm/47,24" | 2x50,80mm/2x2" | 50,0kg/110,23lbs |
|
remove
add
|
IHTP1200A | 1200 | 1200mm/47,24" | 1200mm/47,24" | 12,0bar/174,04psi | 6,0bar/87,02psi | 1180mm/46,45" | 2500mm/98,42" | 101,60mm/4" | 220,0kg/484,88lbs |
|
remove
add
|
IHTP1200B | 1200 | 1200mm/47,24" | 1200mm/47,24" | 12,0bar/174,04psi | 6,0bar/87,02psi | 1180mm/46,45" | 2500mm/98,42" | 2x50,80mm/2x2" | 220,0kg/484,88lbs |
|
remove
add
|
IHTP1800A | 1800 | 1800mm/70,86" | 1800mm/70,86" | 12,0bar/174,04psi | 6,0bar/87,02psi | 1780mm/70,07" | 4000mm/157,48" | 101,60mm/4" | 320,0kg/705,28lbs |
|
remove
add
|
IHTP1800B | 1800 | 1800mm/70,86" | 1800mm/70,86" | 12,0bar/174,04psi | 6,0bar/87,02psi | 1780mm/70,07" | 4000mm/157,48" | 2x50,80mm/2x2" | 320,0kg/705,28lbs |
