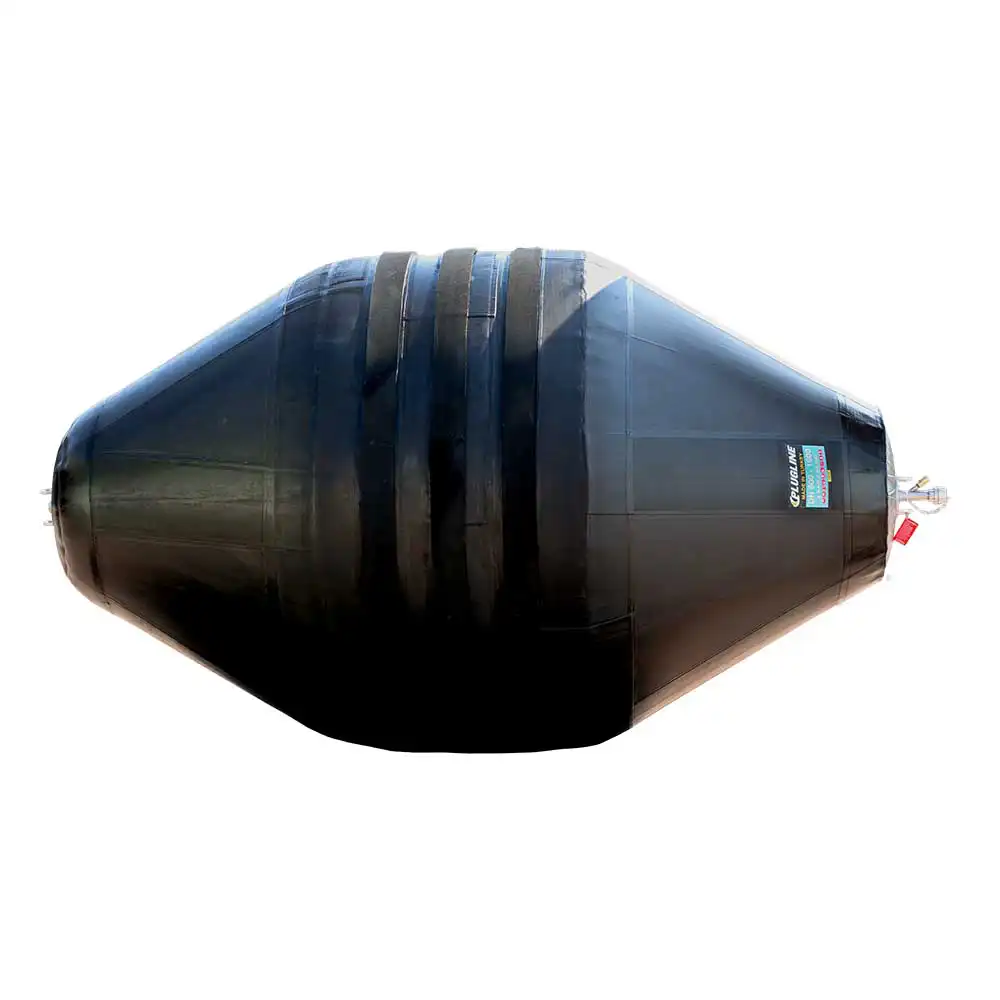

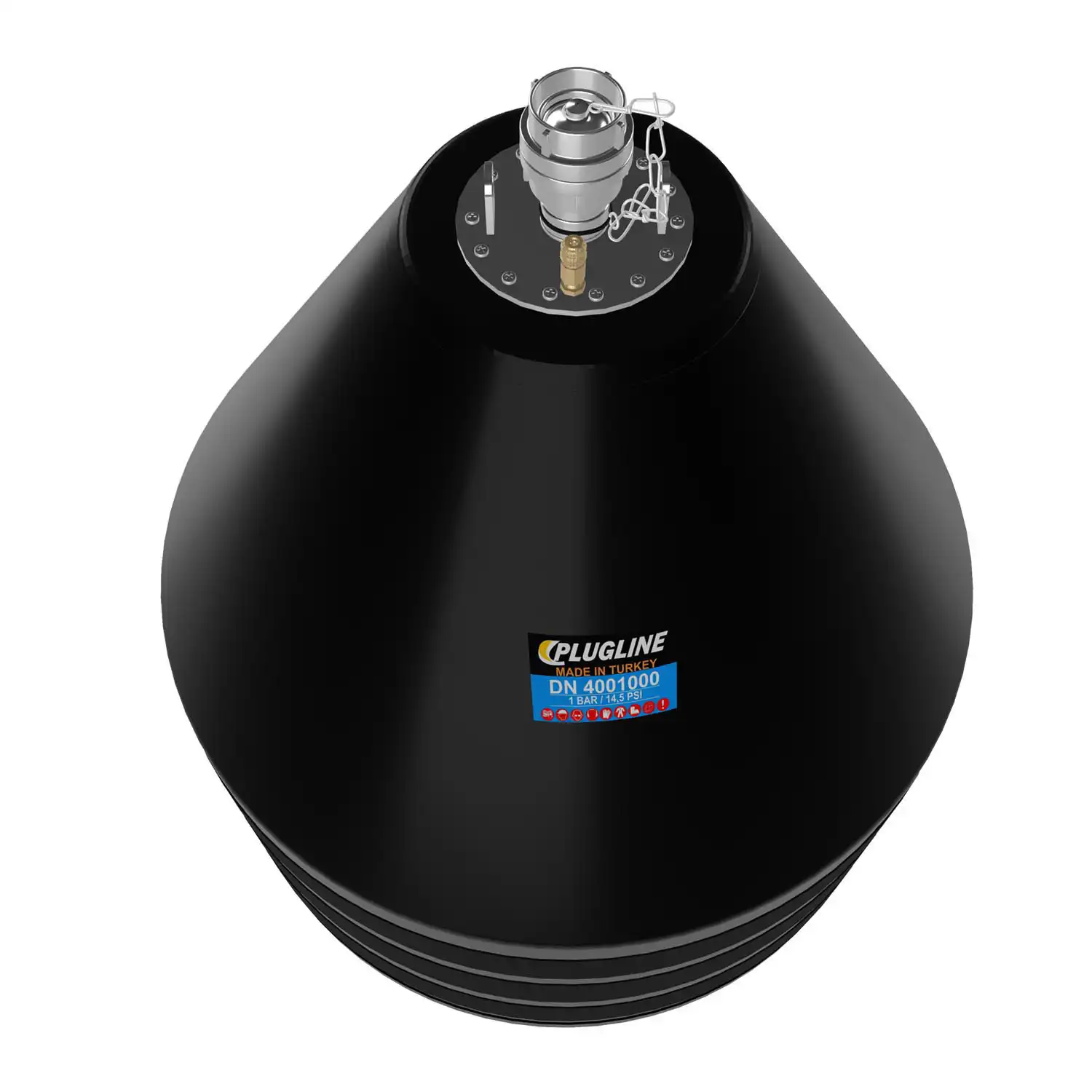

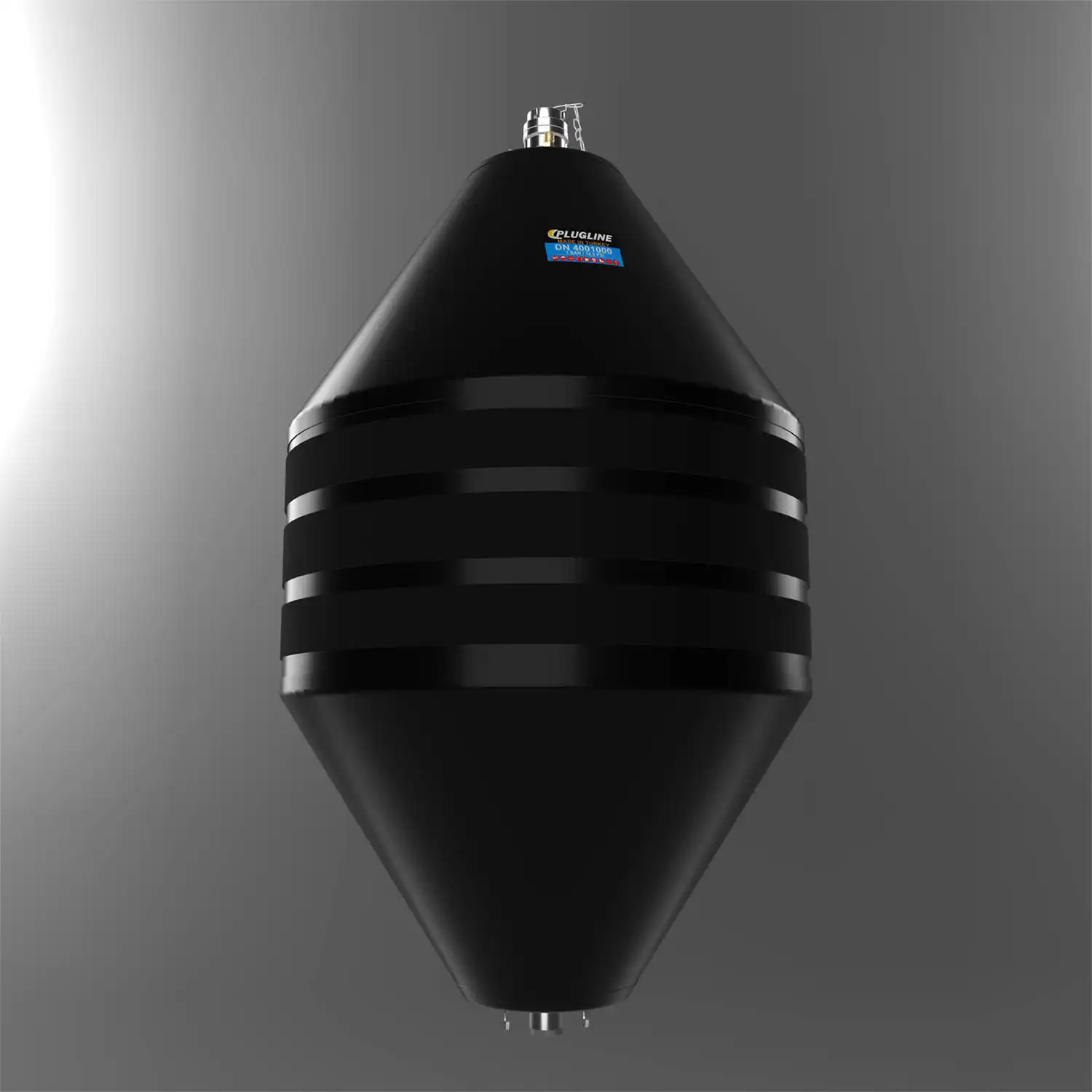

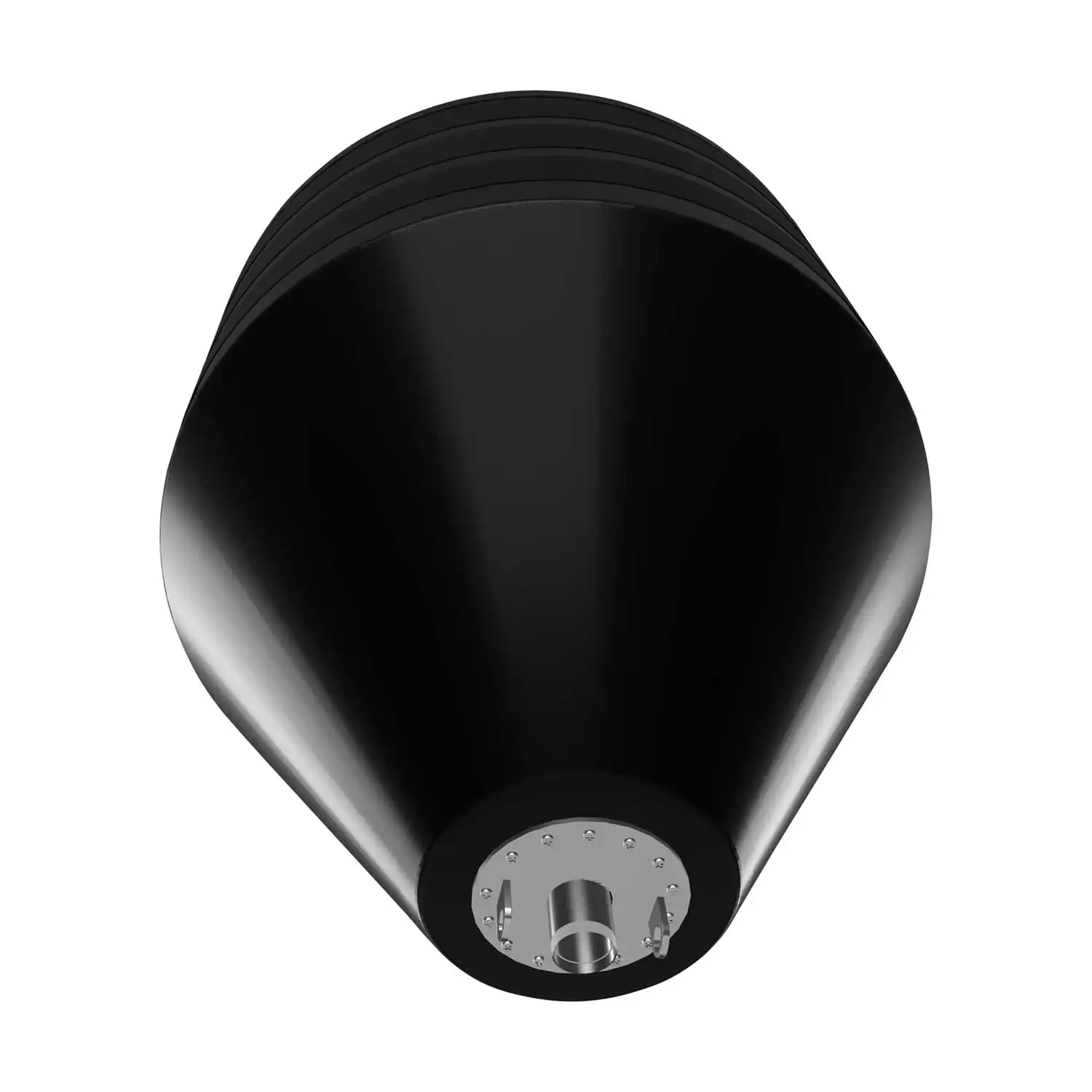

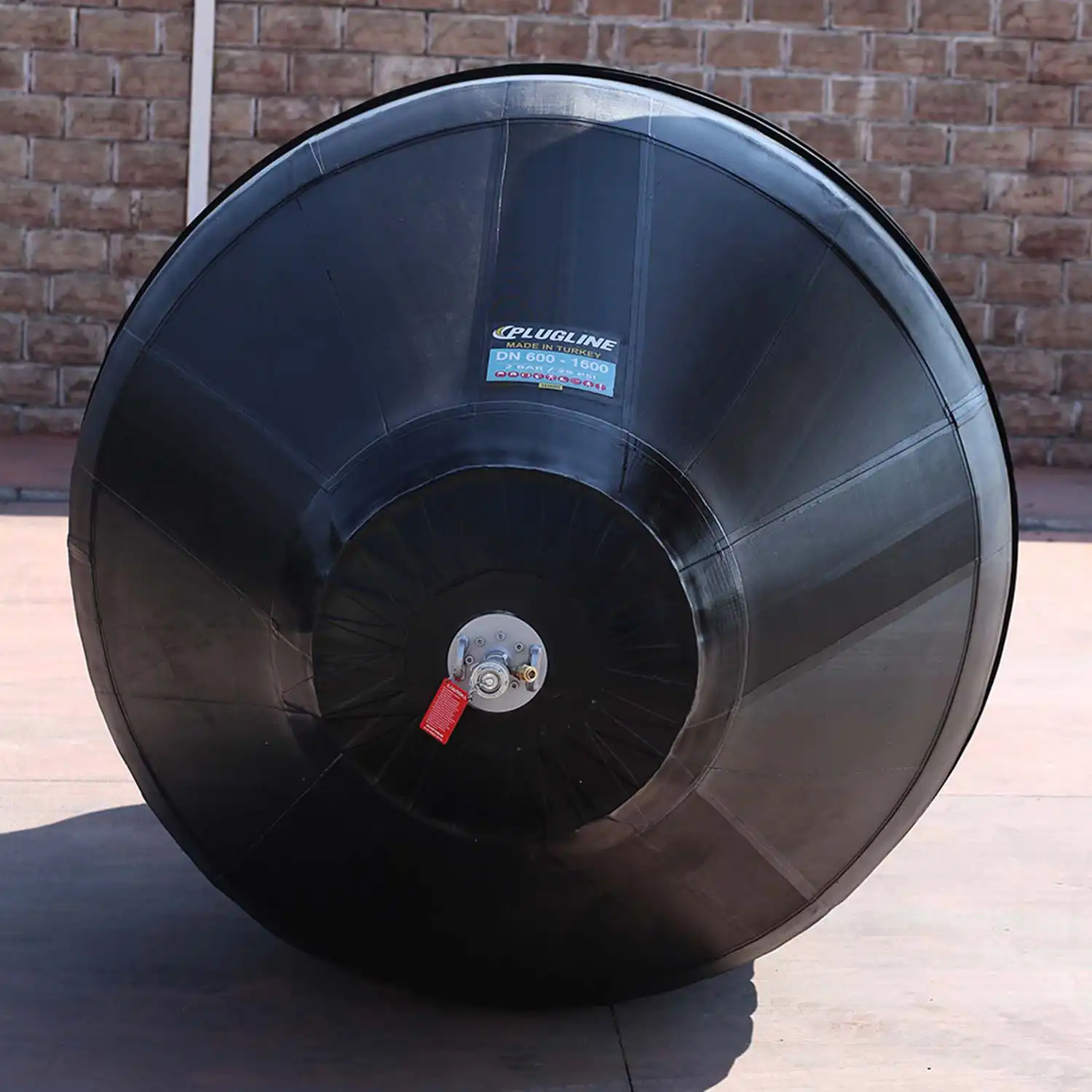

Cone Pipe Test Plugs (1,0 - 2,0 bar)
- Conical Pipe Test Plugs have an advantage to make leak test, for sealing, for bypassing not only in round pipes but also they can be used in ovoid, egg-shaped, rectangular, kite shape and many others pipes.
- They are also fit through standard manholes even on large scales.
- Mainly used to make leak test with water or air acording to the DIN EN 1610 standard on newly laid pipe lines.
- They can be used in many different diameters ranges from 150 to 2200 mm with good quality rubber, good chemical resistence, high age-resistence, low weight, and they are simply reparable.
| Product Code | Nominal Size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Max. Working Pressure (bar/psi) | Back Pressure (bar/psi) | Product Diameter (mm/inch) | Total Length of Product (mm/inch) | Bypass Diameter(mm/inch) | Product Weight(kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|---|---|
|
remove
add
|
CTP100200/1 | 100-200 | 100mm/3,94" | 200mm/7,87" | 1,0bar/14,50psi | 0,5bar/7,25psi | 70mm/2,76" | 360mm/14,17" | 6,35mm/1/4" | 4,5kg/9,91lbs |
|
remove
add
|
CTP150400/1 | 150-400 | 150mm/5,91" | 400mm/15,75" | 1,0bar/14,50psi | 0,5bar/7,25psi | 100mm/3,94" | 800mm/31,49" | 12,70mm/1/2" | 9,5kg/20,93lbs |
|
remove
add
|
CTP250600/1 | 250-600 | 250mm/9,84" | 600mm/23,62" | 1,0bar/14,50psi | 0,5bar/7,25psi | 200mm/7,87" | 1150mm/45,27" | 25,40mm/1" | 17,0kg/37,46lbs |
|
remove
add
|
CTP300800/1 | 300-800 | 300mm/11,81" | 800mm/31,5" | 1,0bar/14,50psi | 0,5bar/7,25psi | 250mm/9,84" | 1400mm/55,11" | 50,80mm/2" | 27,0kg/59,50lbs |
|
remove
add
|
CTP4001000/1 | 400-1000 | 400mm/15,75" | 1000mm/39,37" | 1,0bar/14,50psi | 0,5bar/7,25psi | 300mm/11,81" | 1750mm/68,89" | 50,80mm/2" | 36,0kg/79,35lbs |
|
remove
add
|
CTP5001200/1 | 500-1200 | 500mm/19,69" | 1200mm/47,24" | 1,0bar/14,50psi | 0,5bar/7,25psi | 400mm/15,75" | 1900mm/74,80" | 50,80mm/2" | 54,1kg/119,23lbs |
|
remove
add
|
CTP5001400/1 | 500-1400 | 500mm/19,69" | 1400mm/55,12" | 1,0bar/14,50psi | 0,5bar/7,25psi | 400mm/15,75" | 2250mm/88,58" | 50,80mm/2" | 75,0kg/165,30lbs |
|
remove
add
|
CTP5001500/1 | 500-1500 | 500mm/19,69" | 1500mm/59,06" | 1,0bar/14,50psi | 0,5bar/7,25psi | 400mm/15,75" | 2600mm/102,36" | 50,80mm/2" | 80,0kg/176,32lbs |
|
remove
add
|
CTP6001600/1 | 600-1600 | 600mm/23,62" | 1600mm/62,99" | 1,0bar/14,50psi | 0,5bar/7,25psi | 500mm/19,69" | 2800mm/110,23" | 50,80mm/2" | 115,0kg/253,46lbs |
|
remove
add
|
CTP8001800/1 | 800-1800 | 800mm/31,5" | 1800mm/70,87" | 1,0bar/14,50psi | 0,5bar/7,25psi | 700mm/27,56" | 3000mm/118,11" | 50,80mm/2" | 165,0kg/363,66lbs |
|
remove
add
|
CTP10002200/1 | 1000-2200 | 1000mm/39,37" | 2200mm/86,61" | 1,0bar/14,50psi | 0,5bar/7,25psi | 800mm/31,5" | 3500mm/137,79" | 50,80mm/2" | 240,0kg/528,96lbs |
|
remove
add
|
CTP15002800/0,5 | 1500-2800 | 1500mm/59,05" | 2800mm/110,23" | 0,5bar/7,25psi | 0,2bar/2,90psi | 1300mm/51,18" | 3650mm/143,70" | 101,60mm/4" | 410,0kg/903,64lbs |
|
remove
add
|
CTP22003600/0,4 | 2200-3600 | 2200mm/86,61" | 3600mm/141,73" | 0,4bar/5,80psi | 0,2bar/2,90psi | 1800mm/70,86" | 4250mm/167,32" | 101,60mm/4" | 418,0kg/921,27lbs |
| Product Code | Nominal Size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Max. Working Pressure (bar/psi) | Back Pressure (bar/psi) | Product Diameter (mm/inch) | Total Length of Product (mm/inch) | Bypass Diameter(mm/inch) | Product Weight (kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|---|---|
|
remove
add
|
CTP100200/3 | 100-200 | 100mm/3,94" | 200mm/7,87" | 3,0bar/43,51psi | 1,5bar/21,75psi | 70mm/2,76" | 360mm/14,17" | 6,35mm/1/4" | 4,5kg/9,91lbs |
|
remove
add
|
CTP150400/3 | 150-400 | 150mm/5,91" | 400mm/15,75" | 3,0bar/43,51psi | 1,5bar/21,75psi | 100mm/3,94" | 800mm/31,49" | 12,70mm/1/2" | 9,5kg/20,93lbs |
|
remove
add
|
CTP250600/3 | 250-600 | 250mm/9,84" | 600mm/23,62" | 3,0bar/43,51psi | 1,5bar/21,75psi | 200mm/7,87" | 1150mm/45,27" | 25,40mm/1" | 17,0kg/37,46lbs |
|
remove
add
|
CTP300800/2 | 300-800 | 300mm/11,81" | 800mm/31,50" | 2,0bar/29,01psi | 1,0bar/14,50psi | 250mm/9,84" | 1400mm/55,11" | 50,80mm/2" | 27,0kg/59,50lbs |
|
remove
add
|
CTP4001000/2 | 400-1000 | 400mm/15,75" | 1000mm/39,37" | 2,0bar/29,01psi | 1,0bar/14,50psi | 300mm/11,81" | 1750mm/68,89" | 50,80mm/2" | 36,0kg/79,35lbs |
|
remove
add
|
CTP5001200/2 | 500-1200 | 500mm/19,69" | 1200mm/47,24" | 2,0bar/29,01psi | 1,0bar/14,50psi | 400mm/15,75" | 1900mm/74,80" | 50,80mm/2" | 54,1kg/119,23lbs |
|
remove
add
|
CTP5001400/2 | 500-1400 | 500mm/19,69" | 1400mm/55,12" | 2,0bar/29,01psi | 1,0bar/14,50psi | 400mm/15,75" | 2250mm/88,58" | 50,80mm/2" | 75,0kg/165,30lbs |
|
remove
add
|
CTP5001500/2 | 500-1500 | 500mm/19,69" | 1500mm/59,06" | 2,0bar/29,01psi | 1,0bar/14,50psi | 400mm/15,75" | 2600mm/102,36" | 50,80mm/2" | 80,0kg/176,32lbs |
|
remove
add
|
CTP6001600/2 | 600-1600 | 600mm/23,62" | 1600mm/62,99" | 2,0bar/29,01psi | 1,0bar/14,50psi | 500mm/19,69" | 2800mm/110,23" | 50,80mm/2" | 115,0kg/253,46lbs |
|
remove
add
|
CTP8001800/2 | 800-1800 | 800mm/31,50" | 1800mm/70,87" | 2,0bar/29,01psi | 1,0bar/14,50psi | 700mm/27,56" | 3000mm/118,11" | 50,80mm/2" | 165,0kg/363,66lbs |
|
remove
add
|
CTP10002200/2 | 1000-2200 | 1000mm/39,37" | 2200mm/86,61" | 2,0bar/29,01psi | 1,0bar/14,50psi | 800mm/31,50" | 3500mm/137,79" | 50,80mm/2" | 240,0kg/528,96lbs |
