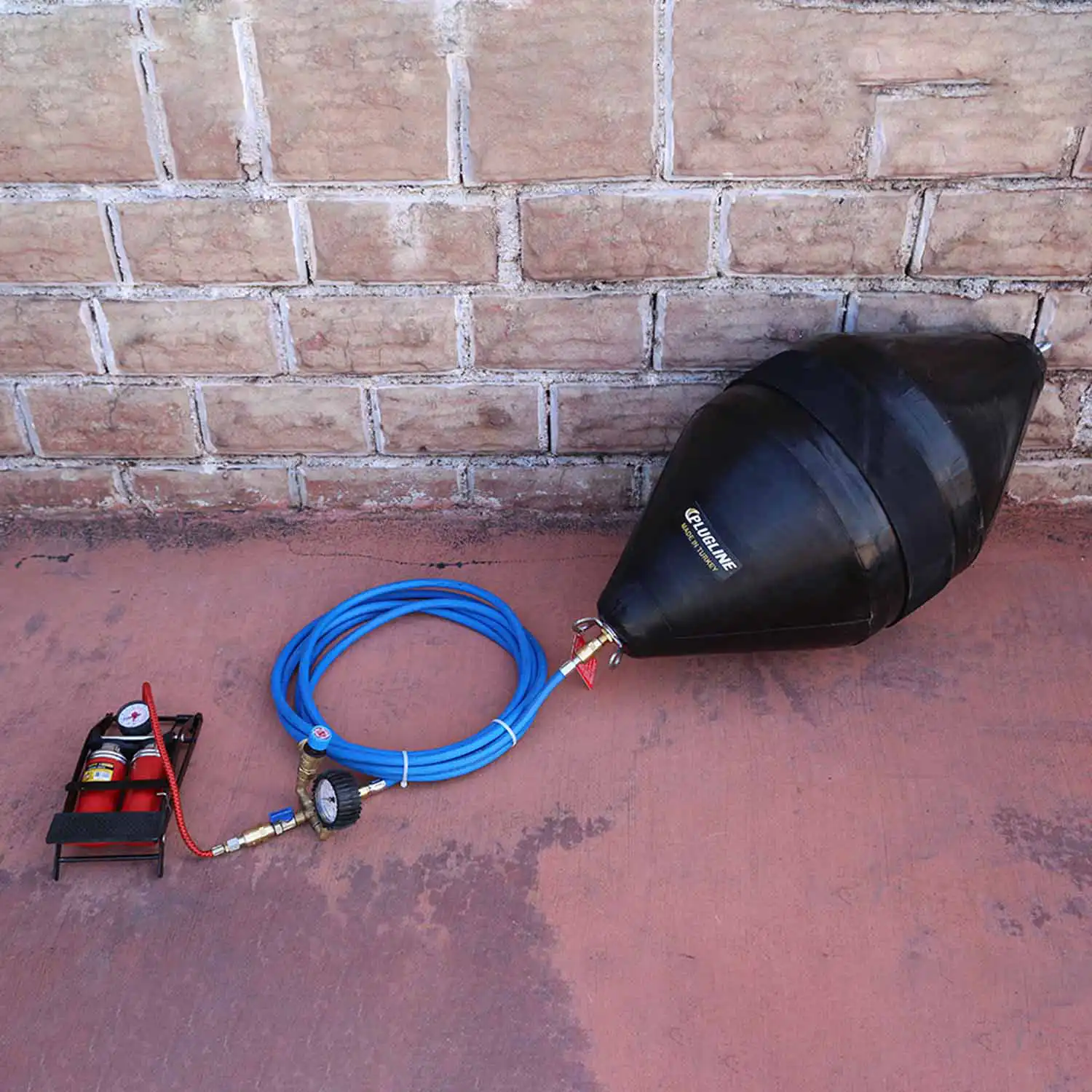

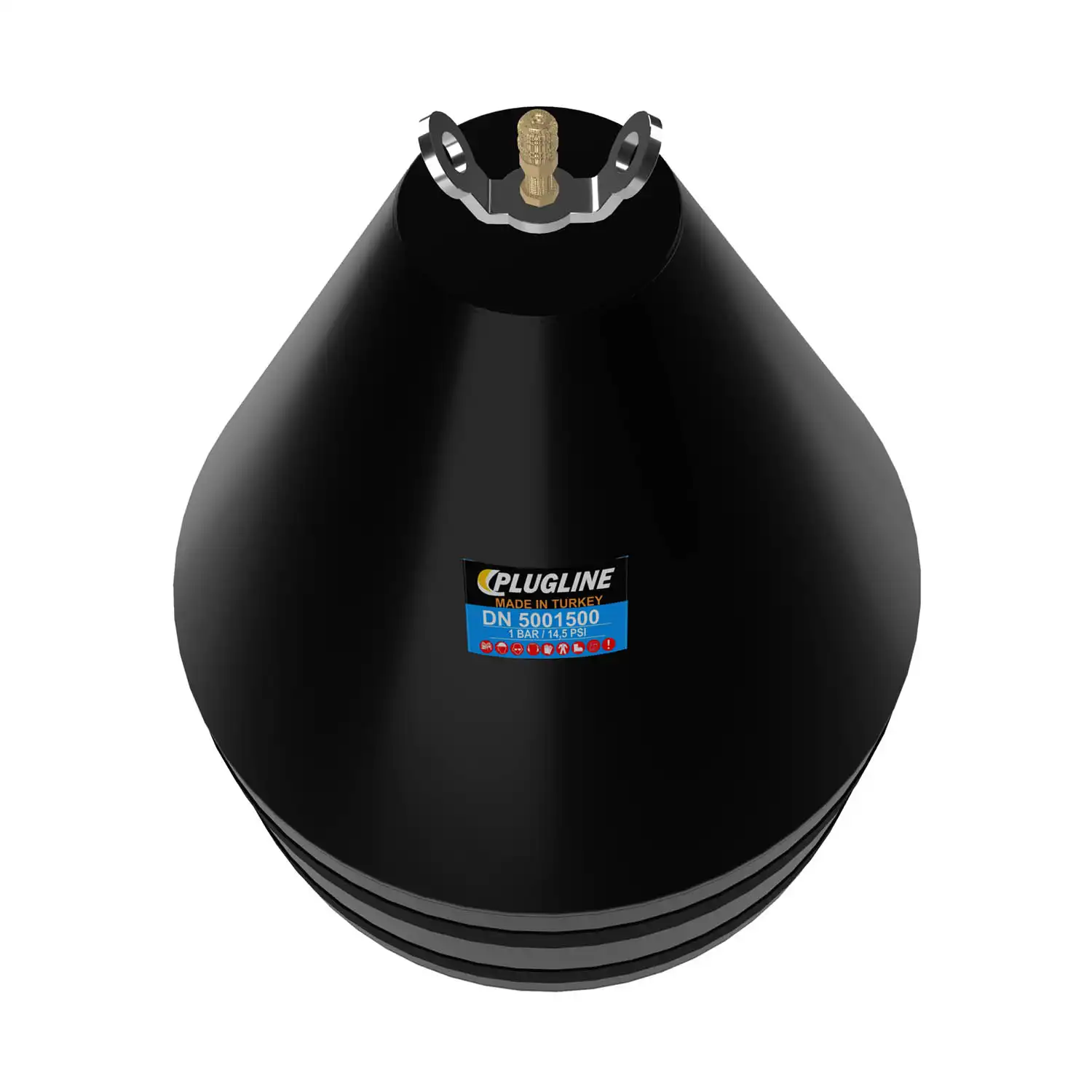

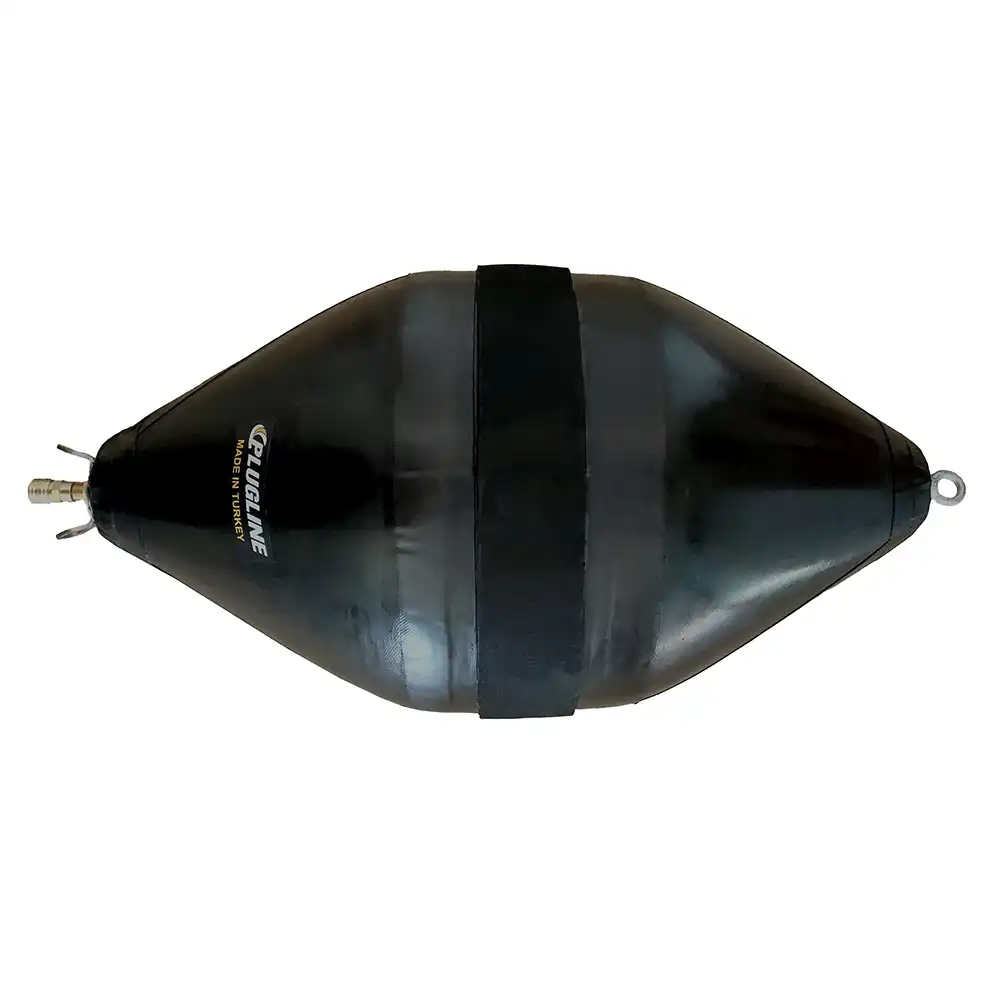

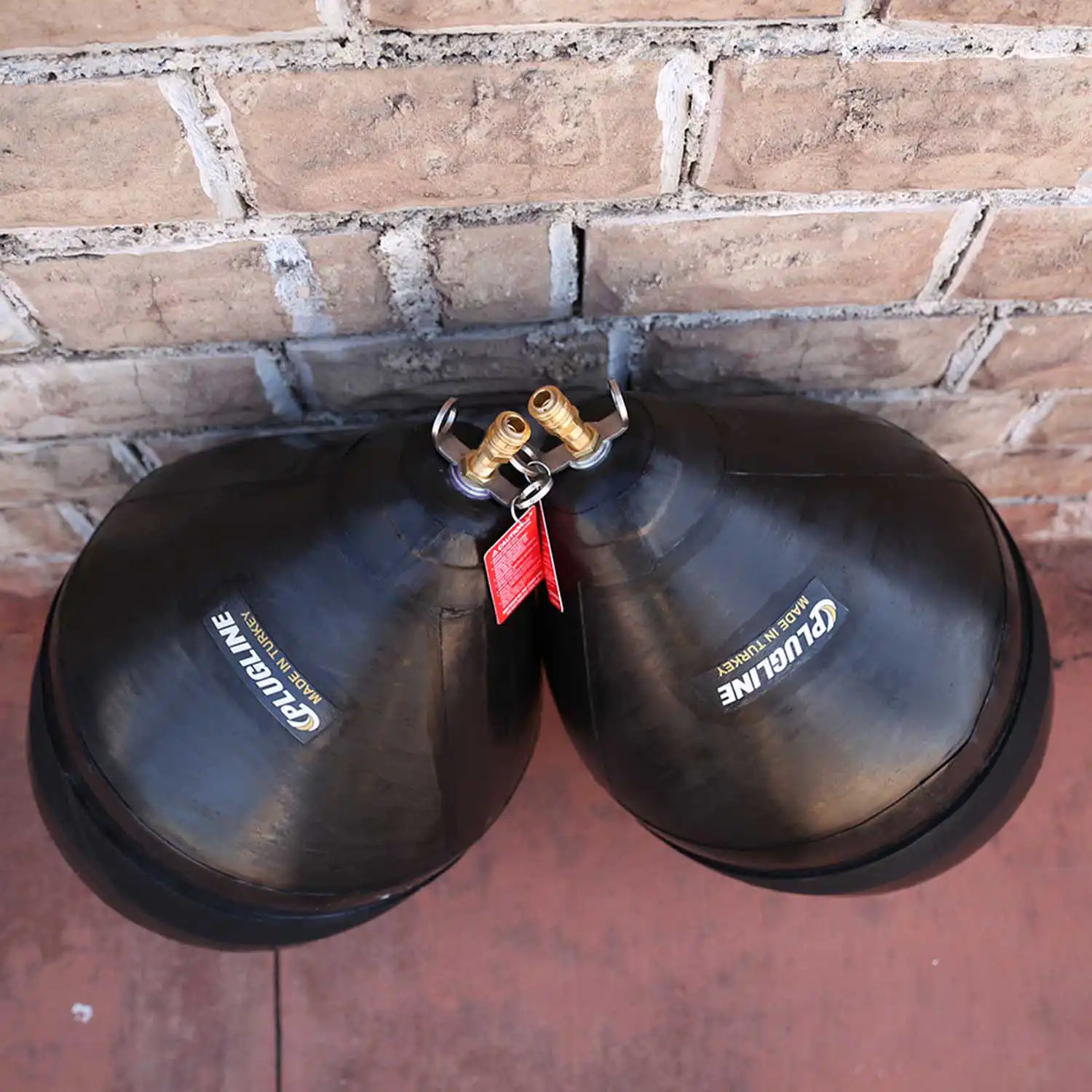

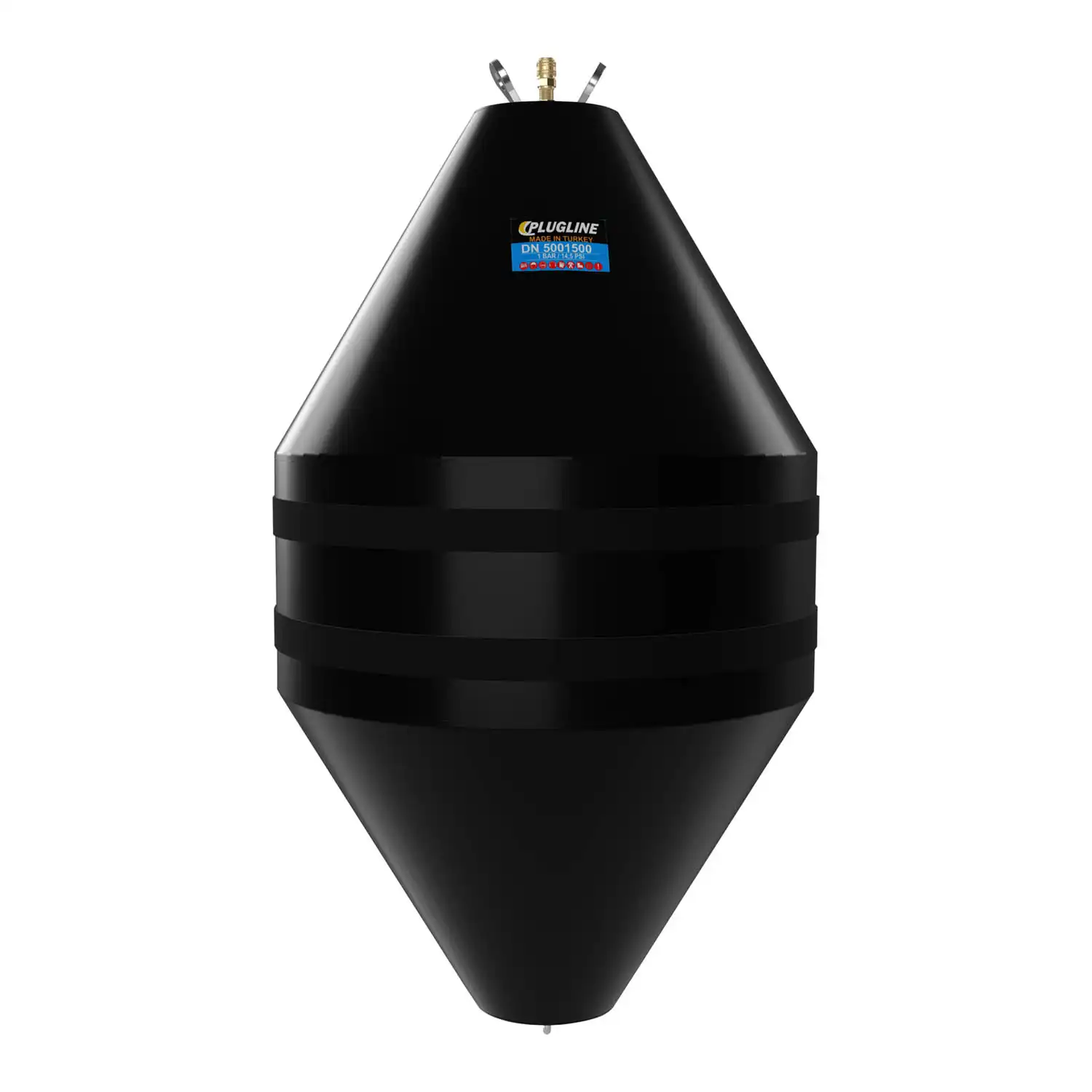

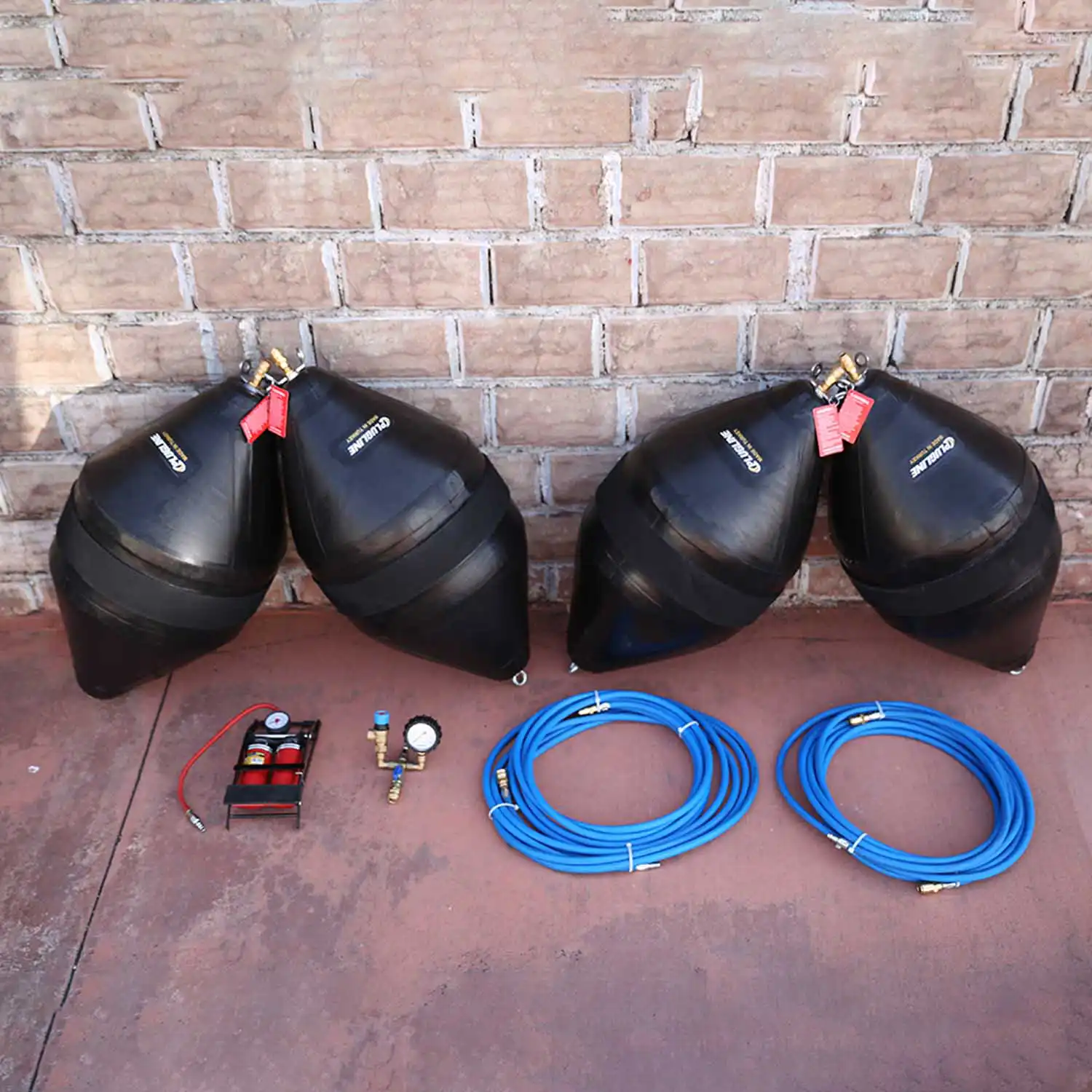

Cone Pipe Stoppers

  • Cone Pipe Stoppers are suitable for the safe blocking of various types of pipes. A characteristic of the cone sealing bags is the high flexibility of use on almost all types of the pipeline, e.g. open U, Linzer, Drago, mouth type, circular, square, rectangular, egg-shaped, kite shape, and many other pipelines.
  • They can be used in many different diameters ranges from 150 to 2200 mm. with good quality rubber, good chemical resistence, high age-resistence, low weight.
  • Its structure also allows it to be easily repaired.

CONE PIPE STOPPERS (1,0 BAR/14,50 PSI)
Product Code Nominal Size(mm) Min. Pipe Inner Dia. to be tested (mm/inch) Max. Pipe Inner Dia. to be tested (mm/inch) Max. Working Pressure (bar/psi) Back Pressure (bar/psi) Product Diameter (mm/inch) Total Length of Product (mm/inch) Product Weight(kg/Ibs)
remove add
CPS100200/1 100-200 100mm/3,94" 200mm/7,87" 1,0bar/14,50psi 0,5bar/7,25psi 70mm/2,76" 340mm/13,39" 2,0kg/4,40lbs
remove add
CPS150400/1 150-400 150mm/5,91" 400mm/15,75" 1,0bar/14,50psi 0,5bar/7,25psi 100mm/3,94" 760mm/29,92" 6,0kg/13,22lbs
remove add
CPS250600/1 250-600 250mm/9,84" 600mm/23,62" 1,0bar/14,50psi 0,5bar/7,25psi 200mm/7,87" 1050mm/41,34" 10,0kg/22,04lbs
remove add
CPS300800/1 300-800 300mm/11,81" 800mm/31,5" 1,0bar/14,50psi 0,5bar/7,25psi 250mm/9,84" 1300mm/51,18" 21,3kg/46,94lbs
remove add
CPS4001000/1 400-1000 400mm/15,75" 1000mm/39,37" 1,0bar/14,50psi 0,5bar/7,25psi 300mm/11,81" 1600mm/62,99" 27,0kg/59,50lbs
remove add
CPS5001200/1 500-1200 500mm/19,69" 1200mm/47,24" 1,0bar/14,50psi 0,5bar/7,25psi 400mm/15,75" 1880mm/74,02" 46,6kg/102,70lbs
remove add
CPS5001400/1 500-1400 500mm/19,69" 1400mm/55,12" 1,0bar/14,50psi 0,5bar/7,25psi 400mm/15,75" 2150mm/84,65" 59,4kg/130,91lbs
remove add
CPS5001500/1 500-1500 500mm/19,69" 1500mm/59,06" 1,0bar/14,50psi 0,5bar/7,25psi 400mm/15,75" 2500mm/98,43" 60,0kg/132,24lbs
remove add
CPS6001600/1 600-1600 600mm/23,62" 1600mm/62,99" 1,0bar/14,50psi 0,5bar/7,25psi 500mm/19,69" 2650mm/104,33" 93,0kg/204,97lbs
remove add
CPS8001800/1 800-1800 800mm/31,50" 1800mm/70,87" 1,0bar/14,50psi 0,5bar/7,25psi 700mm/27,56" 3000mm/118,11" 140,0kg/308,56lbs
remove add
CPS10002200/1 1000-2200 1000mm/39,37" 2200mm/86,61" 1,0bar/14,50psi 0,5bar/7,25psi 800mm/31,50" 3500mm/137,80" 210,0kg/462,84lbs
remove add
CPS15002800/0,5 1500-2800 1500mm/59,06" 2800mm/110,40" 0,5bar/7,25psi 0,2bar/2,90psi 1300mm/51,18" 3650mm/143,70" 370,0kg/815,48lbs
remove add
CPS22003600/0,4 2200-3600 2200mm/86,61" 3600mm/141,73" 0,4bar/5,80psi 0,2bar/2,90psi 1800mm/70,86" 4250mm/167,32" 380,0kg/837,52lbs
CONE PIPE STOPPERS (3,0 BAR/43,51 PSI - 2,0 BAR/29,01 PSI)
Product Code Nominal Size(mm) Min. Pipe Inner Dia. to be tested (mm/inch) Max. Pipe Inner Dia. to be tested (mm/inch) Max. Working Pressure (bar/psi) Back Pressure (bar/psi) Product Diameter (mm/inch) Total Length of Product (mm/inch) Product Weight(kg/Ibs)
remove add
CPS100200/3 100-200 100mm/3,94" 200mm/7,87" 3,0bar/43,51psi 1,5bar/21,75psi 70mm/2,76" 340mm/13,39" 2,0kg/4,40lbs
remove add
CPS150400/3 150-400 150mm/5,91" 400mm/15,75" 3,0bar/43,51psi 1,5bar/21,75psi 100mm/3,94" 760mm/29,92" 6,0kg/13,22lbs
remove add
CPS250600/3 250-600 250mm/9,84" 600mm/23,62" 3,0bar/43,51psi 1,5bar/21,75psi 200mm/7,87" 1050mm/41,34" 10,0kg/22,04lbs
remove add
CPS300800/2 300-800 300mm/11,81" 800mm/31,50" 2,0bar/29,01psi 1,0bar/14,50psi 250mm/9,84" 1300mm/51,18" 21,3kg/46,94lbs
remove add
CPS4001000/2 400-1000 400mm/15,75" 1000mm/39,37" 2,0bar/29,01psi 1,0bar/14,50psi 300mm/11,81" 1600mm/62,99" 27,0kg/59,50lbs
remove add
CPS5001200/2 500-1200 500mm/19,69" 1200mm/47,24" 2,0bar/29,01psi 1,0bar/14,50psi 400mm/15,75" 1880mm/74,02" 46,6kg/102,70lbs
remove add
CPS5001400/2 500-1400 500mm/19,69" 1400mm/55,12" 2,0bar/29,01psi 1,0bar/14,50psi 400mm/15,75" 2150mm/84,65" 59,4kg/130,91lbs
remove add
CPS5001500/2 500-1500 500mm/19,69" 1500mm/59,06" 2,0bar/29,01psi 1,0bar/14,50psi 400mm/15,75" 2500mm/98,43" 60,0kg/132,24lbs
remove add
CPS6001600/2 600-1600 600mm/23,62" 1600mm/62,99" 2,0bar/29,01psi 1,0bar/14,50psi 500mm/19,69" 2650mm/104,33" 93,0kg/204,97lbs
remove add
CPS8001800/2 800-1800 800mm/31,50" 1800mm/70,87" 2,0bar/29,01psi 1,0bar/14,50psi 700mm/27,56" 3000mm/118,11" 140,0kg/308,56lbs
remove add
CPS10002200/2 1000-2200 1000mm/39,37" 2200mm/86,61" 2,0bar/29,01psi 1,0bar/14,50psi 800mm/31,50" 3500mm/137,80" 210,0kg/462,84lbs
