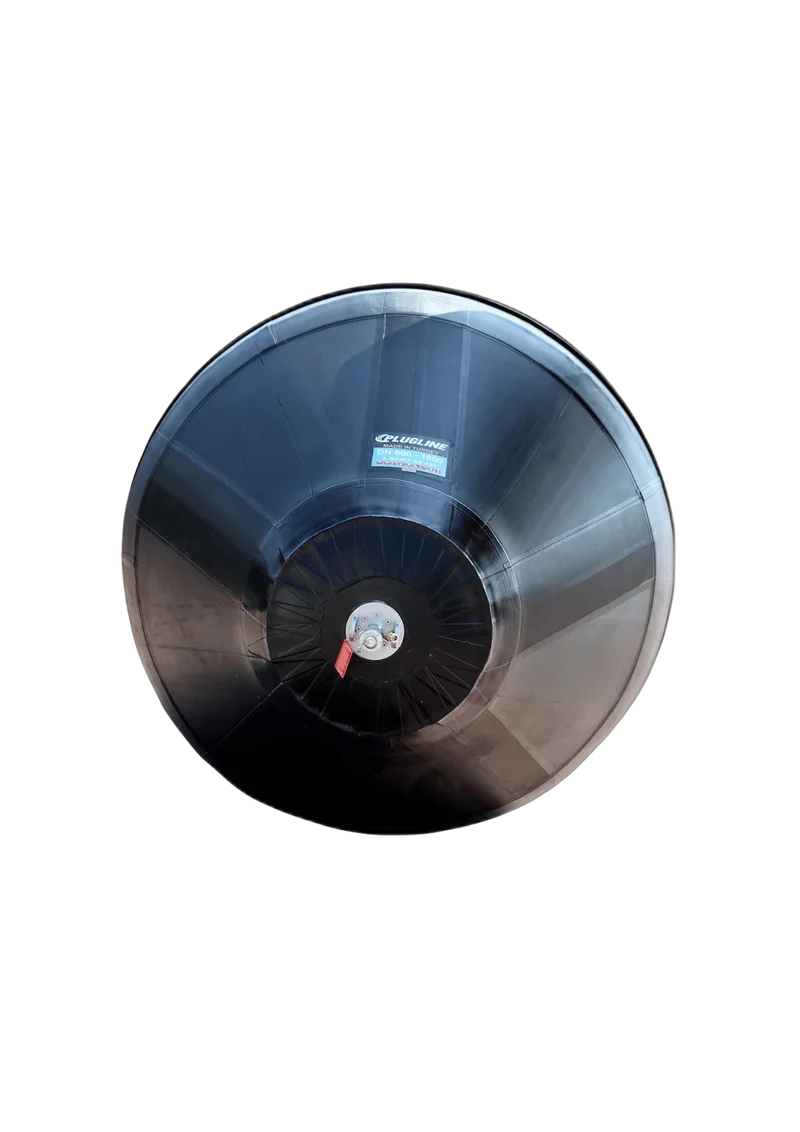

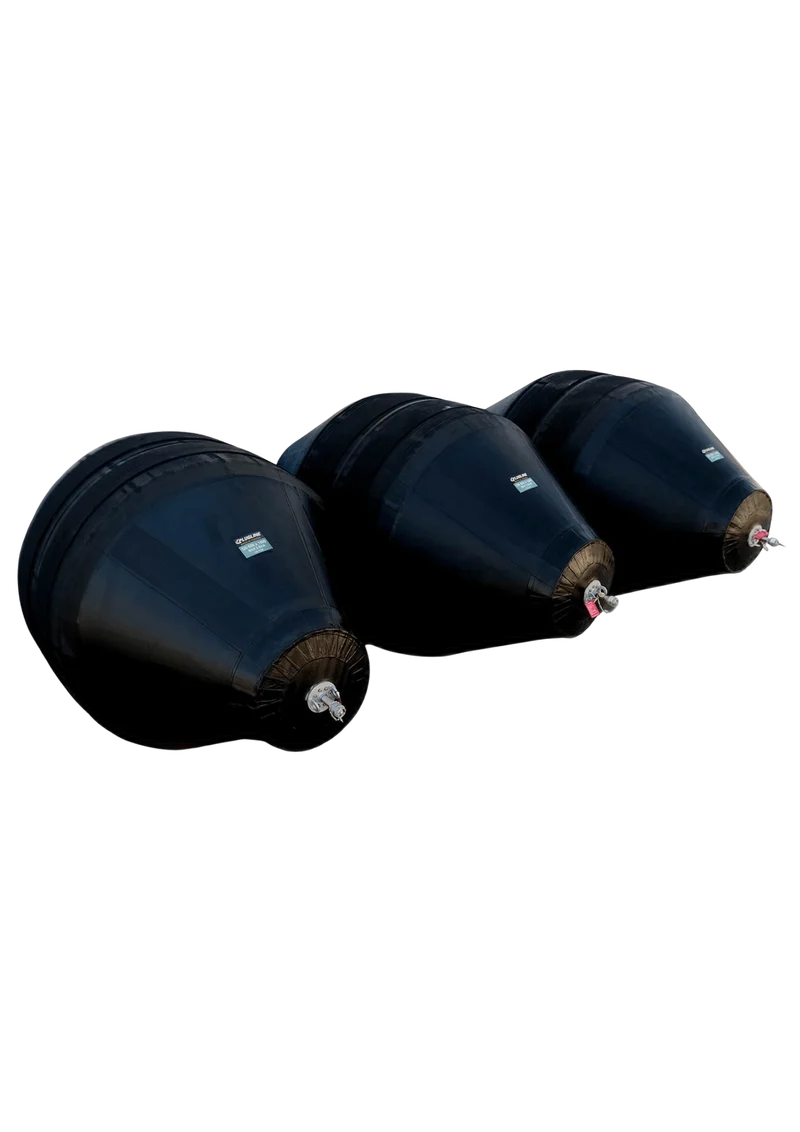

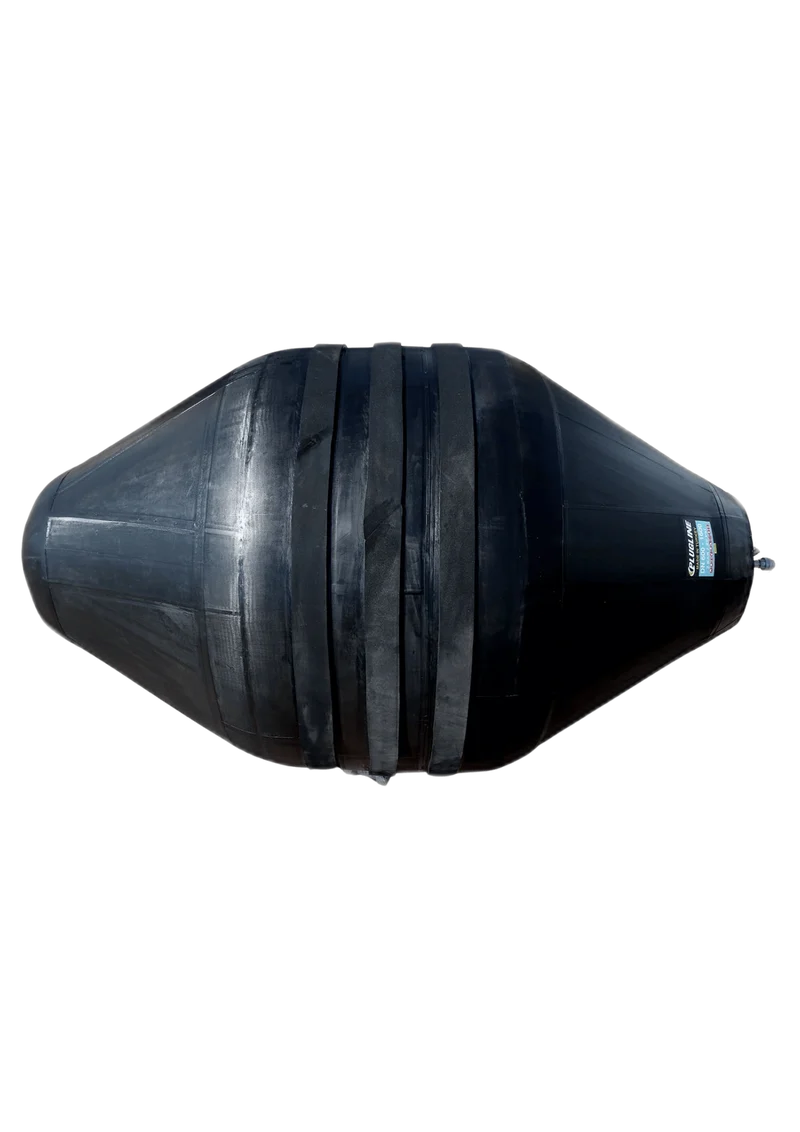

سدادات الأنابيب المخروطية (1،0 - 2،0 بار)
- سدادات الأنابيب المخروطية مناسبة للإغلاق الآمن لأنواع مختلفة من الأنابيب. من خصائص أكياس الإغلاق المخروطي المرونة العالية للاستخدام في جميع أنواع خطوط الأنابيب تقريبًا، على سبيل المثال U المفتوح ، و Linzer ، و Drago ، ونوع الفم ، دائري، مربع، مستطيل، شكل بيضة، شكل طائرة ورقية، والعديد من خطوط الأنابيب الأخرى
- يمكن استخدامها بأقطار مختلفة تتراوح من 150 إلى 2200 مم. بمطاط عالي الجودة، ومقاومة كيميائية جيدة، ومقاومة عالية للعمر ، ووزن منخفض.
- كما يسمح هيكلها بإصلاحها بسهولة.
| Product Code | Nominal Size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Max. Working Pressure (bar/psi) | Back Pressure (bar/psi) | Product Diameter (mm/inch) | Total Length of Product (mm/inch) | Product Weight(kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|---|
|
remove
add
|
CPS100200/1 | 100-200 | 100mm/3,94" | 200mm/7,87" | 1,0bar/14,50psi | 0,5bar/7,25psi | 70mm/2,76" | 340mm/13,39" | 2,0kg/4,40lbs |
|
remove
add
|
CPS150400/1 | 150-400 | 150mm/5,91" | 400mm/15,75" | 1,0bar/14,50psi | 0,5bar/7,25psi | 100mm/3,94" | 760mm/29,92" | 6,0kg/13,22lbs |
|
remove
add
|
CPS250600/1 | 250-600 | 250mm/9,84" | 600mm/23,62" | 1,0bar/14,50psi | 0,5bar/7,25psi | 200mm/7,87" | 1050mm/41,34" | 10,0kg/22,04lbs |
|
remove
add
|
CPS300800/1 | 300-800 | 300mm/11,81" | 800mm/31,5" | 1,0bar/14,50psi | 0,5bar/7,25psi | 250mm/9,84" | 1300mm/51,18" | 21,3kg/46,94lbs |
|
remove
add
|
CPS4001000/1 | 400-1000 | 400mm/15,75" | 1000mm/39,37" | 1,0bar/14,50psi | 0,5bar/7,25psi | 300mm/11,81" | 1600mm/62,99" | 27,0kg/59,50lbs |
|
remove
add
|
CPS5001200/1 | 500-1200 | 500mm/19,69" | 1200mm/47,24" | 1,0bar/14,50psi | 0,5bar/7,25psi | 400mm/15,75" | 1880mm/74,02" | 46,6kg/102,70lbs |
|
remove
add
|
CPS5001400/1 | 500-1400 | 500mm/19,69" | 1400mm/55,12" | 1,0bar/14,50psi | 0,5bar/7,25psi | 400mm/15,75" | 2150mm/84,65" | 59,4kg/130,91lbs |
|
remove
add
|
CPS5001500/1 | 500-1500 | 500mm/19,69" | 1500mm/59,06" | 1,0bar/14,50psi | 0,5bar/7,25psi | 400mm/15,75" | 2500mm/98,43" | 60,0kg/132,24lbs |
|
remove
add
|
CPS6001600/1 | 600-1600 | 600mm/23,62" | 1600mm/62,99" | 1,0bar/14,50psi | 0,5bar/7,25psi | 500mm/19,69" | 2650mm/104,33" | 93,0kg/204,97lbs |
|
remove
add
|
CPS8001800/1 | 800-1800 | 800mm/31,50" | 1800mm/70,87" | 1,0bar/14,50psi | 0,5bar/7,25psi | 700mm/27,56" | 3000mm/118,11" | 140,0kg/308,56lbs |
|
remove
add
|
CPS10002200/1 | 1000-2200 | 1000mm/39,37" | 2200mm/86,61" | 1,0bar/14,50psi | 0,5bar/7,25psi | 800mm/31,50" | 3500mm/137,80" | 210,0kg/462,84lbs |
|
remove
add
|
CPS15002800/0,5 | 1500-2800 | 1500mm/59,06" | 2800mm/110,40" | 0,5bar/7,25psi | 0,2bar/2,90psi | 1300mm/51,18" | 3650mm/143,70" | 370,0kg/815,48lbs |
|
remove
add
|
CPS22003600/0,4 | 2200-3600 | 2200mm/86,61" | 3600mm/141,73" | 0,4bar/5,80psi | 0,2bar/2,90psi | 1800mm/70,86" | 4250mm/167,32" | 380,0kg/837,52lbs |
| Product Code | Nominal Size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Max. Working Pressure (bar/psi) | Back Pressure (bar/psi) | Product Diameter (mm/inch) | Total Length of Product (mm/inch) | Product Weight(kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|---|
|
remove
add
|
CPS100200/3 | 100-200 | 100mm/3,94" | 200mm/7,87" | 3,0bar/43,51psi | 1,5bar/21,75psi | 70mm/2,76" | 340mm/13,39" | 2,0kg/4,40lbs |
|
remove
add
|
CPS150400/3 | 150-400 | 150mm/5,91" | 400mm/15,75" | 3,0bar/43,51psi | 1,5bar/21,75psi | 100mm/3,94" | 760mm/29,92" | 6,0kg/13,22lbs |
|
remove
add
|
CPS250600/3 | 250-600 | 250mm/9,84" | 600mm/23,62" | 3,0bar/43,51psi | 1,5bar/21,75psi | 200mm/7,87" | 1050mm/41,34" | 10,0kg/22,04lbs |
|
remove
add
|
CPS300800/2 | 300-800 | 300mm/11,81" | 800mm/31,50" | 2,0bar/29,01psi | 1,0bar/14,50psi | 250mm/9,84" | 1300mm/51,18" | 21,3kg/46,94lbs |
|
remove
add
|
CPS4001000/2 | 400-1000 | 400mm/15,75" | 1000mm/39,37" | 2,0bar/29,01psi | 1,0bar/14,50psi | 300mm/11,81" | 1600mm/62,99" | 27,0kg/59,50lbs |
|
remove
add
|
CPS5001200/2 | 500-1200 | 500mm/19,69" | 1200mm/47,24" | 2,0bar/29,01psi | 1,0bar/14,50psi | 400mm/15,75" | 1880mm/74,02" | 46,6kg/102,70lbs |
|
remove
add
|
CPS5001400/2 | 500-1400 | 500mm/19,69" | 1400mm/55,12" | 2,0bar/29,01psi | 1,0bar/14,50psi | 400mm/15,75" | 2150mm/84,65" | 59,4kg/130,91lbs |
|
remove
add
|
CPS5001500/2 | 500-1500 | 500mm/19,69" | 1500mm/59,06" | 2,0bar/29,01psi | 1,0bar/14,50psi | 400mm/15,75" | 2500mm/98,43" | 60,0kg/132,24lbs |
|
remove
add
|
CPS6001600/2 | 600-1600 | 600mm/23,62" | 1600mm/62,99" | 2,0bar/29,01psi | 1,0bar/14,50psi | 500mm/19,69" | 2650mm/104,33" | 93,0kg/204,97lbs |
|
remove
add
|
CPS8001800/2 | 800-1800 | 800mm/31,50" | 1800mm/70,87" | 2,0bar/29,01psi | 1,0bar/14,50psi | 700mm/27,56" | 3000mm/118,11" | 140,0kg/308,56lbs |
|
remove
add
|
CPS10002200/2 | 1000-2200 | 1000mm/39,37" | 2200mm/86,61" | 2,0bar/29,01psi | 1,0bar/14,50psi | 800mm/31,50" | 3500mm/137,80" | 210,0kg/462,84lbs |
