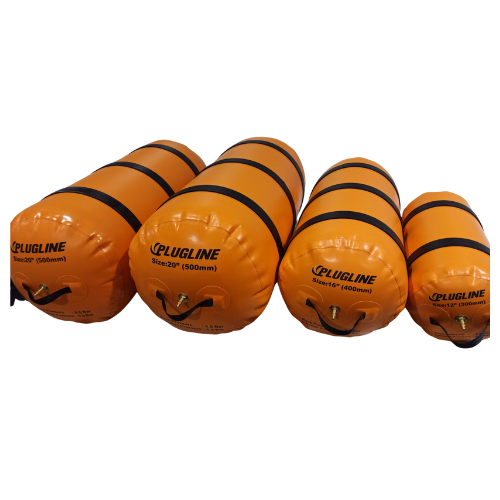

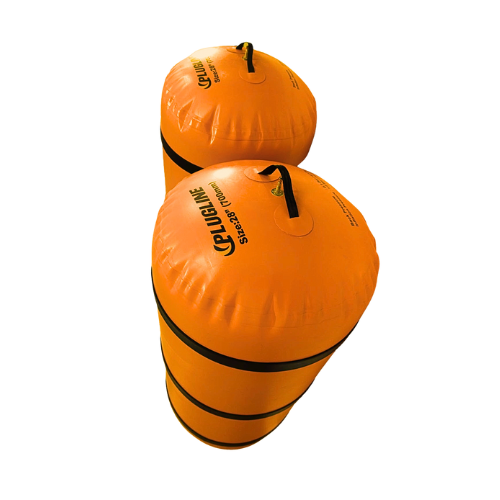

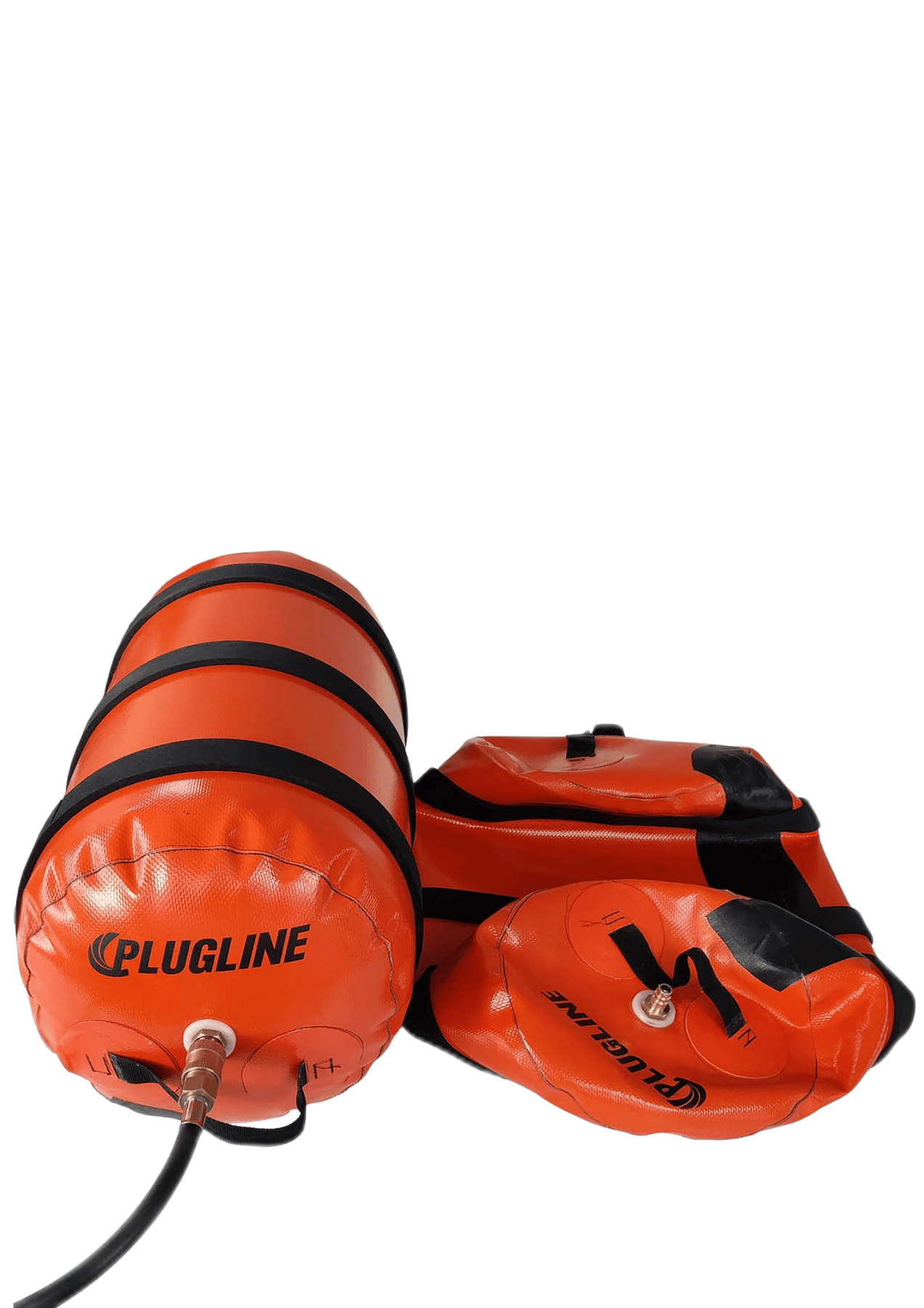

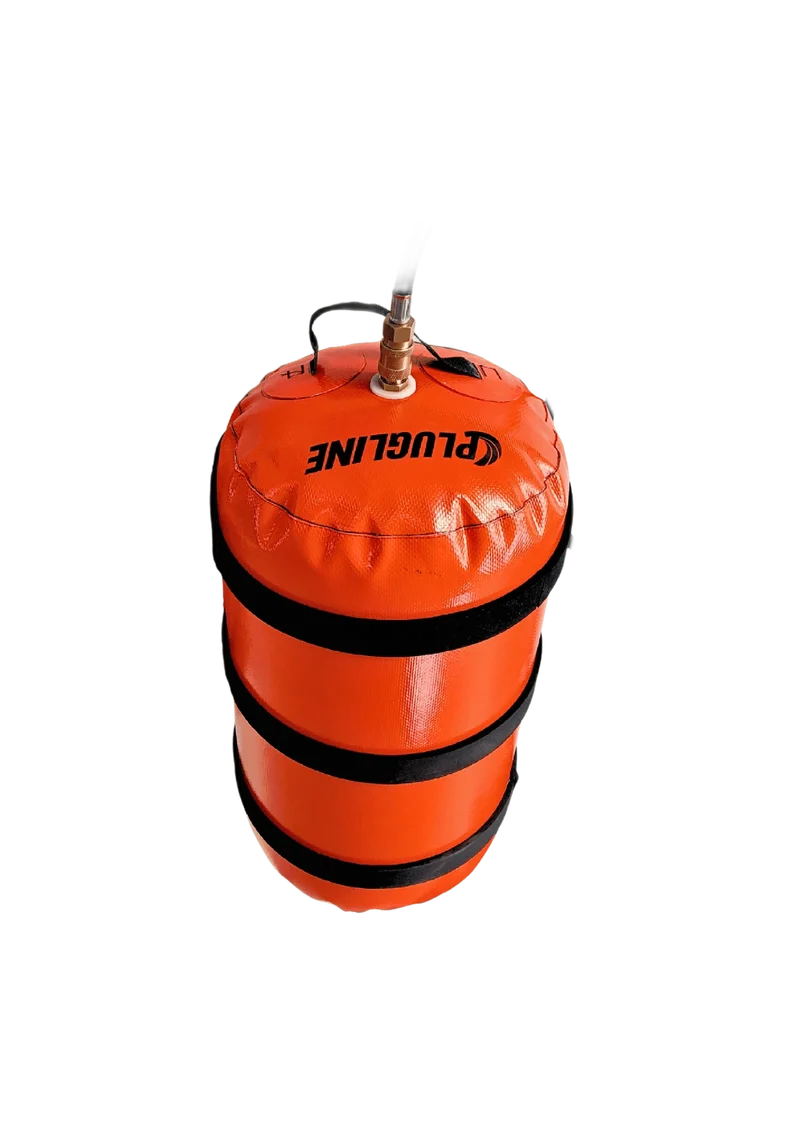

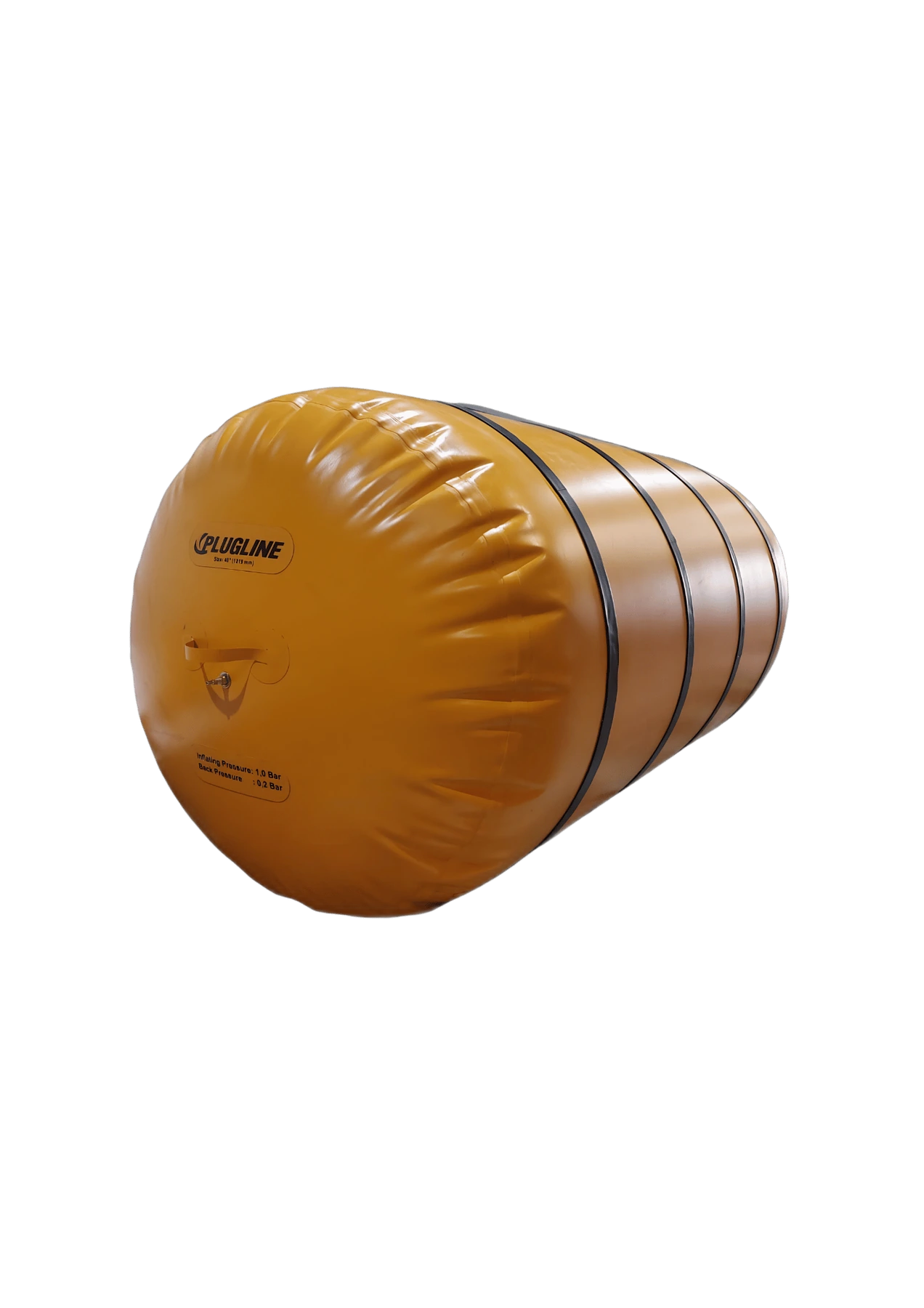

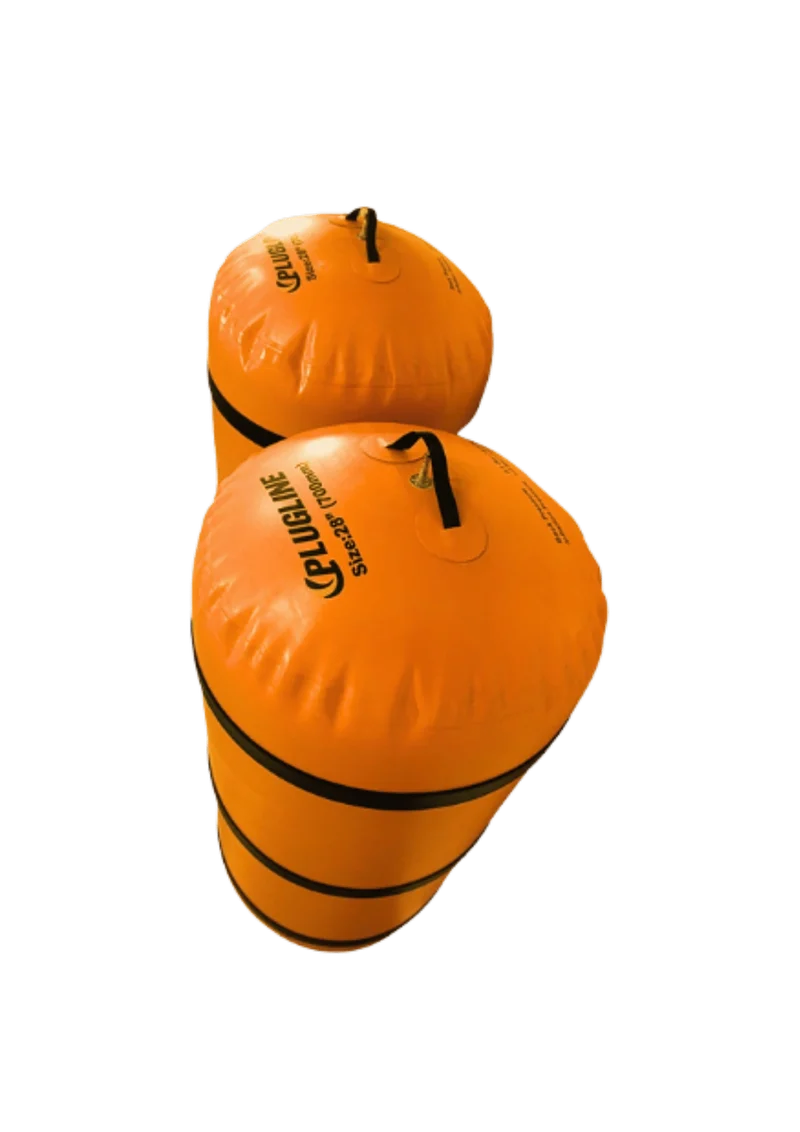

Inflatable Gas Balloon Plugs (0,6 bar)
Inflatable Gas Balloon Plugs are;
- Inflatable Gas Balloon Plugs are mainly used in the chemical industry.

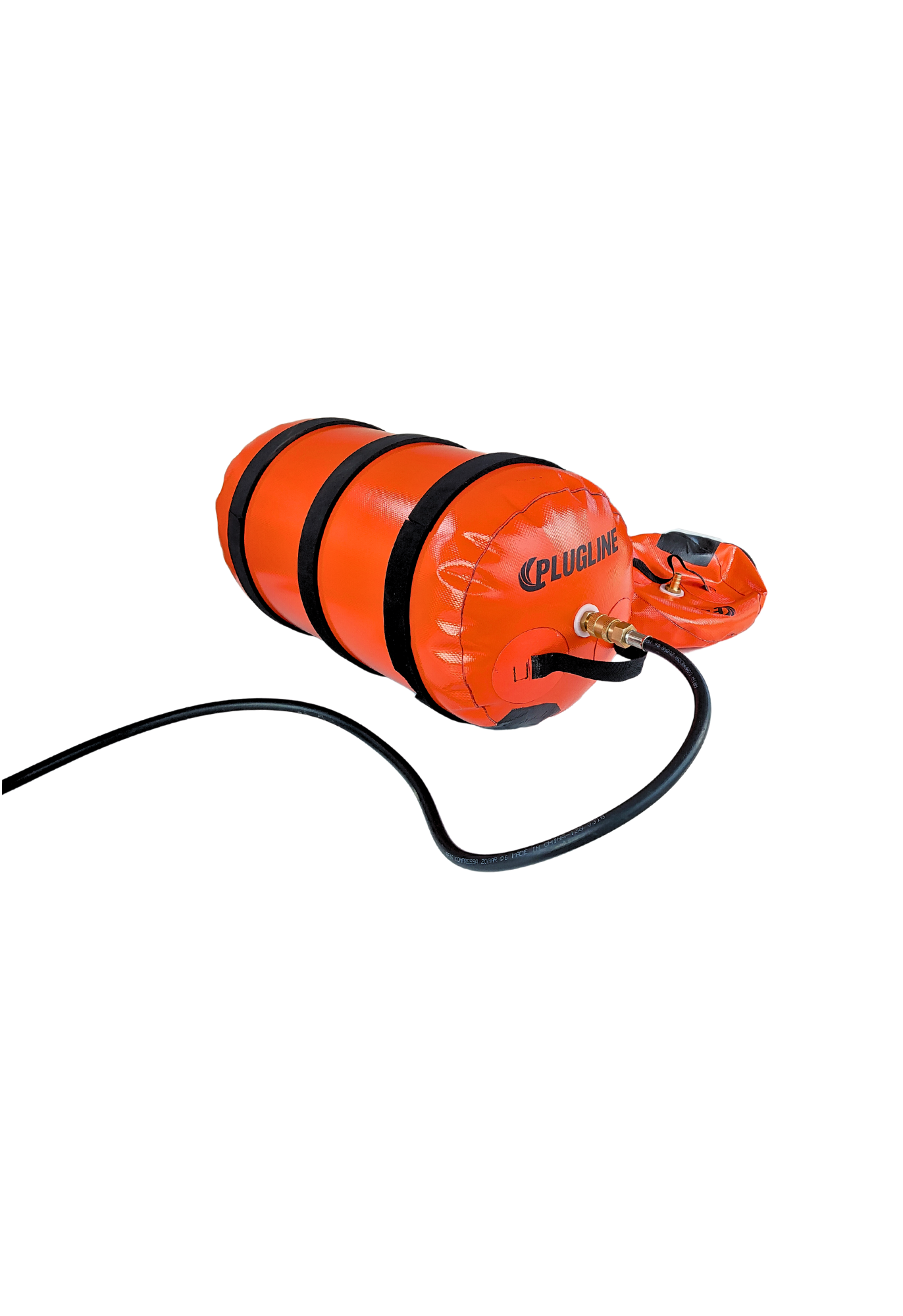

- Inflatable Gas Balloon Plugs are a convenient, reliable assistant that allows you to isolate a certain section of the pipe during repair, commissioning, and other types of work. Perfectly manifests itself in oil and gas pipelines, tanks and boilers, and fuel pipes. A capsule made of PVC fabric is inserted through a technological hole into a pipe and inflated with a pump. The elastic housing seals off the fluid path, allowing for on-site maintenance.
- Standard working pressures of PLUGLINE Inflatable Gas Balloon Plugs are specified as 0,6 bar (8,7psi) working pressure and 0,5 bar (7,25psi) back pressure.
- Usable for temperatures from -40°C (-40°F) to 60°C (140°F).
- Providing have high resistance to chemicals
| Product Code | Nominal Size (mm) | Max. Pipe Inner Dia. to be tested (mm/inch) | Max. Working Pressure (bar/psi) | Back Pressure (bar/psi) | Product Weight (kg/Ibs) | |
|---|---|---|---|---|---|---|
|
remove
add
|
IGBP50 | 50 | 50mm/2" | 0,6bar/8,7psi | 0,5bar/7,25psi | 0,16kg/0,35lbs |
|
remove
add
|
IGBP100 | 100 | 100mm/4" | 0,6bar/8,7psi | 0,5bar/7,25psi | 0,32kg/0,71lbs |
|
remove
add
|
IGBP150 | 150 | 152mm/6" | 0,6bar/8,7psi | 0,5bar/7,25psi | 0,49kg/1,08lbs |
|
remove
add
|
IGBP200 | 200 | 203mm/8" | 0,6bar/8,7psi | 0,5bar/7,25psi | 0,65kg/1,43lbs |
|
remove
add
|
IGBP250 | 250 | 254mm/10" | 0,6bar/8,7psi | 0,5bar/7,25psi | 0,82kg/1,81lbs |
|
remove
add
|
IGBP300 | 300 | 304mm/12" | 0,6bar/8,7psi | 0,5bar/7,25psi | 0,98kg/2,16lbs |
|
remove
add
|
IGBP350 | 350 | 355mm/14" | 0,6bar/8,7psi | 0,5bar/7,25psi | 1,15kg/2,54lbs |
|
remove
add
|
IGBP400 | 400 | 406mm/16" | 0,6bar/8,7psi | 0,5bar/7,25psi | 1,31kg/2,89lbs |
|
remove
add
|
IGBP450 | 450 | 457mm/18" | 0,6bar/8,7psi | 0,5bar/7,25psi | 1,47kg/3,24lbs |
|
remove
add
|
IGBP500 | 500 | 507mm/20" | 0,6bar/8,7psi | 0,5bar/7,25psi | 1,64kg/3,62lbs |
|
remove
add
|
IGBP550 | 550 | 558mm/22" | 0,6bar/8,7psi | 0,5bar/7,25psi | 1,8kg/3,97lbs |
|
remove
add
|
IGBP600 | 600 | 609mm/24" | 0,6bar/8,7psi | 0,5bar/7,25psi | 1,96kg/4,32lbs |
|
remove
add
|
IGBP660 | 660 | 660mm/26" | 0,6bar/8,7psi | 0,5bar/7,25psi | 2,13kg/4,7lbs |
|
remove
add
|
IGBP700 | 700 | 711mm/28" | 0,6bar/8,7psi | 0,5bar/7,25psi | 2,29kg/5,05lbs |
|
remove
add
|
IGBP750 | 750 | 761mm/30" | 0,6bar/8,7psi | 0,5bar/7,25psi | 2,46kg/5,42lbs |
|
remove
add
|
IGBP800 | 800 | 812mm/32" | 0,6bar/8,7psi | 0,5bar/7,25psi | 2,62kg/5,78lbs |
|
remove
add
|
IGBP850 | 850 | 863mm/34" | 0,6bar/8,7psi | 0,5bar/7,25psi | 2,78kg/6,13lbs |
|
remove
add
|
IGBP900 | 900 | 914mm/36" | 0,6bar/8,7psi | 0,5bar/7,25psi | 4,5kg/9,92lbs |
|
remove
add
|
IGBP1000 | 1000 | 1066mm/42" | 0,6bar/8,7psi | 0,5bar/7,25psi | 5,25kg/11,57lbs |
|
remove
add
|
IGBP1150 | 1150 | 1168mm/46" | 0,6bar/8,7psi | 0,5bar/7,25psi | 5,75kg/12,68lbs |
|
remove
add
|
IGBP1250 | 1250 | 1270mm/50" | 0,6bar/8,7psi | 0,5bar/7,25psi | 6,25kg/13,78lbs |
|
remove
add
|
IGBP1350 | 1350 | 1371mm/54" | 0,6bar/8,7psi | 0,5bar/7,25psi | 6,75kg/14,88lbs |
|
remove
add
|
IGBP1450 | 1450 | 1473mm/58" | 0,6bar/8,7psi | 0,5bar/7,25psi | 7,25kg/15,98lbs |
|
remove
add
|
IGBP1550 | 1550 | 1574mm/62" | 0,6bar/8,7psi | 0,5bar/7,25psi | 7,75kg/17,09lbs |
|
remove
add
|
IGBP1650 | 1650 | 1676mm/66" | 0,6bar/8,7psi | 0,5bar/7,25psi | 8,25kg/18,19lbs |
|
remove
add
|
IGBP1750 | 1750 | 1778mm/70" | 0,6bar/8,7psi | 0,5bar/7,25psi | 8,75kg/19,29lbs |
|
remove
add
|
IGBP1900 | 1900 | 1905mm/75" | 0,6bar/8,7psi | 0,5bar/7,25psi | 9,37kg/20,66lbs |
|
remove
add
|
IGBP2000 | 2000 | 2007mm/79" | 0,6bar/8,7psi | 0,5bar/7,25psi | 9,87kg/21,76lbs |
