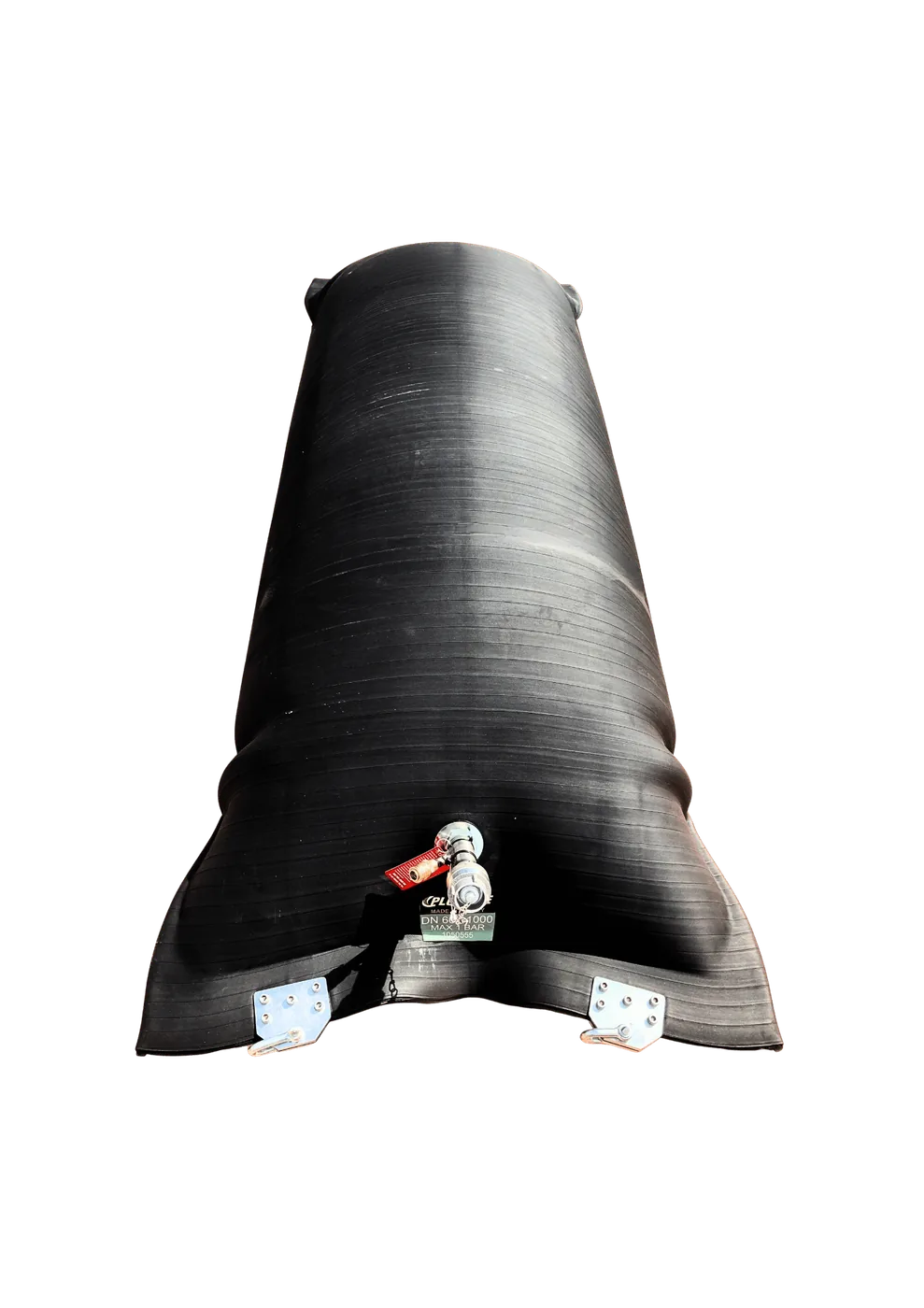

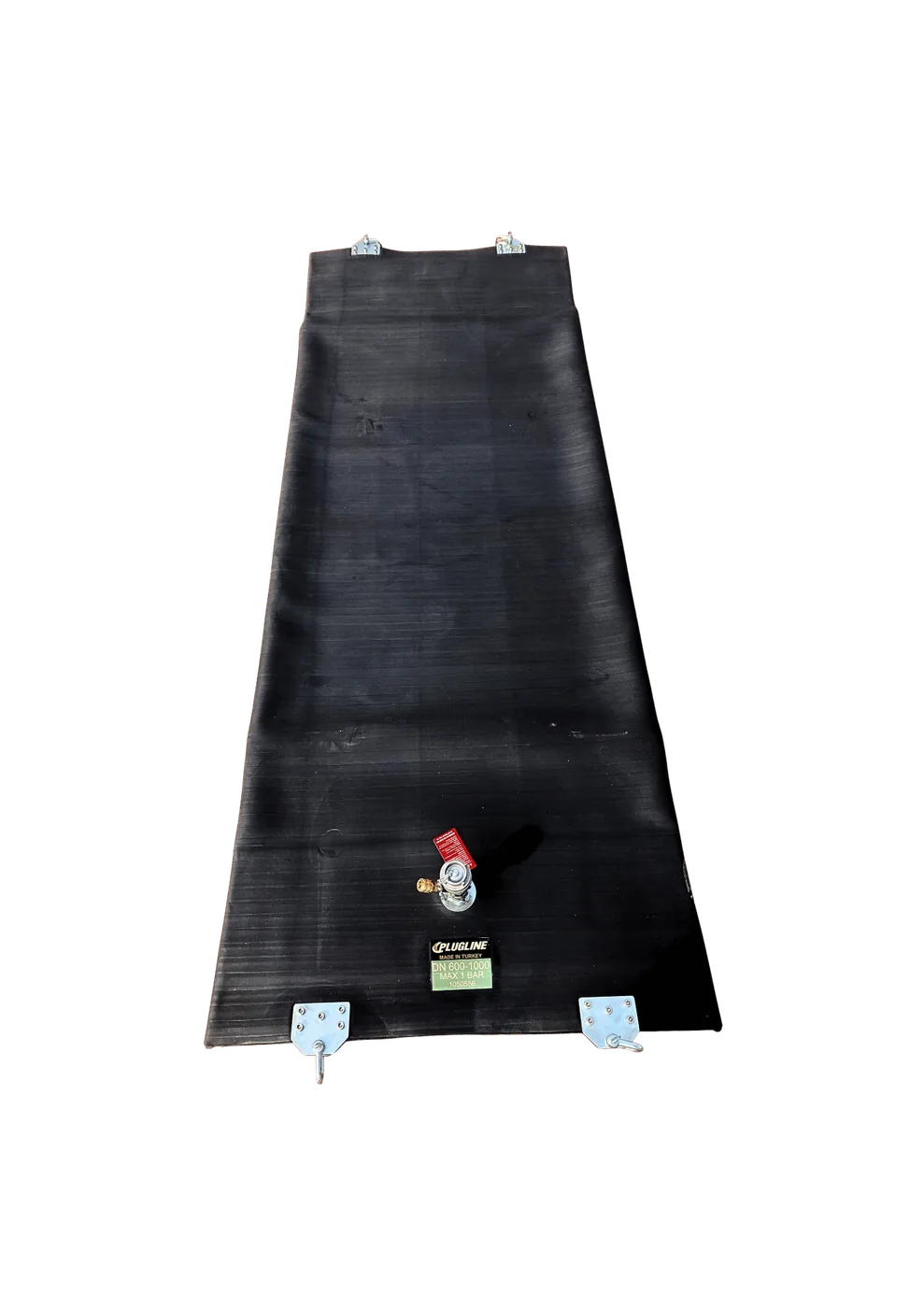

Inflatable Pillow Pipe Test Plugs (0,5 - 1 bar)
- Mainly used in the test systems and pipeline leakage
- Preferred for large diameter pipelines
- Produced between 600mm to 2200mm pipes, as per request, they can be produced other than these sizes
- Used together as a set with pillow stoppers to test the pipeline leakage
- Made with high quality rubber and metal items to protect the product from corrosion
- Flexible, they have an advantage to be inserted into the sewer through the standard gullies
- Used in temperature values from -40 degree to +70 degree
| Product Code | Nominal Size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Max. Working Pressure (bar/psi) | Total Length of Product (mm/inch) | Bypass Diameter(mm/inch) | Product Weight(kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|
|
remove
add
|
IPTP6001000 | 600-1000 | 600mm/23,62" | 1000mm/39,37" | 1,0bar/14,50psi | 2000mm/78,74" | 50,80mm/2" | 28,8kg/63,49lbs |
|
remove
add
|
IPTP8001200 | 800-1200 | 800mm/31,5" | 1200mm/47,24" | 0,9bar/13,05psi | 2400mm/94,49" | 50,80mm/2" | 45,0kg/99,21lbs |
|
remove
add
|
IPTP10001400 | 1000-1400 | 1000mm/39,37" | 1400mm/55,12" | 0,8bar/11,60psi | 2700mm/106,30" | 50,80mm/2" | 54,0kg/119,05lbs |
|
remove
add
|
IPTP14001800 | 1400-1800 | 1400mm/55,12" | 1800mm/70,87" | 0,6bar/8,70psi | 3200mm/125,98" | 50,80mm/2" | 75,0kg/165,35lbs |
|
remove
add
|
IPTP18002800 | 1800-2800 | 1800mm/70,87" | 2800mm/110,24" | 0,5bar/7,25psi | 5000mm/196,85" | 50,80mm/2" | 100,0kg/220,46lbs |
