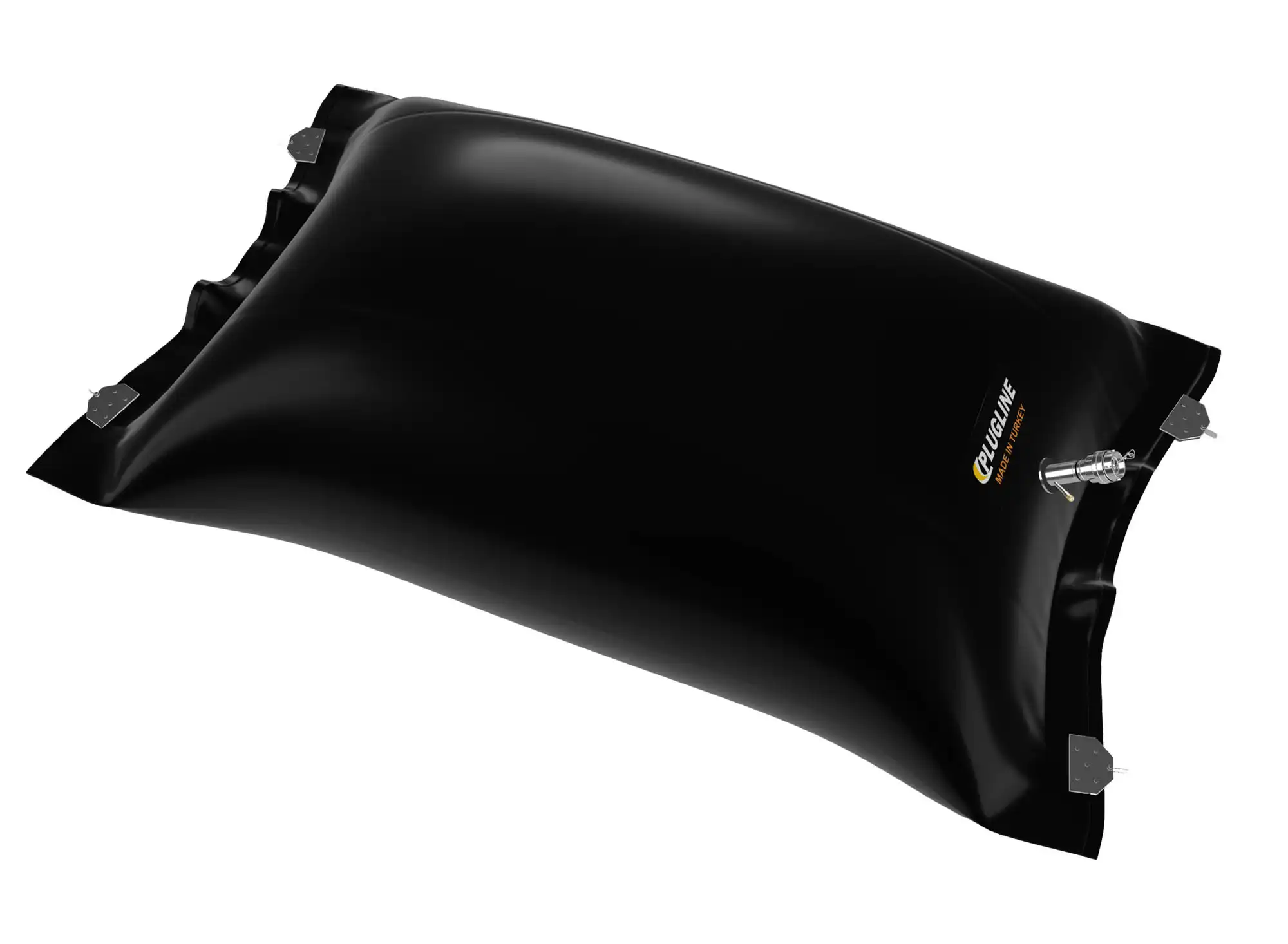

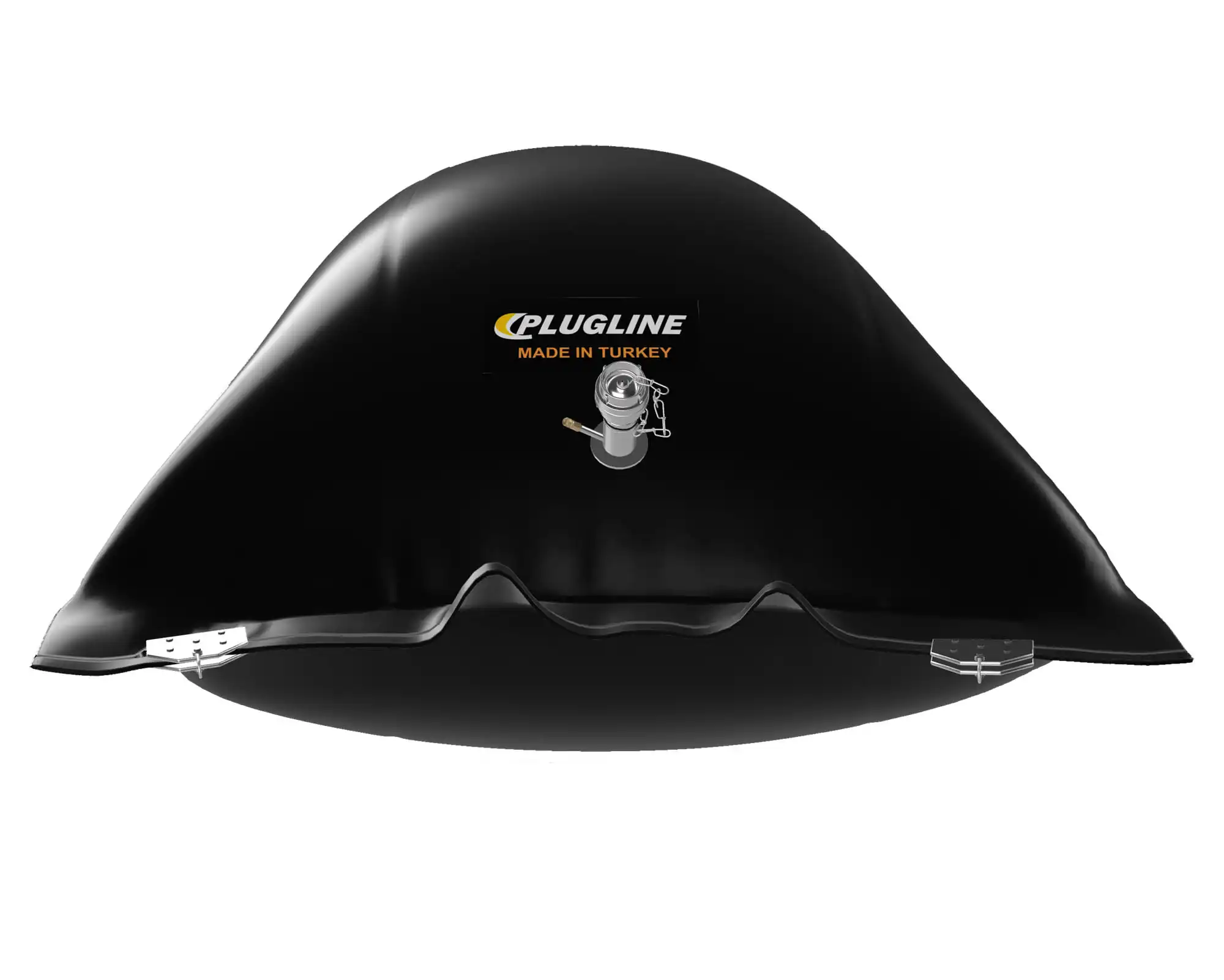

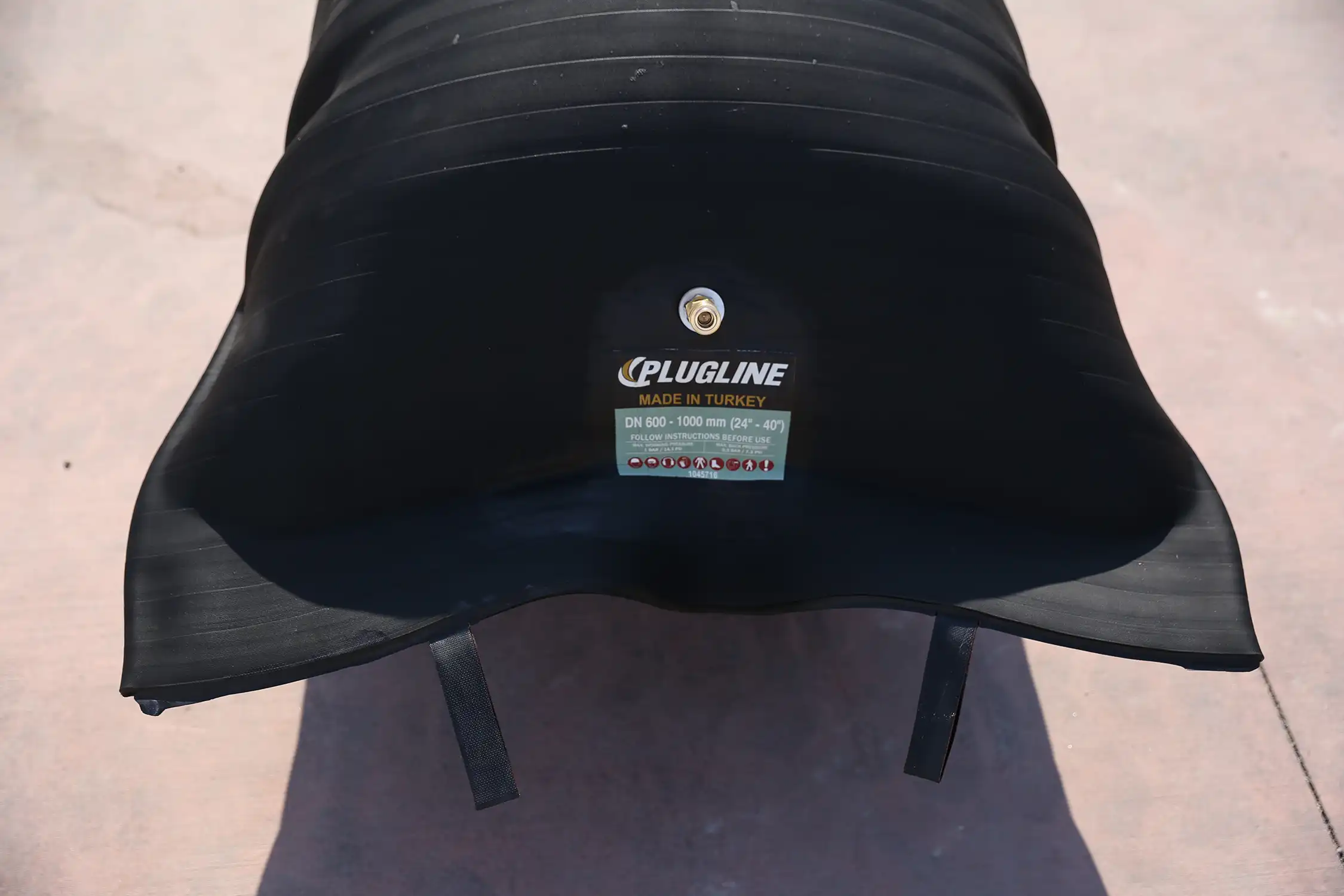

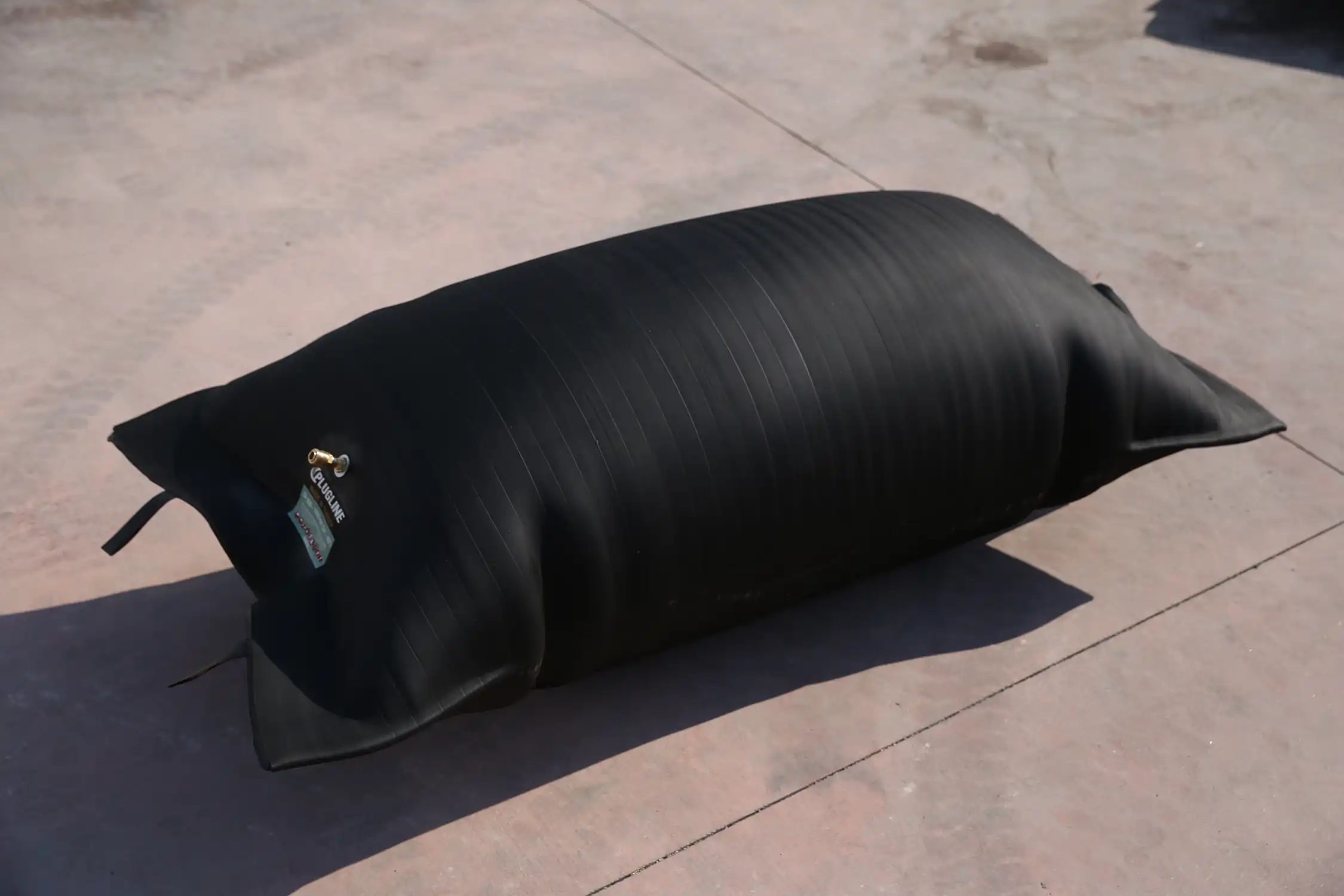

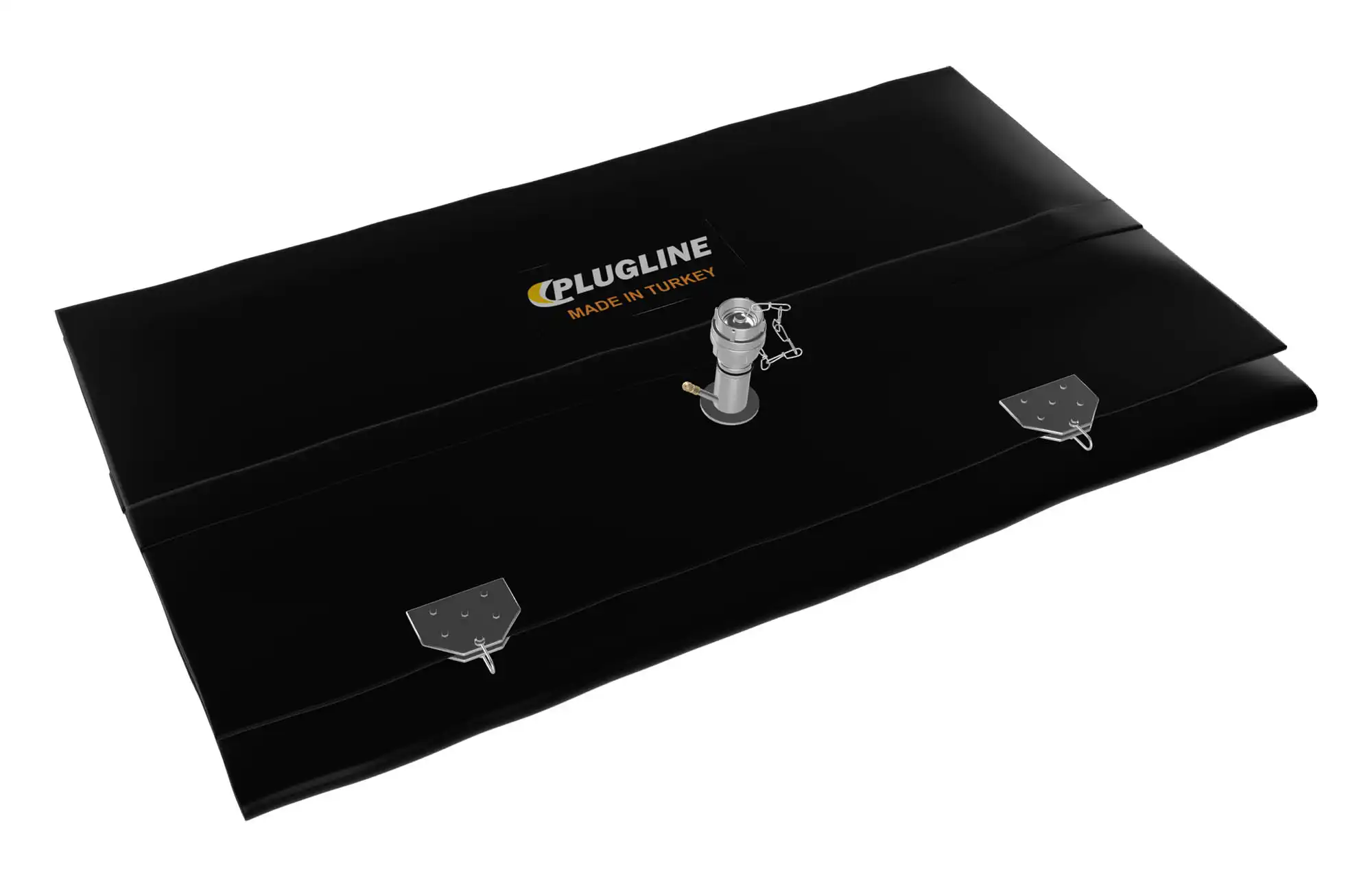

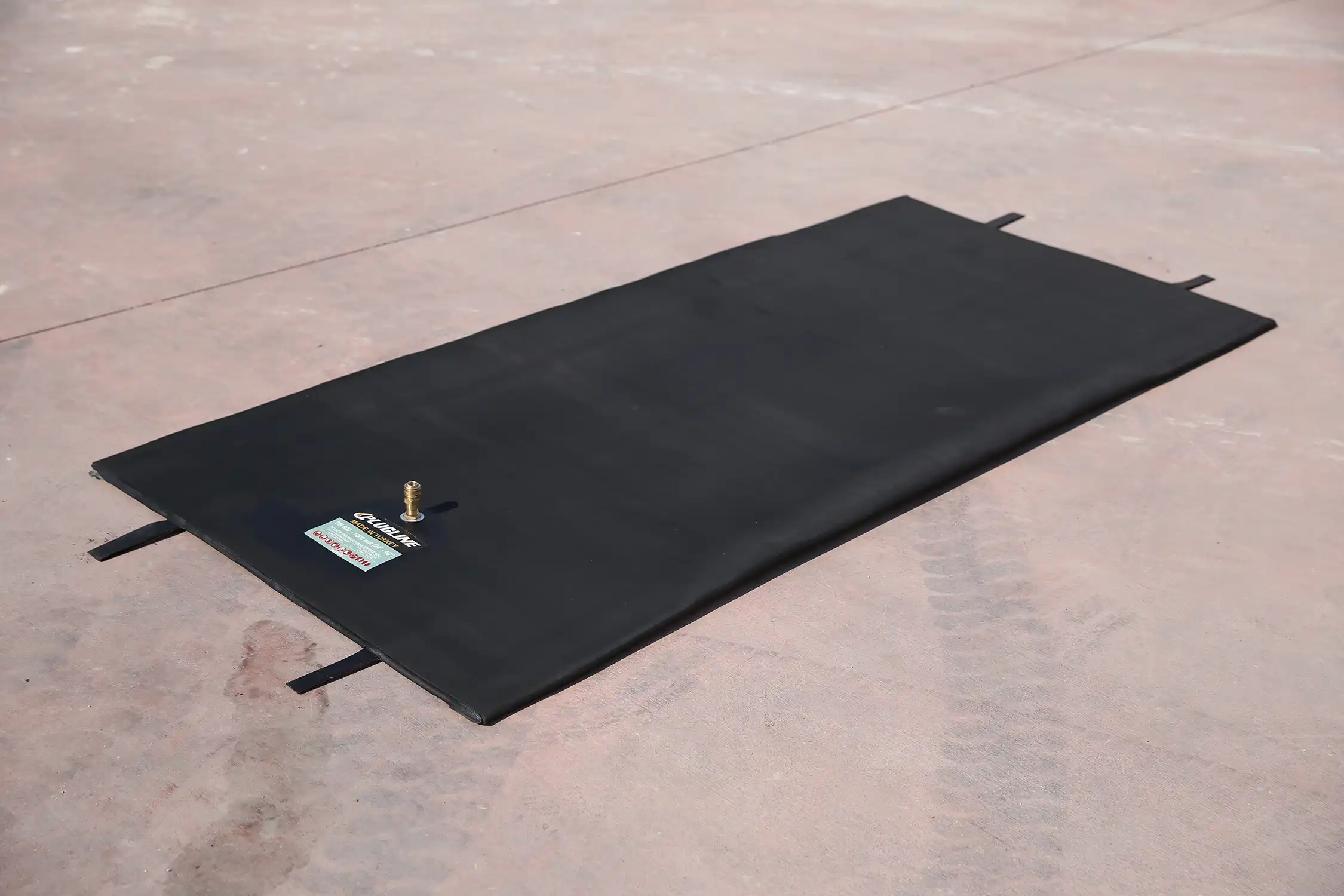

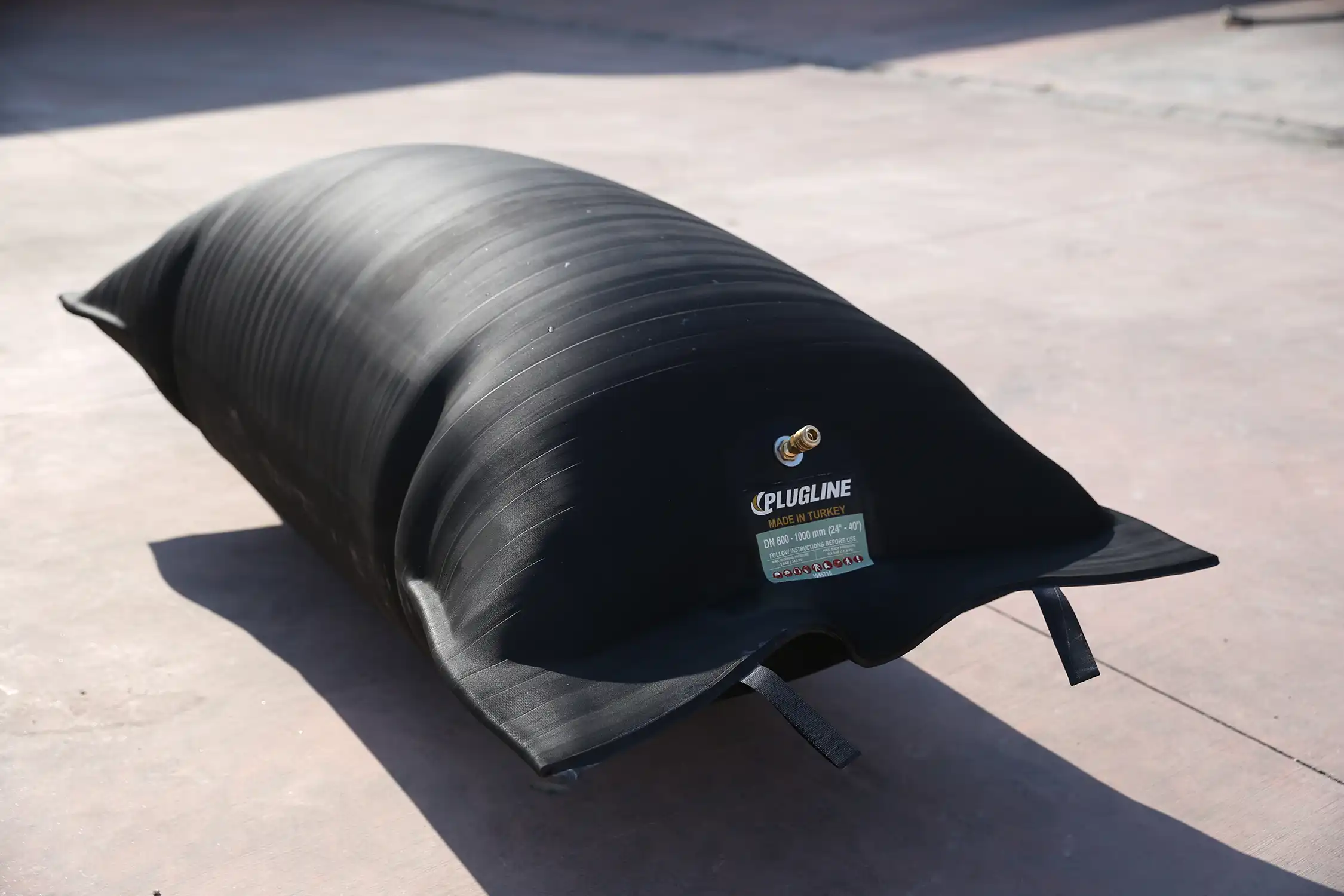

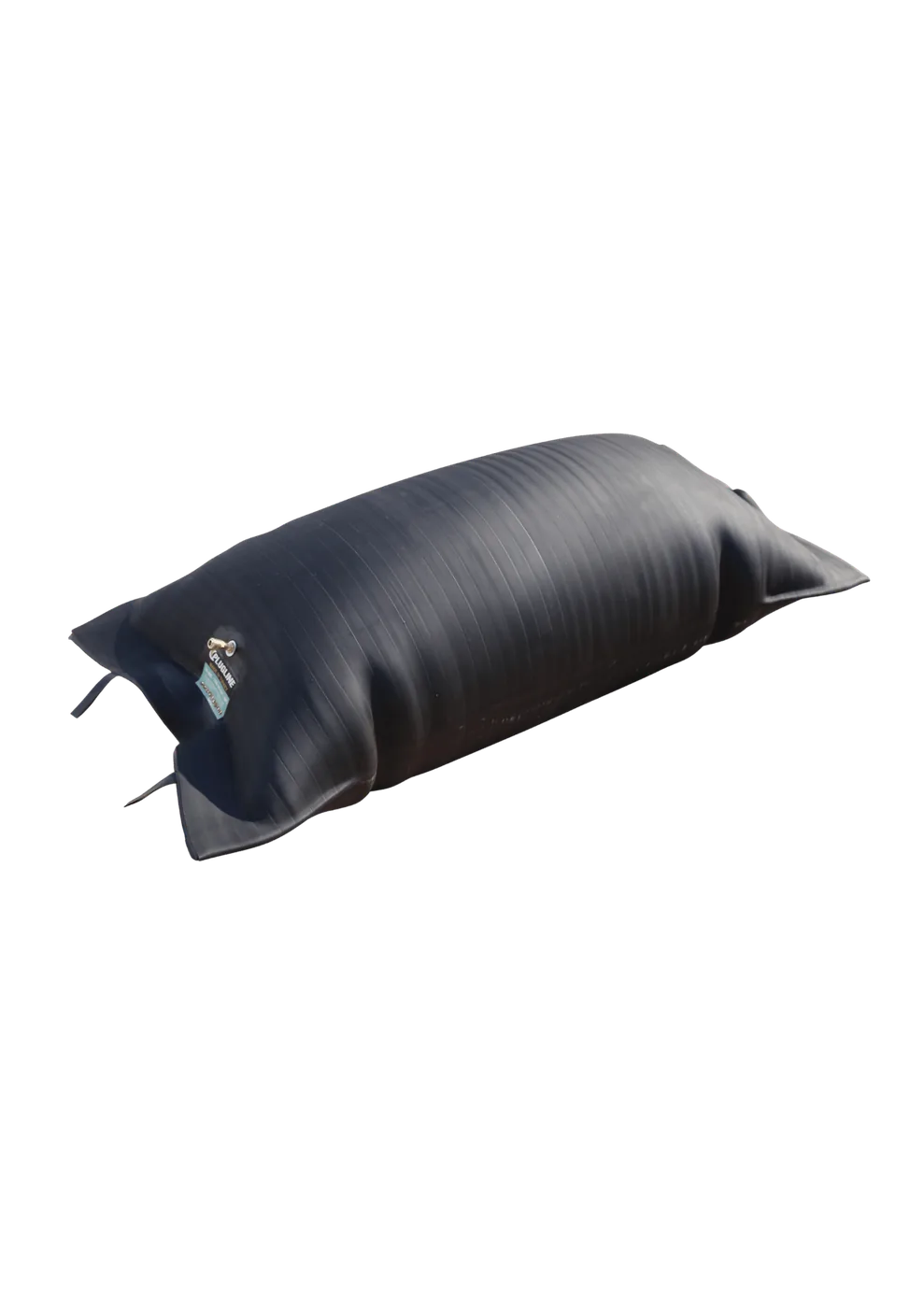

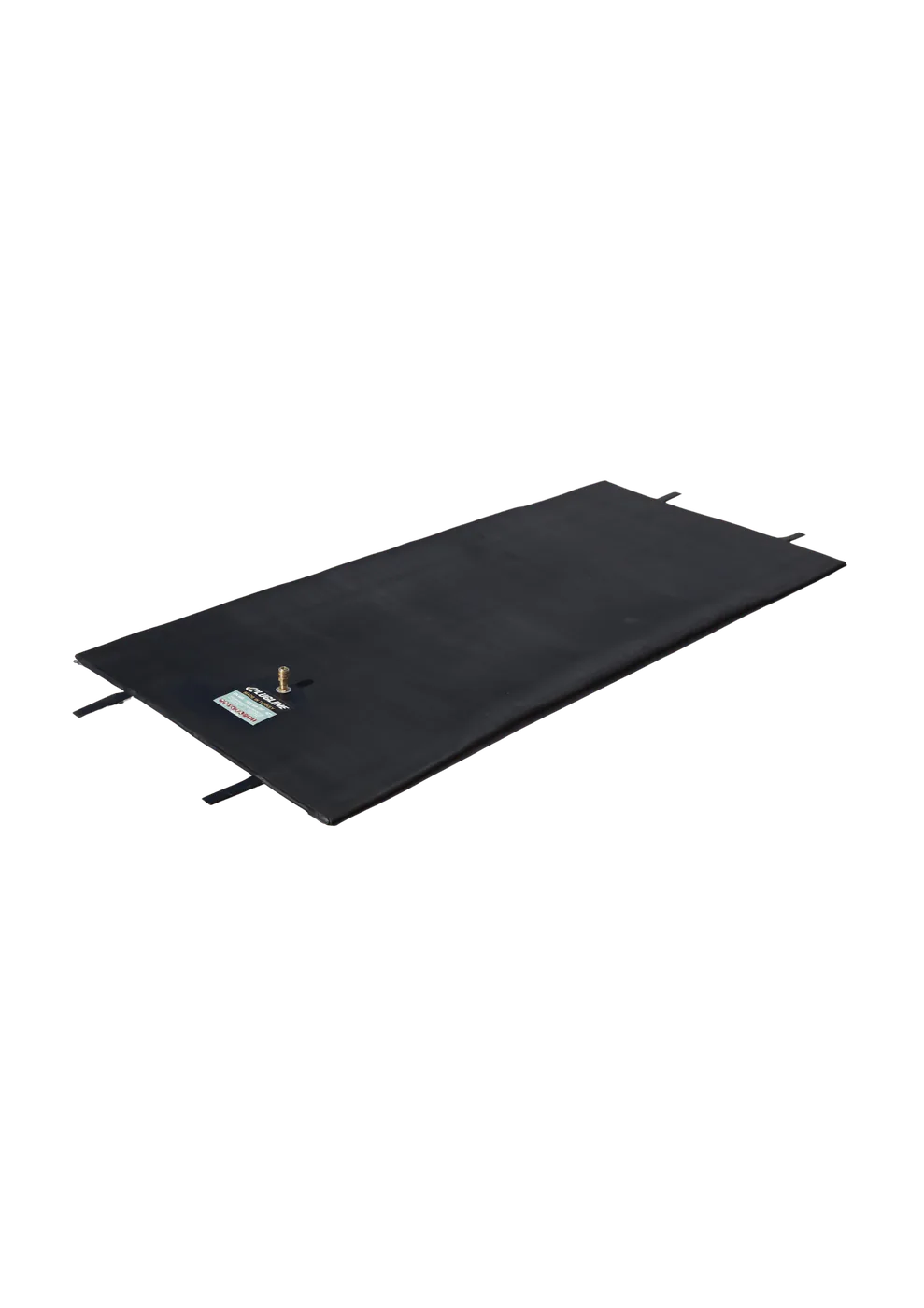

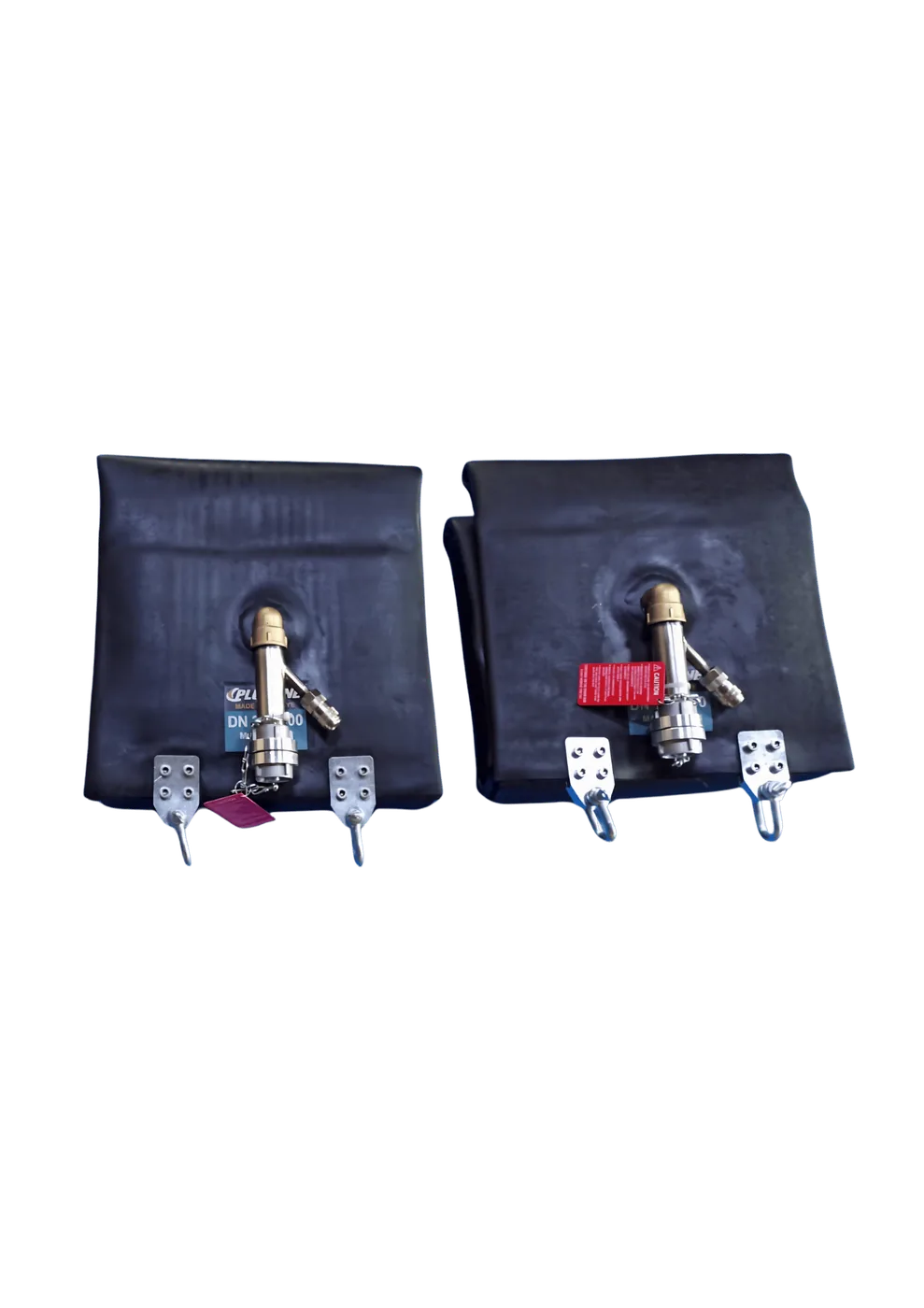

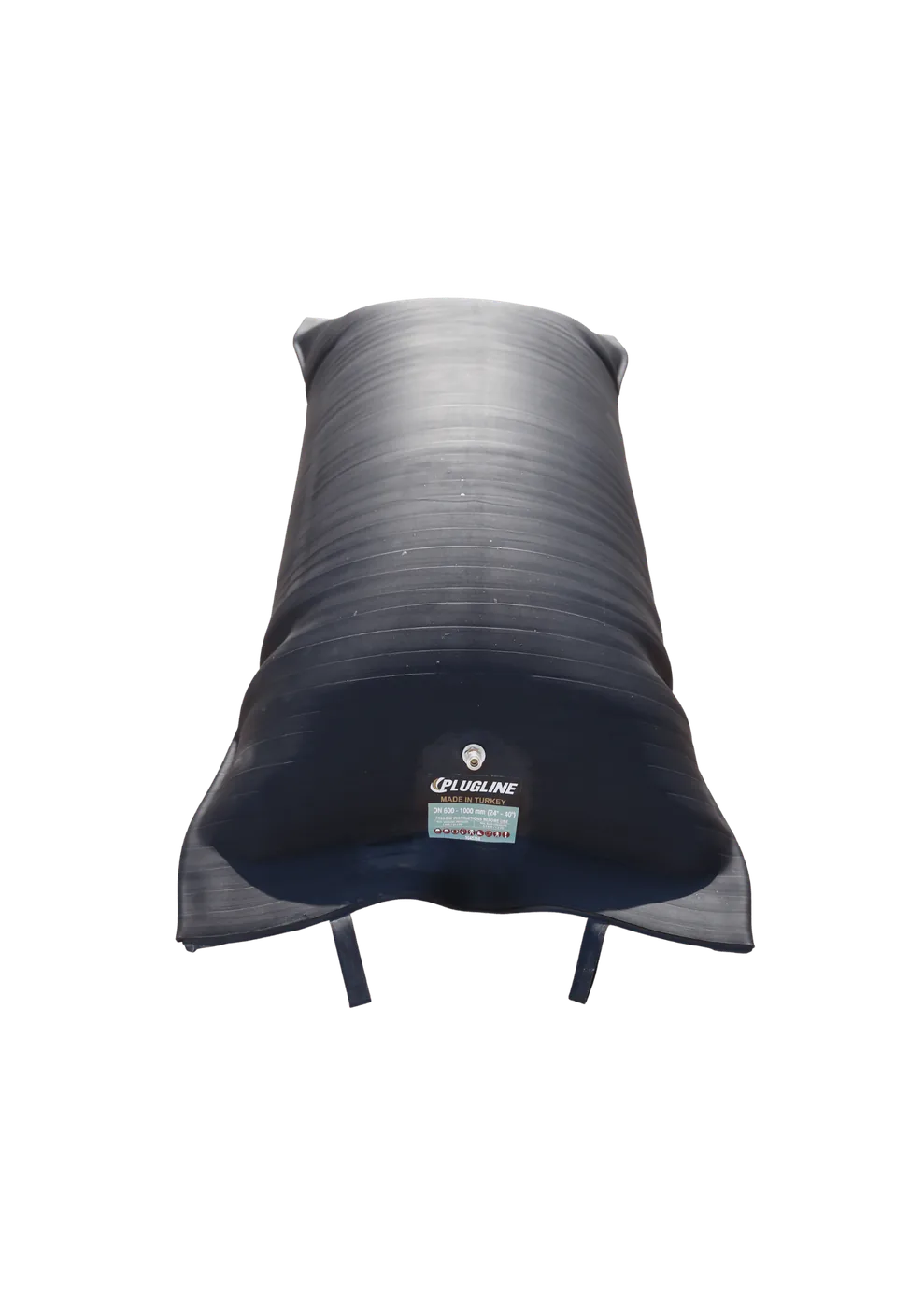

Inflatable Pillow Pipe Stoppers (1,0 bar)
- Mainly used for blocking the pipeline systems and sealing the sewers and storm sewers.
- Preferred for large diameter pipelines.
- Produced between 600mm to 2200mm pipes, as per request, they can be produced other than these sizes.
- Used together with pillow test plugs to test the pipeline leakage.
- Made with high-quality rubber and metal items to protect the product from corrosion.
- Flexible, they have the advantage to be inserted into the sewer through the standard gullies.
- Used in temperature values from -40 degrees to +70 degrees.
| Product Code | Nominal Size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Max. Working Pressure (bar/psi) | Total Length of Product (mm/inch) | Product Weight (kg/Ibs) | |
|---|---|---|---|---|---|---|---|
|
remove
add
|
IPPS6001000 | 600-1000 | 600mm/23,62" | 1000mm/39,37" | 1,0bar/14,50psi | 2000mm/78,74" | 23,0kg/50,71lbs |
|
remove
add
|
IPPS8001200 | 800-1200 | 800mm/31,5" | 1200mm/47,24" | 0,9bar/13,05psi | 2400mm/94,49" | 38,0kg/83,78lbs |
|
remove
add
|
IPPS10001400 | 1000-1400 | 1000mm/39,37" | 1400mm/55,12" | 0,8bar/11,60psi | 2700mm/106,30" | 45,0kg/99,21lbs |
|
remove
add
|
IPPS14001800 | 1400-1800 | 1400mm/55,12" | 1800mm/70,87" | 0,6bar/8,70psi | 3200mm/125,98" | 70,0kg/154,32lbs |
|
remove
add
|
IPPS18002800 | 1800-2800 | 1800mm/70,87" | 2800mm/110,24" | 0,5bar/7,25psi | 5000mm/196,85" | 95,0kg/209,44lbs |
