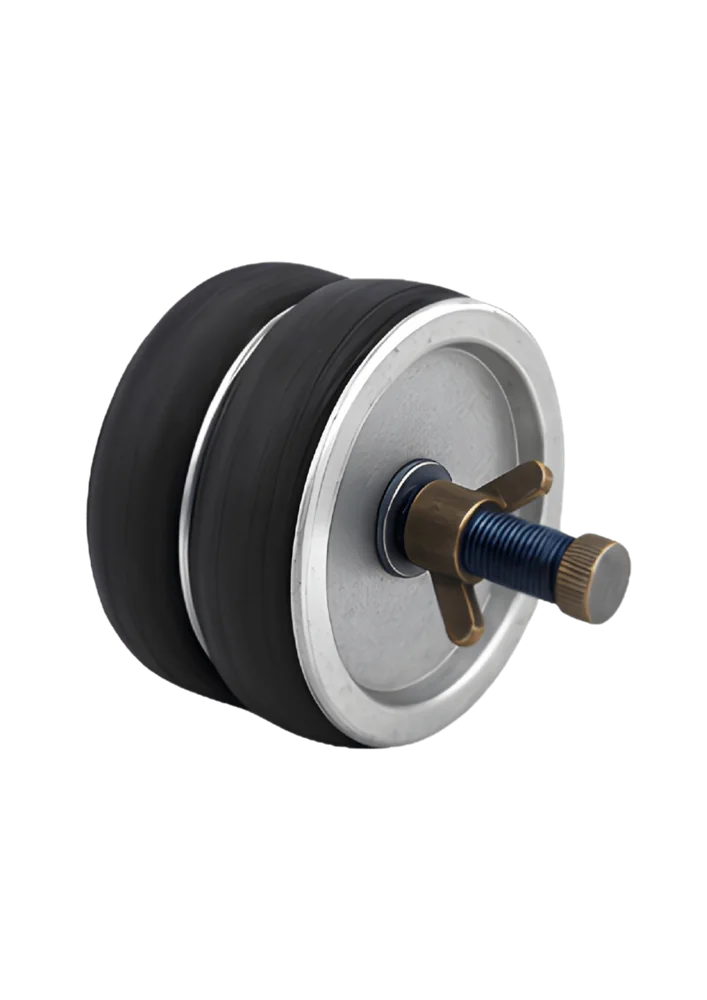

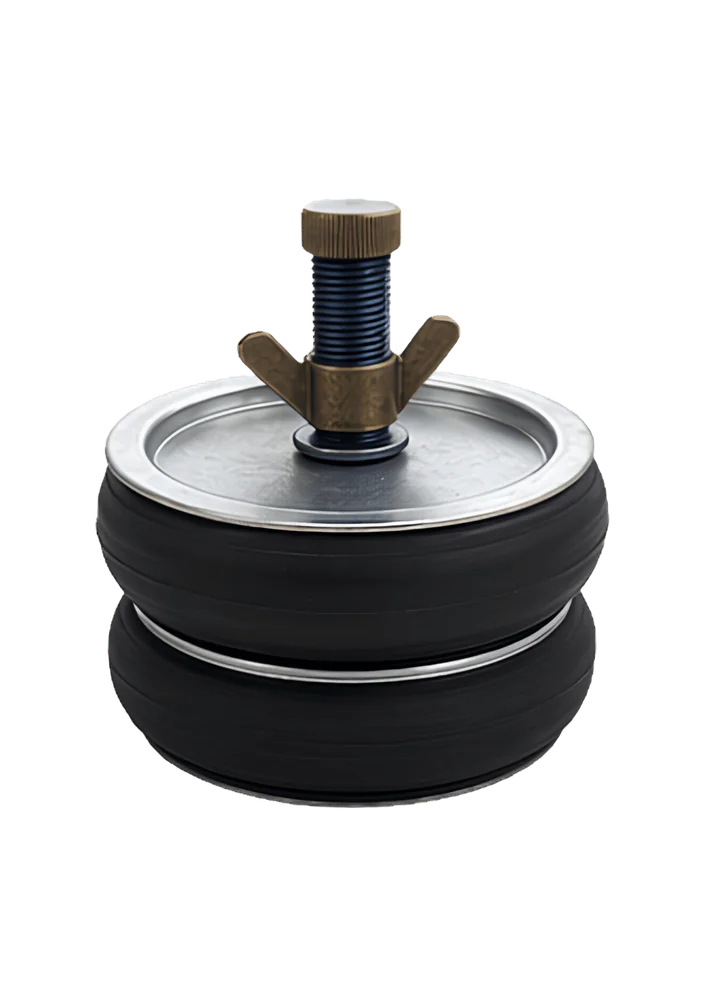

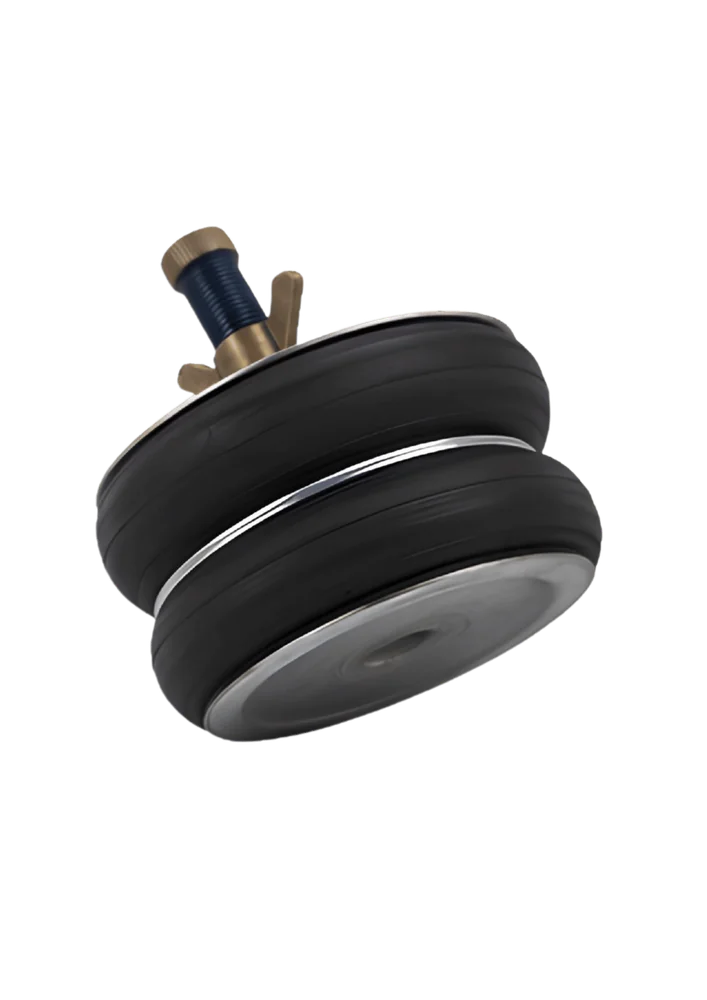

Double Seal Steel Test Plugs (0,7 - 3,75 bar)
Steel-bodied plugs with a double-seal structure for testing, locating leaks and isolating pipe sections in sewer, drainage and pipeline systems.
- Size range15 — 300 mm
- Back pressure0,7 – 3,75 bar
- MaterialSteel (NR/SBR, CR, EPDM seal)
- BypassWith bypass (M8 – 1")
- Working temp.−20 to +80 °C
Description & features
Designed for testing, locating leaks, and isolating pipe sections in sewer, drainage, and pipeline systems. Produced with a durable steel body and double-seal structure, DSTP plugs provide reliable mechanical sealing during inspection, maintenance, and low-pressure testing. The bypass connection allows controlled filling, drainage, or flow diversion when required.
Key Features
- Double-seal structure: two sealing elements for reliable mechanical sealing during inspection, maintenance and low-pressure testing.
- Durable steel body: size range DN15 — DN300, back pressure 0,7 – 3,75 bar.
- Integrated bypass: M8 up to 1" connection for controlled filling, drainage or flow diversion.
- Seal material choice: NR/SBR, CR or EPDM, operating from −20 to +80 °C.
- Customizable: modified upon customer needs and application requirements.
Application Areas
- Sewer & drainage systems: testing and leak location in sewers, drainage systems and gullies.
- Pipelines: isolating pipe sections during inspection, maintenance and repair.
- Flow management: safe to use where flow must continue or be diverted during pipe repair.
- Low-pressure testing: reliable sealing for air and water tests.
Recommended installation procedure
Plugline mechanical test plugs seal by compressing a rubber element against the pipe wall. Follow the procedure below for safe installation and removal.
Check the plug body, rubber seal and bolts for damage. Confirm the reference matches the inner diameter of the pipe to be sealed.
Clean the pipe end and insert the plug so the sealing element sits fully inside the bore, square to the pipe axis.
Tighten the bolts evenly in a crosswise pattern. The rubber seal compresses and expands against the pipe wall until firmly seated.
Apply test pressure per EN 1610 or local code, staying within the back-pressure rating. Use the bypass for filling, venting or drainage.
Relieve pressure through the bypass, loosen the bolts and withdraw the plug. Clean and inspect before storage — reusable across many cycles.
Datasheets & catalogues
Download the technical catalogue for the Mechanical Pipe Plug range — full size tables, back pressures, bypass options and materials.
Find your model
Enter the measured inner diameter of the pipe to be tested or sealed — every model whose sealing range covers it is shown below.
Available models
20 active references.
| Quantity | Product Code | Nominal size (mm) | Min. inner dia. | Max. inner dia. | Product diameter | SCH STD pipe inner dia. | Back pressure | Bypass diameter | Length | Weight | Configure |
|---|---|---|---|---|---|---|---|---|---|---|---|
0 | DSTP15 | DN15 | 15mm/0,59" | 18mm/0,71" | 14mm/0,55" | 15,76mm/0,62" | 3,75bar/54,39psi | M8 | 122mm/4,8" | 0,09kg/0,19lbs | |
0 | DSTP20 | DN20 | 19mm/0,75" | 24mm/0,94" | 18mm/0,71" | 20,96mm/0,83" | 3,75bar/54,39psi | M8 | 122mm/4,8" | 0,11kg/0,24lbs | |
0 | DSTP25 | DN25 | 25mm/0,98" | 38mm/1,5" | 24mm/0,94" | 26,64mm/1,05" | 3,75bar/54,39psi | M10 | 122mm/4,8" | 0,12kg/0,27lbs | |
0 | DSTP32 | DN32 | 33mm/1,3" | 44mm/1,73" | 32mm/1,26" | 35,08mm/1,38" | 3,75bar/54,39psi | 12,70mm/ 1/2" | 125mm/4,92" | 0,27kg/0,6lbs | |
0 | DSTP40 | DN40 | 39mm/1,54" | 53mm/2,09" | 38mm/1,5" | 40,94mm/1,61" | 3,75bar/54,39psi | 12,70mm/ 1/2" | 125mm/4,92" | 0,35kg/0,77lbs | |
0 | DSTP50 | DN50 | 51mm/2,01" | 66mm/2,6" | 50mm/1,97" | 52,48mm/2,07" | 3,75bar/54,39psi | 12,70mm/ 1/2" | 125mm/4,92" | 0,54kg/1,19lbs | |
0 | DSTP65 | DN65 | 61mm/2,4" | 79mm/3,11" | 60mm/2,36" | 62,68mm/2,47" | 3,75bar/54,39psi | 12,70mm/ 1/2" | 125mm/4,92" | 0,43kg/0,96lbs | |
0 | DSTP80 | DN80 | 76mm/2,99" | 89mm/3,5" | 75mm/2,95" | 77,92mm/3,07" | 2,25bar/32,63psi | 12,70mm/ 1/2" | 159mm/6,26" | 0,54kg/1,18lbs | |
0 | DSTP90 | DN90 | 85mm/3,35" | 103mm/4,06" | 84mm/3,31" | 90,12mm/3,55" | 1,25bar/18,13psi | 12,70mm/ 1/2" | 159mm/6,26" | 0,7kg/1,53lbs | |
0 | DSTP100 | DN100 | 99mm/3,9" | 112mm/4,41" | 98mm/3,86" | 102,26mm/4,03" | 0,9bar/13,05psi | 12,70mm/ 1/2" | 125mm/4,92" | 0,71kg/1,56lbs | |
0 | DSTP115 | DN115 | 110mm/4,33" | 128mm/5,04" | 109mm/4,29" | 117mm/4,61" | 0,9bar/13,05psi | 12,70mm/ 1/2" | 125mm/4,92" | 0,97kg/2,14lbs | |
0 | DSTP125 | DN125 | 126mm/4,96" | 139mm/5,47" | 125mm/4,92" | 128,2mm/5,05" | 0,9bar/13,05psi | 12,70mm/ 1/2" | 125mm/4,92" | 0,99kg/2,18lbs | |
0 | DSTP140 | DN140 | 135mm/5,31" | 152mm/5,98" | 134mm/5,28" | 141mm/5,55" | 0,9bar/13,05psi | 12,70mm/ 1/2" | 125mm/4,92" | 1,31kg/2,88lbs | |
0 | DSTP150 | DN150 | 149mm/5,87" | 164mm/6,46" | 148mm/5,83" | 154,08mm/6,07" | 0,7bar/10,15psi | 12,70mm/ 1/2" | 125mm/4,92" | 1,31kg/2,88lbs | |
0 | DSTP175 | DN175 | 171mm/6,73" | 196mm/7,72" | 170mm/6,69" | 178mm/7,01" | 0,7bar/10,15psi | 25,40mm/ 1" | 250mm/9,84" | 3,07kg/6,77lbs | |
0 | DSTP200 | DN200 | 195mm/7,68" | 218mm/8,58" | 194mm/7,64" | 202,64mm/7,98" | 0,7bar/10,15psi | 25,40mm/ 1" | 170mm/6,69" | 3,26kg/7,19lbs | |
0 | DSTP225 | DN225 | 219mm/8,62" | 245mm/9,65" | 218mm/8,58" | 227mm/8,94" | 0,7bar/10,15psi | 25,40mm/ 1" | 149mm/5,87" | 3,92kg/8,64lbs | |
0 | DSTP250 | DN250 | 246mm/9,69" | 290mm/11,42" | 244mm/9,61" | 254,46mm/10,02" | 0,7bar/10,15psi | 25,40mm/ 1" | 250mm/9,84" | 5,51kg/12,15lbs | |
0 | DSTP275 | DN275 | 272mm/10,71" | 305mm/12,01" | 270mm/10,63" | 279mm/10,98" | 0,7bar/10,15psi | 25,40mm/ 1" | 295mm/11,61" | 6,71kg/14,78lbs | |
0 | DSTP300 | DN300 | 297mm/11,69" | 335mm/13,19" | 295mm/11,61" | 304,84mm/12" | 0,7bar/10,15psi | 25,40mm/ 1" | 311mm/12,24" | 7,54kg/16,62lbs | |
Send the spec. We send the datasheet.
DN, material, air connection, quantity. We come back inside 24 hours with the right reference, the test report on file, and stock confirmation from Istanbul.
Looking for something else?
Other pipe stopper types in our catalogue — different size ranges, pressures, and constructions.
Steel Test Plugs
Steel test plugs for low-pressure applications.

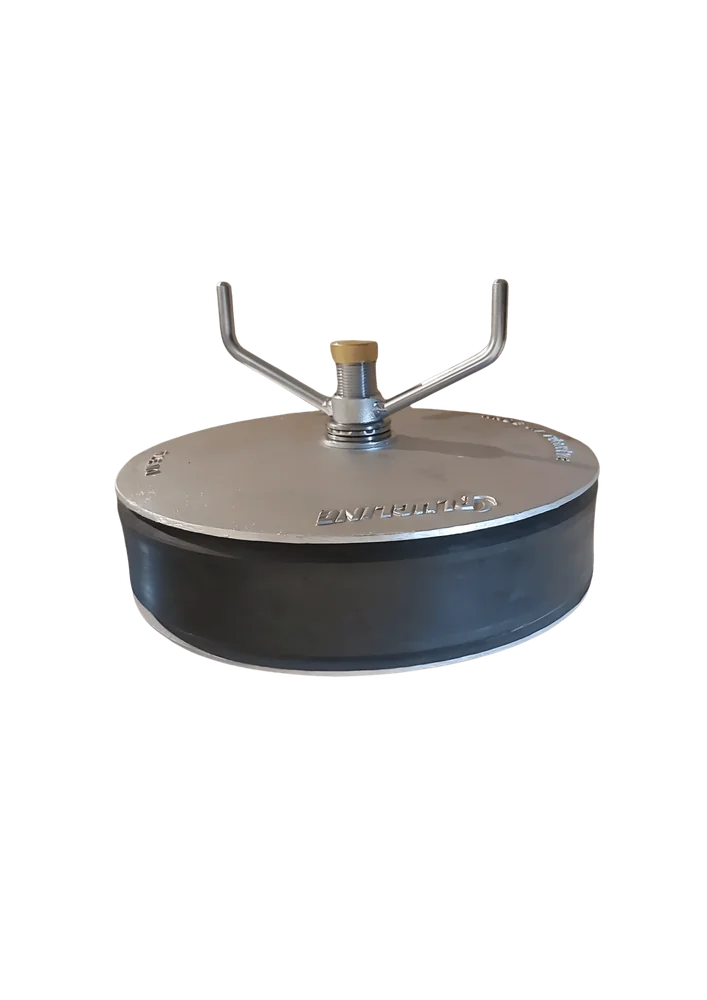

View productAluminium Test Plugs
Lightweight plugs DN40 - DN900.

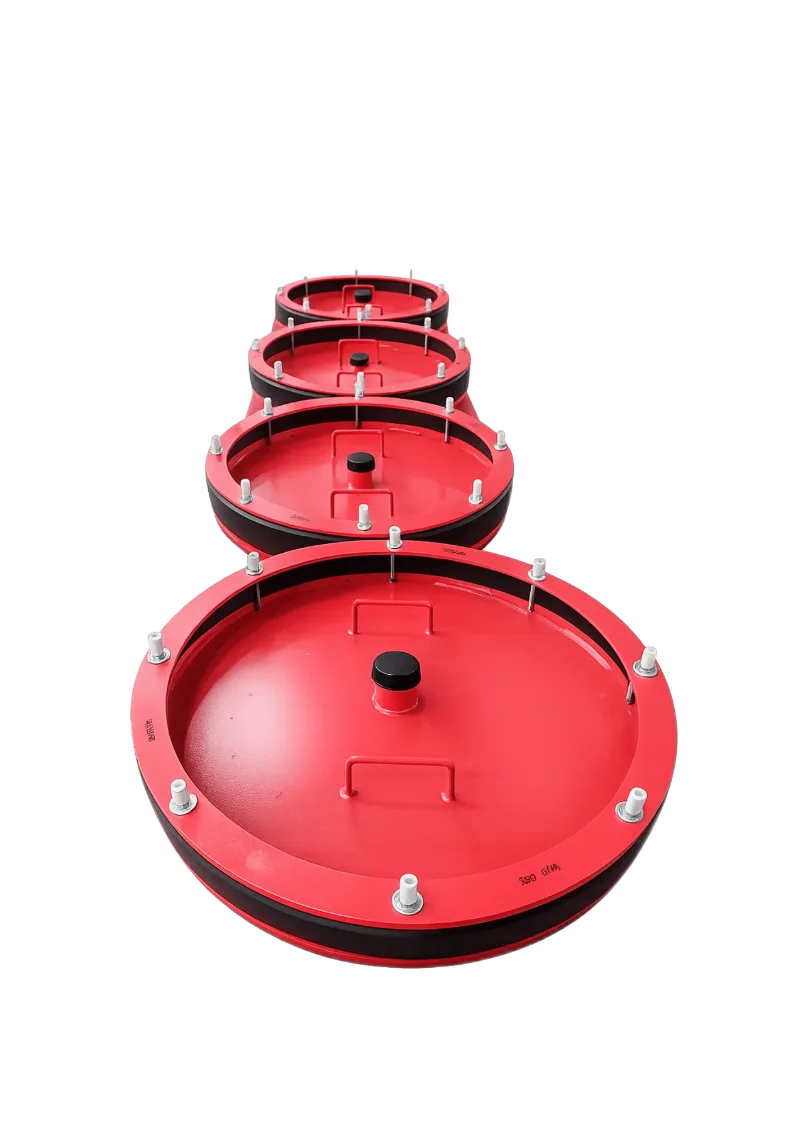

View productTottight Steel Test Plugs
