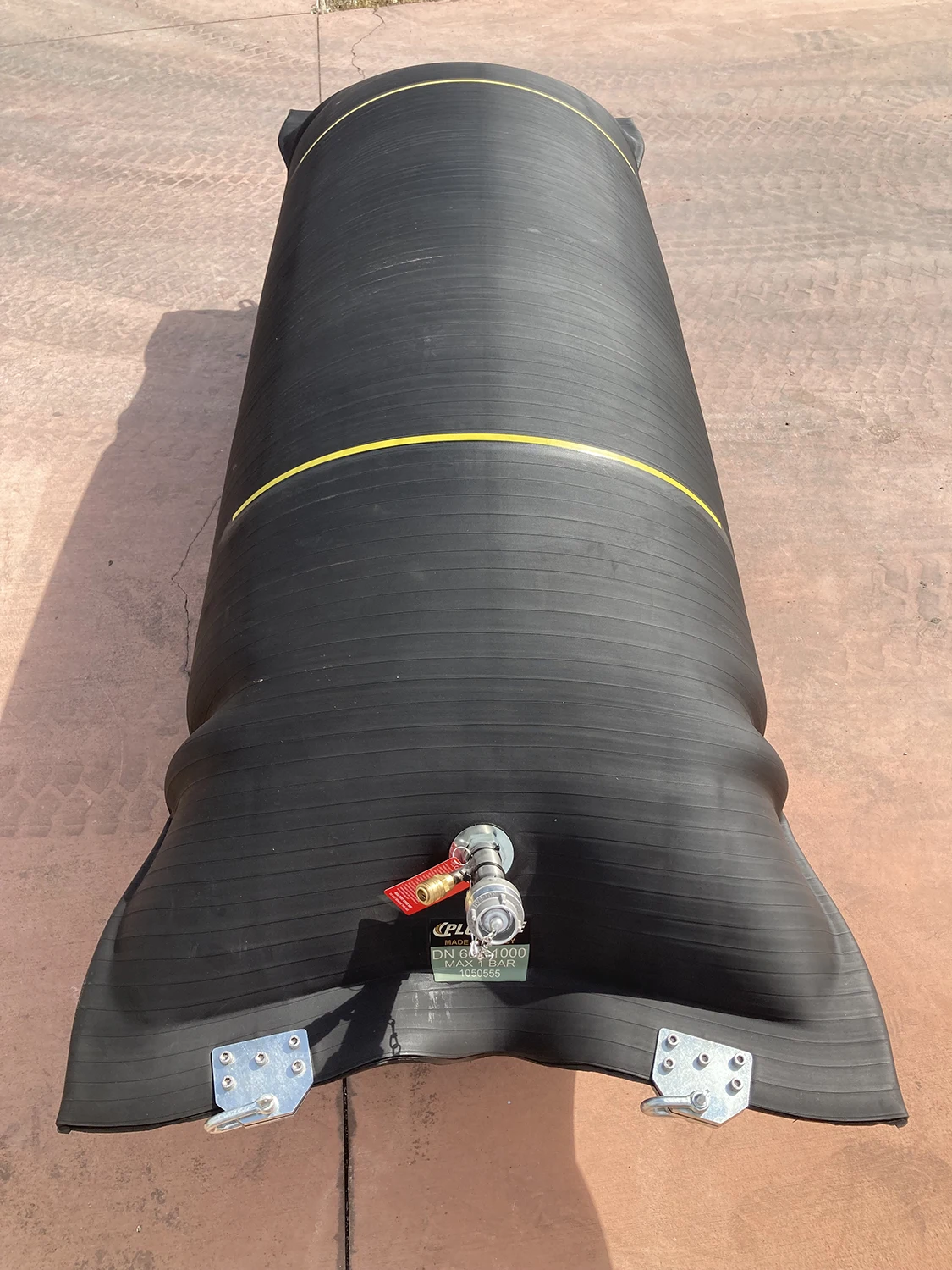

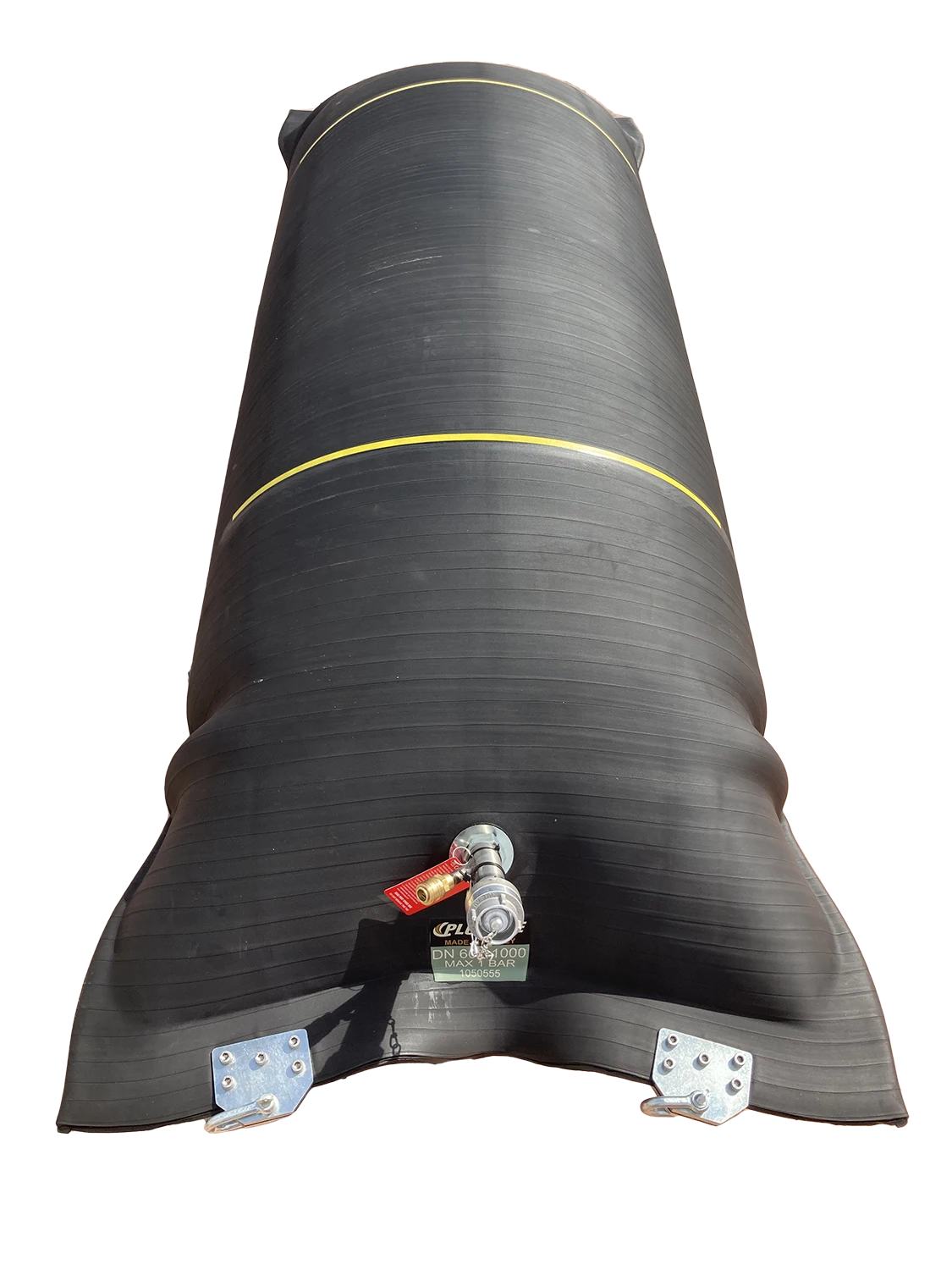

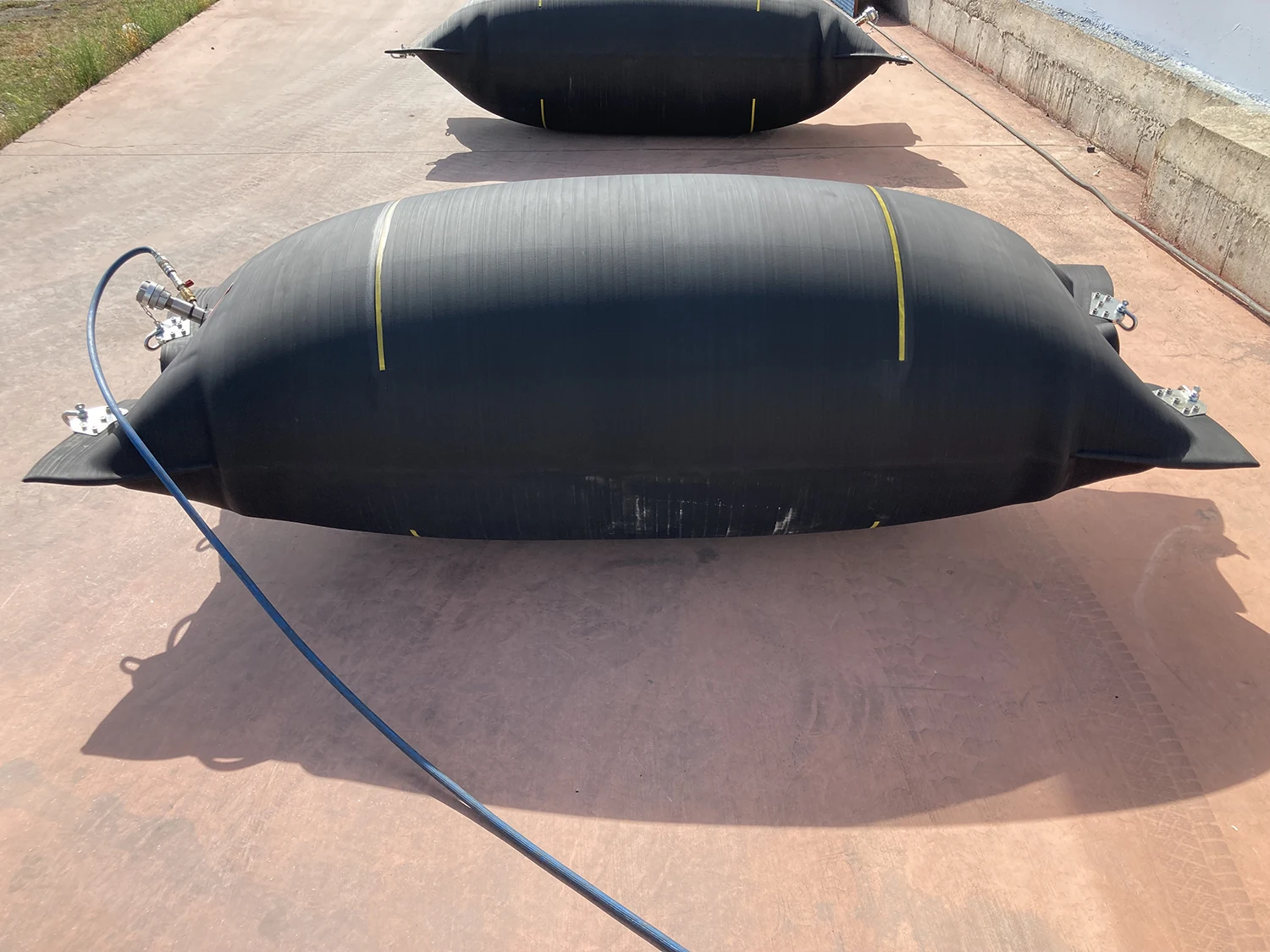

Pillow Type Packers with Bypass (0,5 - 1 bar)
- Bypassed Pillow Type Packers are packers with flexible soft quality rubber construction.
- As they are inflatable to fit the shape of damaged pipes, they are mainly used for repairing and testing oval pipes and pipes of different shapes, as well as circular pipes.
- They are especially preferred in the use of large diameter pipes.
- They provide ideal use in pipe tests, they provide safe use in cases where the flow must continue or the flow must be directed during the repair of the pipes.
- The difference from PTP Pad Packers is that PTPB Pillow Packers are bypassed. Bypass feature is a feature used in cases where the flow is desired to continue during the repair. Bypass feature is also to divrt the flow in different directions and to give pressurized water during hydro test.
- They have a flexible structure, manhole transitions and transitions are very easy and can be easily moved in the pipe.

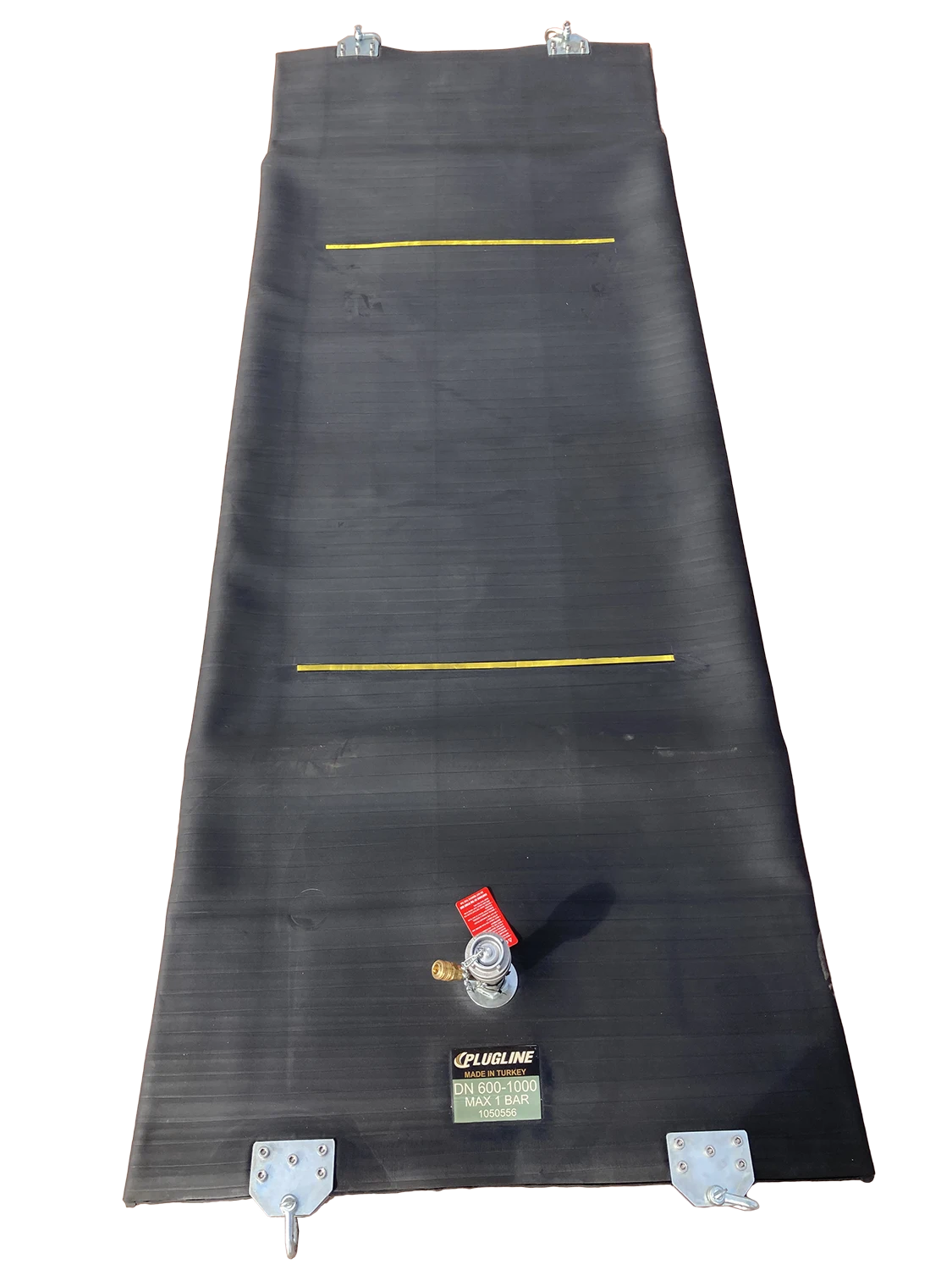

- Because they are foldable and lighter than standard packers of equivalent size, they can be easily moved.
- Repair using the packer method reduces cost, time spent in the field and downtime as trenchless repairs can be made using a pillow packer like other packers.
- They are available in different product sizes as width 910-2300mm, length 2500-3700 mm.
- For pipe diameters between 600-2000 mm, the repair length is 1000-2000 mm.
| Product Code | Nominal Size(mm) | Contact Length at Min. Dia(mm/inch) | Contact Length at Max. Dia(mm/inch) | Max. Working Pressure(bar/psi) | Product Width(mm/inch) | Total Length of Product(mm/inch) | Bypass Diameter(mm/inch) | Product Weight(kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|---|
|
remove
add
|
PTPB6001000/2500 | 600-1000 | 2100mm/82,68'' | 1000mm/39,37'' | 1,0bar/14,5psi | 910mm/35,83'' | 2500mm/98,43'' | 290mm/11,5" | 40kg/88,18lbs |
|
remove
add
|
PTPB6001000/3500 | 600-1000 | 3100mm/122,05'' | 2000mm/78,74'' | 1,0bar/14,5psi | 910mm/35,83'' | 3500mm/137,8'' | 290mm/11,5" | 47kg/103,62lbs |
|
remove
add
|
PTPB8001200/2500 | 800-1200 | 2100mm/82,68'' | 1000mm/39,37'' | 1,0bar/14,5psi | 1200mm/47,24'' | 2500mm/98,43'' | 323mm/12,5" | 55kg/121,25lbs |
|
remove
add
|
PTPB8001200/3500 | 800-1200 | 3100mm/122,05'' | 2000mm/78,74'' | 1,0bar/14,5psi | 1200mm/47,24'' | 3500mm/137,8'' | 323mm/12,5" | 62kg/136,69lbs |
|
remove
add
|
PTPB10001400/2500 | 1000-1400 | 2150mm/84,65'' | 1000mm/39,37'' | 0,8bar/11,5psi | 1490mm/58,66'' | 2600mm/102,36'' | 340mm/13,5" | 65kg/143,3lbs |
|
remove
add
|
PTPB10001400/3500 | 1000-1400 | 2250mm/88,58'' | 2000mm/78,74'' | 0,8bar/11,5psi | 1490mm/58,66'' | 3600mm/141,73'' | 340mm/13,5" | 75kg/165,35lbs |
|
remove
add
|
PTPB12001600/2500 | 1200-1600 | 2100mm/82,68'' | 1000mm/39,37'' | 0,6bar/8,5psi | 1645mm/64,76'' | 3000mm/118,11'' | 340mm/13,5" | 85kg/187,39lbs |
|
remove
add
|
PTPB12001600/3500 | 1200-1600 | 3100mm/122,05'' | 2000mm/78,74'' | 0,6bar/8,5psi | 1645mm/64,76'' | 4000mm/157,48'' | 340mm/13,5" | 94kg/207,23lbs |
|
remove
add
|
PTPB15002000/2800 | 1500-2000 | 2400mm/94,49'' | 1000mm/39,37'' | 0,5bar/7,0psi | 2180mm/85,83'' | 3200mm/125,98'' | 406mm/16" | 110kg/242,51lbs |
|
remove
add
|
PTPB15002000/3700 | 1500-2000 | 3400mm/133,86'' | 2000mm/78,74'' | 0,5bar/7,0psi | 2180mm/85,83'' | 4200mm/165,35'' | 406mm/16" | 130kg/286,6lbs |
