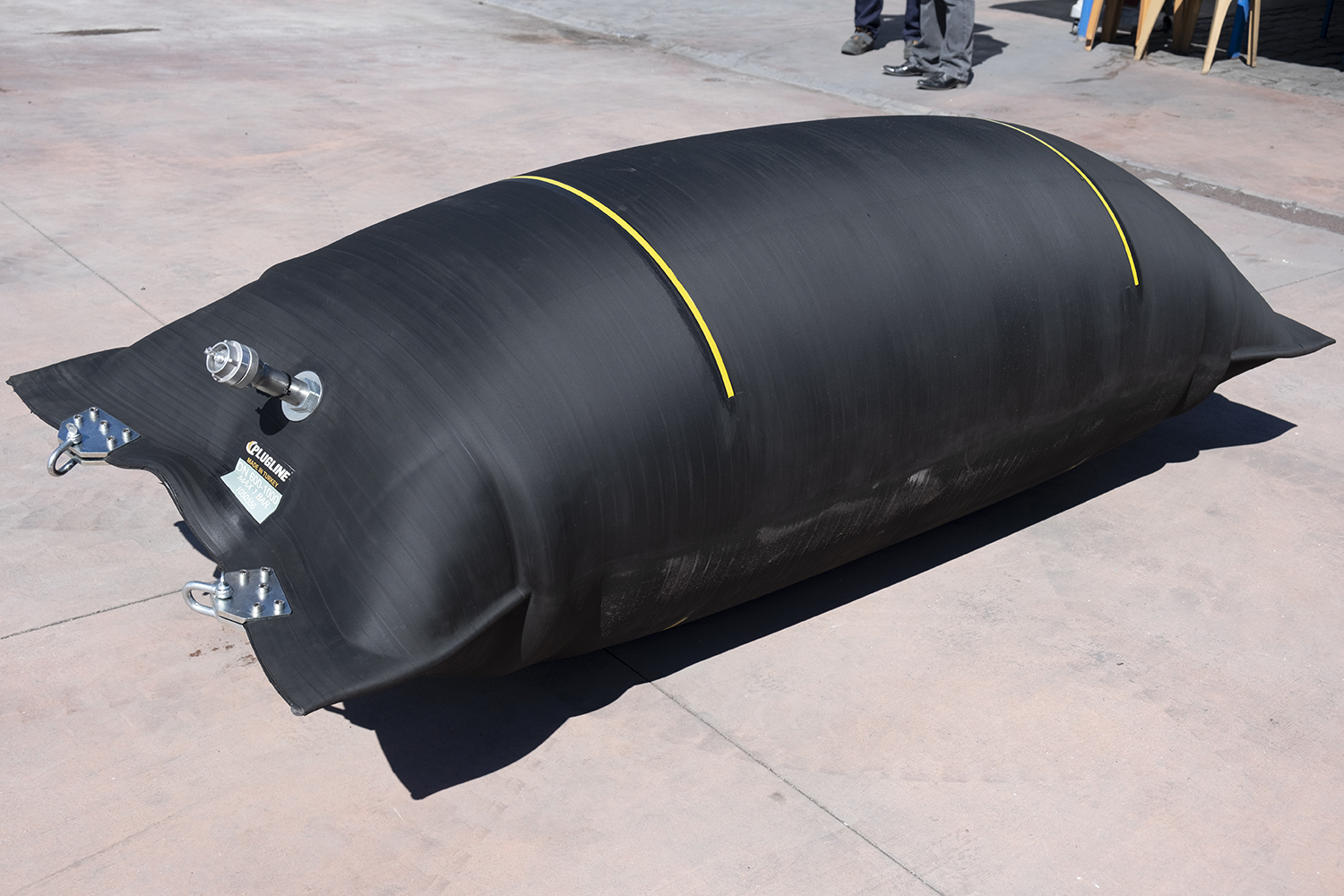

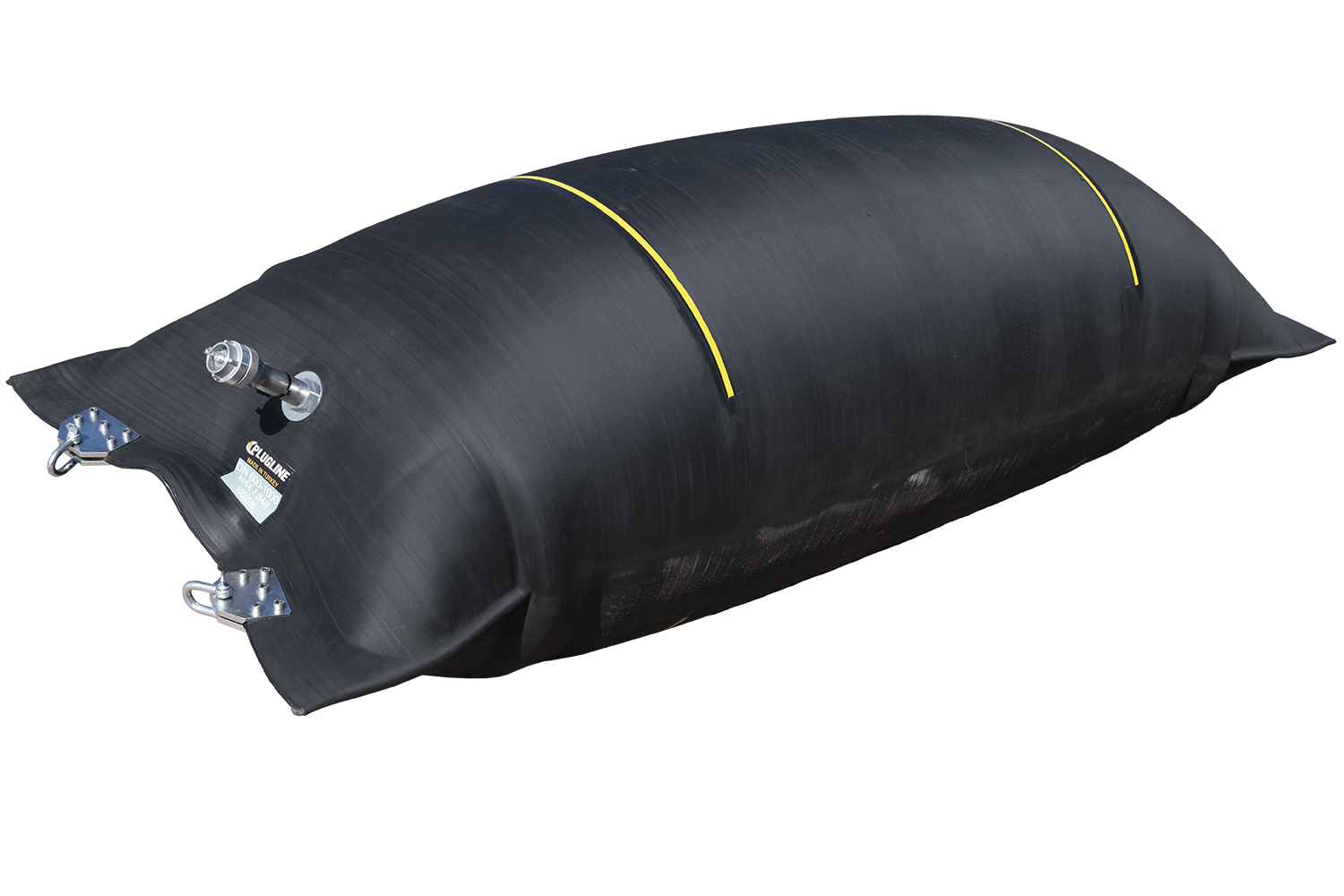

Pillow Type Packers (0,5 - 1,0 bar)
- Pillow Type Packers are packers with flexible soft quality rubber structures.
- Since they are inflatable to fit the shape of damaged pipes, they can be used to repair oval pipes and pipes of different shapes, as well as circular pipes.
- They are especially preferred for the use of large-diameter pipes.
- At the same time, since they can block the flow in the pipes, they provide safe use in stopping the flow for the repair of the pipes, and in stopping the flow for the testing of the pipes.
- They have a flexible structure, manhole transitions, and pass-throughs are so easy and they can be easily moved in the pipe.
- They can be easily moved as they are foldable and lighter than standard packers of equivalent size.
- The repair using the packer method reduces cost, time spent in the field, and downtime as trenchless repairs can be made using a pillow packer like any other packer.
- It is available in different product sizes as width 910-2300 mm, and length 2500-3700 mm.
- For pipe diameters between 600-2000mm, the repair length is 1000-2000 mm.
| Product Code | Nominal Size(mm) | Contact Length at Min. Dia(mm/inch) | Contact Length at Max. Dia(mm/inch) | Max. Working Pressure(bar/psi) | Product Width(mm/inch) | Total Length of Product(mm/inch) | Product Weight(kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|
|
remove
add
|
PTP6001000/2500 | 600-1000 | 2100mm/82,68'' | 1000mm/39,37'' | 1,0bar/14,5psi | 910mm/35,83'' | 2500mm/98,43'' | 23kg/50,71lbs |
|
remove
add
|
PTP6001000/3500 | 600-1000 | 3100mm/122,05'' | 2000mm/78,74'' | 1,0bar/14,5psi | 910mm/35,83'' | 3500mm/137,8'' | 32kg/70,55lbs |
|
remove
add
|
PTP8001200/2500 | 800-1200 | 2100mm/82,68'' | 1000mm/39,37'' | 1,0bar/14,5psi | 1200mm/47,24'' | 2500mm/98,43'' | 38kg/83,78lbs |
|
remove
add
|
PTP8001200/3500 | 800-1200 | 3100mm/122,05'' | 2000mm/78,74'' | 1,0bar/14,5psi | 1200mm/47,24'' | 3500mm/137,8'' | 42kg/92,59lbs |
|
remove
add
|
PTP10001400/2500 | 1000-1400 | 2150mm/84,65'' | 1000mm/39,37'' | 0,8bar/11,5psi | 1490mm/58,66'' | 2600mm/102,36'' | 50kg/110,23lbs |
|
remove
add
|
PTP10001400/3500 | 1000-1400 | 2250mm/88,58'' | 2000mm/78,74'' | 0,8bar/11,5psi | 1490mm/58,66'' | 3600mm/141,73'' | 65kg/143,3lbs |
|
remove
add
|
PTP12001600/2500 | 1200-1600 | 2100mm/82,68'' | 1000mm/39,37'' | 0,6bar/8,5psi | 1645mm/64,76'' | 3000mm/118,11'' | 75kg/165,35lbs |
|
remove
add
|
PTP12001600/3500 | 1200-1600 | 3100mm/122,05'' | 2000mm/78,74'' | 0,6bar/8,5psi | 1645mm/64,76'' | 4000mm/157,48'' | 90kg/198,42lbs |
|
remove
add
|
PTP15002000/2800 | 1500-2000 | 2400mm/94,49'' | 1000mm/39,37'' | 0,5bar/7,0psi | 2180mm/85,83'' | 3200mm/125,98'' | 109kg/240,3lbs |
|
remove
add
|
PTP15002000/3700 | 1500-2000 | 3400mm/133,86'' | 2000mm/78,74'' | 0,5bar/7,0psi | 2180mm/85,83'' | 4200mm/165,35'' | 120kg/264,55lbs |
