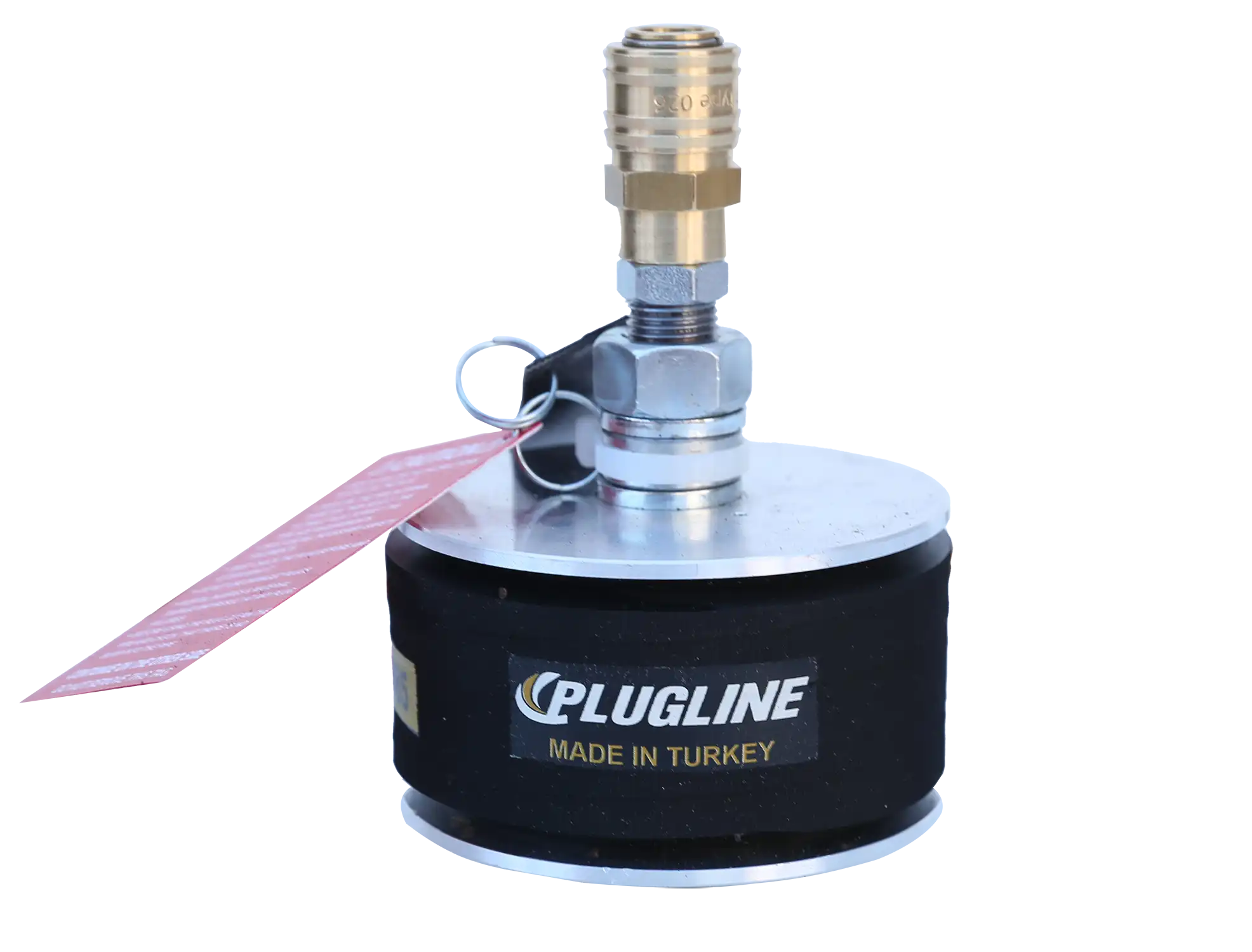

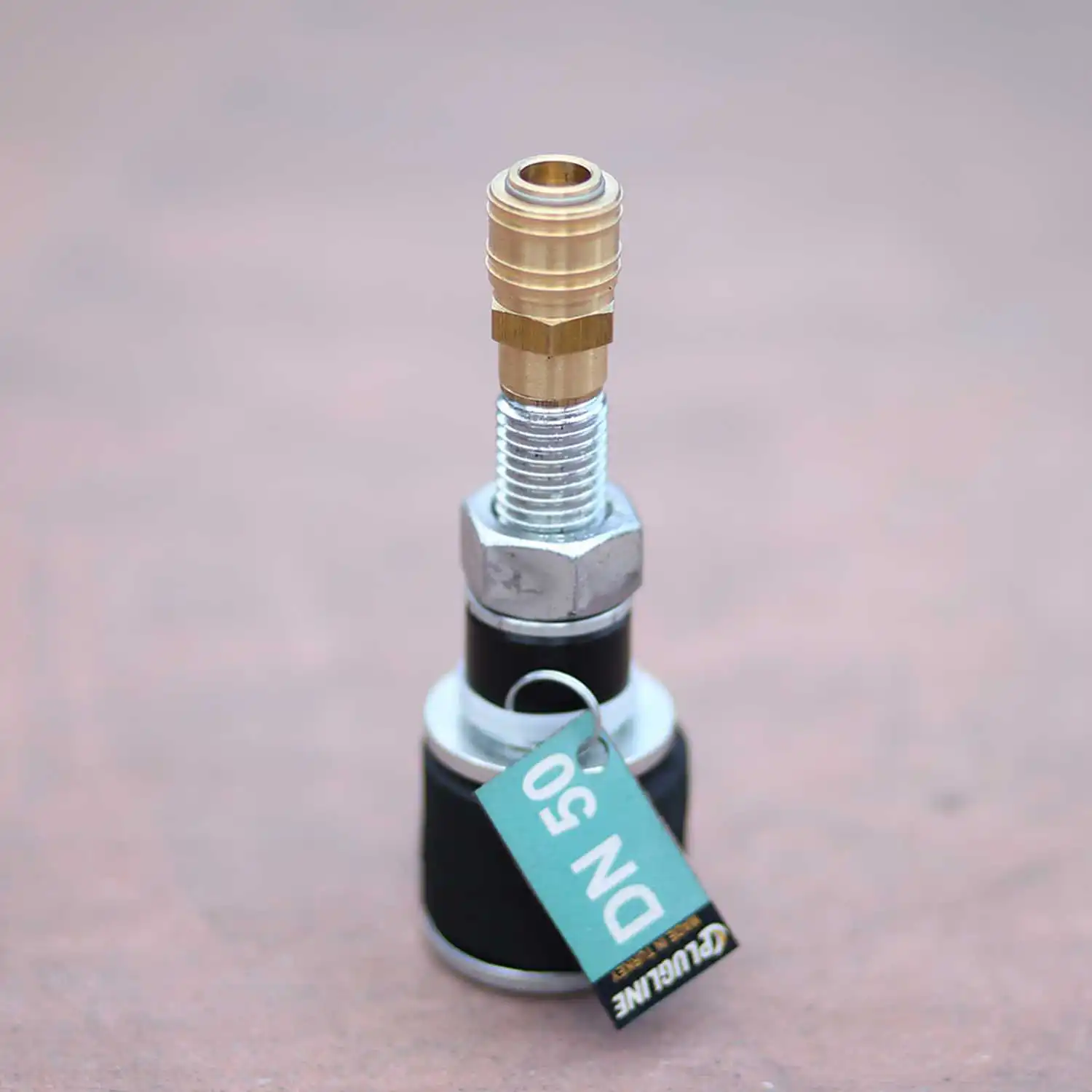

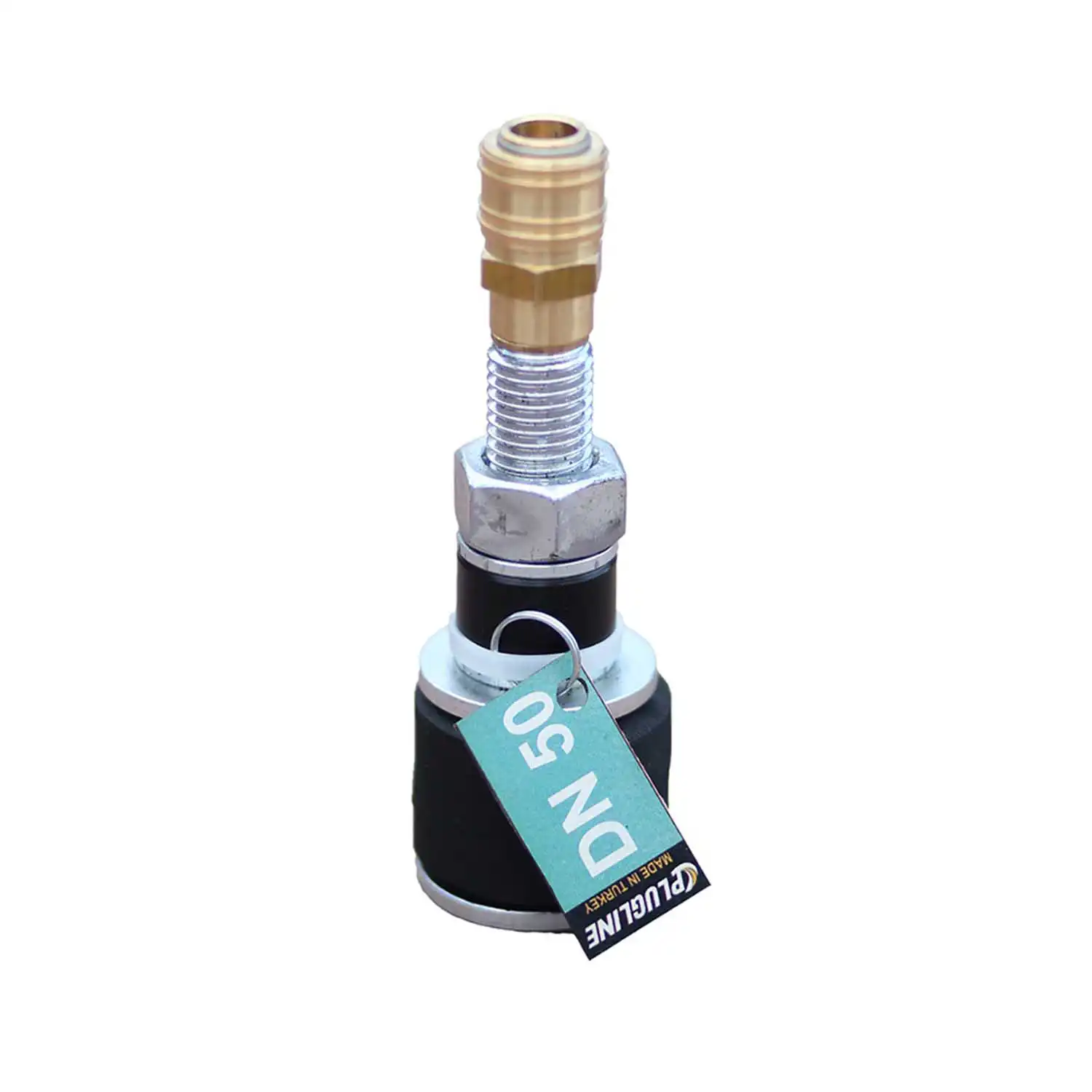

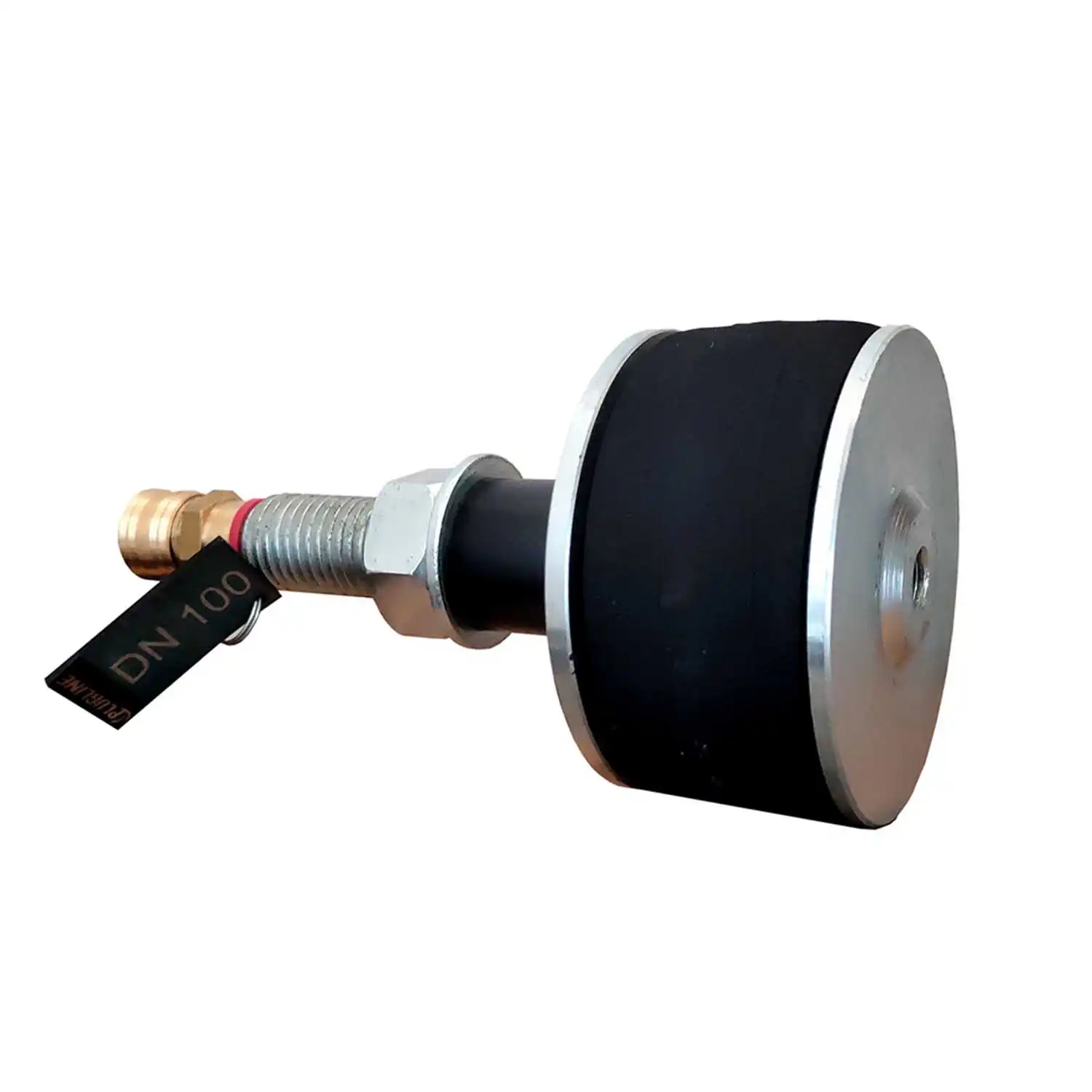

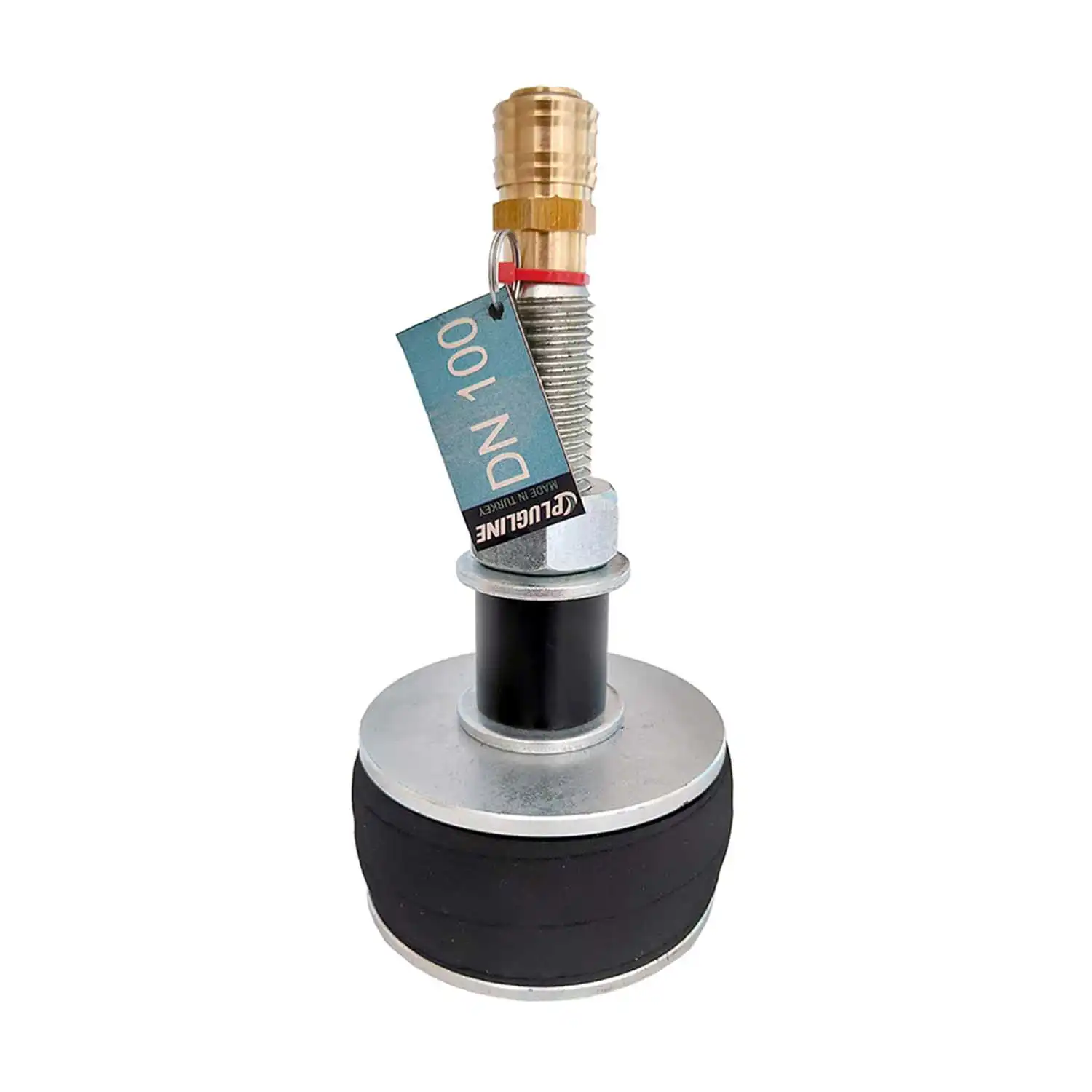

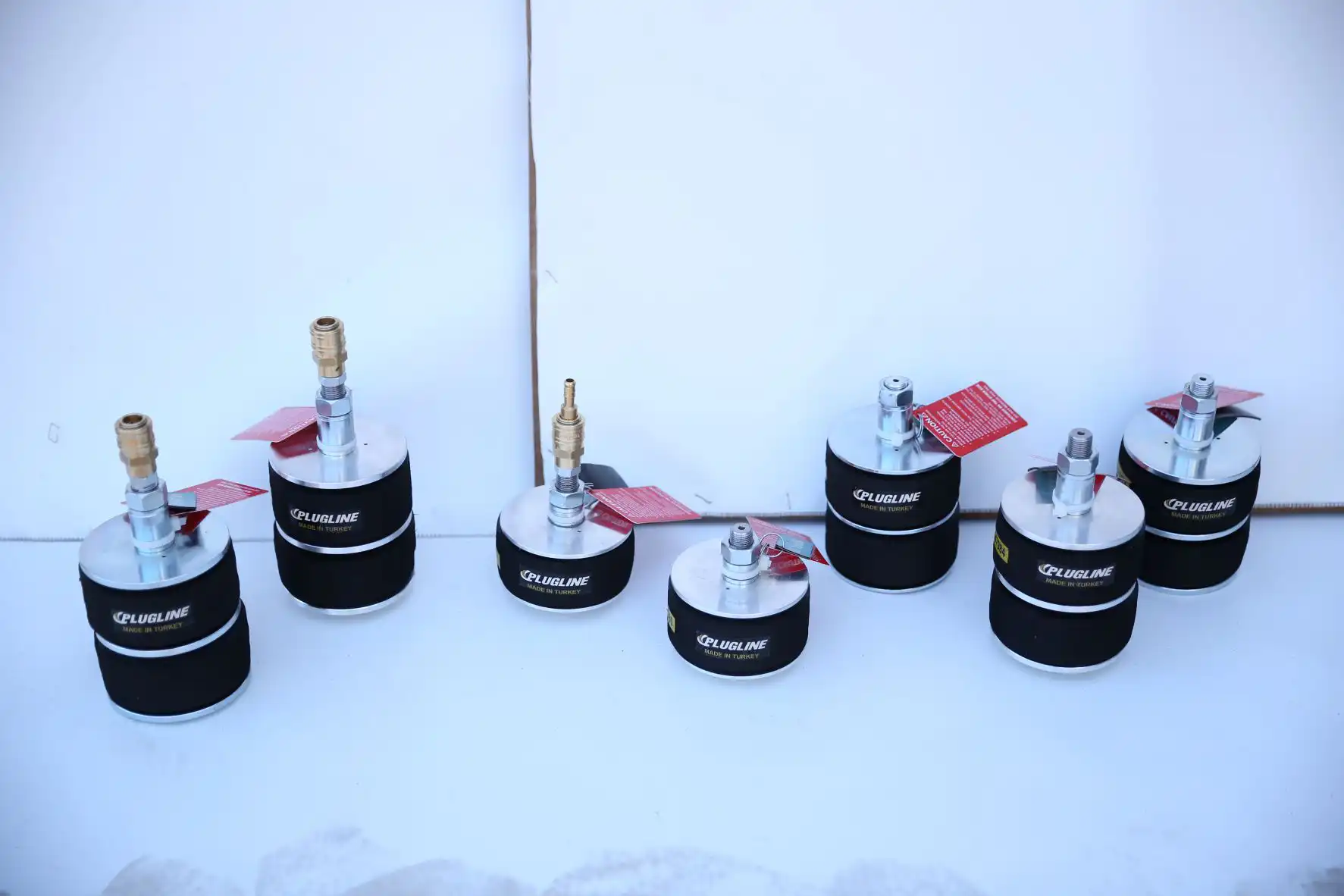

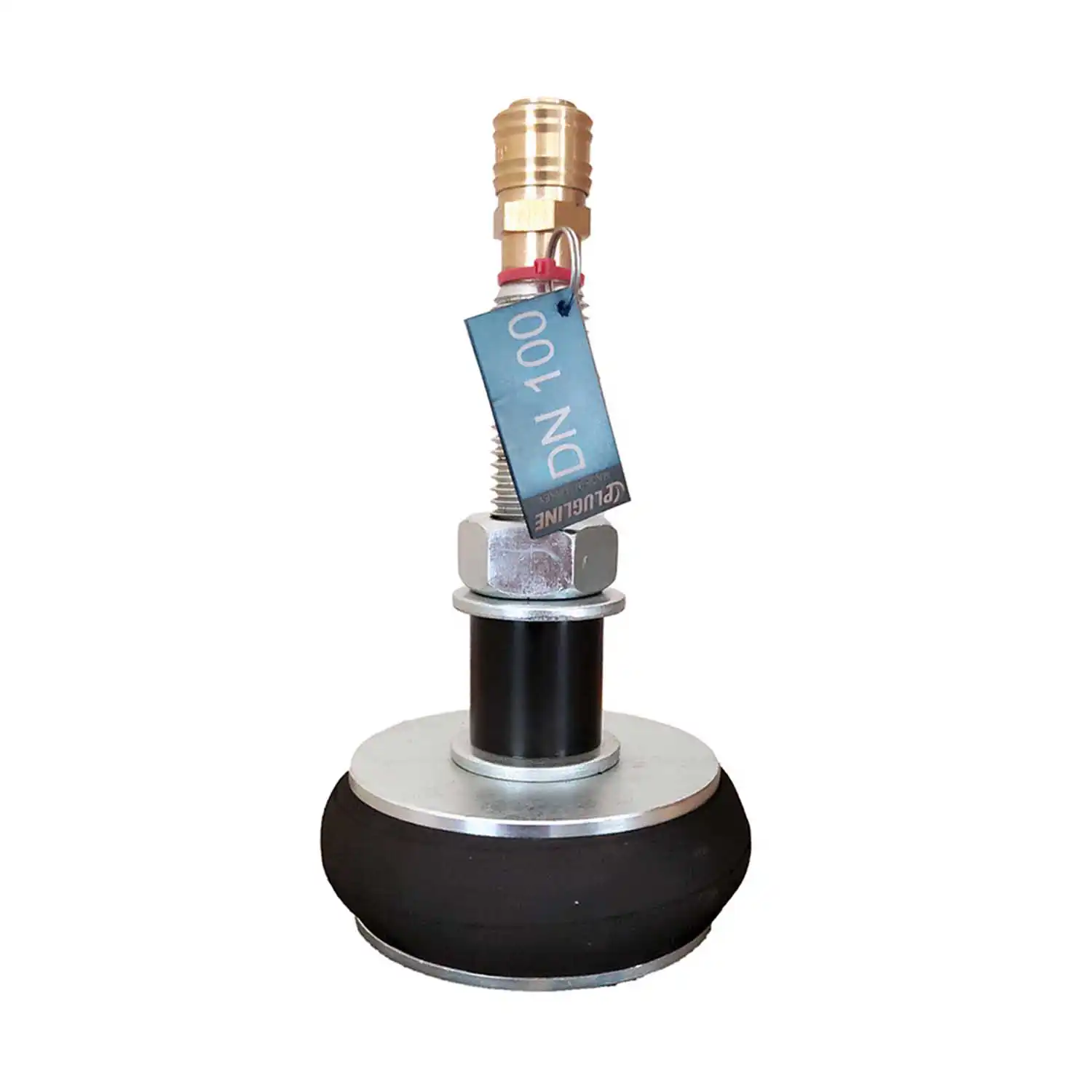

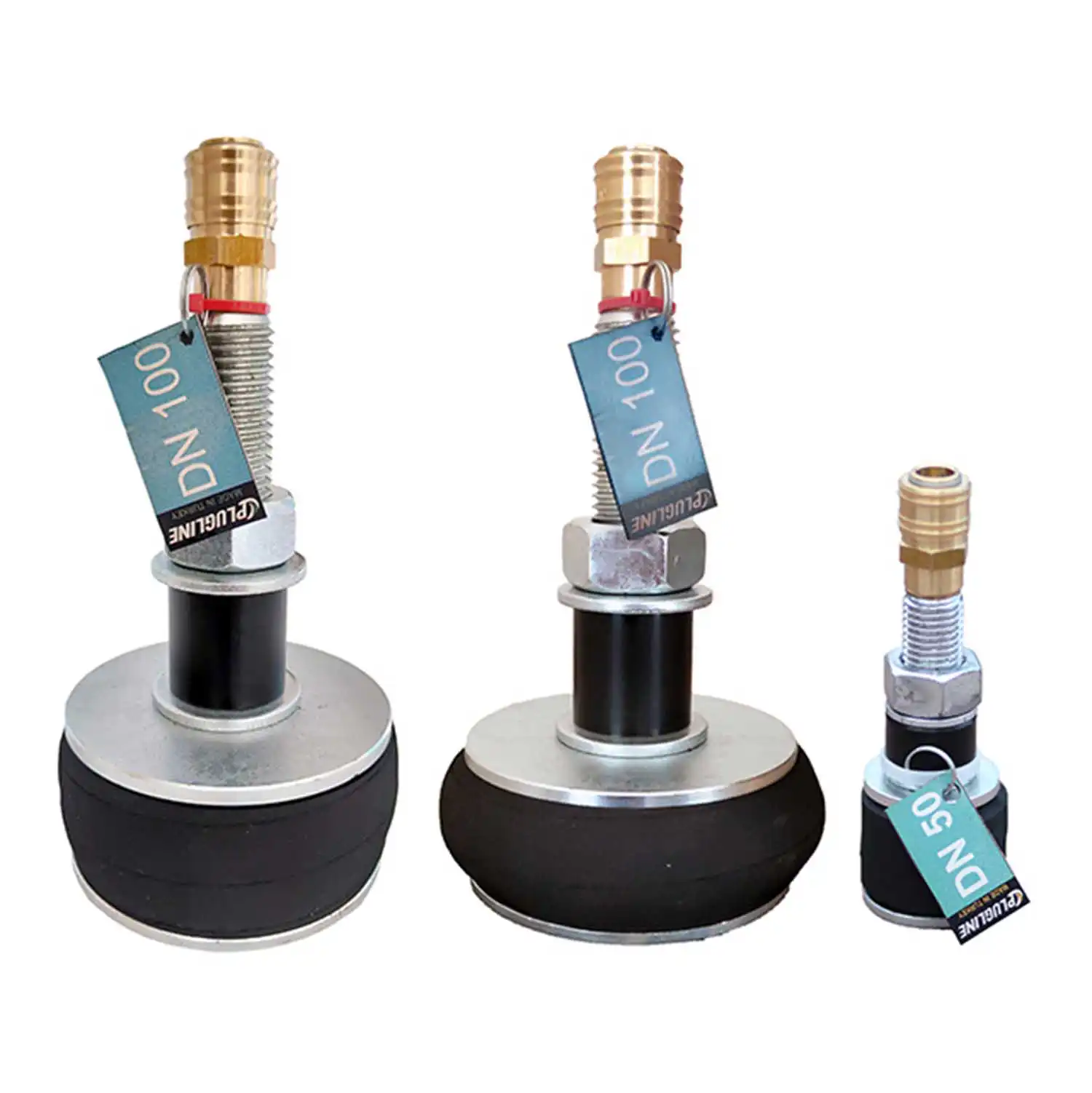

Mechanical Pipe Test Plugs (0,5 - 2 bar)
- Mechanical Pipe Test Plugs have bypass inside to make hydro test at pipes diameters ¼” to 12” (6mm to 300mm) as standard production, higher sizes can be produced to order.
- They can be suitable to test the pipes as copper, steel, aluminum, HDPE and etc.
- The test can be performed up to 12 bar working pressure at 70-degree tests and can be produced for higher pressure upon request.
- They have a wide usage area such as construction as well as air conditioning, heating, and refrigeration.
| Product Code | Nominal size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Product Diameter (mm/inch) | Back Pressure(bar/psi) | Tightening Torque (N.m) | Total Length of Product (mm/inch) | Bypass Diameter (inch) | Product Weight(kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|---|---|
|
remove
add
|
MTP6 | 6 | 6mm/0,24" | 6,5mm/0,26" | 5,5mm/0,22" | 2,0bar/29,0psi | H,T | 54mm/2,13" | 1/4" | 0,1kg/0,22lbs |
|
remove
add
|
MTP10 | 10 | 9mm/0,35" | 10mm/0,39" | 8,5mm/0,33" | 2,0bar/29,0psi | H,T | 54mm/2,13" | 1/4" | 0,1kg/0,22lbs |
|
remove
add
|
MTP12 | 12 | 12mm/0,47" | 13mm/0,51" | 11mm/0,43" | 2,0bar/29,0psi | H,T | 54mm/2,13" | 1/4" | 0,1kg/0,22lbs |
|
remove
add
|
MTP15 | 15 | 15mm/0,59" | 15mm/0,59" | 14mm/0,55" | 2,0bar/29,0psi | H,T | 64mm/2,52" | 1/4" | 0,1kg/0,22lbs |
|
remove
add
|
MTP20 | 20 | 20mm/0,79" | 20mm/0,79" | 19mm/0,75" | 2,0bar/29,0psi | H,T | 64mm/2,52" | 1/4" | 0,1kg/0,22lbs |
|
remove
add
|
MTP30 | 30 | 29mm/1,14" | 32mm/1,26" | 25mm/0,98" | 2,0bar/29,0psi | 40 | 73mm/2,87" | 1/4" | 0,2kg/0,44lbs |
|
remove
add
|
MTP38 | 38 | 38mm/1,5" | 40mm/1,57" | 32mm/1,26" | 2,0bar/29,0psi | 40 | 75mm/2,95" | 1/4" | 0,3kg/0,66lbs |
|
remove
add
|
MTP50 | 50 | 49mm/1,93" | 51mm/2,01" | 45mm/1,77" | 2,0bar/29,0psi | 50 | 88mm/3,46" | 1/4" | 0,5kg/1,1lbs |
|
remove
add
|
MTP60 | 60 | 58mm/2,28" | 61mm/2,4" | 55mm/2,17" | 2,0bar/29,0psi | 70 | 98mm/3,86" | 1/4" | 0,7kg/1,54lbs |
|
remove
add
|
MTP75 | 75 | 72mm/2,83" | 77mm/3,03" | 70mm/2,76" | 2,0bar/29,0psi | 85 | 103mm/4,06" | 1/4" | 1,0kg/2,2lbs |
|
remove
add
|
MTP100 | 100 | 98mm/3,86" | 102mm/4,02" | 95mm/3,74" | 1,0bar/14,5psi | 105 | 103mm/4,06" | 1/4" | 1,5kg/3,31lbs |
|
remove
add
|
MTP125 | 125 | 122mm/4,8" | 127mm/5,0" | 120mm/4,72" | 1,0bar/14,5psi | 120 | 103mm/4,06" | 1/4" | 2,0kg/4,41lbs |
|
remove
add
|
MTP150 | 150 | 147mm/5,79" | 153mm/6,02" | 146mm/5,75" | 1,0bar/14,5psi | 140 | 106mm/4,17" | 1/4" | 2,6kg/5,73lbs |
|
remove
add
|
MTP200 | 200 | 197mm/7,76" | 202mm/7,95" | 194mm/7,64" | 0,5bar/7,25psi | 145 | 106mm/4,17" | 1/4" | 4,1kg/9,04lbs |
|
remove
add
|
MTP250 | 250 | 248mm/9,76" | 252mm/9,92" | 245mm/9,65" | 0,5bar/7,25psi | 150 | 109mm/4,29" | 1/4" | 5,0kg/11,02lbs |
|
remove
add
|
MTP300 | 300 | 298mm/11,73" | 302mm/11,89" | 295mm/11,61" | 0,5bar/7,25psi | 160 | 109mm/4,29" | 1/4" | 6,0kg/13,23lbs |
