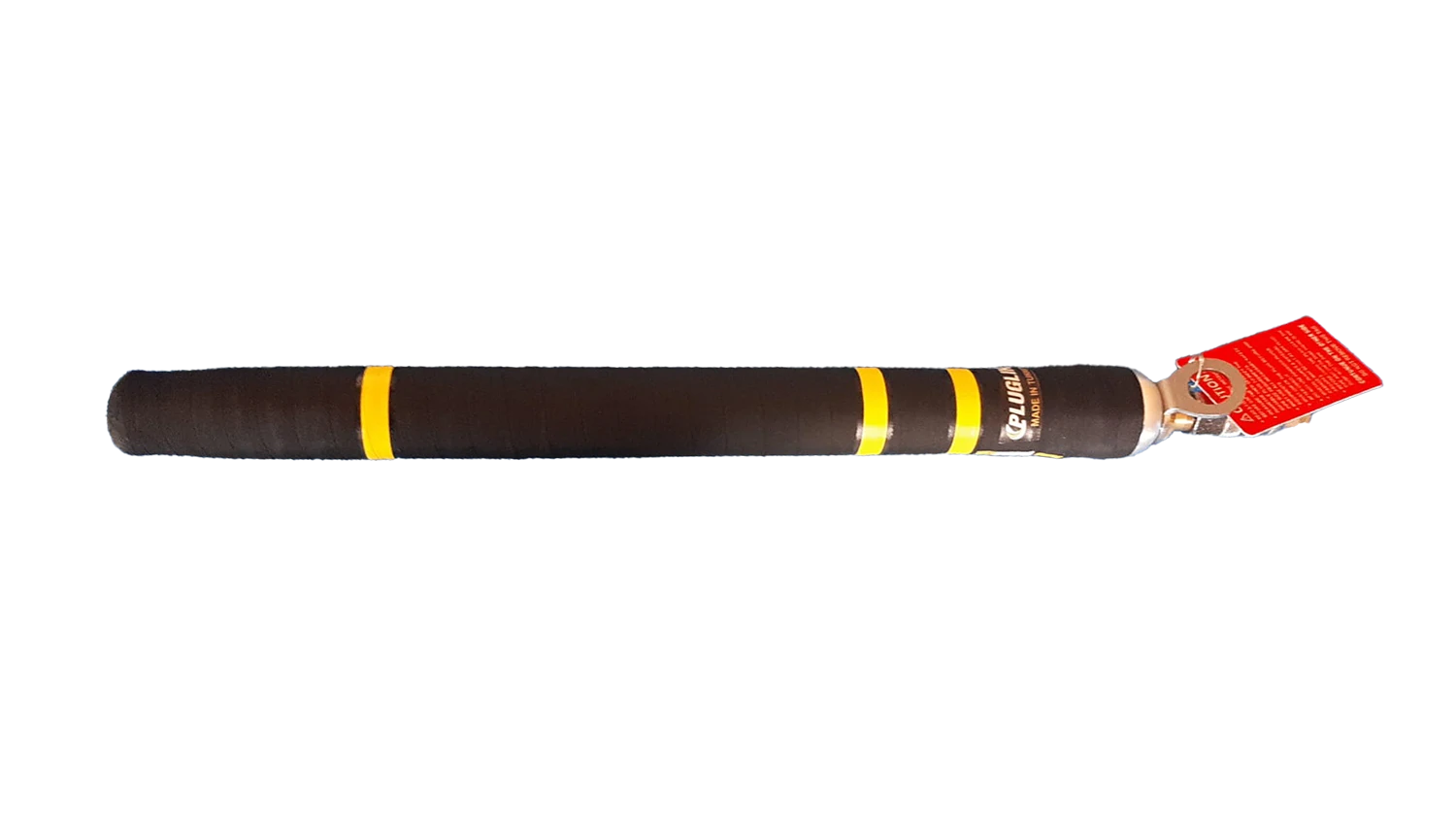

Corner Repair Packers (2,5 - 3,0 bar) - view 1

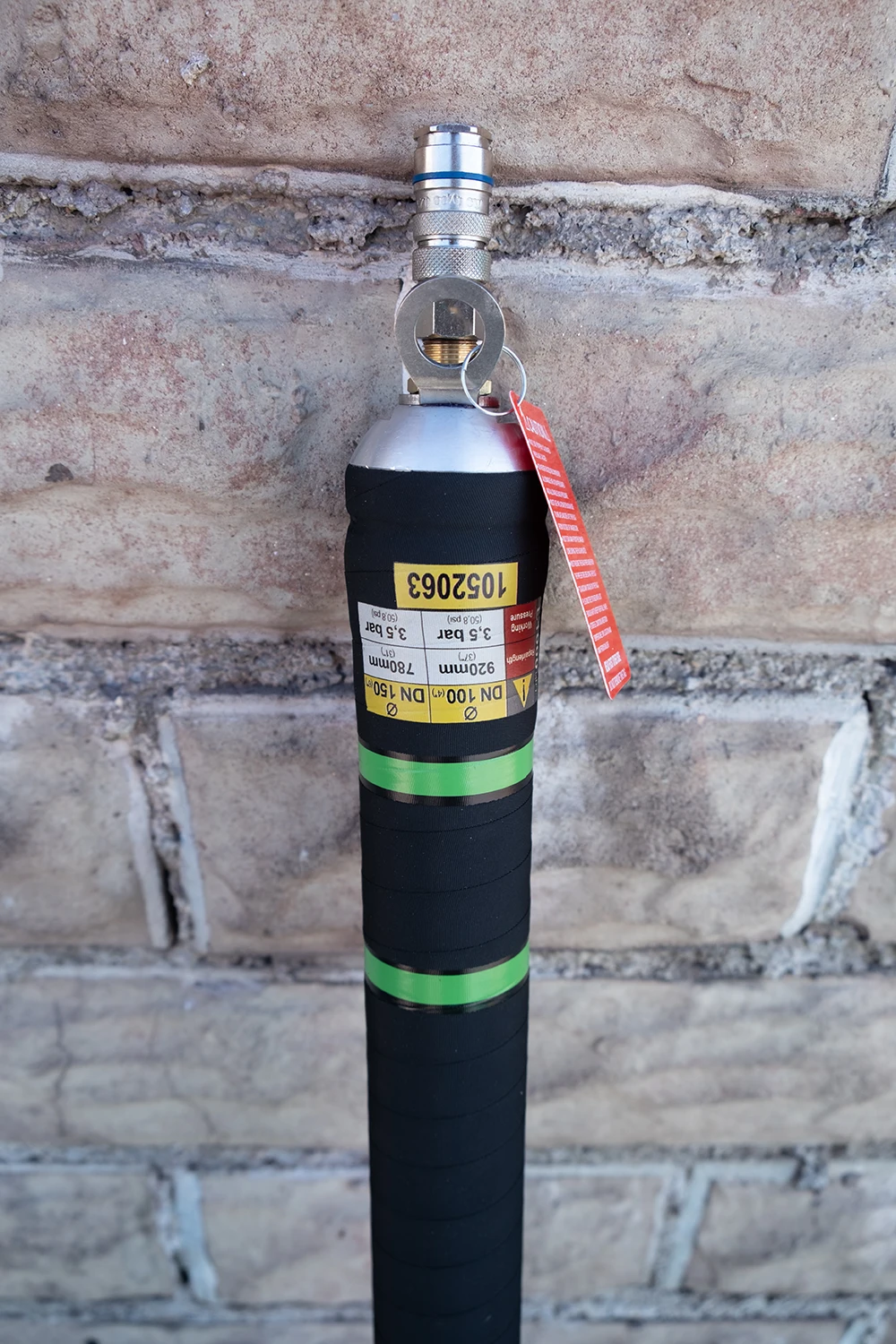

Corner Repair Packers (2,5 - 3,0 bar) - view 2

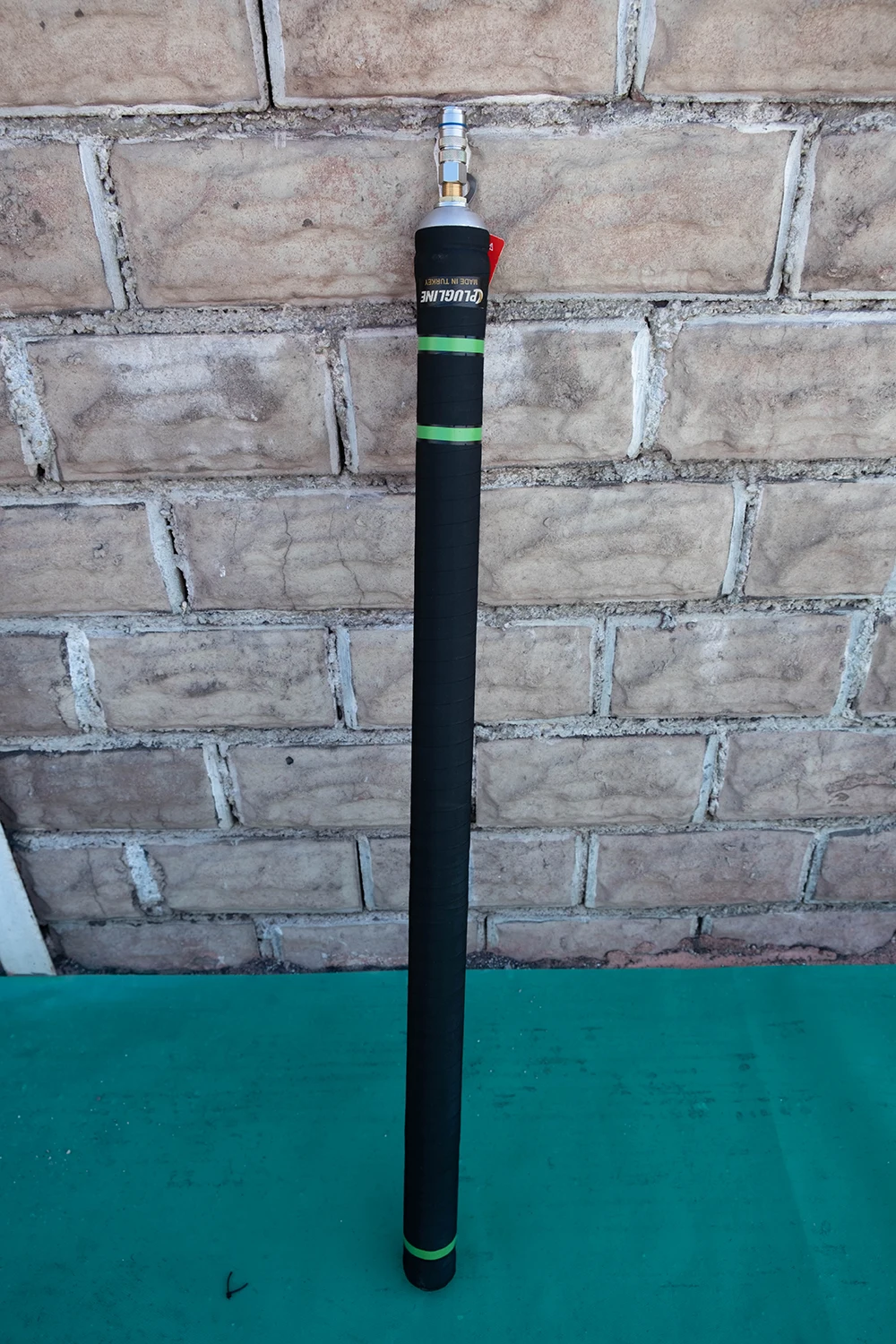

Corner Repair Packers (2,5 - 3,0 bar) - view 3
Corner Repair Packers (2,5 - 3,0 bar) - view 4
Pipe Stoppers

Corner Repair Packers (2,5 - 3,0 bar)

General specifications

Specialty packers designed for corner, junction, and angled pipe repairs.

  • Size range35 — 200 mm
  • Working pressure2,5 / 3,0 bar
  • Length with rubber parts300 — 2000 mm
  • MaterialNR
  • Air connectionQuick Coupling / Schrader
  • Working temp.−40 to 70 °C
Request a Quote

Description & features

The Plugline Corner Repair Medusa Packer is a versatile solution designed for precise rehabilitation of T-connections and bends in sewer pipelines. These pneumatic packers are specially engineered to address complex repairs in tight spaces, ensuring reliability and efficiency in municipal, industrial, and residential settings.

Key Features

  • Adaptable Design: Supports a wide range of diameters (35–200 mm) and lengths (300–2000 mm), allowing flexibility for diverse repair needs.
  • NR construction: size range DN100 — DN1000, working pressure 2,5 / 3,0 bar, length with rubber parts 300 — 2000 mm, operating temperature −40 to 70 °C, Quick Coupling / Schrader air connection.
  • Durable Materials: Crafted with robust rubber and reinforced with synthetic fabric, ensuring longevity and resistance to high pressures.
  • Ease of Use: Equipped with quick-release connectors and lightweight construction for effortless handling and setup.
  • Environmentally Friendly: Reusable and easy to clean, minimizing waste and reducing environmental impact.

Advantages

  • Cost-Effective: Reusable design reduces the need for frequent replacements.
  • Time-saving: Quick setup and compatibility with various pipe sizes streamline repair operations.
  • Precision Repair: Ensures a tight seal at connection points, enhancing the durability of rehabilitated pipelines.
  • Safety Features: Over-pressure protection systems safeguard against accidents during operation.

Application Areas

  • Sewer Systems: Rehabilitation of bends, T-connections, and small diameter pipelines in urban infrastructure.
  • Hydrostatic Pressure Testing: Sealing one or both ends of a pipe section to test for leaks under pressure.
  • Residential Settings: Fixes for house connections and smaller drainage systems.

The Plugline Corner Repair Packer is an essential tool for professionals aiming to deliver high-quality, lasting repairs in challenging pipeline environments.

Recommended deployment procedure

Plugline Inflatable Pipe Stoppers are used for sealing, blocking and pressure testing pipework. Follow the procedure below for safe installation and removal.

01
Inspect

Verify each stopper for surface defects. Confirm reference matches purchase order. Pre-test in a clean environment to nominal 0.5 bar.

02
Position

Insert deflated. Place at least two pipe-diameters inside the bore. Secure the connector hose to the inflation valve.

03
Inflate

Inflate to nominal pressure indicated on the datasheet. Hold for 60 seconds and verify seal under audible test.

04
Test

Perform line test per EN 1610 or local code. Record drop, hold time, ambient temperature.

05
Recover

Deflate fully before withdrawal. Inspect for damage. Stopper may be reused for up to 200 cycles under nominal conditions.

Datasheets & catalogues

Download technical datasheets and product catalogues for the Inflatable Pipe Stoppers line.

Corner Repair Packer Datasheet
PDF · 1.4 MB

Find your model

Enter your nominal pipe size or rubber length to highlight matching models.

Matching: All models shown

Available models

15 active references.

QUICK GUIDEThe table below is a live RFQ builder — add models, tailor the options and send the list. Nothing is charged.
1FindFilter by nominal size or length of rubber part
2AddUse + / − to set the quantity of each model
3ConfigureSet the options per model in its row
4SendOpen your RFQ list and send it — we reply with a formal quotation
AIR CONNECTIONQuick Coupling push-fit standard · Schrader Valve (tyre-type)
Set these per model with the Configure button in each row — defaults are pre-selected, and you can add several variants of the same model.
QuantityProduct CodeNominal size (mm)Length of rubber partContact length at min diaContact length at max diaWorking pressureProduct diameterTotal lengthWeightConfigure
0
CRP3550/30035-50300mm/11,81''220mm/8,66''140mm/5,51''3bar/43,51psi25mm/0,98''315mm/12,4''0,2kg/0,44lbs
0
CRP3550/60035-50640mm/25,2''520mm/20,47''440mm/17,32''3bar/43,51psi25mm/0,98''655mm/25,79''0,3kg/0,66lbs
0
CRP5075/60050-70640mm/25,2''520mm/20,47''440mm/17,32''3bar/43,51psi33mm/1,3''660mm/25,98''0,5kg/1,1lbs
0
CRP70100/60070-100640mm/25,2''520mm/20,47''380mm/14,96''3bar/43,51psi51mm/2,01''660mm/25,98''0,9kg/1,98lbs
0
CRP70100/100070-1001040mm/40,94''920mm/36,22''780mm/30,71''3bar/43,51psi51mm/2,01''1065mm/41,93''1,5kg/3,31lbs
0
CRP70100/150070-1001540mm/60,63''1420mm/55,91''1280mm/50,39''3bar/43,51psi51mm/2,01''1565mm/61,61''2kg/4,41lbs
0
CRP70100/200070-1002040mm/80,31''1920mm/75,59''1780mm/70,08''3bar/43,51psi51mm/2,01''2065mm/81,3''2,8kg/6,17lbs
0
CRP100150/600100-150640mm/25,2''520mm/20,47''380mm/14,96''2,5bar/36,25psi60mm/2,36''665mm/26,18''2,1kg/4,63lbs
0
CRP100150/1000100-1501040mm/40,94''920mm/36,22''780mm/30,71''2,5bar/36,25psi60mm/2,36''1065mm/41,93''3kg/6,61lbs
0
CRP100150/1500100-1501540mm/60,63''1420mm/55,91''1280mm/50,39''2,5bar/36,25psi60mm/2,36''1565mm/61,61''4kg/8,82lbs
0
CRP100150/2000100-1502040mm/80,31''1920mm/75,59''1780mm/70,08''2,5bar/36,25psi60mm/2,36''2065mm/81,3''5,5kg/12,13lbs
0
CRP150200/600150-200640mm/25,2''480mm/18,9''320mm/12,6''2,5bar/36,25psi80mm/3,15''700mm/27,56''2,4kg/5,29lbs
0
CRP150200/1000150-2001040mm/40,94''880mm/34,65''720mm/28,35''2,5bar/36,25psi80mm/3,15''1100mm/43,31''3,2kg/7,05lbs
0
CRP150200/1500150-2001540mm/60,63''1380mm/54,33''1220mm/48,03''2,5bar/36,25psi80mm/3,15''1600mm/62,99''4,5kg/9,92lbs
0
CRP150200/2000150-2002040mm/80,31''1880mm/74,02''1720mm/67,72''2,5bar/36,25psi80mm/3,15''2100mm/82,68''6kg/13,23lbs

Recommended accessories

Specialty supplies for pipeline rehabilitation work.

Inflation Controller

Inflation Controller

Pressure-regulated control unit with gauge and safety relief valve. View product →
Inflation Hose

Inflation Hose

Reinforced flexible hose connecting the stopper to the air supply. View product →
Air Push Rods

Air Push Rods

Telescopic air push rods for positioning packers in pipelines. View product →
Silicate Resin (Winter / Summer)

Silicate Resin (Winter / Summer)

Two-component curing resin for pipeline rehabilitation. Two seasonal grades available. View product →
Fiber Glass Mat

Fiber Glass Mat

Reinforcement mat used with curing resins for repair packer applications. View product →
Specifying for a project

Send the spec. We send the datasheet.

DN, material, air connection, quantity. We come back inside 24 hours with the right reference, the test report on file, and stock confirmation from Istanbul.
