Aluminium Mechanical Pipe Test Plugs

Aluminium Test Plugs (0.2–2.5 bar)

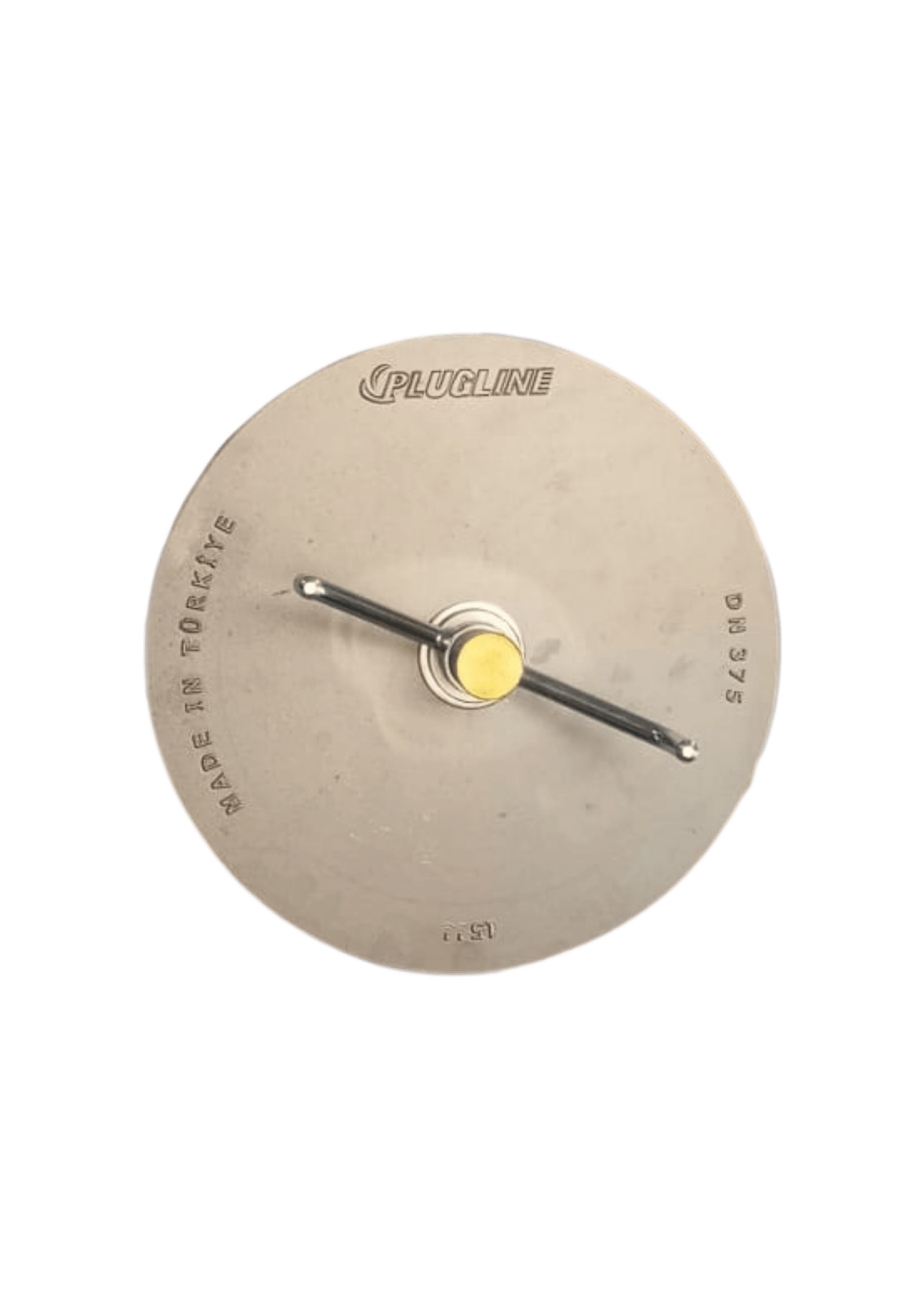

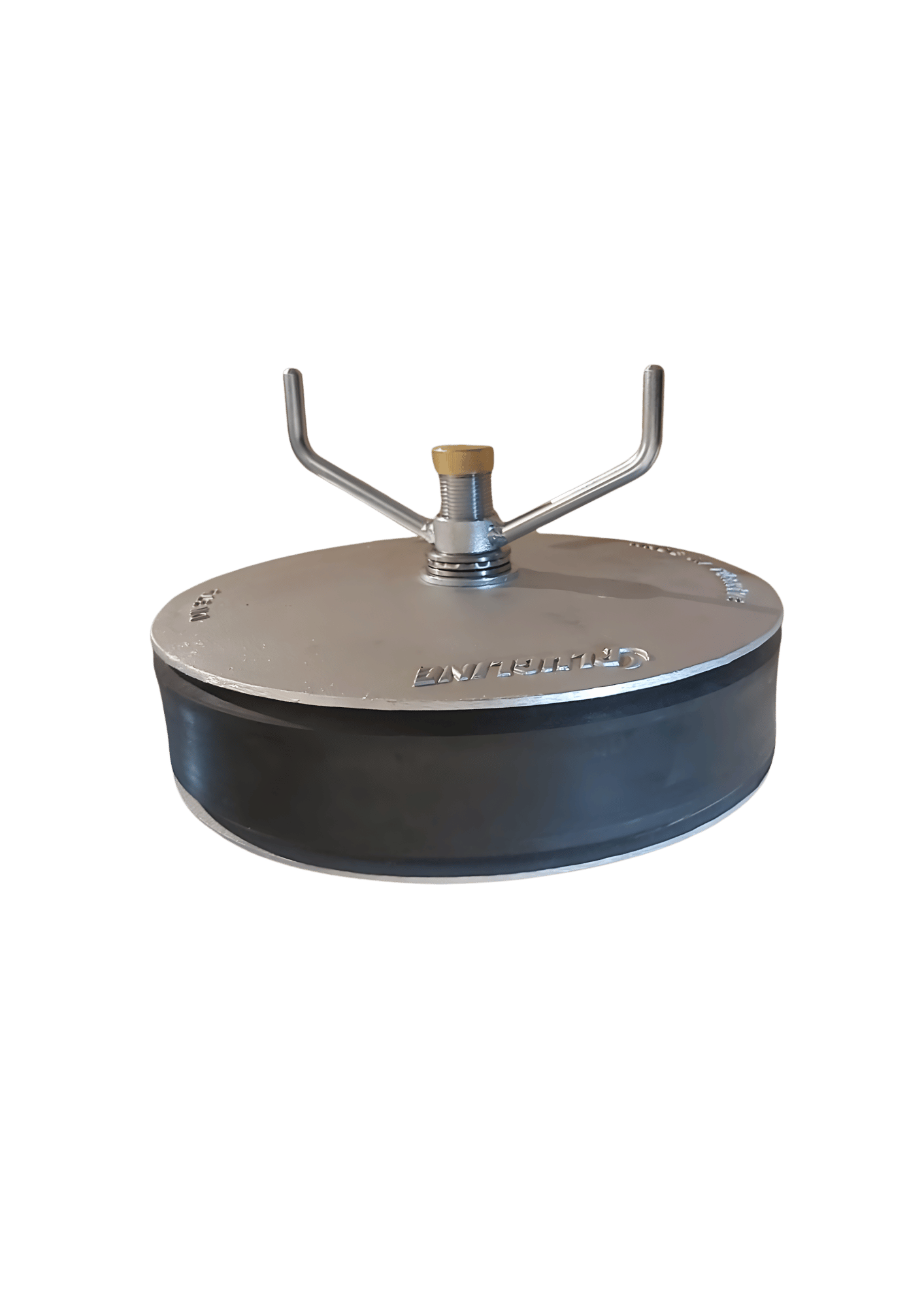

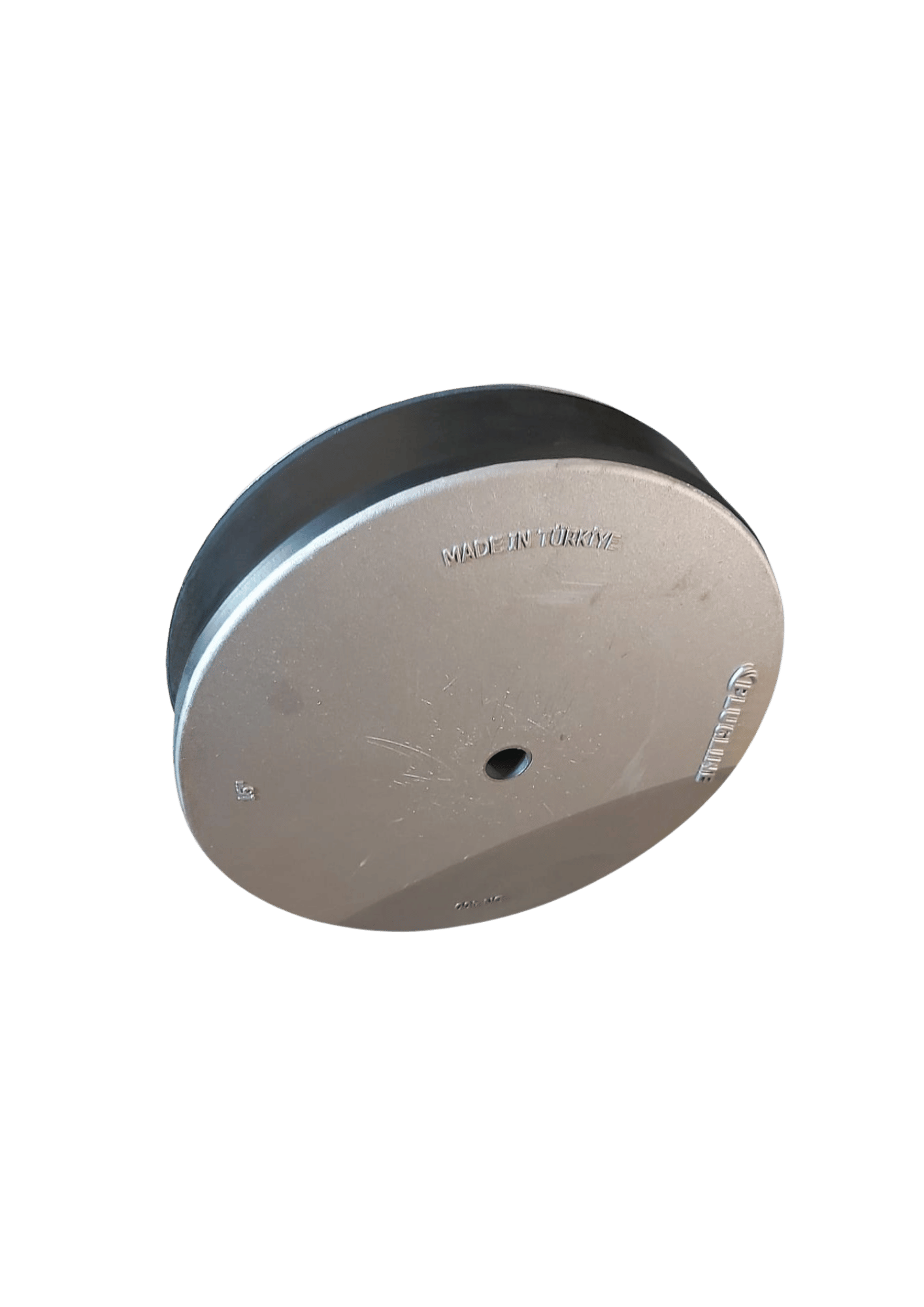

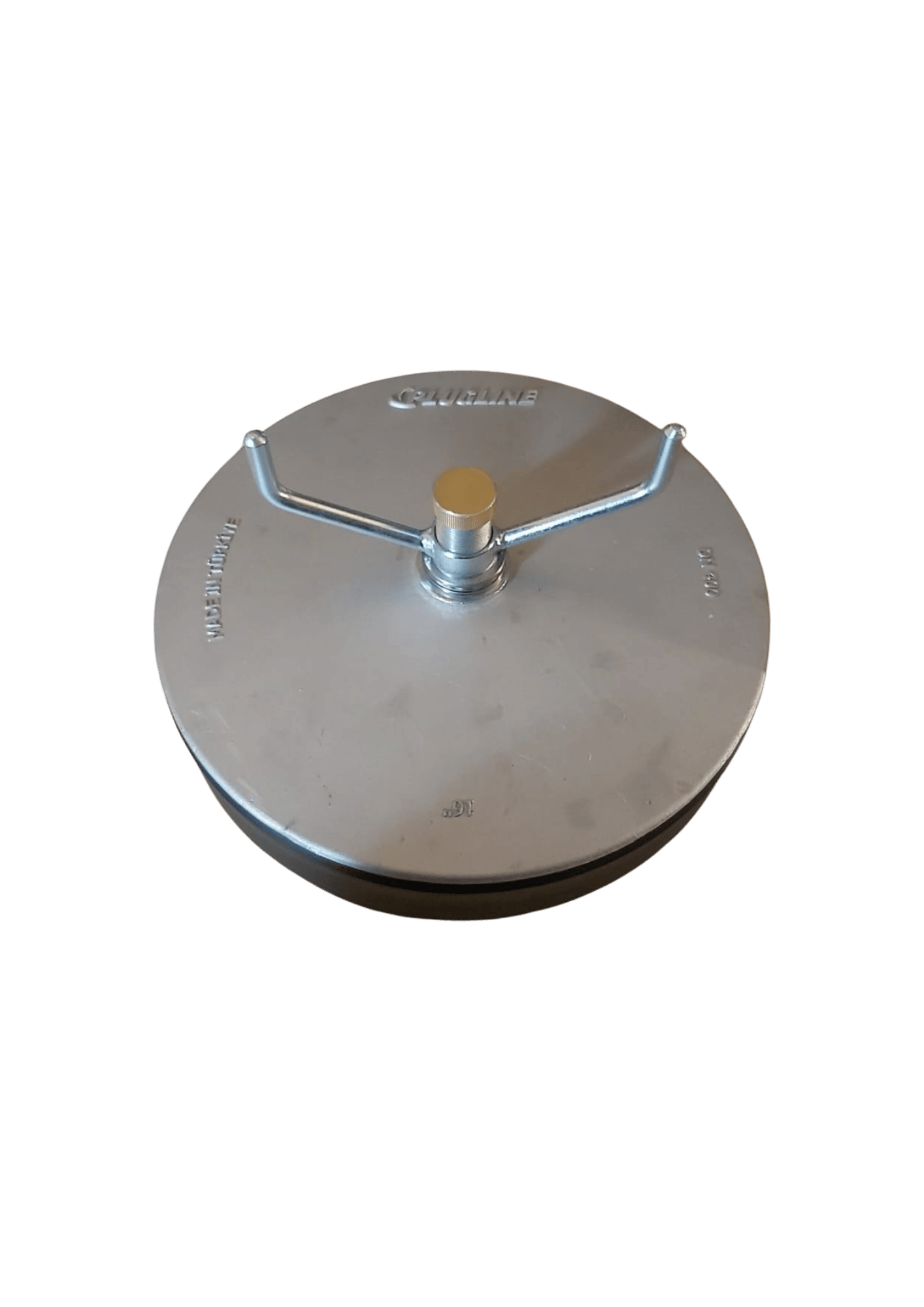

Plugline Aluminum Mechanical Pipe Test Plugs are designed for temporary pipe sealing and low-pressure testing where low weight and easy handling are important.

Compared with steel test plugs, the aluminum body is lighter, corrosion-resistant and easier to position, especially in larger pipe sizes. Its reduced sparking potential also makes it suitable for selected oil, gas and industrial applications, subject to site safety requirements.

The ATP40–ATP900 range covers pipe internal diameters from 39 mm to 930 mm, with maximum back-pressure ratings from 0.2 to 2.5 bar. Depending on the model, bypass connections are available in 1/2", 1" and 2" sizes.

Key advantages:

• Lightweight aluminum construction
• Easier handling than steel plugs
• Good corrosion resistance
• Reduced sparking potential
• Sizes for 39–930 mm pipe internal diameters
• Pressure ratings up to 2.5 bar
• Integrated bypass connection

ALUMINIUM MECHANICAL PIPE TEST PLUGS (0,2 BAR / 2,9 PSI – 2,5 BAR / 36,26 PSI)
Product Code Nominal Size (mm) Minimum Pipe Internal Diameter (mm / in) Maximum Pipe Internal Diameter (mm / in) Product Diameter (mm / in) SCH STD Pipe Internal Diameter (mm / in) Maximum Back Pressure (bar / psi) Bypass Diameter (mm / in) Product Length (mm / in) Product Weight (kg / lb)
remove add
ATP40 40 39 mm / 1.54 in 53 mm / 2.09 in 38 mm / 1.5 in 40.94 mm / 1.61 in 2.5 bar / 36.26 psi 12.70 mm / 1/2 in 85 mm / 3.35 in 0.17 kg / 0.37 lb
remove add
ATP50 50 51 mm / 2.01 in 66 mm / 2.6 in 50 mm / 1.97 in 52.48 mm / 2.07 in 2.5 bar / 36.26 psi 12.70 mm / 1/2 in 85 mm / 3.35 in 0.22 kg / 0.48 lb
remove add
ATP65 65 61 mm / 2.4 in 79 mm / 3.11 in 60 mm / 2.36 in 62.68 mm / 2.47 in 2.5 bar / 36.26 psi 12.70 mm / 1/2 in 85 mm / 3.35 in 0.27 kg / 0.6 lb
remove add
ATP80 80 76 mm / 2.99 in 89 mm / 3.5 in 75 mm / 2.95 in 77.92 mm / 3.07 in 1.5 bar / 21.76 psi 12.70 mm / 1/2 in 85 mm / 3.35 in 0.4 kg / 0.88 lb
remove add
ATP90 90 85 mm / 3.35 in 103 mm / 4.06 in 84 mm / 3.31 in 90.12 mm / 3.55 in 1 bar / 14.5 psi 12.70 mm / 1/2 in 85 mm / 3.35 in 0.5 kg / 1.1 lb
remove add
ATP100 100 99 mm / 3.9 in 112 mm / 4.41 in 98 mm / 3.86 in 102.26 mm / 4.03 in 0.7 bar / 10.15 psi 12.70 mm / 1/2 in 85 mm / 3.35 in 0.8 kg / 1.76 lb
remove add
ATP115 115 110 mm / 4.33 in 128 mm / 5.04 in 109 mm / 4.29 in 117 mm / 4.61 in 0.7 bar / 10.15 psi 12.70 mm / 1/2 in 85 mm / 3.35 in 1.2 kg / 2.64 lb
remove add
ATP125 125 126 mm / 4.96 in 139 mm / 5.47 in 125 mm / 4.92 in 128.2 mm / 5.05 in 0.7 bar / 10.15 psi 12.70 mm / 1/2 in 85 mm / 3.35 in 1.3 kg / 2.87 lb
remove add
ATP140 140 135 mm / 5.31 in 152 mm / 5.98 in 134 mm / 5.28 in 141 mm / 5.55 in 0.7 bar / 10.15 psi 12.70 mm / 1/2 in 85 mm / 3.35 in 1.5 kg / 3.31 lb
remove add
ATP150 150 149 mm / 5.87 in 164 mm / 6.46 in 148 mm / 5.83 in 154.08 mm / 6.07 in 0.5 bar / 7.25 psi 12.70 mm / 1/2 in 85 mm / 3.35 in 1.5 kg / 3.31 lb
remove add
ATP175 175 171 mm / 6.73 in 196 mm / 7.72 in 170 mm / 6.69 in 178 mm / 7.01 in 0.5 bar / 7.25 psi 25.40 mm / 1 in 139 mm / 5.47 in 2.2 kg / 4.85 lb
remove add
ATP200 200 195 mm / 7.68 in 218 mm / 8.58 in 194 mm / 7.64 in 202.64 mm / 7.98 in 0.5 bar / 7.25 psi 25.40 mm / 1 in 134.5 mm / 5.3 in 2.6 kg / 5.73 lb
remove add
ATP225 225 219 mm / 8.62 in 245 mm / 9.65 in 218 mm / 8.58 in 227 mm / 8.94 in 0.5 bar / 7.25 psi 25.40 mm / 1 in 134.5 mm / 5.3 in 3.2 kg / 7.05 lb
remove add
ATP250 250 246 mm / 9.69 in 290 mm / 11.42 in 244 mm / 9.61 in 254.46 mm / 10.02 in 0.5 bar / 7.25 psi 25.40 mm / 1 in 176 mm / 6.93 in 3.6 kg / 7.93 lb
remove add
ATP275 275 272 mm / 10.71 in 305 mm / 12.01 in 270 mm / 10.63 in 279 mm / 10.98 in 0.5 bar / 7.25 psi 25.40 mm / 1 in 200.75 mm / 7.9 in 4 kg / 8.82 lb
remove add
ATP300 300 297 mm / 11.69 in 335 mm / 13.19 in 295 mm / 11.61 in 304.84 mm / 12 in 0.5 bar / 7.25 psi 25.40 mm / 1 in 208.75 mm / 8.22 in 4.5 kg / 9.92 lb
remove add
ATP325 325 315 mm / 12.4 in 355 mm / 13.98 in 310 mm / 12.2 in — 0.5 bar / 7.25 psi 25.40 mm / 1 in 130 mm / 5.12 in 5 kg / 11.02 lb
remove add
ATP350 350 337 mm / 13.27 in 380 mm / 14.96 in 335 mm / 13.19 in 336.54 mm / 13.25 in 0.5 bar / 7.25 psi 25.40 mm / 1 in 130 mm / 5.12 in 5.5 kg / 12.12 lb
remove add
ATP375 375 365 mm / 14.37 in 405 mm / 15.94 in 360 mm / 14.17 in — 0.3 bar / 4.35 psi 25.40 mm / 1 in 130 mm / 5.12 in 6 kg / 13.22 lb
remove add
ATP400 400 387 mm / 15.24 in 430 mm / 16.93 in 385 mm / 15.16 in 387.34 mm / 15.25 in 0.3 bar / 4.35 psi 25.40 mm / 1 in 130 mm / 5.12 in 6.6 kg / 14.55 lb
remove add
ATP425 425 415 mm / 16.34 in 455 mm / 17.91 in 410 mm / 16.14 in — 0.3 bar / 4.35 psi 25.40 mm / 1 in 130 mm / 5.12 in 7.5 kg / 16.53 lb
remove add
ATP450 450 438 mm / 17.24 in 480 mm / 18.9 in 435 mm / 17.13 in 437.94 mm / 17.24 in 0.3 bar / 4.35 psi 25.40 mm / 1 in 130 mm / 5.12 in 8.2 kg / 18.07 lb
remove add
ATP475 475 465 mm / 18.31 in 505 mm / 19.88 in 460 mm / 18.11 in — 0.3 bar / 4.35 psi 25.40 mm / 1 in 130 mm / 5.12 in 10 kg / 22.04 lb
remove add
ATP500 500 489 mm / 19.25 in 530 mm / 20.87 in 485 mm / 19.09 in 488.94 mm / 19.25 in 0.3 bar / 4.35 psi 50.80 mm / 2 in 130 mm / 5.12 in 11.8 kg / 26.01 lb
remove add
ATP525 525 515 mm / 20.28 in 555 mm / 21.85 in 510 mm / 20.08 in — 0.3 bar / 4.35 psi 50.80 mm / 2 in 130 mm / 5.12 in 12.5 kg / 27.55 lb
remove add
ATP550 550 540 mm / 21.26 in 580 mm / 22.83 in 535 mm / 21.06 in 539.94 mm / 21.26 in 0.2 bar / 2.9 psi 50.80 mm / 2 in 130 mm / 5.12 in 13.1 kg / 28.87 lb
remove add
ATP575 575 565 mm / 22.24 in 605 mm / 23.82 in 560 mm / 22.05 in — 0.2 bar / 2.9 psi 50.80 mm / 2 in 130 mm / 5.12 in 15 kg / 33.06 lb
remove add
ATP600 600 590 mm / 23.23 in 630 mm / 24.8 in 585 mm / 23.03 in 590.94 mm / 23.27 in 0.2 bar / 2.9 psi 50.80 mm / 2 in 130 mm / 5.12 in 16.6 kg / 36.59 lb
remove add
ATP625 625 615 mm / 24.21 in 655 mm / 25.79 in 610 mm / 24.02 in — 0.2 bar / 2.9 psi 50.80 mm / 2 in 130 mm / 5.12 in 19 kg / 41.88 lb
remove add
ATP650 650 640 mm / 25.2 in 680 mm / 26.77 in 635 mm / 25 in 640.94 mm / 25.23 in 0.2 bar / 2.9 psi 50.80 mm / 2 in 130 mm / 5.12 in 21 kg / 46.28 lb
remove add
ATP675 675 665 mm / 26.18 in 705 mm / 27.76 in 660 mm / 25.98 in — 0.2 bar / 2.9 psi 50.80 mm / 2 in 130 mm / 5.12 in 25 kg / 55.1 lb
remove add
ATP700 700 690 mm / 27.17 in 730 mm / 28.74 in 685 mm / 26.97 in 691.94 mm / 27.24 in 0.2 bar / 2.9 psi 50.80 mm / 2 in 130 mm / 5.12 in 29 kg / 63.92 lb
remove add
ATP725 725 715 mm / 28.15 in 755 mm / 29.72 in 710 mm / 27.95 in — 0.2 bar / 2.9 psi 50.80 mm / 2 in 130 mm / 5.12 in 30.5 kg / 67.22 lb
remove add
ATP750 750 740 mm / 29.13 in 780 mm / 30.71 in 735 mm / 28.94 in 742.94 mm / 29.25 in 0.2 bar / 2.9 psi 50.80 mm / 2 in 130 mm / 5.12 in 32 kg / 70.53 lb
remove add
ATP775 775 765 mm / 30.12 in 805 mm / 31.69 in 760 mm / 29.92 in — 0.2 bar / 2.9 psi 50.80 mm / 2 in 130 mm / 5.12 in 33.5 kg / 73.83 lb
remove add
ATP800 800 790 mm / 31.1 in 830 mm / 32.68 in 785 mm / 30.91 in 793.94 mm / 31.26 in 0.2 bar / 2.9 psi 50.80 mm / 2 in 130 mm / 5.12 in 35 kg / 77.14 lb
remove add
ATP825 825 815 mm / 32.09 in 855 mm / 33.66 in 810 mm / 31.89 in — 0.2 bar / 2.9 psi 50.80 mm / 2 in 130 mm / 5.12 in 36.5 kg / 80.45 lb
remove add
ATP850 850 840 mm / 33.07 in 880 mm / 34.65 in 835 mm / 32.87 in 844.94 mm / 33.27 in 0.2 bar / 2.9 psi 50.80 mm / 2 in 130 mm / 5.12 in 38 kg / 83.75 lb
remove add
ATP875 875 865 mm / 34.06 in 905 mm / 35.63 in 860 mm / 33.86 in — 0.2 bar / 2.9 psi 50.80 mm / 2 in 130 mm / 5.12 in 39.5 kg / 87.06 lb
remove add
ATP900 900 890 mm / 35.04 in 930 mm / 36.61 in 885 mm / 34.84 in 894.94 mm / 35.23 in 0.2 bar / 2.9 psi 50.80 mm / 2 in 130 mm / 5.12 in 40.6 kg / 89.48 lb
