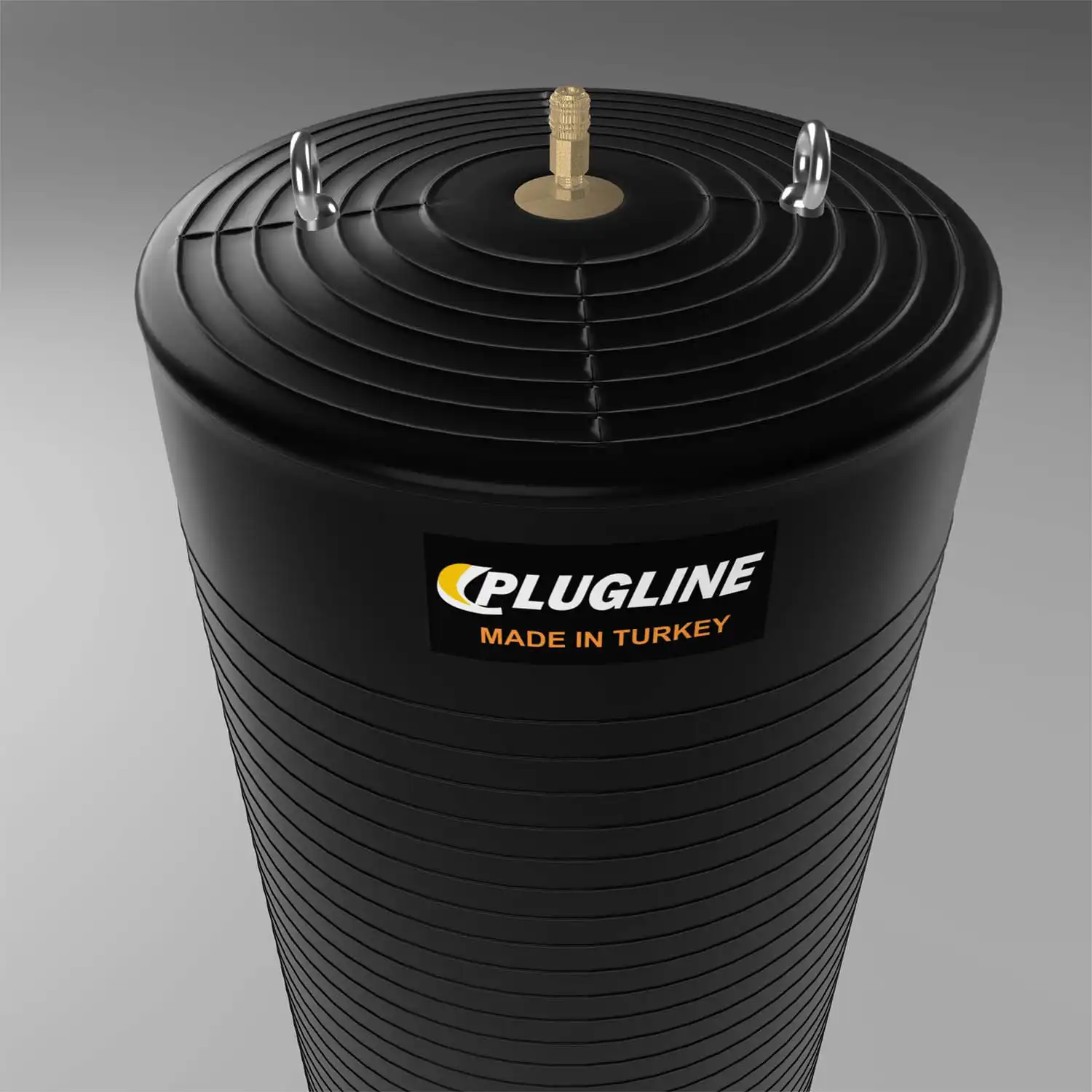

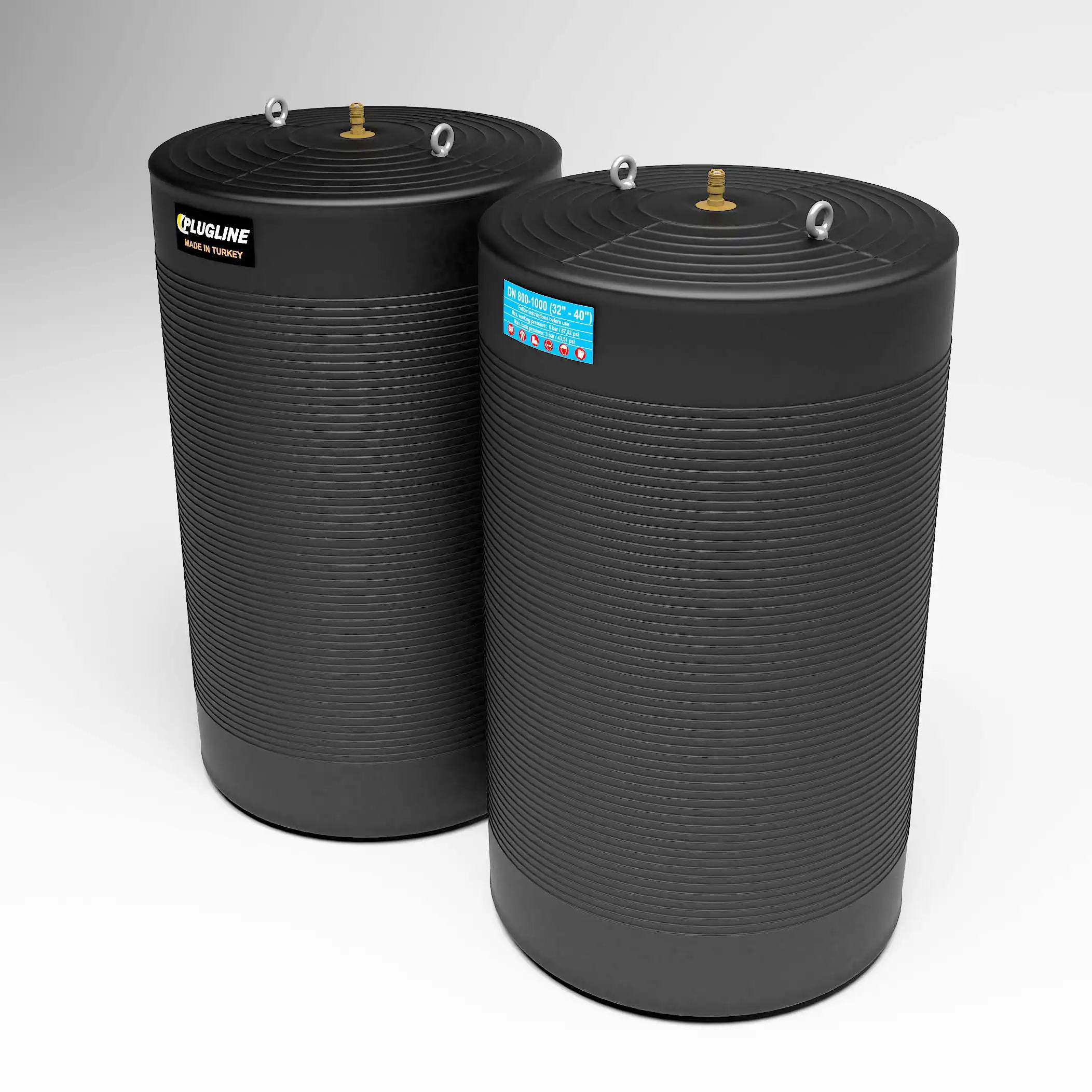

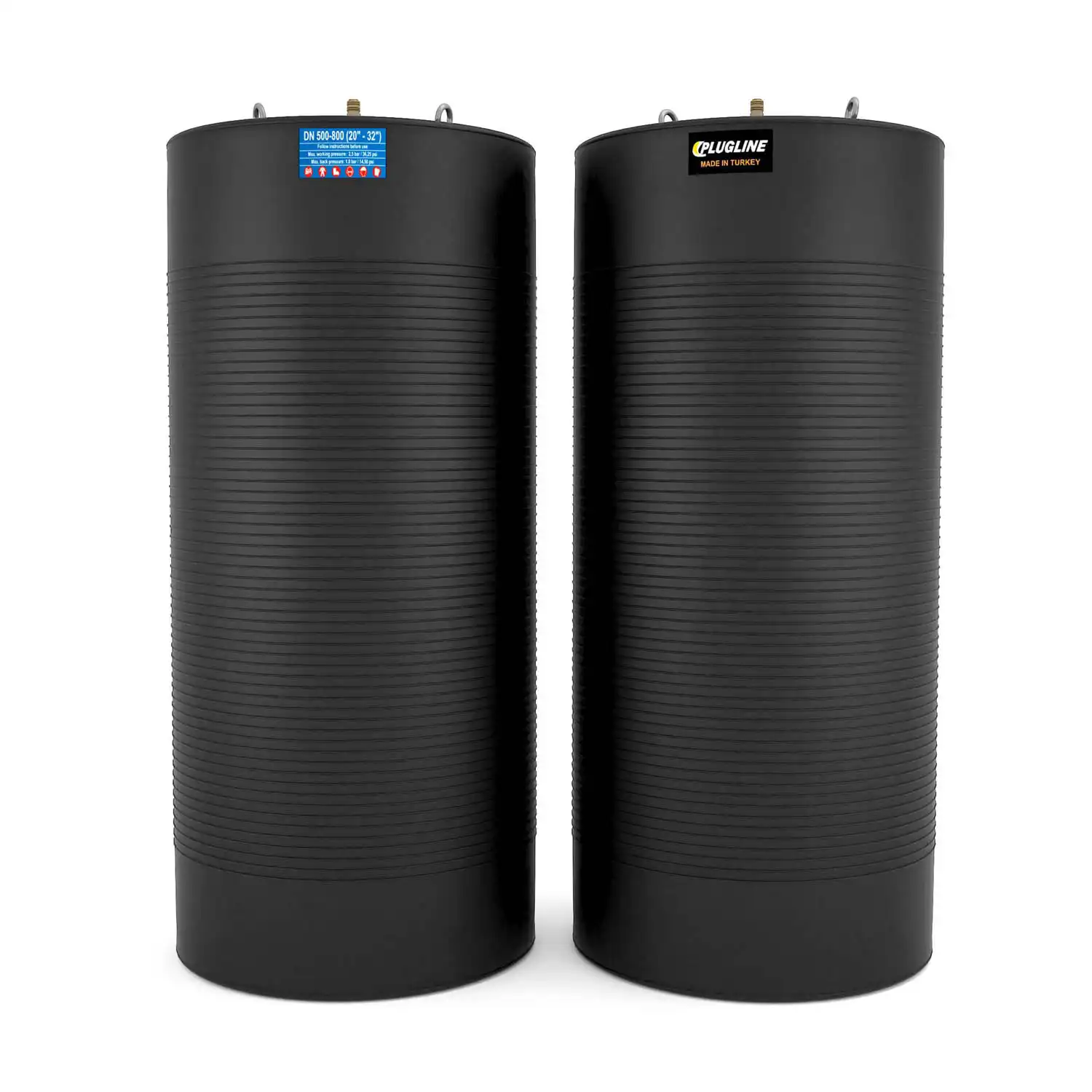

Пневматические Заглушки Высокого Давления(6,0 Bar-12,0 Bar)
• Предназначены для герметизации и блокировки канализационных коллекторов, дренажных систем, трубопроводов и водостоков, обратное давление в которых превышает диапазон стандартных пробок.
• Изготовлены из высококачественного специального резинового армированного покрытия, из арамида сверху донизу.

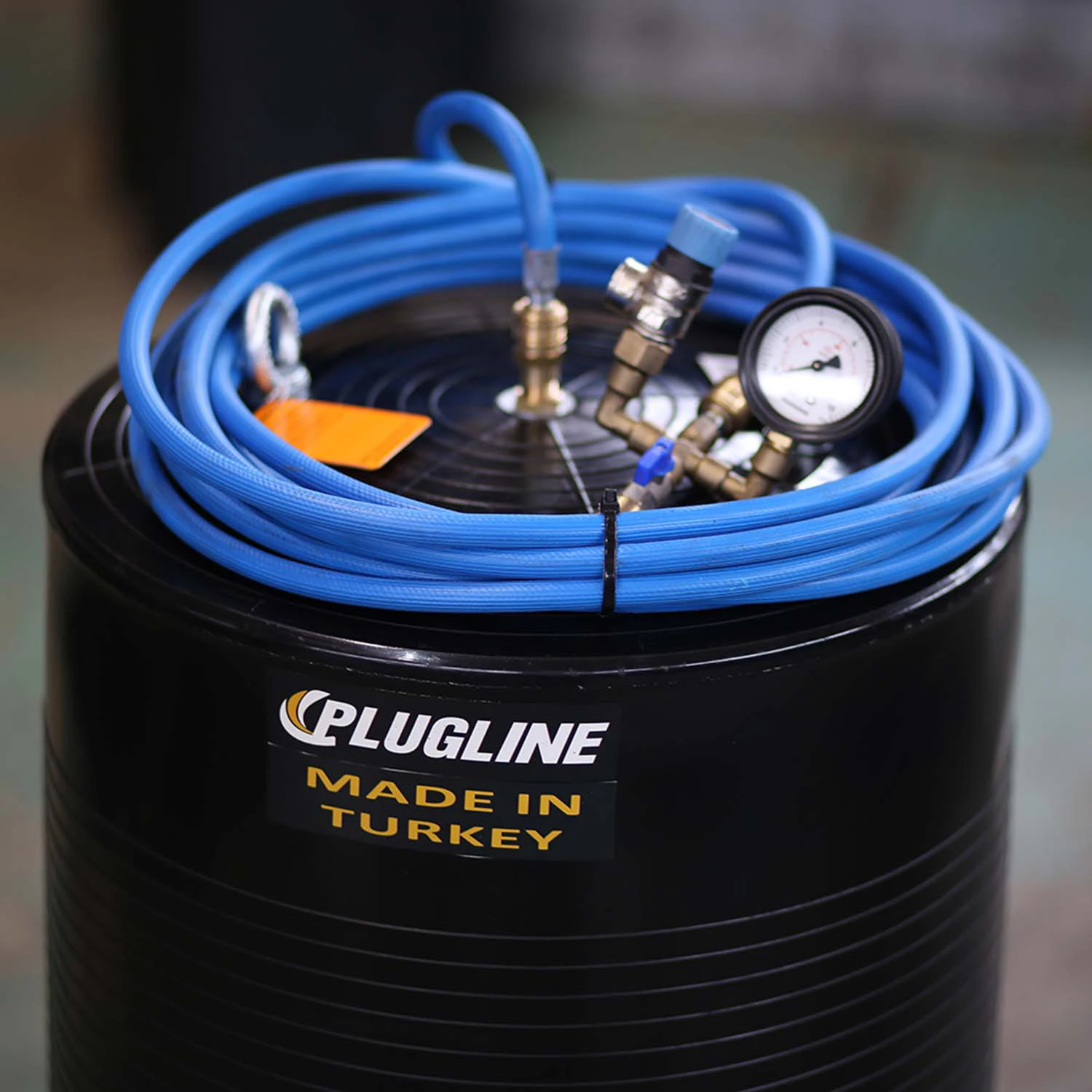

• Оснащены быстроразъемными соединениями и ниппелями.
• Гарантируют безопасную работу и надежность в системах блокировки высокого давления.
• Оснащены болтами с гайками, которые легко перемещаются и устанавливаются в трубы.

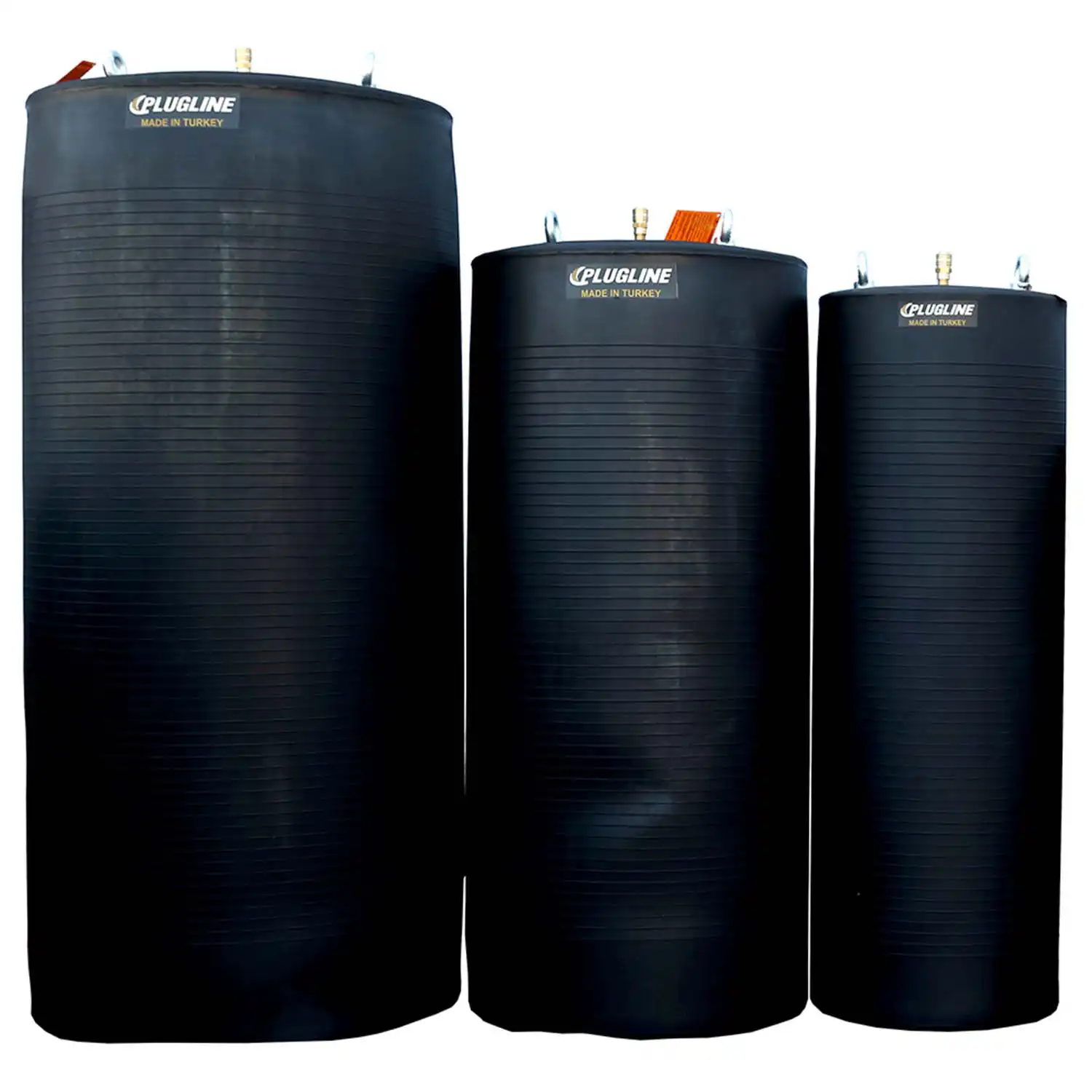

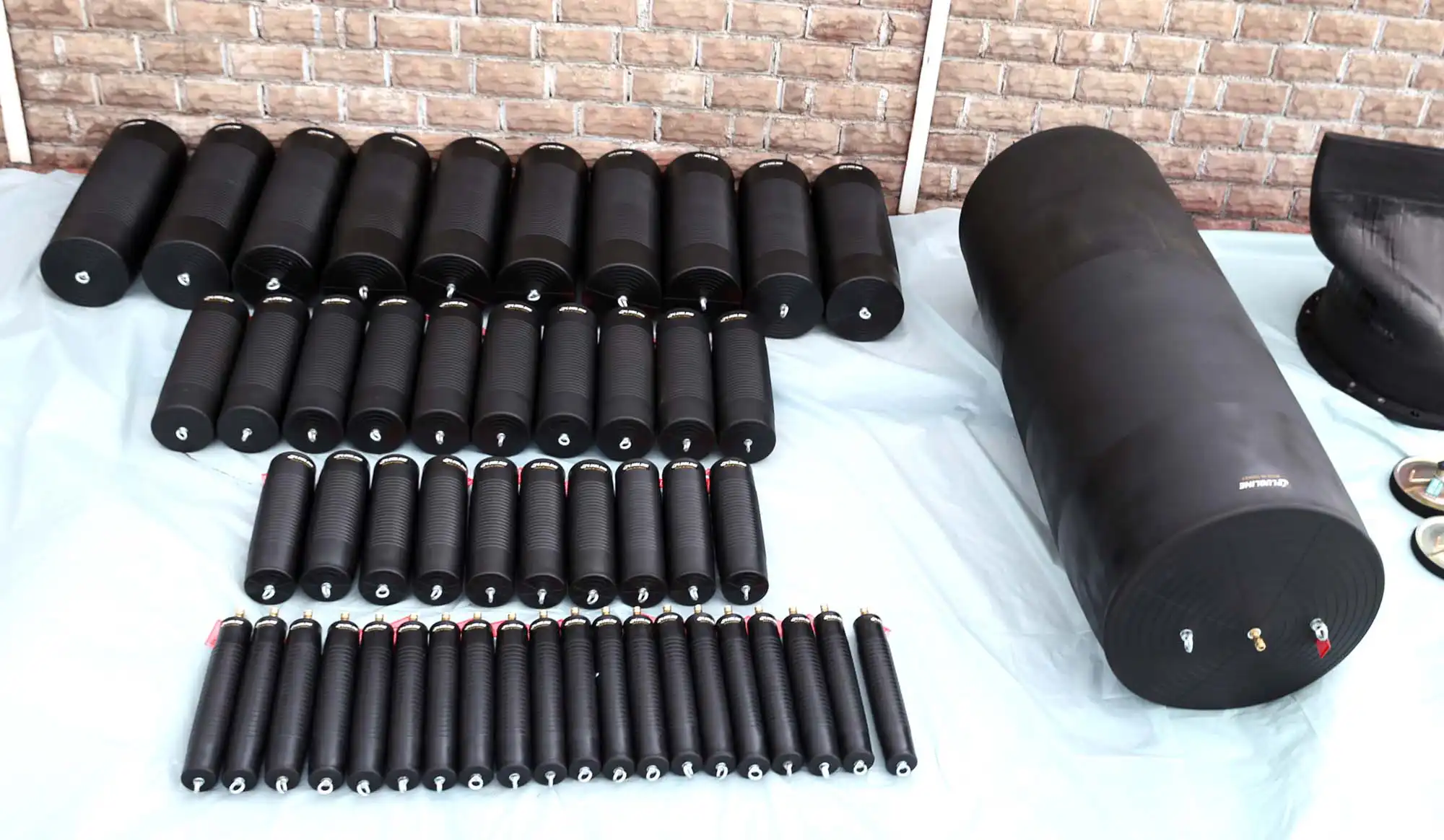

• Доступны для труб диаметром от 50 мм (1,96 дюйма) до 2000 мм (78,74 дюйма), более крупные размеры производятся по желанию заказчика
• Производятся с рабочим давлением 6,0 Бар (87,02 psi), 12,0 бар (174,04 psi), до 130,0 Бар (1885,49 psi) по желанию заказчика.
• Могут использоваться при температурах от -40 °C (-40 °F) до 70 °C (158 °F).
• Устойчивы к воздействию окружающей среды.
| Product Code | Nominal Size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Max. Working Pressure (bar/psi) | Back Pressure(bar/psi) | Product Diameter (mm/inch) | Total Length of Product (mm/inch) | Product Weight(kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|---|
|
remove
add
|
IHS5070 | 50-70 | 50mm/1,97" | 70mm/2,76" | 6,0bar/87,02psi | 3,0bar/43,51psi | 45mm/1,77" | 280mm/11,02" | 0,4kg/0,88lbs |
|
remove
add
|
IHS70100 | 70-100 | 70mm/2,76" | 100mm/3,93" | 6,0bar/87,02psi | 3,0bar/43,51psi | 65mm/2,51" | 320mm/12,0" | 0,6kg/1,32lbs |
|
remove
add
|
IHS100150 | 100-150 | 100mm/3,93" | 150mm/5,90" | 6,0bar/87,02psi | 3,0bar/43,51psi | 88mm/3,46" | 550mm/21,65" | 1,0kg/2,20Ibs |
|
remove
add
|
IHS150200 | 150-200 | 150mm/5,90" | 200mm/7,87" | 6,0bar/87,02psi | 3,0bar/43,51psi | 138mm/5,43" | 550mm/21,65" | 1,2kg/2,64Ibs |
|
remove
add
|
IHS200300 | 200-300 | 200mm/7,87" | 300mm/11,81" | 6,0bar/87,02psi | 3,0bar/43,51psi | 185mm/7,28" | 650mm/25,59" | 3,4kg/7,49Ibs |
|
remove
add
|
IHS300400 | 300-400 | 300mm/11,81" | 400mm/15,74" | 6,0bar/87,02psi | 3,0bar/43,51psi | 285mm/11,22" | 850mm/33,46" | 6,6kg/14,55Ibs |
|
remove
add
|
IHS375500 | 375-500 | 375mm/14,76" | 500mm/19,68" | 6,0bar/87,02psi | 3,0bar/43,51psi | 380mm/14,96" | 1000mm/39,37" | 9,4kg/20,72Ibs |
|
remove
add
|
IHS500600 | 500-600 | 500mm/19,68" | 600mm/23,62" | 6,0bar/87,02psi | 3,0bar/43,51psi | 485mm/19,09" | 1150mm/45,27" | 23,0kg/50,70Ibs |
|
remove
add
|
IHS600700 | 600-700 | 600mm/23,62" | 700mm/27,55" | 6,0bar/87,02psi | 3,0bar/43,51psi | 585mm/23,03" | 1300mm/51,18" | 25,5kg/56,21Ibs |
|
remove
add
|
IHS8001000 | 800-1000 | 800mm/31,49" | 1000mm/39,37" | 6,0bar/87,02psi | 3,0bar/43,51psi | 785mm/30,90" | 1300mm/51,18" | 40,0kg/88,18Ibs |
|
remove
add
|
IHS12001400 | 1200-1400 | 1200mm/47,24" | 1400mm/55,11" | 6,0bar/87,02psi | 3,0bar/43,51psi | 1180mm/46,45" | 1500mm/59,05" | 140,0kg/308,56lbs |
|
remove
add
|
IHS18002000 | 1800-2000 | 1800mm/70,86" | 2000mm/78,74 | 6,0bar/87,02psi | 3,0bar/43,51psi | 1780mm/70,07" | 1000mm/39,37" | 250,0kg/551,0lbs |
| Product Code | Nominal Size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Max. Working Pressure (bar/psi) | Back Pressure (bar/psi) | Product Diameter (mm/inch) | Total Length of Product (mm/inch) | Product Weight(kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|---|
|
remove
add
|
IHS50 | 50 | 50mm/1,97 | 50mm/1,97 | 12,0bar/174,04psi | 6,0bar/87,02psi | 45mm/1,77" | 280mm/11,02" | 0,4kg/0,88lbs |
|
remove
add
|
IHS70 | 70 | 70mm/2,76" | 70mm/2,76" | 12,0bar/174,04psi | 6,0bar/87,02psi | 65mm/2,51" | 320mm/12,60" | 0,6kg/1,32lbs |
|
remove
add
|
IHS100 | 100 | 100mm/3,93" | 100mm/3,93" | 12,0bar/174,04psi | 6,0bar/87,02psi | 88mm/3,46" | 550mm/21,65" | 1,0kg/2,20Ibs |
|
remove
add
|
IHS125 | 125 | 125mm/4,92" | 125mm/4,92" | 12,0bar/174,04psi | 6,0bar/87,02psi | 88mm/3,46" | 550mm/21,65" | 1,0kg/2,20Ibs |
|
remove
add
|
IHS150 | 150 | 150mm/5,90" | 150mm/5,90" | 12,0bar/174,04psi | 6,0bar/87,02psi | 138mm/5,43" | 550mm/21,65" | 1,2kg/2,64Ibs |
|
remove
add
|
IHS200 | 200 | 200mm/7,87" | 200mm/7,87" | 12,0bar/174,04psi | 6,0bar/87,02psi | 185mm/7,28" | 650mm/25,59" | 3,4kg/7,49Ibs |
|
remove
add
|
IHS250 | 250 | 250mm/9,84" | 250mm/9,84" | 12,0bar/174,04psi | 6,0bar/87,02psi | 185mm/7,28" | 650mm/25,59" | 3,4kg/7,49Ibs |
|
remove
add
|
IHS300 | 300 | 300mm/11,81" | 300mm/11,81" | 12,0bar/174,04psi | 6,0bar/87,02psi | 285mm/11,22" | 850mm/33,46" | 6,6kg/14,55Ibs |
|
remove
add
|
IHS350 | 350 | 350mm/13,78" | 350mm/13,78" | 12,0bar/174,04psi | 6,0bar/87,02psi | 285mm/11,22" | 850mm/33,46" | 6,6kg/14,55Ibs |
|
remove
add
|
IHS400 | 400 | 400mm/15,74" | 400mm/15,74" | 12,0bar/174,04psi | 6,0bar/87,02psi | 360mm/14,17" | 1000mm/39,37" | 10,0kg/22,05lbs |
|
remove
add
|
IHS450 | 450 | 450mm/17,72" | 450mm/17,72" | 12,0bar/174,04psi | 6,0bar/87,02psi | 360mm/14,17" | 1000mm/39,37" | 10,0kg/22,05lbs |
|
remove
add
|
IHS500 | 500 | 500mm/19,68" | 500mm/19,68" | 12,0bar/174,04psi | 6,0bar/87,02psi | 485mm/19,09" | 1150mm/45,27" | 23,0kg/50,70Ibs |
|
remove
add
|

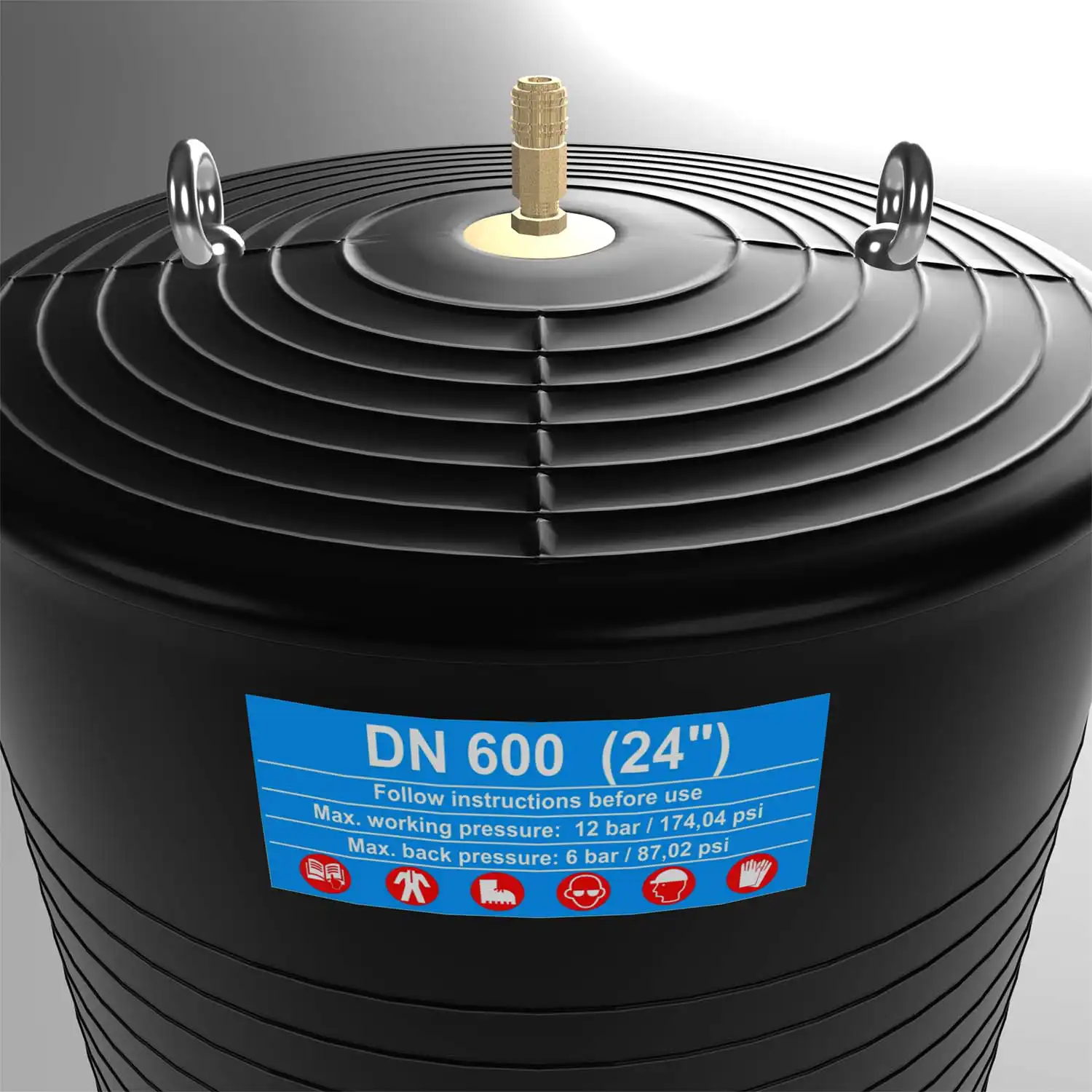

IHS600 | 600 | 600mm/23,62" | 600mm/23,62" | 12,0bar/174,04psi | 6,0bar/87,02psi | 585mm/23,03" | 1300mm/51,18" | 25,5kg/56,21Ibs |
|
remove
add
|
IHS650 | 650 | 650mm/25,59" | 650mm/25,59" | 12,0bar/174,04psi | 6,0bar/87,02psi | 585mm/23,03" | 1300mm/51,18" | 25,5kg/56,21Ibs |
|
remove
add
|
IHS700 | 700 | 700mm/27,56" | 700mm/27,56" | 12,0bar/174,04psi | 6,0bar/87,02psi | 585mm/23,03" | 1300mm/51,18" | 25,5kg/56,21Ibs |
|
remove
add
|
IHS800 | 800 | 800mm/31,49" | 800mm/31,49" | 12,0bar/174,04psi | 6,0bar/87,02psi | 785mm/30,90" | 1300mm/51,18" | 40,0kg/88,18Ibs |
|
remove
add
|
IHS1200 | 1200 | 1200mm/47,24" | 1200mm/47,24" | 12,0bar/174,04psi | 6,0bar/87,02psi | 1180mm/46,45" | 1500mm/59,05" | 140,0kg/308,56lbs |
|
remove
add
|
IHS1800 | 1800 | 1800mm/70,86" | 1800mm/70,86" | 12,0bar/174,04psi | 6,0bar/87,02psi | 1780mm/70,07" | 1000mm/39,37" | 250,0kg/551,0lbs |
