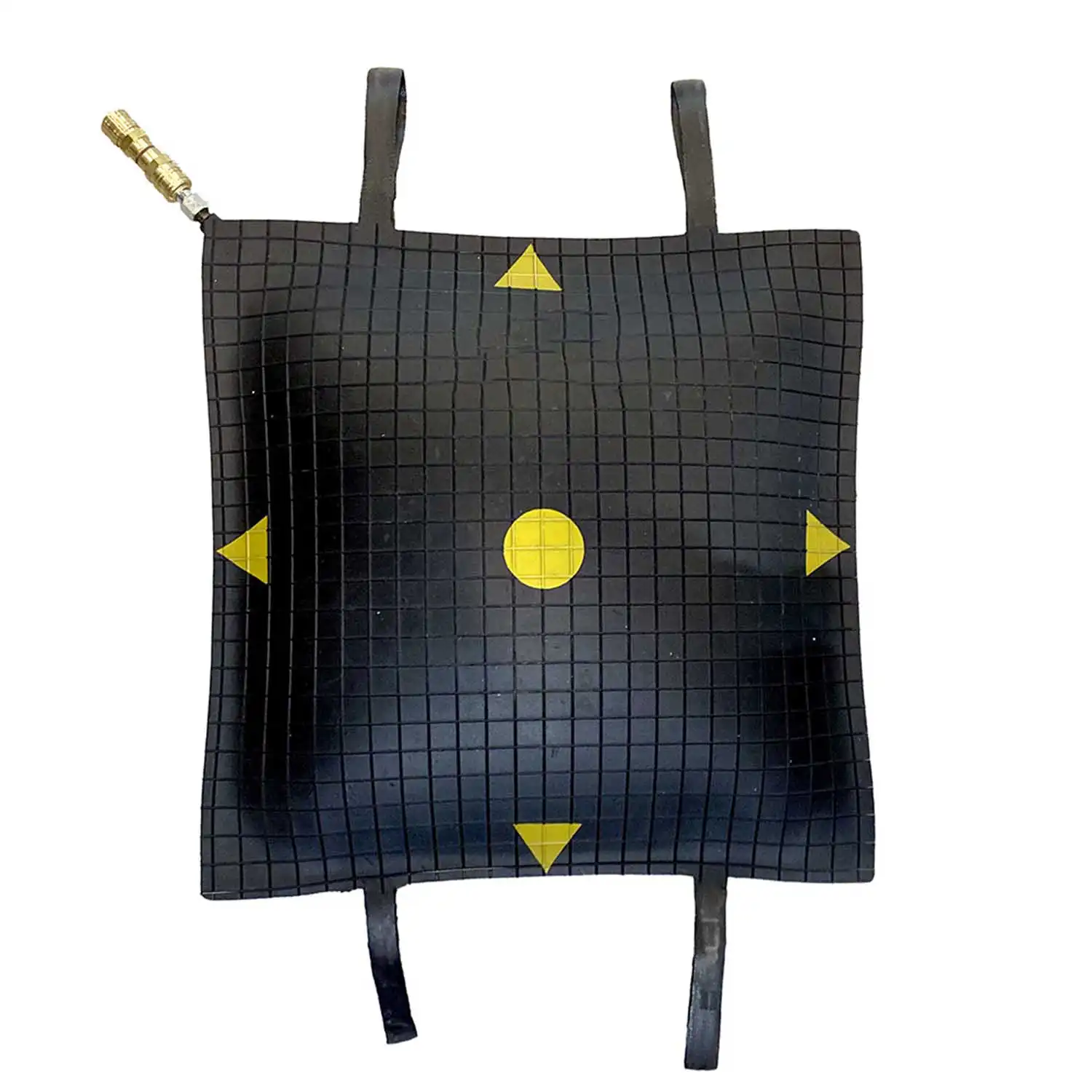

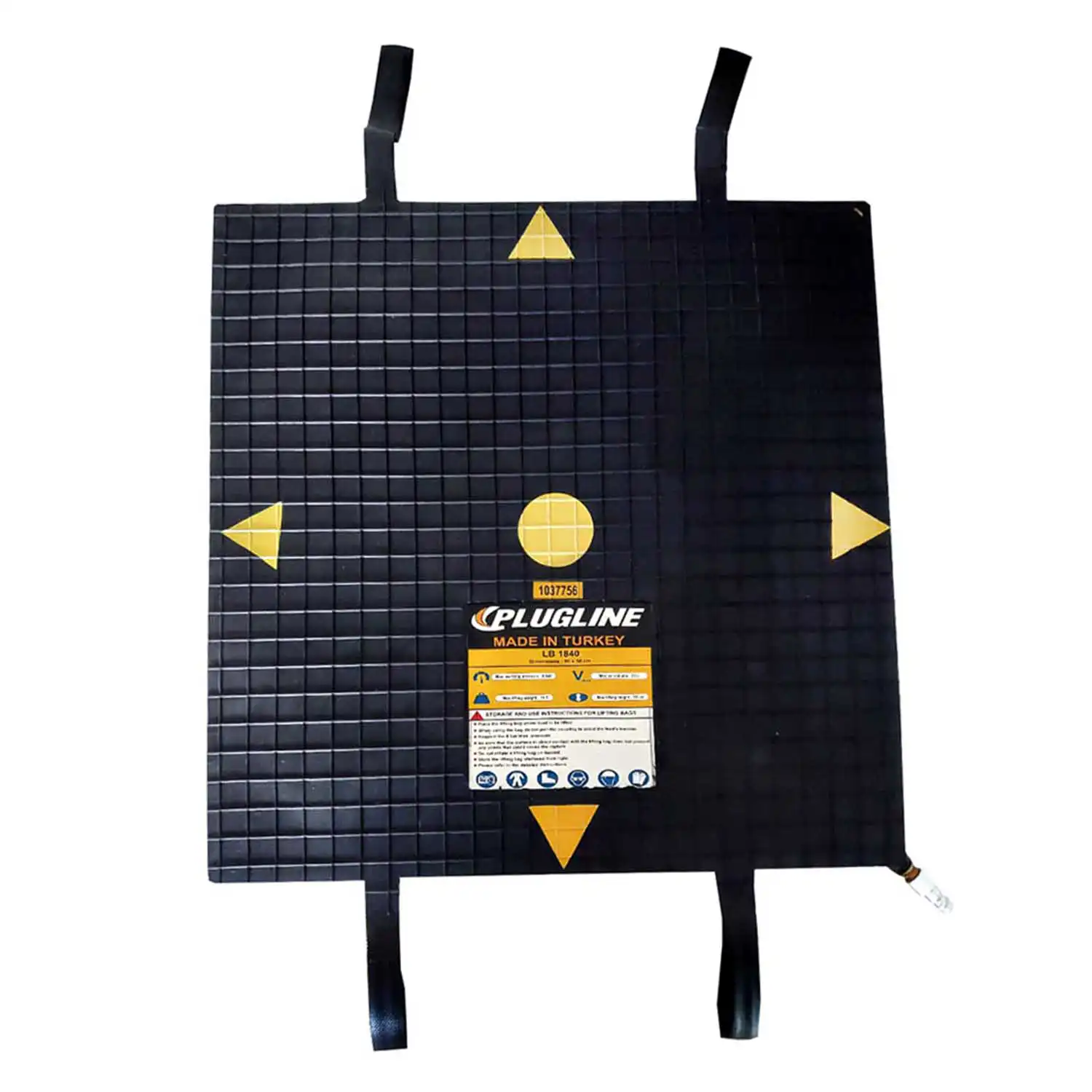

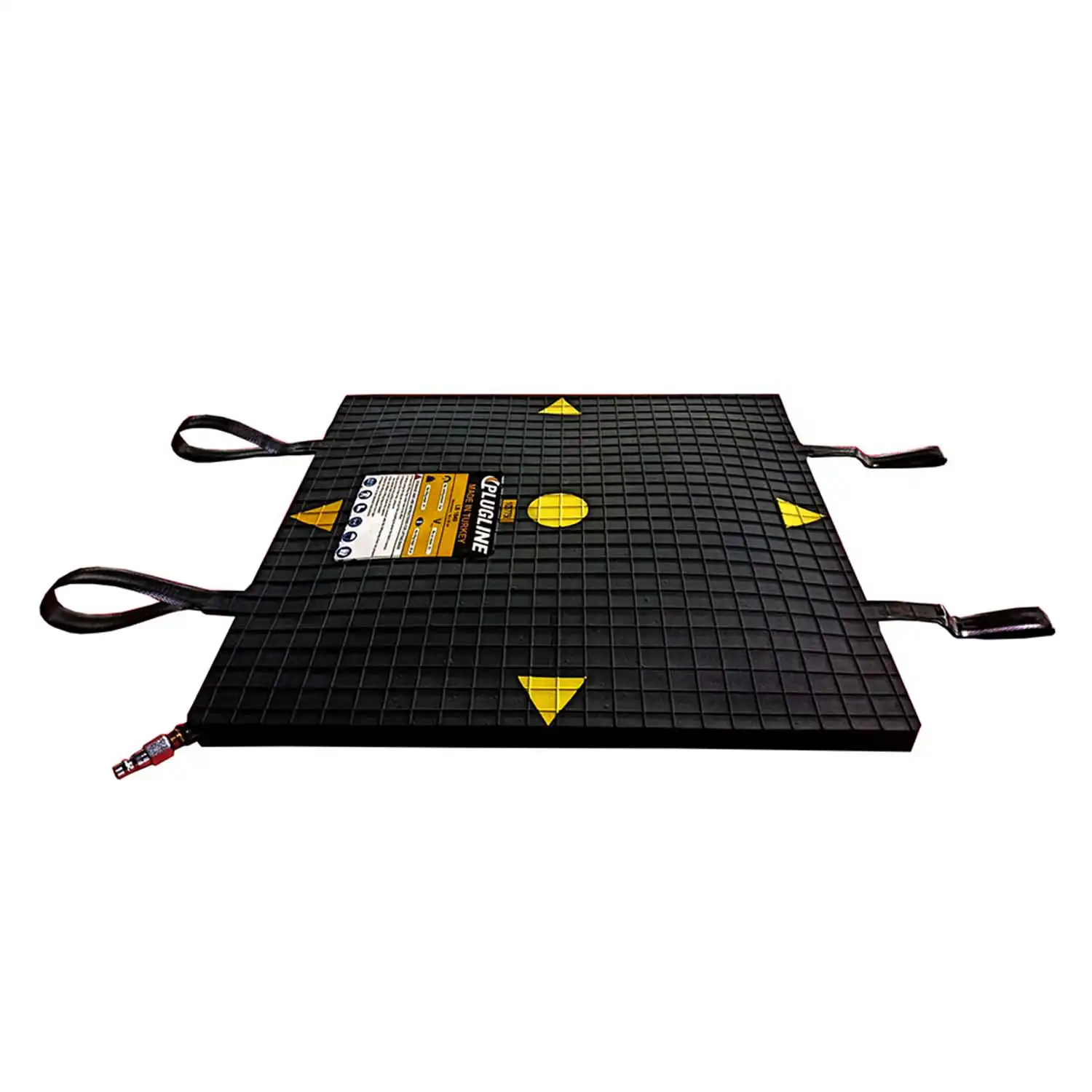

Спасательные Пневматические Домкраты 1 to 76 tons
- Легкий и легко переносимый.

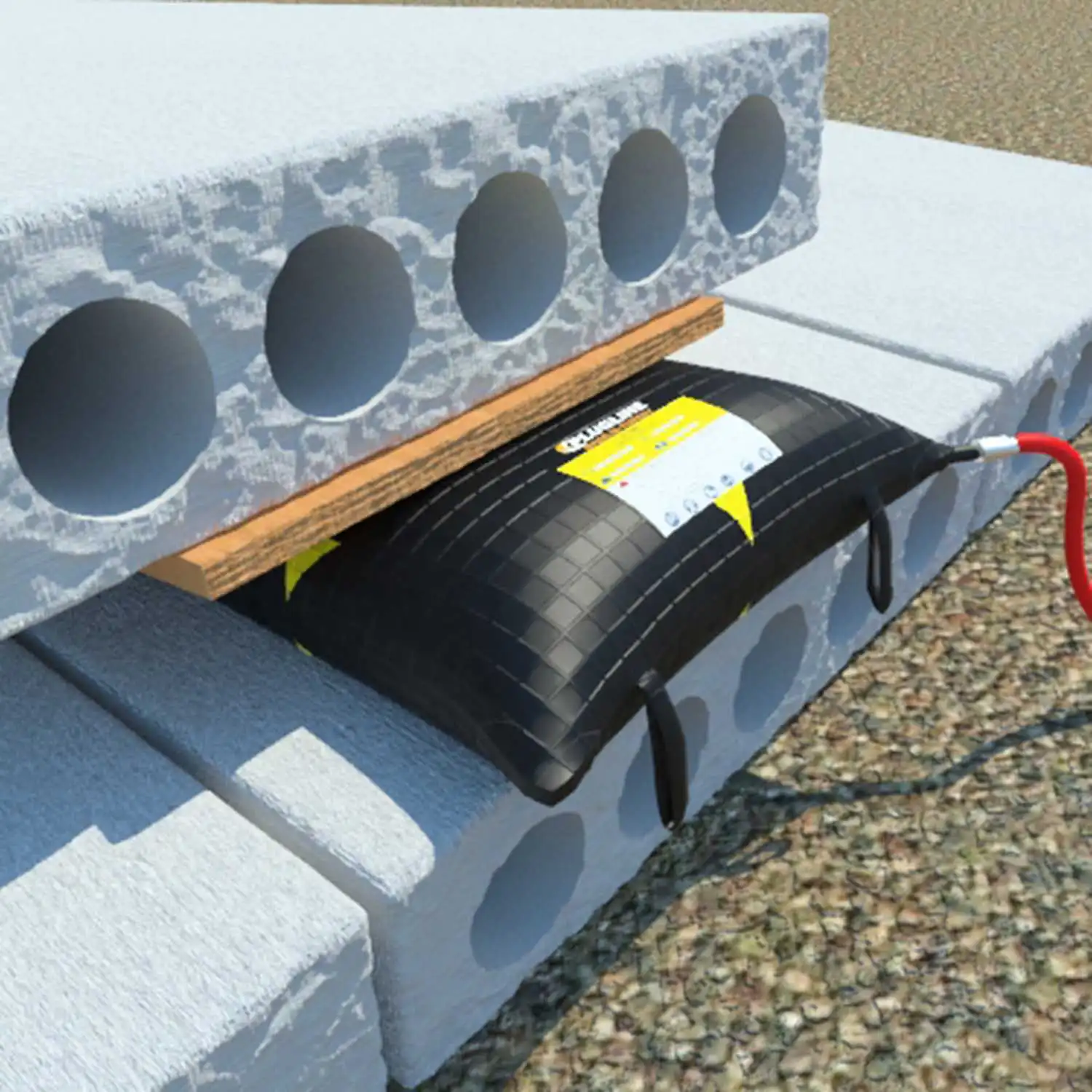

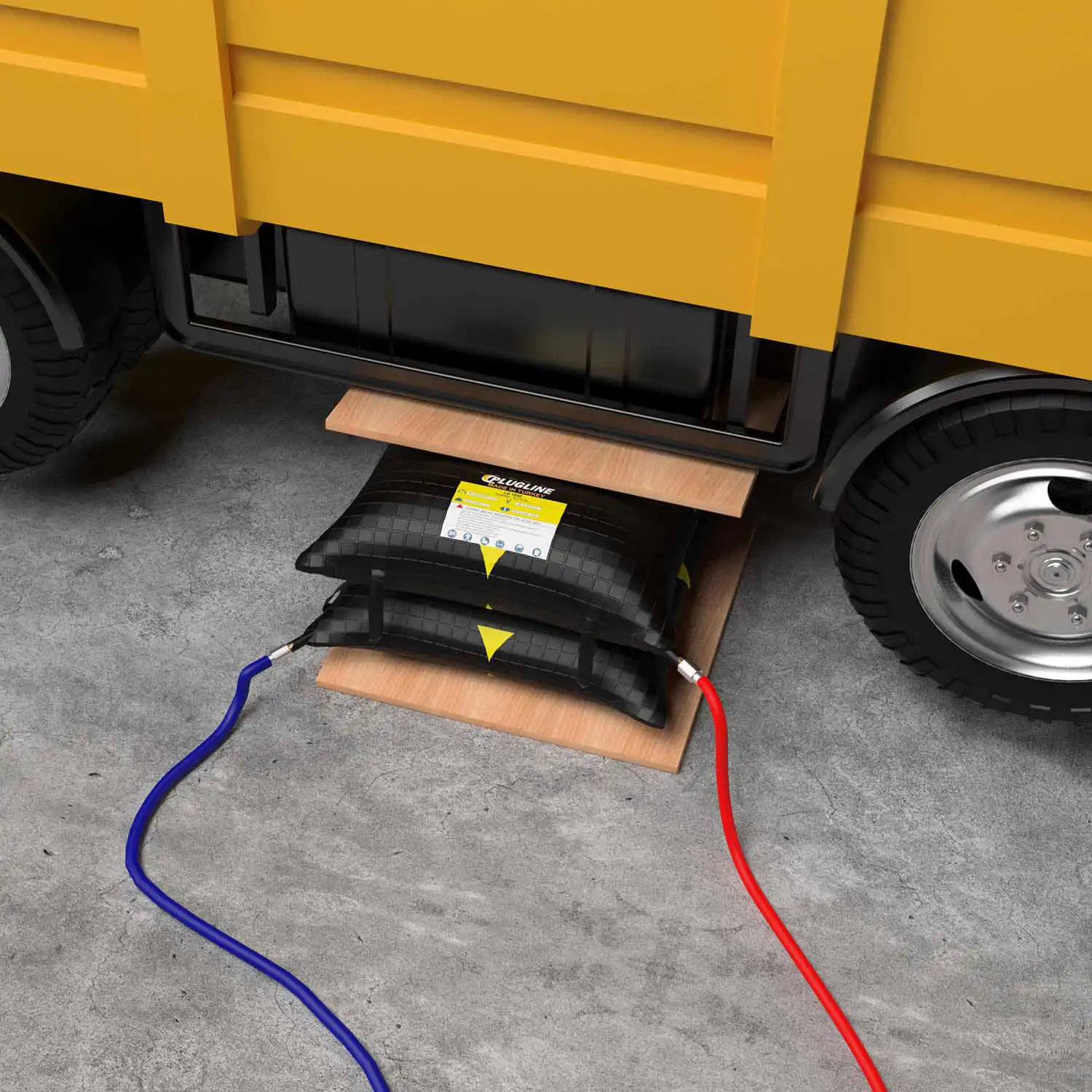

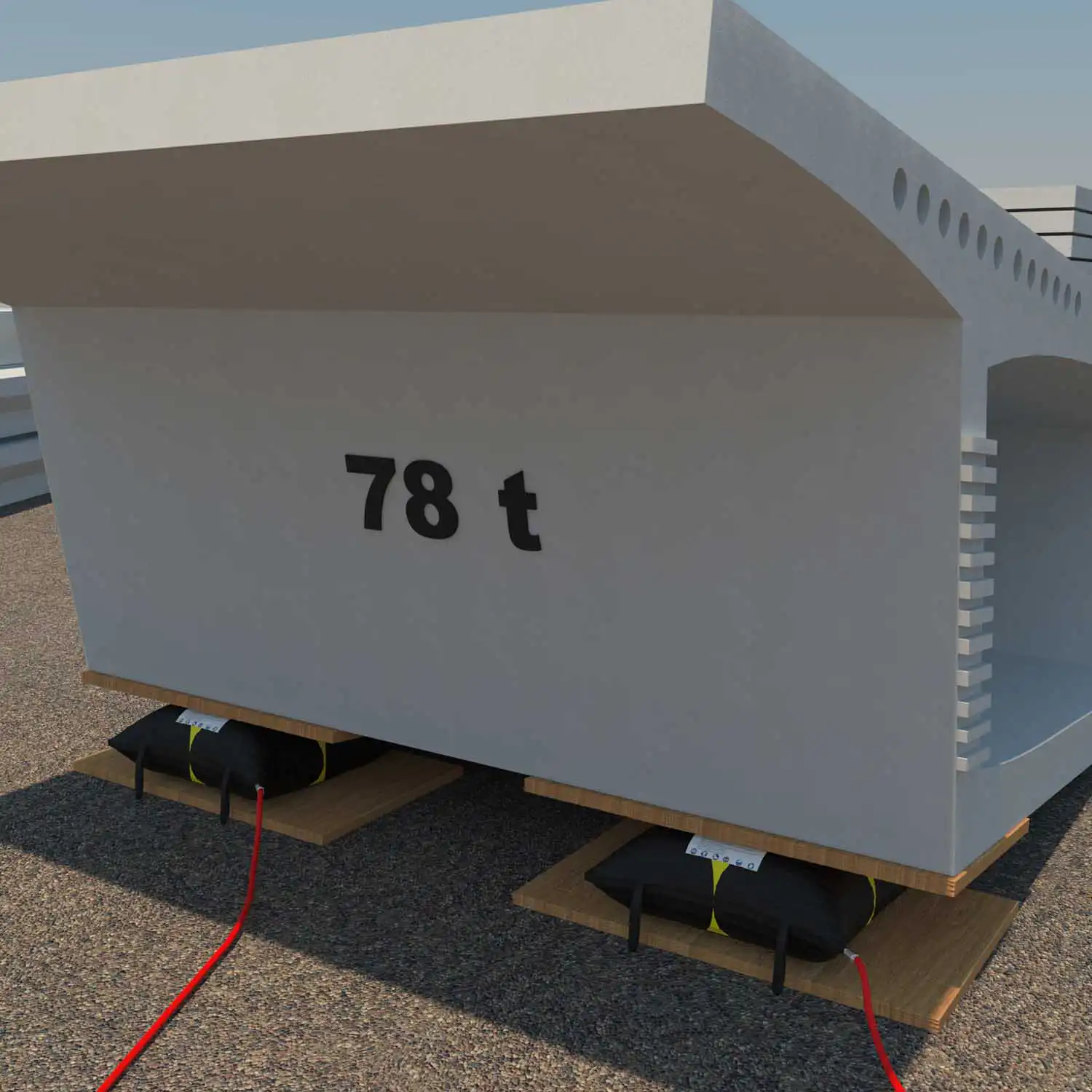

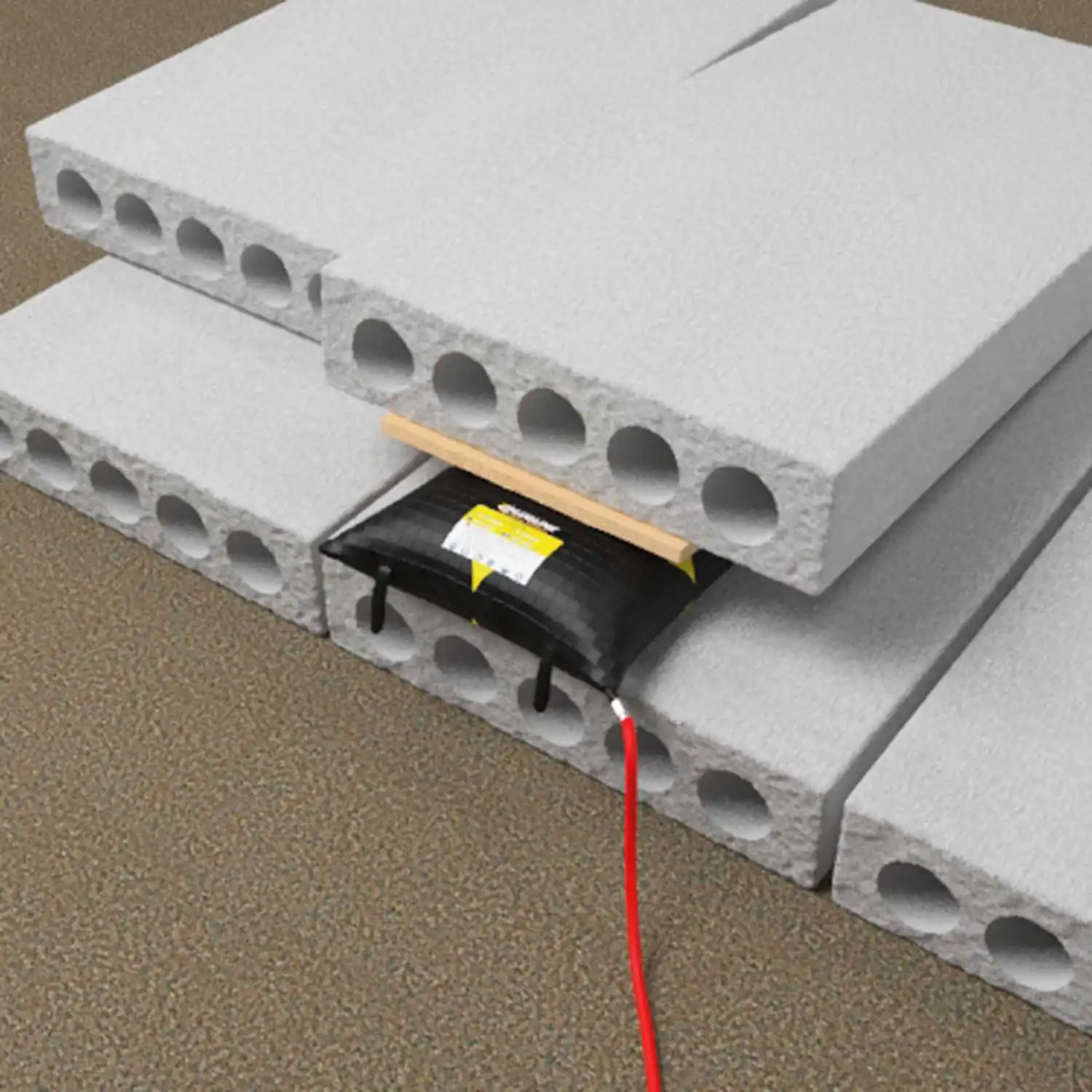

- Пневматические домкраты используются для подъема, перемещения, распределения и фиксации грузов.
- Используемые во всем мире спасательными и восстановительными командами также для перемещения тяжелых предметов во время стихийных бедствий, дорожно-транспортных происшествий и железнодорожных аварий.
- Широко применяется при монтаже и дистанционном обслуживании всех типов трубопроводов, используемых для раскалывания и удаления каменных блоков.
- Изготовлены из высококачественной резины и имеют устойчивую к скольжению верхнюю поверхность.
- Мастерство в сочетании со строгим контролем качества обеспечивает безопасную эксплуатацию.
- Выпускается в 12 типоразмерах вместимостью от 1 до 76 тонн. Максимальное рабочее давление 8 бар, могут быть изготовлены для более высокого давления и размера по заказу.
- Давление при сжатии > 32 бар, толщина: 22 мм.
- Весь продукт должен быть испытан с кратностью 1,5 (12 бар.
| Product Code | Length (mm/inch) | Width (mm/inch) | Thickness (mm/inch) | Max. Lifting Capacity(t) | Working Pressure (bar/psi) | Handles | AirRequirement (lt) | Weight (kg/lbs) | Lifting Height (mm/inch) | Lifiting Capacity (ton) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
remove
add
|
ILB115 / 0,80 | 140mm/5.51" | 140mm/5.51" | 23mm/0.91" | 1.15t | 8bar/116.03psi | X | 2.9 | 0.4kg/0.88lbs | 25mm/0.98" | 0.8t |
|
remove
add
|
ILB115 / 0,50 | 140mm/5.51" | 140mm/5.51" | 23mm/0.91" | 1.15t | 8bar/116.03psi | X | 2.9 | 0.4kg/0.88lbs | 50mm/1.96" | 0.5t |
|
remove
add
|
ILB115 / 0,14 | 140mm/5.51" | 140mm/5.51" | 23mm/0.91" | 1.15t | 8bar/116.03psi | X | 2.9 | 0.4kg/0.88lbs | 75mm/2.95" | 0.14t |
|
remove
add
|
ILB350 / 3,20 | 200mm/7.87" | 260mm/10.23" | 23mm/0.91" | 3.5t | 8bar/116.03psi | X | 15.5 | 1.0kg/2.2lbs | 25mm/0.98" | 3.2t |
|
remove
add
|
ILB350 / 2,20 | 200mm/7.87" | 260mm/10.23" | 23mm/0.91" | 3.5t | 8bar/116.03psi | X | 15.5 | 1.0kg/2.2lbs | 50mm/1.97" | 2.2t |
|
remove
add
|
ILB350 / 1,20 | 200mm/7.87" | 260mm/10.23" | 23mm/0.91" | 3.5t | 8bar/116.03psi | X | 15.5 | 1.0kg/2.2lbs | 75mm/2.95" | 1.2t |
|
remove
add
|
ILB350 / 0,65 | 200mm/7.87" | 260mm/10.23" | 23mm/0.91" | 3.5t | 8bar/116.03psi | X | 15.5 | 1.0kg/2.2lbs | 100mm/3.94" | 0.65t |
|
remove
add
|
ILB350 / 0,30 | 200mm/7.87" | 260mm/10.23" | 23mm/0.91" | 3.5t | 8bar/116.03psi | X | 15.5 | 1.0kg/2.2lbs | 125mm/4.92" | 0.3t |
|
remove
add
|
ILB620 / 6,00 | 300mm/11.81" | 300mm/11.81" | 23mm/0.91" | 6.2t | 8bar/116.03psi | 4 | 40 | 2.0kg/4.4lbs | 25mm/0.98" | 6t |
|
remove
add
|
ILB620 / 4,00 | 300mm/11.81" | 300mm/11.81" | 23mm/0.91" | 6.2t | 8bar/116.03psi | 4 | 40 | 2.0kg/4.4lbs | 50mm/1.97" | 4t |
|
remove
add
|
ILB620 / 1,50 | 300mm/11.81" | 300mm/11.81" | 23mm/0.91" | 6.2t | 8bar/116.03psi | 4 | 40 | 2.0kg/4.4lbs | 100mm/3.94" | 1.5t |
|
remove
add
|
ILB620 / 0,45 | 300mm/11.81" | 300mm/11.81" | 23mm/0.91" | 6.2t | 8bar/116.03psi | 4 | 40 | 2.0kg/4.4lbs | 150mm/5.91" | 0.45t |
|
remove
add
|
ILB1030 / 7,80 | 380mm/14.96" | 380mm/14.96" | 23mm/0.91" | 10.3t | 8bar/116.03psi | 4 | 85 | 3.8kg/8.37lbs | 50mm/1.97" | 7.8t |
|
remove
add
|
ILB1030 / 4,50 | 380mm/14.96" | 380mm/14.96" | 23mm/0.91" | 10.3t | 8bar/116.03psi | 4 | 85 | 3.8kg/8.37lbs | 100mm/3.94" | 4.5t |
|
remove
add
|
ILB1030 / 2,00 | 380mm/14.96" | 380mm/14.96" | 23mm/0.91" | 10.3t | 8bar/116.03psi | 4 | 85 | 3.8kg/8.37lbs | 150mm/5.91" | 2t |
|
remove
add
|
ILB1030 / 0,40 | 380mm/14.96" | 380mm/14.96" | 23mm/0.91" | 10.3t | 8bar/116.03psi | 4 | 85 | 3.8kg/8.37lbs | 215mm/8.46" | 0.4t |
|
remove
add
|
ILB1300 / 7,02 | 300mm/11.81" | 600mm/23.62" | 25mm/0.98" | 13t | 8bar/116.03psi | 4 | 115 | 4.0kg/8.82lbs | 50mm/1.97" | 7.02t |
|
remove
add
|
ILB1300 / 4,05 | 300mm/11.81" | 600mm/23.62" | 25mm/0.98" | 13t | 8bar/116.03psi | 4 | 115 | 4.0kg/8.82lbs | 100mm/3.94" | 4.05t |
|
remove
add
|
ILB1300 / 1,80 | 300mm/11.81" | 600mm/23.62" | 25mm/0.98" | 13t | 8bar/116.03psi | 4 | 115 | 4.0kg/8.82lbs | 150mm/5.91" | 1.8t |
|
remove
add
|
ILB1300 / 0,36 | 300mm/11.81" | 600mm/23.62" | 25mm/0.98" | 13t | 8bar/116.03psi | 4 | 115 | 4.0kg/8.82lbs | 215mm/8.46" | 0.36t |
|
remove
add
|
ILB1840 / 18,00 | 500mm/19.68" | 500mm/19.68" | 25mm/0.98" | 18.4t | 8bar/116.03psi | 4 | 198 | 6.4kg/14.1lbs | 50mm/1.97" | 18t |
|
remove
add
|
ILB1840 / 12,00 | 500mm/19.68" | 500mm/19.68" | 25mm/0.98" | 18.4t | 8bar/116.03psi | 4 | 198 | 6.4kg/14.1lbs | 100mm/3.94" | 12t |
|
remove
add
|
ILB1840 / 8,00 | 500mm/19.68" | 500mm/19.68" | 25mm/0.98" | 18.4t | 8bar/116.03psi | 4 | 198 | 6.4kg/14.1lbs | 150mm/5.91" | 8t |
|
remove
add
|
ILB1840 / 5,00 | 500mm/19.68" | 500mm/19.68" | 25mm/0.98" | 18.4t | 8bar/116.03psi | 4 | 198 | 6.4kg/14.1lbs | 200mm/7.87" | 5t |
|
remove
add
|
ILB1840 / 3,50 | 500mm/19.68" | 500mm/19.68" | 25mm/0.98" | 18.4t | 8bar/116.03psi | 4 | 198 | 6.4kg/14.1lbs | 250mm/9.84" | 3.5t |
|
remove
add
|
ILB1840 /2,00 | 500mm/19.68" | 500mm/19.68" | 25mm/0.98" | 18.4t | 8bar/116.03psi | 4 | 198 | 6.4kg/14.1lbs | 290mm/11.42" | 2t |
|
remove
add
|
ILB2430 / 22,56 | 1000mm/39.37" | 330mm/12.99" | 25mm/0.98" | 24.3t | 8bar/116.03psi | 4 | 215 | 9.1kg/20.05lbs | 50mm/1.97" | 22.56t |
|
remove
add
|
ILB2430 / 17,86 | 1000mm/39.37" | 330mm/12.99" | 25mm/0.98" | 24.3t | 8bar/116.03psi | 4 | 215 | 9.1kg/20.05lbs | 100mm/3.94" | 17.86t |
|
remove
add
|
ILB2430 / 9,40 | 1000mm/39.37" | 330mm/12.99" | 25mm/0.98" | 24.3t | 8bar/116.03psi | 4 | 215 | 9.1kg/20.05lbs | 200mm/7.87" | 9.4t |
|
remove
add
|
ILB2430 / 2,44 | 1000mm/39.37" | 330mm/12.99" | 25mm/0.98" | 24.3t | 8bar/116.03psi | 4 | 215 | 9.1kg/20.05lbs | 300mm/11.81" | 2.44t |
|
remove
add
|
ILB2430 / 1,69 | 1000mm/39.37" | 330mm/12.99" | 25mm/0.98" | 24.3t | 8bar/116.03psi | 4 | 215 | 9.1kg/20.05lbs | 350mm/13.78" | 1.69t |
|
remove
add
|
ILB2700 / 24,00 | 600mm/23.62" | 600mm/23.62" | 25mm/0.98" | 27t | 8bar/116.03psi | 4 | 380 | 9.8kg/21.59lbs | 50mm/1.97" | 24t |
|
remove
add
|
ILB2700 / 19,00 | 600mm/23.62" | 600mm/23.62" | 25mm/0.98" | 27t | 8bar/116.03psi | 4 | 380 | 9.8kg/21.59lbs | 100mm/3.94" | 19t |
|
remove
add
|
ILB2700 / 10,00 | 600mm/23.62" | 600mm/23.62" | 25mm/0.98" | 27t | 8bar/116.03psi | 4 | 380 | 9.8kg/21.59lbs | 200mm/7.87" | 10t |
|
remove
add
|
ILB2700 / 2,60 | 600mm/23.62" | 600mm/23.62" | 25mm/0.98" | 27t | 8bar/116.03psi | 4 | 380 | 9.8kg/21.59lbs | 300mm/11.81" | 2.6t |
|
remove
add
|
ILB2700 / 1,80 | 600mm/23.62" | 600mm/23.62" | 25mm/0.98" | 27t | 8bar/116.03psi | 4 | 380 | 9.8kg/21.59lbs | 350mm/13.78" | 1.8t |
|
remove
add
|
ILB3700 / 40,00 | 700mm/27.56" | 700mm/27.56" | 25mm/0.98" | 37t | 8bar/116.03psi | 4 | 630 | 13.5kg/29.75lbs | 50mm/1.97" | 40t |
|
remove
add
|
ILB3700 / 27,00 | 700mm/27.56" | 700mm/27.56" | 25mm/0.98" | 37t | 8bar/116.03psi | 4 | 630 | 13.5kg/29.75lbs | 100mm/3.94" | 27t |
|
remove
add
|
ILB3700 / 14,00 | 700mm/27.56" | 700mm/27.56" | 25mm/0.98" | 37t | 8bar/116.03psi | 4 | 630 | 13.5kg/29.75lbs | 200mm/7.87" | 14t |
|
remove
add
|
ILB3700 / 5,00 | 700mm/27.56" | 700mm/27.56" | 25mm/0.98" | 37t | 8bar/116.03psi | 4 | 630 | 13.5kg/29.75lbs | 300mm/11.81" | 5t |
|
remove
add
|
ILB3700 / 2,00 | 700mm/27.56" | 700mm/27.56" | 25mm/0.98" | 37t | 8bar/116.03psi | 4 | 630 | 13.5kg/29.75lbs | 350mm/13.78" | 2t |
|
remove
add
|
ILB4870 / 45,00 | 800mm/35.43" | 800mm/35.43" | 25mm/0.98" | 48.7t | 8bar/116.03psi | 4 | 945 | 17.8kg/39.23lbs | 50mm/1.97" | 45t |
|
remove
add
|
ILB4870 / 36,00 | 800mm/35.43" | 800mm/35.43" | 25mm/0.98" | 48.7t | 8bar/116.03psi | 4 | 945 | 17.8kg/39.23lbs | 100mm/3.94" | 36t |
|
remove
add
|
ILB4870 / 22,50 | 800mm/35.43" | 800mm/35.43" | 25mm/0.98" | 48.7t | 8bar/116.03psi | 4 | 945 | 17.8kg/39.23lbs | 200mm/7.87" | 22.5t |
|
remove
add
|
ILB4870 / 11,50 | 800mm/35.43" | 800mm/35.43" | 25mm/0.98" | 48.7t | 8bar/116.03psi | 4 | 945 | 17.8kg/39.23lbs | 300mm/11.81" | 11.5t |
|
remove
add
|
ILB4870 / 5,00 | 800mm/35.43" | 800mm/35.43" | 25mm/0.98" | 48.7t | 8bar/116.03psi | 4 | 945 | 17.8kg/39.23lbs | 400mm/15.75" | 5t |
|
remove
add
|
ILB4870 / 2,00 | 800mm/35.43" | 800mm/35.43" | 25mm/0.98" | 48.7t | 8bar/116.03psi | 4 | 945 | 17.8kg/39.23lbs | 450mm/17.72" | 2t |
|
remove
add
|
ILB6200 / 60,00 | 900mm/35.43" | 900mm/35.43" | 25mm/0.98" | 62t | 8bar/116.03psi | 4 | 1450 | 21.0kg/46.28lbs | 50mm/1.97" | 60t |
|
remove
add
|
ILB6200 / 48,00 | 900mm/35.43" | 900mm/35.43" | 25mm/0.98" | 62t | 8bar/116.03psi | 4 | 1450 | 21.0kg/46.28lbs | 100mm/3.94" | 48t |
|
remove
add
|
ILB6200 / 30,00 | 900mm/35.43" | 900mm/35.43" | 25mm/0.98" | 62t | 8bar/116.03psi | 4 | 1450 | 21.0kg/46.28lbs | 200mm/7.87" | 30t |
|
remove
add
|
ILB6200 / 15,00 | 900mm/35.43" | 900mm/35.43" | 25mm/0.98" | 62t | 8bar/116.03psi | 4 | 1450 | 21.0kg/46.28lbs | 300mm/11.81" | 15t |
|
remove
add
|
ILB6200 / 6,00 | 900mm/35.43" | 900mm/35.43" | 25mm/0.98" | 62t | 8bar/116.03psi | 4 | 1450 | 21.0kg/46.28lbs | 400mm/15.75" | 6t |
|
remove
add
|
ILB6200 / 2,00 | 900mm/35.43" | 900mm/35.43" | 25mm/0.98" | 62t | 8bar/116.03psi | 4 | 1450 | 21.0kg/46.28lbs | 500mm/19.69" | 2t |
|
remove
add
|
ILB7680 / 73,00 | 1000mm/39.37" | 1000mm/39.37" | 25mm/0.98" | 76.8t | 8bar/116.03psi | 4 | 1580 | 24.5kg/53.99lbs | 50mm/1.97" | 73t |
|
remove
add
|
ILB7680 / 58,00 | 1000mm/39.37" | 1000mm/39.37" | 25mm/0.98" | 76.8t | 8bar/116.03psi | 4 | 1580 | 24.5kg/53.99lbs | 100mm/3.94" | 58t |
|
remove
add
|
ILB7680 / 36,00 | 1000mm/39.37" | 1000mm/39.37" | 25mm/0.98" | 76.8t | 8bar/116.03psi | 4 | 1580 | 24.5kg/53.99lbs | 200mm/7.87" | 36t |
|
remove
add
|
ILB7680 / 18,00 | 1000mm/39.37" | 1000mm/39.37" | 25mm/0.98" | 76.8t | 8bar/116.03psi | 4 | 1580 | 24.5kg/53.99lbs | 300mm/11.81" | 18t |
|
remove
add
|
ILB7680 / 7,20 | 1000mm/39.37" | 1000mm/39.37" | 25mm/0.98" | 76.8t | 8bar/116.03psi | 4 | 1580 | 24.5kg/53.99lbs | 400mm/15.75" | 7.2t |
|
remove
add
|
ILB7680 / 2,50 | 1000mm/39.37" | 1000mm/39.37" | 25mm/0.98" | 76.8t | 8bar/116.03psi | 4 | 1580 | 24.5kg/53.99lbs | 500mm/19.69" | 2.5t |
|
remove
add
|
ILB7680 / 1,00 | 1000mm/39.37" | 1000mm/39.37" | 25mm/0.98" | 76.8t | 8bar/116.03psi | 4 | 1580 | 24.5kg/53.99lbs | 550mm/21.65" | 1t |
| Product Code | Length (mm/inch) | Width (mm/inch) | Thickness (mm/inch) | Max. Lifting Capacity(t) | Working Pressure (bar/psi) | Handles | AirRequirement (lt) | Weight (kg/lbs) | Lifting Height (mm/inch) | Lifitng Capacity (ton) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
remove
add
|
ILB170 / 1,20 | 140mm/5.51" | 140mm/5.51" | 23mm/0.91" | 1.7t | 12bar/174.04psi | X | 2.9 | 0.4kg/0.88lbs | 25mm/0.98" | 1.2t |
|
remove
add
|
ILB170 / 0,75 | 140mm/5.51" | 140mm/5.51" | 23mm/0.91" | 1.7t | 12bar/174.04psi | X | 2.9 | 0.4kg/0.88lbs | 50mm/1.96" | 0.75t |
|
remove
add
|
ILB170 / 0,21 | 140mm/5.51" | 140mm/5.51" | 23mm/0.91" | 1.7t | 12bar/174.04psi | X | 2.9 | 0.4kg/0.88lbs | 75mm/2.95" | 0.21t |
|
remove
add
|
ILB520 / 4,80 | 200mm/7.87" | 260mm/10.23" | 23mm/0.91" | 5.2t | 12bar/174.04psi | X | 15.5 | 1.0kg/2.2lbs | 25mm/0.98" | 4.8t |
|
remove
add
|
ILB520 / 3,30 | 200mm/7.87" | 260mm/10.23" | 23mm/0.91" | 5.2t | 12bar/174.04psi | X | 15.5 | 1.0kg/2.2lbs | 50mm/1.97" | 3.3t |
|
remove
add
|
ILB520 / 1,80 | 200mm/7.87" | 260mm/10.23" | 23mm/0.91" | 5.2t | 12bar/174.04psi | X | 15.5 | 1.0kg/2.2lbs | 75mm/2.95" | 1.8t |
|
remove
add
|
ILB520 / 0,97 | 200mm/7.87" | 260mm/10.23" | 23mm/0.91" | 5.2t | 12bar/174.04psi | X | 15.5 | 1.0kg/2.2lbs | 100mm/3.94" | 0.975t |
|
remove
add
|
ILB520 / 0,45 | 200mm/7.87" | 260mm/10.23" | 23mm/0.91" | 5.2t | 12bar/174.04psi | X | 15.5 | 1.0kg/2.2lbs | 125mm/4.92" | 0.45t |
|
remove
add
|
ILB940 / 9,00 | 300mm/11.81" | 300mm/11.81" | 23mm/0.91" | 9.4t | 12bar/174.04psi | 4 | 40 | 2.0kg/4.4lbs | 25mm/0.98" | 9t |
|
remove
add
|
ILB940 / 6,00 | 300mm/11.81" | 300mm/11.81" | 23mm/0.91" | 9.4t | 12bar/174.04psi | 4 | 40 | 2.0kg/4.4lbs | 50mm/1.97" | 6t |
|
remove
add
|
ILB940 / 2,25 | 300mm/11.81" | 300mm/11.81" | 23mm/0.91" | 9.4t | 12bar/174.04psi | 4 | 40 | 2.0kg/4.4lbs | 100mm/3.94" | 2.25t |
|
remove
add
|
ILB940 / 0,67 | 300mm/11.81" | 300mm/11.81" | 23mm/0.91" | 9.4t | 12bar/174.04psi | 4 | 40 | 2.0kg/4.4lbs | 150mm/5.91" | 0.675t |
|
remove
add
|
ILB1550 / 11,70 | 380mm/14.96" | 380mm/14.96" | 23mm/0.91" | 15.5t | 12bar/174.04psi | 4 | 85 | 3.8kg/8.37lbs | 50mm/1.97" | 11.7t |
|
remove
add
|
ILB1550 / 6,75 | 380mm/14.96" | 380mm/14.96" | 23mm/0.91" | 15.5t | 12bar/174.04psi | 4 | 85 | 3.8kg/8.37lbs | 100mm/3.94" | 6.75t |
|
remove
add
|
ILB1550 / 3,00 | 380mm/14.96" | 380mm/14.96" | 23mm/0.91" | 15.5t | 12bar/174.04psi | 4 | 85 | 3.8kg/8.37lbs | 150mm/5.91" | 3t |
|
remove
add
|
ILB1550 / 0,60 | 380mm/14.96" | 380mm/14.96" | 23mm/0.91" | 15.5t | 12bar/174.04psi | 4 | 85 | 3.8kg/8.37lbs | 215mm/8.46" | 0.6t |
|
remove
add
|
ILB1940 / 10,53 | 300mm/11.81" | 600mm/23.62" | 25mm/0.98" | 19.4t | 12bar/174.04psi | 4 | 115 | 4.0kg/8.82lbs | 50mm/1.97" | 10.53t |
|
remove
add
|
ILB1940 / 6,75 | 300mm/11.81" | 600mm/23.62" | 25mm/0.98" | 19.4t | 12bar/174.04psi | 4 | 115 | 4.0kg/8.82lbs | 100mm/3.94" | 6.75t |
|
remove
add
|
ILB1940 / 2,7 | 300mm/11.81" | 600mm/23.62" | 25mm/0.98" | 19.4t | 12bar/174.04psi | 4 | 115 | 4.0kg/8.82lbs | 150mm/5.91" | 2.7t |
|
remove
add
|
ILB1940 / 0,54 | 300mm/11.81" | 600mm/23.62" | 25mm/0.98" | 19.4t | 12bar/174.04psi | 4 | 115 | 4.0kg/8.82lbs | 215mm/8.46" | 0.54t |
|
remove
add
|
ILB2760 / 27,00 | 500mm/19.68" | 500mm/19.68" | 25mm/0.98" | 27.6t | 12bar/174.04psi | 4 | 198 | 6.4kg/14.1lbs | 50mm/1.97" | 27t |
|
remove
add
|
ILB2760 / 18,00 | 500mm/19.68" | 500mm/19.68" | 25mm/0.98" | 27.6t | 12bar/174.04psi | 4 | 198 | 6.4kg/14.1lbs | 100mm/3.94" | 18t |
|
remove
add
|
ILB2760 / 12,00 | 500mm/19.68" | 500mm/19.68" | 25mm/0.98" | 27.6t | 12bar/174.04psi | 4 | 198 | 6.4kg/14.1lbs | 150mm/5.91" | 12t |
|
remove
add
|
ILB2760 / 7,50 | 500mm/19.68" | 500mm/19.68" | 25mm/0.98" | 27.6t | 12bar/174.04psi | 4 | 198 | 6.4kg/14.1lbs | 200mm/7.87" | 7.5t |
|
remove
add
|
ILB2760 / 5,25 | 500mm/19.68" | 500mm/19.68" | 25mm/0.98" | 27.6t | 12bar/174.04psi | 4 | 198 | 6.4kg/14.1lbs | 250mm/9.84" | 5.25t |
|
remove
add
|
ILB2760 / 3,00 | 500mm/19.68" | 500mm/19.68" | 25mm/0.98" | 27.6t | 12bar/174.04psi | 4 | 198 | 6.4kg/14.1lbs | 290mm/11.42" | 3t |
|
remove
add
|
ILB3640 / 33,84 | 1000mm/39.37" | 330mm/12.99" | 25mm/0.98" | 36.4t | 12bar/174.04psi | 4 | 215 | 9.1kg/20.05lbs | 50mm/1.97" | 33.84t |
|
remove
add
|
ILB3640 / 26,79 | 1000mm/39.37" | 330mm/12.99" | 25mm/0.98" | 36.4t | 12bar/174.04psi | 4 | 215 | 9.1kg/20.05lbs | 100mm/3.94" | 26.79t |
|
remove
add
|
ILB3640 / 33,84 | 1000mm/39.37" | 330mm/12.99" | 25mm/0.98" | 36.4t | 12bar/174.04psi | 4 | 215 | 9.1kg/20.05lbs | 200mm/7.87" | 14.1t |
|
remove
add
|
ILB3640 / 3,66 | 1000mm/39.37" | 330mm/12.99" | 25mm/0.98" | 36.4t | 12bar/174.04psi | 4 | 215 | 9.1kg/20.05lbs | 300mm/11.81" | 3.66t |
|
remove
add
|
ILB3640 / 2,53 | 1000mm/39.37" | 330mm/12.99" | 25mm/0.98" | 36.4t | 12bar/174.04psi | 4 | 215 | 9.1kg/20.05lbs | 350mm/13.78" | 2.53t |
|
remove
add
|
ILB4030 / 36,00 | 600mm/23.62" | 600mm/23.62" | 25mm/0.98" | 40.3t | 12bar/174.04psi | 4 | 380 | 9.8kg/21.59lbs | 50mm/1.97" | 36t |
|
remove
add
|
ILB4030 / 28,50 | 600mm/23.62" | 600mm/23.62" | 25mm/0.98" | 40.3t | 12bar/174.04psi | 4 | 380 | 9.8kg/21.59lbs | 100mm/3.94" | 28.5t |
|
remove
add
|
ILB4030 / 15,00 | 600mm/23.62" | 600mm/23.62" | 25mm/0.98" | 40.3t | 12bar/174.04psi | 4 | 380 | 9.8kg/21.59lbs | 200mm/7.87" | 15t |
|
remove
add
|
ILB4030 / 3,90 | 600mm/23.62" | 600mm/23.62" | 25mm/0.98" | 40.3t | 12bar/174.04psi | 4 | 380 | 9.8kg/21.59lbs | 300mm/11.81" | 3.9t |
|
remove
add
|
ILB4030 / 2,70 | 600mm/23.62" | 600mm/23.62" | 25mm/0.98" | 40.3t | 12bar/174.04psi | 4 | 380 | 9.8kg/21.59lbs | 350mm/13.78" | 2.7t |
|
remove
add
|
ILB5540 / 60,00 | 700mm/27.56" | 700mm/27.56" | 25mm/0.98" | 55.4t | 12bar/174.04psi | 4 | 630 | 13.5kg/29.75lbs | 50mm/1.97" | 60t |
|
remove
add
|
ILB5540 / 40,50 | 700mm/27.56" | 700mm/27.56" | 25mm/0.98" | 55.4t | 12bar/174.04psi | 4 | 630 | 13.5kg/29.75lbs | 100mm/3.94" | 40.5t |
|
remove
add
|
ILB5540 / 21,00 | 700mm/27.56" | 700mm/27.56" | 25mm/0.98" | 55.4t | 12bar/174.04psi | 4 | 630 | 13.5kg/29.75lbs | 200mm/7.87" | 21t |
|
remove
add
|
ILB5540 / 7,50 | 700mm/27.56" | 700mm/27.56" | 25mm/0.98" | 55.4t | 12bar/174.04psi | 4 | 630 | 13.5kg/29.75lbs | 300mm/11.81" | 7.5t |
|
remove
add
|
ILB5540 / 3,00 | 700mm/27.56" | 700mm/27.56" | 25mm/0.98" | 55.4t | 12bar/174.04psi | 4 | 630 | 13.5kg/29.75lbs | 350mm/13.78" | 3t |
|
remove
add
|
ILB7300 / 67,50 | 800mm/35.43" | 800mm/35.43" | 25mm/0.98" | 73t | 12bar/174.04psi | 4 | 945 | 17.8kg/39.23lbs | 50mm/1.97" | 67.5t |
|
remove
add
|
ILB7300 / 54,00 | 800mm/35.43" | 800mm/35.43" | 25mm/0.98" | 73t | 12bar/174.04psi | 4 | 945 | 17.8kg/39.23lbs | 100mm/3.94" | 54t |
|
remove
add
|
ILB7300 / 33,75 | 800mm/35.43" | 800mm/35.43" | 25mm/0.98" | 73t | 12bar/174.04psi | 4 | 945 | 17.8kg/39.23lbs | 200mm/7.87" | 33.75t |
|
remove
add
|
ILB7300 / 17,25 | 800mm/35.43" | 800mm/35.43" | 25mm/0.98" | 73t | 12bar/174.04psi | 4 | 945 | 17.8kg/39.23lbs | 300mm/11.81" | 17.25t |
|
remove
add
|
ILB7300 / 7,50 | 800mm/35.43" | 800mm/35.43" | 25mm/0.98" | 73t | 12bar/174.04psi | 4 | 945 | 17.8kg/39.23lbs | 400mm/15.75" | 7.5t |
|
remove
add
|
ILB7300 / 3,00 | 800mm/35.43" | 800mm/35.43" | 25mm/0.98" | 73t | 12bar/174.04psi | 4 | 945 | 17.8kg/39.23lbs | 450mm/17.72" | 3t |
|
remove
add
|
ILB9300 / 90,00 | 900mm/35.43" | 900mm/35.43" | 25mm/0.98" | 93t | 12bar/174.04psi | 4 | 1450 | 21.0kg/46.28lbs | 50mm/1.97" | 90t |
|
remove
add
|
ILB9300 / 72,00 | 900mm/35.43" | 900mm/35.43" | 25mm/0.98" | 93t | 12bar/174.04psi | 4 | 1450 | 21.0kg/46.28lbs | 100mm/3.94" | 72t |
|
remove
add
|
ILB9300 / 45,00 | 900mm/35.43" | 900mm/35.43" | 25mm/0.98" | 93t | 12bar/174.04psi | 4 | 1450 | 21.0kg/46.28lbs | 200mm/7.87" | 45t |
|
remove
add
|
ILB9300 / 22,50 | 900mm/35.43" | 900mm/35.43" | 25mm/0.98" | 93t | 12bar/174.04psi | 4 | 1450 | 21.0kg/46.28lbs | 300mm/11.81" | 22.5t |
|
remove
add
|
ILB9300 / 9,00 | 900mm/35.43" | 900mm/35.43" | 25mm/0.98" | 93t | 12bar/174.04psi | 4 | 1450 | 21.0kg/46.28lbs | 400mm/15.75" | 9t |
|
remove
add
|
ILB9300 / 3,00 | 900mm/35.43" | 900mm/35.43" | 25mm/0.98" | 93t | 12bar/174.04psi | 4 | 1450 | 21.0kg/46.28lbs | 500mm/19.69" | 3t |
|
remove
add
|
ILB11500 / 109,50 | 1000mm/39.37" | 1000mm/39.37" | 25mm/0.98" | 115t | 12bar/174.04psi | 4 | 1580 | 24.5kg/53.99lbs | 50mm/1.97" | 109.5t |
|
remove
add
|
ILB11500 / 87,00 | 1000mm/39.37" | 1000mm/39.37" | 25mm/0.98" | 115t | 12bar/174.04psi | 4 | 1580 | 24.5kg/53.99lbs | 100mm/3.94" | 87t |
|
remove
add
|
ILB11500 / 54,00 | 1000mm/39.37" | 1000mm/39.37" | 25mm/0.98" | 115t | 12bar/174.04psi | 4 | 1580 | 24.5kg/53.99lbs | 200mm/7.87" | 54t |
|
remove
add
|
ILB11500 / 27,00 | 1000mm/39.37" | 1000mm/39.37" | 25mm/0.98" | 115t | 12bar/174.04psi | 4 | 1580 | 24.5kg/53.99lbs | 300mm/11.81" | 27t |
|
remove
add
|
ILB11500 / 10,80 | 1000mm/39.37" | 1000mm/39.37" | 25mm/0.98" | 115t | 12bar/174.04psi | 4 | 1580 | 24.5kg/53.99lbs | 400mm/15.75" | 10.8t |
|
remove
add
|
ILB11500 / 3,75 | 1000mm/39.37" | 1000mm/39.37" | 25mm/0.98" | 115t | 12bar/174.04psi | 4 | 1580 | 24.5kg/53.99lbs | 500mm/19.69" | 3.75t |
|
remove
add
|
ILB11500 / 1,50 | 1000mm/39.37" | 1000mm/39.37" | 25mm/0.98" | 115t | 12bar/174.04psi | 4 | 1580 | 24.5kg/53.99lbs | 550mm/21.65" | 1.5t |
