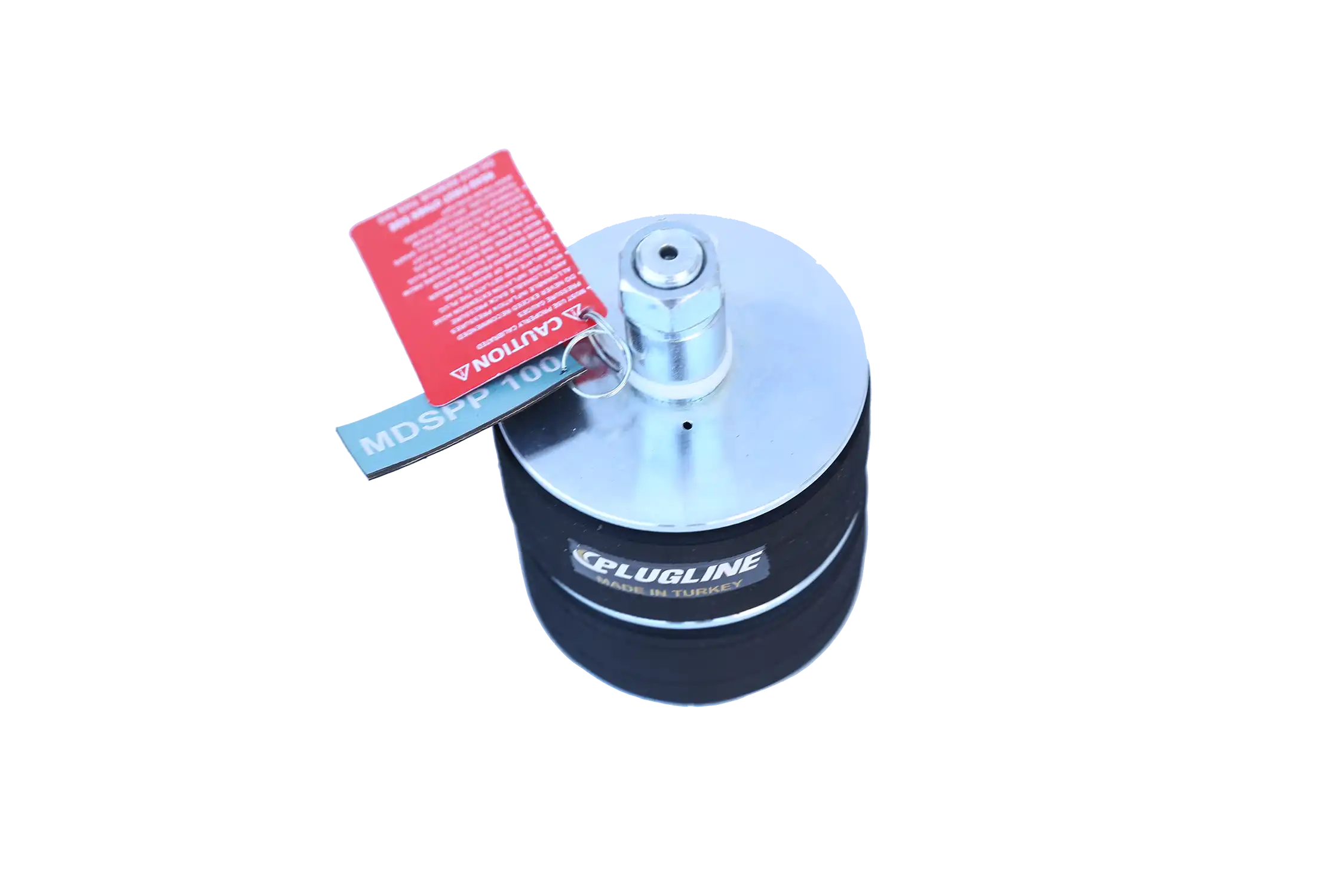

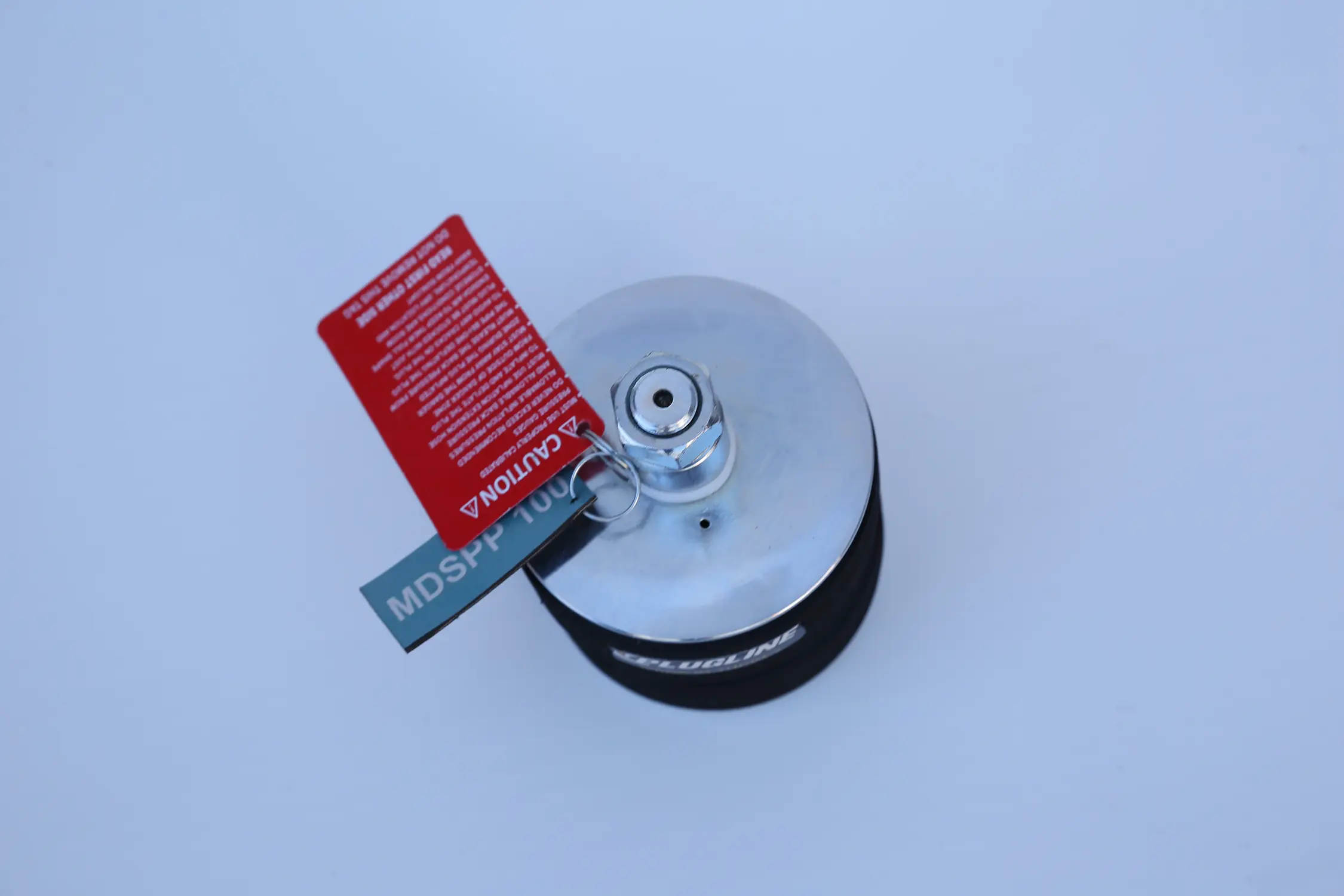

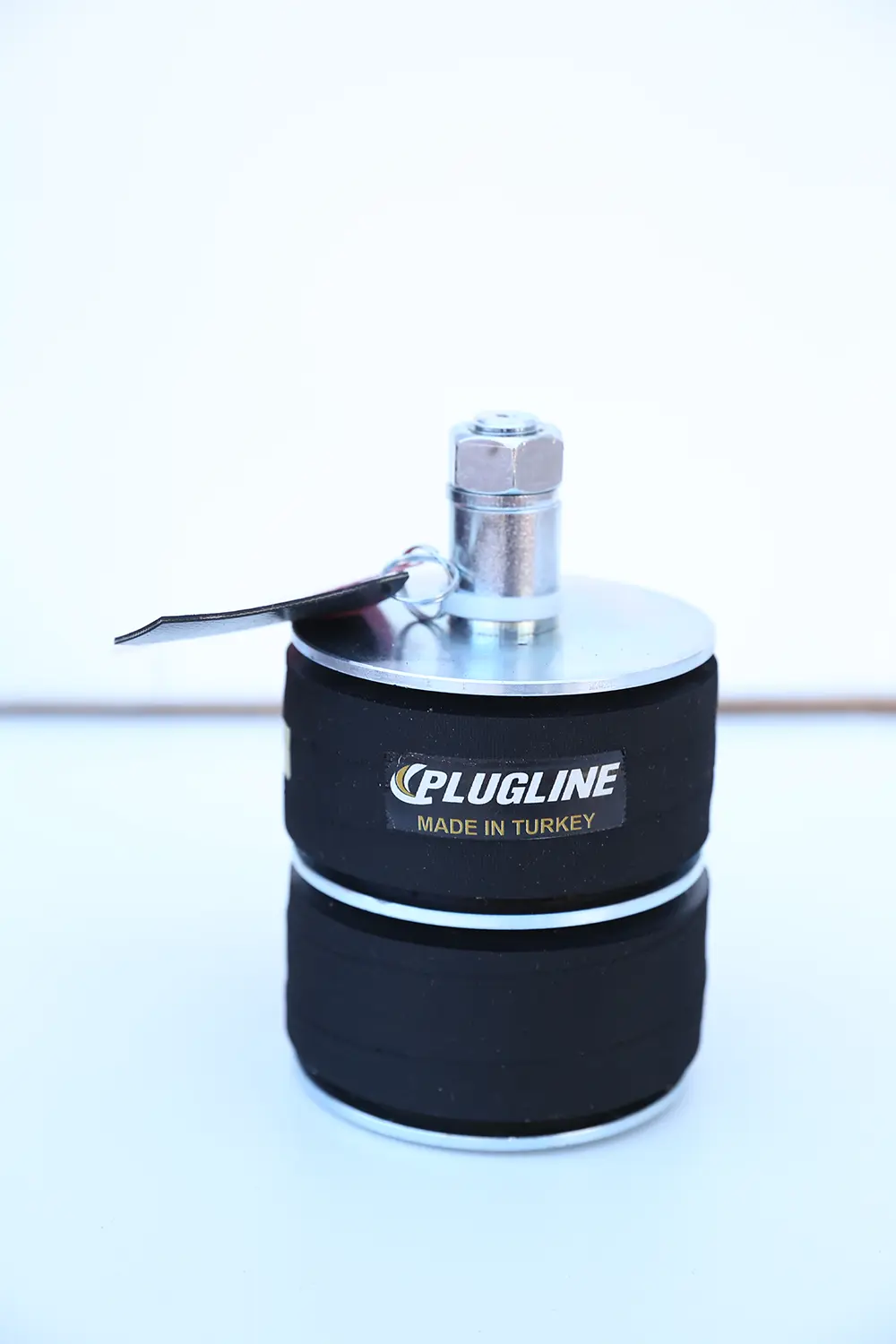

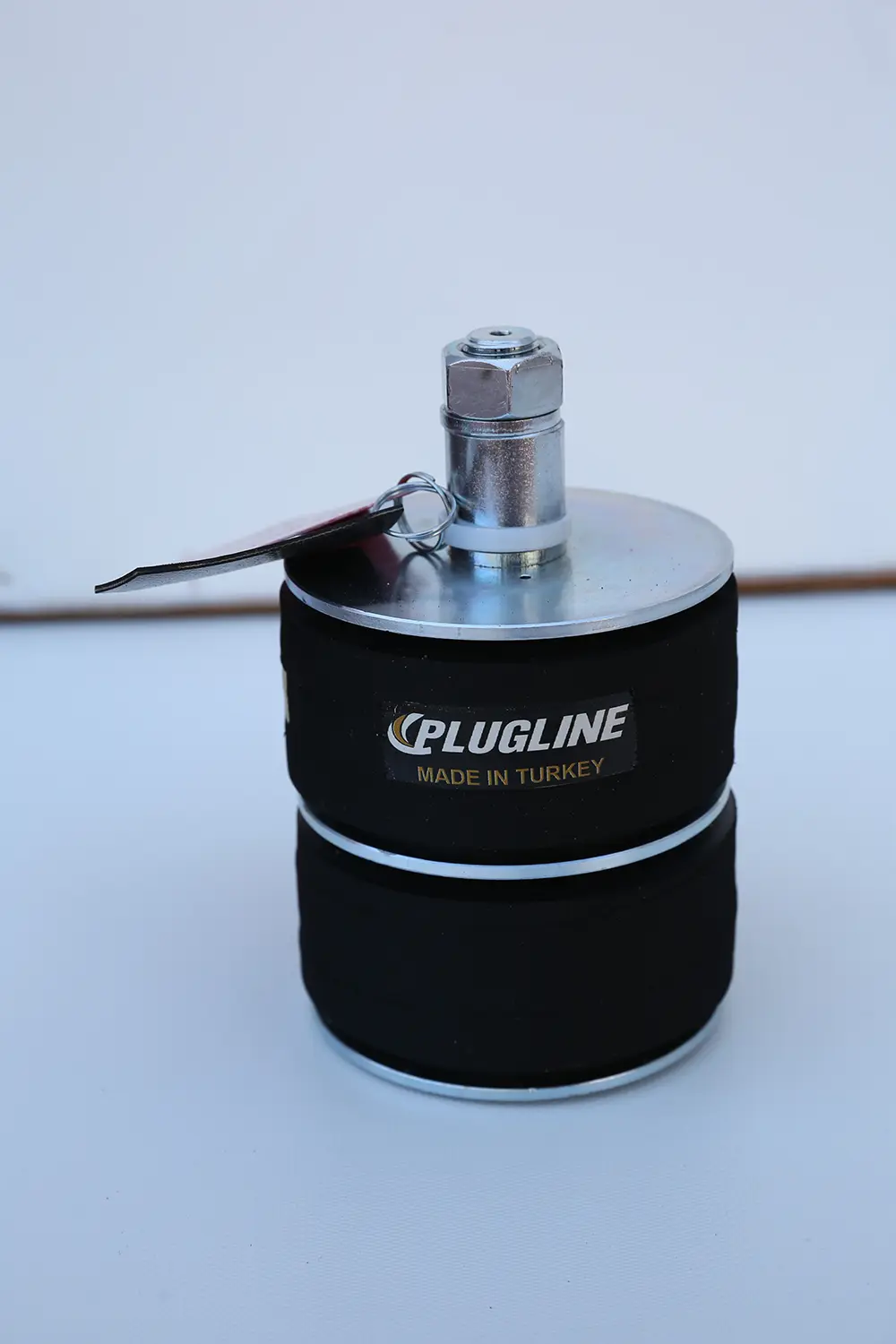

Механические заглушки с двойным уплотнением (2BAR - 6BAR)
Изготовлен из оцинкованной стали.
Их противодавление (значение давления скольжения) составляет 6,0 бар
Рекомендуется для испытания труб диаметром от 6 мм (1/4 дюйма) до 600 мм (24 дюйма)
Рекомендуемая температура - до 130 градусов по Цельсию
Все производимые металлические заглушки протестированы и одобрены с 3-кратным коэффициентом безопасности
| Product Code | Nominal size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Product Diameter (mm/inch) | Back Pressure(bar/psi) | Tightening Torque (N.m) | Total Length of Product (mm/inch) | Product Weight(kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|---|
|
remove
add
|
MDSPP6 | 6 | 6mm/0,24" | 6,5mm/0,26" | 5,5mm/0,22" | 6,0bar/87,0psi | H,T | 72mm/2,83" | 0,2kg/0,44lbs |
|
remove
add
|
MDSPP10 | 10 | 9mm/0,35" | 10mm/0,39" | 8,5mm/0,33" | 6,0bar/87,0psi | H,T | 72mm/2,83" | 0,3kg/0,66lbs |
|
remove
add
|
MDSPP12 | 12 | 12mm/0,47" | 13mm/0,51" | 11mm/0,43" | 6,0bar/87,0psi | H,T | 72mm/2,83" | 0,3kg/0,66lbs |
|
remove
add
|
MDSPP15 | 15 | 15mm/0,59" | 15mm/0,59" | 14mm/0,55" | 6,0bar/87,0psi | H,T | 92mm/3,62" | 0,4kg/0,88lbs |
|
remove
add
|
MDSPP20 | 20 | 19mm/0,75" | 20mm/0,79" | 19mm/0,75" | 6,0bar/87,0psi | H,T | 92mm/3,62" | 0,4kg/0,88lbs |
|
remove
add
|
MDSPP30 | 30 | 29mm/1,14" | 32mm/1,26" | 27mm/1,06" | 6,0bar/87,0psi | H,T | 106mm/4,17" | 0,4kg/0,88lbs |
|
remove
add
|
MDSPP38 | 38 | 37mm/1,46" | 40mm/1,57" | 35mm/1,38" | 6,0bar/87,0psi | 50 | 108mm/4,25" | 0,5kg/1,1lbs |
|
remove
add
|
MDSPP50 | 50 | 49mm/1,93" | 51mm/2,01" | 47mm/1,85" | 6,0bar/87,0psi | 60 | 131mm/5,16" | 0,7kg/1,54lbs |
|
remove
add
|
MDSPP60 | 60 | 58mm/2,28" | 61mm/2,4" | 57mm/2,24" | 6,0bar/87,0psi | 60 | 151mm/5,94" | 1,0kg/2,2lbs |
|
remove
add
|
MDSPP75 | 75 | 74mm/2,91" | 77mm/3,03" | 72mm/2,83" | 6,0bar/87,0psi | 80 | 156mm/6,14" | 1,2kg/2,65lbs |
|
remove
add
|
MDSPP100 | 100 | 98mm/3,86" | 102mm/4,02" | 95mm/3,74" | 4,0bar/58,0psi | 150 | 156mm/6,14" | 1,5kg/3,31lbs |
|
remove
add
|
MDSPP125 | 125 | 122mm/4,8" | 127mm/5,0" | 120mm/4,72" | 4,0bar/58,0psi | 160 | 156mm/6,14" | 2,0kg/4,41lbs |
|
remove
add
|
MDSPP150 | 150 | 147mm/5,79" | 153mm/6,02" | 146mm/5,75" | 4,0bar/58,0psi | 160 | 159mm/6,26" | 2,5kg/5,51lbs |
|
remove
add
|
MDSPP200 | 200 | 197mm/7,76" | 202mm/7,95" | 194mm/7,64" | 3,0bar/43,5psi | 170 | 159mm/6,26" | 3,0kg/6,61lbs |
|
remove
add
|
MDSPP250 | 250 | 247mm/9,72" | 252mm/9,92" | 245mm/9,65" | 2,0bar/29,0psi | 170 | 162mm/6,38" | 5,0kg/11,02lbs |
|
remove
add
|
MDSPP300 | 300 | 297mm/11,69" | 302mm/11,89" | 295mm/11,61" | 2,0bar/29,0psi | 170 | 162mm/6,38" | 7,0kg/15,43lbs |
