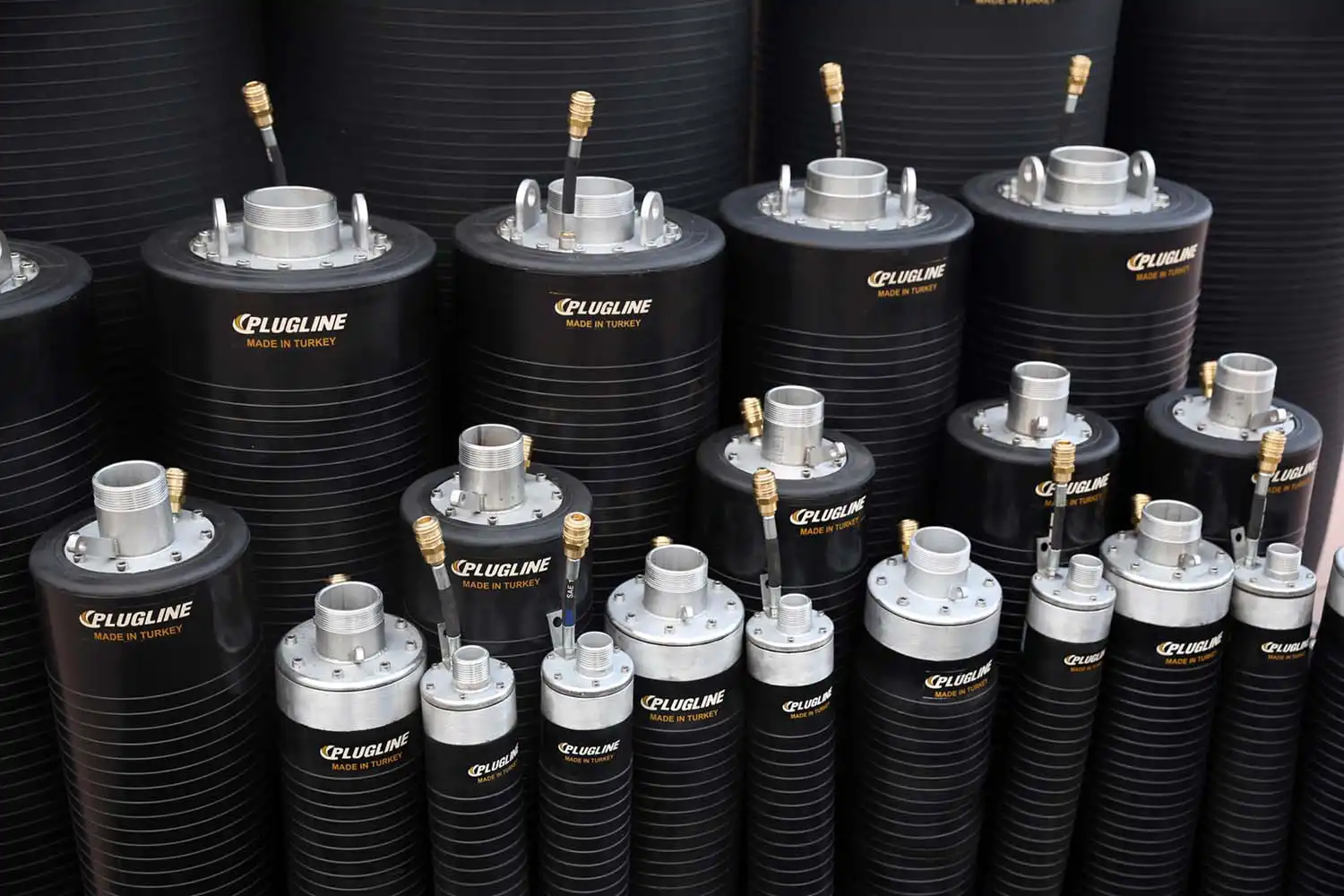

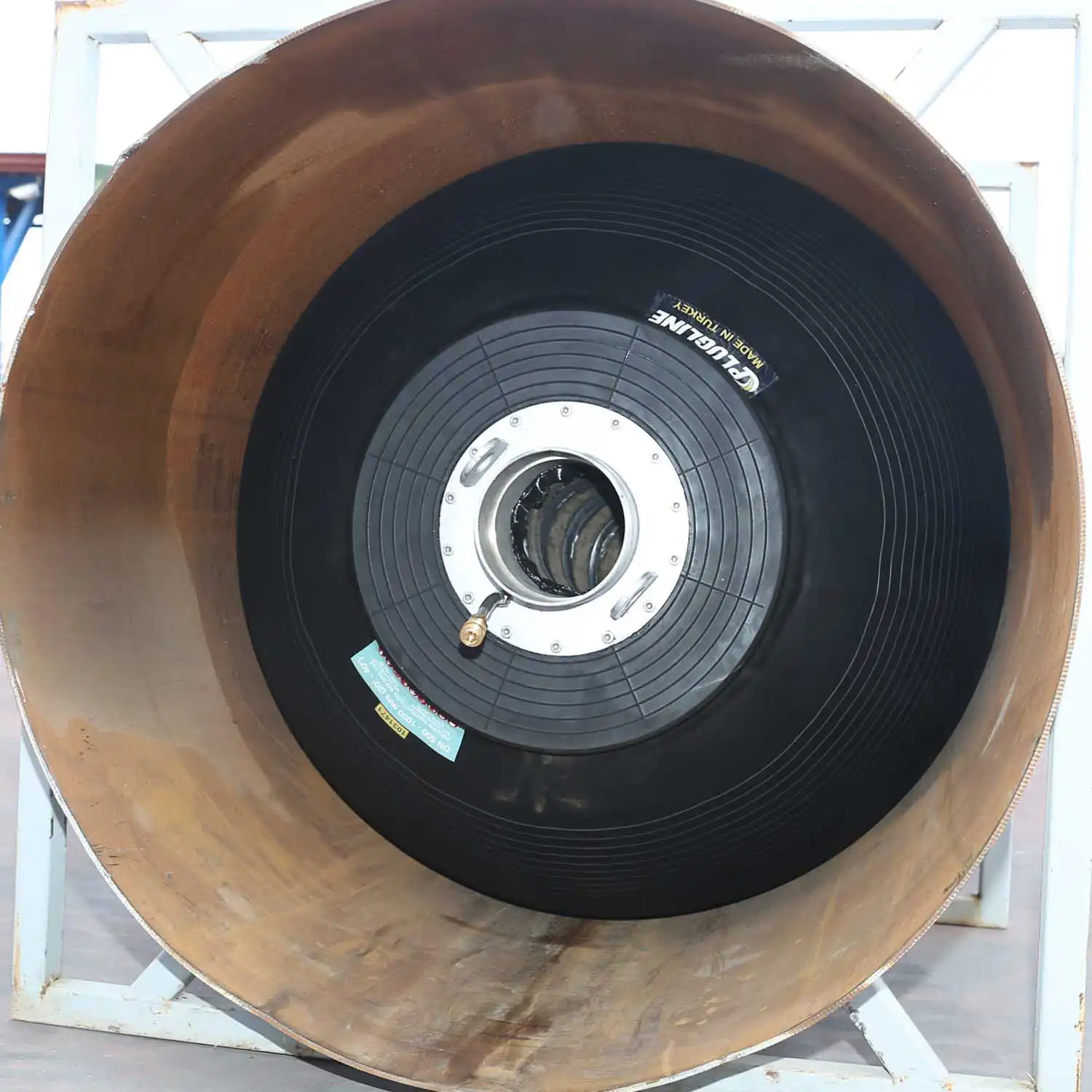

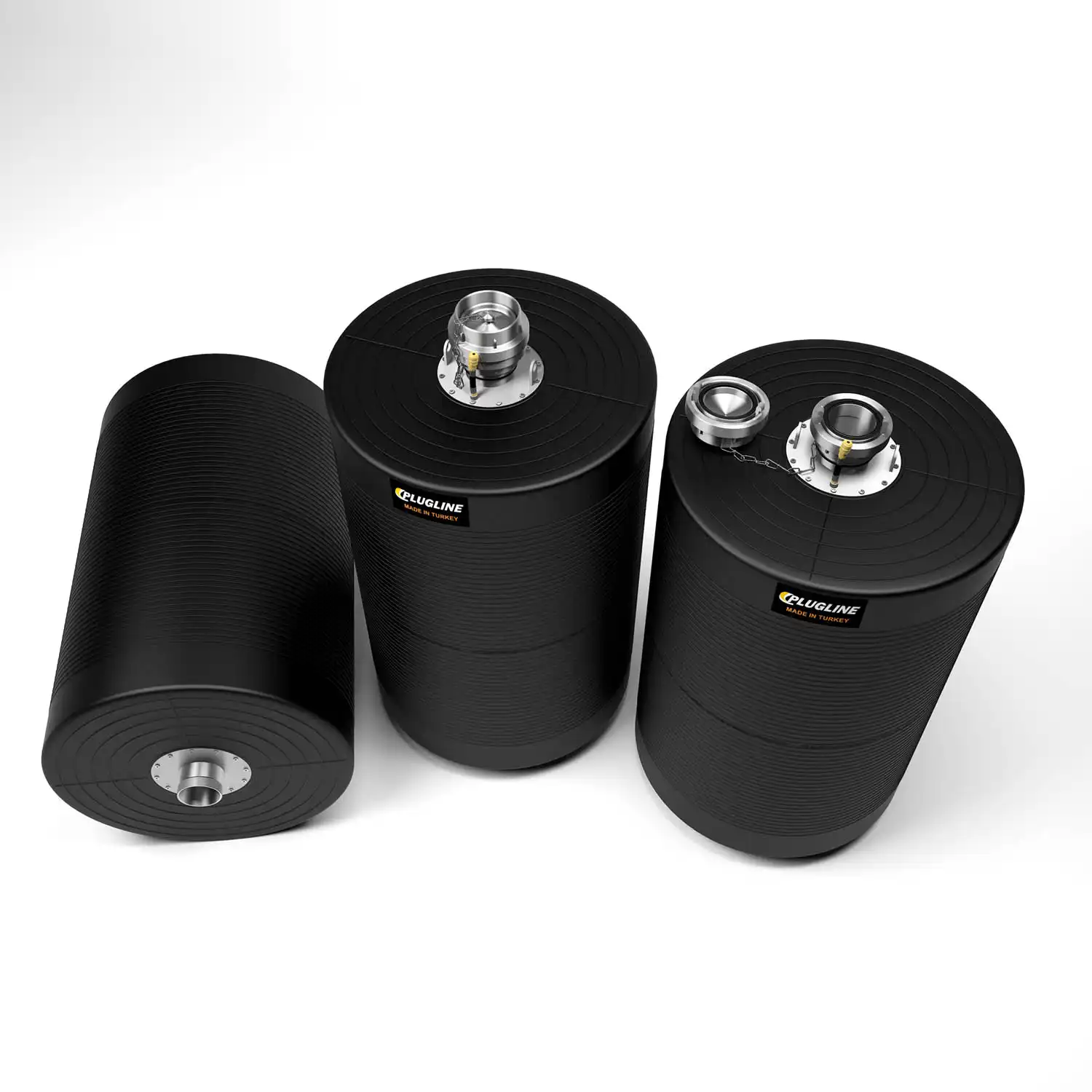

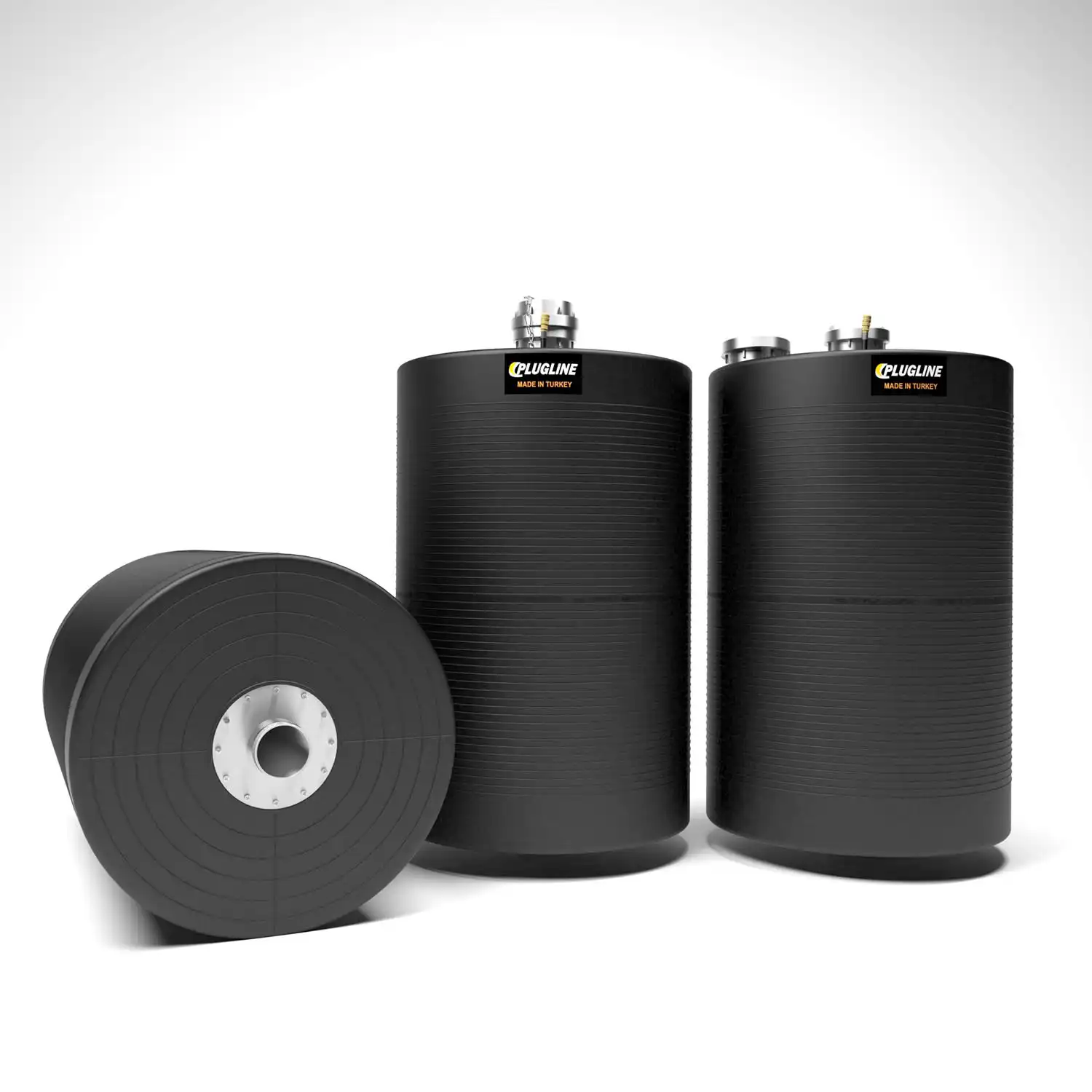

Испытательные Заглушки Высокого Давления (6,0 Bar-12,0 Bar)
• Предназначены для испытания канализационных коллекторов, дренажных систем, трубопроводов и водостоков, в которых противодавление превышает диапазон стандартных испытательных заглушек.
• В основном используются при ремонте и технической поддержке трубопроводов высокого давления для отвода потока через байпас на них.
• Изготовлены из высококачественного специального резинового армированного покрытия, из арамида сверху донизу.
• Оснащены быстроразъемными соединениями и ниппелями.
• Гарантируют безопасную эксплуатацию и надежность при испытаниях под высоким давлением.
• Оснащены болтами с гайками, которые легко перемещаются и устанавливаются в трубы.
• Доступны для труб диаметром от 50 мм (1,96 дюйма) до 1000 мм (39,37 дюйма), более крупные размеры производятся по желанию заказчика
• Производятся с рабочим давлением 6,0 Бар (87,02 psi) и 12,0 бар (174,04 psi) до 130,0 Бар (1885,49 psi)
• Могут быть использованы при температурах от -40 °C (- 40 °F) до 70 °C (158 °F)
• Устойчивы к воздействию окружающей среды
| Product Code | Nominal Size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Max. Working Pressure (bar/psi) | Back Pressure (bar/psi) | Product Diameter (mm/inch) | Total Length of Product (mm/inch) | Bypass Diameter(mm/inch) | Product Weight(kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|---|---|
|
remove
add
|
IHTP5070A | 50-70 | 50mm/1,97" | 70mm/2,76" | 6,0bar/87,02psi | 3,0bar/43,51psi | 45mm/1,77" | 330mm/12,99" | 6,35mm/1/4" | 1,0kg/2,20Ibs |
|
remove
add
|
IHTP5070B | 50-70 | 50mm/1,97" | 70mm/2,76" | 6,0bar/87,02psi | 3,0bar/43,51psi | 45mm/1,77" | 330mm/12,99" | 2x3,17mm/2x1/8" | 1,2kg/2,64Ibs |
|
remove
add
|
IHTP70100A | 70-100 | 70mm/2,76" | 100mm/3,93" | 6,0bar/87,02psi | 3,0bar/43,51psi | 64mm/2,52" | 400mm/15,75" | 12,70mm/1/2" | 1,2kg/2,64Ibs |
|
remove
add
|
IHTP70100B | 70-100 | 70mm/2,76" | 100mm/3,93" | 6,0bar/87,02psi | 3,0bar/43,51psi | 64mm/2,52" | 400mm/15,75" | 2x6,35mm/2x1/4" | 1,3kg/2,87Ibs |
|
remove
add
|
IHTP100150A | 100-150 | 100mm/3,93" | 150mm/5,90" | 6,0bar/87,02psi | 3,0bar/43,51psi | 88mm/3,46" | 580mm/22,83" | 25,40mm/1" | 1,8kg/3,97lbs |
|
remove
add
|
IHTP100150B | 100-150 | 100mm/3,93" | 150mm/5,90" | 6,0bar/87,02psi | 3,0bar/43,51psi | 88mm/3,46" | 580mm/22,83" | 2x12,7mm/2x1/2" | 1,9kg/4,19lbs |
|
remove
add
|
IHTP150200A | 150-200 | 150mm/5,90" | 200mm/7,87" | 6,0bar/87,02psi | 3,0bar/43,51psi | 138mm/5,43" | 550mm/21,65" | 50,80mm/2" | 4,0kg/8,82lbs |
|
remove
add
|
IHTP150200B | 150-200 | 150mm/5,90" | 200mm/7,87" | 6,0bar/87,02psi | 3,0bar/43,51psi | 138mm/5,43" | 550mm/21,65" | 2x25,40mm/2x1" | 4,2kg/9,26lbs |
|
remove
add
|
IHTP200300A | 200-300 | 200mm/7,87" | 300mm/11,81" | 6,0bar/87,02psi | 3,0bar/43,51psi | 185mm/7,28" | 650mm/25,59" | 50,80mm/2" | 7,2kg/15,87lbs |
|
remove
add
|
IHTP200300B | 200-300 | 200mm/7,87" | 300mm/11,81" | 6,0bar/87,02psi | 3,0bar/43,51psi | 185mm/7,28" | 650mm/25,59" | 2x25,40mm/2x1" | 7,4kg/16,31lbs |
|
remove
add
|
IHTP300400A | 300-400 | 300mm/11,81" | 400mm/15,74" | 6,0bar/87,02psi | 3,0bar/43,51psi | 285mm/11,22" | 850mm/33,46" | 50,80mm/2" | 11,0kg/24,25lbs |
|
remove
add
|
IHTP300400B | 300-400 | 300mm/11,81" | 400mm/15,74" | 6,0bar/87,02psi | 3,0bar/43,51psi | 285mm/11,22" | 850mm/33,46" | 50,8mm/2" + 25,4mm/1" | 11,7kg/25,79lbs |
|
remove
add
|
IHTP375500A | 375-500 | 375mm/14,76" | 500mm/19,68" | 6,0bar/87,02psi | 3,0bar/43,51psi | 355mm/13,98" | 1000mm/39,37" | 50,80mm/2" | 18,0kg/39,68lbs |
|
remove
add
|
IHTP375500B | 375-500 | 375mm/14,76" | 500mm/19,68" | 6,0bar/87,02psi | 3,0bar/43,51psi | 355mm/13,98" | 1000mm/39,37" | 2x50,80mm/2x2" | 20,0kg/44,09lbs |
|
remove
add
|
IHTP500600A | 500-600 | 500mm/19,68" | 600mm/23,62" | 6,0bar/87,02psi | 3,0bar/43,51psi | 485mm/19,09" | 1050mm/41,34" | 50,80mm/2" | 27,0kg/59,52lbs |
|
remove
add
|
IHTP500600B | 500-600 | 500mm/19,68" | 600mm/23,62" | 6,0bar/87,02psi | 3,0bar/43,51psi | 485mm/19,09" | 1050mm/41,34" | 2x50,80mm/2x2" | 28,8kg/63,49lbs |
|
remove
add
|
IHTP600700A | 600-700 | 600mm/23,62" | 700mm/27,55" | 6,0bar/87,02psi | 3,0bar/43,51psi | 585mm/23,03" | 1300mm/51,18" | 50,80mm/2" | 35,0kg/77,16lbs |
|
remove
add
|
IHTP600700B | 600-700 | 600mm/23,62" | 700mm/27,55" | 6,0bar/87,02psi | 3,0bar/43,51psi | 585mm/23,03" | 1300mm/51,18" | 2x50,80mm/2x2" | 36,0kg/79,37lbs |
|
remove
add
|

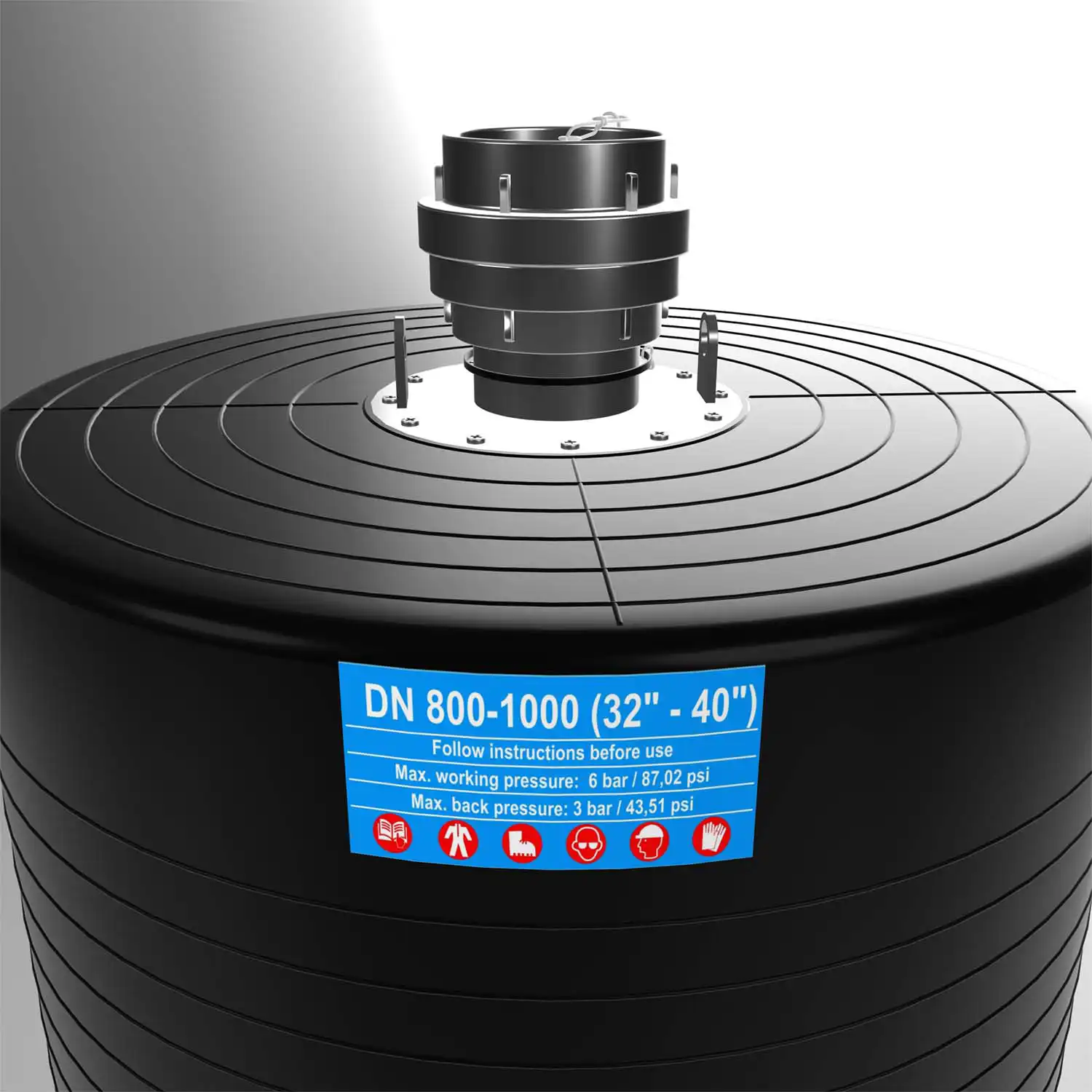

IHTP8001000A | 800-1000 | 800mm/31,49" | 1000mm/39,37" | 6,0bar/87,02psi | 3,0bar/43,51psi | 785mm/30,91" | 1200mm/47,24" | 101,60mm/4" | 45,0kg/99,21lbs |
|
remove
add
|
IHTP8001000B | 800-1000 | 800mm/31,49" | 1000mm/39,37" | 6,0bar/87,02psi | 3,0bar/43,51psi | 785mm/30,91" | 1200mm/47,24" | 2x50,80mm/2x2" | 50,0kg/110,23lbs |
|
remove
add
|
IHTP12001400A | 1200-1400 | 1200mm/47,24" | 1400mm/55,11" | 6,0bar/87,02psi | 3,0bar/43,51psi | 1180mm/46,45" | 2500mm/98,42" | 101,60mm/4" | 220,0kg/484,88lbs |
|
remove
add
|
IHTP12001400A | 1200-1400 | 1200mm/47,24" | 1400mm/55,11" | 6,0bar/87,02psi | 3,0bar/43,51psi | 1180mm/46,45" | 2500mm/98,42" | 2x50,80mm/2x2" | 220,0kg/484,88lbs |
|
remove
add
|
IHTP18002000A | 1800-2000 | 1800mm/70,86" | 2000mm/78,74" | 6,0bar/87,02psi | 3,0bar/43,51psi | 1780mm/70,07" | 4000mm/157,48" | 101,60mm/4" | 320,0kg/705,28lbs |
|
remove
add
|
IHTP18002000B | 1800-2000 | 1800mm/70,86" | 2000mm/78,74" | 6,0bar/87,02psi | 3,0bar/43,51psi | 1780mm/70,07" | 4000mm/157,48" | 2x50,80mm/2x2" | 320,0kg/705,28lbs |
| Product Code | Nominal Size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Max. Working Pressure (bar/psi) | Back Pressure(bar/psi) | Product Diameter (mm/inch) | Total Length of Product (mm/inch) | Bypass Diameter(mm/inch) | Product Weight(kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|---|---|
|
remove
add
|
IHTP50A | 50 | 50mm/1,97 | 50mm/1,97" | 12,0bar/174,04psi | 6,0bar/87,02psi | 45mm/1,77" | 330mm/12,99" | 6,35mm/1/4" | 1,0kg/2,20Ibs |
|
remove
add
|
IHTP50B | 50 | 50mm/1,97 | 50mm/1,97" | 12,0bar/174,04psi | 6,0bar/87,02psi | 45mm/1,77" | 330mm/12,99" | 2x3,17mm/2x1/8" | 1,2kg/2,64Ibs |
|
remove
add
|
IHTP70A | 70 | 70mm/2,76" | 70mm/2,76" | 12,0bar/174,04psi | 6,0bar/87,02psi | 64mm/2,52" | 400mm/15,75" | 12,70mm/1/2" | 1,2kg/2,64Ibs |
|
remove
add
|
IHTP70B | 70 | 70mm/2,76" | 70mm/2,76" | 12,0bar/174,04psi | 6,0bar/87,02psi | 64mm/2,52" | 400mm/15,75" | 2x6,35mm/2x1/4" | 1,3kg/2,87Ibs |
|
remove
add
|
IHTP100A | 100 | 100mm/3,93" | 100mm/3,93" | 12,0bar/174,04psi | 6,0bar/87,02psi | 88mm/3,46" | 580mm/22,83" | 25,40mm/1" | 1,8kg/3,97lbs |
|
remove
add
|
IHTP100B | 100 | 100mm/3,93" | 100mm/3,93" | 12,0bar/174,04psi | 6,0bar/87,02psi | 88mm/3,46" | 580mm/22,83" | 2x12,7mm/2x1/2" | 1,9kg/4,19lbs |
|
remove
add
|
IHTP150A | 150 | 150mm/5,90" | 150mm/5,90" | 12,0bar/174,04psi | 6,0bar/87,02psi | 138mm/5,43" | 550mm/21,65" | 50,80mm/2" | 4,0kg/8,82lbs |
|
remove
add
|
IHTP150B | 150 | 150mm/5,90" | 150mm/5,90" | 12,0bar/174,04psi | 6,0bar/87,02psi | 138mm/5,43" | 550mm/21,65" | 2x25,40mm/2x1" | 4,2kg/9,26lbs |
|
remove
add
|
IHTP200A | 200 | 200mm/7,87" | 200mm/7,87" | 12,0bar/174,04psi | 6,0bar/87,02psi | 185mm/7,28" | 650mm/25,59" | 50,80mm/2" | 7,2kg/15,87lbs |
|
remove
add
|
IHTP200B | 200 | 200mm/7,87" | 200mm/7,87" | 12,0bar/174,04psi | 6,0bar/87,02psi | 185mm/7,28" | 650mm/25,59" | 2x25,40mm/2x1" | 7,4kg/16,31lbs |
|
remove
add
|
IHTP300A | 300 | 300mm/11,81" | 300mm/11,81" | 12,0bar/174,04psi | 6,0bar/87,02psi | 285mm/11,22" | 850mm/33,46" | 50,80mm/2" | 11,0kg/24,25lbs |
|
remove
add
|
IHTP300B | 300 | 300mm/11,81" | 300mm/11,81" | 12,0bar/174,04psi | 6,0bar/87,02psi | 285mm/11,22" | 850mm/33,46" | 50,8mm/2" + 25,4mm/1" | 11,7kg/25,79lbs |
|
remove
add
|
IHTP400A | 400 | 400mm/15,74" | 400mm/15,74" | 12,0bar/174,04psi | 6,0bar/87,02psi | 355mm/13,98" | 1000mm/39,37" | 50,80mm/2" | 18,0kg/39,68lbs |
|
remove
add
|
IHTP400B | 400 | 400mm/15,74" | 400mm/15,74" | 12,0bar/174,04psi | 6,0bar/87,02psi | 355mm/13,98" | 1000mm/39,37" | 2x50,80mm/2x2" | 20,0kg/44,09lbs |
|
remove
add
|
IHTP500A | 500 | 500mm/19,68" | 500mm/19,68" | 12,0bar/174,04psi | 6,0bar/87,02psi | 485mm/19,09" | 1050mm/41,34" | 50,80mm/2" | 27,0kg/59,52lbs |
|
remove
add
|
IHTP500B | 500 | 500mm/19,68" | 500mm/19,68" | 12,0bar/174,04psi | 6,0bar/87,02psi | 485mm/19,09" | 1050mm/41,34" | 2x50,80mm/2x2" | 28,8kg/63,49lbs |
|
remove
add
|
IHTP600A | 600 | 600mm/23,62" | 600mm/23,62" | 12,0bar/174,04psi | 6,0bar/87,02psi | 585mm/23,03" | 1300mm/51,18" | 50,80mm/2" | 35,0kg/77,16lbs |
|
remove
add
|
IHTP600B | 600 | 600mm/23,62" | 600mm/23,62" | 12,0bar/174,04psi | 6,0bar/87,02psi | 585mm/23,03" | 1300mm/51,18" | 2x50,80mm/2x2" | 36,0kg/79,37lbs |
|
remove
add
|
IHTP800A | 800 | 800mm/31,49" | 800mm/31,49" | 12,0bar/174,04psi | 6,0bar/87,02psi | 785mm/30,91" | 1200mm/47,24" | 101,60mm/4" | 45,0kg/99,21lbs |
|
remove
add
|
IHTP800B | 800 | 800mm/31,49" | 800mm/31,49" | 12,0bar/174,04psi | 6,0bar/87,02psi | 785mm/30,91" | 1200mm/47,24" | 2x50,80mm/2x2" | 50,0kg/110,23lbs |
|
remove
add
|
IHTP1200A | 1200 | 1200mm/47,24" | 1200mm/47,24" | 12,0bar/174,04psi | 6,0bar/87,02psi | 1180mm/46,45" | 2500mm/98,42" | 101,60mm/4" | 220,0kg/484,88lbs |
|
remove
add
|
IHTP1200B | 1200 | 1200mm/47,24" | 1200mm/47,24" | 12,0bar/174,04psi | 6,0bar/87,02psi | 1180mm/46,45" | 2500mm/98,42" | 2x50,80mm/2x2" | 220,0kg/484,88lbs |
|
remove
add
|
IHTP1800A | 1800 | 1800mm/70,86" | 1800mm/70,86" | 12,0bar/174,04psi | 6,0bar/87,02psi | 1780mm/70,07" | 4000mm/157,48" | 101,60mm/4" | 320,0kg/705,28lbs |
|
remove
add
|
IHTP1800B | 1800 | 1800mm/70,86" | 1800mm/70,86" | 12,0bar/174,04psi | 6,0bar/87,02psi | 1780mm/70,07" | 4000mm/157,48" | 2x50,80mm/2x2" | 320,0kg/705,28lbs |
