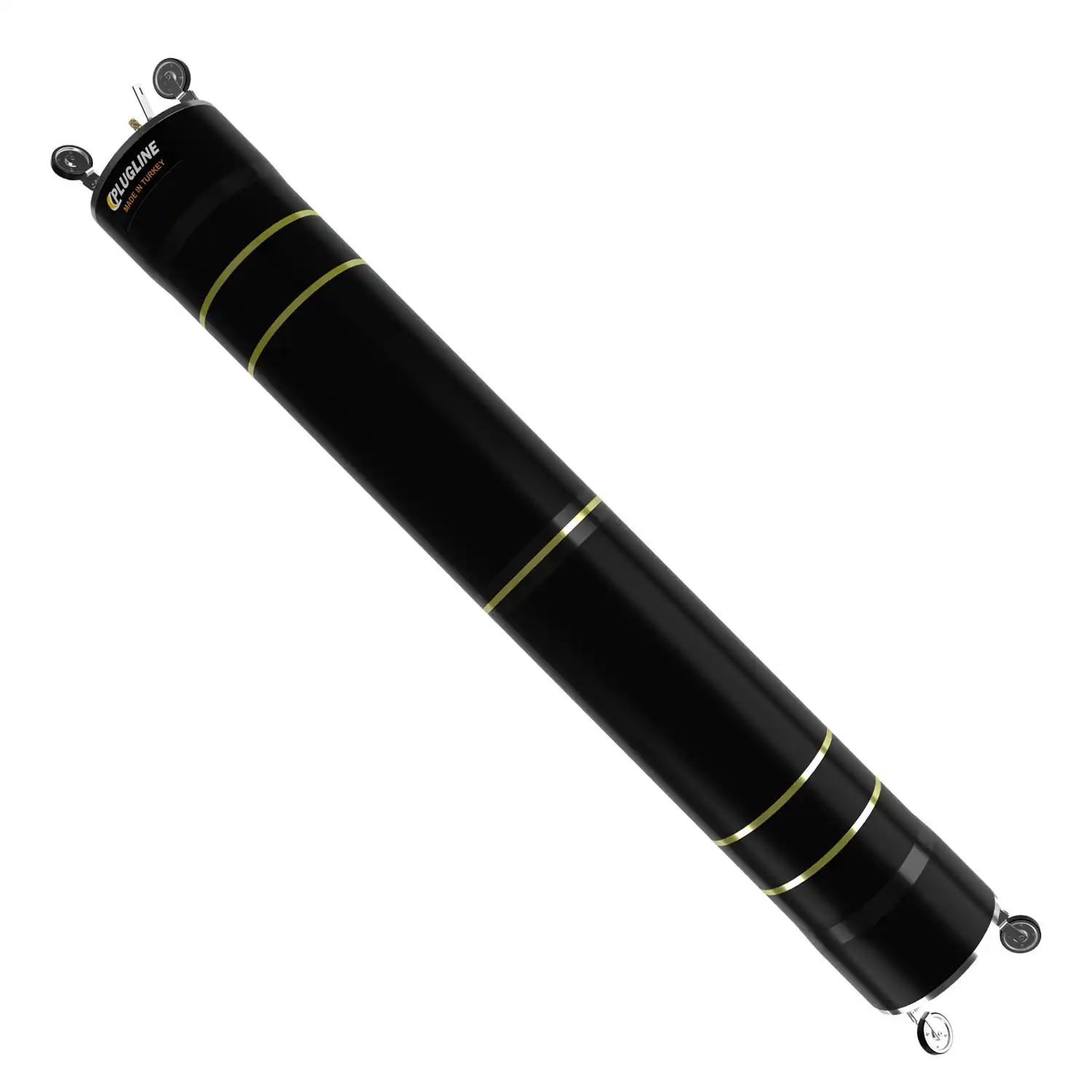

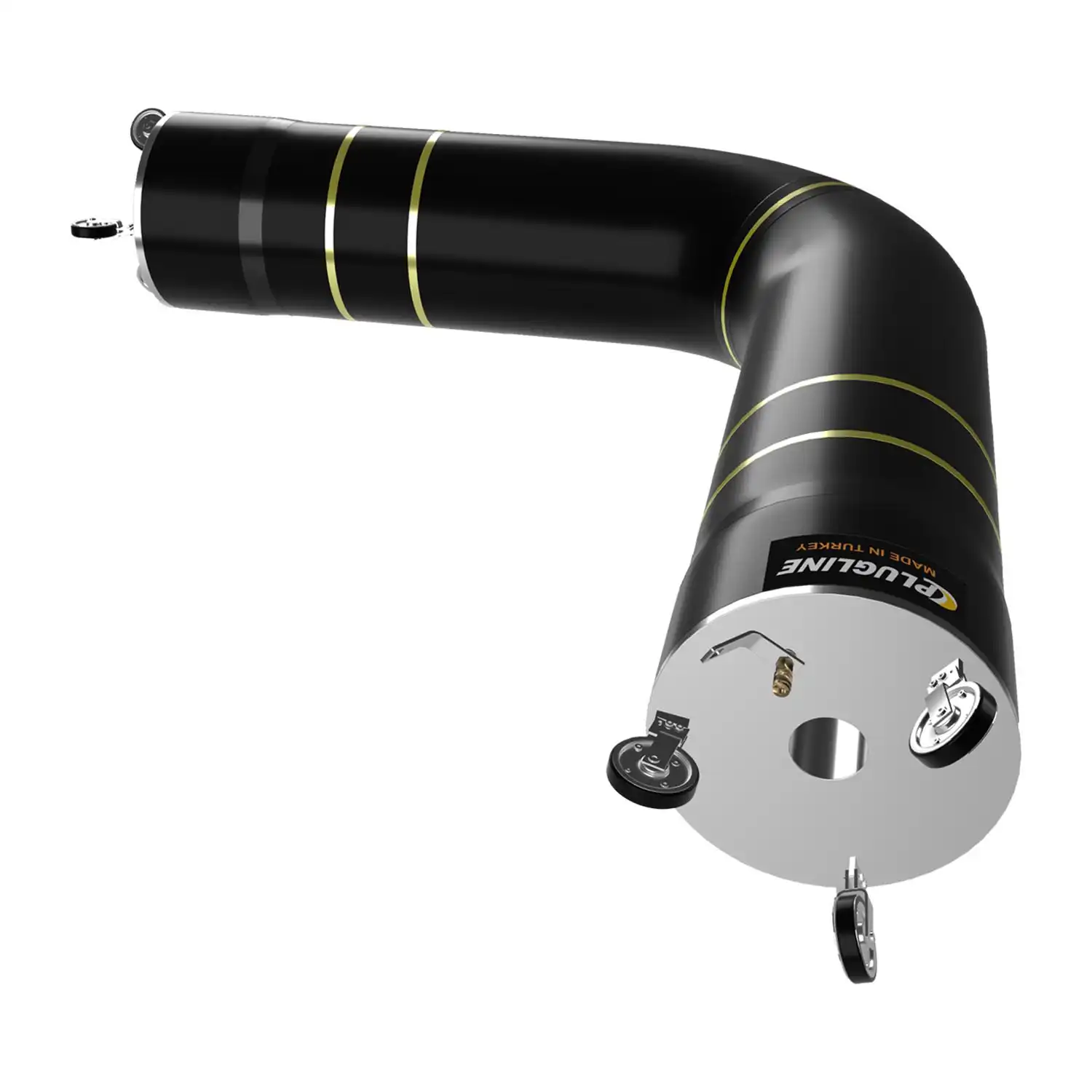

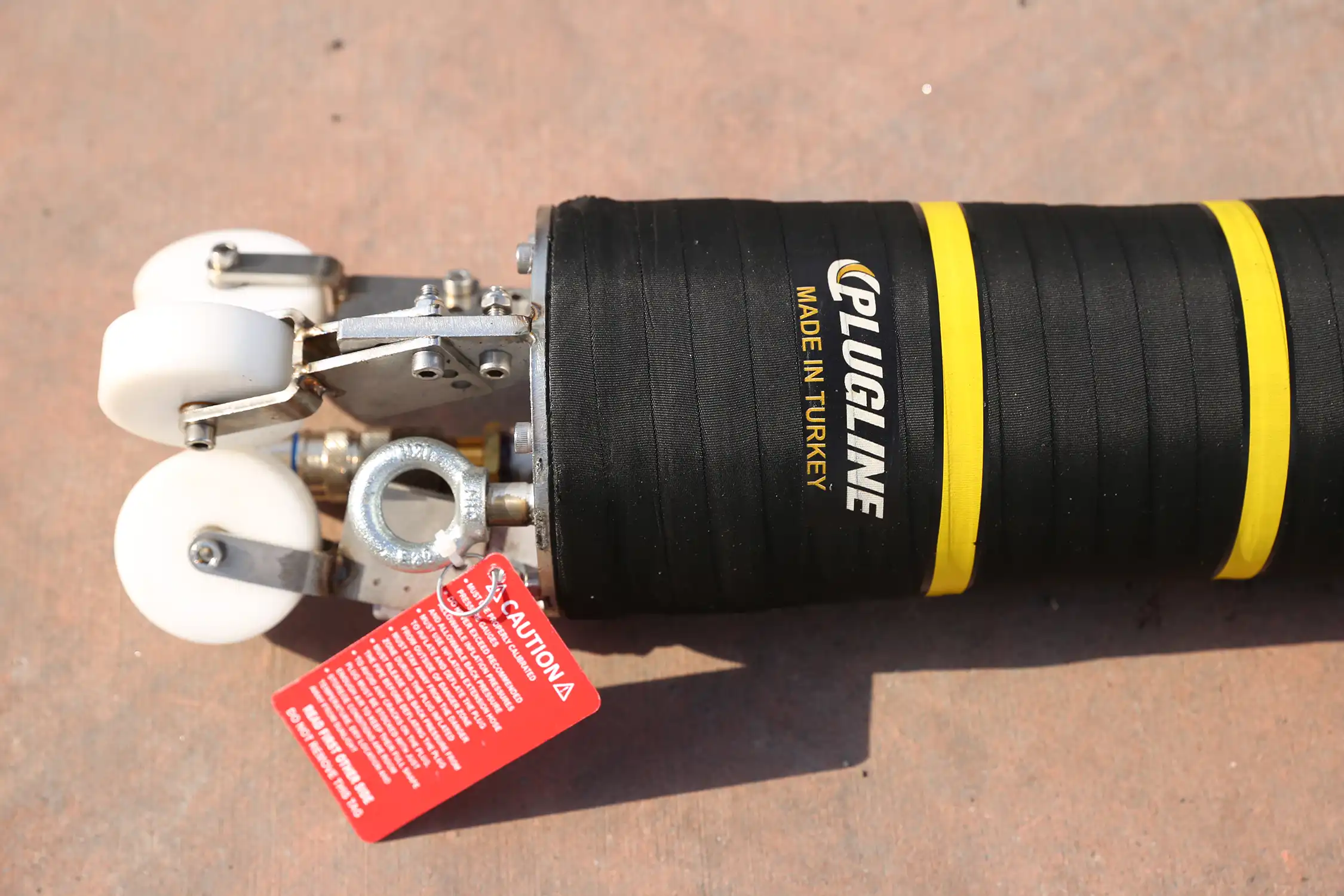

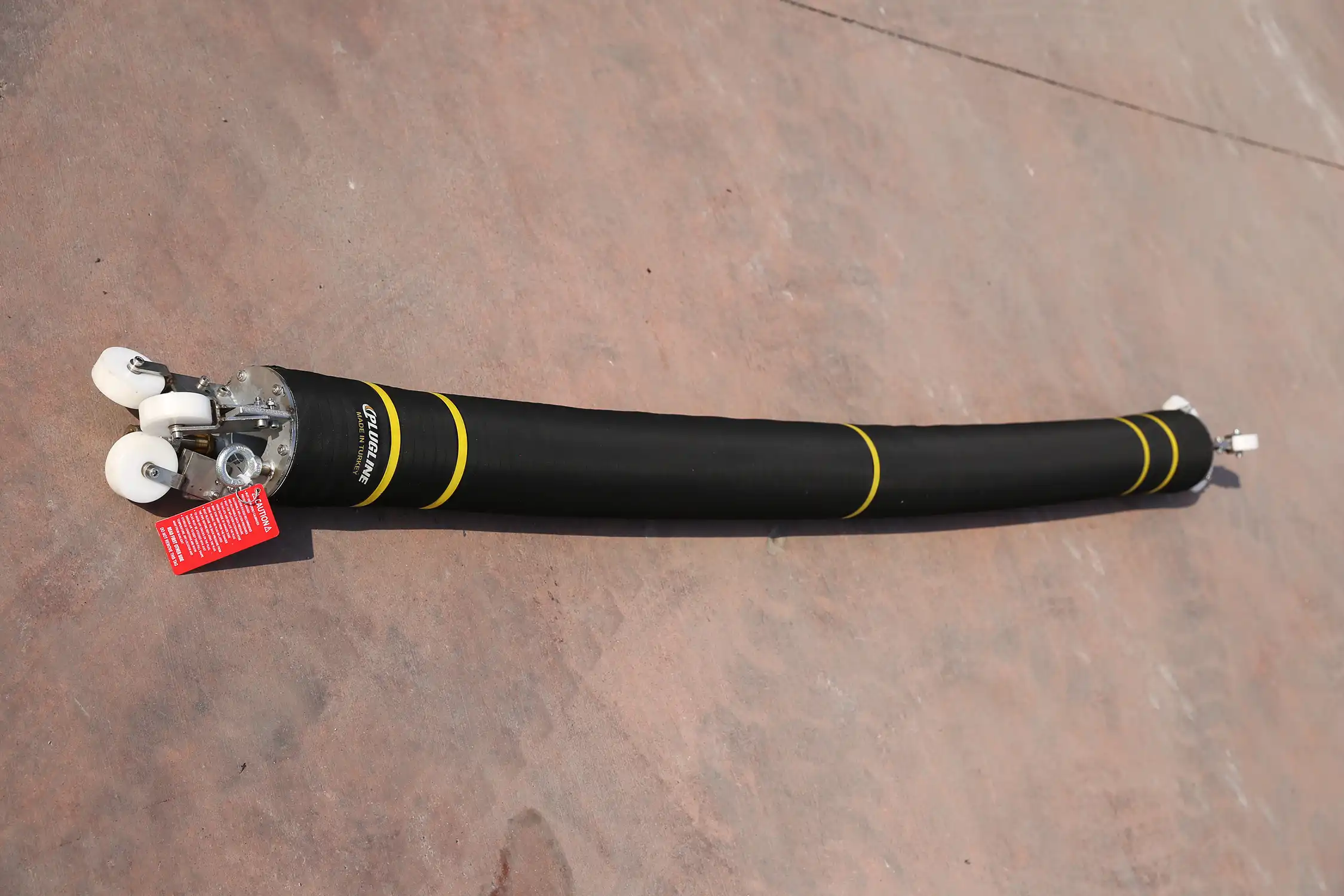

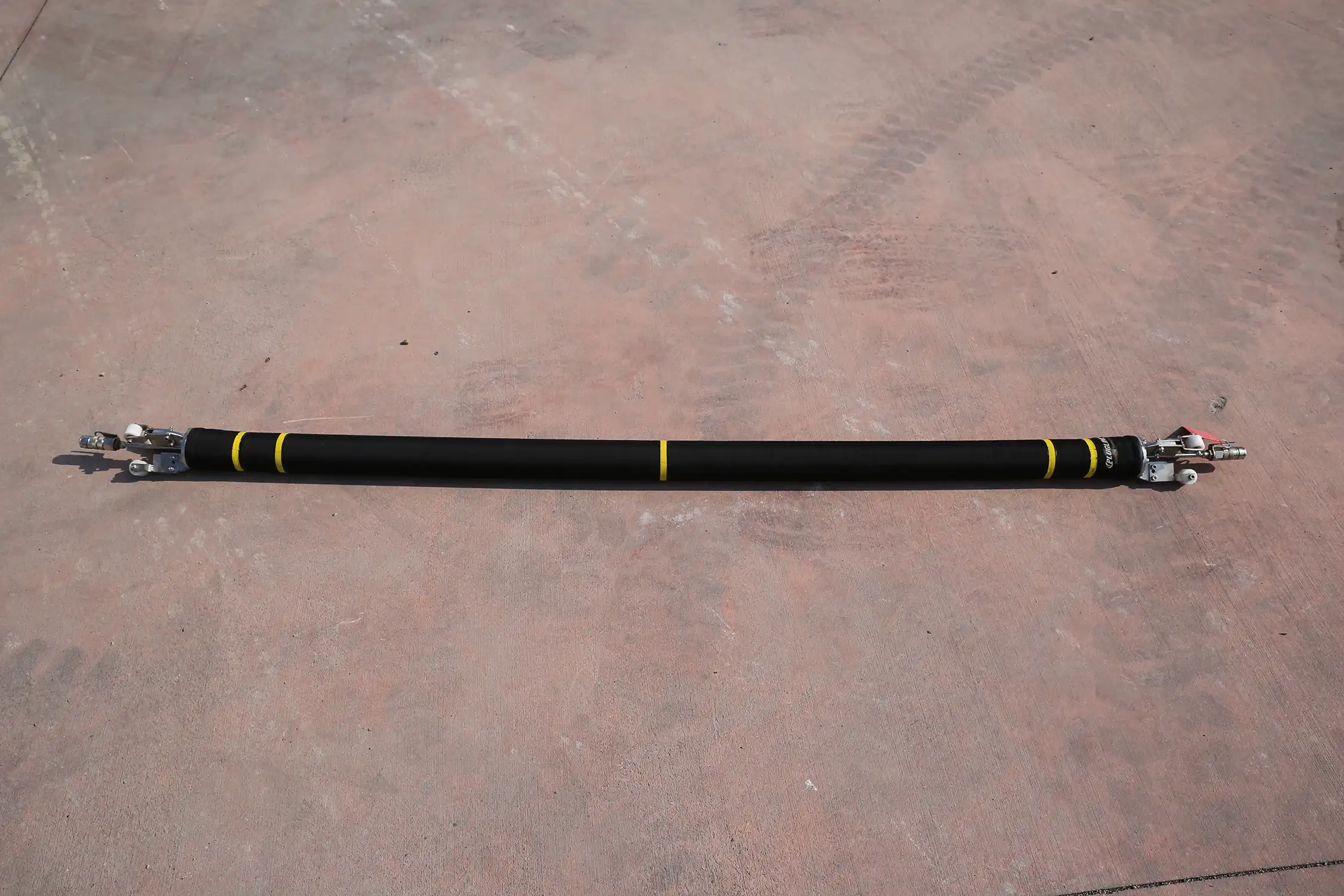

Гибкие Пакеры С Байпасом (1,0 BAR - 2,5 BAR)
- Options and explanations и/или протечек других частей канализации, дренажных систем, трубопроводов и водосstоков.
- Sport sports events, the following events во время ремонта.
- Isolated area 600 mm (23.62 дюйма) до 5000 мм (196.85 дюйма).
- The standard price is 100 mm (3.93 dm) or 2200 mm (86.61 dm).
- Standard version 1.0 Bar (15.50 psi), 1.5 bar (21.75 psi), 2.0 bar (29.00 psi) and 2.5 bar (36.25 psi).

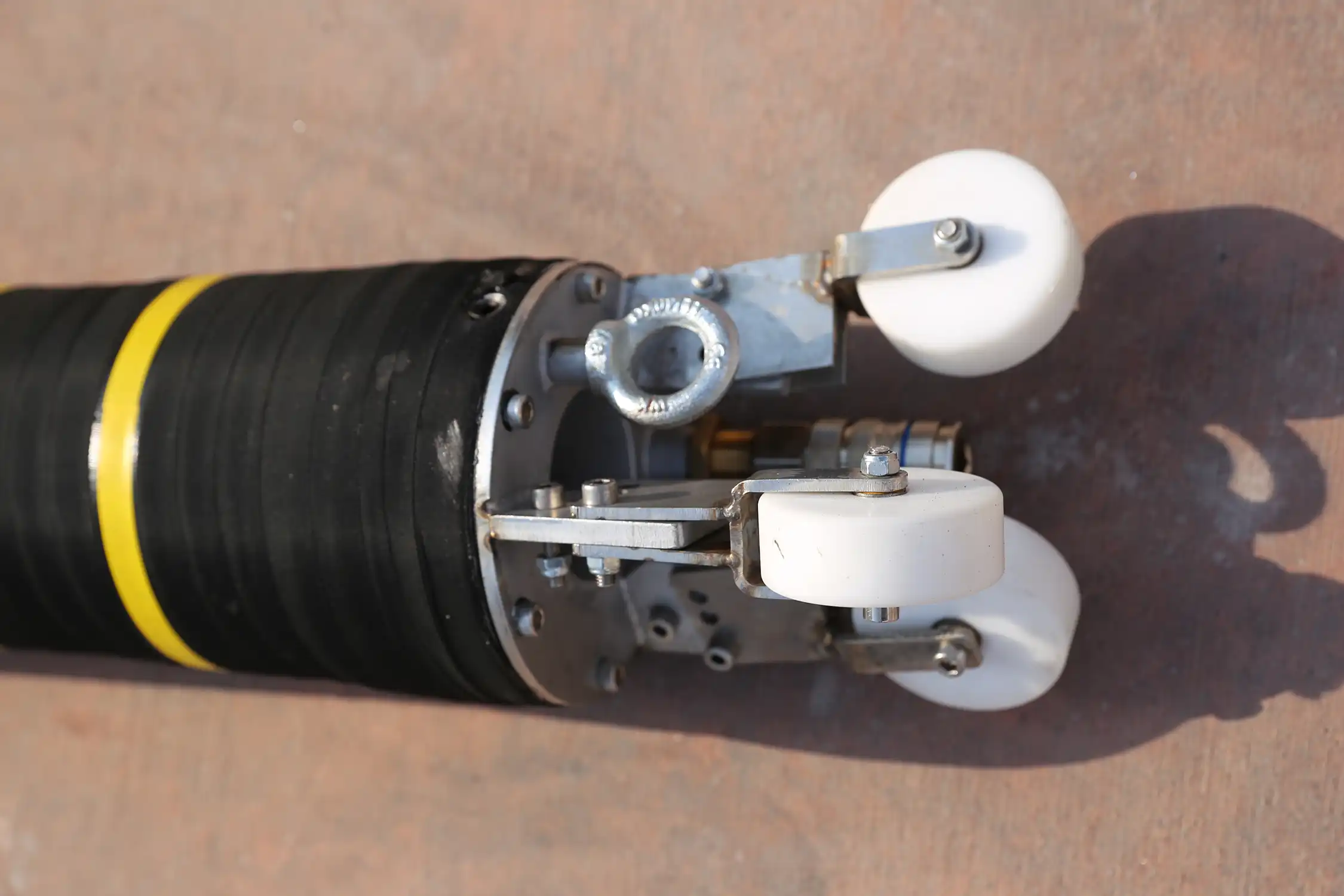

- Оснащены внутреним металлическим перепуском (байпасом), имеют free of charge.
- Occurrences of cholecystitis and corrosion material легкого перемещения внутри трубы
- Lego standard and free shipping
- Isolated corrosion materials.
| Product Code | Nominal Size(mm) | Length of Rubber Part(mm/inch) | Contact Length at Min. Dia(mm/inch) | Contact Length at Max. Dia(mm/inch) | Max. Working Pressure(bar/psi) | Product Diameter(mm/inch) | Total Length of Product(mm/inch) | Bypass Diameter(mm/inch) | Product Weight(kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|---|---|
|
remove
add
|
FBP100150/1000 | 100-150 | 1000mm/39,37" | 850mm/33,46" | 830mm/32,68" | 2,5bar/36,25psi | 60mm/2,36" | 1350mm/53,15" | NA | 1,7kg/3,75lbs |
|
remove
add
|
FBP100150/1500 | 100-150 | 1500mm/59,06" | 1350mm/53,15" | 1330mm/52,36" | 2,5bar/36,25psi | 60mm/2,36" | 1850mm/72,83" | NA | 3,7kg/8,16lbs |
|
remove
add
|
FBP100150/2000 | 100-150 | 2000mm/78,74" | 1850mm/72,83" | 1830mm/72,05" | 2,5bar/36,25psi | 60mm/2,36" | 2350mm/92,52" | NA | 4,5kg/9,92lbs |
|
remove
add
|
FBP100150/2500 | 100-150 | 2500mm/98,43" | 2350mm/92,52" | 2330mm/91,73" | 2,5bar/36,25psi | 60mm/2,36" | 2850mm/112,2" | NA | 5,1kg/11,24lbs |
|
remove
add
|
FBP100150/3000 | 100-150 | 3000mm/118,11" | 2850mm/112,2" | 2830mm/111,42" | 2,5bar/36,25psi | 60mm/2,36" | 3350mm/131,89" | NA | 5,8kg/12,79lbs |
|
remove
add
|
FBP100150/4000 | 100-150 | 4000mm/157,48" | 3850mm/151,57" | 3830mm/150,79" | 2,5bar/36,25psi | 60mm/2,36" | 4350mm/171,26" | NA | 7,4kg/16,31lbs |
|
remove
add
|
FBP100150/5000 | 100-150 | 5000mm/196,85" | 4850mm/190,94" | 4830mm/190,16" | 2,5bar/36,25psi | 60mm/2,36" | 5350mm/210,63" | NA | 9,2kg/20,28lbs |
|
remove
add
|
FBP150250/1000 | 150-250 | 1000mm/39,37" | 900mm/35,43" | 775mm/30,51" | 2,0bar/29,00psi | 116mm/4,57" | 1350mm/53,15" | 50,8mm/2" | 7,5kg/16,53lbs |
|
remove
add
|
FBP150250/1500 | 150-250 | 1500mm/59,06" | 1400mm/55,12" | 1275mm/50,2" | 2,0bar/29,00psi | 116mm/4,57" | 1850mm/72,83" | 50,8mm/2" | 10,2kg/22,49lbs |
|
remove
add
|
FBP150250/2000 | 150-250 | 2000mm/78,74" | 1900mm/74,8" | 1775mm/69,88" | 2,0bar/29,00psi | 116mm/4,57" | 2350mm/92,52" | 50,8mm/2" | 13kg/28,66lbs |
|
remove
add
|
FBP150250/2500 | 150-250 | 2500mm/98,43" | 2400mm/94,49" | 2275mm/89,57" | 2,0bar/29,00psi | 116mm/4,57" | 2850mm/112,2" | 50,8mm/2" | 15,5kg/34,17lbs |
|
remove
add
|
FBP150250/3000 | 150-250 | 3000mm/118,11" | 2900mm/114,17" | 2775mm/109,25" | 2,0bar/29,00psi | 116mm/4,57" | 3350mm/131,89" | 50,8mm/2" | 18kg/39,68lbs |
|
remove
add
|
FBP150250/4000 | 150-250 | 4000mm/157,48" | 3900mm/153,54" | 3775mm/148,62" | 2,0bar/29,00psi | 116mm/4,57" | 4350mm/171,26" | 50,8mm/2" | 23,5kg/51,81lbs |
|
remove
add
|
FBP150250/5000 | 150-250 | 5000mm/196,85" | 4900mm/192,91" | 4775mm/187,99" | 2,0bar/29,00psi | 116mm/4,57" | 5350mm/210,63" | 50,8mm/2" | 29kg/63,93lbs |
|
remove
add
|
FBP200300/1000 | 200-300 | 1000mm/39,37" | 850mm/33,46" | 720mm/28,35" | 2,0bar/29,00psi | 150mm/5,91" | 1350mm/53,15" | 50,8mm/2" | 12,5kg/27,56lbs |
|
remove
add
|
FBP200300/1500 | 200-300 | 1500mm/59,06" | 1350mm/53,15" | 1220mm/48,03" | 2,0bar/29,00psi | 150mm/5,91" | 1850mm/72,83" | 50,8mm/2" | 15kg/33,07lbs |
|
remove
add
|
FBP200300/2000 | 200-300 | 2000mm/78,74" | 1850mm/72,83" | 1720mm/67,72" | 2,0bar/29,00psi | 150mm/5,91" | 2350mm/92,52" | 50,8mm/2" | 17,5kg/38,58lbs |
|
remove
add
|
FBP200300/4000 | 200-300 | 4000mm/157,48" | 3850mm/151,57" | 3720mm/146,46" | 2,0bar/29,00psi | 150mm/5,91" | 4350mm/171,26" | 50,8mm/2" | 25,5kg/56,22lbs |
|
remove
add
|
FBP200300/5000 | 200-300 | 5000mm/196,85" | 4850mm/190,94" | 4720mm/185,83" | 2,0bar/29,00psi | 150mm/5,91" | 5350mm/210,63" | 50,8mm/2" | 29,5kg/65,04lbs |
|
remove
add
|
FBP300400/1000 | 300-400 | 1000mm/39,37" | 800mm/31,5" | 700mm/27,56" | 1,5bar/21,75psi | 231mm/9,09" | 1350mm/53,15" | 76,2mm/3" or 101,6mm/4'' | 15,6kg/34,39lbs |
|
remove
add
|
FBP300400/1500 | 300-400 | 1500mm/59,06" | 1300mm/51,18" | 1200mm/47,24" | 1,5bar/21,75psi | 231mm/9,09" | 1850mm/72,83" | 76,2mm/3" or 101,6mm/4'' | 19,5kg/42,99lbs |
|
remove
add
|
FBP300400/2000 | 300-400 | 2000mm/78,74" | 1800mm/70,87" | 1700mm/66,93" | 1,5bar/21,75psi | 231mm/9,09" | 2350mm/92,52" | 76,2mm/3" or 101,6mm/4'' | 23kg/50,71lbs |
|
remove
add
|
FBP300400/3000 | 300-400 | 3000mm/118,11" | 2800mm/110,24" | 2700mm/106,3" | 1,5bar/21,75psi | 231mm/9,09" | 3350mm/131,89" | 76,2mm/3" or 101,6mm/4'' | 30,5kg/67,24lbs |
|
remove
add
|
FBP400600/1000 | 400-600 | 1000mm/39,37" | 800mm/31,5" | 700mm/27,56" | 1,0bar/14,50psi | 345mm/13,58" | 1350mm/53,15" | 76,2mm/3" or 101,6mm/4'' | 24,5kg/54,01lbs |
|
remove
add
|
FBP400600/1500 | 400-600 | 1500mm/59,06" | 1300mm/51,18" | 1200mm/47,24" | 1,0bar/14,50psi | 345mm/13,58" | 1850mm/72,83" | 76,2mm/3" or 101,6mm/4'' | 31kg/68,34lbs |
|
remove
add
|
FBP400600/2000 | 400-600 | 2000mm/78,74" | 1800mm/70,87" | 1700mm/66,93" | 1,0bar/14,50psi | 345mm/13,58" | 2350mm/92,52" | 76,2mm/3" or 101,6mm/4'' | 35,5kg/78,26lbs |
|
remove
add
|
FBP400600/3000 | 400-600 | 3000mm/118,11" | 2800mm/110,24" | 2700mm/106,3" | 1,0bar/14,50psi | 345mm/13,58" | 3350mm/131,89" | 76,2mm/3" or 101,6mm/4'' | 45kg/99,21lbs |
|
remove
add
|
FBP400600/4000 | 400-600 | 4000mm/157,48" | 3800mm/149,61" | 3700mm/145,67" | 1,0bar/14,50psi | 345mm/13,58" | 4350mm/171,26" | 76,2mm/3" or 101,6mm/4'' | 58,5kg/128,97lbs |
|
remove
add
|
FBP400600/5000 | 400-600 | 5000mm/196,85" | 4800mm/188,98" | 4700mm/185,04" | 1,0bar/14,50psi | 345mm/13,58" | 5350mm/210,63" | 76,2mm/3" or 101,6mm/4'' | 71kg/156,53lbs |
|
remove
add
|
FBP600800/1000 | 600-800 | 1000mm/39,37" | 750mm/29,53" | 700mm/27,56" | 1,0bar/14,50psi | 444mm/17,48" | 1350mm/53,15" | 76,2mm/3" or 101,6mm/4'' | 21kg/46,3lbs |
|
remove
add
|
FBP600800/1500 | 600-800 | 1500mm/59,06" | 1250mm/49,21" | 1200mm/47,24" | 1,0bar/14,50psi | 444mm/17,48" | 1850mm/72,83" | 76,2mm/3" or 101,6mm/4'' | 29,5kg/65,04lbs |
|
remove
add
|
FBP600800/2000 | 600-800 | 2000mm/78,74" | 1850mm/72,83" | 1700mm/66,93" | 1,0bar/14,50psi | 444mm/17,48" | 2350mm/92,52" | 76,2mm/3" or 101,6mm/4'' | 38kg/83,78lbs |
|
remove
add
|
FBP600800/3000 | 600-800 | 3000mm/118,11" | 2850mm/112,2" | 2700mm/106,3" | 1,0bar/14,50psi | 444mm/17,48" | 3350mm/131,89" | 76,2mm/3" or 101,6mm/4'' | 46kg/101,41lbs |
|
remove
add
|
FBP600800/4000 | 600-800 | 4000mm/157,48" | 3850mm/151,57" | 3700mm/145,67" | 1,0bar/14,50psi | 444mm/17,48" | 4350mm/171,26" | 76,2mm/3" or 101,6mm/4'' | 55,5kg/122,36lbs |
|
remove
add
|
FBP600800/5000 | 600-800 | 5000mm/196,85" | 4850mm/190,94" | 4700mm/185,04" | 1,0bar/14,50psi | 444mm/17,48" | 5350mm/210,63" | 76,2mm/3" or 101,6mm/4'' | 65,2kg/143,74lbs |
|
remove
add
|
FBP8001000/1500 | 800-1000 | 1500mm/59,06" | 1100mm/43,31" | 650mm/25,59" | 1,0bar/14,50psi | 555mm/21,85" | 1650mm/64,96" | 101,6mm/4" | 36kg/79,37lbs |
|
remove
add
|
FBP8001000/2000 | 800-1000 | 2000mm/78,74" | 1600mm/62,99" | 1200mm/47,24" | 1,0bar/14,50psi | 555mm/21,85" | 2150mm/84,65" | 101,6mm/4" | 48kg/105,82lbs |
