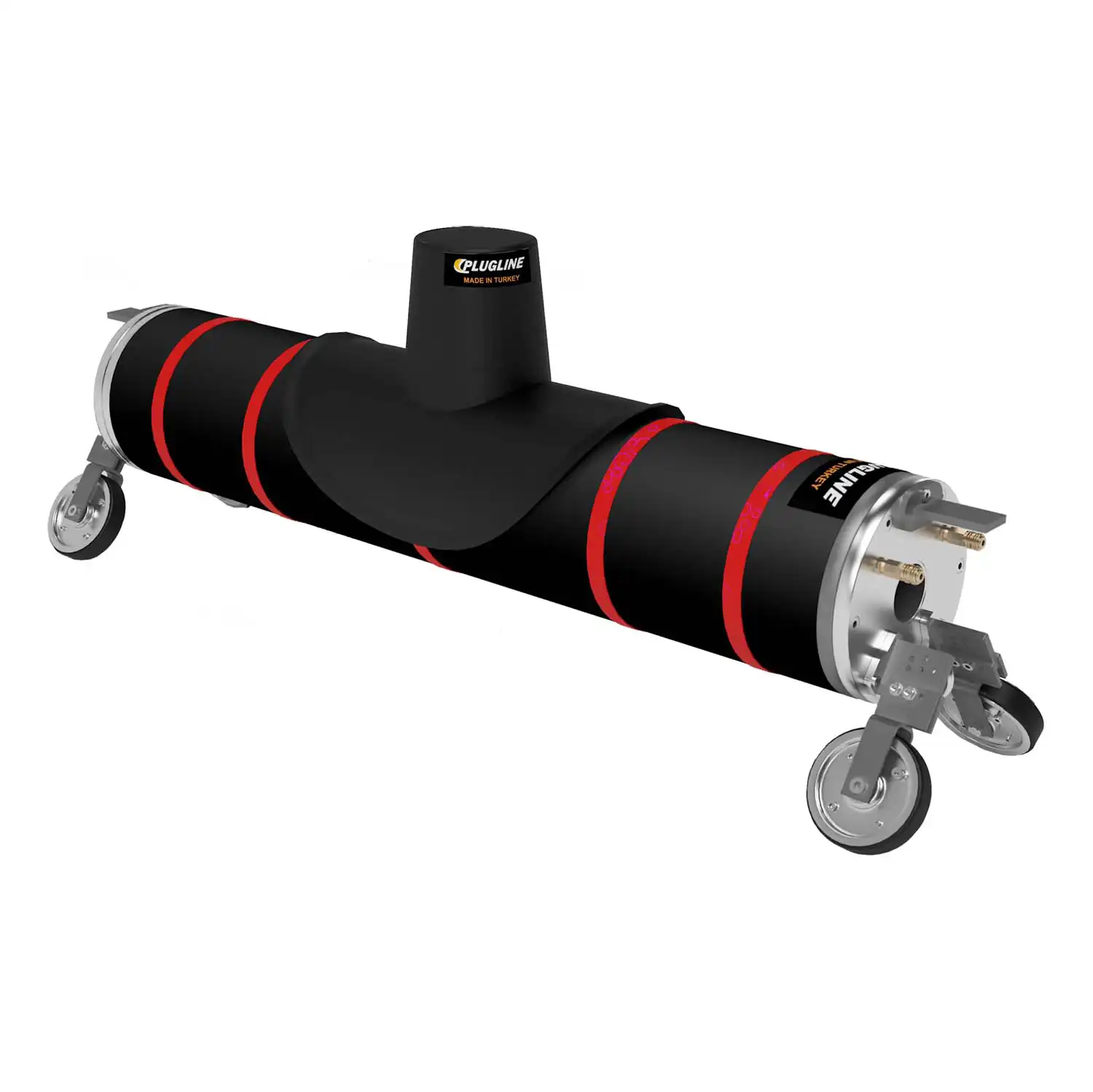

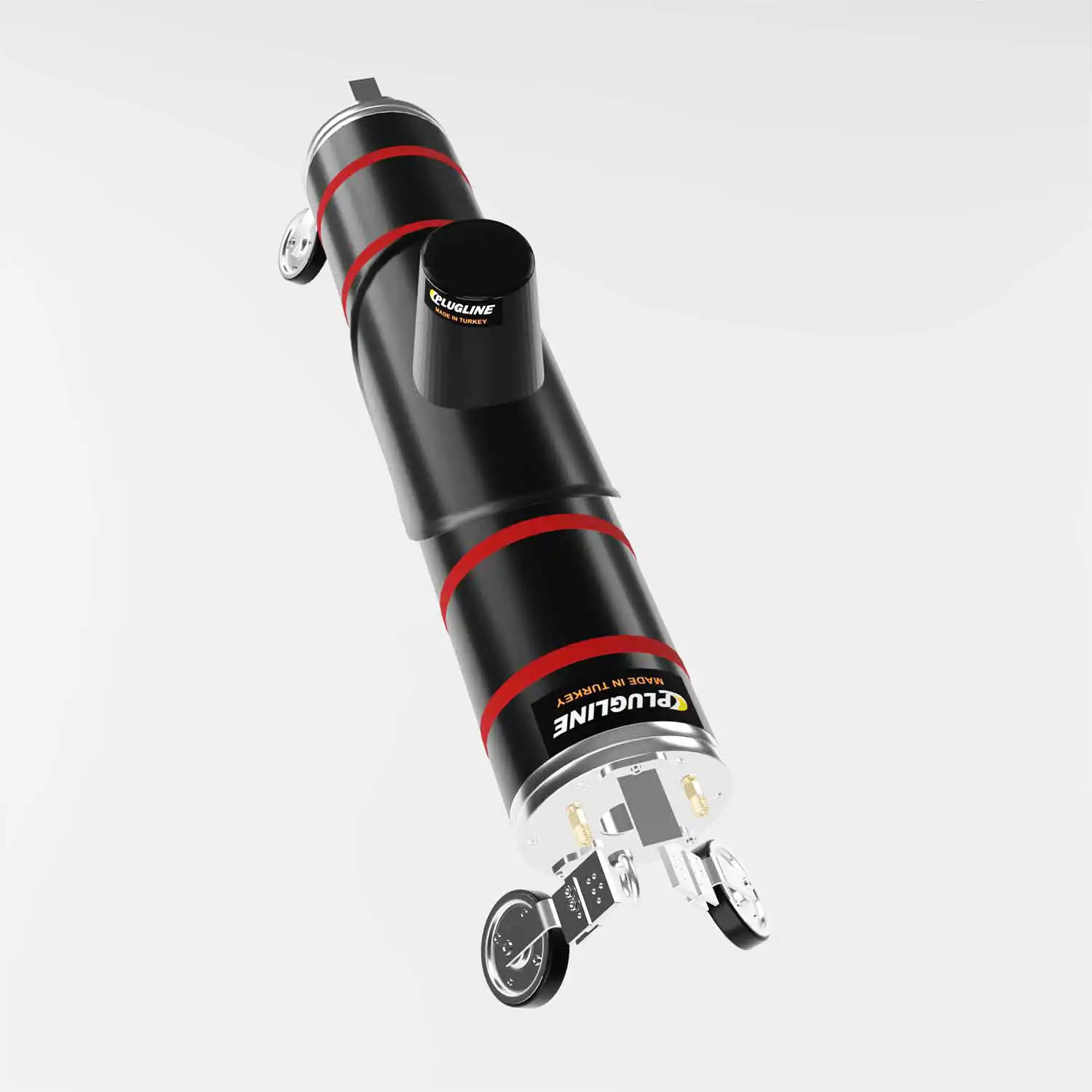

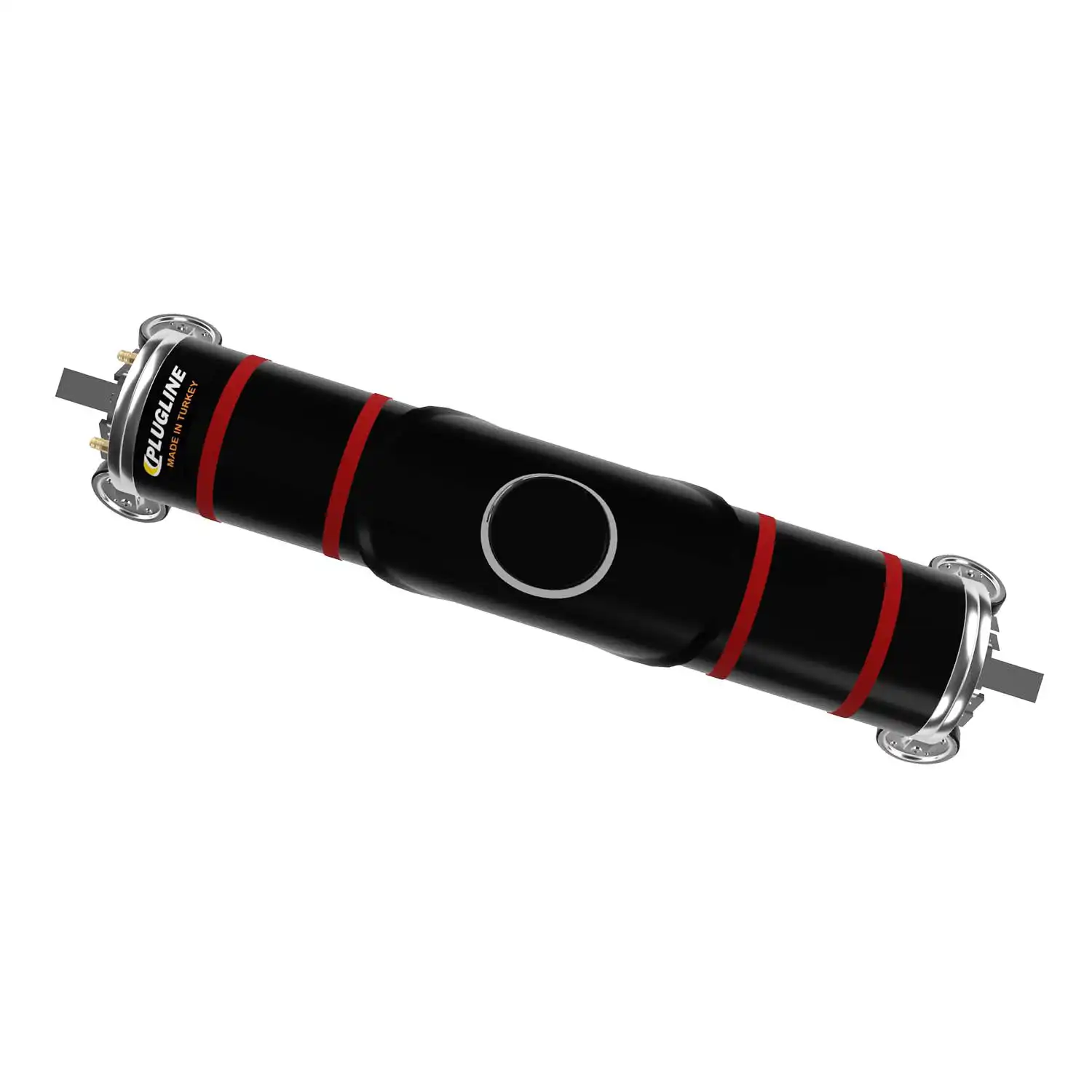

Top Hat Packers and Rubber Bladders

  • Top Hat Packers and Rubber Bladers are similar to lateral packers, main difference is they consists of two different materials, top hat packers and rubber bladders,
  • They are designed and used for repairing leakage of connections between main and lateral pipes.

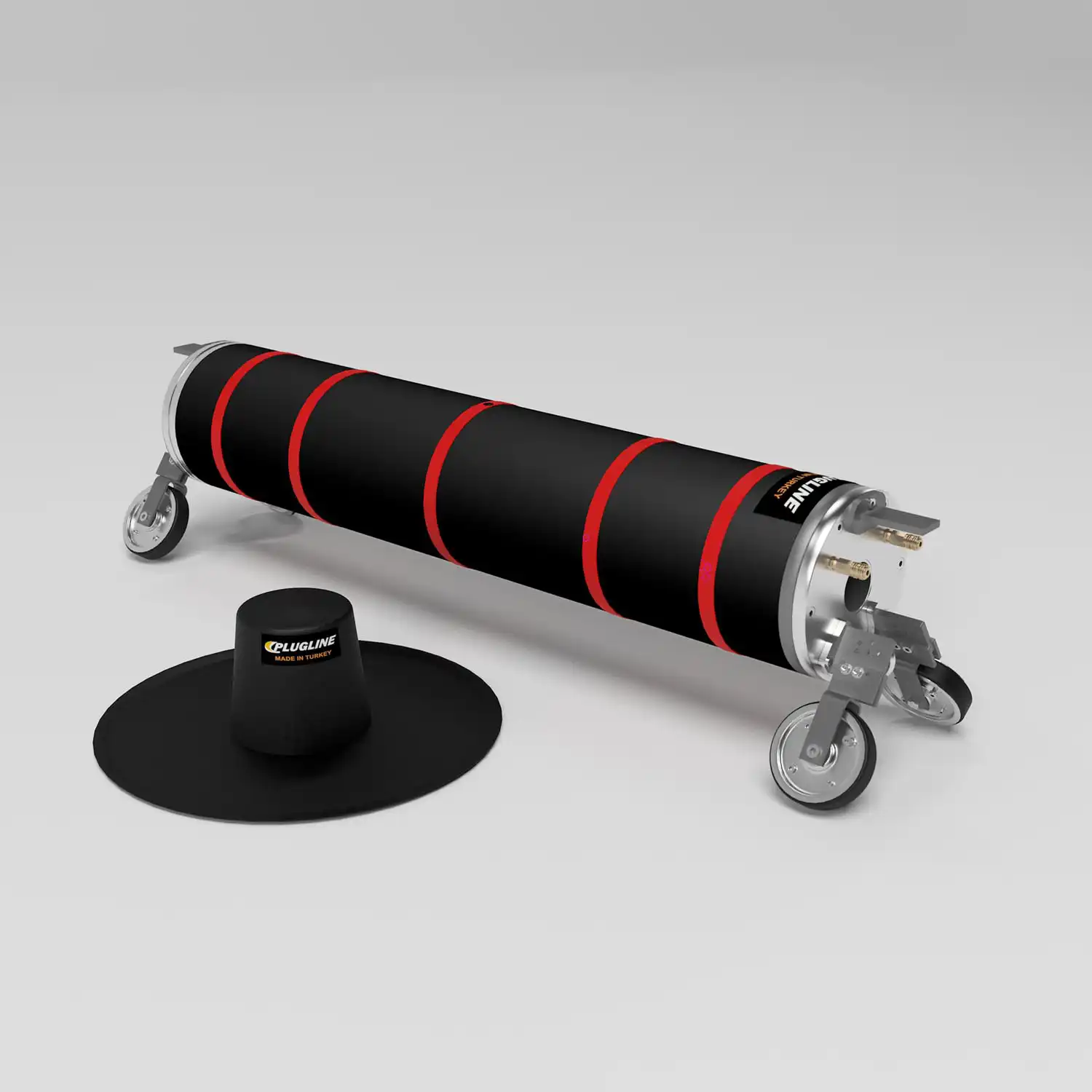

  • The attached lateral bladder is not integrated into the packer, this separation allows independent inflation of the packer and bladder. Therefore, they are easily placed on the part of the pipes to be repaired.
  • Special rubber raw material used in the production of Top Hat Bladder can be inserted into joints with little to no wrinkling upon hardening.
  • Special push rods can be used to position the packer inside of the pipe
  • Packers are available for pipe diameters from 100 mm (3,93") to 650 mm (25,51").
  • They are specified as standard working pressures of Top Hat Packers 2,0 Bar (29,00 psi), 2,5 Bar (36,25 psi) and 3,0 Bar (43,51 psi) and standard working pressure of  Rubber Bladders is specified as 1,5Bar (21,75 psi)
TOP HAT PACKERS (2,0 BAR and 3,0 BAR)
Product Code Nominal Size Cylinder Length (mm/inch) Max. Working Pressure (bar/psi) Product Diameter (mm/inch) Bypass Diameter (mm/inch) Product Weight (kg/Ibs)
remove add
THP100 100 1000 mm / 39,37" 3,0 bar / 43,51 psi 51 mm / 2,00" N/A 2,5kg / 5.51lbs
remove add
THP150 150 1000 mm / 39,37" 2,5 bar / 36,25 psi 60 mm / 2,36" N/A 4,5kg / 9.92lbs
remove add
THP200225 200-225 1000 mm / 39,37" 2,0 bar / 29,00 psi 116 mm / 4,56" 25,40 mm / 1" 6,5kg / 14.33lbs
remove add
THP250300 250-300 1000 mm / 39,37" 2,0 bar / 29,00 psi 125 mm / 4,92" 50,80 mm / 2" 8,5kg / 18.74lbs
remove add
THP300350 300-350 1000 mm / 39,37" 2,0 bar / 29,00 psi 150 mm / 5,90" 50,80 mm / 2" 10,5kg / 23.15lbs
remove add
THP400450 400-450 1000 mm / 39,37" 2,0 bar / 29,00 psi 200 mm / 7,87" 50,80 mm / 2" 16,0kg / 35.27lbs
remove add
THP500550 500-550 1000 mm / 39,37" 2,0 bar / 29,00 psi 250 mm / 9,84" 50,80 mm / 2" 20,0kg / 44.09lbs
remove add
THP600650 600-650 1000 mm / 39,37" 2,0 bar / 29,00 psi 345 mm / 13,58" 50,80 mm / 2" 28,0kg / 61.73lbs
TOP HAT RUBBER BLADERS
Product Code Nominal Size Cylinder Length (mm/inch) Max. Working Pressure (bar/psi) Product Diameter (mm/inch) Air Connection
remove add
THRB40 40 120 mm / 4,72" 1,5 bar / 21,75 psi 30 mm / 1,18" M6
remove add
THRB100 100 130 mm / 5,11" 1,5 bar / 21,75 psi 48 mm / 1,88" M6
remove add
THRB150 150 135 mm / 5,31" 1,5 bar / 21,75 psi 77 mm / 3,03" M6
