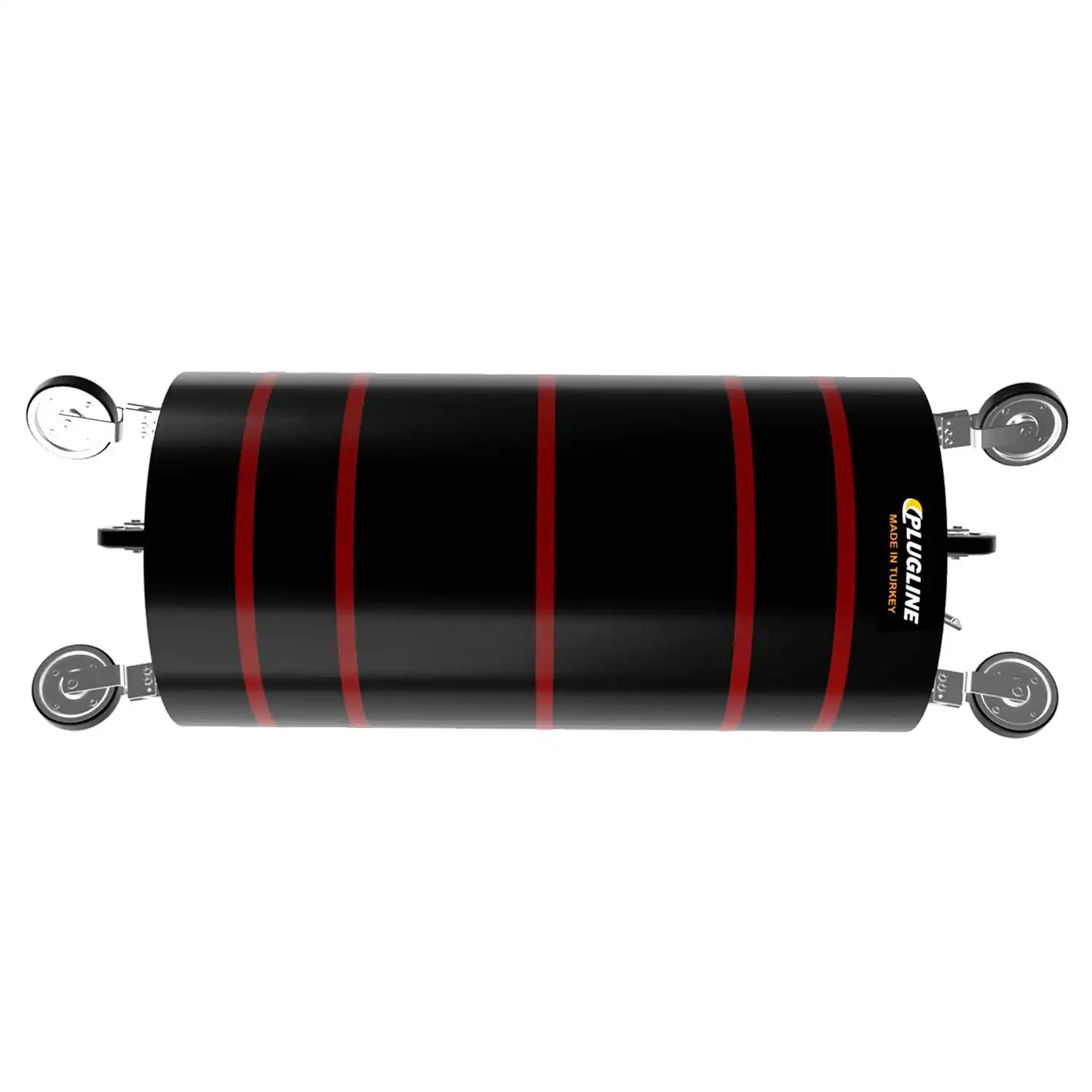

Short Packers With Metal Core (1,5 - 2,0 bar)

  • Short packers have a replaceable double-layer rubber sleeve mounted on a metal core. They are designed and used to repair leaks in sewers, drainage systems, pipelines and gutters.
  • The packer is brought into the pipe to be repaired, inflated while in place so that the sealed Glass fiber cloth patch is pressed against the inner surface of the pipe by resin.

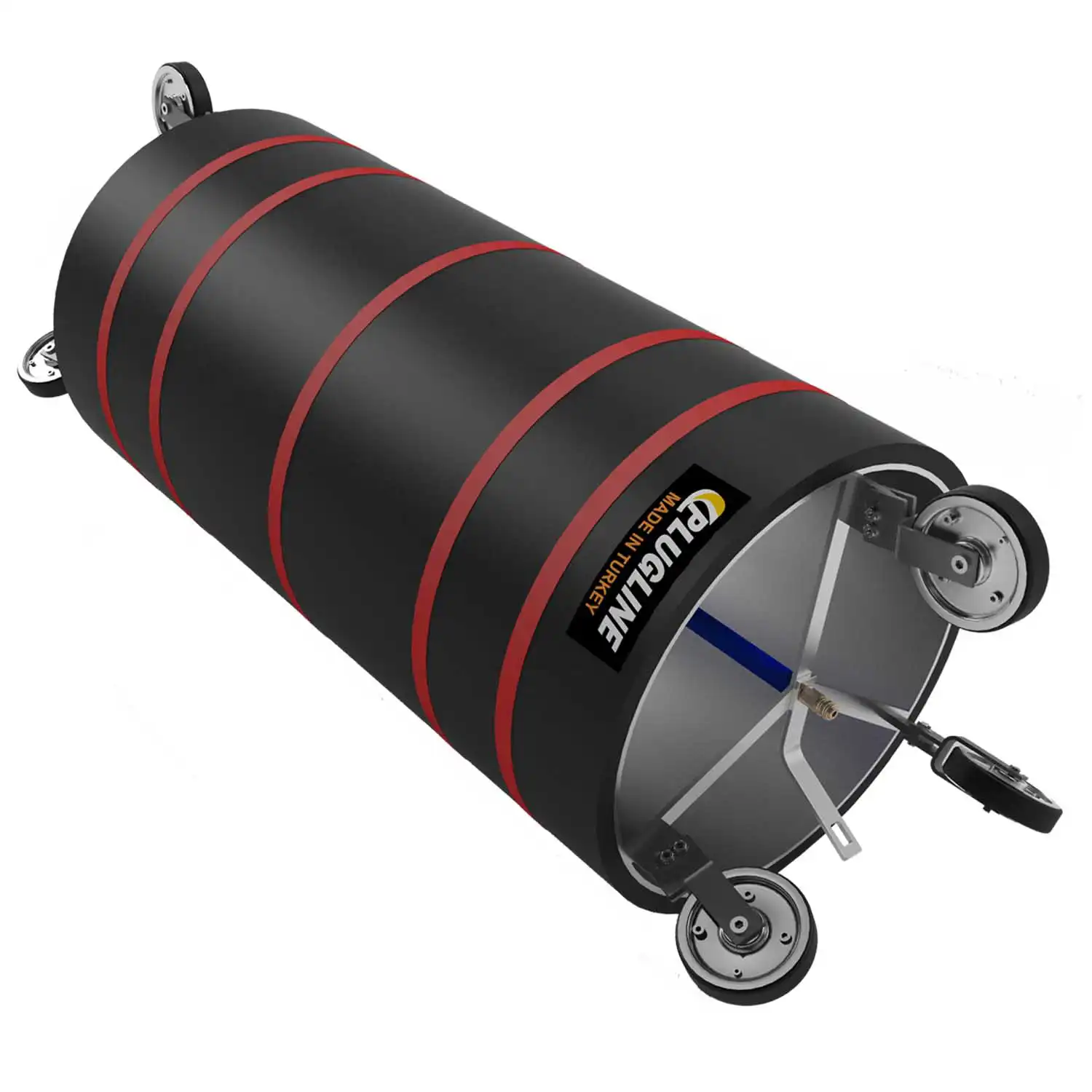

  • When the resin has dried and the repair is complete, the packer is quenched and removed, the metal core inside the packer keeping the flow going during operation. All other parts installed in the packer are made of corrosion resistant materials.

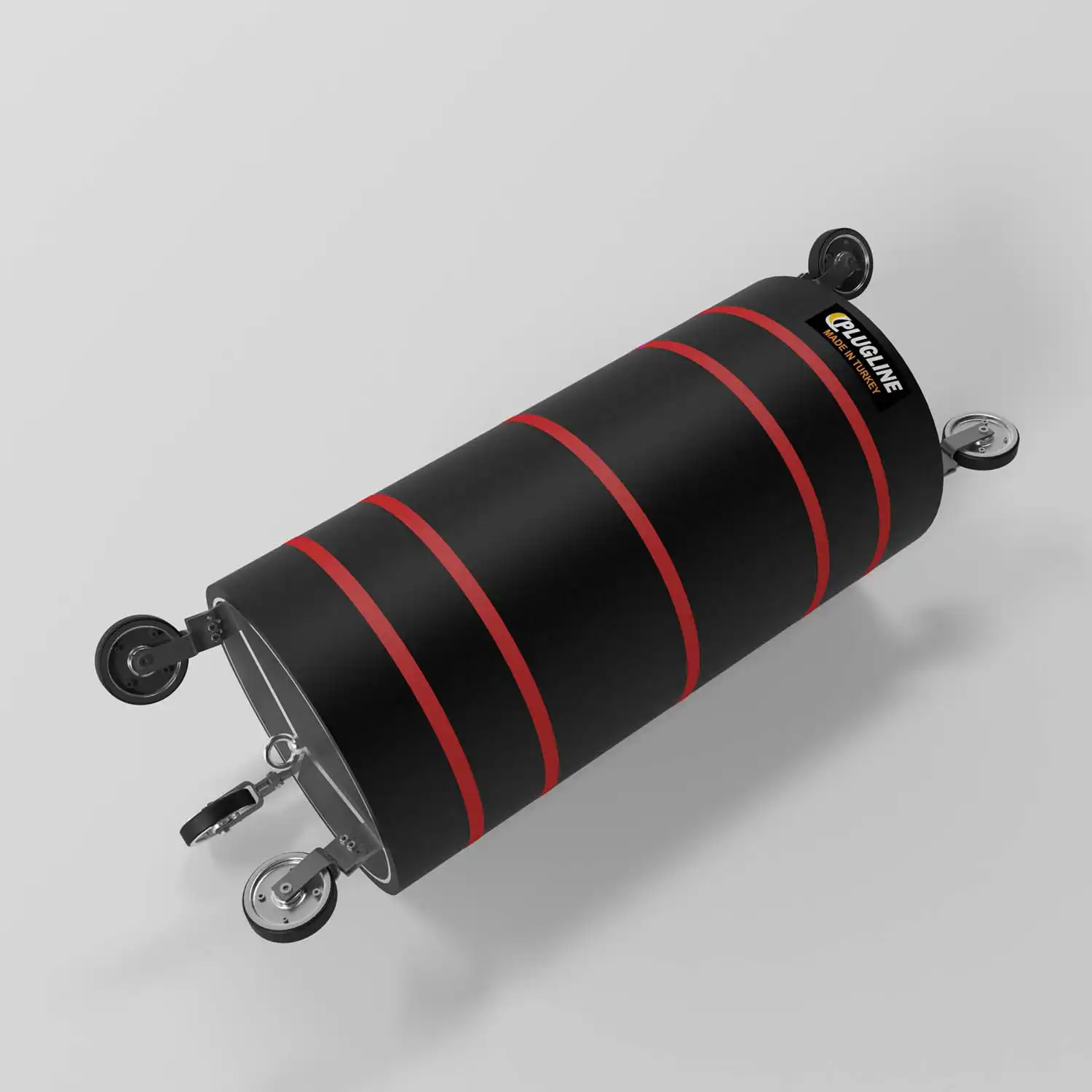

  • Three wheels are mounted on one side of the packer at an angle of 120° to prevent tipping while being transported along the pipeline.
  • The effective packer length is 600 mm (23.62”) so they are suitable for repairing pipeline joints or repairing shorter pipeline sections.
  •  1.5 Bar (21.75 psi) and 2.0 Bar (29.00 psi) are specified as standard operating pressures.

SHORT PACKERS WITH METAL CORE (1,5 BAR/21,75 PSI - 2,0 BAR/29,0 PSI)
Product Code Nominal Size (mm) Cylinder Length (mm/inch) Max. Contact (Repair) Lenght (mm/inch) Max. Working Pressure (bar/psi) Product Diameter (mm/inch) Total Length of Product (mm/inch) Bypass Diameter (mm/inch) Product Weight (kg/Ibs)
remove add
MCP150200 150-200 780mm/30,70" 580mm/22,83" 2,0bar/29,0psi 110mm/4,33" 1020mm/40,15" 65mm/2,55" 6,5kg/14,33Ibs
remove add
MCP250300 250-300 780mm/30,70" 600mm/23,62" 2,0bar/29,0psi 190mm/7,48" 1080mm/42,51" 150mm/5,90" 13,0kg/28,66Ibs
remove add
MCP300400 300-400 800mm/31,49" 525mm/20,66" 1,5bar/21,75psi 240mm/9,44" 1100mm/43,30" 200mm/7,87" 16,0kg/35,27Ibs
remove add
MCP350450 350-450 800mm/31,49" 550mm/21,65" 1,5bar/21,75psi 285mm/11,22" 1100mm/43,30" 245mm/9,64" 19,0kg/41,88Ibs
remove add
MCP500600 500-600 900mm/35,43" 450mm/17,71" 1,5bar/21,75psi 445mm/17,51" 1200mm/47,24" 400mm/15,74" 30,0kg/66,13Ibs
