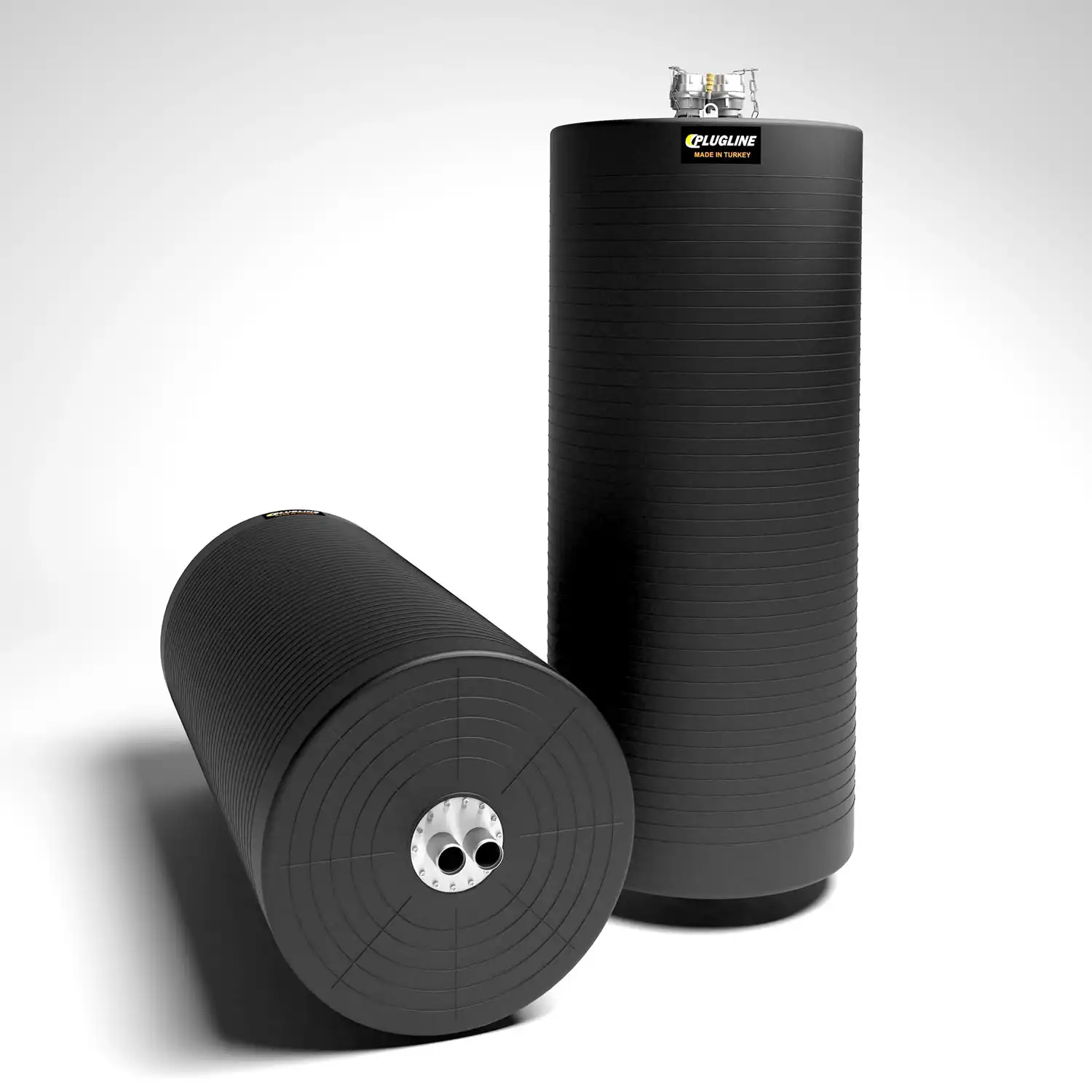

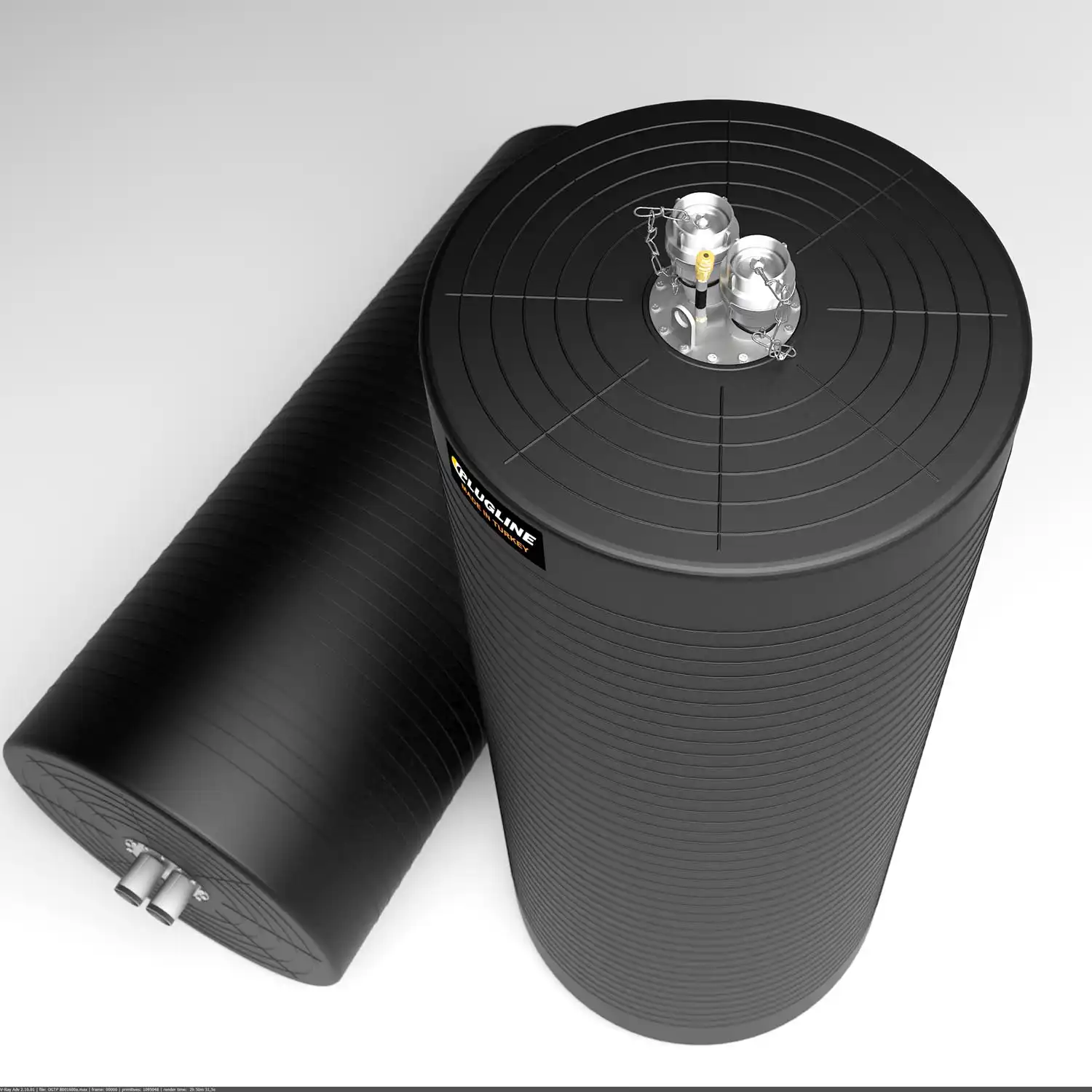

Oil and Gas Pipe Test Plugs (1,5 - 2,5 bar)

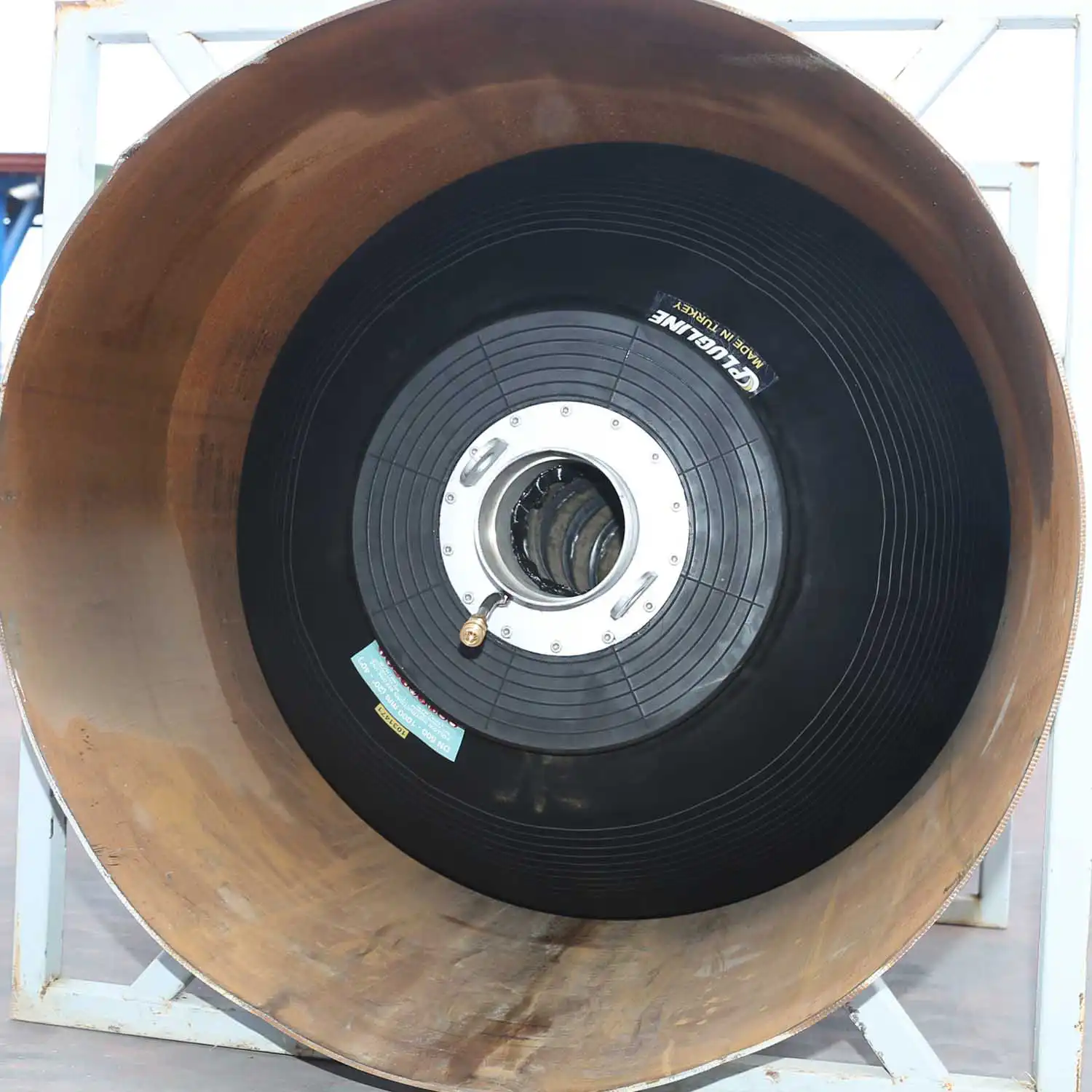

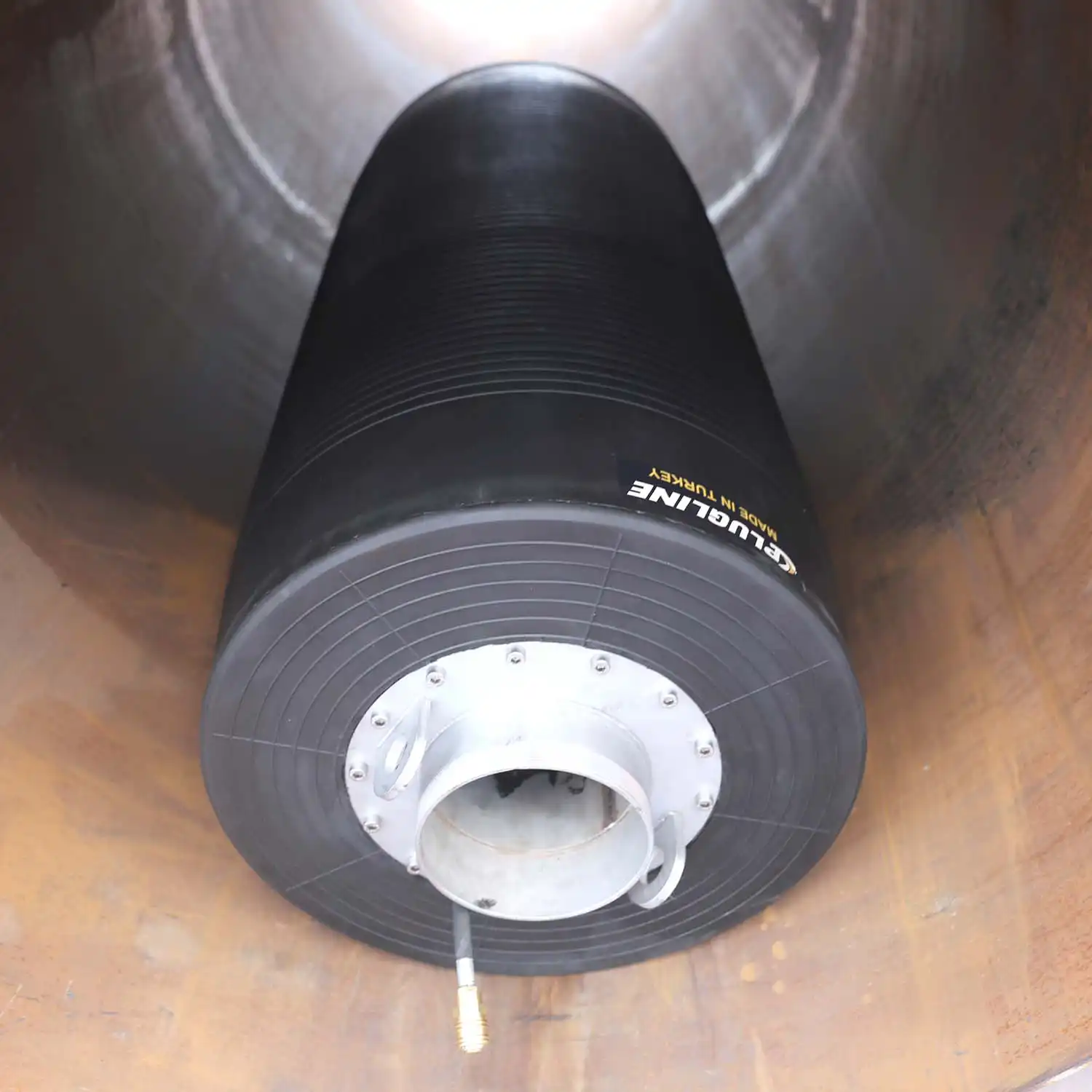

- Inflatable Oil and Gas Pipe Test Plugs are produced and used to make maintenance, repair or perform testing on a pipeline that contains oil, gas, petroleum, fuel and all other chemical fluids used in the Petrochemical Industry.
- They are also often used in situations where the flow must be diverted to the different directions via bypass on them.
- They are produced from special type of material Nitrile butadiene rubber NBR, this kind of rubber has high resistant to oil, gas, petroleum, fuel, and other chemicals.

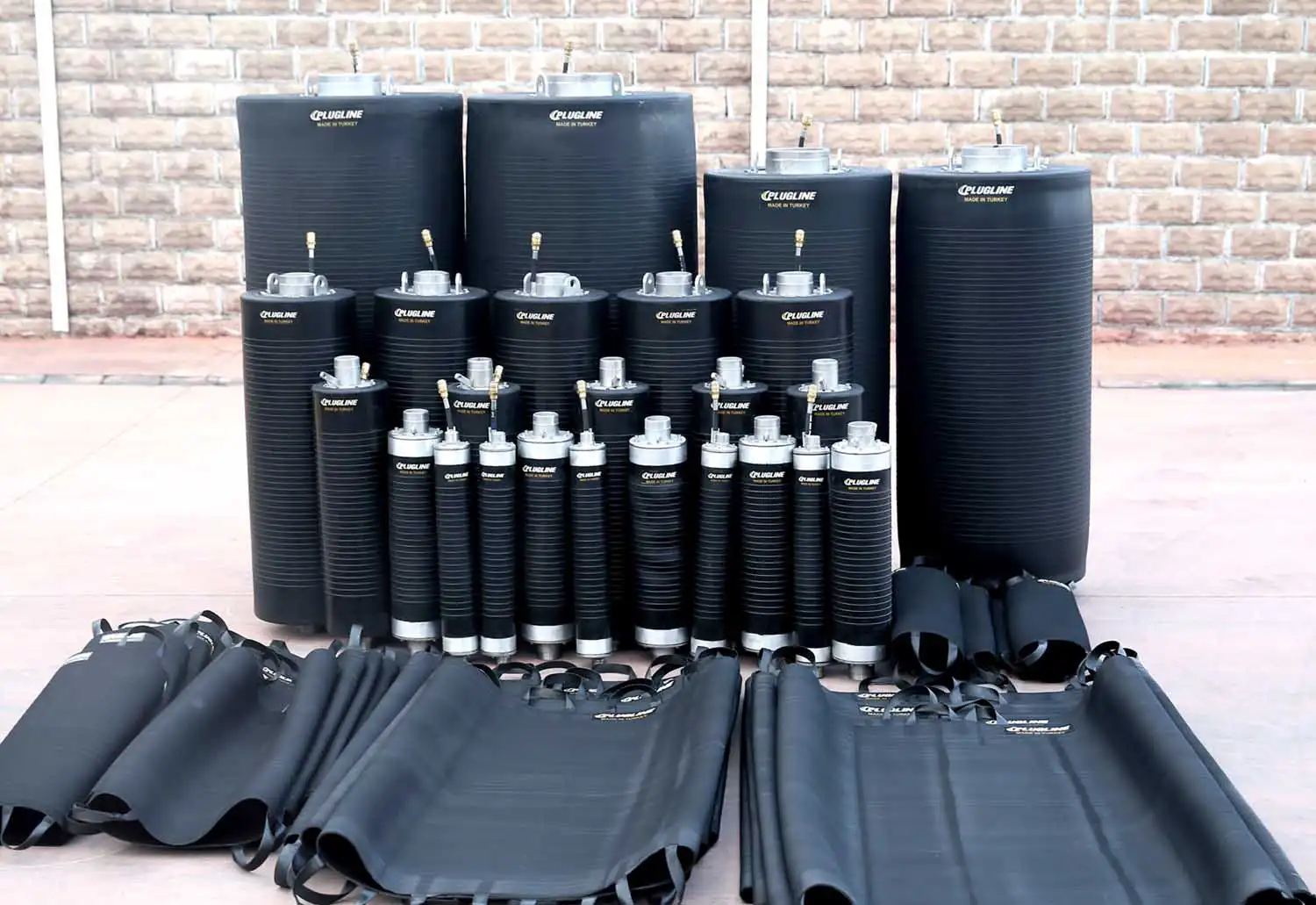

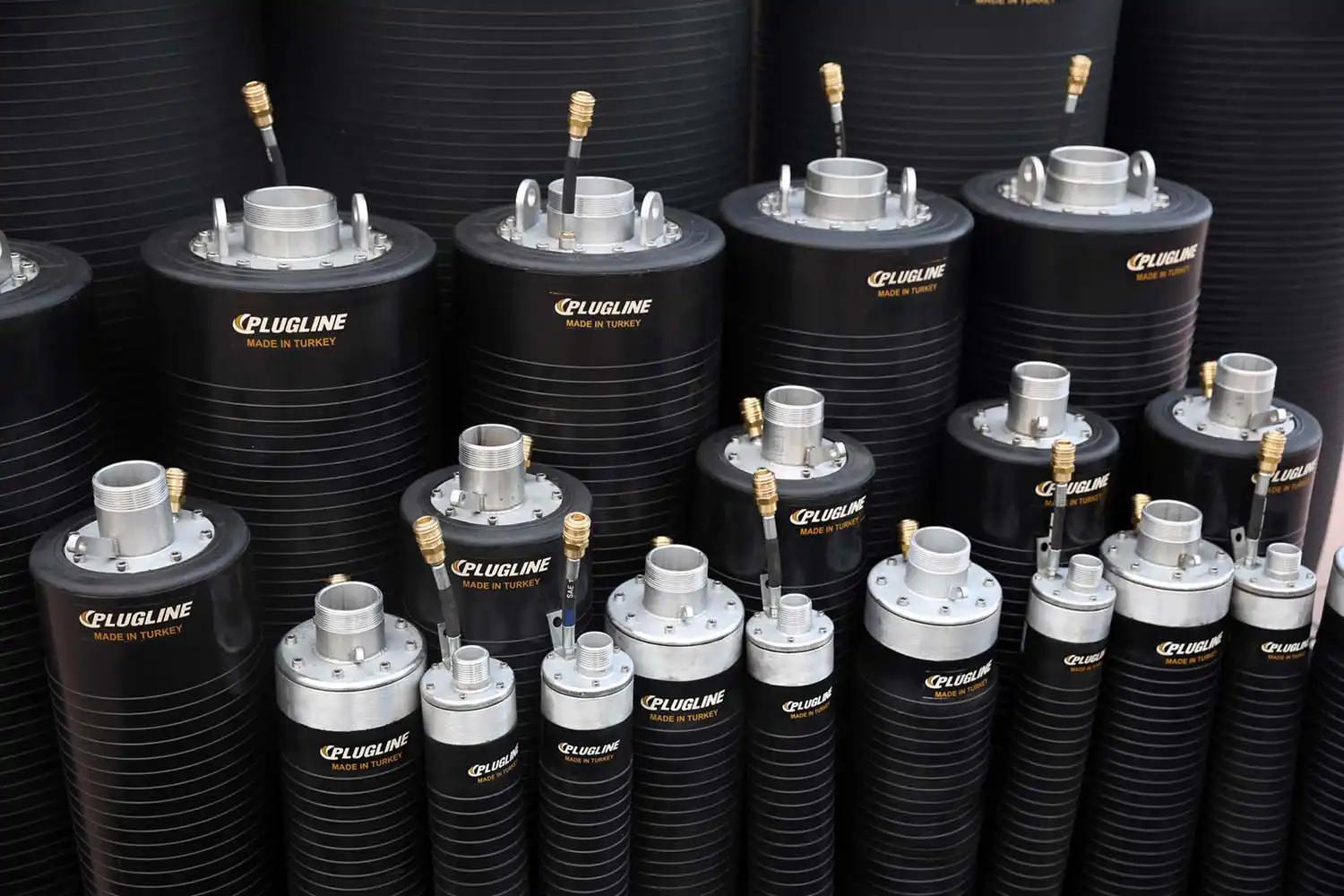

- Inflatable Oil and Gas Pipe Test Plugs can be produced for wide range sizes and withstand pressures, their standard productions are diameters from 50 to 4200 mm.
- Standard working pressures of PLUGLINE Inflatable Oil and Gas Pipe Test Plugs are specified as 1,5 Bar (21,75 psi) and 2,5 Bar (36,25 psi).
- They have resistant to temperature values from -40 °C (-40 °F) to 70 °C (158 °F).
| Product Code | Nominal Size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Max. Working Pressure (bar/psi) | Product Diameter (mm/inch) | Total Length of Product (mm/inch) | Bypass Diameter(mm/inch) | Product Weight(kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|---|
|
remove
add
|
OGTP50100A/1,5 | 50-100 | 50mm/1,96" | 100mm/3,93" | 1,5bar/21,75psi | 45mm/1,77" | 330mm/12,99" | 6,35mm/1/4" | 1,0kg/2,20lbs |
|
remove
add
|
OGTP50100B/1,5 | 50-100 | 50mm/1,96" | 100mm/3,93" | 1,5bar/21,75psi | 45mm/1,77" | 330mm/12,99" | 2x3,17mm/2x1/8" | 1,2kg/2,64lbs |
|
remove
add
|
OGTP70150A/1,5 | 70-150 | 70mm/2,75" | 150mm/5,90" | 1,5bar/21,75psi | 64mm/2,51" | 400mm/15,74" | 12,70mm/1/2" | 1,2kg/2,64lbs |
|
remove
add
|
OGTP70150B/1,5 | 70-150 | 70mm/2,75" | 150mm/5,90" | 1,5bar/21,75psi | 64mm/2,51" | 400mm/15,74" | 2x6,35mm/2x1/4" | 1,3kg/2,86lbs |
|
remove
add
|
OGTP100200A/1,5 | 100-200 | 100mm/3,93" | 200mm/7,87" | 1,5bar/21,75psi | 88mm/3,46" | 500mm/19,68" | 25,40mm/1" | 1,8kg/3,86lbs |
|
remove
add
|
OGTP100200B/1,5 | 100-200 | 100mm/3,93" | 200mm/7,87" | 1,5bar/21,75psi | 88mm/3,46" | 500mm/19,68" | 2x12,70mm/2x1/2" | 1,9kg/4,18lbs |
|
remove
add
|
OGTP150300A/1,5 | 150-300 | 150mm/5,90" | 300mm/11,81" | 1,5bar/21,75psi | 138mm/5,43" | 580mm/22,83" | 50,80mm/2" | 4,0kg/8,81lbs |
|
remove
add
|
OGTP150300B/1,5 | 150-300 | 150mm/5,90" | 300mm/11,81" | 1,5bar/21,75psi | 138mm/5,43" | 580mm/22,83" | 25,40mm/1" + 12,70mm/ 1/2" | 4,2kg/9,25lbs |
|
remove
add
|
OGTP200400A/1,5 | 200-400 | 200mm/7,87" | 400mm/15,74" | 1,5bar/21,75psi | 185mm/7,28" | 680mm/26,77" | 50,80mm/2" | 7,2kg/15,87lbs |
|
remove
add
|
OGTP200400B/1,5 | 200-400 | 200mm/7,87" | 400mm/15,74" | 1,5bar/21,75psi | 185mm/7,28" | 680mm/26,77" | 2x25,40mm/2x1" | 7,4kg/16,31lbs |
|
remove
add
|
OGTP200500A/1,5 | 200-500 | 200mm/7,87" | 500mm/19,68" | 1,5bar/21,75psi | 185mm/7,28" | 820mm/32,28" | 50,80mm/2" | 8,0kg/17,63lbs |
|
remove
add
|
OGTP200500B/1,5 | 200-500 | 200mm/7,87" | 500mm/19,68" | 1,5bar/21,75psi | 185mm/7,28" | 820mm/32,28" | 2x25,40mm/2x1" | 9,0kg/19,84lbs |
|
remove
add
|
OGTP300600A/1,5 | 300-600 | 300mm/11,81" | 600mm/23,62" | 1,5bar/21,75psi | 285mm/11,22" | 800mm/31,49" | 50,80mm/2" | 11,0kg/24,25lbs |
|
remove
add
|
OGTP300600B/1,5 | 300-600 | 300mm/11,81" | 600mm/23,62" | 1,5bar/21,75psi | 285mm/11,22" | 800mm/31,49" | 2x50,80mm/2x2" | 11,7kg/25,79lbs |
|
remove
add
|
OGTP300600C/1,5 | 300-600 | 300mm/11,81" | 600mm/23,62" | 1,5bar/21,75psi | 285mm/11,22" | 800mm/31,49" | 76,20mm/3" | 11,0kg/24,25lbs |
|
remove
add
|
OGTP375750A/1,5 | 375-750 | 375mm/14,76" | 750mm/29,52" | 1,5bar/21,75psi | 355mm/13,97" | 1000mm/39,37" | 50,80mm/2" | 18,0kg/39,68lbs |
|
remove
add
|
OGTP375750B/1,5 | 375-750 | 375mm/14,76" | 750mm/29,52" | 1,5bar/21,75psi | 355mm/13,97" | 1000mm/39,37" | 2x50,80mm/2x2" | 20,0kg/44,09lbs |
|
remove
add
|
OGTP375750C/1,5 | 375-750 | 375mm/14,76" | 750mm/29,52" | 1,5bar/21,75psi | 355mm/13,97" | 1000mm/39,37" | 76,20mm/3" | 21,0kg/46,30lbs |
|
remove
add
|
OGTP5001000A/1,5 | 500-1000 | 500mm/19,68" | 1000mm/39,37" | 1,5bar/21,75psi | 480mm/18,89" | 1050mm/41,33" | 50,80mm/2" | 27,0kg/59,52lbs |
|
remove
add
|
OGTP5001000B/1,5 | 500-1000 | 500mm/19,68" | 1000mm/39,37" | 1,5bar/21,75psi | 480mm/18,89" | 1050mm/41,33" | 2x50,80mm/2x2" | 28,0kg/61,72lbs |
|
remove
add
|
OGTP5001000C/1,5 | 500-1000 | 500mm/19,68" | 1000mm/39,37" | 1,5bar/21,75psi | 480mm/18,89" | 1050mm/41,33" | 101,60mm/4" | 32,0kg/70,55lbs |
|
remove
add
|
OGTP5001200A/1,5 | 500-1200 | 500mm/19,68" | 1200mm/47,24" | 1,5bar/21,75psi | 480mm/18,89" | 1400mm/55,11" | 101,60mm/4" | 41,0kg/90,39lbs |
|
remove
add
|
OGTP6001200A/1,5 | 600-1200 | 600mm/23,62" | 1200mm/47,24" | 1,5bar/21,75psi | 585mm/23,03" | 1400mm/55,11" | 50,80mm/2" | 35,0kg/77,16lbs |
|
remove
add
|
OGTP6001200B/1,5 | 600-1200 | 600mm/23,62" | 1200mm/47,24" | 1,5bar/21,75psi | 585mm/23,03" | 1400mm/55,11" | 2x50,80mm/2x2" | 36,0kg/79,36lbs |
|
remove
add
|
OGTP6001200C/1,5 | 600-1200 | 600mm/23,62" | 1200mm/47,24" | 1,5bar/21,75psi | 585mm/23,03" | 1400mm/55,11" | 101,60mm/4" | 36,0kg/79,36lbs |
|
remove
add
|
OGTP5001400A/1,5 | 500-1400 | 500mm/19,68" | 1400mm/55,11" | 1,5bar/21,75psi | 480mm/18,89" | 1900mm/74,80" | 50,80mm/2" | 45,0kg/99,20lbs |
|
remove
add
|
OGTP8001600A/1,5 | 800-1600 | 800mm/31,49" | 1600mm/62,99" | 1,5bar/21,75psi | 780mm/30,70" | 2000mm/78,74" | 50,80mm/2" | 45,0kg/99,20lbs |
|
remove
add
|
OGTP8001600B/1,5 | 800-1600 | 800mm/31,49" | 1600mm/62,99" | 1,5bar/21,75psi | 780mm/30,70" | 2000mm/78,74" | 2x50,80mm/2x2" | 48,0kg/105,82lbs |
|
remove
add
|
OGTP8002000A/1,5 | 800-2000 | 800mm/31,49" | 2000mm/78,74" | 1,5bar/21,75psi | 780mm/30,70" | 2400mm/94,48" | 50,80mm/2" | 70,0kg/154,28lbs |
|
remove
add
|
OGTP8002000B/1,5 | 800-2000 | 800mm/31,49" | 2000mm/78,74" | 1,5bar/21,75psi | 780mm/30,70" | 2400mm/94,48" | 2x50,80mm/2x2" | 75,0kg/165,30lbs |
|
remove
add
|
OGTP12002400A/1,5 | 1200-2400 | 1200mm/47,24” | 2400mm/94,48” | 1,5bar/21,75psi | 1180mm/46,45” | 3000mm/118,11” | 50,80mm/2" | 220,0kg/484,88lbs |
|
remove
add
|
OGTP12002400B/1,5 | 1200-2400 | 1200mm/47,24” | 2400mm/94,48” | 1,5bar/21,75psi | 1180mm/46,45” | 3000mm/118,11” | 2x50,80mm/2x2" | 230,0kg/506,92lbs |
|
remove
add
|
OGTP12002800A/1,5 | 1200-2800 | 1200mm/47,24” | 2800mm/110,23” | 1,5bar/21,75psi | 1180mm/46,45” | 4000mm/157,48" | 50,80mm/2" | 260,0kg/573,04lbs |
|
remove
add
|
OGTP12002800B/1,5 | 1200-2800 | 1200mm/47,24” | 2800mm/110,23” | 1,5bar/21,75psi | 1180mm/46,45” | 4000mm/157,48" | 2x50,80mm/2x2" | 270,0kg/595,08lbs |
|
remove
add
|
OGTP18003600A/1,5 | 1800-3600 | 1800mm/70,87" | 3600mm/141,73" | 1,5bar/21,75psi | 1780mm/70,07" | 4000mm/157,48" | 50,80mm/2" | 520,0kg/1146,08lbs |
|
remove
add
|
OGTP18003600B/1,5 | 1800-3600 | 1800mm/70,87" | 3600mm/141,73" | 1,5bar/21,75psi | 1780mm/70,07" | 4000mm/157,48" | 2x50,80mm/2x2" | 540,0kg/1190,16lbs |
|
remove
add
|
OGTP18004200A/1,5 | 1800-4200 | 1800mm/70,87" | 4200mm/165,35" | 1,5bar/21,75psi | 1780mm/70,07" | 6000mm/236,22" | 50,80mm/2" | 650,0kg/1432,60lbs |
|
remove
add
|
OGTP18004200B/1,5 | 1800-4200 | 1800mm/70,87" | 4200mm/165,35" | 1,5bar/21,75psi | 1780mm/70,07" | 6000mm/236,22" | 2x50,80mm/2x2" | 675,0kg/1487,70lbs |
| Product Code | Nominal Size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Max. Working Pressure (bar/psi) | Product Diameter (mm/inch) | Total Length of Product (mm/inch) | Bypass Diameter(mm/inch) | Product Weight(kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|---|
|
remove
add
|
OGTP3570A/2,5 | 35-70 | 35mm/1,37" | 70mm/2,75" | 2,5bar/36,25psi | 33mm/1,29" | 300mm/11,81" | 1,58mm/1/16" | 0,3kg/0,66lbs |
|
remove
add
|
OGTP50100A/2,5 | 50-100 | 50mm/1,96" | 100mm/3,93" | 2,5bar/36,25psi | 45mm/1,77" | 280mm/11,02" | 6,35mm/1/4" | 1,0kg/2,20lbs |
|
remove
add
|
OGTP70150A/2,5 | 70-150 | 70mm/2,75" | 150mm/5,90" | 2,5bar/36,25psi | 65mm/2,55" | 320mm/12,59" | 12,70mm/1/2" | 1,3kg/2,86lbs |
|
remove
add
|
OGTP70150B/2,5 | 70-150 | 70mm/2,75" | 150mm/5,90" | 2,5bar/36,25psi | 65mm/2,55" | 320mm/12,59" | 2x6,35mm/2x1/4" | 1,4kg/3,08lbs |
|
remove
add
|
OGTP100200A/2,5 | 100-200 | 100mm/3,93" | 200mm/7,87" | 2,5bar/36,25psi | 88mm/3,46" | 500mm/19,68" | 25,40mm/1" | 1,8kg/3,86lbs |
|
remove
add
|
OGTP100200B/2,5 | 100-200 | 100mm/3,93" | 200mm/7,87" | 2,5bar/36,25psi | 88mm/3,46" | 500mm/19,68" | 2x12,70mm/2x1/2" | 1,9kg/4,18lbs |
|
remove
add
|
OGTP150300A/2,5 | 150-300 | 150mm/5,90" | 300mm/11,81" | 2,5bar/36,25psi | 138mm/5,43" | 580mm/22,83" | 50,80mm/2" | 4,0kg/8,81lbs |
|
remove
add
|
OGTP150300B/2,5 | 150-300 | 150mm/5,90" | 300mm/11,81" | 2,5bar/36,25psi | 138mm/5,43" | 580mm/22,83" | 25,40mm/1" + 12,70mm/ 1/2" | 4,2kg/9,25lbs |
|
remove
add
|
OGTP200400A/2,5 | 200-400 | 200mm/7,87" | 400mm/15,74" | 2,5bar/36,25psi | 185mm/7,28" | 680mm/26,77" | 50,80mm/2" | 7,2kg/15,87lbs |
|
remove
add
|
OGTP200400B/2,5 | 200-400 | 200mm/7,87" | 400mm/15,74" | 2,5bar/36,25psi | 185mm/7,28" | 680mm/26,77" | 2x25,40mm/2x1" | 7,4kg/16,31lbs |
|
remove
add
|
OGTP300600A/2,5 | 300-600 | 300mm/11,81" | 600mm/23,62" | 2,5bar/36,25psi | 285mm/11,22" | 850mm/33,46" | 50,80mm/2" | 11,0kg/24,25lbs |
|
remove
add
|
OGTP300600B/2,5 | 300-600 | 300mm/11,81" | 600mm/23,62" | 2,5bar/36,25psi | 285mm/11,22" | 850mm/33,46" | 2x50,80mm/2x2" | 11,7kg/25,79lbs |
|
remove
add
|
OGTP300600C/2,5 | 300-600 | 300mm/11,81" | 600mm/23,62" | 2,5bar/36,25psi | 285mm/11,22" | 850mm/33,46" | 76,20mm/3" | 11,0kg/24,25lbs |
|
remove
add
|
OGTP375750A/2,5 | 375-750 | 375mm/14,76" | 750mm/29,52" | 2,5bar/36,25psi | 360mm/14,17" | 1000mm/39,37" | 50,80mm/2" | 18,0kg/39,68lbs |
|
remove
add
|
OGTP375750B/2,5 | 375-750 | 375mm/14,76" | 750mm/29,52" | 2,5bar/36,25psi | 360mm/14,17" | 1000mm/39,37" | 2x50,80mm/2x2" | 20,0kg/44,09lbs |
|
remove
add
|
OGTP375750C/2,5 | 375-750 | 375mm/14,76" | 750mm/29,52" | 2,5bar/36,25psi | 360mm/14,17" | 1000mm/39,37" | 76,20mm/3" | 21,0kg/46,30lbs |
|
remove
add
|
OGTP500800A/2,5 | 500-800 | 500mm/19,68" | 800mm/31,49" | 2,5bar/36,25psi | 480mm/18,89" | 1050mm/41,33" | 50,80mm/2" | 27,0kg/59,52lbs |
|
remove
add
|
OGTP500800B/2,5 | 500-800 | 500mm/19,68" | 800mm/31,49" | 2,5bar/36,25psi | 480mm/18,89" | 1050mm/41,33" | 2x50,80mm/2x2" | 28,8kg/63,49lbs |
|
remove
add
|
OGTP500800C/2,5 | 500-800 | 500mm/19,68" | 800mm/31,49" | 2,5bar/36,25psi | 480mm/18,89" | 1050mm/41,33" | 101,60mm/4" | 32,00kg/70,55lbs |
|
remove
add
|
OGTP500800D/2,5 | 500-800 | 500mm/19,68" | 800mm/31,49" | 2,5bar/36,25psi | 480mm/18,89" | 1050mm/41,33" | 152,40mm/6" | 38,0kg/83,75lbs |
|
remove
add
|
OGTP5001000A/2,5 | 500-1000 | 500mm/19,68" | 1000mm/39,37" | 2,5bar/36,25psi | 480mm/18,89" | 1050mm/41,33" | 50,80mm/2" | 27,0kg/59,52lbs |
|
remove
add
|
OGTP5001000B/2,5 | 500-1000 | 500mm/19,68" | 1000mm/39,37" | 2,5bar/36,25psi | 480mm/18,89" | 1050mm/41,33" | 2x50,80mm/2x2" | 28,8kg/63,49lbs |
|
remove
add
|
OGTP5001000C/2,5 | 500-1000 | 500mm/19,68" | 1000mm/39,37" | 2,5bar/36,25psi | 480mm/18,89" | 1050mm/41,33" | 101,60mm/4" | 32,00kg/70,55lbs |
|
remove
add
|
OGTP5001000D/2,5 | 500-1000 | 500mm/19,68" | 1000mm/39,37" | 2,5bar/36,25psi | 480mm/18,89" | 1050mm/41,33" | 152,40mm/6" | 38,0kg/83,75lbs |
|
remove
add
|
OGTP6001200A/2,5 | 600-1200 | 600mm/23,62" | 1200mm/47,24" | 2,5bar/36,25psi | 580mm/22,83" | 1250mm/49,21" | 50,80mm/2" | 35,0kg/77,16lbs |
|
remove
add
|
OGTP6001200B/2,5 | 600-1200 | 600mm/23,62" | 1200mm/47,24" | 2,5bar/36,25psi | 580mm/22,83" | 1250mm/49,21" | 2x50,80mm/2x2" | 36,0kg/79,36lbs |
|
remove
add
|
OGTP6001200C/2,5 | 600-1200 | 600mm/23,62" | 1200mm/47,24" | 2,5bar/36,25psi | 580mm/22,83" | 1250mm/49,21" | 101,60mm/4" | 42,00kg/92,60lbs |
|
remove
add
|
OGTP6001200D/2,5 | 600-1200 | 600mm/23,62" | 1200mm/47,24" | 2,5bar/36,25psi | 580mm/22,83" | 1250mm/49,21" | 152,40mm/6" | 48,0kg/105,79lbs |
|
remove
add
|
OGTP8001600A/2,5 | 800-1600 | 800mm/31,49" | 1600mm/62,99" | 2,5bar/36,25psi | 790mm/31,10" | 1800mm/70,86" | 50,80mm/2" | 45,0kg/99,20lbs |
|
remove
add
|
OGTP8001600B/2,5 | 800-1600 | 800mm/31,49" | 1600mm/62,99" | 2,5bar/36,25psi | 790mm/31,10" | 1800mm/70,86" | 2x50,80mm/2x2" | 50,0kg/110,23lbs |
|
remove
add
|
OGTP8001600C/2,5 | 800-1600 | 800mm/31,49" | 1600mm/62,99" | 2,5bar/36,25psi | 790mm/31,10" | 1800mm/70,86" | 152,40mm/6" | 58,0kg/127,83lbs |
|
remove
add
|
OGTP8002000A/2,5 | 800-2000 | 800mm/31,49" | 2000mm/78,74" | 2,5bar/36,25psi | 780mm/30,70" | 2400mm/94,48" | 50,80mm/2" | 70,0kg/154,28lbs |
|
remove
add
|
OGTP8002000B/2,5 | 800-2000 | 800mm/31,49" | 2000mm/78,74" | 2,5bar/36,25psi | 780mm/30,70" | 2400mm/94,48" | 2x50,80mm/2x2" | 75,0kg/165,30lbs |
|
remove
add
|
OGTP12002400A/2,5 | 1200-2400 | 1200mm/47,24” | 2400mm/94,48” | 2,5bar/36,25psi | 1180mm/46,45” | 3000mm/118,11” | 50,80mm/2" | 240,0kg/528,96lbs |
|
remove
add
|
OGTP12002400B/2,5 | 1200-2400 | 1200mm/47,24” | 2400mm/94,48” | 2,5bar/36,25psi | 1180mm/46,45” | 3000mm/118,11” | 2x50,80mm/2x2" | 245,0kg/539,98lbs |
|
remove
add
|
OGTP12002800A/2,5 | 1200-2800 | 1200mm/47,24” | 2800mm/110,23” | 2,5bar/36,25psi | 1180mm/46,45” | 4000mm/157,48" | 50,80mm/2" | 300,0kg/661,20lbs |
|
remove
add
|
OGTP12002800B/2,5 | 1200-2800 | 1200mm/47,24” | 2800mm/110,23” | 2,5bar/36,25psi | 1180mm/46,45” | 4000mm/157,48" | 2x50,80mm/2x2" | 310,0kg/683,24lbs |
|
remove
add
|
OGTP18003600A/2,5 | 1800-3600 | 1800mm/70,87" | 3600mm/141,73" | 2,5bar/36,25psi | 1780mm/70,07" | 4000mm/157,48" | 50,80mm/2" | 550,0kg/1212,20lbs |
|
remove
add
|
OGTP18003600B/2,5 | 1800-3600 | 1800mm/70,87" | 3600mm/141,73" | 2,5bar/36,25psi | 1780mm/70,07" | 4000mm/157,48" | 2x50,80mm/2x2" | 560,0kg/1234,24lbs |
|
remove
add
|
OGTP18004200A/2,5 | 1800-4200 | 1800mm/70,87" | 4200mm/165,35" | 2,5bar/36,25psi | 1780mm/70,07" | 6000mm/236,22" | 50,80mm/2" | 680,0kg/1498,72lbs |
|
remove
add
|
OGTP18004200B/2,5 | 1800-4200 | 1800mm/70,87" | 4200mm/165,35" | 2,5bar/36,25psi | 1780mm/70,07" | 6000mm/236,22" | 2x50,80mm/2x2" | 690,0kg/1520,76lbs |
