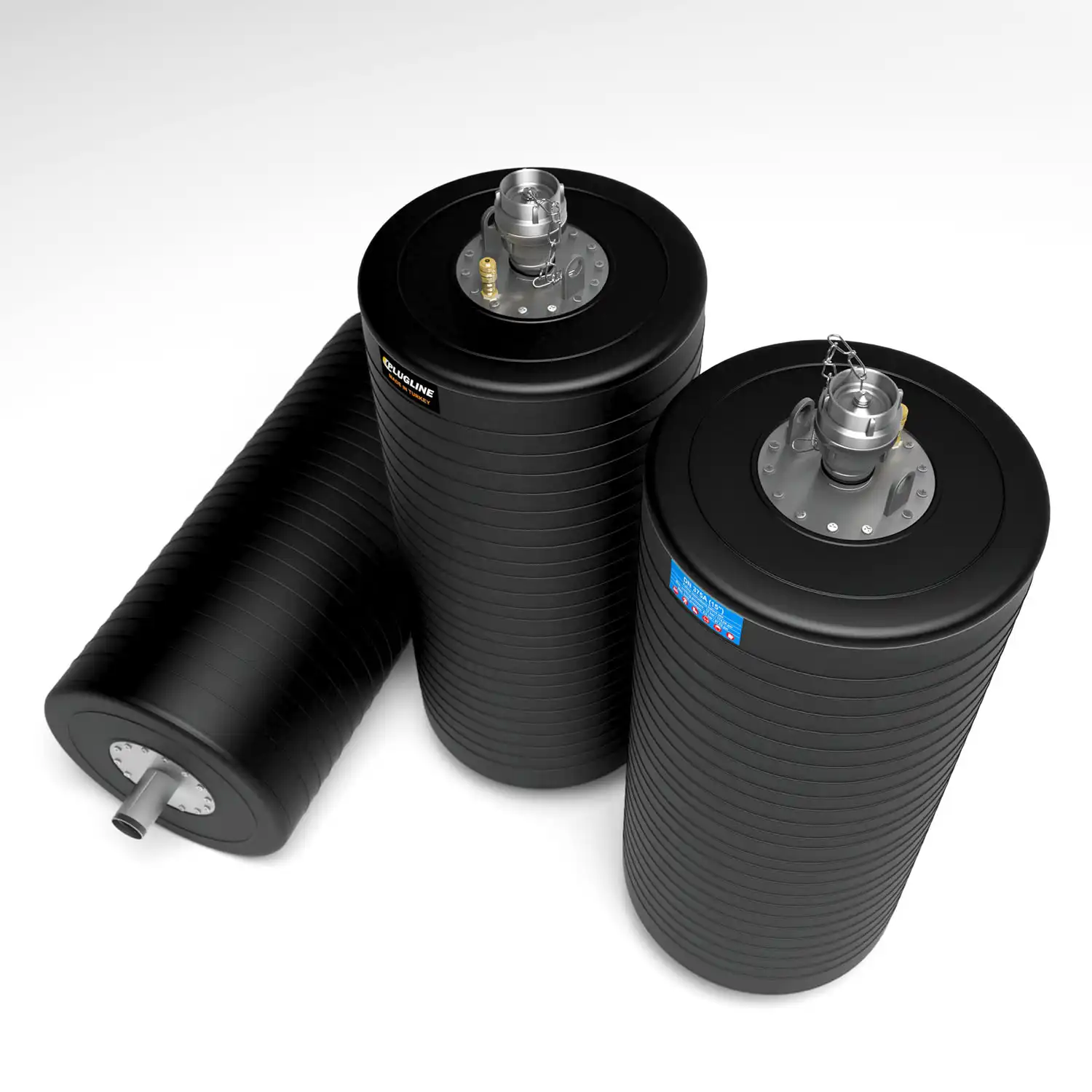

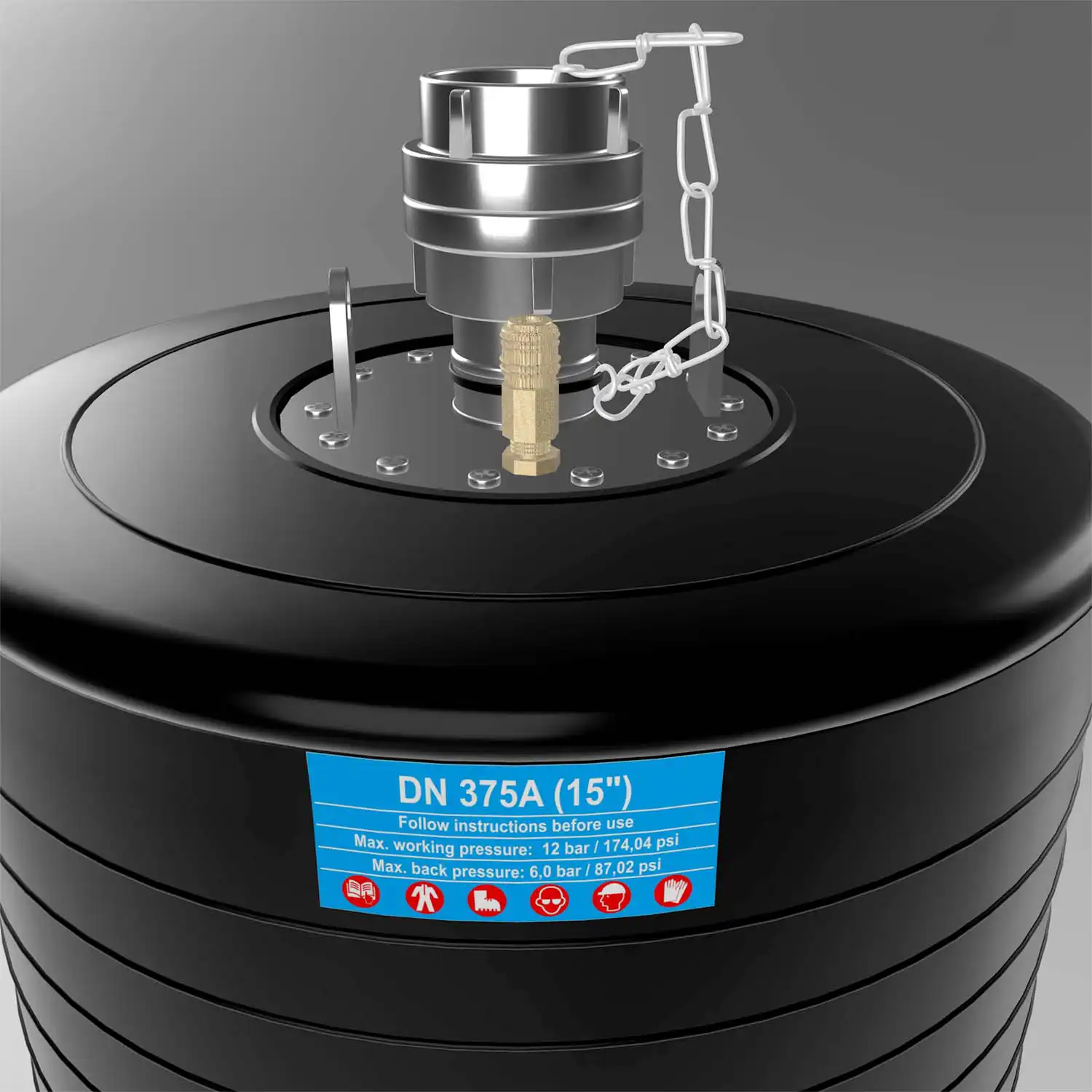

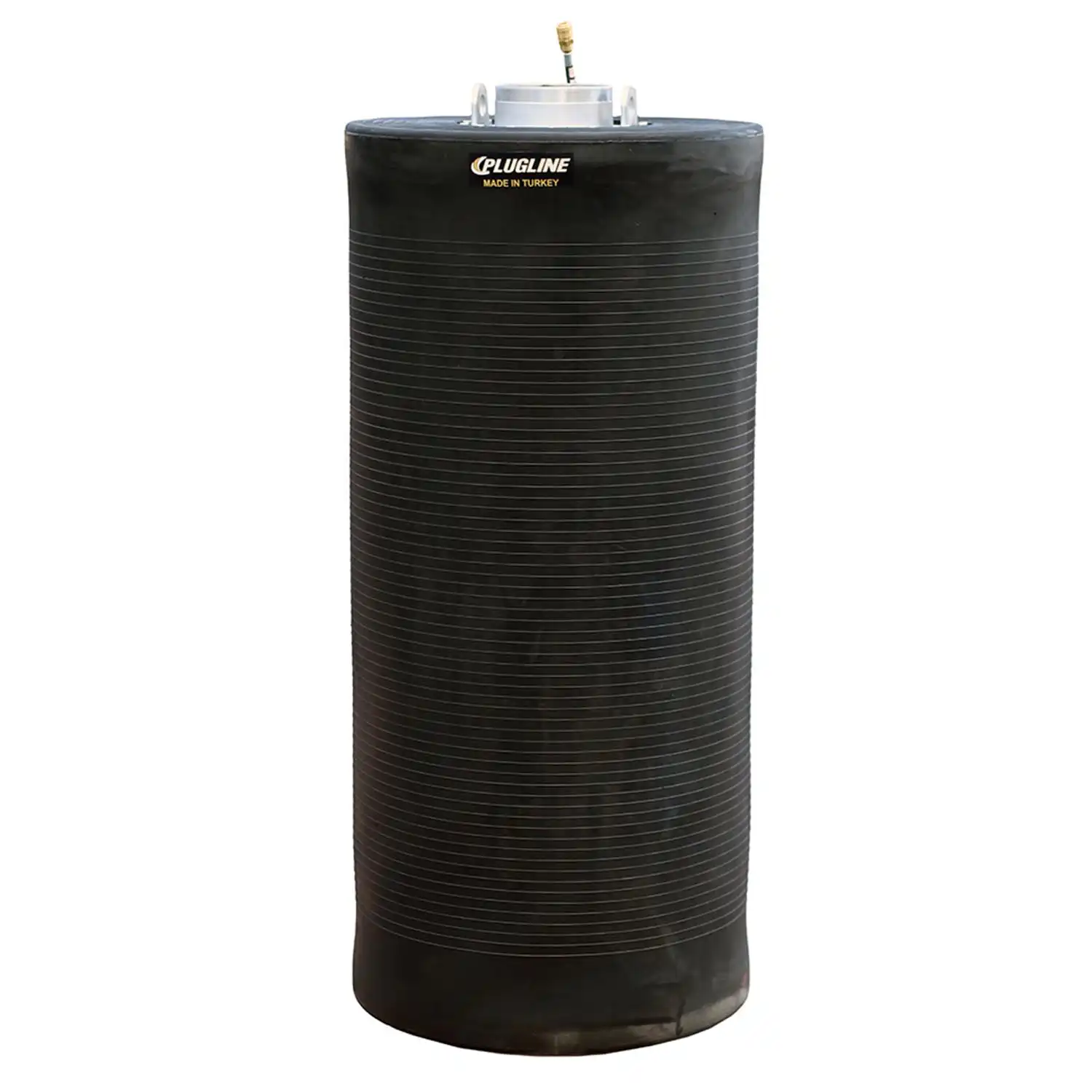

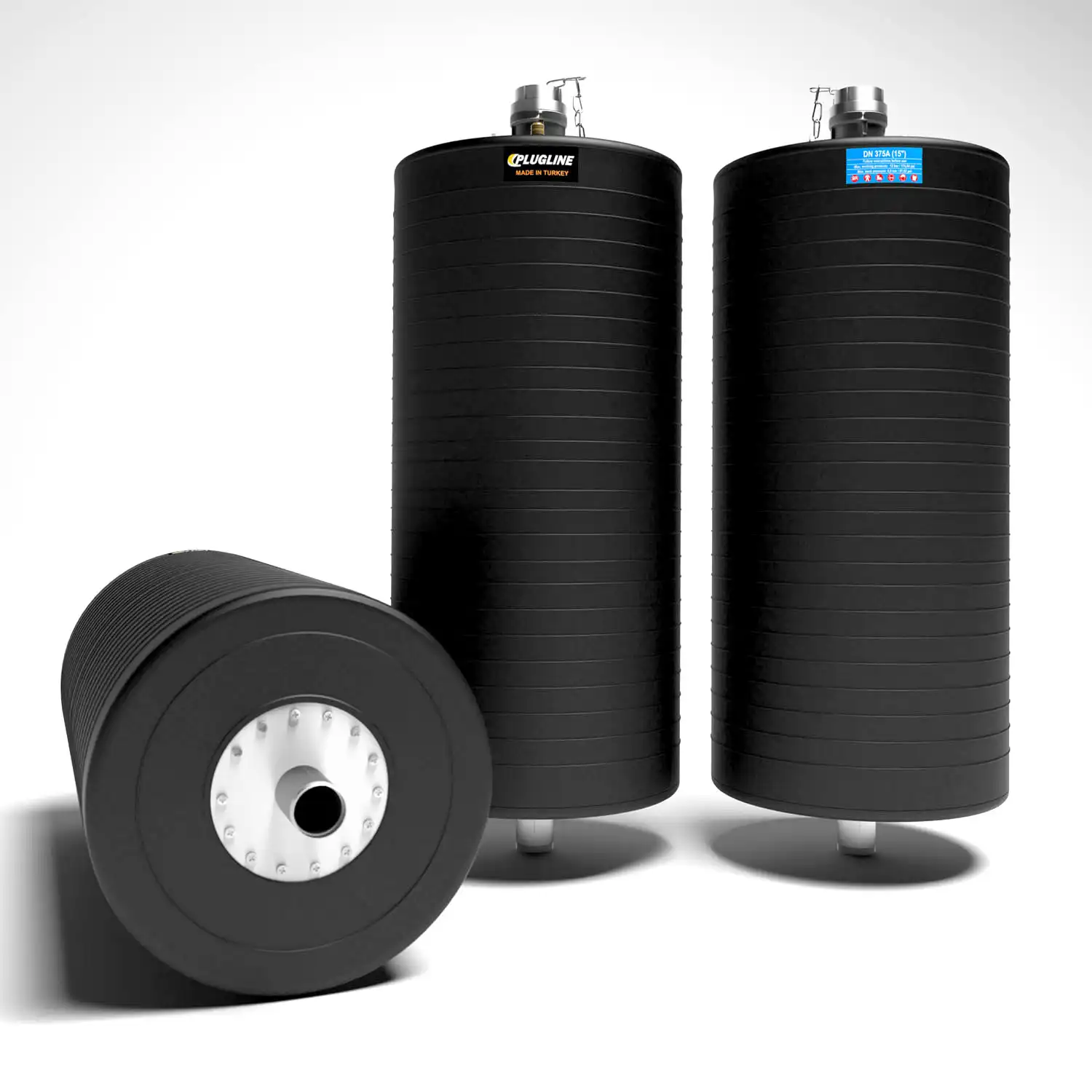

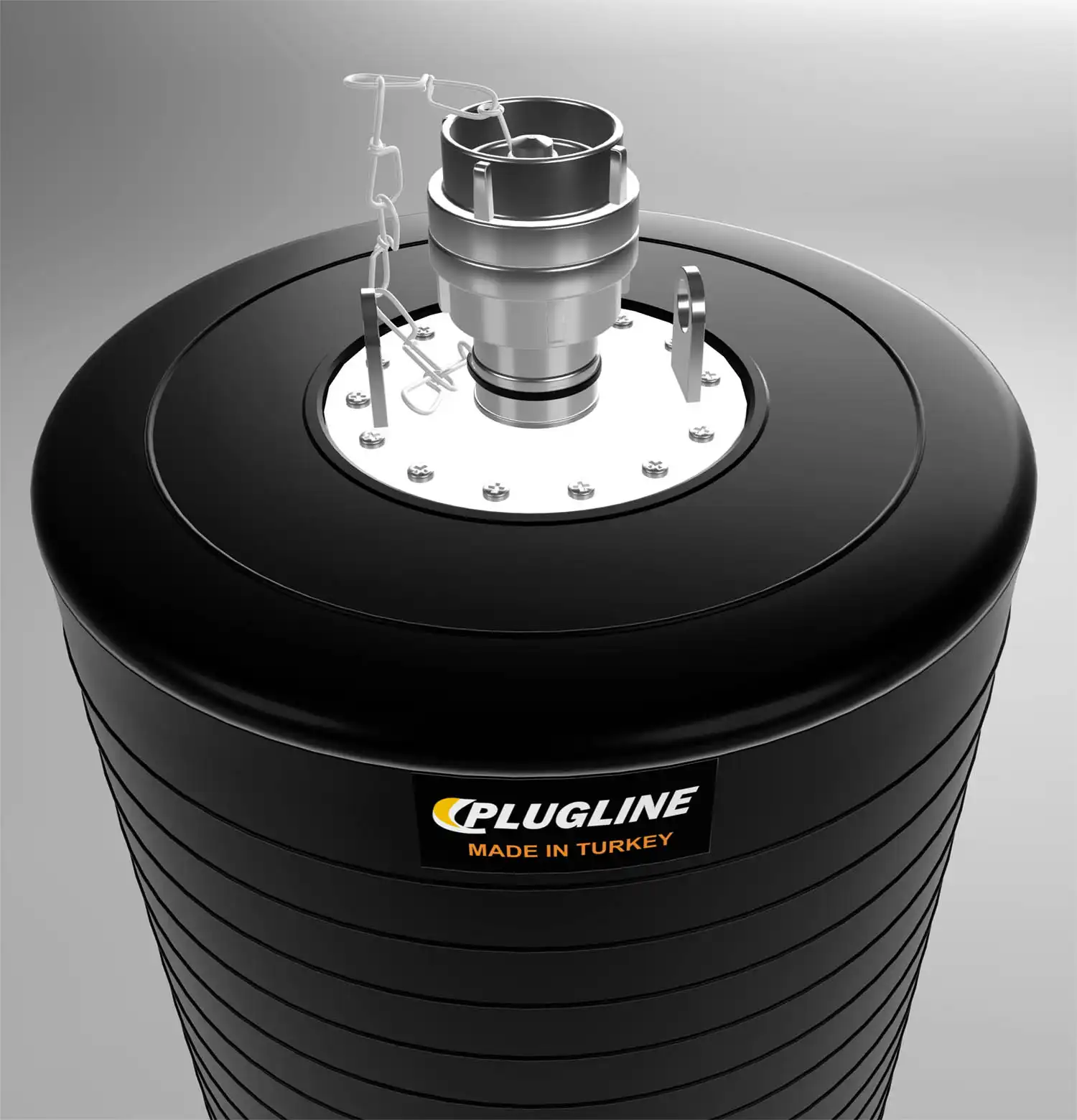

Oil and Gas High Pressure Pipe Test Plugs (6,0 - 12,0 bar)
Oil and Gas High Pressure Pipe Test Plugs are inflatable, pneumatic test plugs, mainly used for repair, maintenance and perform testing at high flow pressures in Petrochemical Industry, oil, gas, petroleum, fuel and all other chemical industry pipelines.
They have high resistant to high pressures nd they are also ideal to divert the flow via bypass on them at pipelines that have high presure flow.
Their production material is nitrile butadiene rubber, NBR, this rubber is unusual in being resistant to oil, gas, fuel, and other chemicals.
Available for pipe diameters from 50 mm (1,96") to 2000 mm (78,74"), if requested more.
Produced at higher working pressures like 6,0 Bar (87,02 psi) and 12,0 Bar (174,04 psi).
Resistant to the environment for temperatures from -40 °C (-40 °F) to 70 °C (158 °F).
| Product Code | Nominal Size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Max. Working Pressure (bar/psi) | Back Pressure (bar/psi) | Product Diameter (mm/inch) | Total Length of Product (mm/inch) | Bypass Diameter(mm/inch) | Product Weight(kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|---|---|
|
remove
add
|
OGHTP5070A | 50-70 | 50mm/1,97" | 70mm/2,76" | 6,0bar/87,02psi | 3,0bar/43,51psi | 45mm/1,77" | 330mm/12,99" | 6,35mm/1/4" | 1,0kg/2,20Ibs |
|
remove
add
|
OGHTP5070B | 50-70 | 50mm/1,97" | 70mm/2,76" | 6,0bar/87,02psi | 3,0bar/43,51psi | 45mm/1,77" | 330mm/12,99" | 2x3,17mm/2x1/8" | 1,2kg/2,64Ibs |
|
remove
add
|
OGHTP70100A | 70-100 | 70mm/2,76" | 100mm/3,93" | 6,0bar/87,02psi | 3,0bar/43,51psi | 64mm/2,52" | 400mm/15,75" | 12,70mm/1/2" | 1,2kg/2,64Ibs |
|
remove
add
|
OGHTP70100B | 70-100 | 70mm/2,76" | 100mm/3,93" | 6,0bar/87,02psi | 3,0bar/43,51psi | 64mm/2,52" | 400mm/15,75" | 2x6,35mm/2x1/4" | 1,3kg/2,87Ibs |
|
remove
add
|
OGHTP100150A | 100-150 | 100mm/3,93" | 150mm/5,90" | 6,0bar/87,02psi | 3,0bar/43,51psi | 88mm/3,46" | 580mm/22,83" | 25,40mm/1" | 1,8kg/3,97lbs |
|
remove
add
|
OGHTP100150B | 100-150 | 100mm/3,93" | 150mm/5,90" | 6,0bar/87,02psi | 3,0bar/43,51psi | 88mm/3,46" | 580mm/22,83" | 2x12,7mm/2x1/2" | 1,9kg/4,19lbs |
|
remove
add
|
OGHTP150200A | 150-200 | 150mm/5,90" | 200mm/7,87" | 6,0bar/87,02psi | 3,0bar/43,51psi | 138mm/5,43" | 550mm/21,65" | 50,80mm/2" | 4,0kg/8,82lbs |
|
remove
add
|
OGHTP150200B | 150-200 | 150mm/5,90" | 200mm/7,87" | 6,0bar/87,02psi | 3,0bar/43,51psi | 138mm/5,43" | 550mm/21,65" | 2x25,40mm/2x1" | 4,2kg/9,26lbs |
|
remove
add
|
OGHTP200300A | 200-300 | 200mm/7,87" | 300mm/11,81" | 6,0bar/87,02psi | 3,0bar/43,51psi | 185mm/7,28" | 650mm/25,59" | 50,80mm/2" | 7,2kg/15,87lbs |
|
remove
add
|
OGHTP200300B | 200-300 | 200mm/7,87" | 300mm/11,81" | 6,0bar/87,02psi | 3,0bar/43,51psi | 185mm/7,28" | 650mm/25,59" | 2x25,40mm/2x1" | 7,4kg/16,31lbs |
|
remove
add
|
OGHTP300400A | 300-400 | 300mm/11,81" | 400mm/15,74" | 6,0bar/87,02psi | 3,0bar/43,51psi | 285mm/11,22" | 850mm/33,46" | 50,80mm/2" | 11,0kg/24,25lbs |
|
remove
add
|
OGHTP300400B | 300-400 | 300mm/11,81" | 400mm/15,74" | 6,0bar/87,02psi | 3,0bar/43,51psi | 285mm/11,22" | 850mm/33,46" | 50,8mm/2"+25,4mm/1" | 11,7kg/25,79lbs |
|
remove
add
|
OGHTP375500A | 375-500 | 375mm/14,76" | 500mm/19,68" | 6,0bar/87,02psi | 3,0bar/43,51psi | 355mm/13,98" | 1000mm/39,37" | 50,80mm/2" | 18,0kg/39,68lbs |
|
remove
add
|
OGHTP375500B | 375-500 | 375mm/14,76" | 500mm/19,68" | 6,0bar/87,02psi | 3,0bar/43,51psi | 355mm/13,98" | 1000mm/39,37" | 2x50,80mm/2x2" | 20,0kg/44,09lbs |
|
remove
add
|
OGHTP500600A | 500-600 | 500mm/19,68" | 600mm/23,62" | 6,0bar/87,02psi | 3,0bar/43,51psi | 485mm/19,09" | 1050mm/41,34" | 50,80mm/2" | 27,0kg/59,52lbs |
|
remove
add
|
OGHTP500600B | 500-600 | 500mm/19,68" | 600mm/23,62" | 6,0bar/87,02psi | 3,0bar/43,51psi | 485mm/19,09" | 1050mm/41,34" | 2x50,80mm/2x2" | 28,8kg/63,49lbs |
|
remove
add
|
OGHTP600700A | 600-700 | 600mm/23,62" | 700mm/27,55" | 6,0bar/87,02psi | 3,0bar/43,51psi | 585mm/23,03" | 1300mm/51,18" | 50,80mm/2" | 35,0kg/77,16lbs |
|
remove
add
|
OGHTP600700B | 600-700 | 600mm/23,62" | 700mm/27,55" | 6,0bar/87,02psi | 3,0bar/43,51psi | 585mm/23,03" | 1300mm/51,18" | 2x50,80mm/2x2" | 36,0kg/79,37lbs |
|
remove
add
|
OGHTP8001000A | 800-1000 | 800mm/31,49" | 1000mm/39,37" | 6,0bar/87,02psi | 3,0bar/43,51psi | 785mm/30,91" | 1200mm/47,24" | 101,60mm/4" | 45,0kg/99,21lbs |
|
remove
add
|
OGHTP8001000B | 800-1000 | 800mm/31,49" | 1000mm/39,37" | 6,0bar/87,02psi | 3,0bar/43,51psi | 785mm/30,91" | 1200mm/47,24" | 2x50,80mm/2x2" | 50,0kg/110,23lbs |
|
remove
add
|
OGHTP12001400A | 1200-1400 | 1200mm/47,24" | 1400mm/55,11" | 6,0bar/87,02psi | 3,0bar/43,51psi | 1180mm/46,45" | 2500mm/98,42" | 101,60mm/4" | 220,0kg/484,88lbs |
|
remove
add
|
OGHTP12001400A | 1200-1400 | 1200mm/47,24" | 1400mm/55,11" | 6,0bar/87,02psi | 3,0bar/43,51psi | 1180mm/46,45" | 2500mm/98,42" | 2x50,80mm/2x2" | 220,0kg/484,88lbs |
|
remove
add
|
OGHTP18002000A | 1800-2000 | 1800mm/70,86" | 2000mm/78,74" | 6,0bar/87,02psi | 3,0bar/43,51psi | 1780mm/70,07" | 4000mm/157,48" | 101,60mm/4" | 320,0kg/705,28 lbs |
|
remove
add
|
OGHTP18002000B | 1800-2000 | 1800mm/70,86" | 2000mm/78,74" | 6,0bar/87,02psi | 3,0bar/43,51psi | 1780mm/70,07" | 4000mm/157,48" | 2x50,80mm/2x2" | 320,0kg/705,28 lbs |
| Product Code | Nominal Size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Max. Working Pressure (bar/psi) | Back Pressure(bar/psi) | Product Diameter (mm/inch) | Total Length of Product (mm/inch) | Bypass Diameter(mm/inch) | Product Weight(kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|---|---|
|
remove
add
|
OGHTP50A | 50 | 50mm/1,97 | 50mm/1,97" | 12,0bar/174,04psi | 6,0bar/87,02psi | 45mm/1,77" | 330mm/12,99" | 6,35mm/1/4" | 1,0kg/2,20Ibs |
|
remove
add
|
OGHTP50B | 50 | 50mm/1,97 | 50mm/1,97" | 12,0bar/174,04psi | 6,0bar/87,02psi | 45mm/1,77" | 330mm/12,99" | 2x3,17mm/2x1/8" | 1,2kg/2,64Ibs |
|
remove
add
|
OGHTP70A | 70 | 70mm/2,76" | 70mm/2,76" | 12,0bar/174,04psi | 6,0bar/87,02psi | 64mm/2,52" | 400mm/15,75" | 12,70mm/1/2" | 1,2kg/2,64Ibs |
|
remove
add
|
OGHTP70B | 70 | 70mm/2,76" | 70mm/2,76" | 12,0bar/174,04psi | 6,0bar/87,02psi | 64mm/2,52" | 400mm/15,75" | 2x6,35mm/2x1/4" | 1,3kg/2,87Ibs |
|
remove
add
|
OGHTP100A | 100 | 100mm/3,93" | 100mm/3,93" | 12,0bar/174,04psi | 6,0bar/87,02psi | 88mm/3,46" | 580mm/22,83" | 25,40mm/1" | 1,8kg/3,97lbs |
|
remove
add
|
OGHTP100B | 100 | 100mm/3,93" | 100mm/3,93" | 12,0bar/174,04psi | 6,0bar/87,02psi | 88mm/3,46" | 580mm/22,83" | 2x12,7mm/2x1/2" | 1,9kg/4,19lbs |
|
remove
add
|
OGHTP150A | 150 | 150mm/5,90" | 150mm/5,90" | 12,0bar/174,04psi | 6,0bar/87,02psi | 138mm/5,43" | 550mm/21,65" | 50,80mm/2" | 4,0kg/8,82lbs |
|
remove
add
|
OGHTP150B | 150 | 150mm/5,90" | 150mm/5,90" | 12,0bar/174,04psi | 6,0bar/87,02psi | 138mm/5,43" | 550mm/21,65" | 2x25,40mm/2x1" | 4,2kg/9,26lbs |
|
remove
add
|
OGHTP200A | 200 | 200mm/7,87" | 200mm/7,87" | 12,0bar/174,04psi | 6,0bar/87,02psi | 185mm/7,28" | 650mm/25,59" | 50,80mm/2" | 7,2kg/15,87lbs |
|
remove
add
|
OGHTP200B | 200 | 200mm/7,87" | 200mm/7,87" | 12,0bar/174,04psi | 6,0bar/87,02psi | 185mm/7,28" | 650mm/25,59" | 2x25,40mm/2x1" | 7,4kg/16,31lbs |
|
remove
add
|
OGHTP300A | 300 | 300mm/11,81" | 300mm/11,81" | 12,0bar/174,04psi | 6,0bar/87,02psi | 285mm/11,22" | 850mm/33,46" | 50,80mm/2" | 11,0kg/24,25lbs |
|
remove
add
|
OGHTP300B | 300 | 300mm/11,81" | 300mm/11,81" | 12,0bar/174,04psi | 6,0bar/87,02psi | 285mm/11,22" | 850mm/33,46" | 50,8mm+25,4mm/2"+1" | 11,7kg/25,79lbs |
|
remove
add
|
OGHTP400A | 400 | 400mm/15,74" | 400mm/15,74" | 12,0bar/174,04psi | 6,0bar/87,02psi | 355mm/13,98" | 1000mm/39,37" | 50,80mm/2" | 18,0kg/39,68lbs |
|
remove
add
|
OGHTP400B | 400 | 400mm/15,74" | 400mm/15,74" | 12,0bar/174,04psi | 6,0bar/87,02psi | 355mm/13,98" | 1000mm/39,37" | 2x50,80mm/2x2" | 20,0kg/44,09lbs |
|
remove
add
|
OGHTP500A | 500 | 500mm/19,68" | 500mm/19,68" | 12,0bar/174,04psi | 6,0bar/87,02psi | 485mm/19,09" | 1050mm/41,34" | 50,80mm/2" | 27,0kg/59,52lbs |
|
remove
add
|
OGHTP500B | 500 | 500mm/19,68" | 500mm/19,68" | 12,0bar/174,04psi | 6,0bar/87,02psi | 485mm/19,09" | 1050mm/41,34" | 2x50,80mm/2x2" | 28,8kg/63,49lbs |
|
remove
add
|
OGHTP600A | 600 | 600mm/23,62" | 600mm/23,62" | 12,0bar/174,04psi | 6,0bar/87,02psi | 585mm/23,03" | 1300mm/51,18" | 50,80mm/2" | 35,0kg/77,16lbs |
|
remove
add
|
OGHTP600B | 600 | 600mm/23,62" | 600mm/23,62" | 12,0bar/174,04psi | 6,0bar/87,02psi | 585mm/23,03" | 1300mm/51,18" | 2x50,80mm/2x2" | 36,0kg/79,37lbs |
|
remove
add
|
OGHTP800A | 800 | 800mm/31,49" | 800mm/31,49" | 12,0bar/174,04psi | 6,0bar/87,02psi | 785mm/30,91" | 1200mm/47,24" | 101,60mm/4" | 45,0kg/99,21lbs |
|
remove
add
|
OGHTP800B | 800 | 800mm/31,49" | 800mm/31,49" | 12,0bar/174,04psi | 6,0bar/87,02psi | 785mm/30,91" | 1200mm/47,24" | 2x50,80mm/2x2" | 50,0kg/110,23lbs |
|
remove
add
|
OGHTP1200A | 1200 | 1200mm/47,24" | 1200mm/47,24" | 12,0bar/174,04psi | 6,0bar/87,02psi | 1180mm/46,45" | 2500mm/98,42" | 101,60mm/4" | 220,0kg/484,88lbs |
|
remove
add
|
OGHTP1200B | 1200 | 1200mm/47,24" | 1200mm/47,24" | 12,0bar/174,04psi | 6,0bar/87,02psi | 1180mm/46,45" | 2500mm/98,42" | 2x50,80mm/2x2" | 220,0kg/484,88lbs |
|
remove
add
|
OGHTP1800A | 1800 | 1800mm/70,86" | 1800mm/70,86" | 12,0bar/174,04psi | 6,0bar/87,02psi | 1780mm/70,07" | 4000mm/157,48" | 101,60mm/4" | 320,0kg/705,28lbs |
|
remove
add
|
OGHTP1800B | 1800 | 1800mm/70,86" | 1800mm/70,86" | 12,0bar/174,04psi | 6,0bar/87,02psi | 1780mm/70,07" | 4000mm/157,48" | 2x50,80mm/2x2" | 320,0kg/705,28lbs |
