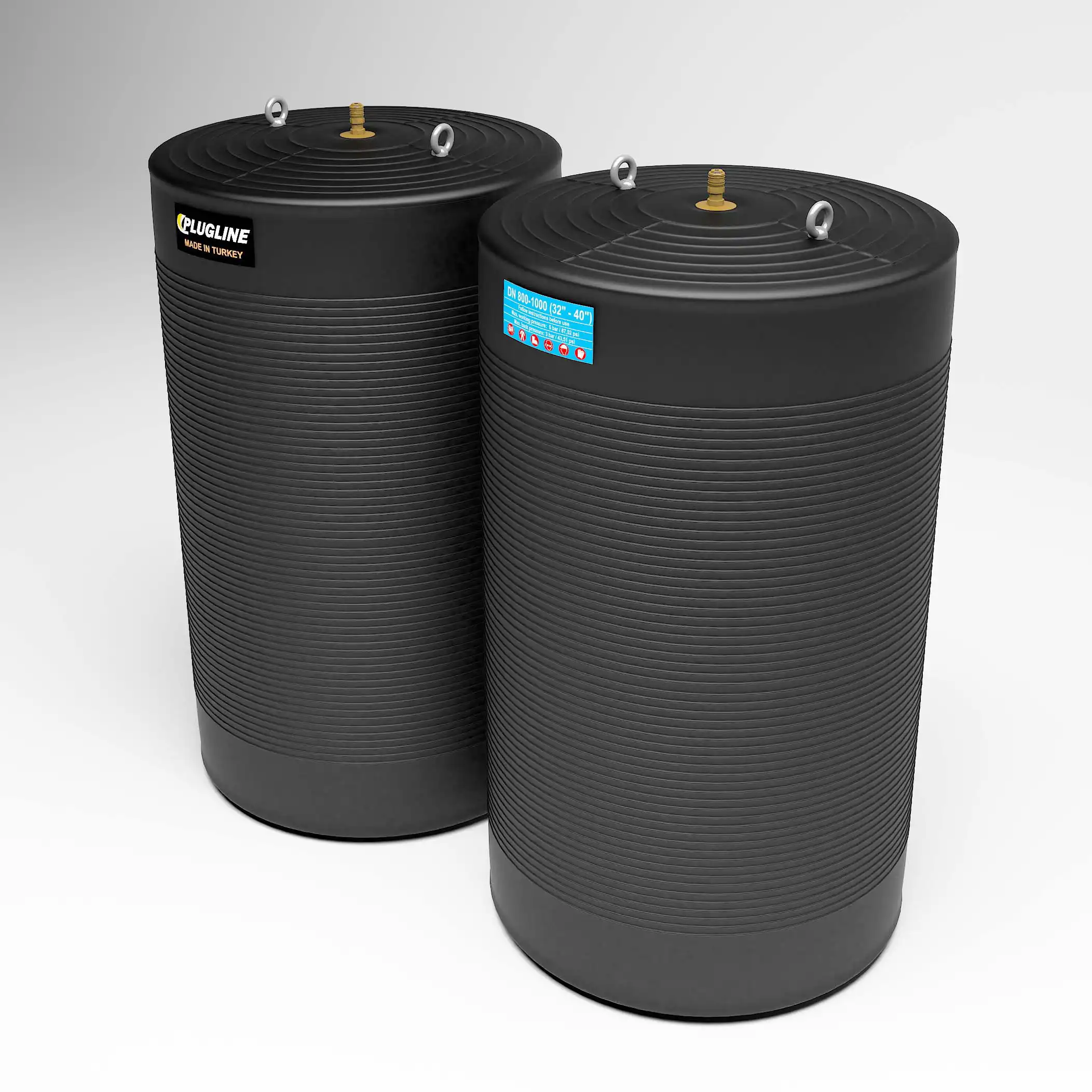

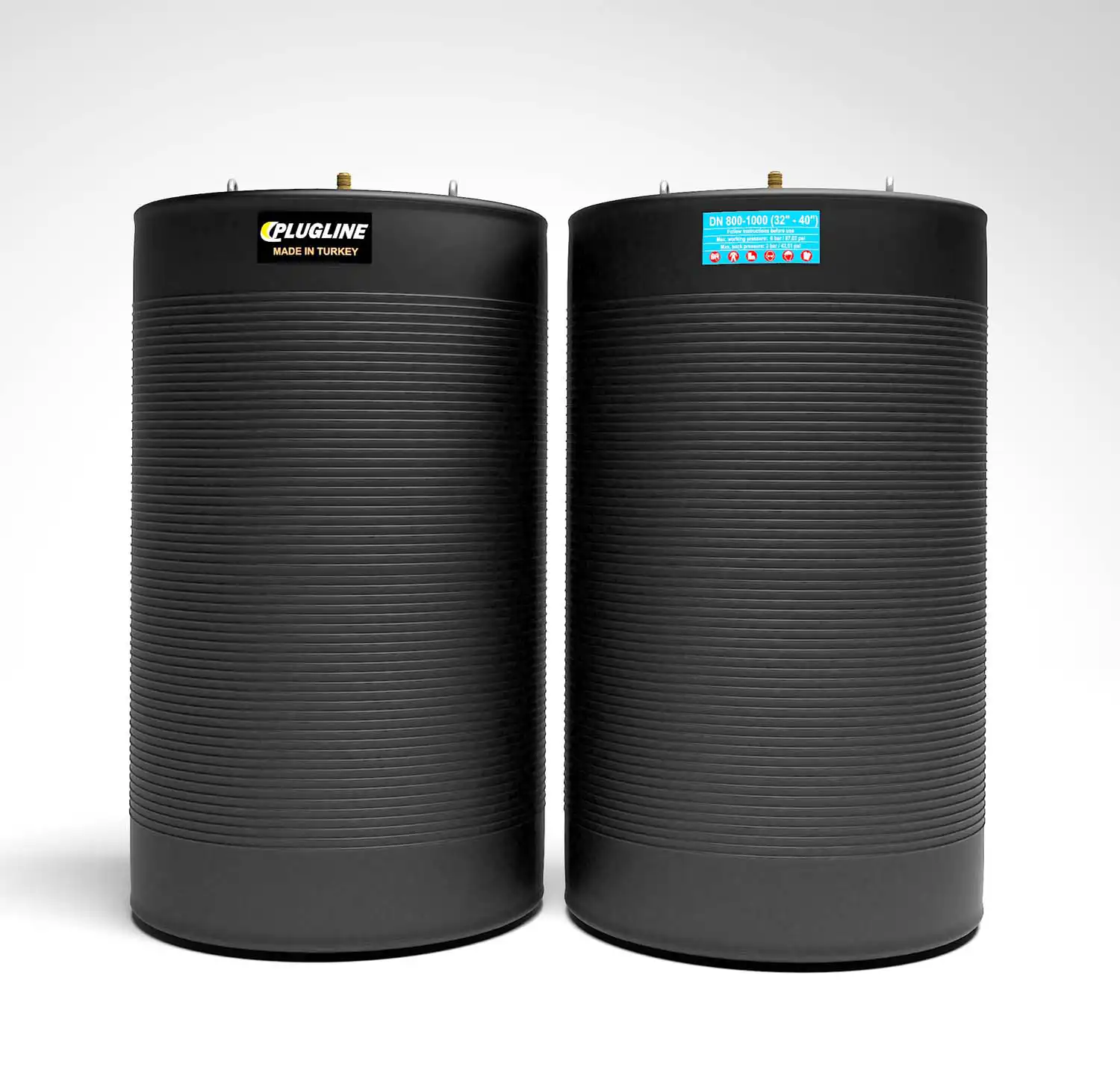

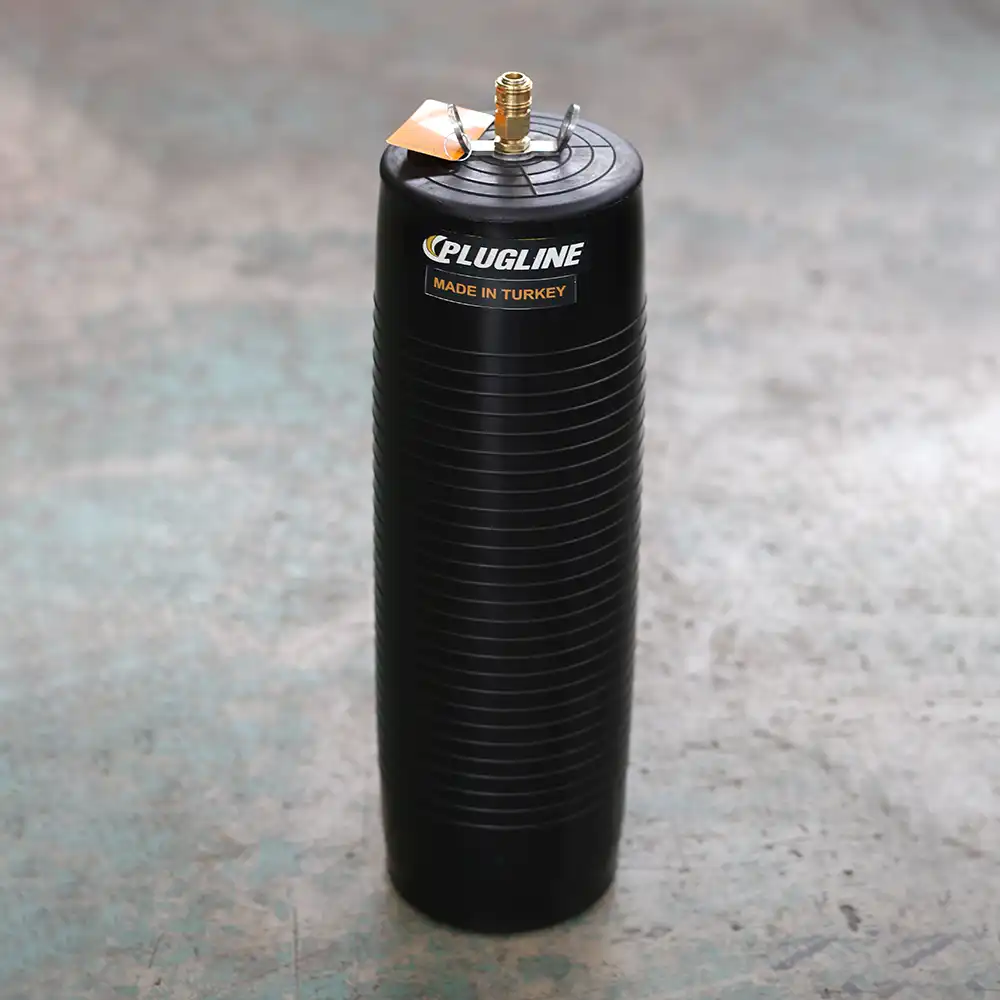

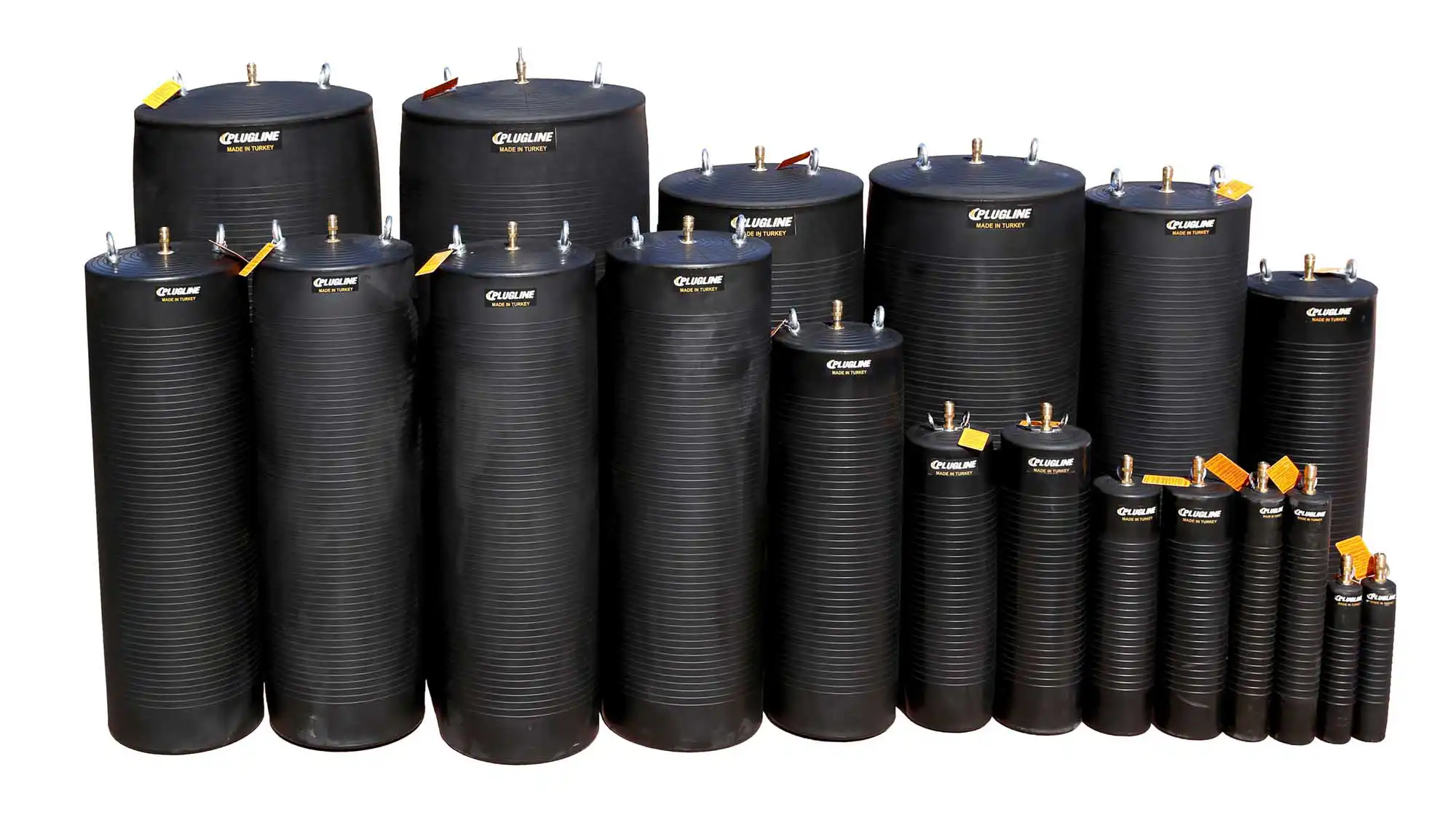

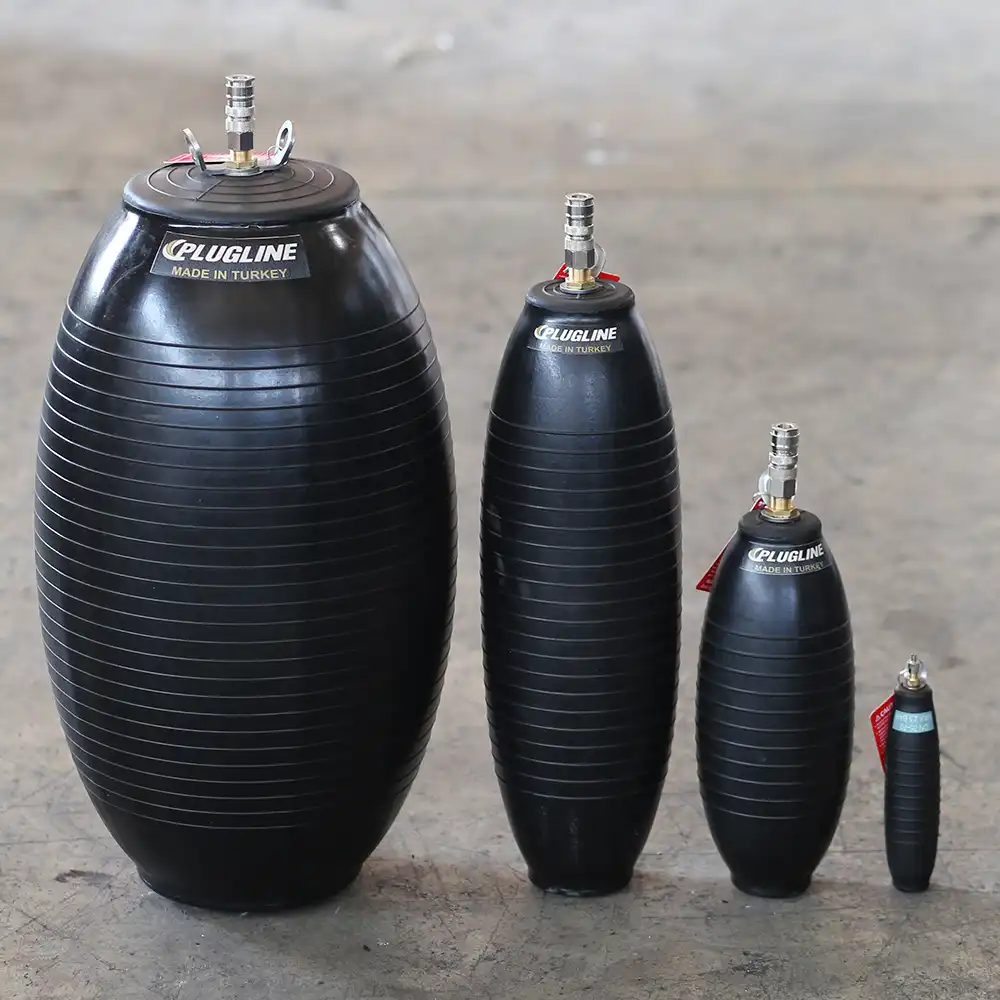

Oil and Gas High Pressure Pipe Stoppers (6,0 Bar - 12,0 bar)
- Inflatable Oil and Gas High Pressure Pipe Stoppers, called also as Oil and Gas High Pressure Pneumatic Pipe Stoppers are mainly used in Petrochemical Industry, oil, gas, petroleum, fuel and all other chemical industry to seal and to block pipelines, which the back pressure exceeds the range of standard stoppers.
- They are derived from standard type High Pressure Pipe Stoppers unlike material type, their material nitrile butadiene rubber NBR has a high resistance to, oil, gas, petrolem, fuel and all other chemicals.
- Available for pipe diameters from 50 mm (1,96") to 2000 mm (78,74"), if requested more.
- Produced at higher working pressures like 6,0 Bar (87,02 psi) and 12,0 Bar (174,04 psi).
- Resistant to the environment for temperatures from -40 °C (-40 °F) to 70 °C (158 °F).
| Product Code | Nominal Size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Max. Working Pressure (bar/psi) | Back Pressure (bar/psi) | Product Diameter (mm/inch) | Total Length of Product (mm/inch) | Product Weight(kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|---|
|
remove
add
|
OGHPS5070 | 50-70 | 50mm/1.97" | 70mm/2.76" | 6,0bar/87,02psi | 3,0bar/43,51psi | 45mm/1,77" | 280mm/11.02" | 0,4kg/0,88lbs |
|
remove
add
|
OGHPS70100 | 70-100 | 70mm/2.76" | 100mm/3,93" | 6,0bar/87,02psi | 3,0bar/43,51psi | 65mm/2,51" | 320mm/12.6" | 0,6kg/1,32lbs |
|
remove
add
|
OGHPS100150 | 100-150 | 100mm/3,93" | 150mm/5,90" | 6,0bar/87,02psi | 3,0bar/43,51psi | 88mm/3,46" | 550mm/21,65" | 1,0kg/2,20Ibs |
|
remove
add
|
OGHPS150200 | 150-200 | 150mm/5,90" | 200mm/7,87" | 6,0bar/87,02psi | 3,0bar/43,51psi | 138mm/5,43" | 550mm/21,65" | 1,2kg/2,64Ibs |
|
remove
add
|
OGHPS200300 | 200-300 | 200mm/7,87" | 300mm/11,81" | 6,0bar/87,02psi | 3,0bar/43,51psi | 185mm/7,28" | 650mm/25,59" | 3,4kg/7,49Ibs |
|
remove
add
|
OGHPS300400 | 300-400 | 300mm/11,81" | 400mm/15,74" | 6,0bar/87,02psi | 3,0bar/43,51psi | 285mm/11,22" | 850mm/33,46" | 6,6kg/14,55Ibs |
|
remove
add
|
OGHPS375500 | 375-500 | 375mm/14,76" | 500mm/19,68" | 6,0bar/87,02psi | 3,0bar/43,51psi | 380mm/14,96" | 1000mm/39,37" | 9,4kg/20,72Ibs |
|
remove
add
|
OGHPS500600 | 500-600 | 500mm/19,68" | 600mm/23,62" | 6,0bar/87,02psi | 3,0bar/43,51psi | 485mm/19,09" | 1150mm/45,27" | 23,0kg/50,70Ibs |
|
remove
add
|
OGHPS600700 | 600-700 | 600mm/23,62" | 700mm/27,55" | 6,0bar/87,02psi | 3,0bar/43,51psi | 585mm/23,03" | 1300mm/51,18" | 25,5kg/56,21Ibs |
|
remove
add
|
OGHPS8001000 | 800-1000 | 800mm/31,49" | 1000mm/39,37" | 6,0bar/87,02psi | 3,0bar/43,51psi | 785mm/30,90" | 1300mm/51,18" | 40,0kg/88,18Ibs |
|
remove
add
|
OGHPS12001400 | 1200-1400 | 1200mm/47,24" | 1400mm/55,11" | 6,0bar/87,02psi | 3,0bar/43,51psi | 1180mm/46,45" | 1500mm/59,05" | 140,0kg/308,56lbs |
|
remove
add
|
OGHPS18002000 | 1800-2000 | 1800mm/70,86" | 2000mm/78,74 | 6,0bar/87,02psi | 3,0bar/43,51psi | 1780mm/70,07" | 1000mm/39,37" | 250,0kg/551,0lbs |
| Product Code | Nominal Size(mm) | Min. Pipe Inner Dia. to be tested (mm/inch) | Max. Pipe Inner Dia. to be tested (mm/inch) | Max. Working Pressure (bar/psi) | Back Pressure (bar/psi) | Product Diameter (mm/inch) | Total Length of Product (mm/inch) | Product Weight(kg/Ibs) | |
|---|---|---|---|---|---|---|---|---|---|
|
remove
add
|
OGHPS50 | 50 | 50mm/1.97 | 50mm/1.97 | 12,0bar/174,04psi | 6,0bar/87,02psi | 45mm/1,77" | 280mm/11.02" | 0,4kg/0,88lbs |
|
remove
add
|
OGHPS70 | 70 | 70mm/2.76" | 70mm/2.76" | 12,0bar/174,04psi | 6,0bar/87,02psi | 65mm/2,51" | 320mm/12.6" | 0,6kg/1,32lbs |
|
remove
add
|
OGHPS100 | 100 | 100mm/3,93" | 100mm/3,93" | 12,0bar/174,04psi | 6,0bar/87,02psi | 88mm/3,46" | 550mm/21,65" | 1,0kg/2,20Ibs |
|
remove
add
|
OGHPS125 | 125 | 125mm/4,92" | 125mm/4,92" | 12,0bar/174,04psi | 6,0bar/87,02psi | 88mm/3,46" | 550mm/21,65" | 1,0kg/2,20Ibs |
|
remove
add
|
OGHPS150 | 150 | 150mm/5,90" | 150mm/5,90" | 12,0bar/174,04psi | 6,0bar/87,02psi | 138mm/5,43" | 550mm/21,65" | 1,2kg/2,64Ibs |
|
remove
add
|
OGHPS200 | 200 | 200mm/7,87" | 200mm/7,87" | 12,0bar/174,04psi | 6,0bar/87,02psi | 185mm/7,28" | 650mm/25,59" | 3,4kg/7,49Ibs |
|
remove
add
|
OGHPS250 | 250 | 250mm/9,84" | 250mm/9,84" | 12,0bar/174,04psi | 6,0bar/87,02psi | 185mm/7,28" | 650mm/25,59" | 3,4kg/7,49Ibs |
|
remove
add
|
OGHPS300 | 300 | 300mm/11,81" | 300mm/11,81" | 12,0bar/174,04psi | 6,0bar/87,02psi | 285mm/11,22" | 850mm/33,46" | 6,6kg/14,55Ibs |
|
remove
add
|
OGHPS350 | 350 | 350mm/13,78" | 350mm/13,78" | 12,0bar/174,04psi | 6,0bar/87,02psi | 285mm/11,22" | 850mm/33,46" | 6,6kg/14,55Ibs |
|
remove
add
|
OGHPS400 | 400 | 400mm/15,74" | 400mm/15,74" | 12,0bar/174,04psi | 6,0bar/87,02psi | 360mm/14,17" | 1000mm/39,37" | 10,0kg/22,05lbs |
|
remove
add
|
OGHPS450 | 450 | 450mm/17,72" | 450mm/17,72" | 12,0bar/174,04psi | 6,0bar/87,02psi | 360mm/14,17" | 1000mm/39,37" | 10,0kg/22,05lbs |
|
remove
add
|
OGHPS500 | 500 | 500mm/19,68" | 500mm/19,68" | 12,0bar/174,04psi | 6,0bar/87,02psi | 485mm/19,09" | 1150mm/45,27" | 23,0kg/50,70Ibs |
|
remove
add
|
OGHPS600 | 600 | 600mm/23,62" | 600mm/23,62" | 12,0bar/174,04psi | 6,0bar/87,02psi | 585mm/23,03" | 1300mm/51,18" | 25,5kg/56,21Ibs |
|
remove
add
|
OGHPS650 | 650 | 650mm/25,59" | 650mm/25,59" | 12,0bar/174,04psi | 6,0bar/87,02psi | 585mm/23,03" | 1300mm/51,18" | 25,5kg/56,21Ibs |
|
remove
add
|
OGHPS700 | 700 | 700mm/27,56" | 700mm/27,56" | 12,0bar/174,04psi | 6,0bar/87,02psi | 585mm/23,03" | 1300mm/51,18" | 25,5kg/56,21Ibs |
|
remove
add
|
OGHPS800 | 800 | 800mm/31,49" | 800mm/31,49" | 12,0bar/174,04psi | 6,0bar/87,02psi | 785mm/30,90" | 1300mm/51,18" | 40,0kg/88,18Ibs |
|
remove
add
|
OGHPS1200 | 1200 | 1200mm/47,24" | 1200mm/47,24" | 12,0bar/174,04psi | 6,0bar/87,02psi | 1180mm/46,45" | 1500mm/59,05" | 140,0kg/308,56lbs |
|
remove
add
|
OGHPS1800 | 1800 | 1800mm/70,86" | 1800mm/70,86" | 12,0bar/174,04psi | 6,0bar/87,02psi | 1780mm/70,07" | 1000mm/39,37" | 250,0kg/551,0lbs |
