Inflatable Metal Test Plugs

  • Designed for testing and sealing of sewers, drainage systems, pipelines, and gullies.

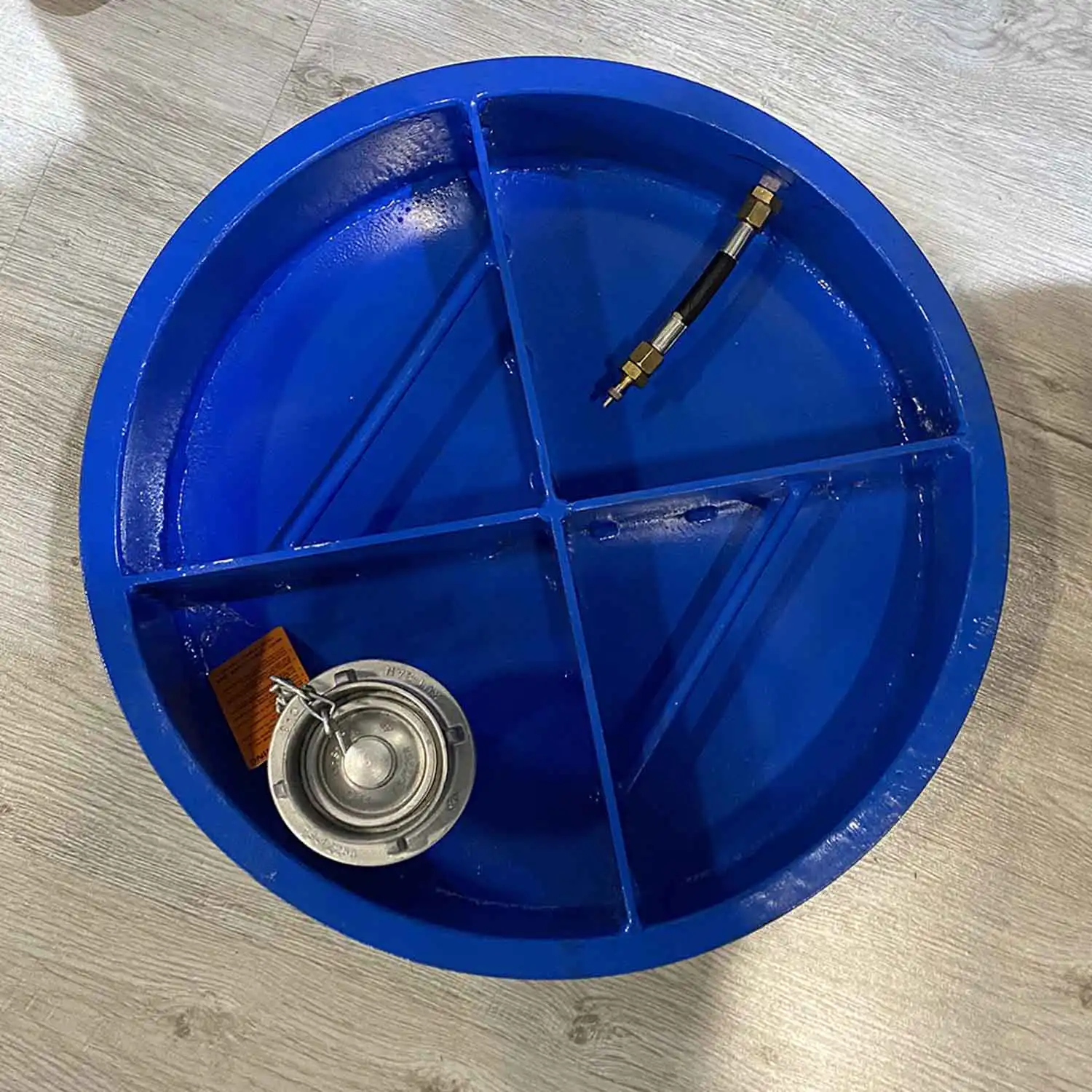

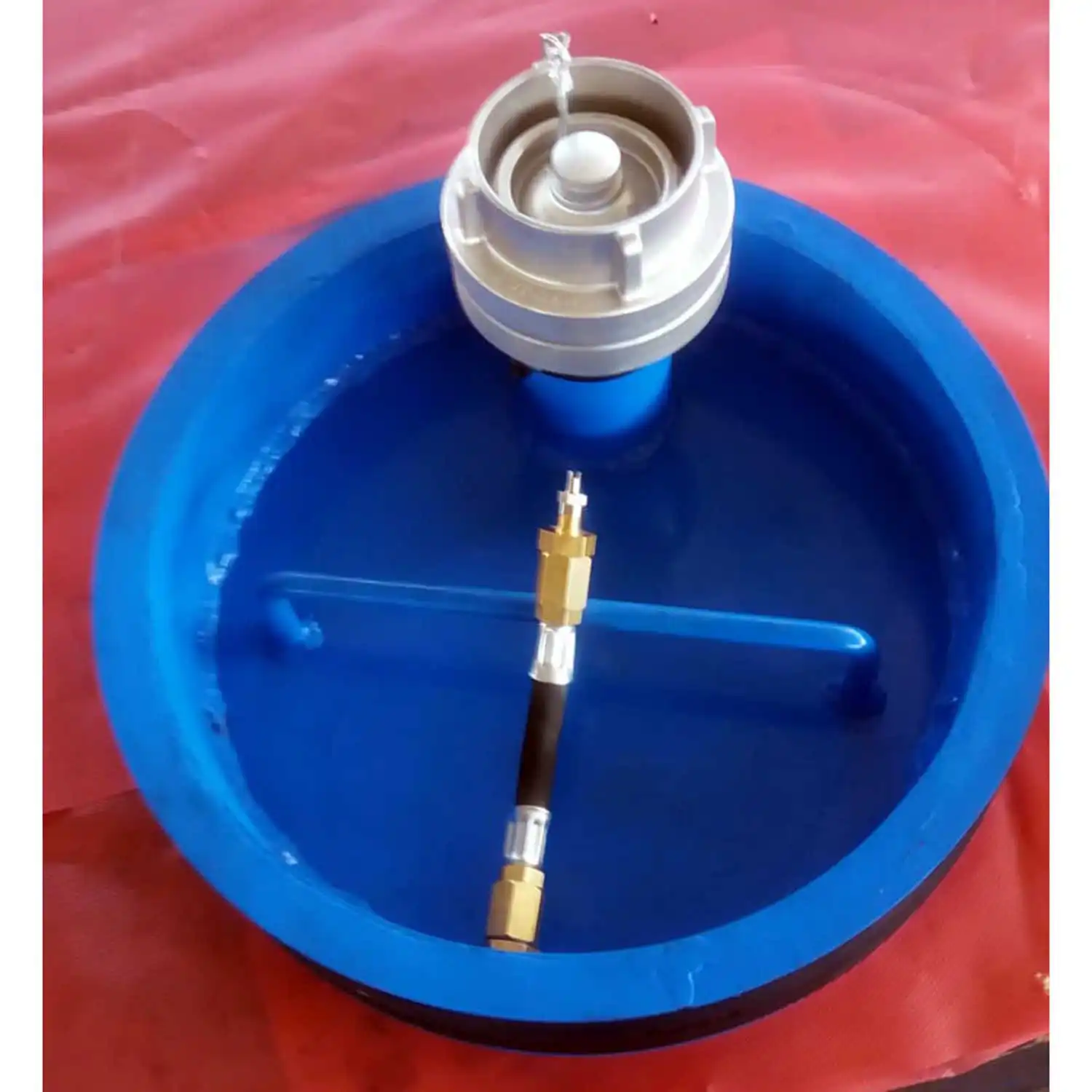

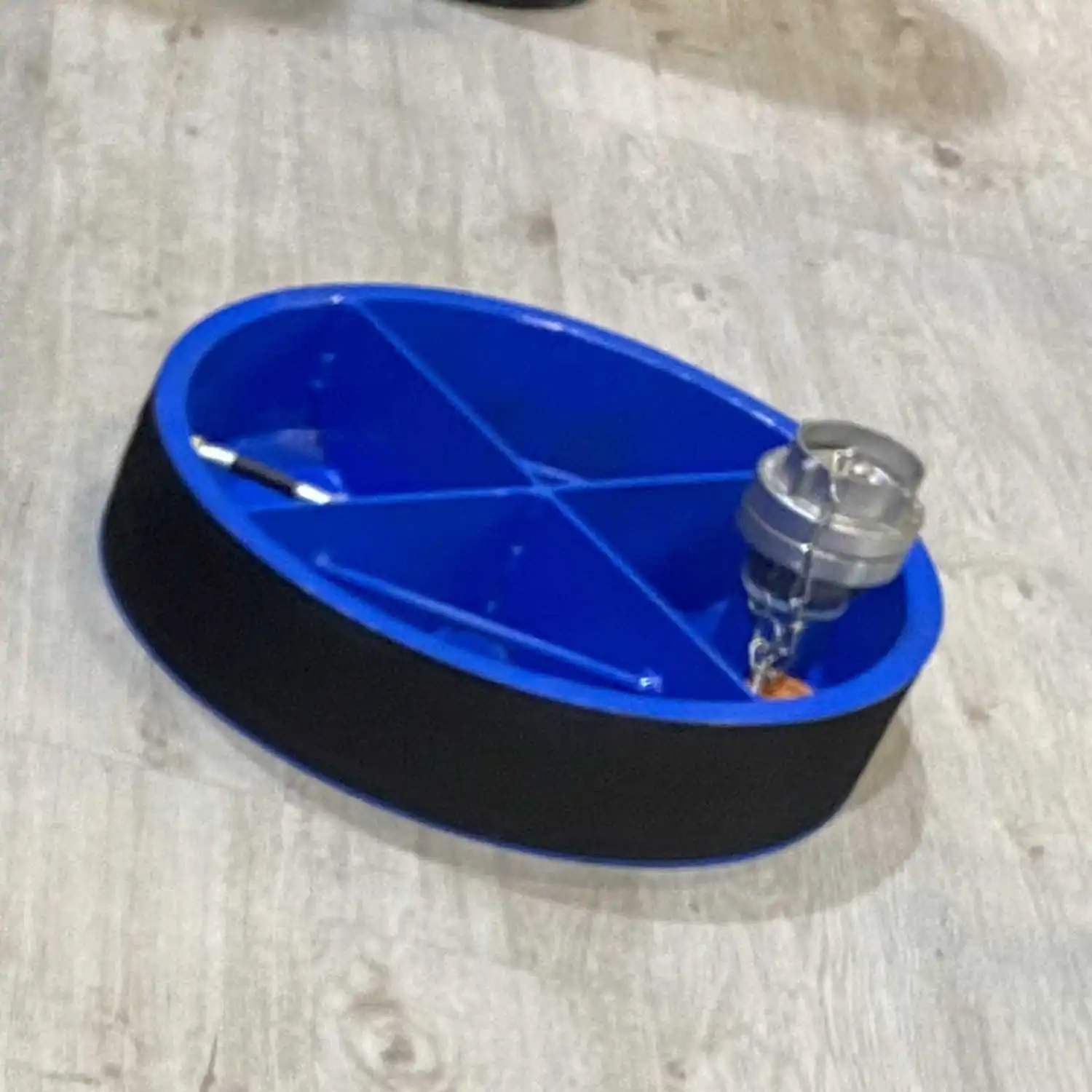

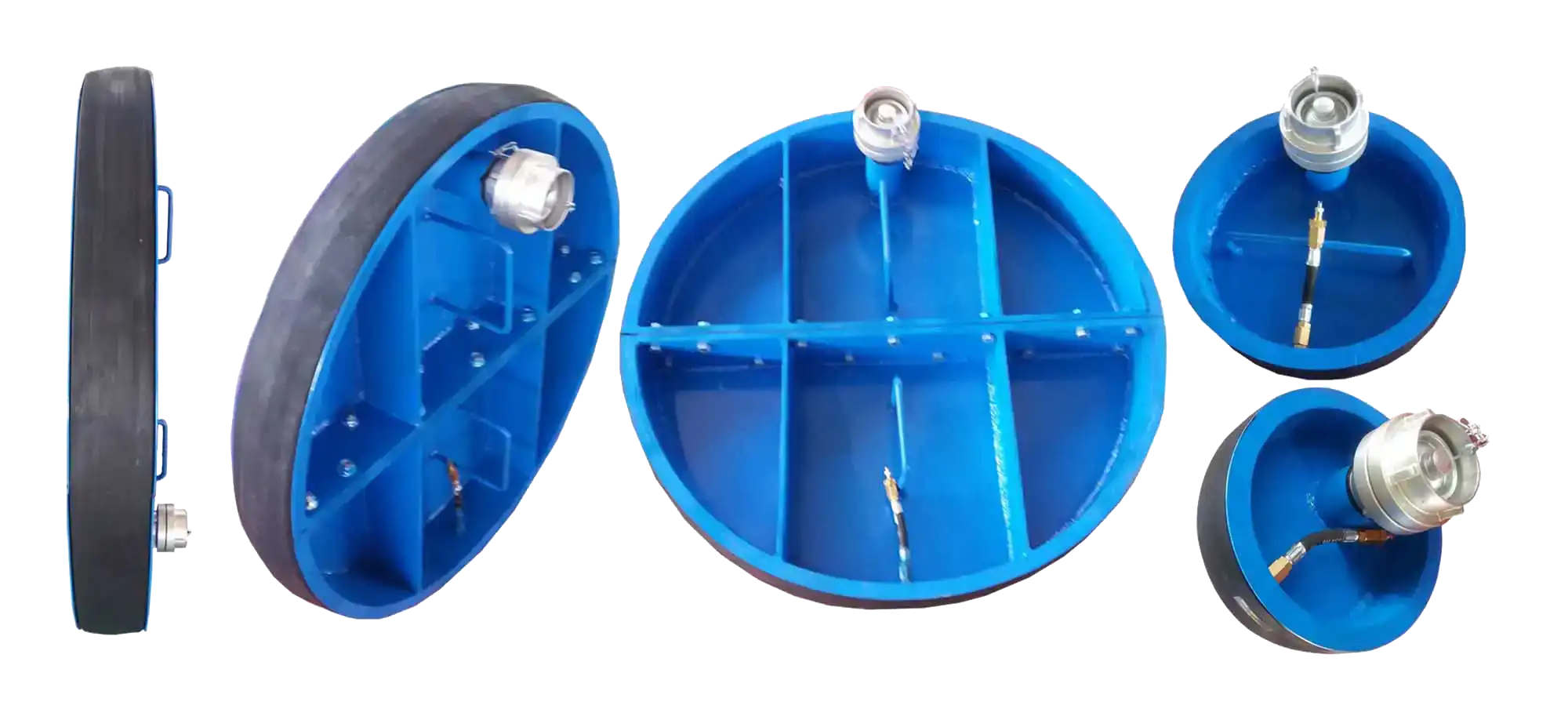

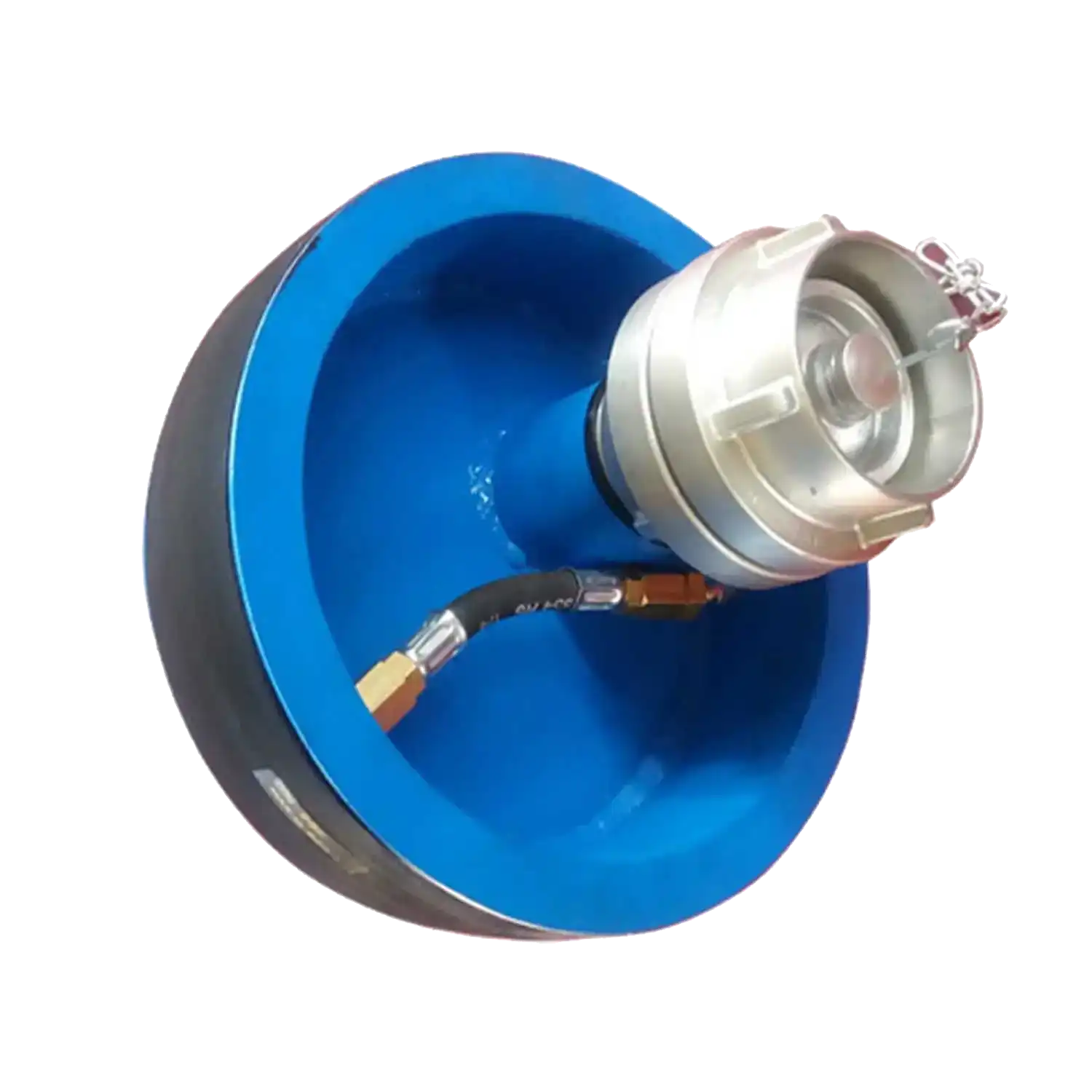

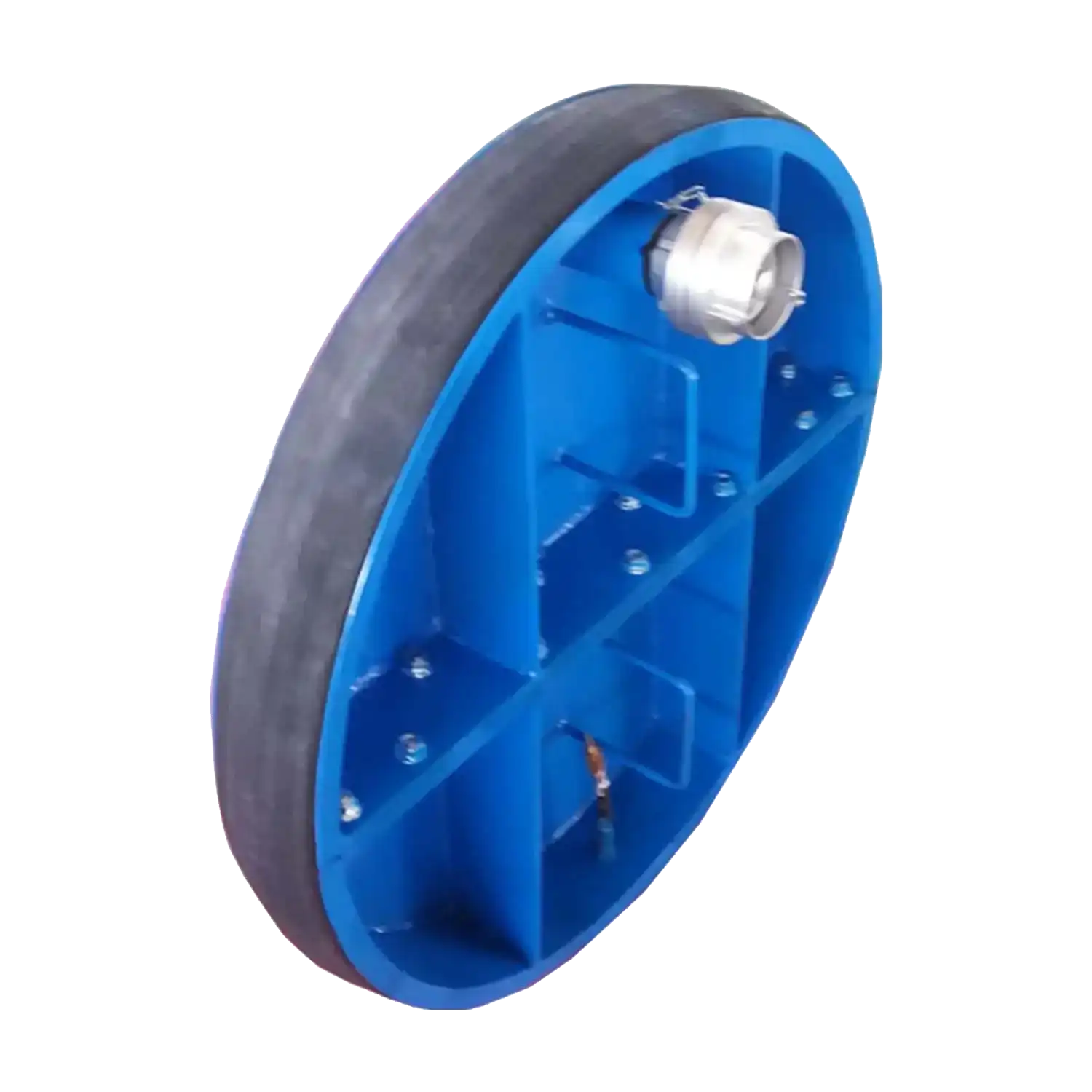

  • Consists of a robust metal core with a passageway and a high-quality rubber jacket, inflatable via an valve.
  • Ideal for leak locating and testing with air or water.
  • Available for pipe diameters from 200 mm (7,87") to 1000 mm (39,37"). Beside these plugs can be produced for higher or lower diameters.
  • Specified as standard working pressure 6,0 Bar (87,02 psi).
INFLATABLE METAL TEST PLUGS (6,0 BAR/87,02 PSI)
Product Code Nominal Size Min. Pipe Inner Dia. to be tested (mm/inch) Max. Pipe Inner Dia. to be tested (mm/inch) Max. Working Pressure (bar/psi) Product Diameter (mm/inch) Total Length of Product (mm/inch) Bypass Diameter (mm/inch) Product Weight (kg/Ibs)
remove add
ISMTP150 150 135 mm / 5,31" 150 mm / 5,9" 6,0bar/87,02psi 130 mm / 25,40" 110 mm / 4,33" 25,4 mm / 1,00" 2 kg / 4,40 Ibs
remove add
ISMTP200 200 190 mm / 7,4" 210 mm / 8,26" 6,0bar/87,02psi 185 mm / 7,28" 110 mm / 4,33" 25,4 mm / 1,00" 2,7 kg / 5,95 Ibs
remove add
ISMTP250 250 245 mm / 9,64" 255 mm / 10,03" 6,0bar/87,02psi 230 mm / 9,05" 110 mm / 4,33" 25,4 mm / 1,00" 3,9 kg / 8,59 Ibs
remove add
ISMTP300 300 290 mm / 11,41" 305 mm / 12,00" 6,0bar/87,02psi 280 mm / 11,02" 110 mm / 4,33" 50,8 mm / 2,00" 4,9 kg / 10,80 Ibs
remove add
ISMTP350 350 345 mm / 13,58" 360 mm / 14,17" 6,0bar/87,02psi 330 mm / 12,99" 110 mm / 4,33" 50,8 mm / 2,00" 5,9 kg / 13,00 Ibs
remove add
ISMTP400 400 390 mm / 15,35" 405 mm / 15,94" 6,0bar/87,02psi 380 mm / 14,96" 110 mm / 4,33" 50,8 mm / 2,00" 7,0 kg / 15,43 Ibs
remove add
ISMTP450 450 445 mm / 17,5" 460 mm / 18,11" 6,0bar/87,02psi 440 mm / 17,32" 160 mm / 6,29" 50,8 mm / 2,00" 15,7 kg / 34,61 Ibs
remove add
ISMTP500 500 495 mm / 19,48" 505 mm / 19,88" 6,0bar/87,02psi 485 mm / 19,09" 160 mm / 6,29" 50,8 mm / 2,00" 17,0 kg/ 37,47 Ibs
remove add
ISMTP600 600 590 mm / 23,22" 610 mm / 24,01" 6,0bar/87,02psi 585 mm / 23,03" 160 mm / 6,29" 50,8 mm / 2,00" 20,0 kg / 44,09 Ibs
remove add
ISMTP700 700 690 mm / 27,16" 710 mm / 27,95" 6,0bar/87,02psi 685 mm / 26,96" 160 mm / 6,29" 50,8 mm / 2,00" 24.0 kg / 52,91 Ibs
remove add
ISMTP800 800 790 mm / 31,10" 810 mm / 31,88" 6,0bar/87,02psi 785 mm / 30,90" 160 mm / 6,29" 50,8 mm / 2,00" 34.0 kg / 74,95 Ibs
remove add
ISMTP1000 1000 990 mm / 38,97" 1010 mm / 39,76" 6,0bar/87,02psi 985 mm / 38,77" 160 mm / 6,29" 50,8 mm / 2,00" 46,0 kg / 101,41 Ibs
remove add
ISMTP1200 1200 1080 mm / 42,51" 1180 mm / 46,45" 6,0bar/87,02psi 1080 mm / 42,51" 160 mm / 6,29" 50,8 mm / 2,00" 52 kg / 114,63 Ibs
