Egg Shape Pipe Test Plugs (1,5 bar)

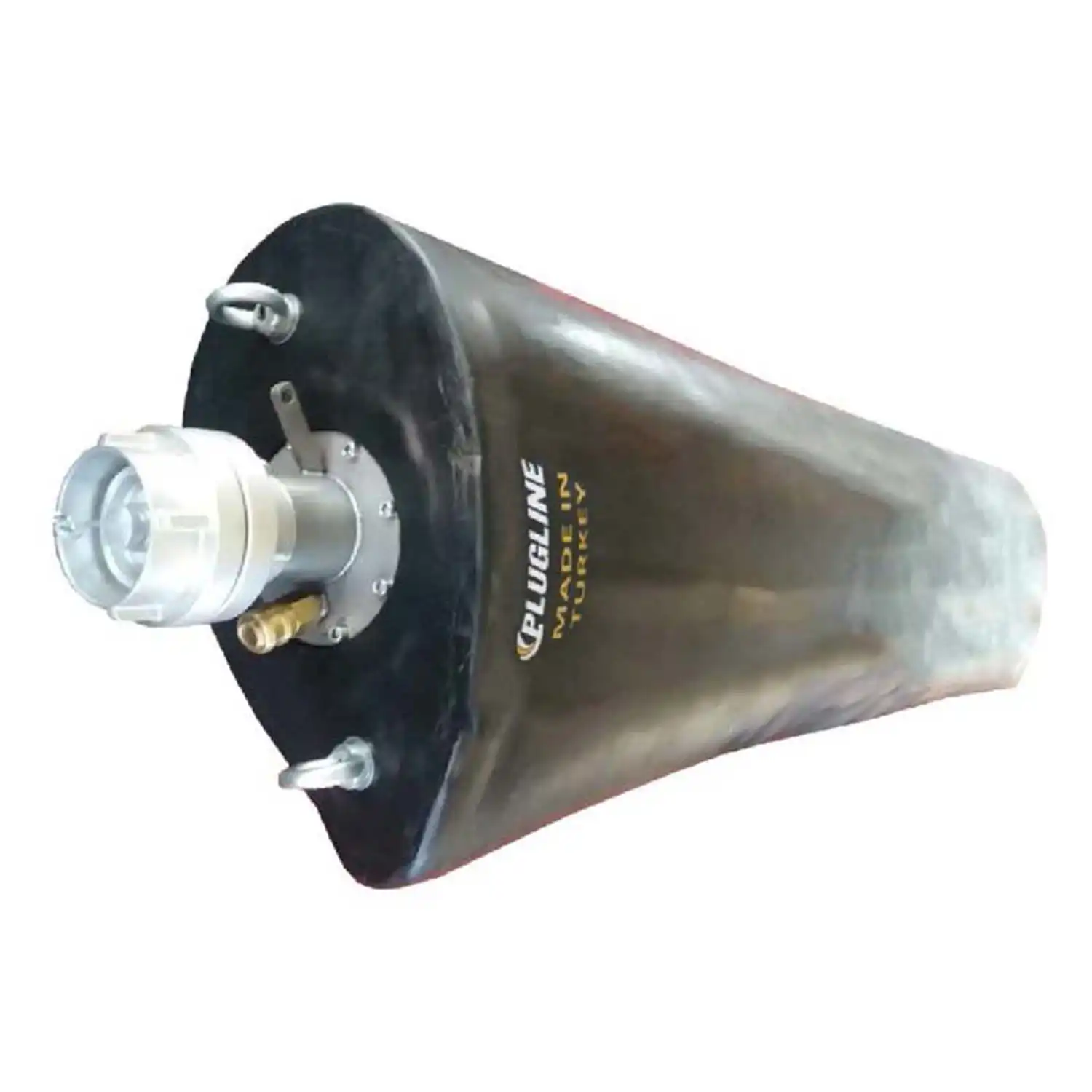

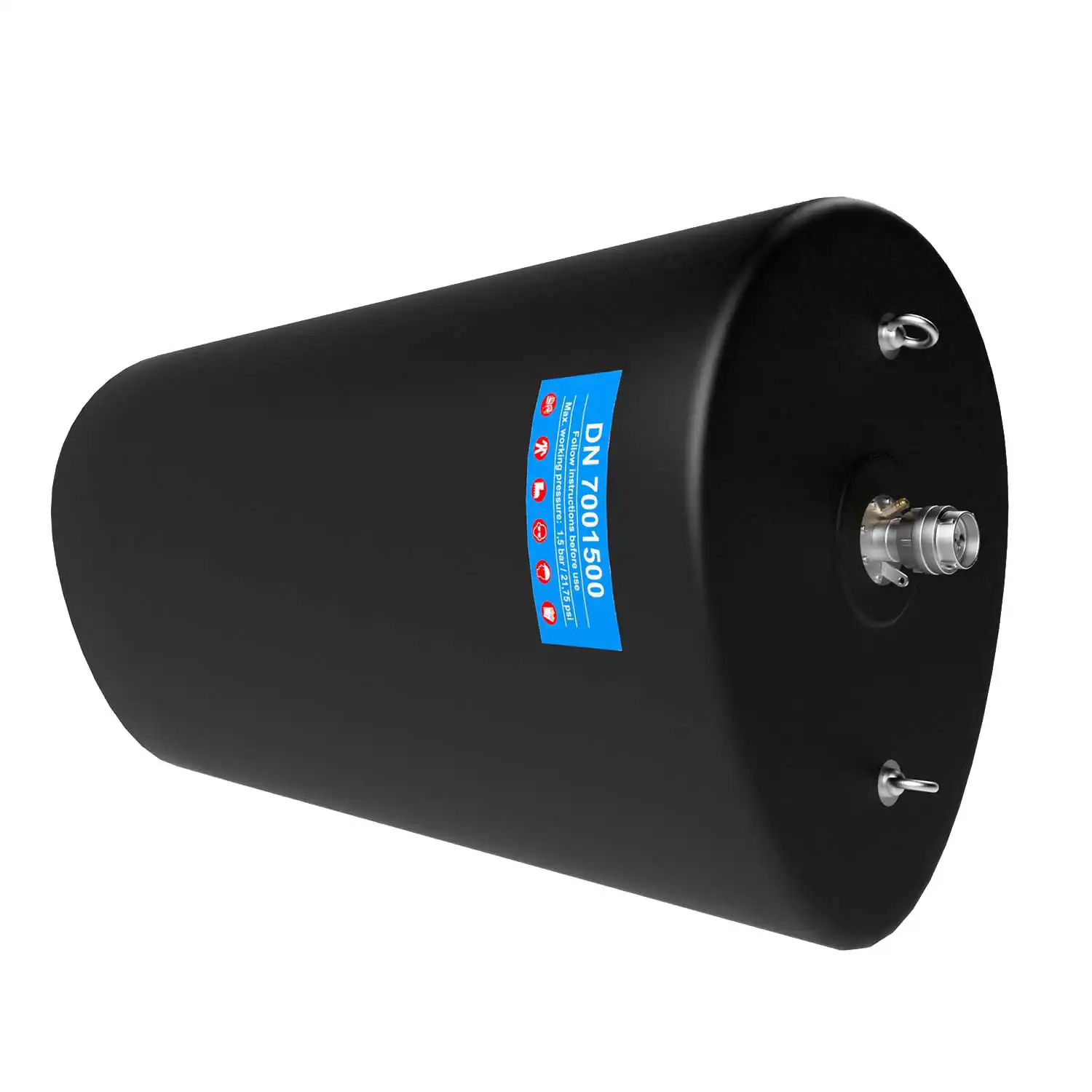

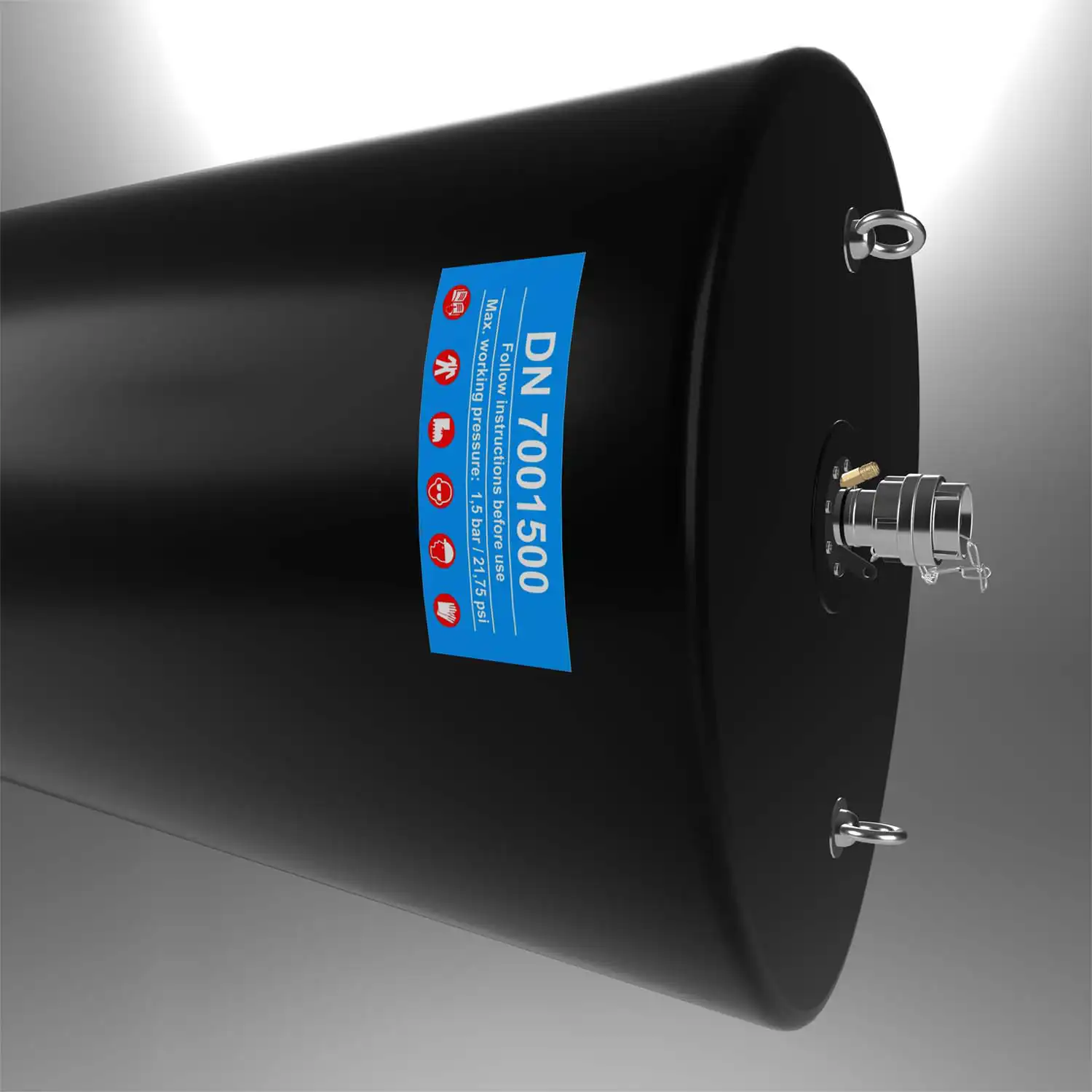

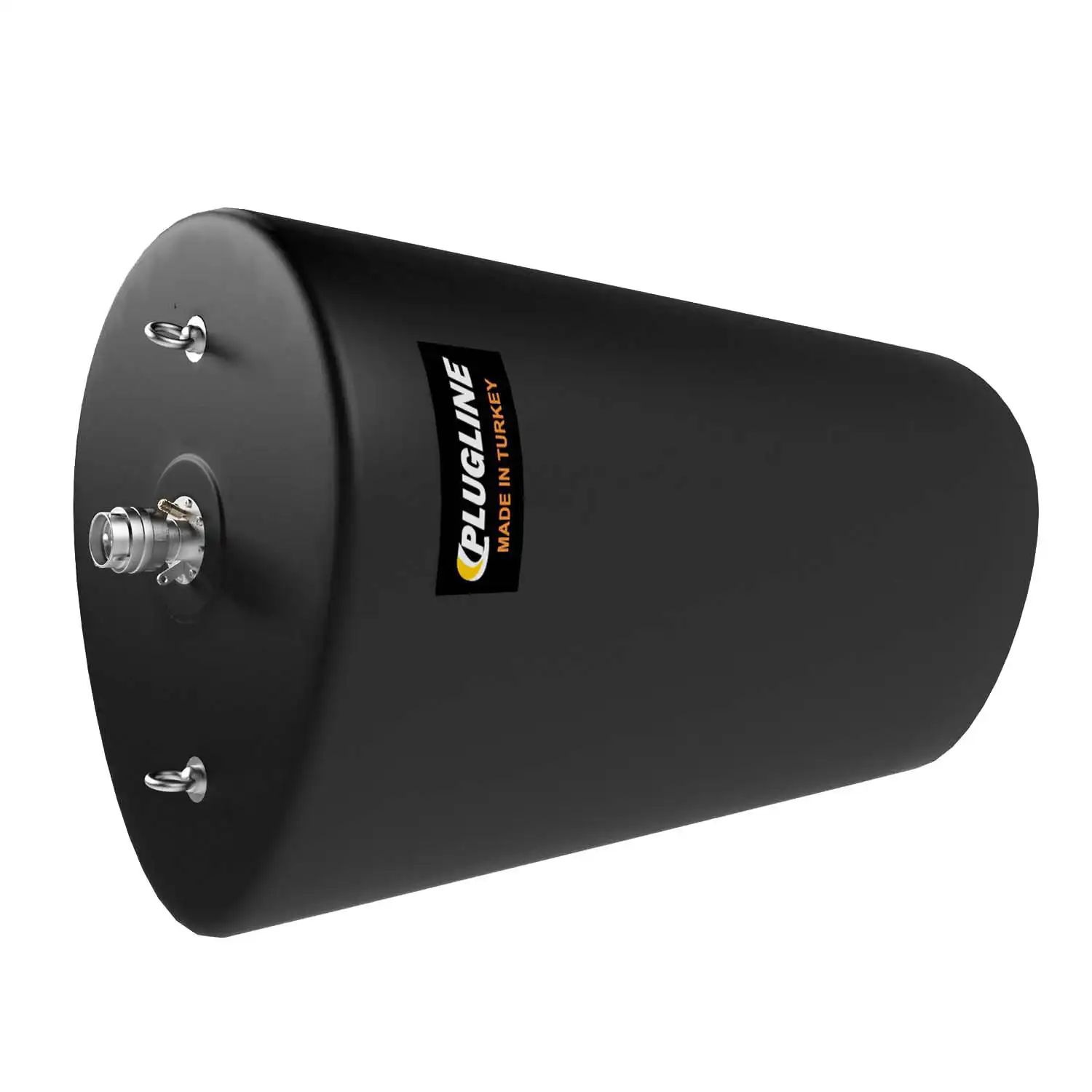

- The Pneumatic/Inflatable Egg Shape Pipe Test Plugs have a bypass system to allow testing the pipeline and changing the fluid direction of the pipe.
- Egg Shape Pipe Test Plugs are available in different sizes for sealing, blocking sewers, drainage systems, pipelines and gullies, testing pipe, bypassing flow with bypass channel.

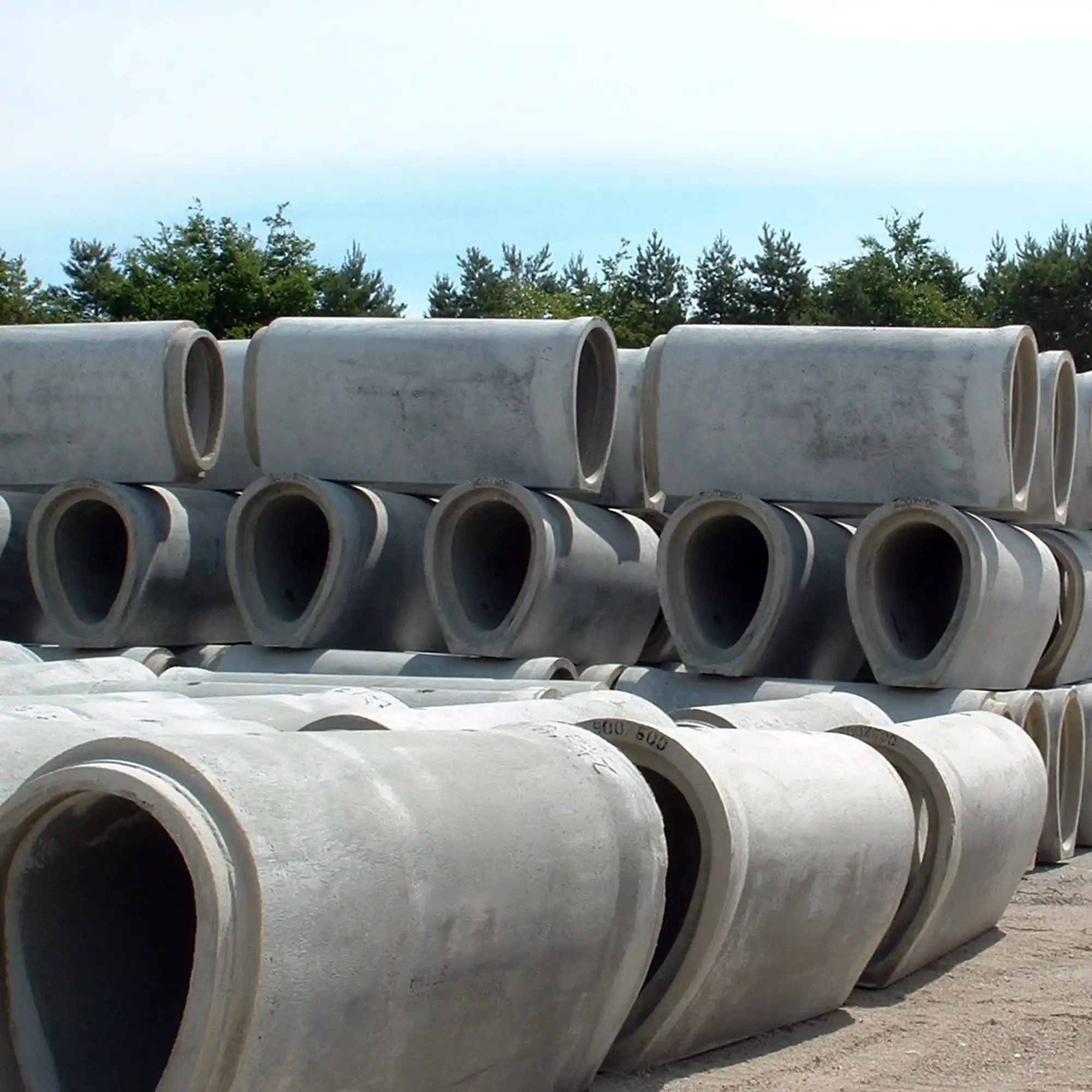

- These test plugs are used to sealing, blocking egg shaped, ovoid or oval profiles of sewers, drainage systems, pipelines, and gullies for testing with air or water.
- Working Pressure is 1 Bar and Back Pressure is 0,5 Bar for all sizes of Egg Shaped Pipe Test Plugs.
- They are available for pipe diameters from 200 mm (7,87") to 1500 mm (59,05").
- Specified as standard working pressure1,5 Bar (21,75 psi).
| Product Code | Nominal Size(mm) | Product Diameter (mm/inch) | Max. Working Pressure (bar/psi) | Back Pressure(bar/psi) | Bypass Diameter (mm/inch) | Total Length of Product (mm/inch) | Product Weight (kg/lbs) | |
|---|---|---|---|---|---|---|---|---|
|
remove
add
|
ESTP250375 | 250-375 | 180x265mm/7,09x10,43" | 1,5bar/21,76psi | 0,5bar/7,25psi | 50,8mm/2" | 600mm/23,62" | 12,0kg/26,46lbs |
|
remove
add
|
ESTP350525 | 350-525 | 280x415mm/11,02x16,34" | 1,5bar/21,76psi | 0,5bar/7,25psi | 50,8mm/2" | 650mm/25,59" | 22,0kg/48,5lbs |
|
remove
add
|
ESTP500750 | 500-750 | 380x565mm/14,96x22,24" | 1,5bar/21,76psi | 0,5bar/7,25psi | 50,8mm/2" | 750mm/29,53" | 30,0kg/66,14lbs |
|
remove
add
|
ESTP600900 | 600-900 | 480x715mm/18,90x28,15" | 1,0bar/14,5psi | 0,5bar/7,25psi | 50,8mm/2" | 1300mm/51,18" | 48,0kg/105,82lbs |
|
remove
add
|
ESTP7001050 | 700-1050 | 580x865mm/22,83x34,06" | 1,0bar/14,5psi | 0,5bar/7,25psi | 50,8mm/2" | 1300mm/51,18" | 53,0kg/116,84lbs |
|
remove
add
|
ESTP8001200 | 800-1200 | 680x850mm/26,77x33,46" | 1,0bar/14,5psi | 0,5bar/7,25psi | 50,8mm/2" | 1600mm/62,99" | 58,0kg/127,87lbs |
|
remove
add
|
ESTP9001350 | 900-1350 | 780x1165mm/30,71x45,87" | 1,0bar/14,5psi | 0,5bar/7,25psi | 50,8mm/2" | 2000mm/78,74" | 77,0kg/169,76lbs |
|
remove
add
|
ESTP10001500 | 1000-1500 | 880x1315mm/34,65x51,77" | 0,8bar/11,6psi | 0,5bar/7,25psi | 50,8mm/2" | 2500mm/98,43" | 120,0kg/264,55lbs |
|
remove
add
|
ESTP12001800 | 1200-1800 | 1080x1618mm/42,52x63,70" | 0,8bar/11,6psi | 0,5bar/7,25psi | 50,8mm/2" | 2800mm/110,24" | 168,0kg/370,38lbs |
