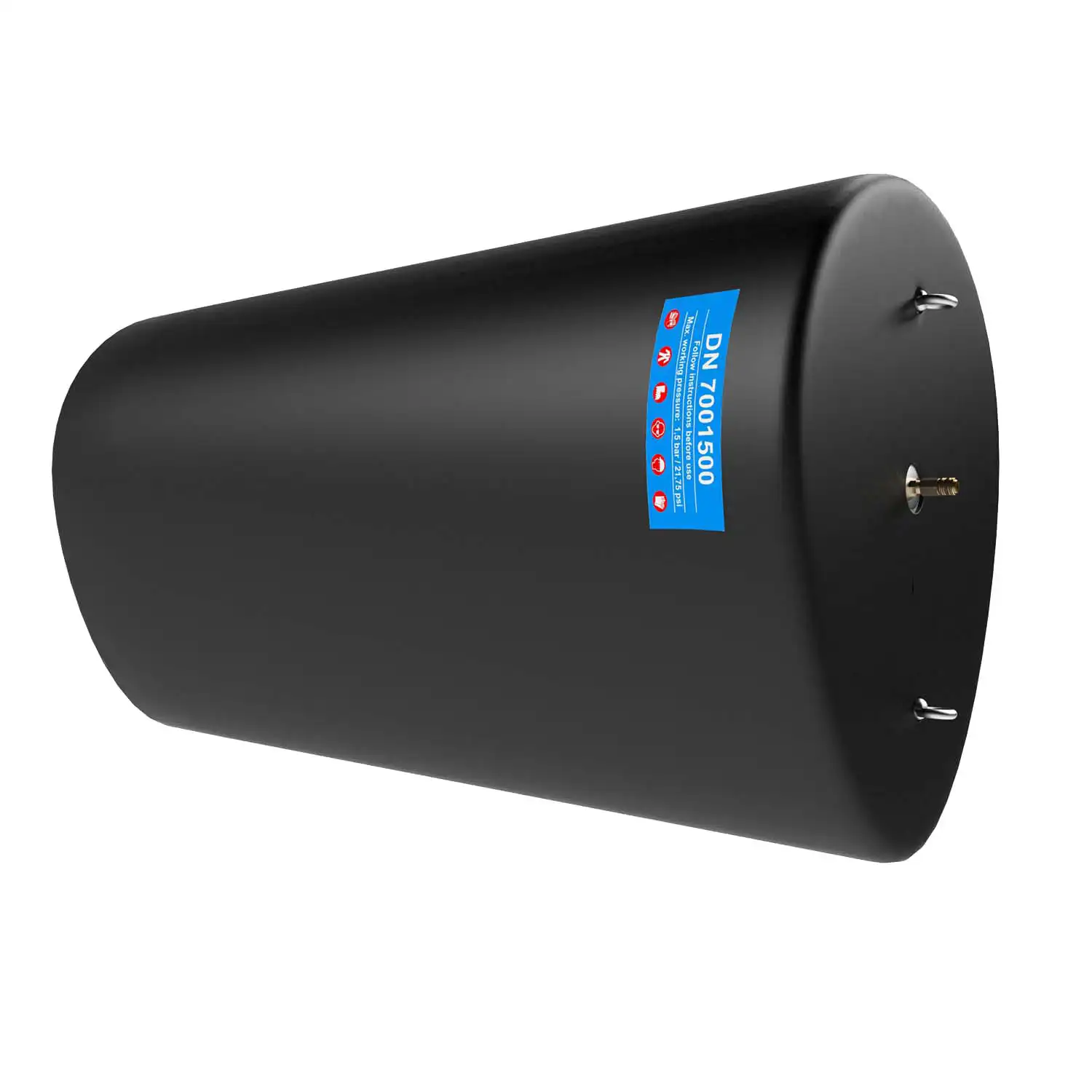

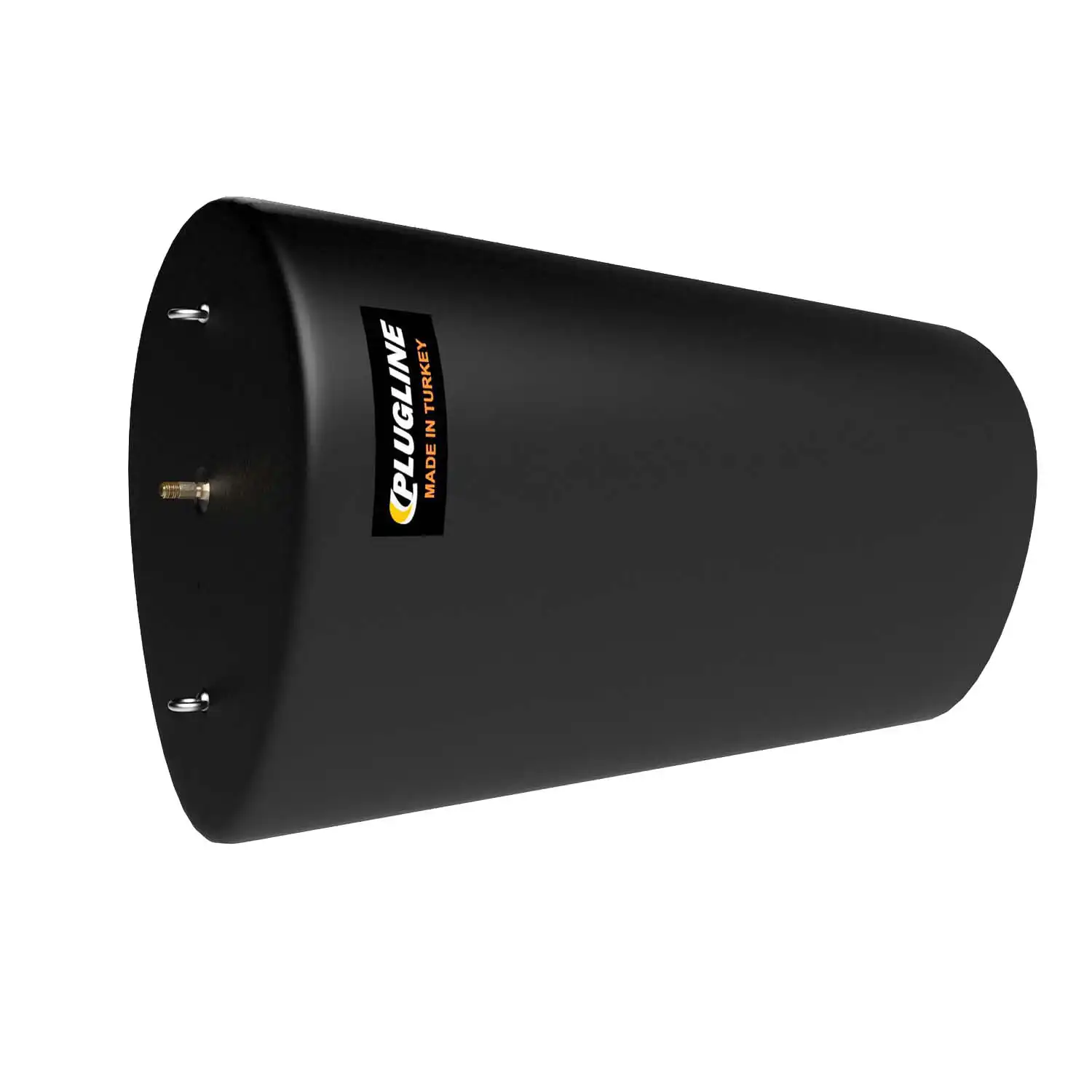

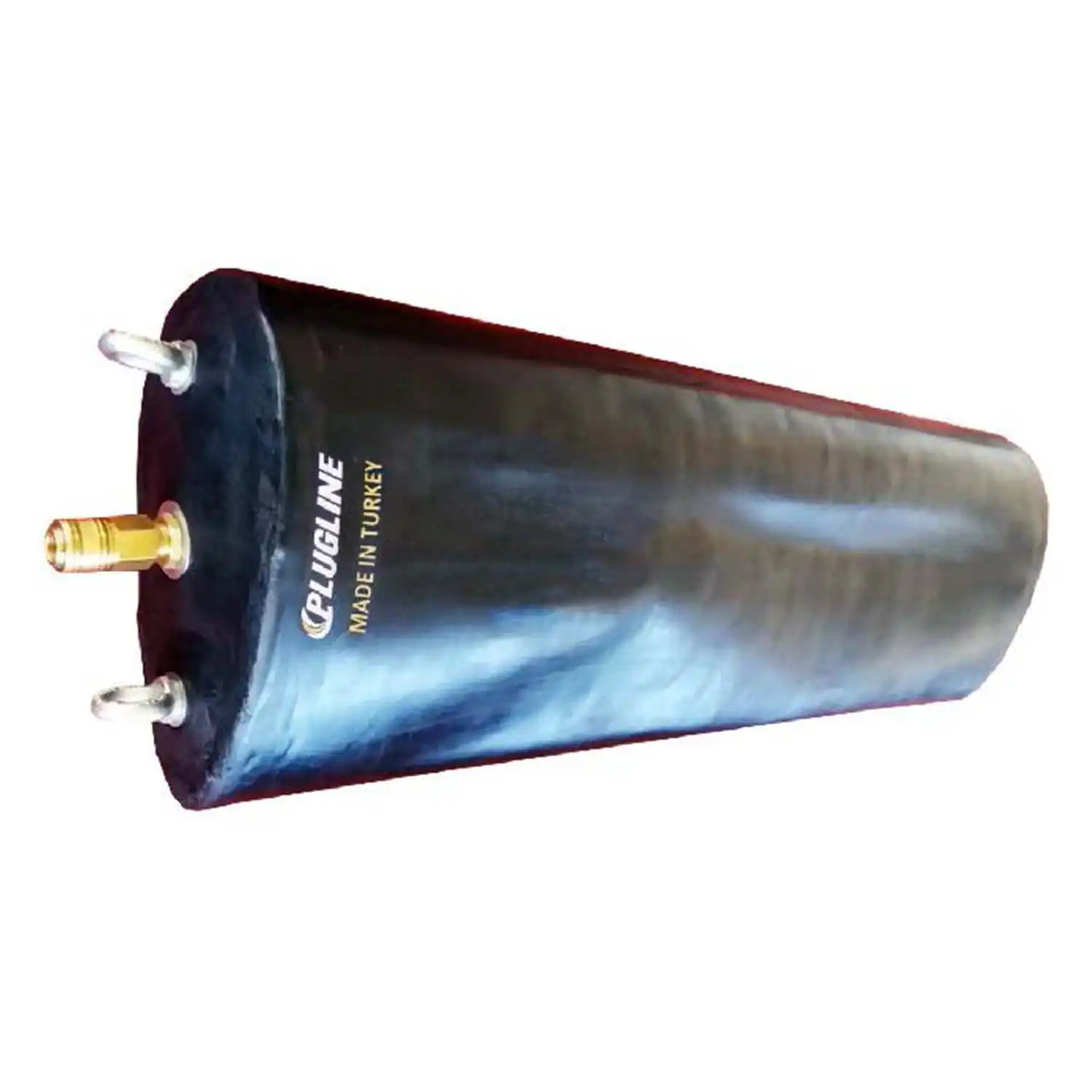

Egg Shape Pipe Stoppers (1,5 Bar)

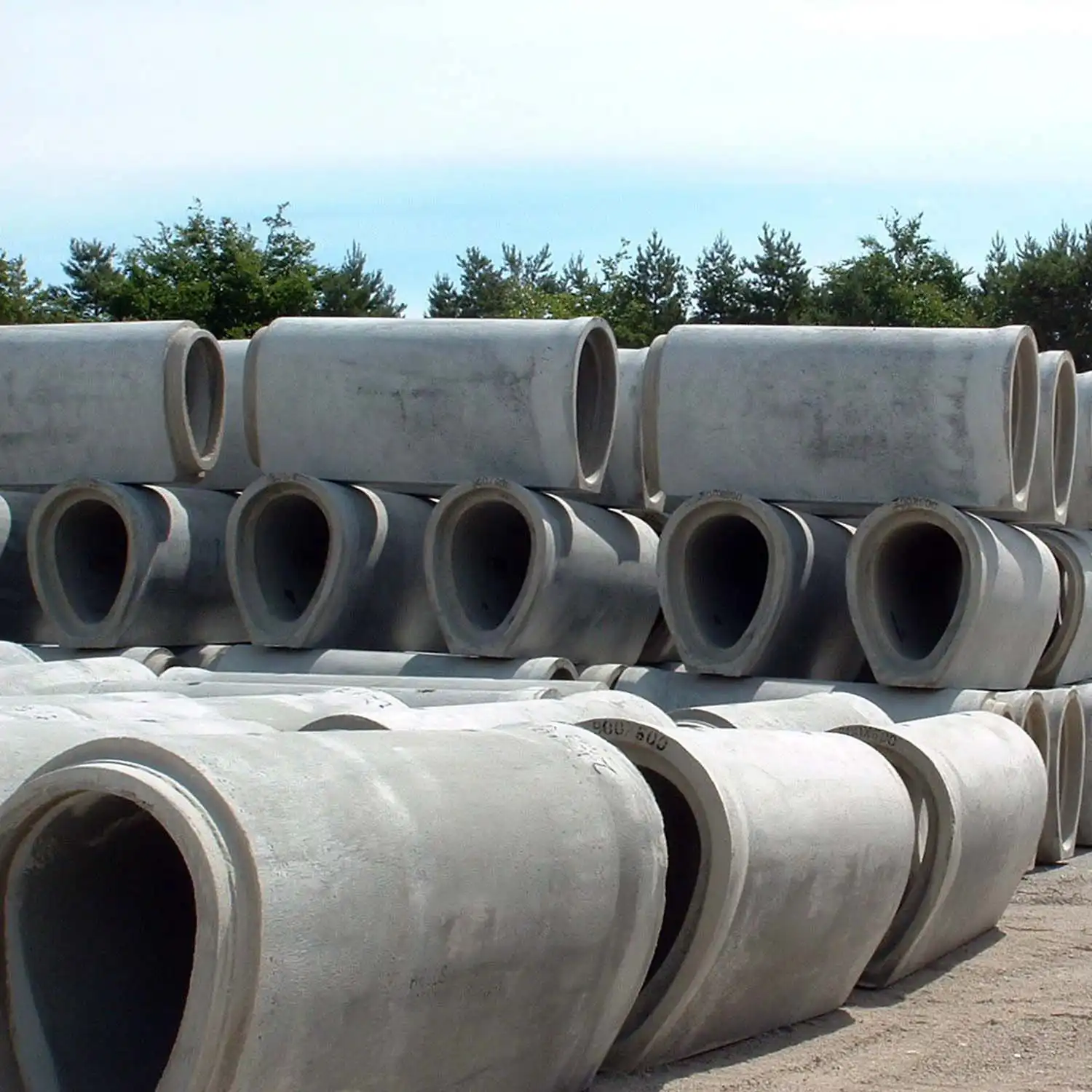

- The Pneumatic/Inflatable Egg Shape Pipe Stoppers are available in different sizes for a perfect blocking and sealing of special pipes with different requirements of shape like egg-shaped, ovoid or oval profiles of sewers, drainage systems, pipelines, and gullies.
- Egg Shape Pipe Stoppers are the same as conventional inflatable stoppers, they are fastened tightly to the diameter of egg-shaped pipes.
- They are applied to block or restrict the flow in order to keep egg-shaped ovoid or oval-shaped pipes dry while repair, fixing accidental issues, rehabilitation or construction takes place.
- They are also used to block the pipe at the other end for leak locating by testing with air or water, available for pipe diameters from 200 mm (7,87") to 1500 mm (59,05").
- Specified as standard working pressure1,5 Bar (21,75 psi).
| Product Code | Nominal Size(mm) | Product Diameter(mm/inch) | Max. Working Pressure (bar/psi) | Back Pressure(bar/psi) | Total Length of Product (mm/inch) | Product Weight (kg/lbs) | |
|---|---|---|---|---|---|---|---|
|
remove
add
|
ESPS250375 | 250-375 | 180x265mm/7,09x10,43" | 1,5bar/1,76psi | 0,5bar/7,25psi | 600mm/23,62" | 9,0kg/19,84lbs |
|
remove
add
|
ESPS350525 | 350-525 | 280x415mm/11,02x16,34" | 1,5bar/21,76psi | 0,5bar/7,25psi | 650mm/25,59" | 15,0kg/33,07lbs |
|
remove
add
|
ESPS500750 | 500-750 | 380x565mm/14,96x22,24" | 1,5bar/21,76psi | 0,5bar/7,25psi | 750mm/29,53" | 20,0kg/44,09lbs |
|
remove
add
|
ESPS600900 | 600-900 | 480x715mm/18,90x28,15" | 1,0bar/14,5psi | 0,5bar/7,25psi | 1300mm/51,18" | 32,0kg/70,55lbs |
|
remove
add
|
ESPS7001050 | 700-1050 | 580x865mm/22,83x34,06" | 1,0bar/14,5psi | 0,5bar/7,25psi | 1300mm/51,18" | 38,0kg/83,78lbs |
|
remove
add
|
ESPS8001200 | 800-1200 | 680x850mm/26,77x33,46" | 1,0bar/14,5psi | 0,5bar/7,25psi | 1600mm/62,99" | 42,0kg/92,59lbs |
|
remove
add
|
ESPS9001350 | 900-1350 | 780x1165mm/30,71x45,87" | 1,0bar/14,5psi | 0,5bar/7,25psi | 2000mm/78,74" | 55,0kg/121,25lbs |
|
remove
add
|
ESPS10001500 | 1000-1500 | 880x1315mm/34,65x51,77" | 0,8bar/11,6psi | 0,5bar/7,25psi | 2500mm/98,43" | 85,0kg/187,39lbs |
|
remove
add
|
ESPS12001800 | 1200-1800 | 1080x1618mm/42,52x63,70" | 0,8bar/11,6psi | 0,5bar/7,25psi | 2800mm/110,24" | 120,0kg/264,55lbs |
